6

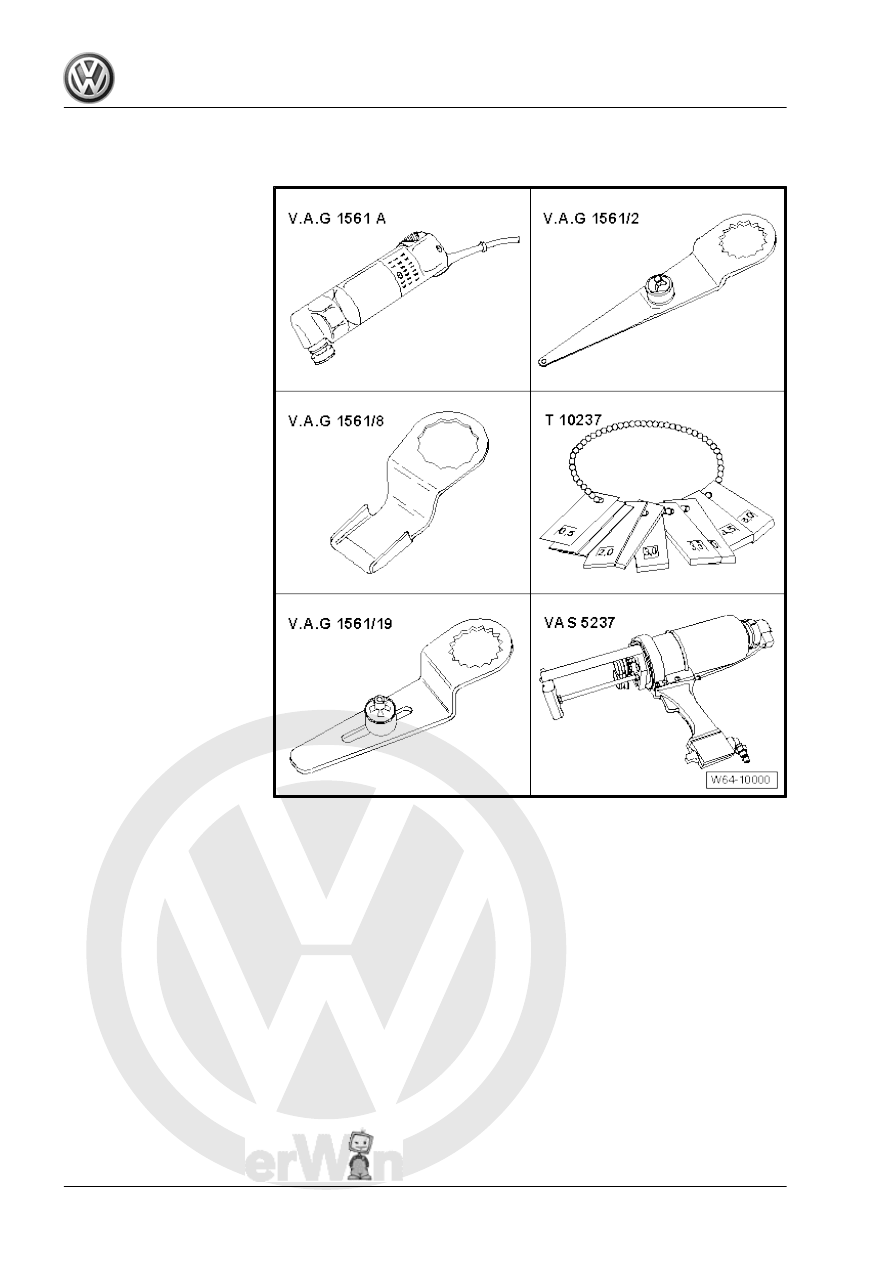

Special Tools

♦ Window Cutter -

VAG1561A-

♦ Window Cutter - Offset

Blade (2 pc.) - VAG1561/2-

♦ Window Cutter - Scraper -

VAG1561/8-

♦ Gauge - Gap Adjustment -

3371-

♦ Window Cutter - Blade (2

pc.) - VAG1561/19-

♦ Double Cartridge Gun -

VAS5237-

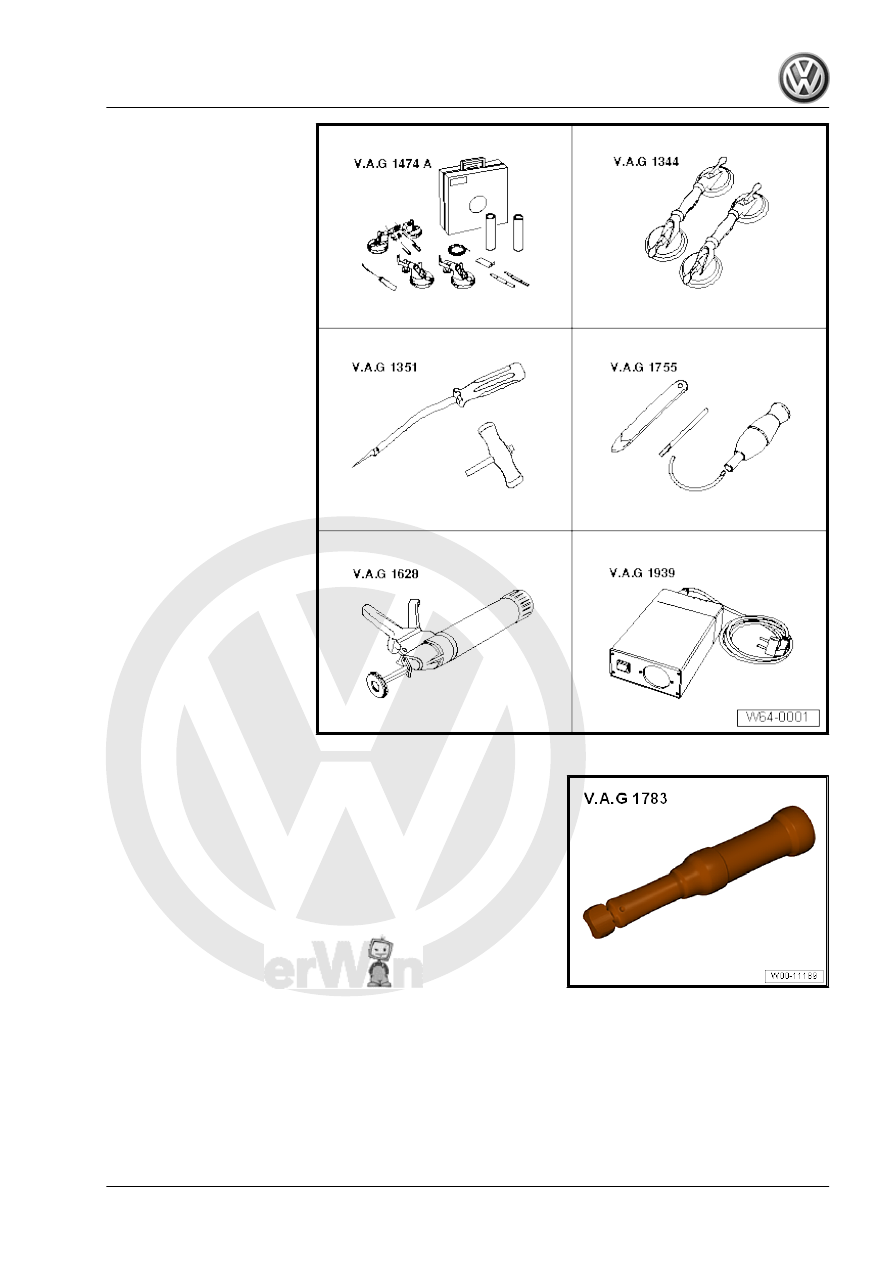

Special tools and workshop

equipment required
♦ Flush Bonded Window Kit -

VAG1474B- / Cutting Tool

for Bonded Windows -

VAS6452- / Window Re‐

moval Set - VAS6888-

♦ Double Suction Lifter -

VAG1344-

♦ Bonded Window Tool Kit -

VAG1351-

♦ Window Removing Kit -

VAG1755-

♦ Cartridge Gun - VAG1628 -
♦ Cartridge Heater -

VAG1939-

♦ Torque Wrench 1783 - 2-10Nm - VAG1783-

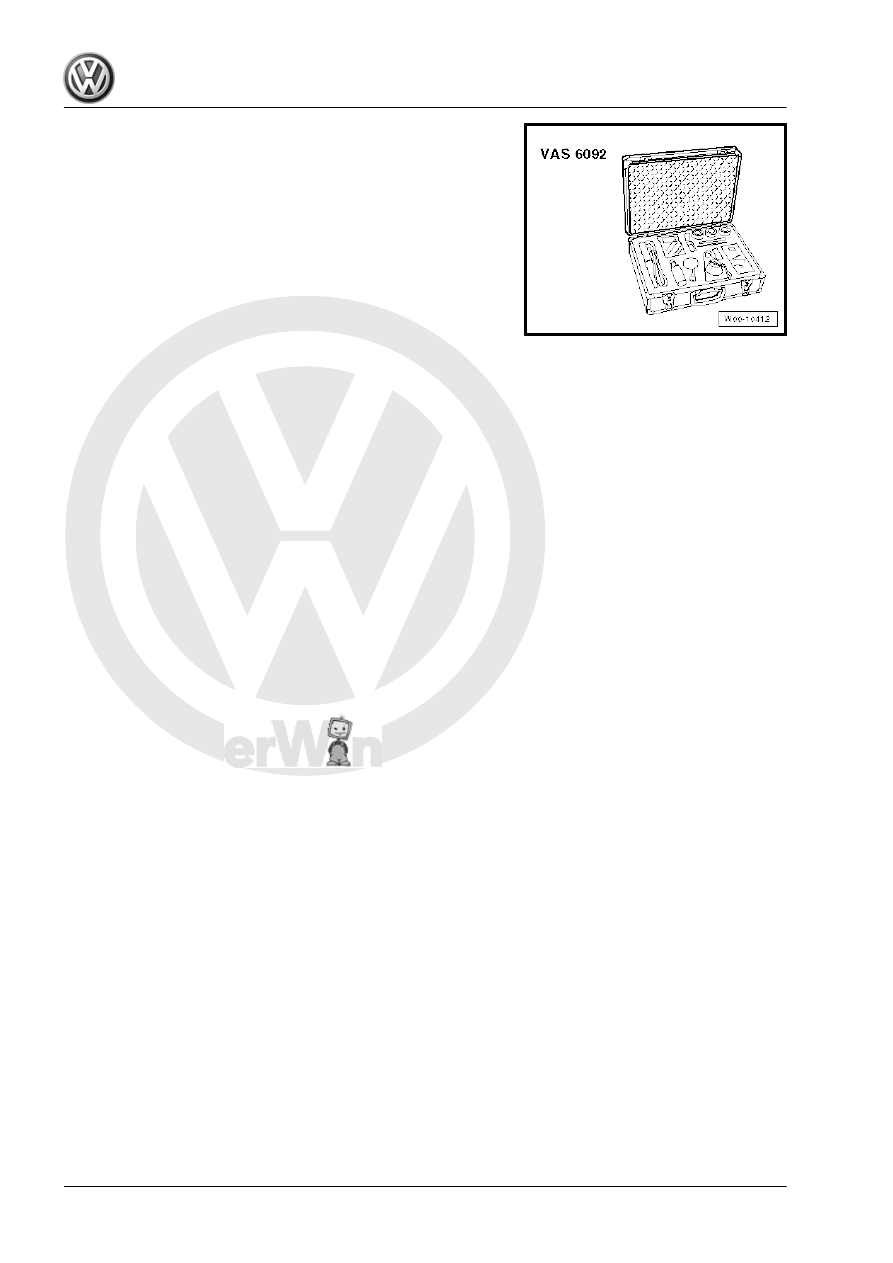

♦ Windscreen Repair Set - VAS6092-

66 – Exterior Equipment

1

Radiator Grille/Front Trim

⇒ “1.1 Overview - Radiator Grille”, page 395
⇒ “1.2 Radiator Grille, Removing and Installing”, page 396

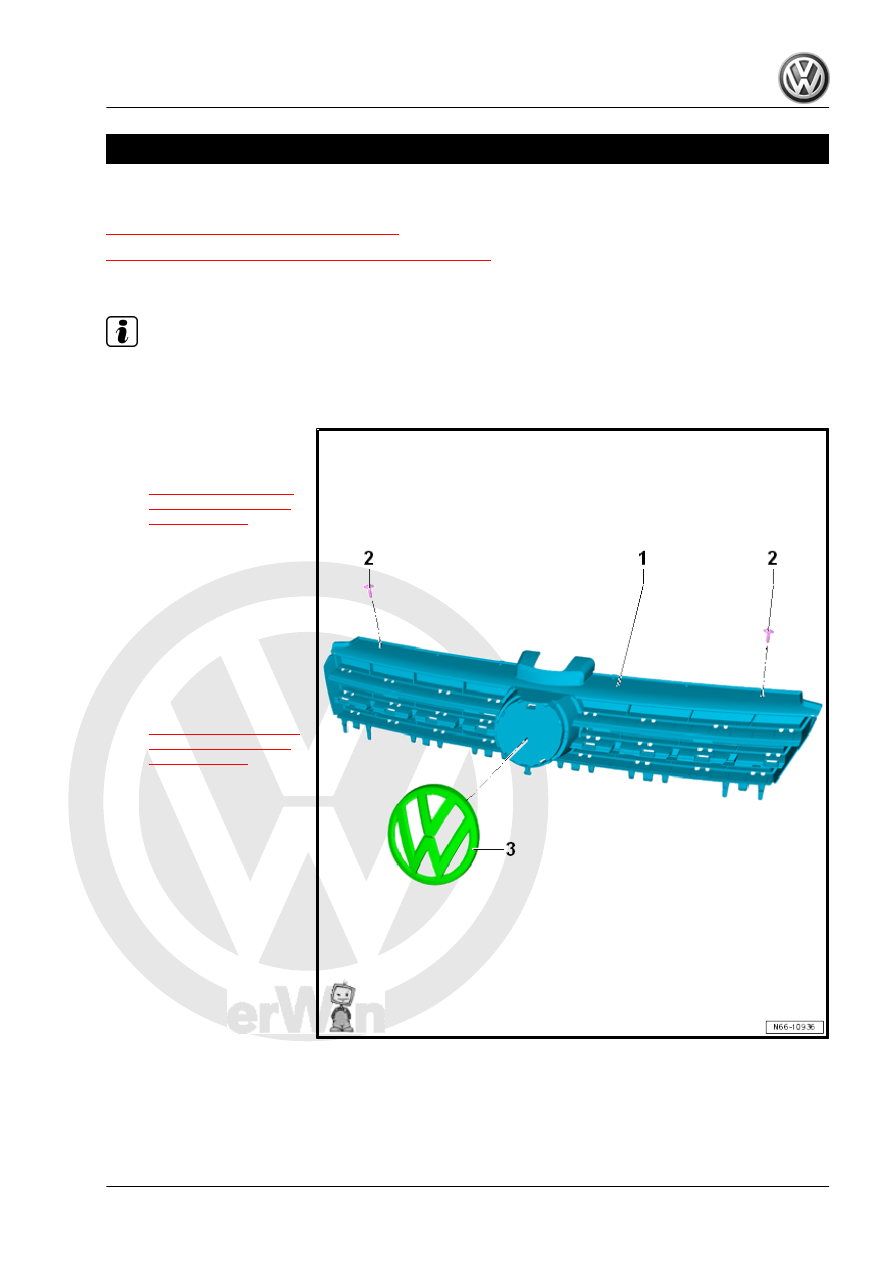

1.1

Overview - Radiator Grille

Note

Depending on the model, there are only visual differences and different versions. For allocation. Refer to the

Parts Catalog.

1 - Radiator Grille

❑ Removing and instal‐

ling. Refer to

⇒ “1.2 Radiator Grille,

Removing and Instal‐

ling”, page 396

 .

❑ There are different ver‐

sions. Refer to the Parts

Catalog for the alloca‐

tion.

2 - Bolt

❑ 2 Nm
❑ Quantity: 2

3 - Emblem

❑ Removing and instal‐

ling. Refer to

⇒ “9.3 Front Emblems,

Removing and Instal‐

ling”, page 454

 .
