Volkswagen Golf / Golf GTI / Golf Variant. Manual - part 313

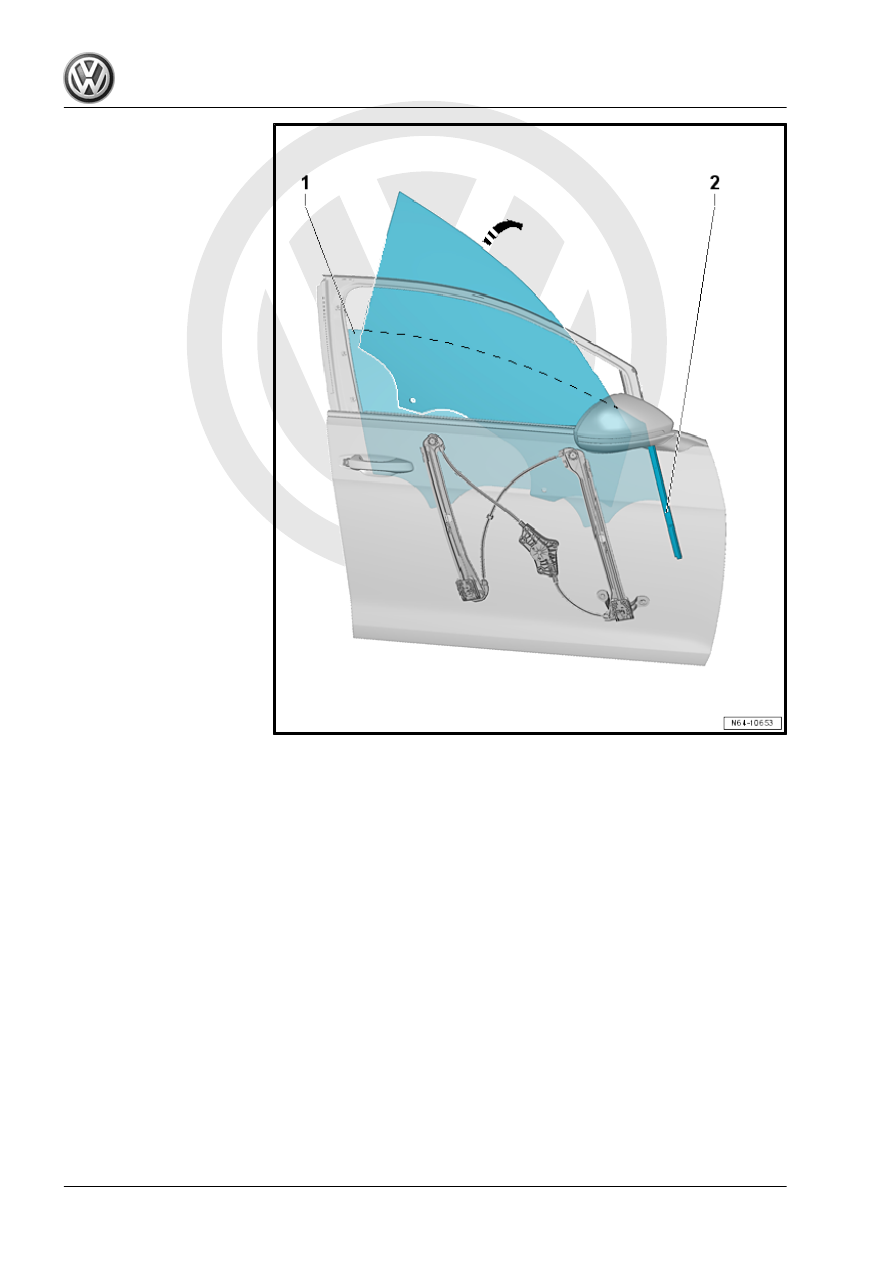

– Lift the door window -1- at the rear and pivot it forward out of

the window guides in direction of -2- -arrow-.

Installing

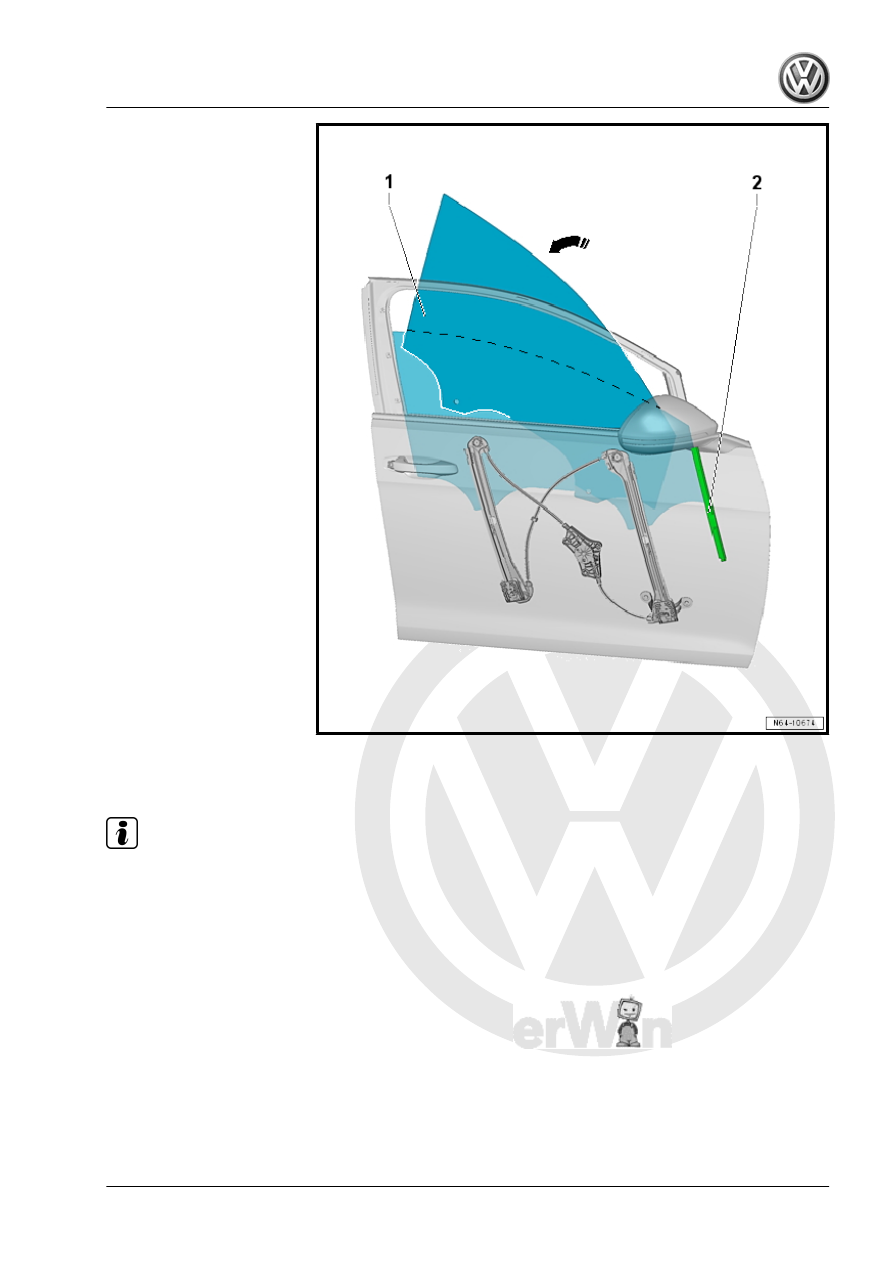

– Pivot the door window -1- into the window guides -2- in direc‐

tion of -arrow-.

Note

Make sure that the door window is inserted correctly in the window guide.

– Without using any pressure, guide the door window into the

window regulator clamping brackets.

– Align the door window to the rear window frame.
– Push the door window -1- into the clamping brackets until the

hooks -7- in the door window lock.

Installation is performed in reverse order of the removal.

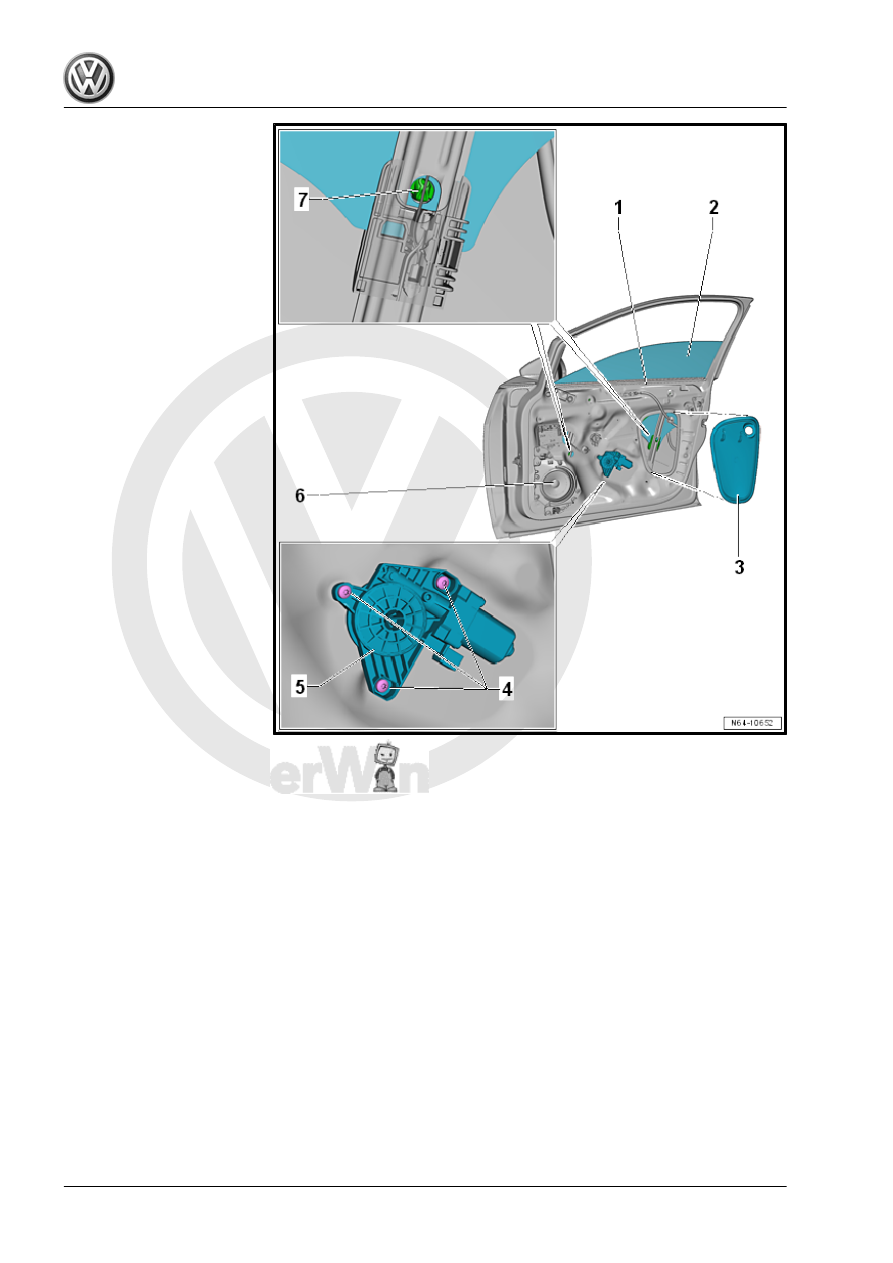

– Check the function before installing the door inner cover -3-,

cable bushing -6-, and the door trim panel.

5.5

Rear Door Window, Removing and Installing

Removing

– Remove the rear door trim panel. Refer to ⇒ Body Interior;

Rep. Gr. 70 ; Rear Door Trim Panels; Rear Door Trim Panel,

Removing and Installing .

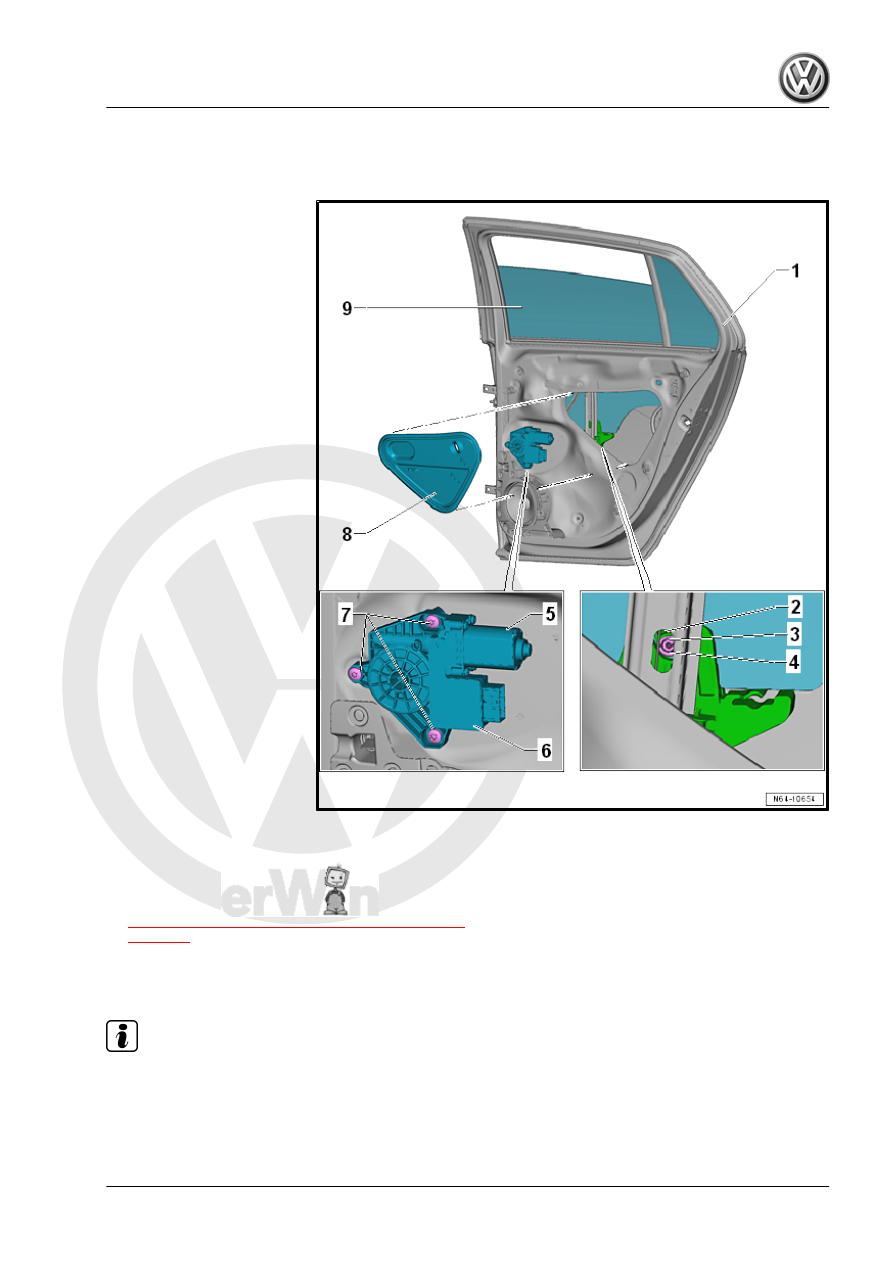

– Remove the door inner cover -8-. Refer to

– Lower the door window -9- just enough until the expanding pin

-3- and the spreader plug -4- are accessible in the opening for

the window regulator -2-.

Note

If the step is not possible due to a malfunction in the power window regulator, the window regulator motor -5-

is removed -7-. Then the door window can be moved to the necessary position.

– Screw a 5 mm screw (approximately 70 mm long) into the ex‐

panding pin -3- and remove the screw with the expanding pin

from the spreader plug -4-.
