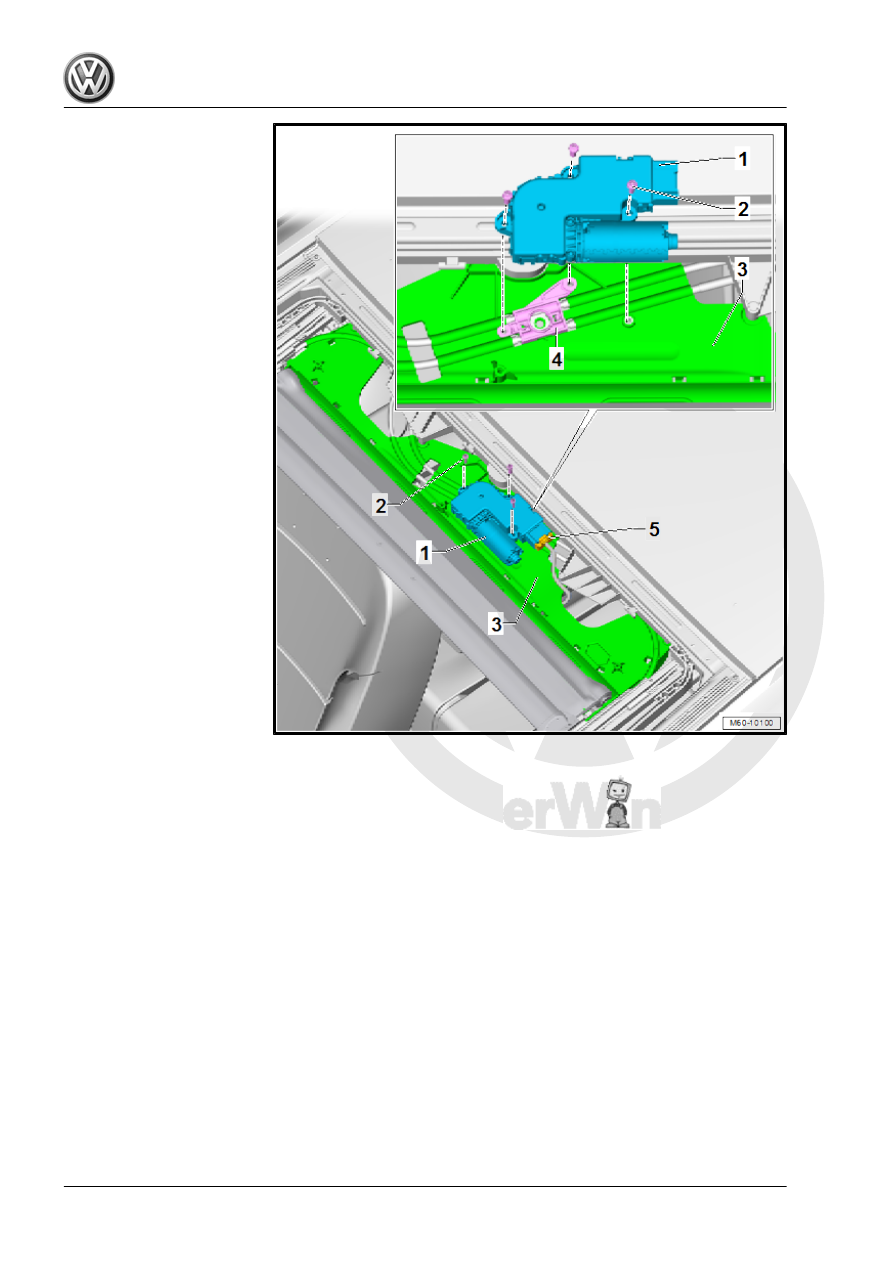

– Connect the connector -5- to the drive motor -1-.
– Check that the mount is seated correctly -4- in the slotted guide

rail guide -3-.

– Install the drive motor -1- and tighten the bolts -2-.
– After installing, the key can be reinserted into the lock cylinder

of the ignition/starter switch.

– Then perform a function test.

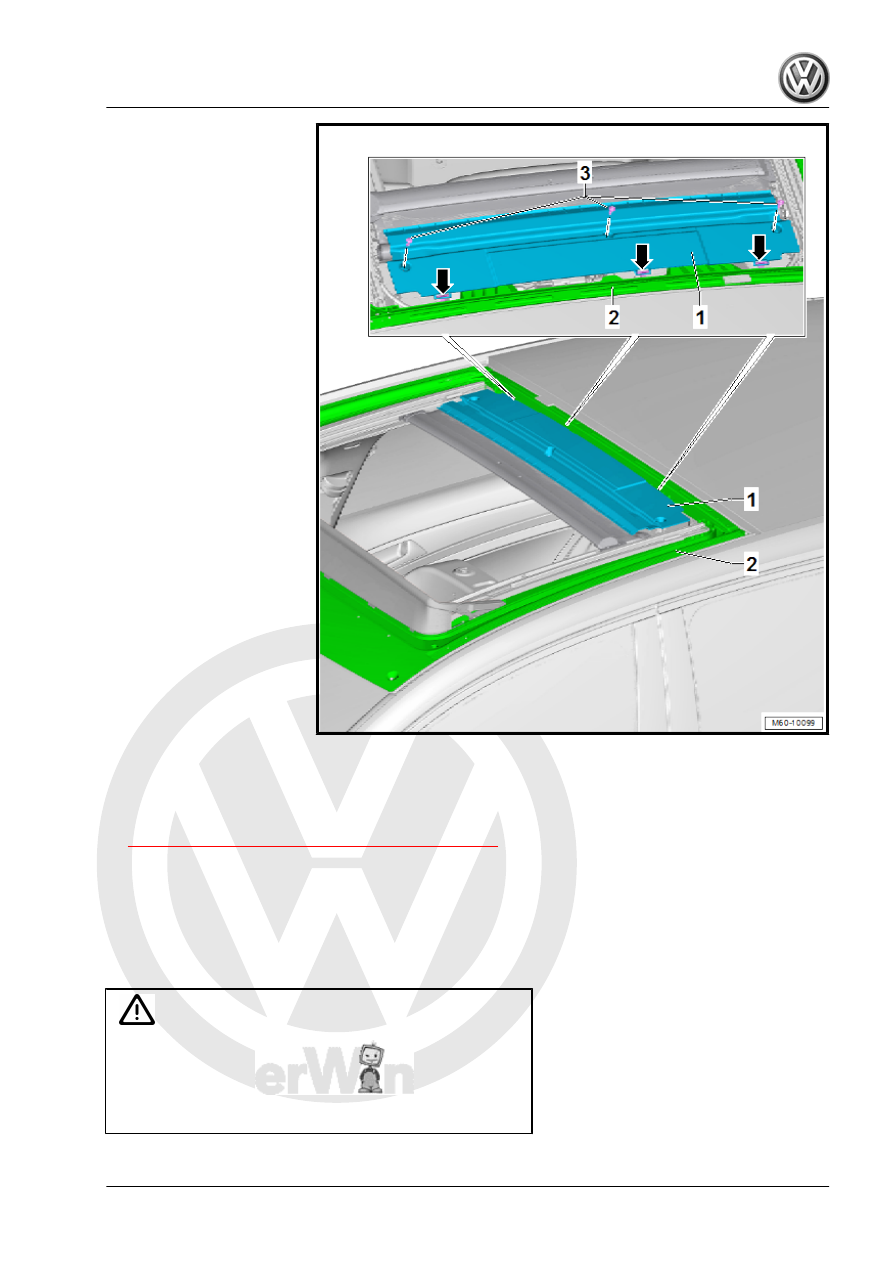

– Install the cover -1-.
– Tighten the bolts -3-.
– Install the glass panel. Refer to

⇒ “1.6 Glass Panel, Removing and Installing”, page 223

 .

Tightening Specifications

1.13.3

Power Sunroof Control Module - J245- ,

Removing and Installing, Wagon

Special tools and workshop equipment required
♦ Torque Wrench 1783 - 2-10Nm - VAG1783-

WARNING

Only  remove  and  install  the  Panorama  sunroof  glass  panel

drive motor when the roof is closed (neutral position).
Requirements for removing and installing the drive motor: the

engine and the ignition must be off, remove the key and open

the door.

Removing

– Remove the front light and control unit. Refer to ⇒  Electrical

Equipment; Rep. Gr.  96 ; Lamps; Component Location Over‐

view - Roof Trim Panel Lamps .

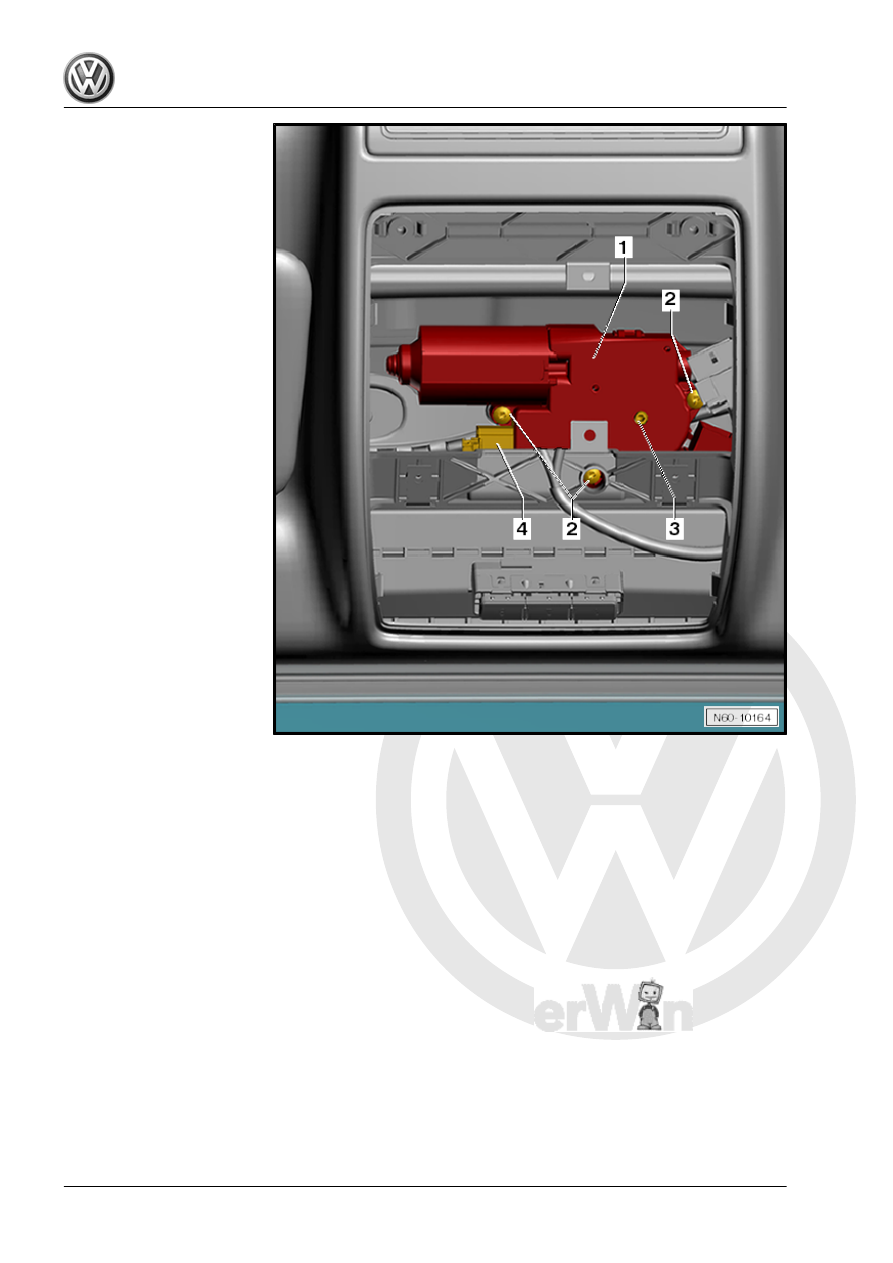

– Remove the bolts -3-.
– Lower the sunroof motor -1- slightly and tilt it out toward the

back.

– Disconnect the connector -4-.
Installing

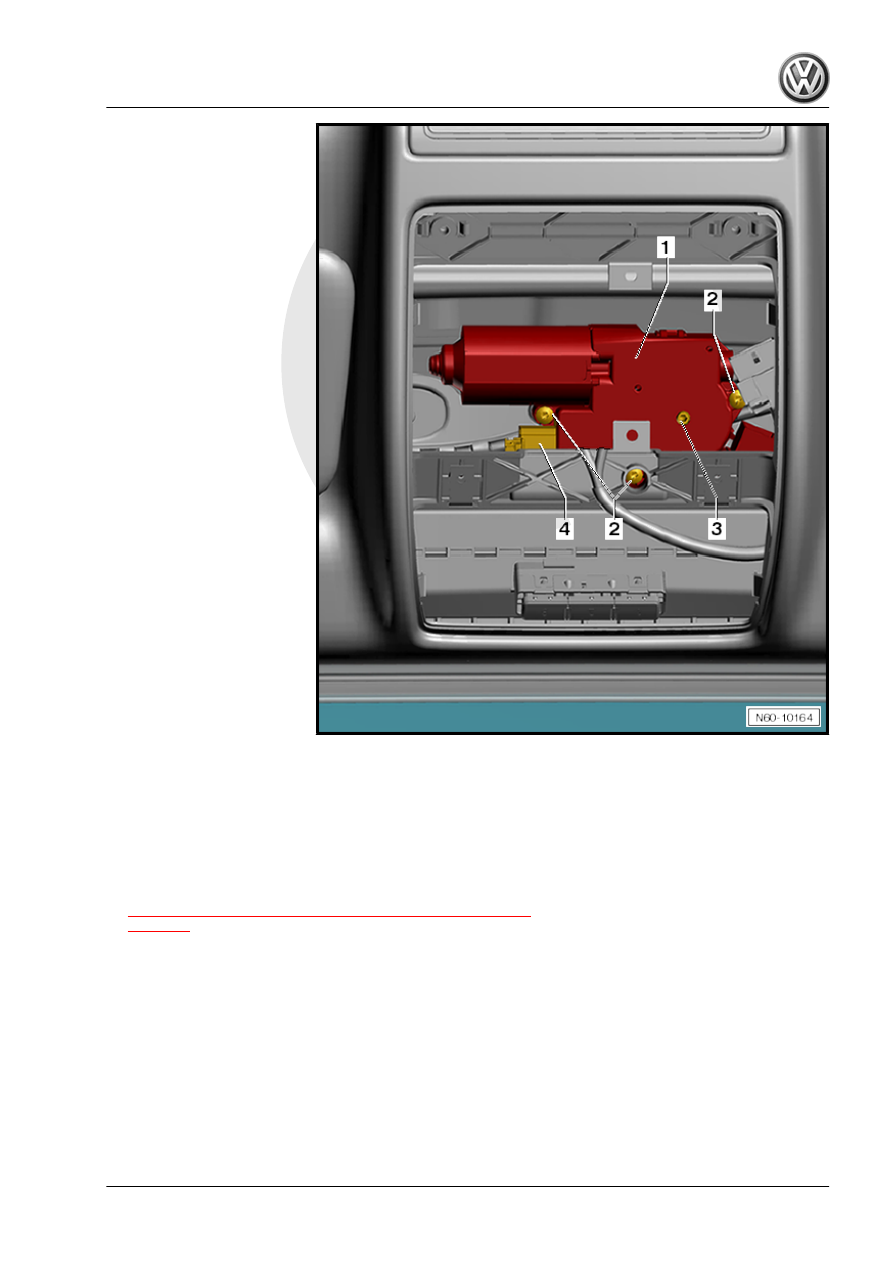

– Install the sunroof motor -1- and tighten the bolts -2-.
– Install the connector -4-.
– Remove the front light and control unit. Refer to ⇒  Electrical

Equipment; Rep. Gr.  96 ; Lamps; Component Location Over‐

view - Roof Trim Panel Lamps .

– After completing all work steps, perform an adaptation on the

sunroof motor. Refer to

⇒ “1.17  Power Sunroof Control Module J245 , Programming”,

page 297

 .
