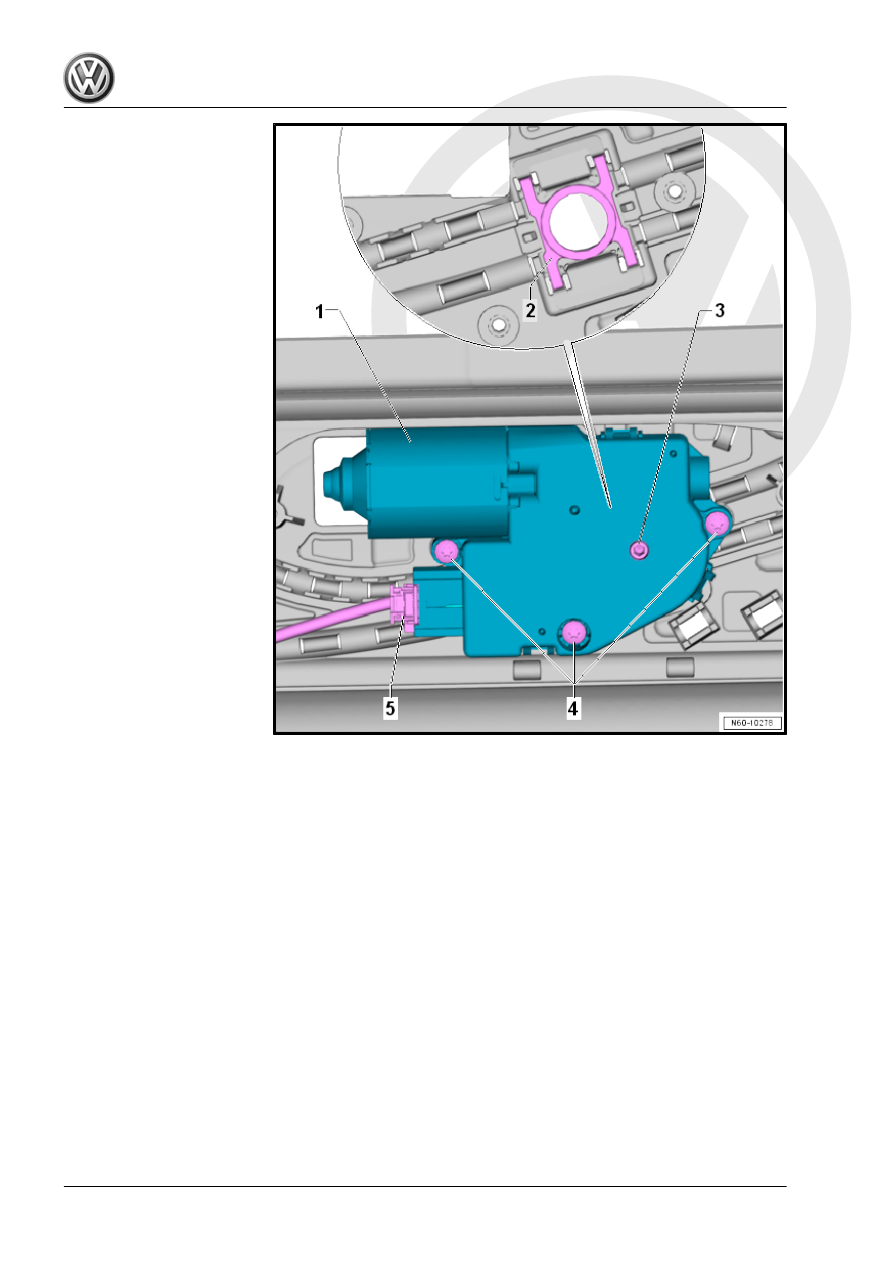

– Make sure that the clip -2- is in the correct position.
– Install the drive motor -1- and tighten the screws -4-.
– After installing, the key can be reinserted into the lock cylinder

of the ignition/starter switch.

– Then perform function test.
– Push the cover -1- on the sunroof frame.

– Tighten the screws -2-.
– Apply the self-adhesive insulation -3-.
– Install the glass panel. Refer to

⇒ “1.6 Glass Panel, Removing and Installing”, page 223

 .

Tightening Specifications

1.13.2

Power Sunroof Control Module - J245- ,

Removing and Installing, Sedan from

03/2015

Special tools and workshop equipment required
♦ Torque Wrench 1783 - 2-10Nm - VAG1783-

Caution

A visual inspection when the sliding sunroof is open on the

vehicle is essential to order the correct replacement part. Refer

to

⇒ “1.1 Characteristics - Sliding Sunroof, Sedan”, page 193

Removing

– Remove the glass panel. Refer to

⇒ “1.6 Glass Panel, Removing and Installing”, page 223

 .

– Remove the bolts -3- for the cover -1-.
– Lift up the cover -1- and remove it from the slotted guide rail

guide mounting points -2- at the rear -arrows-.

WARNING

Only  remove  and  install  the  Panorama  tilting  sunroof  glass

panel drive motor when the roof is closed (neutral position).
Requirements for removing and installing the drive motor: the

engine and the ignition must be off, remove the key and open

the door.

– Turn the engine and ignition off, remove the key and open the

door.

– Remove the bolts -2- and remove the Panorama roof tilting

sunroof drive motor -1- from the mount -4-.

– Disconnect the connector -5- for the drive motor.
Installing

Note

The bolts for the drive motor are micro-encapsulated and must always be replaced.
