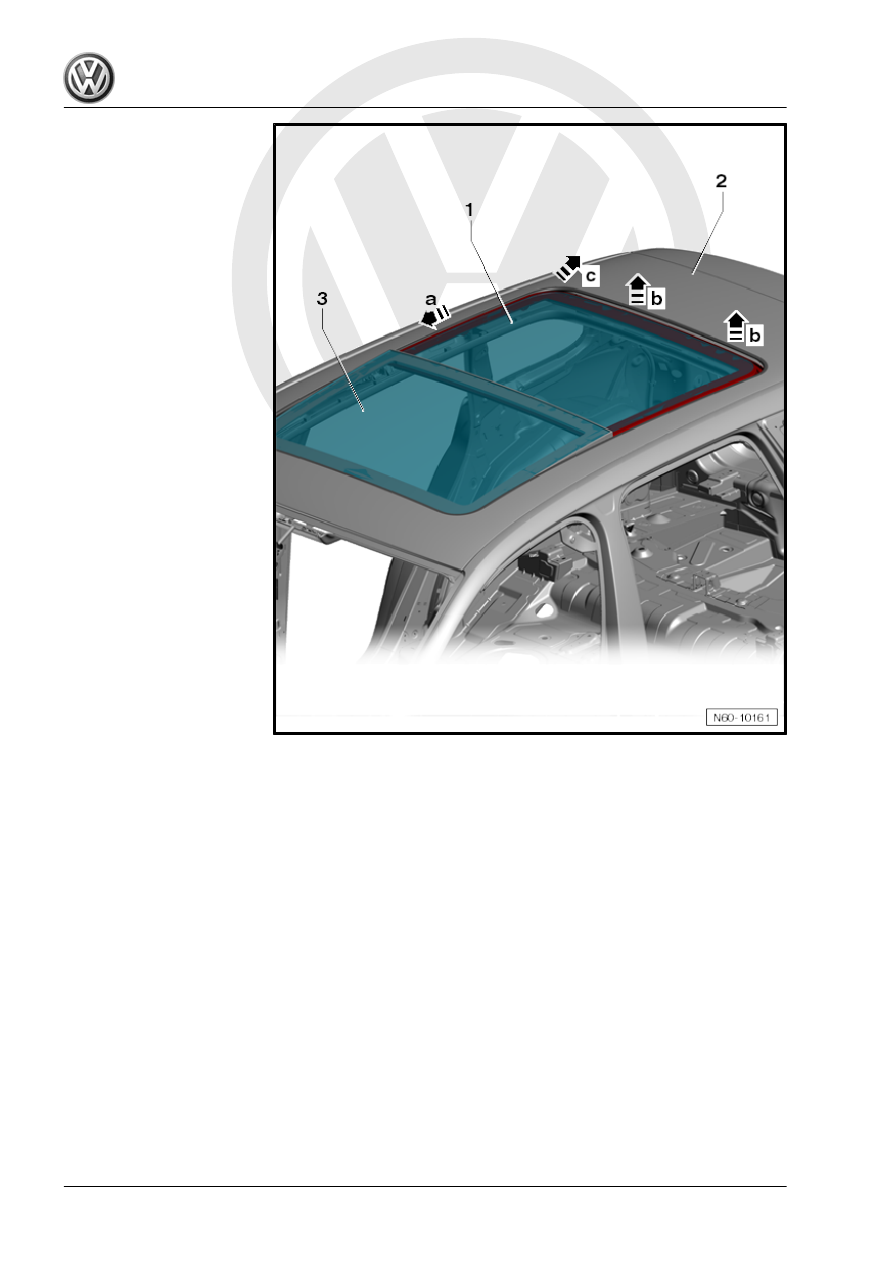

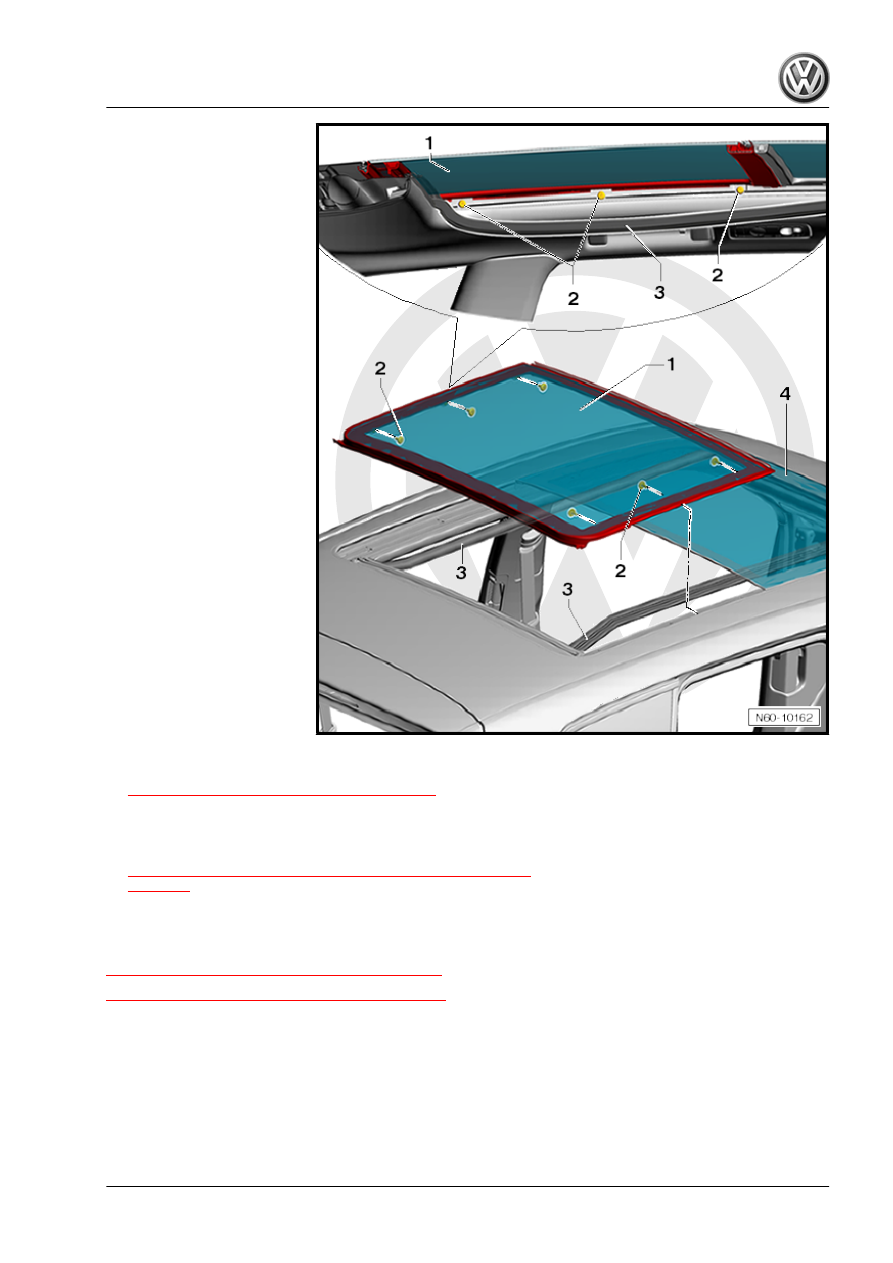

– Install the rear glass panel -1- downward in the rear region into

the roof opening -2- and slide it back.

– Install but do not tighten the bolts -2-.

– Adjust the rear glass panel -1-. Refer to

⇒ “1.9 Rear Glass Panel, Adjusting”, page 244

– After the rear glass panel is adjusted, tighten the screws.
– After completing all work, perform an adaptation of the sunroof

motor. Refer to

⇒ “1.17 Power Sunroof Control Module J245 , Programming”,

page 297

Tightening Specifications

1.8

Glass Panel, Adjusting

⇒ “1.8.1 Glass Panel, Adjusting, Sedan”, page 241
⇒ “1.8.2 Glass Panel, Adjusting, Wagon”, page 243

1.8.1

Glass Panel, Adjusting, Sedan

Special tools and workshop equipment required
♦ Torque Wrench 1783 - 2-10Nm - VAG1783-
Glass Panel Height Adjustment

– Loosen the bolts for the glass panel.
– Move the glass panel for the Panorama sunroof into the “open”

position.

– Move the glass panel for the Panorama sunroof into the

“closed” position.

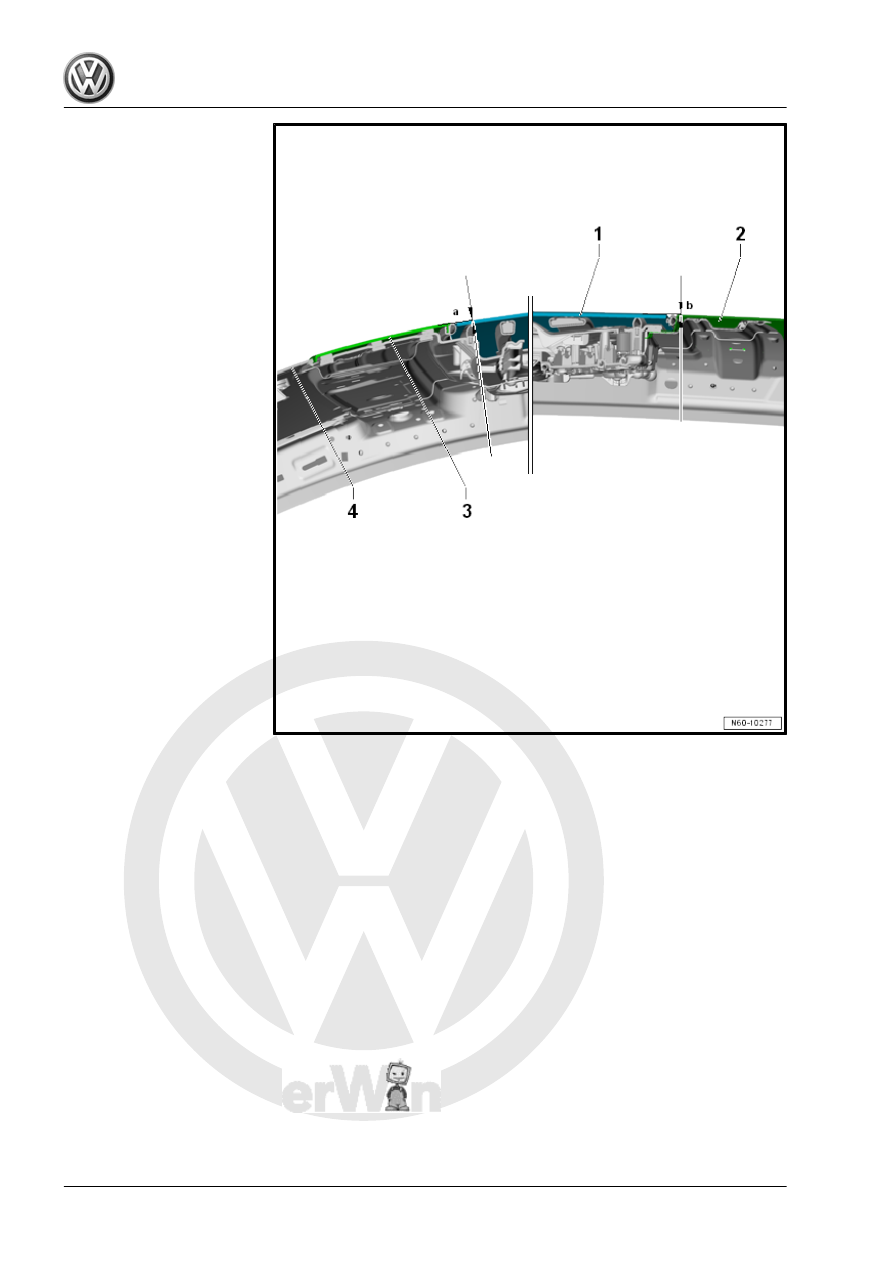

– Adjust the glass panel height at the front and rear on both sides

as follows:

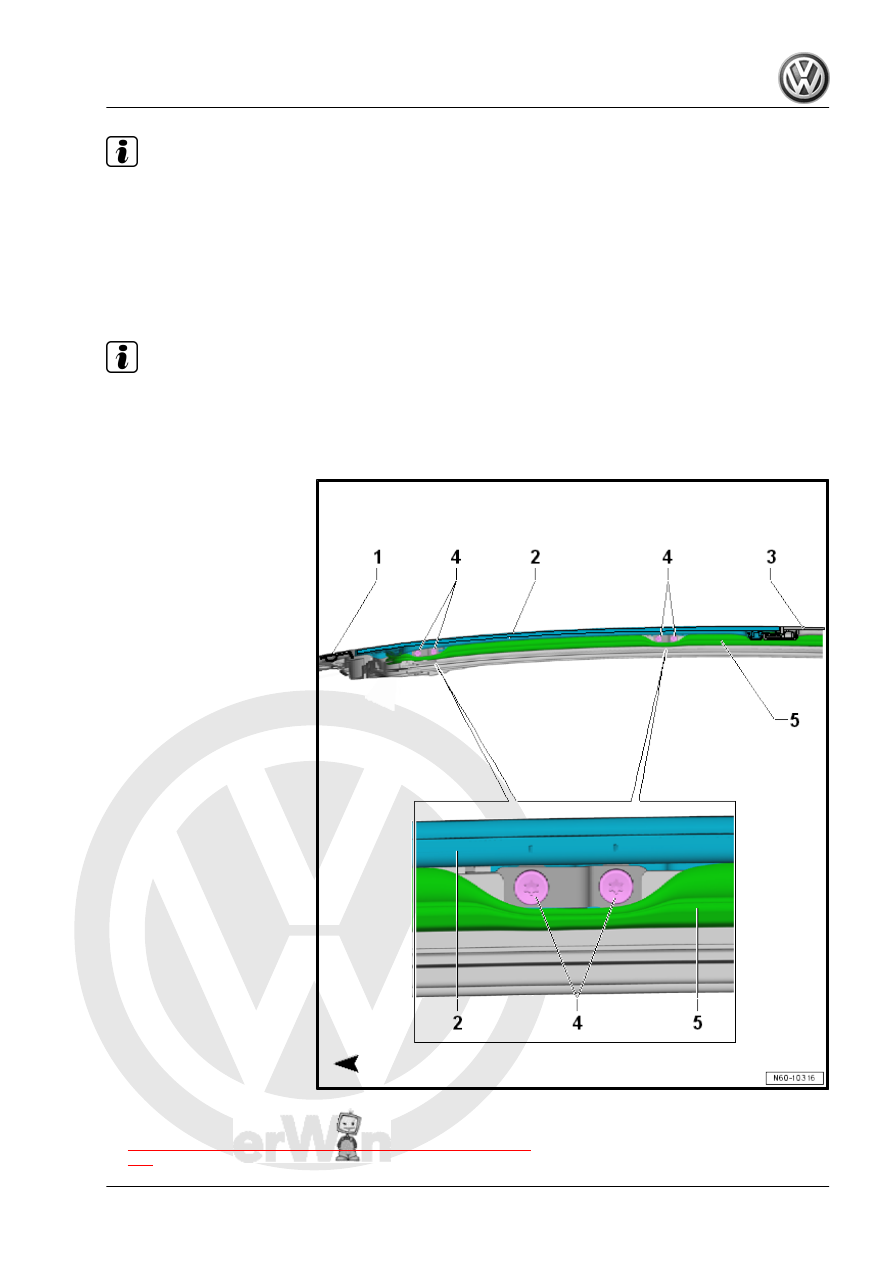

Front Panel Adjustment:
-Dimension a- = 1 mm lower than the front trim -3-.
– Push the inner seal aside.
– Tighten the front bolts.
Rear Panel Adjustment:
Dimension -b- = 1 mm higher than the roof contour -2-
– Tighten the center bolts.
– Open the panel and tighten the rear bolts.
