Volkswagen Golf / Golf GTI / Golf Variant. Manual - part 276

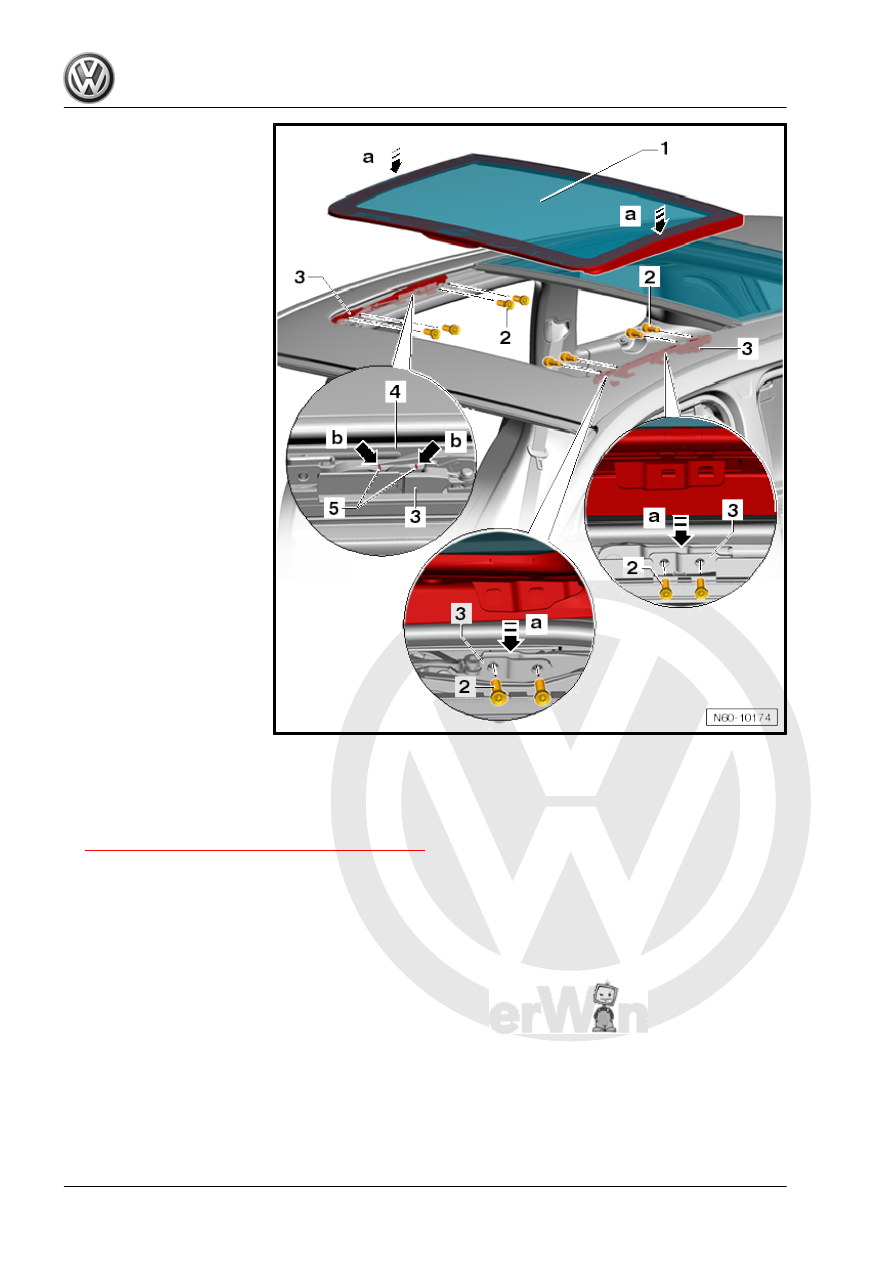

– Insert the glass panel -1- from above in direction of

-a arrows- into the tilting mechanism -3-. Insert the screws

-2- but do not tighten.

– Adjust the front glass panel. Refer to

– Tighten the screws -2-.
– Install the trim -2- on the glass panel -1- and slide onto the

fasteners.

– After completing all work, perform an adaptation of the sunroof

motor. Refer to

Tightening Specifications
♦ Refer to

1.7

Rear Sunroof Panel, Removing and In‐

stalling

Special tools and workshop equipment required
♦ Torque Wrench 1783 - 2-10Nm - VAG1783-
Removing

Note

When unscrewing the screws, use a magnetic tool so that the screws cannot fall into the panorama sunroof

guide.

– Remove the seal -3- from the assembly frame.

– Remove the left and right screws -2- from the glass panel

-1-.

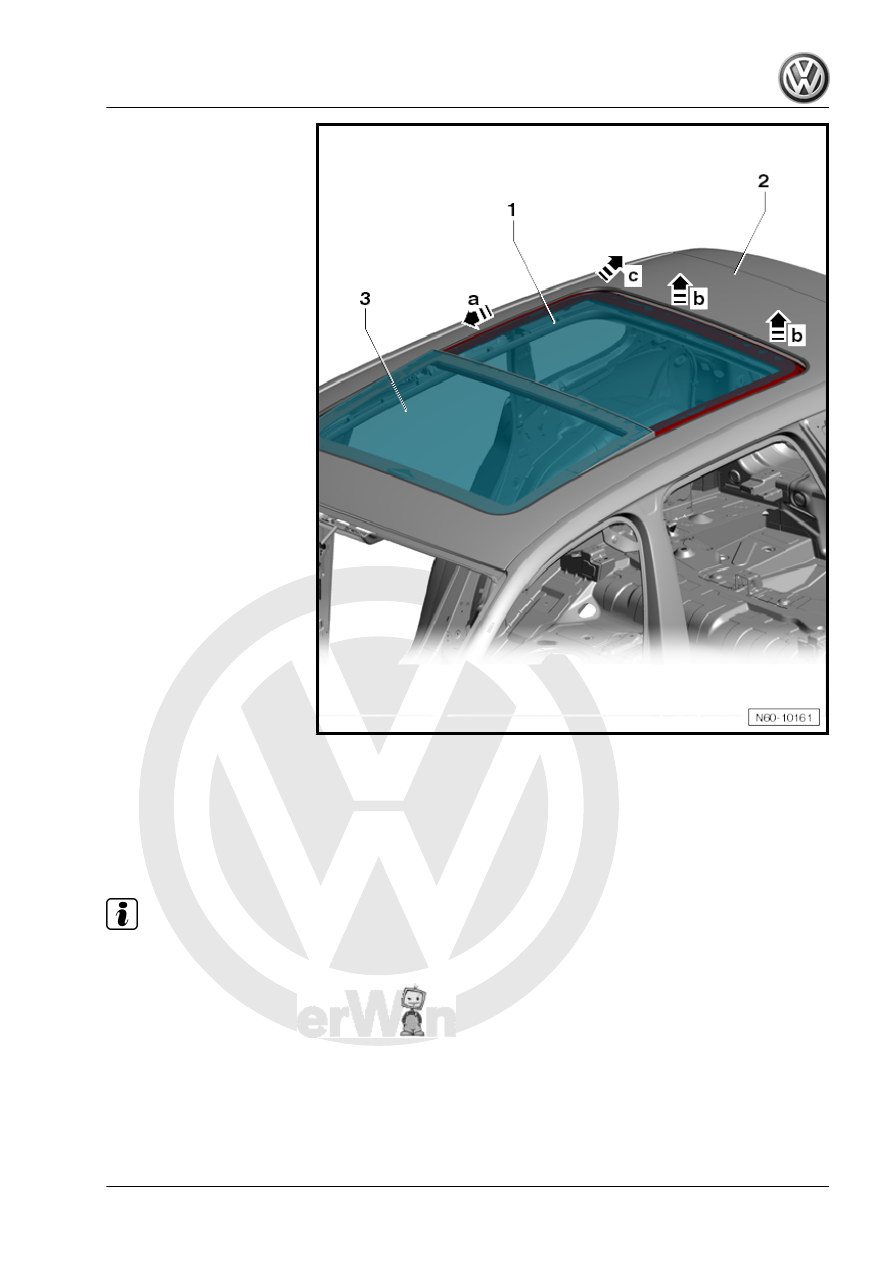

– Slide the rear glass panel -1- slightly under the front glass

panel -3- in direction of -arrow a-.

– Lift the rear glass panel -1- only in the rear area off of the roof

opening -2- in direction of -arrows b-.

– Guide the rear glass panel -1- up at an angle in direction of

-arrow c- over the roof -2- and pull out from under the front

glass panel -3-.

Installing

Note

♦

New screws are always to be used when installing the glass panel.

♦

When installing the screws, use a magnetic tool so that the screws cannot fall into the panorama sliding

sunroof guide.

Install in reverse order of removal.

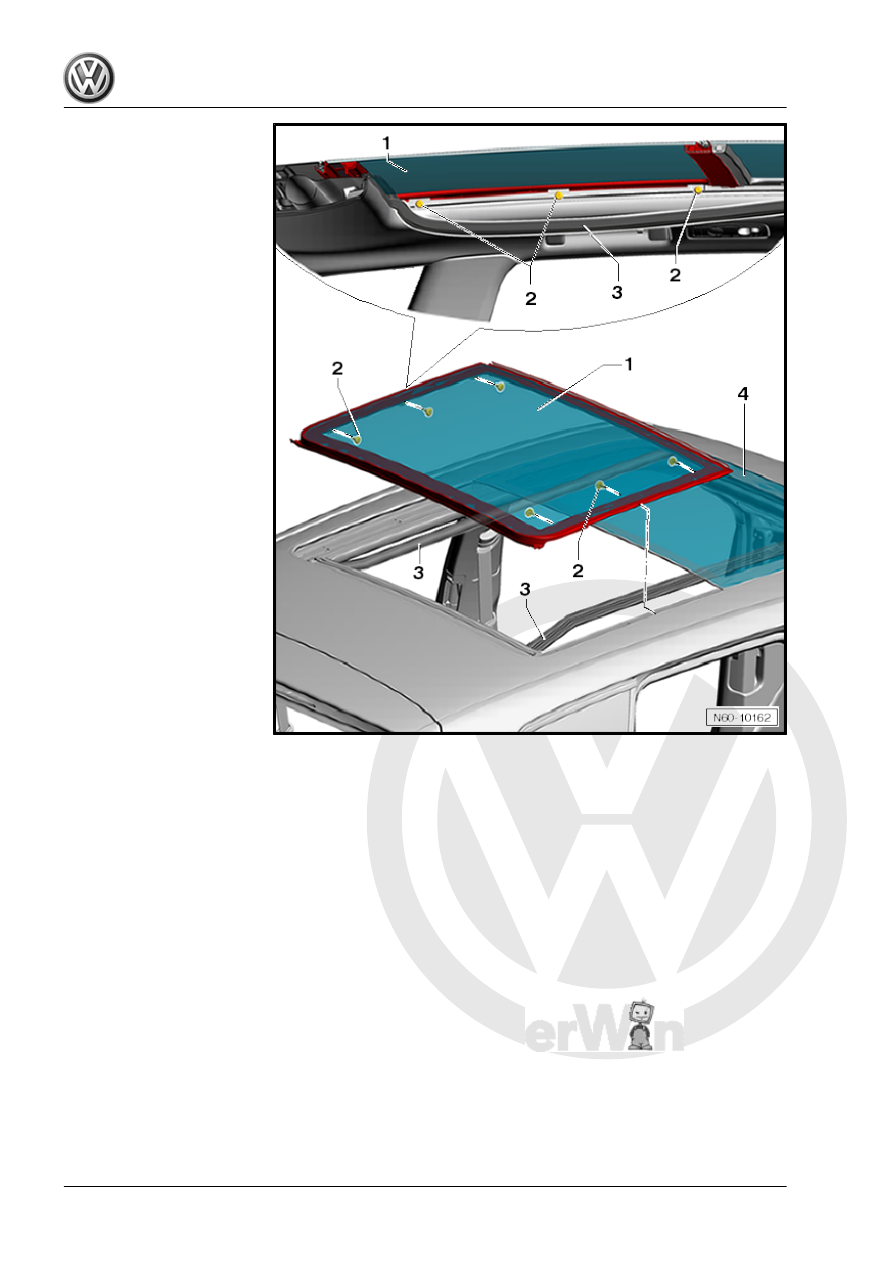

– Insert the rear glass panel -1- from above at an angle under

the front sunroof panel -3-.
