Removing

– Remove the inner window shaft strip. Refer to

⇒ “2.16 Inner Window Shaft Strip, Removing and Installing”,

page 187

 .

– Remove the outer window shaft strip. Refer to

⇒ “2.15 Outer Window Shaft Strip, Removing and Installing”,

page 186

 .

– Remove the rear door window. Refer to

⇒ “5.5 Rear Door Window, Removing and Installing”,

page 387

 .

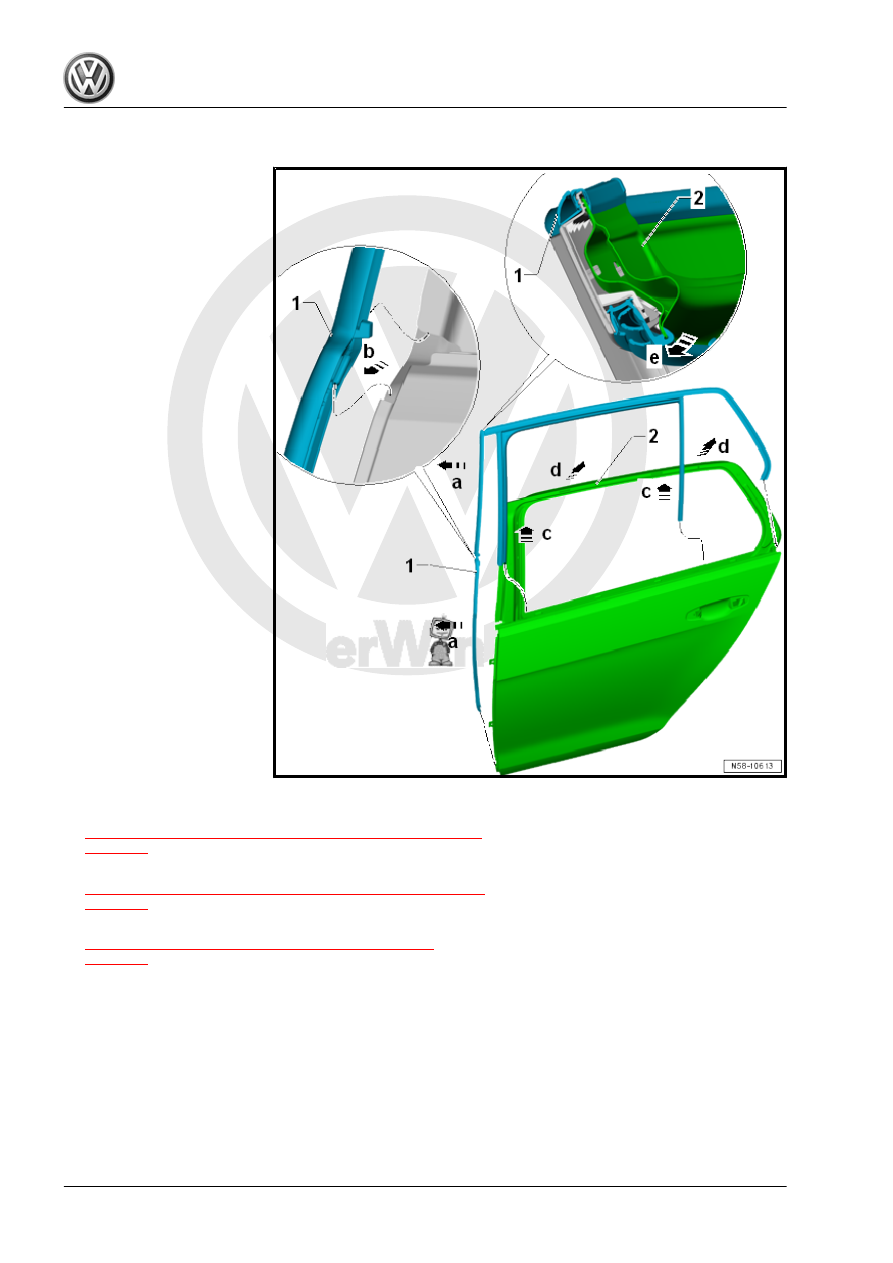

– Roll the sealing lip on the window guide -1- off of the door

flange -2- from the inside in direction of -arrow e-.

– Remove the window guide -1- from the door mounts in direc‐

tion of -c arrows-.

– Remove the window guide from the front sheet metal flange

in direction of -a arrows- and pull it out of the retainer in direc‐

tion of -arrow b- in the transition area.

– Remove the window guide -1- evenly all around in direction of

-d arrows- from the door flange -2-.

Installing

– Spray the window guide with soapy water to make it easier to

install.

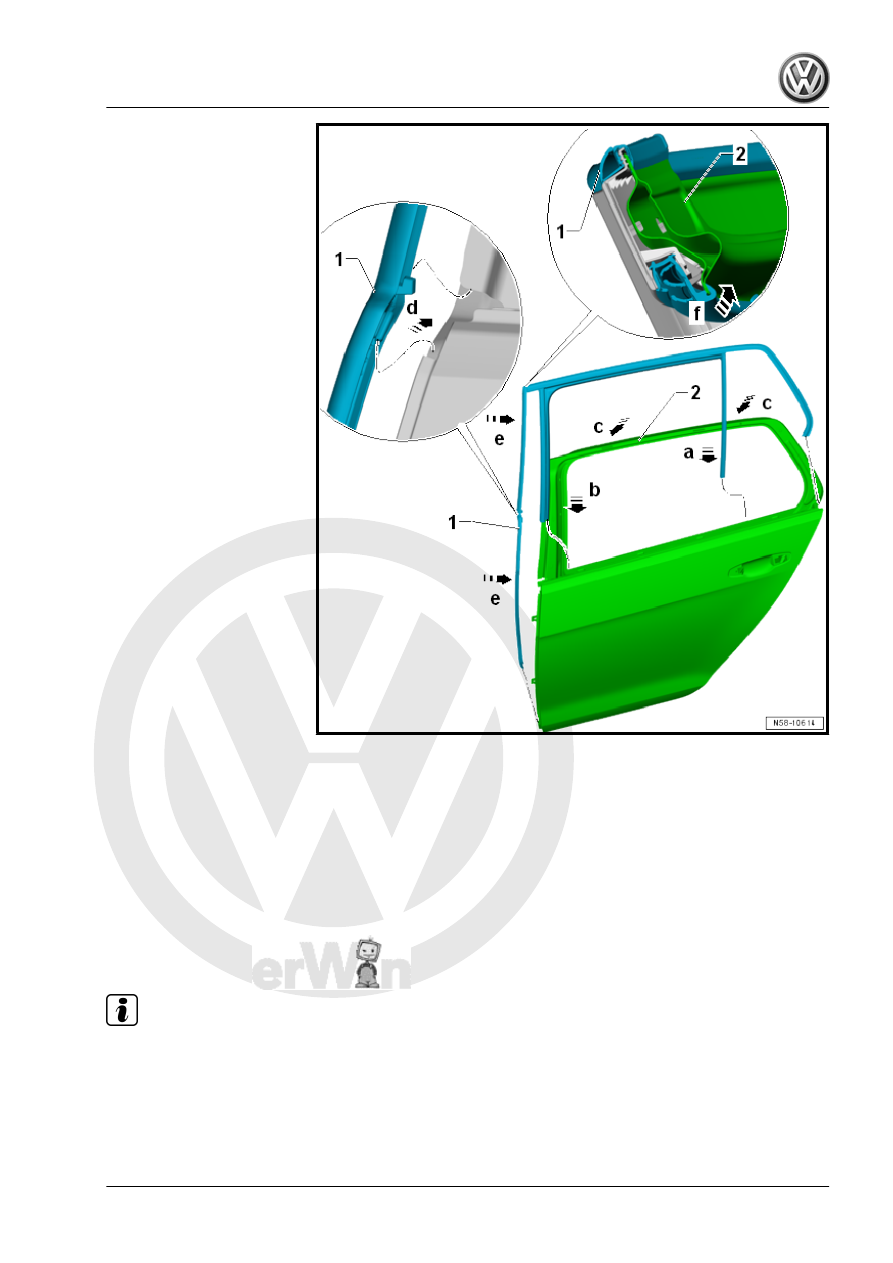

– Push the window guide -1- into the door mounts in direction of

-a and b arrows-.

– Push the window guide on the front flange in the retainer in

direction of -arrow d- and install on the sheet metal flange in

direction of -e arrows-.

– Attach the window guide -1- forward moving along the door

flange -2- in direction of -c arrows-.

– Pull the sealing lip on the window guide onto the door flange

in direction of -arrow f- from the inside.

Note

Make sure the window guide -1- fits evenly when installing it (wind noises).

Installation is performed in reverse order of the removal.

2.15

Outer Window Shaft Strip, Removing and Installing

Note

♦

The outer window shaft strip has a metal insert in the center.

♦

If it gets bent, the outer window shaft strip can longer be straightened out again. It will remain “wavy”.

♦

Therefore the outer window shaft strip must be removed and installed evenly without bending it.

♦

The following describes the removal and installation of the left outer window shaft strip. Removing and

installing the right window shaft strip is identical.

Removing

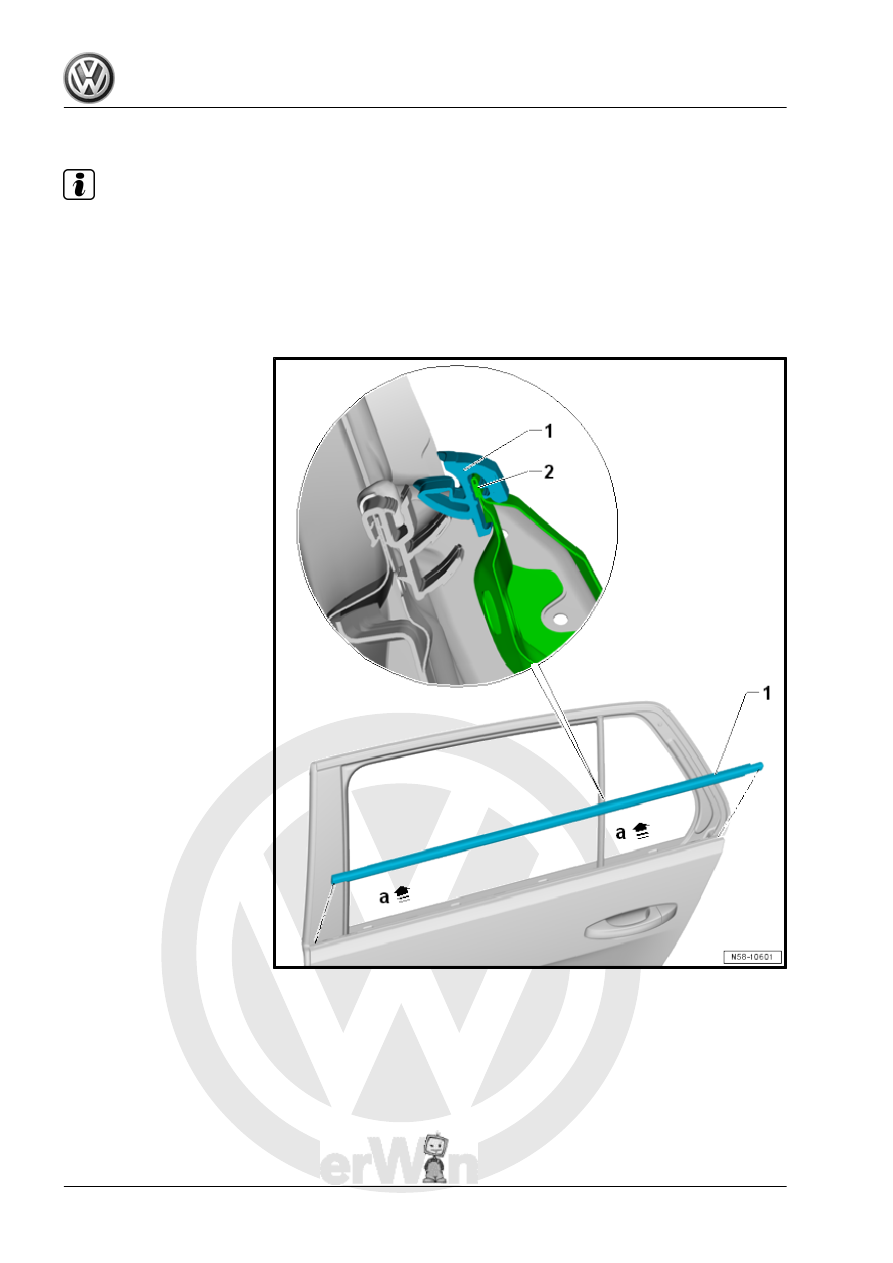

– Remove the outer window shaft strip -1- evenly from the door

flange -2- in direction of -a arrows-. Do not bend the strip while

doing so.

Installing

Note

♦

It is permissible to use assembly aids.

♦

Do not use any striking tools to install the outer window shaft strip.

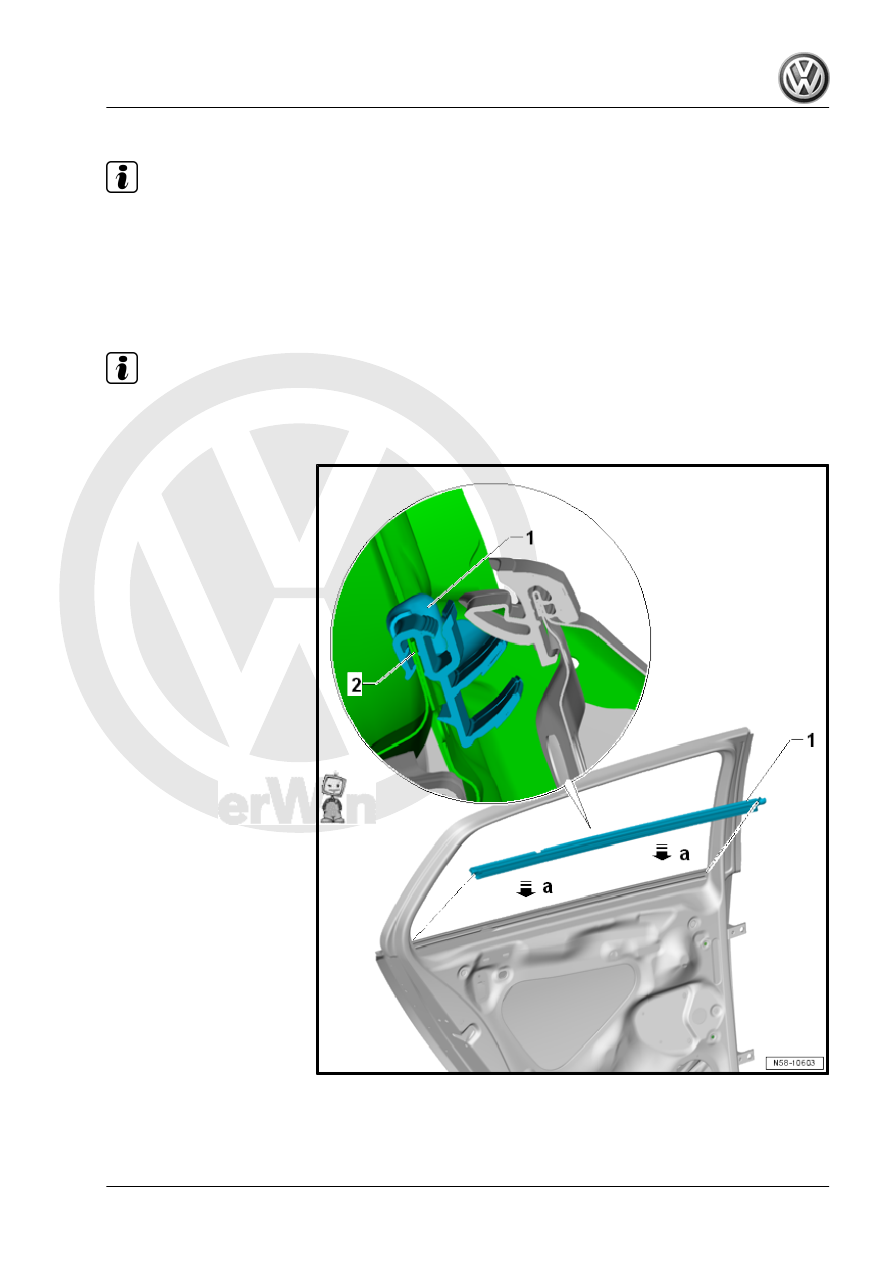

– Align the outer window shaft strip -1- on the B-pillar and push

it evenly by hand onto the door flange -2-.

2.16

Inner Window Shaft Strip, Removing and Installing

Note

The following describes the removal and installation of the left inner window shaft strip. Removing and installing

the right window shaft strip is identical.
