Special Tools

Special tools and workshop

equipment required

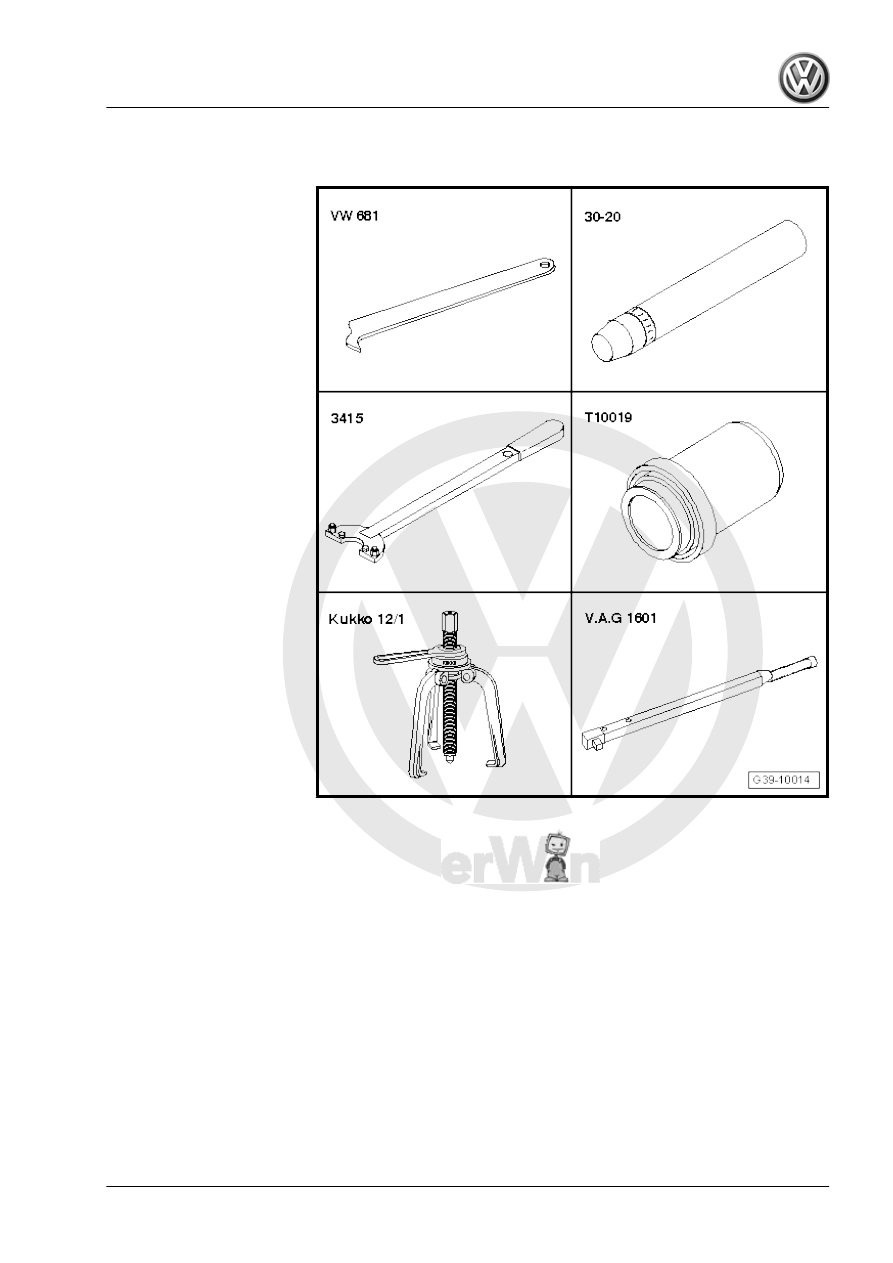

♦ Puller - Seal Lever -

VW681-

♦ Drive Sleeve - 30-20-
♦ Counterhold - Crankshaft

Sprocket - 3415-

♦ Seal Installer - Shaft Seal

Ring - T10019-

♦ Puller - Kukko 3 Jaw -

100x100mm - Kukko 12/1-

♦ Torque Wrench 1601 -

VAG1601-

Golf 2015 ➤

Rear Final Drive - Edition 09.2013

9. Special Tools

53

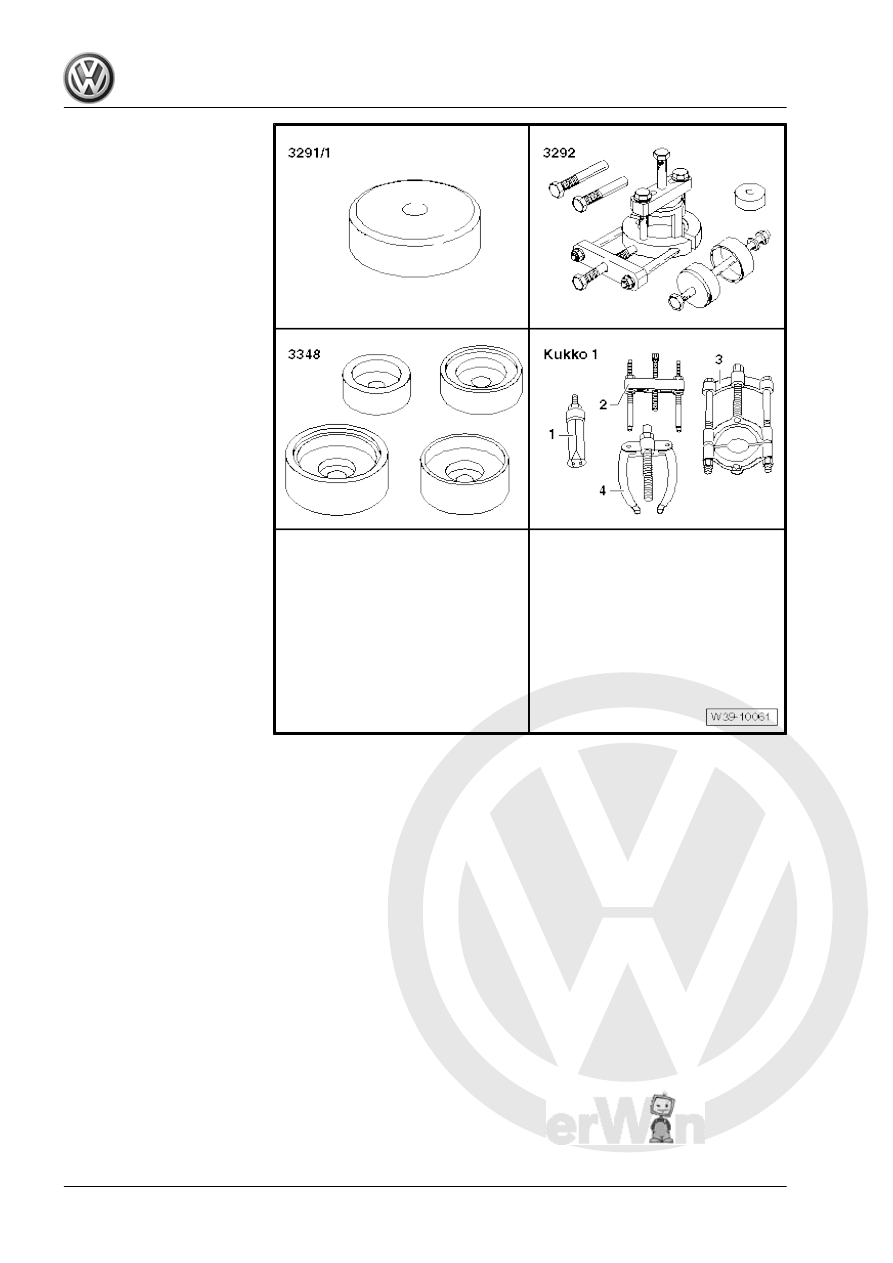

♦ Thrust Piece3291/1 from

the Bushing Tool Kit - 3291-

♦ Spindle from the Bushing

Tool Set - 3292-

♦ Thrust pieces 3348 and

3348/1 from the Bearing In‐

staller - Multiple Use -

3348-

♦ Puller - Kukko Internal -

46-56mm - 21/7- -1-

♦ Puller - Kukko Counterstay

- 22/2- -4-

Golf 2015 ➤

Rear Final Drive - Edition 09.2013

54

     Rep. Gr.39 - Final Drive, Differential

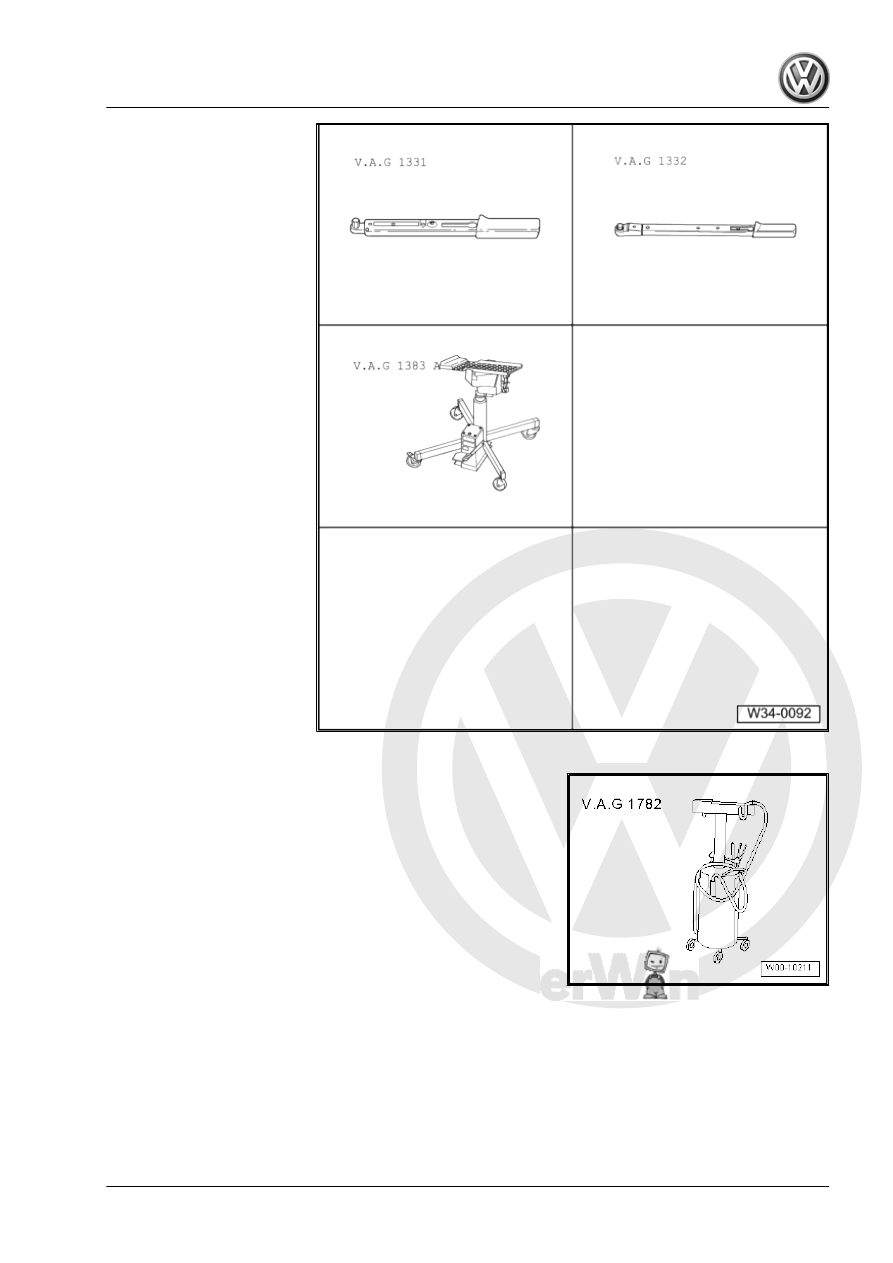

♦ Torque Wrench 5-50Nm -

VAG1331-

♦ Torque Wrench 1332

40-200Nm - VAG1332-

♦ Engine and Gearbox Jack -

VAS6931-

♦ Used Oil Collection and Extraction Unit - SMN372500-

Golf 2015 ➤

Rear Final Drive - Edition 09.2013

9. Special Tools

55

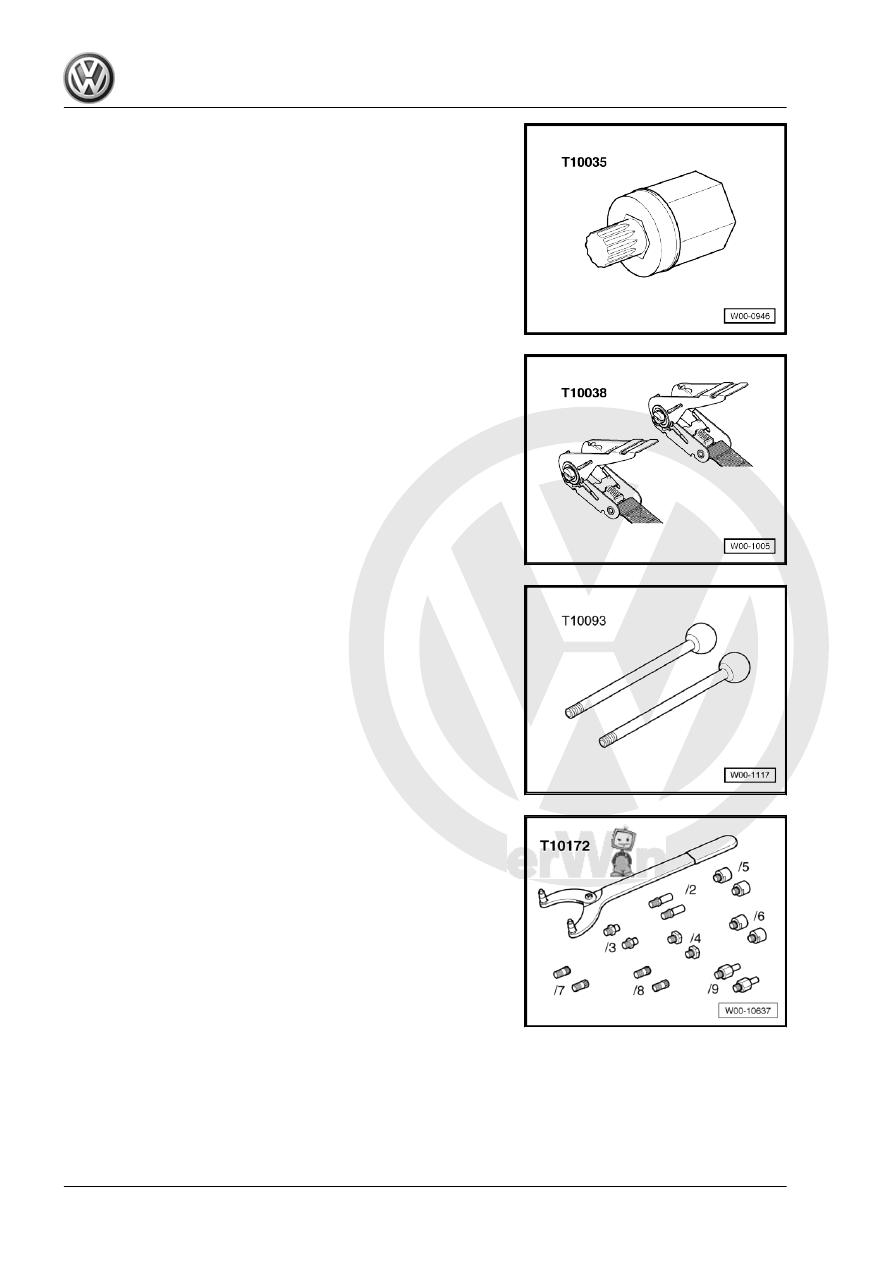

♦ Multipoint Socket - T10035- and if necessary Bits for

VAG1331/13 - T10099-

♦ Tensioning Strap - T10038-

♦ Guide Pins - T10093-

♦ Counterhold - Kit - Multiple Use - T10172-
