Volkswagen Golf / Golf GTI / Golf Variant. Manual - part 1016

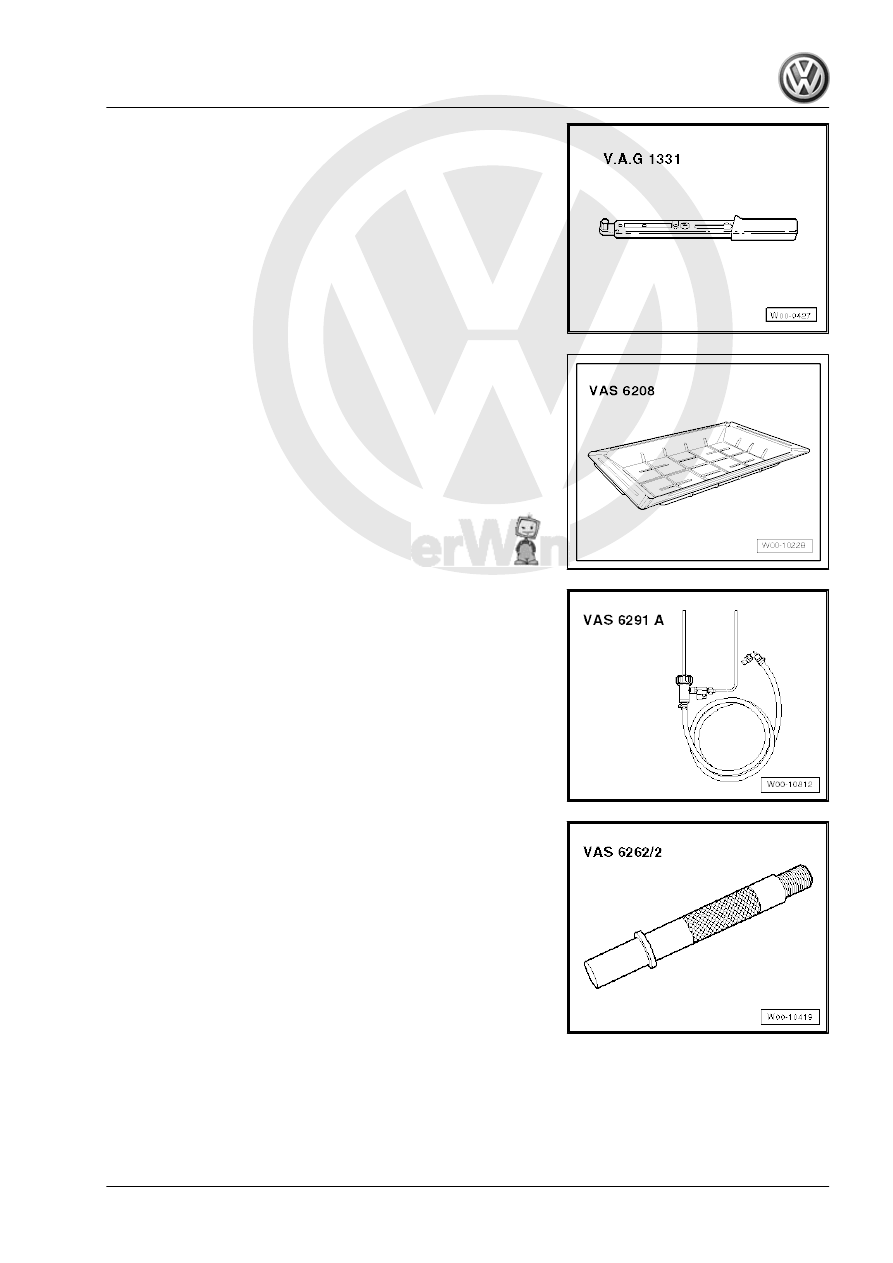

♦ Torque Wrench 5-50Nm - VAG1331-

♦ Shop Crane - Drip Tray - VAS6208-

♦ Charging Device For Haldex Coupling 2 - VAS6291A-

♦ Oil Filler - Adapter 2 - VAS6262/2-

Golf 2015 ➤

Rear Final Drive - Edition 09.2013

9. Special Tools

57

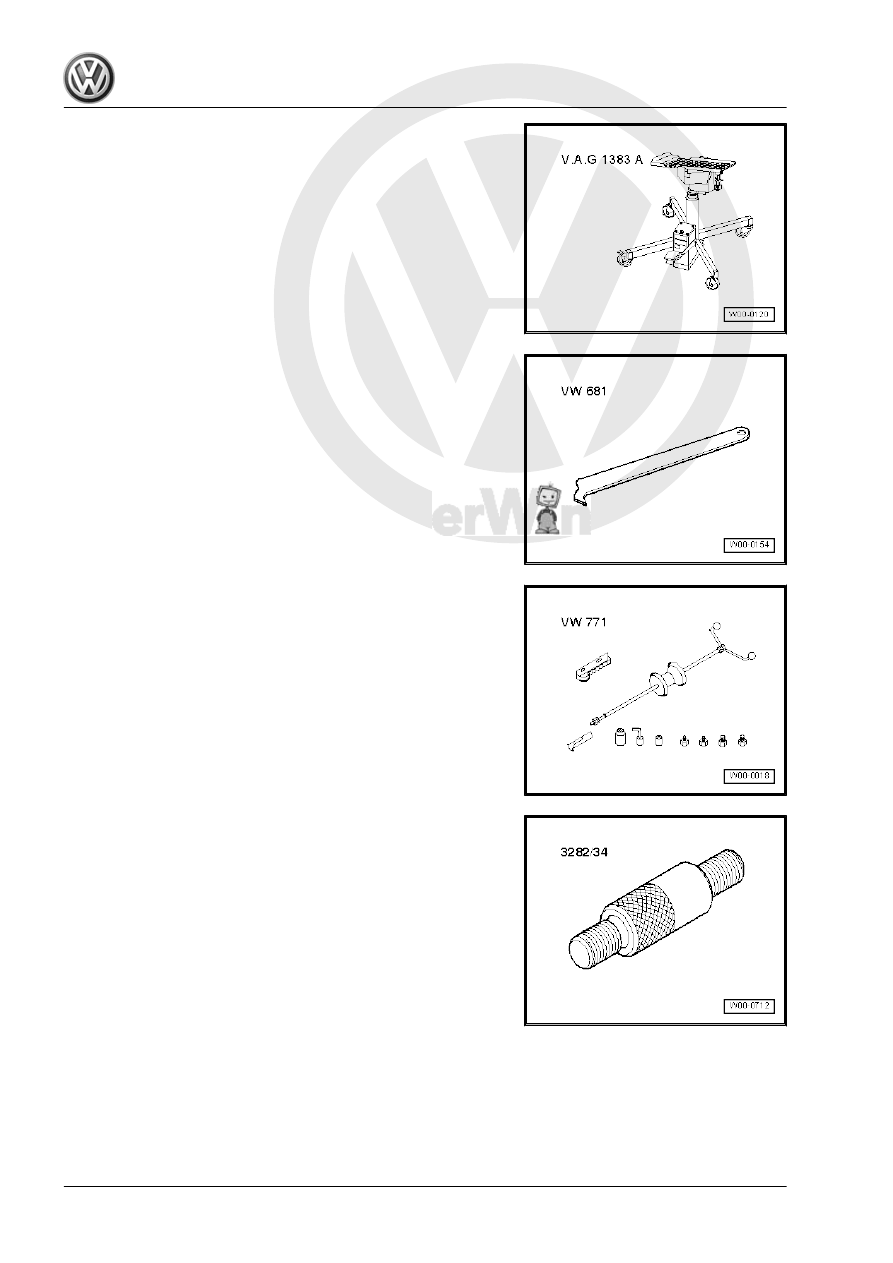

♦ Engine and Gearbox Jack - VAS6931-

♦ Puller - Seal Lever - VW681-

♦ Slide Hammer Set - VW771-

♦ Transmission Support - Pins 34 - 3282/34-

Golf 2015 ➤

Rear Final Drive - Edition 09.2013

58

     Rep. Gr.39 - Final Drive, Differential

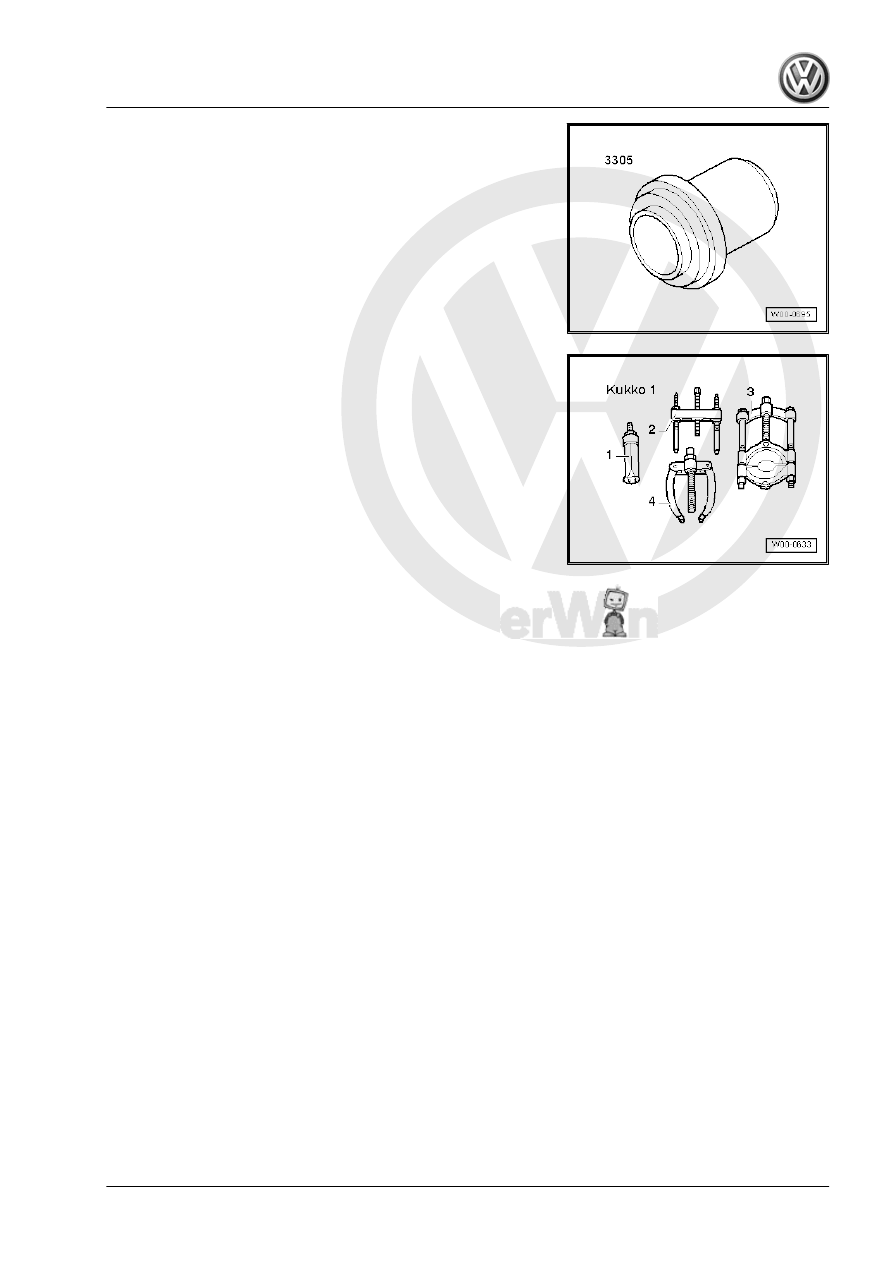

♦ Seal Installer - Flange Shaft - 3305-

♦ -2- bridge from Puller - Kukko Puller - 50-110mm Width,

150mm Length - 18/0-

Edition K00595821 FN 04/1/2014 - JLH

Golf 2015 ➤

Rear Final Drive - Edition 09.2013

9. Special Tools

59

10

Revision History

Re

vi‐

sio

n

Dat

e

Job Type

Feedback #

Notes

Editor





















3







2







1

4/1/

201

4

Factory

New

N/A



Jim

Harder

Golf 2015 ➤

Rear Final Drive - Edition 09.2013

60

     Rep. Gr.39 - Final Drive, Differential
