Volkswagen Golf / Golf GTI / Golf Variant. Manual - part 67

2

Controls

⇒ “2.1 Component Location Overview - Instrument Panel Con‐

trols”, page 259
⇒ “2.2 Component Location Overview - Controls in Front Doors”,

page 260
⇒ “2.3 Component Location Overview - Controls in Rear Doors”,

page 261
⇒ “2.4 Component Location Overview - Controls in Center Con‐

sole”, page 262
⇒ “2.5 Component Location Overview - Controls in Luggage

Compartment”, page 263
⇒ “2.6 Component Location Overview - Controls in Roof Trim

Panel”, page 264
⇒ “2.7  Rotary Light Switch EX1 , Removing and Installing”, page

265
⇒ “2.8  Headlamp Range Control Adjuster E102 , Removing and

Installing”, page 265
⇒ “2.9  Driving Profile Selection Button E735 , Removing and In‐

stalling”, page 266
⇒ “2.10  Start/Stop Mode Button E693 , Removing and Installing”,

page 266
⇒ “2.11  ASR/ESP Button E256 , Removing and Installing”, page

266
⇒ “2.12  Parking Aid Button E266 , Removing and Installing”, page

266
⇒ “2.13  Parallel Parking Assistance Button E581 , Removing and

Installing”, page 266
⇒ “2.14 Center Console Switch Module 1 and 2 EX23 / EX30 ,

Removing and Installing”, page 267
⇒ “2.15  Emergency Flasher Switch EX3 , Removing and Instal‐

ling”, page 268
⇒ “2.16 Left/Right Seat Heating Button E653 / E654 , Removing

and Installing”, page 269
⇒ “2.17  Glove Compartment Lamp Switch E26 , Removing and

Installing”, page 269
⇒ “2.18  Exterior Rearview Mirror Adjuster EX11 , Removing and

Installing”, page 269
⇒ “2.19  Power Window Control Head in Driver Door E512 , Re‐

moving and Installing”, page 270
⇒ “2.20  Front Passenger Power Window Button E716 , Removing

and Installing”, page 271
⇒ “2.21  Driver Interior Locking Button E308 , Removing and In‐

stalling”, page 271
⇒ “2.22  Interior Monitoring And Vehicle Inclination Deactivation

Button E616 , Removing and Installing”, page 272
⇒ “2.23 Driver and Front Passenger Door Contact Switch F2 / F3 ,

Removing and Installing”, page 273
⇒ “2.24 Driver and Passenger Side Rear Power Window Button

E711 / E713 , Removing and Installing”, page 273
⇒ “2.25 Left/Right Rear Door Contact Switch F10 / F11 , Remov‐

ing and Installing”, page 273

⇒ “2.26  Start System Button E378 , Removing and Installing”,

page 273
⇒ “2.27 Rear Lid Contact Switch, Removing and Installing”, page

274
⇒ “2.28 Driver and Front Passenger Vanity Mirror Lamp Contact

Switch F147 / F148 , Removing and Installing”, page 274
⇒ “2.29  Sunroof Button E325 , Removing and Installing”,

page 274
⇒ “2.30 Front Interior Lamp/Reading Lamp, Removing and In‐

stalling”, page 275
⇒ “2.31 Rear Interior Lamp/Reading Lamp, Removing and Instal‐

ling”, page 275
⇒ “2.32 Left/Right Front Reading Lamp Button E633 / E634 , Re‐

moving and Installing”, page 277

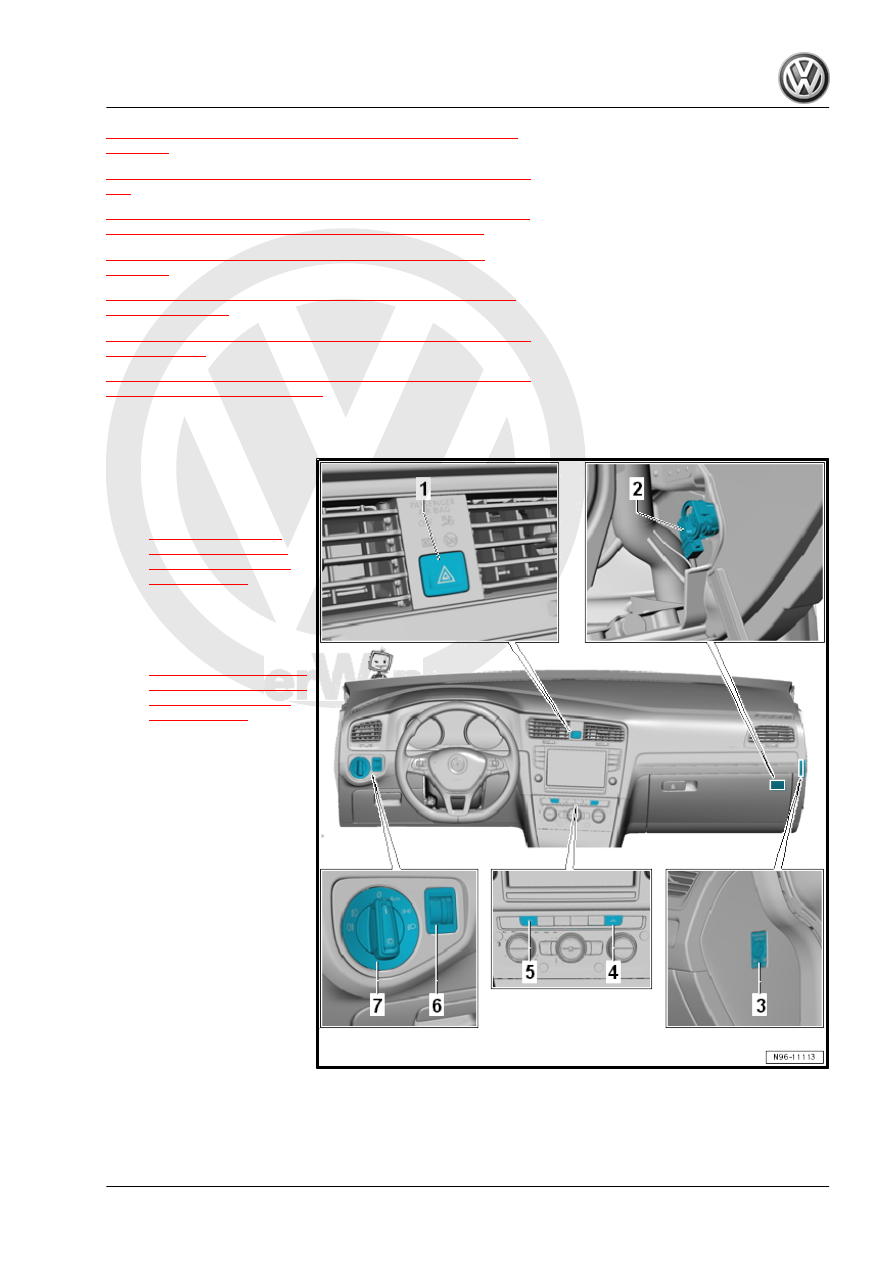

2.1

Component Location Overview - Instrument Panel Controls

1 - Emergency Flasher Switch

- EX3-

❑ Removing and instal‐

ling. Refer to

⇒ “2.15  Emergency

Flasher Switch EX3 ,

Removing and Instal‐

ling”, page 268

 .

2 - Glove Compartment Lamp

Switch - E26-

❑ Removing and instal‐

ling. Refer to

⇒ “2.17  Glove Compart‐

ment Lamp Switch E26 ,

Removing and Instal‐

ling”, page 269

 .

3 - Front Passenger Airbag De‐

activation Key Switch - E224-

❑ Removing and instal‐

ling. Refer to ⇒  Body

Interior; Rep. Gr.  69 ;

Front Passenger Air‐

bag; Front Passenger

Airbag Deactivation Key

Switch, Removing and

Installing .

4 - Right Seat Heating Button -

E654-

❑ Integrated in the display

control head:

♦ Heater Control Module -

J65- or

♦ A/C Control Module - J301-

or

♦ Climatronic Control Module

- J255-

❑ Cannot be replaced separately if faulty.
❑ Heater Control Module - J65- / A/C Control Module - J301- / Climatronic Control Module - J255- removing

and installing. Refer to ⇒  Heating, Ventilation, and Air Conditioning; Rep. Gr.  87 ; Component Location

Overview - Display And Control Unit .

5 - Left Seat Heating Button - E653-

❑ Integrated in the display control head:

♦ Heater Control Module - J65- or
♦ A/C Control Module - J301- or
♦ Climatronic Control Module - J255-

❑ Cannot be replaced separately if faulty.
❑ Heater Control Module - J65- / A/C Control Module - J301- / Climatronic Control Module - J255- removing

and installing. Refer to ⇒  Heating, Ventilation, and Air Conditioning; Rep. Gr.  87 ; Component Location

Overview - Display And Control Unit .

6 - Headlamp Range Control Adjuster - E102-

❑ Removing and installing. Refer to

⇒ “2.8  Headlamp Range Control Adjuster E102 , Removing and Installing”, page 265

 .

7 - Rotary Light Switch - EX1-

❑ Removing and installing. Refer to

⇒ “2.7  Rotary Light Switch EX1 , Removing and Installing”, page 265

 .

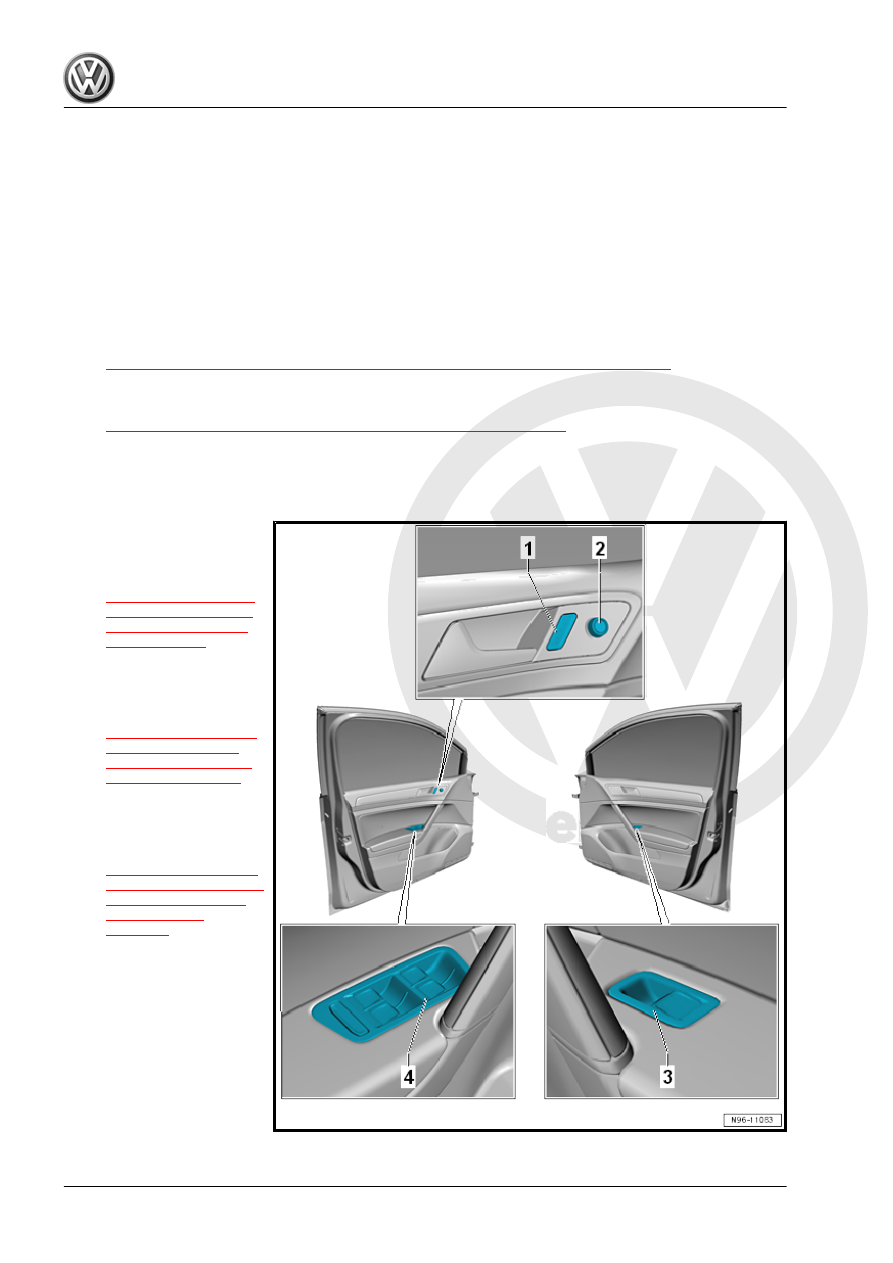

2.2

Component Location Overview - Controls in Front Doors

1 - Driver Interior Locking But‐

ton - E308-

❑ Removing and instal‐

ling. Refer to

⇒ “2.21  Driver Interior

Locking Button E308 ,

Removing and Instal‐

ling”, page 271

 .

2 - Exterior Rearview Mirror

Adjuster - EX11-

❑ Removing and instal‐

ling. Refer to

⇒ “2.18  Exterior Rear‐

view Mirror Adjuster

EX11 , Removing and

Installing”, page 269

 .

3 - Front Passenger Power

Window Button - E716-

❑ Removing and instal‐

ling. Refer to

⇒ “2.20  Front Passen‐

ger Power Window But‐

ton E716 , Removing

and Installing”,

page 271

 .

4 - Power Window Control

Head In Driver Door - E512-

❑ With:

♦ Driver Power Window But‐

ton - E710-

♦ Front Passenger Power

Window Button - E716-

♦ Driver Side Rear Power

Window Button - E711-

♦ Passenger Side Rear Pow‐

er Window Button - E713-
