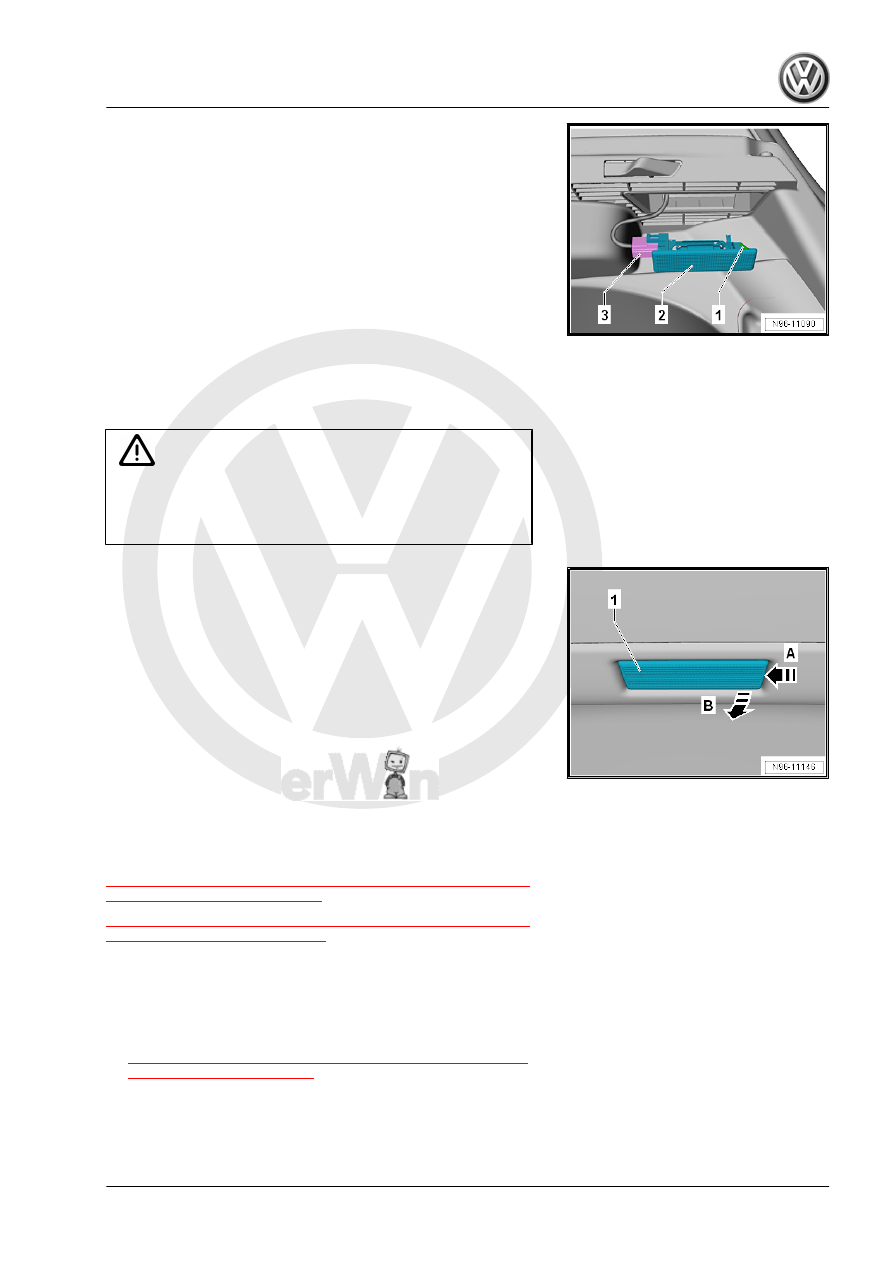

– Push the retaining tab -1- with a flat-head screwdriver and pry

up the Luggage Compartment Lamp - W3- -2-.

– Disconnect the connector -3-.
Installing
Install in the reverse order of removal while paying attention to

the following:
– Insert the luggage compartment lamp into the opening and

engage on the opposite side.

– Perform a function test.

1.20.2

Luggage Compartment Lamp - W3- ,

Removing and Installing, Wagon

Removing

Caution

Risk of damaging the component surfaces.

♦ When positioning a prying tool, put commercially available

adhesive tape over the component in the visible area.

– Push the Luggage Compartment Lamp - W3- -1- in the direc‐

tion of the -arrow A- with a flat-head screwdriver.

– Fold the Luggage Compartment Lamp - W3- in the direction

of the -arrow B- out of the roof trim panel.

– Release and disconnect the connector -3-.
Installing
Install in the reverse order of removal while paying attention to

the following:
– Insert the luggage compartment lamp into the opening and

engage on the opposite side.

– Perform a function test.

1.21

Bulb for Luggage Compartment Lamp -

W3- , Removing and Installing

⇒ “1.21.1 Bulb for Luggage Compartment Lamp W3 , Removing

and Installing, Sedan”, page 249
⇒ “1.21.2 Bulb for Luggage Compartment Lamp W3 , Removing

and Installing, Wagon”, page 250

1.21.1

Bulb for Luggage Compartment Lamp -

W3- , Removing and Installing, Sedan

Removing
– Remove the Luggage Compartment Lamp - W3- . Refer to

⇒ “1.20.1  Luggage Compartment Lamp W3 , Removing and

Installing, Sedan”, page 248

 .

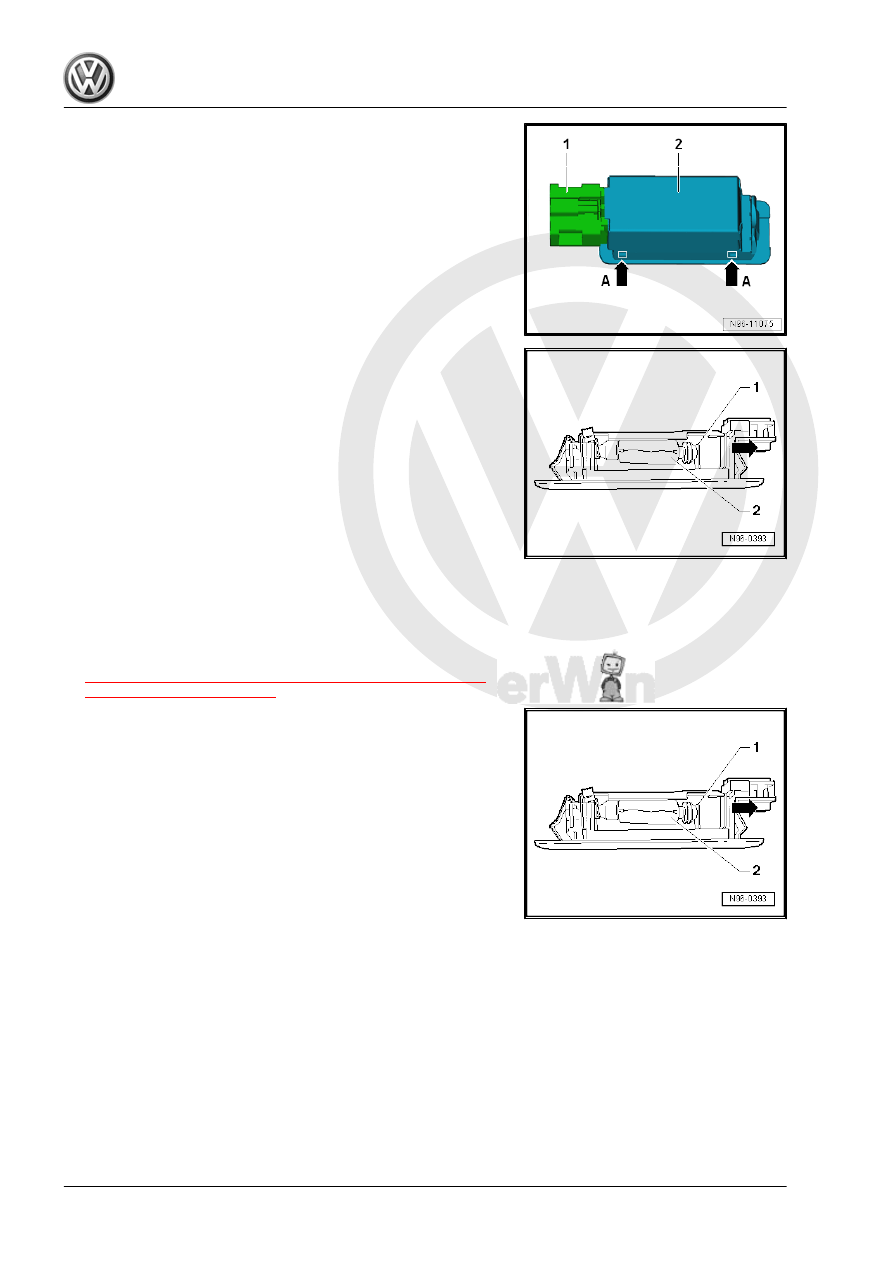

– Pry up the heat shield -2- when necessary on both sides at

both arrows -A-.

– Remove the heat shield -2- from the Luggage Compartment

Lamp - W3- -1-.

– Push the contact plate -1- for the lamp in the direction of

-arrow-.

– Remove the tubular bulb -2- out of the bulb socket.
Installing
Install in reverse order of removal.

1.21.2

Bulb for Luggage Compartment Lamp -

W3- , Removing and Installing, Wagon

Removing
– Remove the Luggage Compartment Lamp - W3- . Refer to

⇒ “1.20.2  Luggage Compartment Lamp W3 , Removing and

Installing, Wagon”, page 249

 .

– Push the contact plate -1- for the lamp in the direction of

-arrow-.

– Remove the tubular bulb -2- out of the bulb socket.
Installing
Install in reverse order of removal.

1.22

Driver/Front Passenger Vanity Mirror

Lamp -W20- / -W14- , Removing and In‐

stalling

The removal and installation is described for the left side. Re‐

moving and installing on the right side is identical.
For the vanity mirror illumination the lamp must be completely

replaced if there is a faulty LED.

Caution

Risk of damaging the component surfaces.

♦ When positioning a prying tool, put commercially available

adhesive tape over the component in the visible area.

Removing
– Turn off the ignition and all electrical equipment.
– Remove the ignition key, if equipped.
– Swivel the sun visor forward.

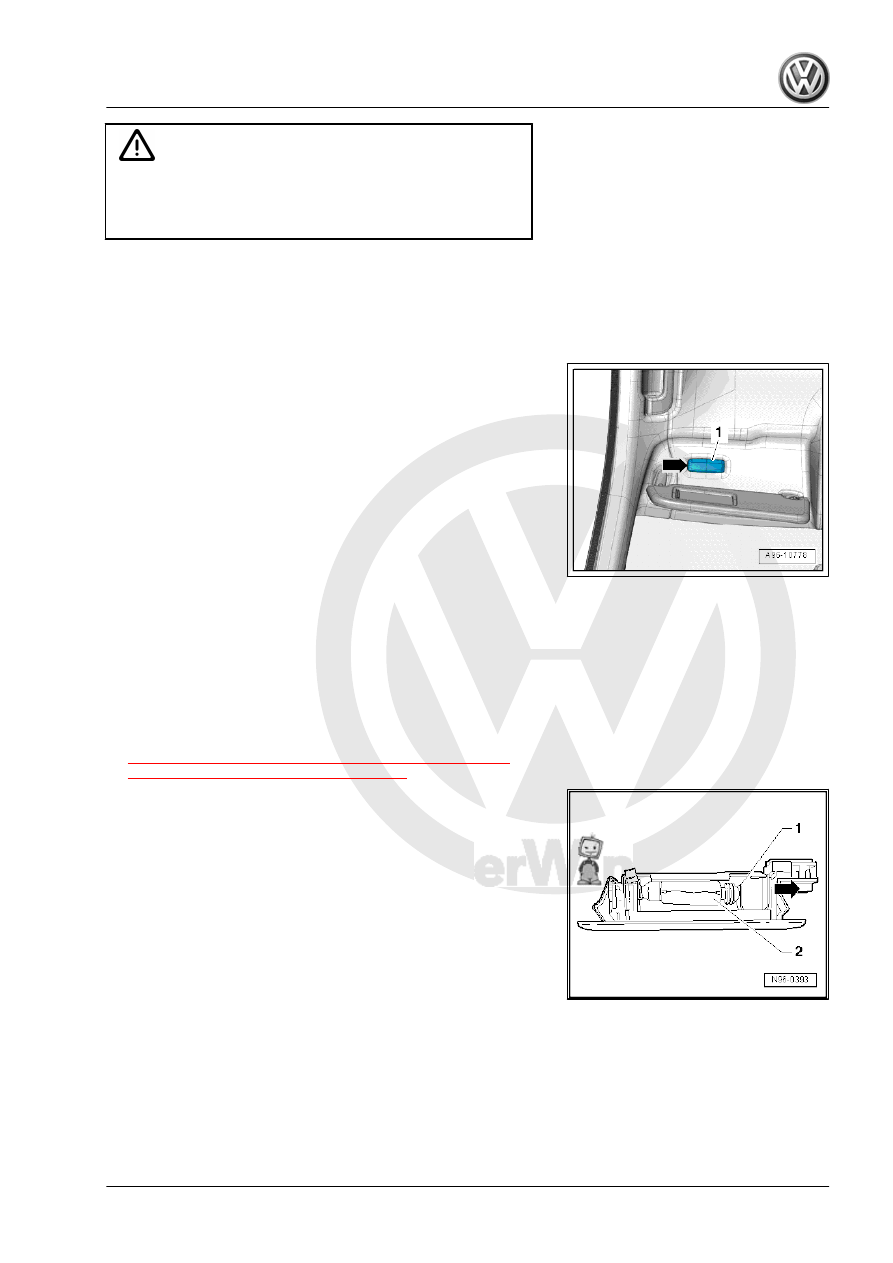

– Pry out the vanity mirror illumination -1- at the cut-out

-arrow B- using a flat-blade screwdriver.

– Disengage the connector and disconnect.
Installing
Install in the reverse order of removal while paying attention to

the following:
– Insert the vanity mirror lamp into the opening and latch it on

the opposite side.

– Perform a function test.

1.23

Driver/Front Passenger Vanity Mirror

Lamp -W20- / -W14- Bulb, Removing

and Installing

For the vanity mirror illumination the lamp must be completely

replaced if there is a faulty LED.
Removing
– Remove the illuminated vanity mirror. Refer to

⇒ “1.22 Driver/Front Passenger Vanity Mirror Lamp W20 /

W14 , Removing and Installing”, page 250

 .

– Push the contact plate -1- for the lamp in the direction of

-arrow-.

– Remove the tubular bulb -2- out of the bulb socket.
Installing
Install in reverse order of removal.

1.24

Front Interior Lamp - W1- Bulb, Remov‐

ing and Installing

⇒ “1.24.1  Front Interior Lamp W1 Bulb, Removing and Installing,

LED”, page 252
⇒ “1.24.2  Front Interior Lamp W1 Bulb, Removing and Installing,

with Bulbs”, page 252

1.24.1

Front Interior Lamp - W1- Bulb, Remov‐

ing and Installing, LED

Special tools and workshop equipment required
♦ Trim Removal Wedge - 3409-
The bulb for the Front Interior Lamp - WX1- and the bulb for the

Driver Reading Lamp - W19- / Front Passenger Reading Lamp -

W13- are the same component.
If the Front Interior Lamp - WX1- and Driver Reading Lamp -

W19- / Front Passenger Reading Lamp - W13- is faulty, the

diffusion lens must be replaced.

Caution

Risk of damaging the component surfaces.

♦ When positioning a prying tool, put commercially available

adhesive tape over the component in the visible area.

Removing
– Turn off the ignition and all electrical equipment.
– Remove the ignition key, if equipped.

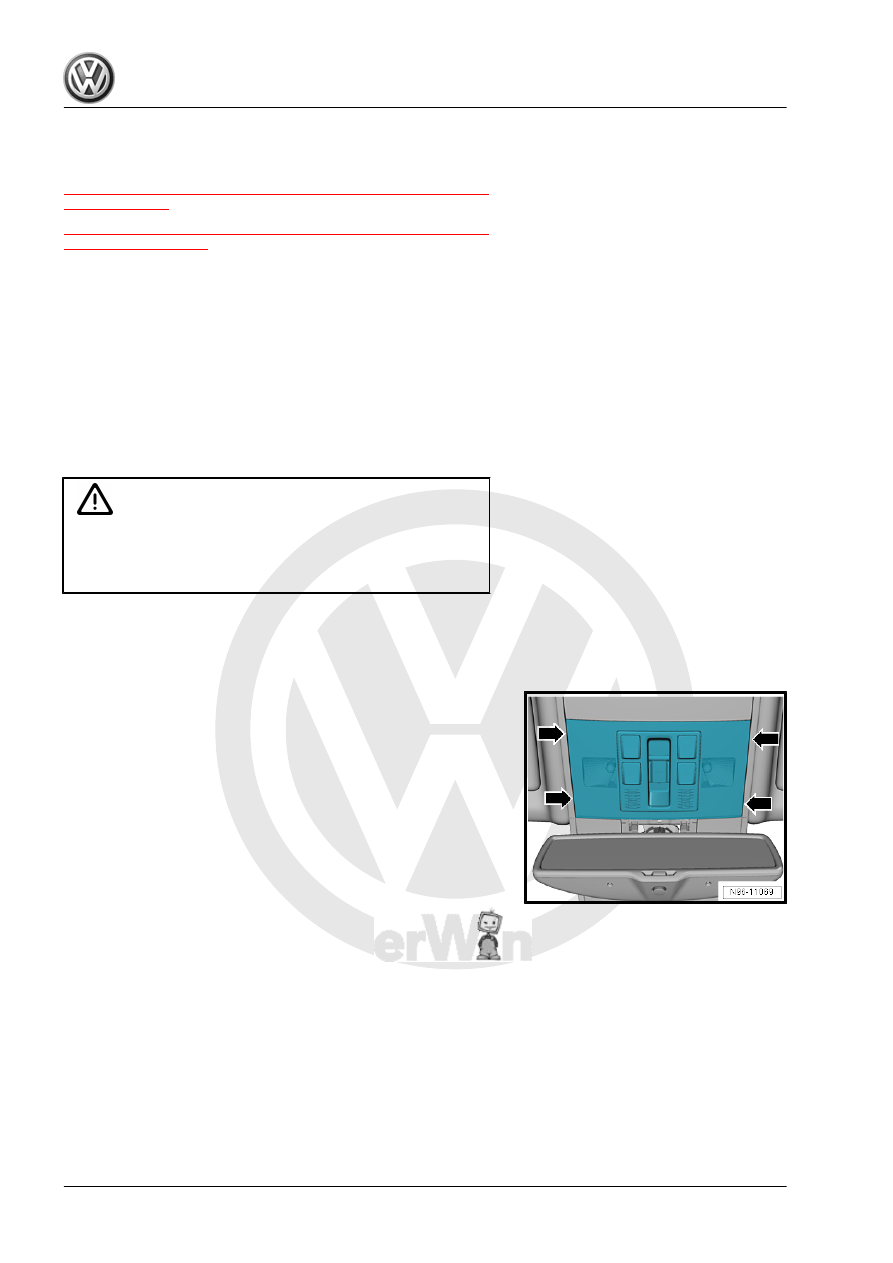

– Pry the diffusion lens in the marked areas -arrows- using the

-3409- from the Front Interior Lamp - W1- .

– Release and disconnect the connectors.
Installing
Install in reverse order of removal.
– Perform a function test.

1.24.2

Front Interior Lamp - W1- Bulb, Remov‐

ing and Installing, with Bulbs

Special tools and workshop equipment required
♦ Trim Removal Wedge - 3409-
The bulb for the Front Interior Lamp - WX1- and the bulb for the

Driver Reading Lamp - W19- / Front Passenger Reading Lamp -

W13- are the same component.
