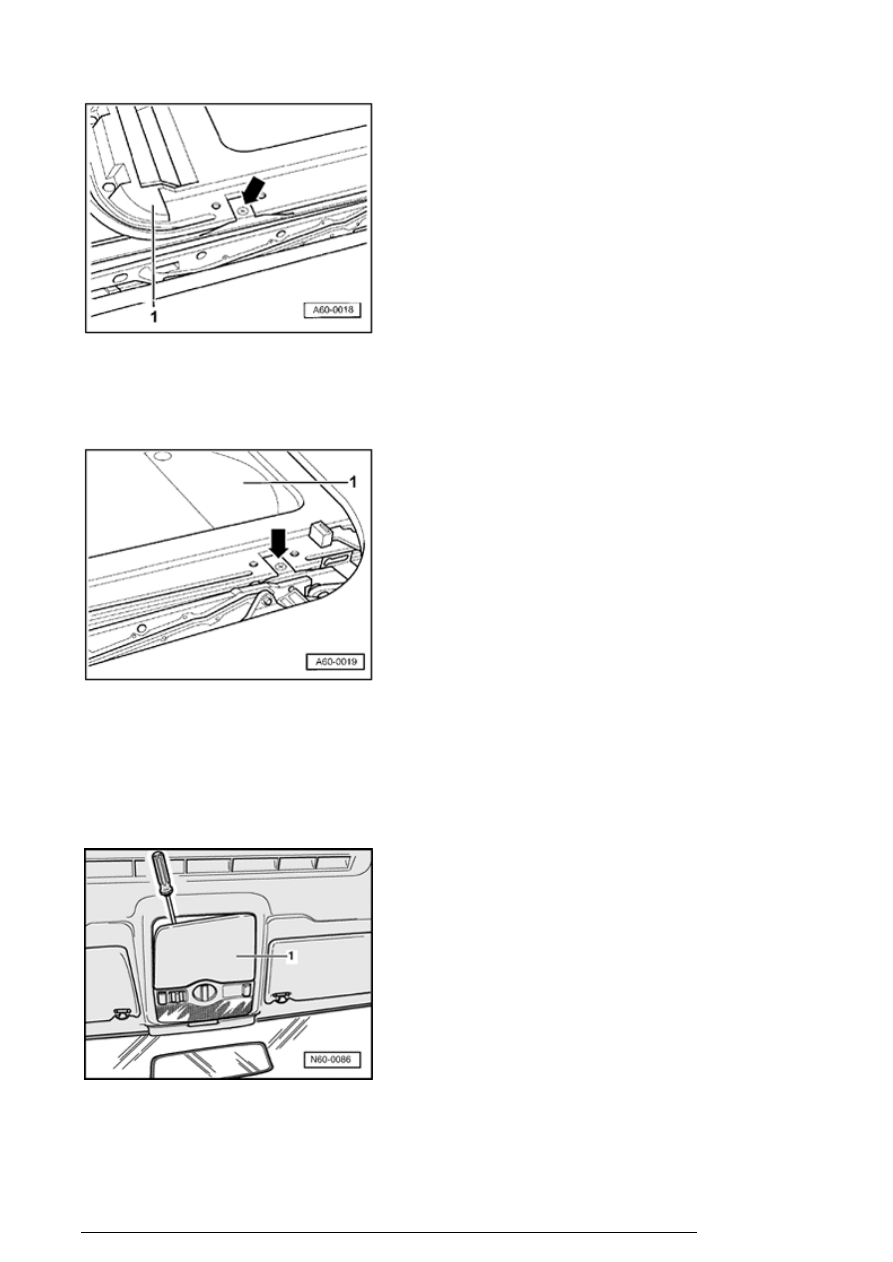

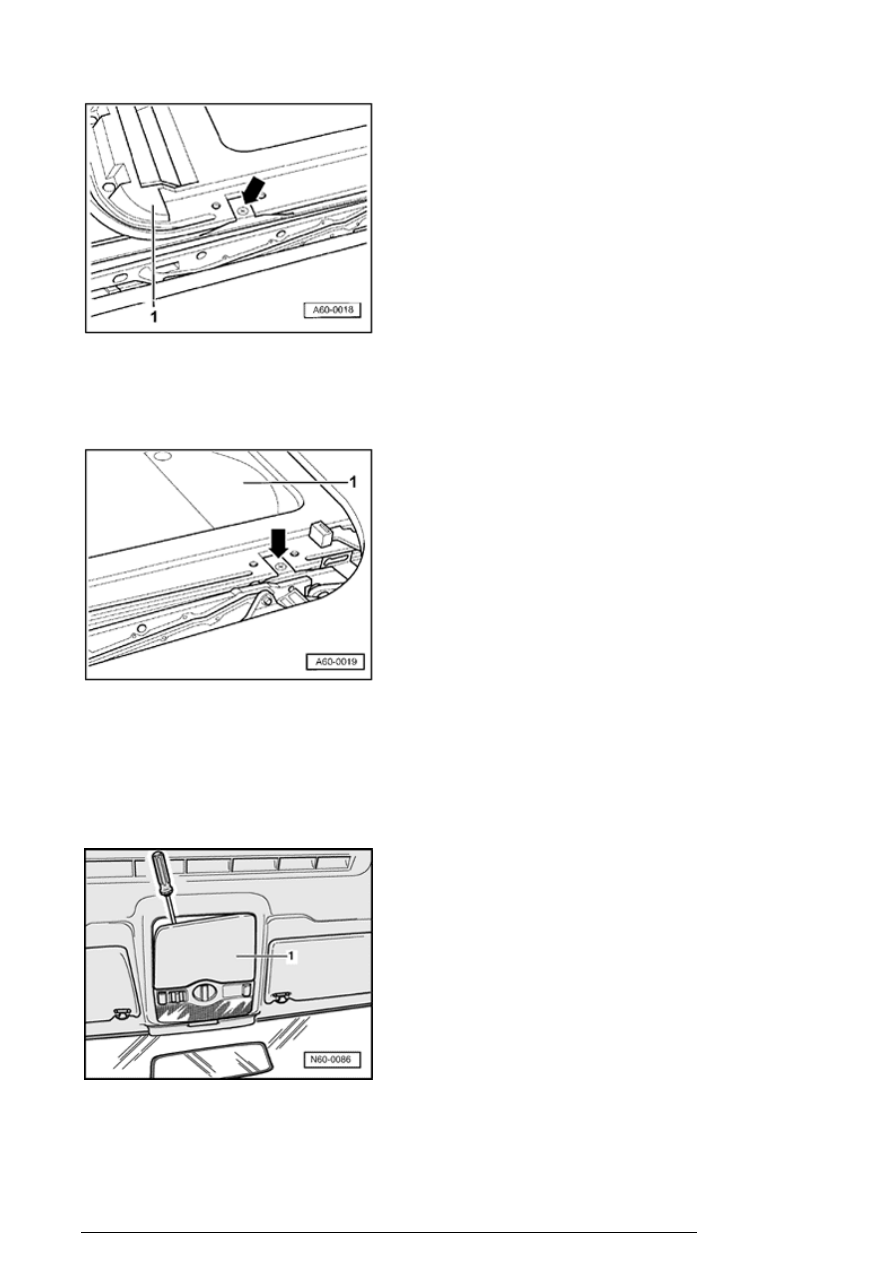

- Remove front bolts - arrow - at left and right. Slide out
slider toward front over stop - 1 - .

- Slide sliding headliner toward front.

- Remove rear bolts - arrow - at left and right. Slide slider
toward rear and remove sliding headliner  - 1 - upward.

Drive motor for sunroof, removing



- Disconnect Ground (GND) strap from battery.

- Unclip cover - 1 - for drive motor.

Note:

Sunroof with glass panel (Meritor)

13/2/2005



Only remove and install drive motor for sunroof when roof
is closed (zero position).


- Unclip and disconnect connector.

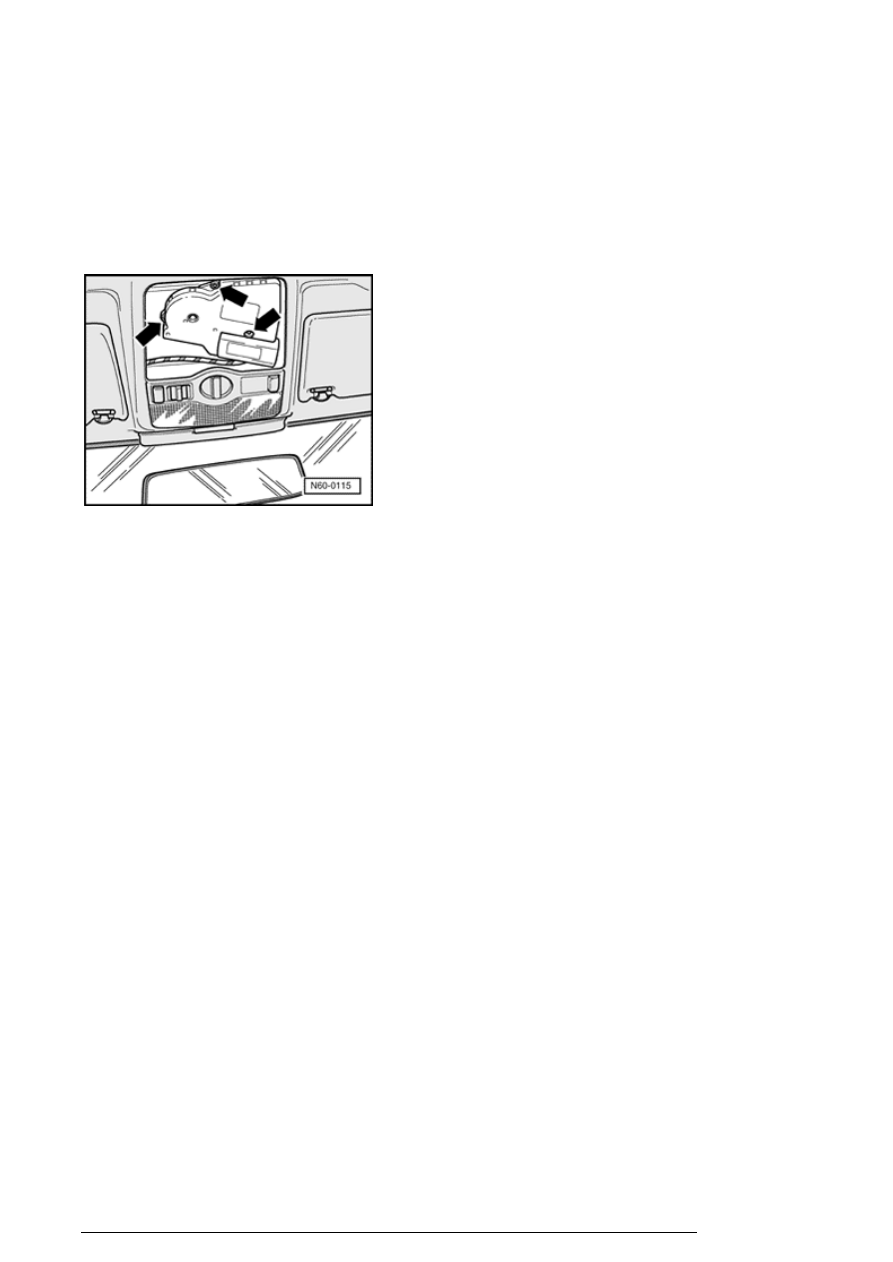

- Remove bolts - arrows - and remove drive motor for
sunroof.



Bolts for drive motor are micro-encapsulated and must
always be replaced (3.5 Nm).

Drive motor for sunroof, adjusting (zero
position)





Adjustment of zero position may be necessary if drive
motor was removed while not in zero position or sunroof
was closed or opened via emergency operation.



Drive motor removed, but electrical wires connected.

- Move automatic rotary switch to "roof opened" position.

- Move automatic rotary switch to "roof closed" position.

- Move automatic rotary switch to "roof tilted" position.

- Move automatic rotary switch to "roof closed" position.

- Install drive motor in this position (zero position) with
sunroof closed.

Automatic rotary switch for sunroof,
removing



Sunroof with glass panel (Meritor)

13/2/2005

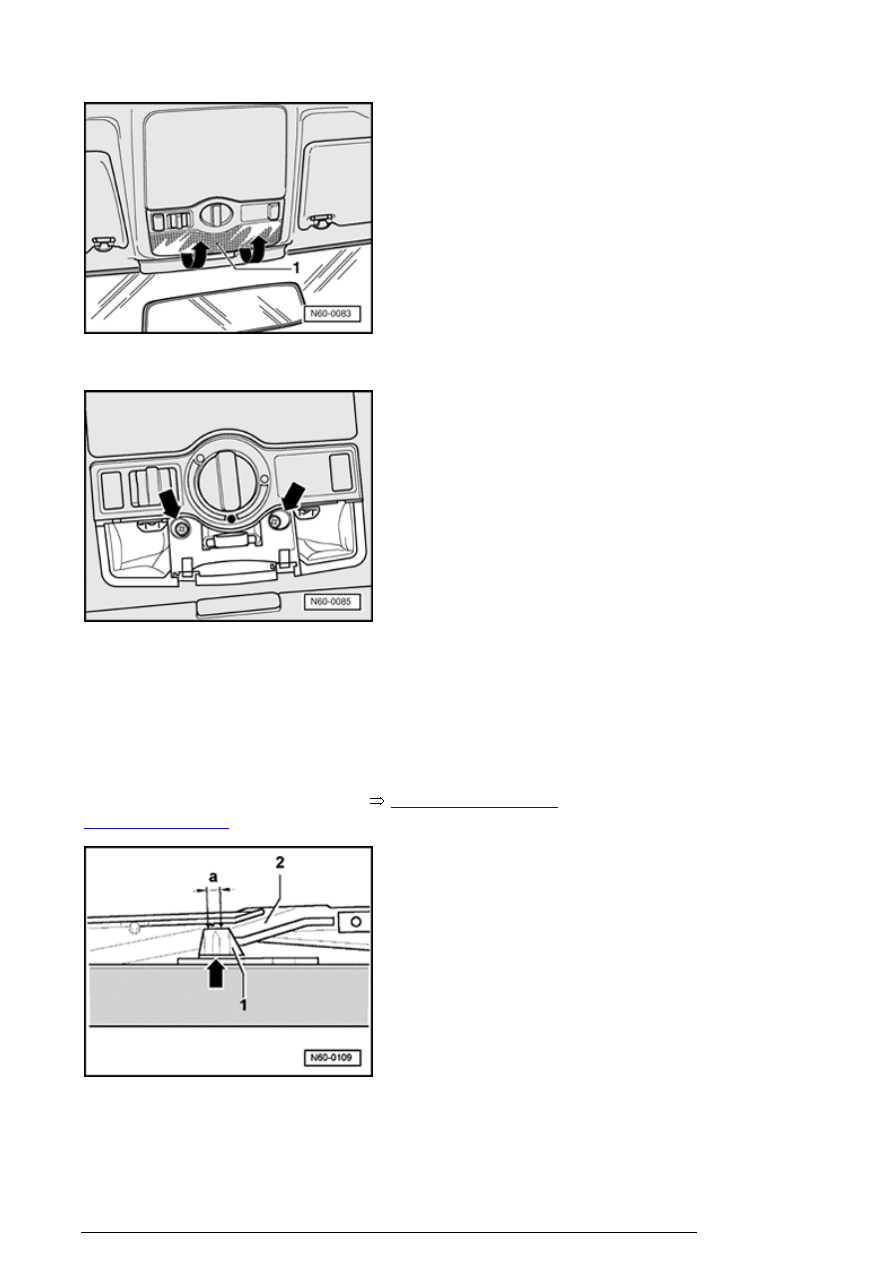

- Unclip trim - 1 - in direction of - arrow - and remove.

- Remove bolts - arrows - and remove automatic rotary
switch.

- Unclip and disconnect connector.

Parallel movement, checking



- Removing glass panel for sunroof



60-3, Glass panel for

sunroof, removing

 .

Marking - arrow - on upper part of rear guide - 1 - must be
located on both sides between markings dimension  - a - at
slotted guide rail - 2 - .

Sunroof with glass panel (Meritor)

13/2/2005



Slotted guide rail - 2 - must be engaged in guide rail
(cannot be moved by hand).

Parallel movement, adjusting



Note:

Parallel movement adjustment can only be performed with
drive motor removed and glass panel (in zero position).


- Removing drive motor for sunroof



60-3, Drive motor for

sunroof, removing

 .

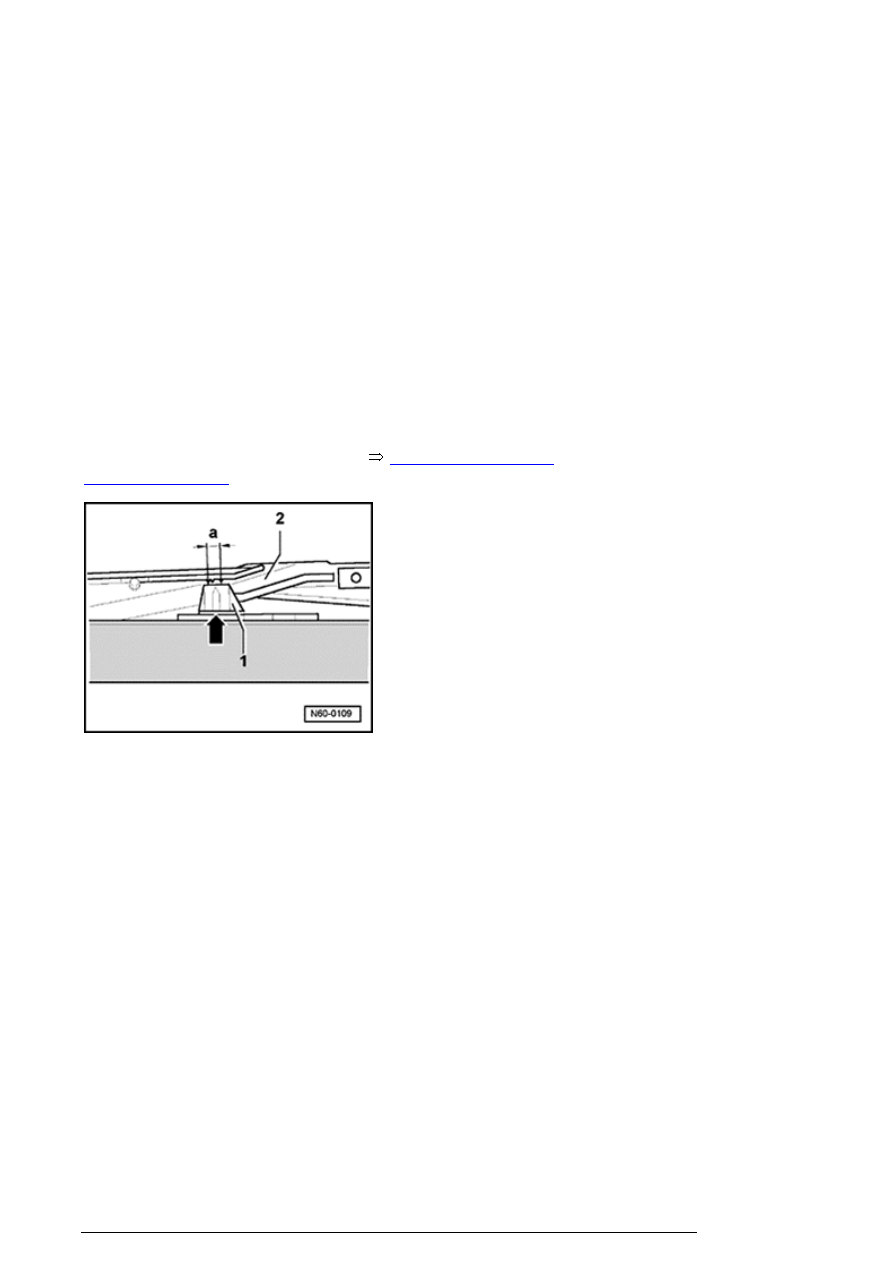

Marking - arrow - on upper part of rear guide - 1 - must be
located on both sides between markings dimension  - a - at
slotted guide rail - 2 - .

Slotted guide rail - 2 - must be engaged in guide rail
(cannot be moved by hand).

- Slide upper part of guide - 1 - only from front toward rear
center, between markings.

- Install drive motor (zero position) in this position.



Then check zero position.

Installation unit, removing and installing



Sunroof with glass panel (Meritor)

13/2/2005
