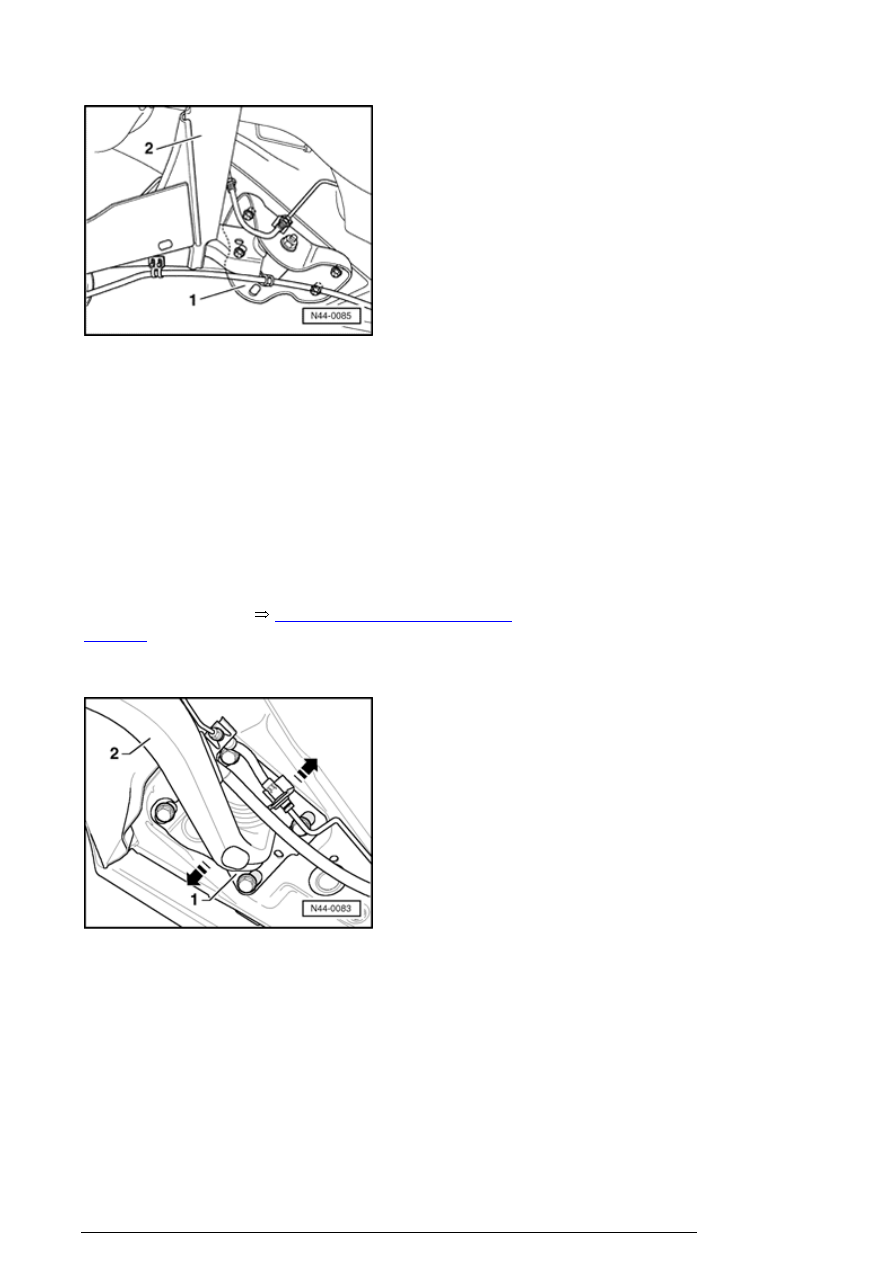

- Slide mounting bracket - 1 - laterally.

2 - Rear axle beam

- Tighten bolts to 75 Nm.

- Always use new bolts!

Toe on rear axle (vehicles with all-wheel
drive), adjusting



If a value lies outside the tolerances, check trim height and
balance if necessary



44-5, Vehicle trim height Zero

position

 .

- Loosen all bolts on mounting brackets - 1 - .

- Slide mounting bracket - 1 - laterally - arrows - .

2 - Trailing arm

- Tighten bolts to 75 Nm.

- Always use new bolts!

Front axle toe, adjusting



If vehicle is out of specification, check trim height and

Wheel alignment



balance if necessary



44-5, Vehicle trim height Zero

position

 .

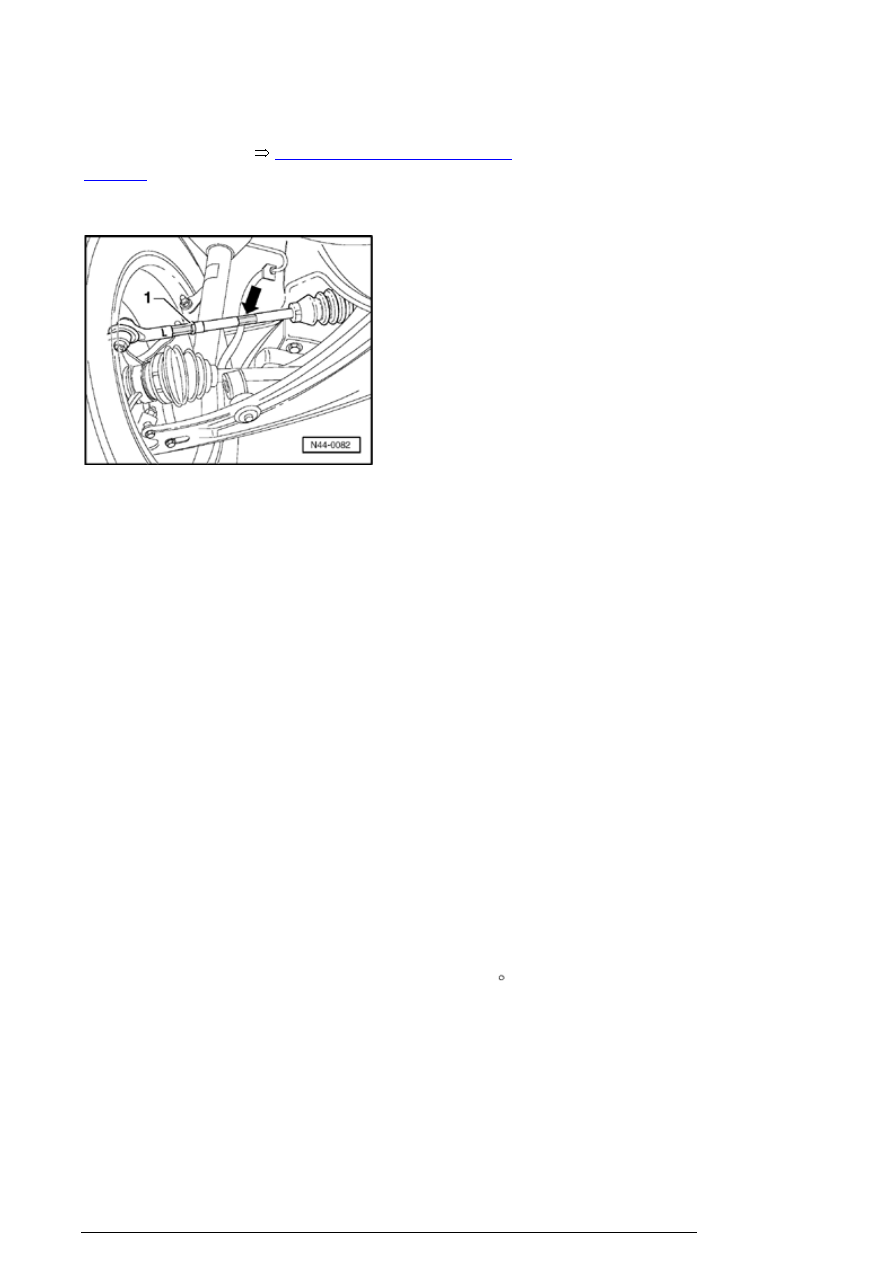

- Loosen lock nut - 1 - .

- Adjust toe by turning tie rod to left and/or right.

To do this position wrench at nut - arrow - on tie rod.

Note:

n

After turning tie rods, make sure that the boots are not
twisted.



Twisted boots wear out quickly.

- Tighten lock nut - 1 - 50 Nm and check toe again to
ensure adjustment has not changed.

After tightening lock nut - 1 - it is possible that the value will
change slightly.

If toe adjustment has not moved more than 2’ from
specification, adjustment is ok.

Left and right-hand wheel lock, checking



This test is only necessary if:

n

The steering locks differ by more than 2   from one
another from the steering center point



n

One side has contact between tire and a front axle
component or body at full lock



n

Turning circles left/right different



Wheel alignment



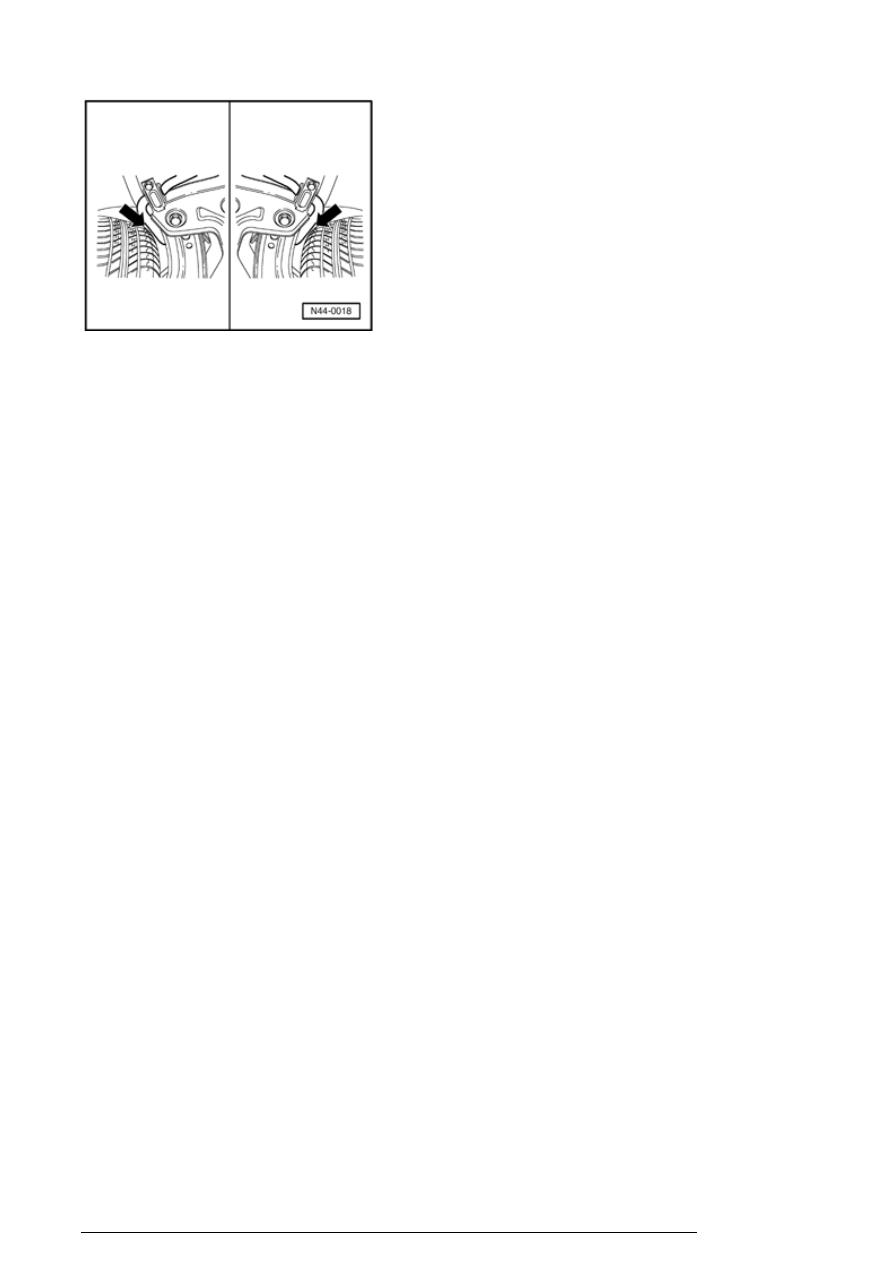

The distance between front axle components and tires  -
arrow - must be the same at full lock (full turn left/right).

If the distances are unequal then this can be corrected by
turning left/right tie rod.

Example:

Right steering lock smaller than left;

- Loosen tie rod lock nuts.

- Turn left tie rod counter-clockwise (unscrew tie rod end).

- Turn tie rod, right side equal amount to left but in opposite
direction (turns tie rod end in).

- Check total toe.

Note:

n

Check total toe is still set to prescribed specifications
after completing adjustments!



- Tighten lock nuts.

After tightening lock nut - 1 - it is possible that the value will
change slightly.

If toe adjustment has not moved more than 2’ from
specification, adjustment is ok.

Note:

n

After turning tie rods, make sure that the boots are not
twisted.



Wheel alignment

44 - 6





Wheels, tires



Wheel trim, removing and installing



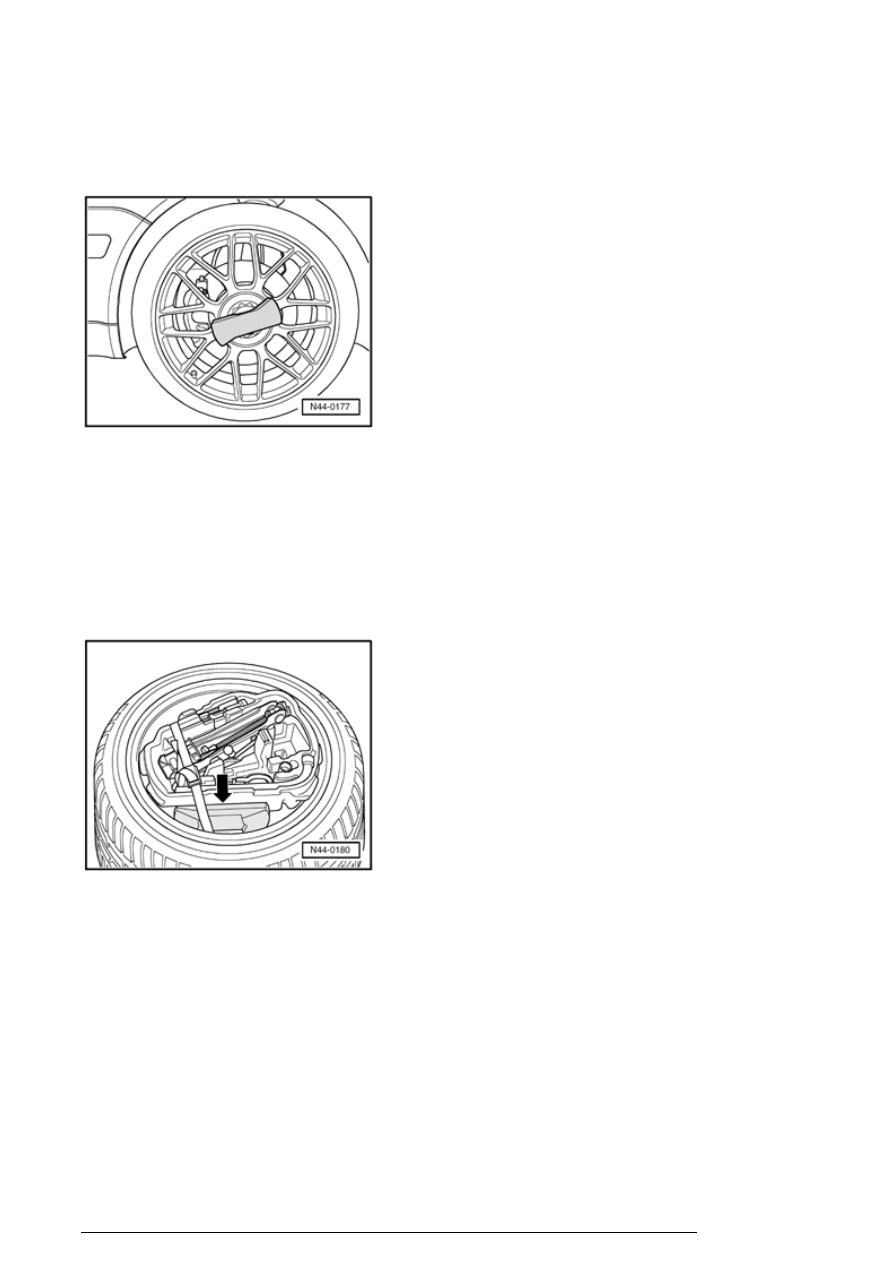

The alloy wheel of the Golf GTI 132 kW has a bolted wheel
trim. You can screw and unscrew the wheel with the
assembly tool in the vehicle.

Note:

n

Do not use other assembly tools! Otherwise the wheel
trim or alloy wheel can be damaged.



The assembly tool - arrow - for the wheel trim can be found
in the tool kit.

It is available as a replacement part with part No. 4B0012
219 B .
