34-46





WARNING!



Do not remove support bar 10-
222A until the bolts securing the
left and right assembly mountings
have been tightened to torque
setting.



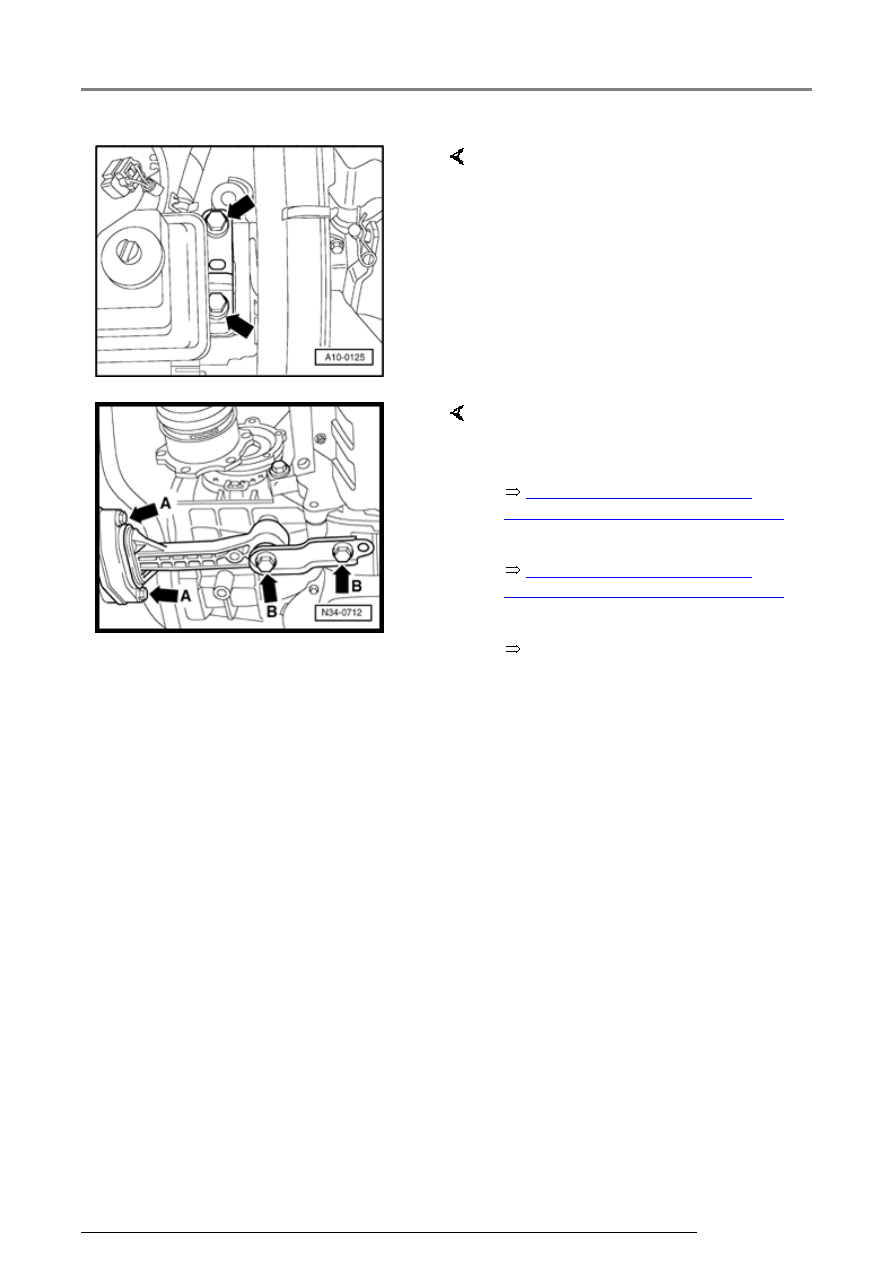

-  Install new hex bolts (arrows) for

right assembly mounting in
engine mounting.





Repair Manual, Suspension,

Wheels, Steering, Repair Group 40





Repair Manual, Suspension,

Wheels, Steering, Repair Group 40



 Repair Manual, Engine

Mechanical, Repair Group 26

-  Use new bolts and install

pendulum support (arrows -A-
and -B-).

-  Install axle shafts to transmission.

-  Reconnect exhaust system.

-  Install starter and secure with

lower bolt.

-  Install retainer for power steering

line on starter and on
transmission.

Transmission, removing and installing

34-47







-  Install upper engine/transmission securing

bolts.





-  Tighten upper engine/transmission securing

bolts to prescribed torque

table



Page 34

or table



Page 34-52





-  Install ground strap at upper

engine/transmission securing bolt.

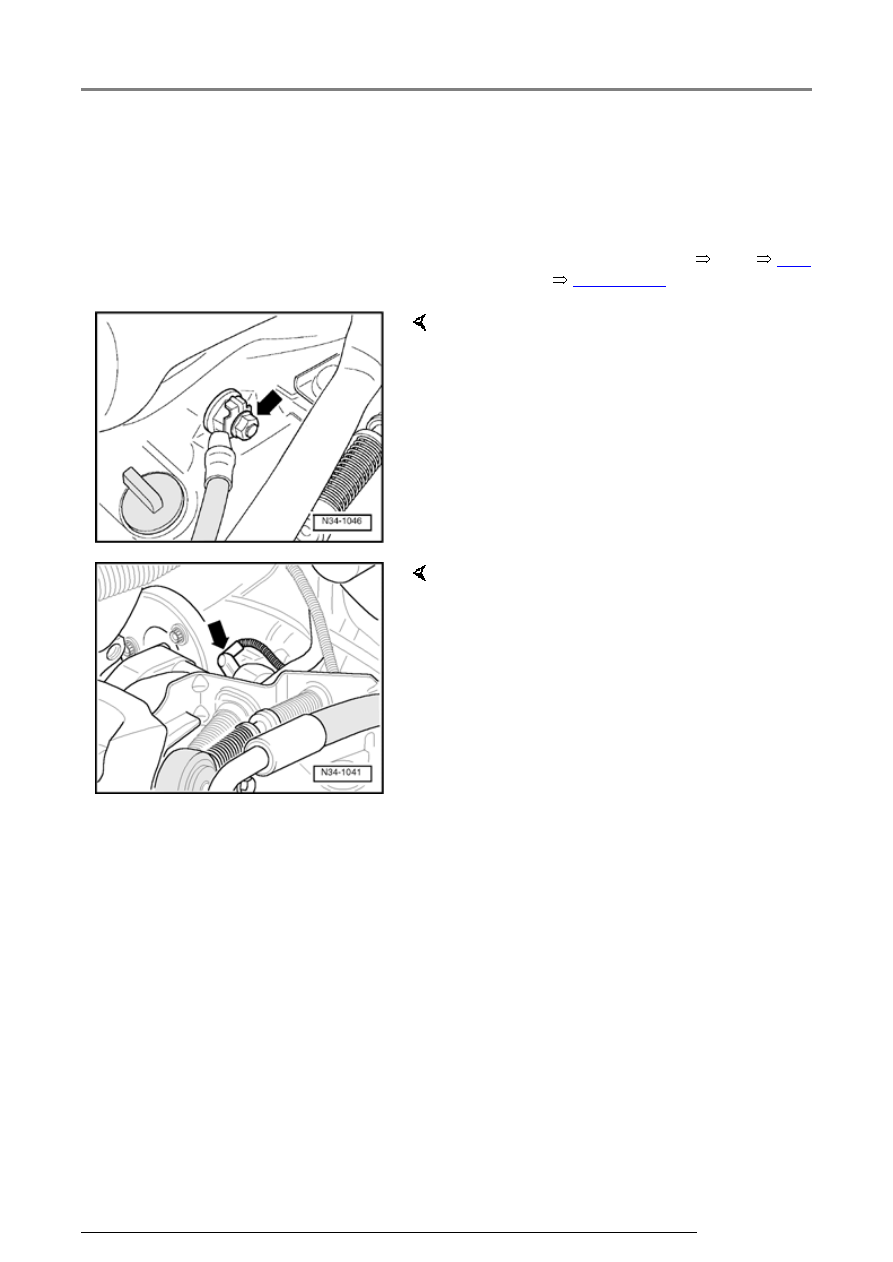

     - Attach connector to speedometer sensor (arrow).

Transmission, removing and installing

34-48





-  Push line/hose in direction of

arrow and press down clamp
(arrow).

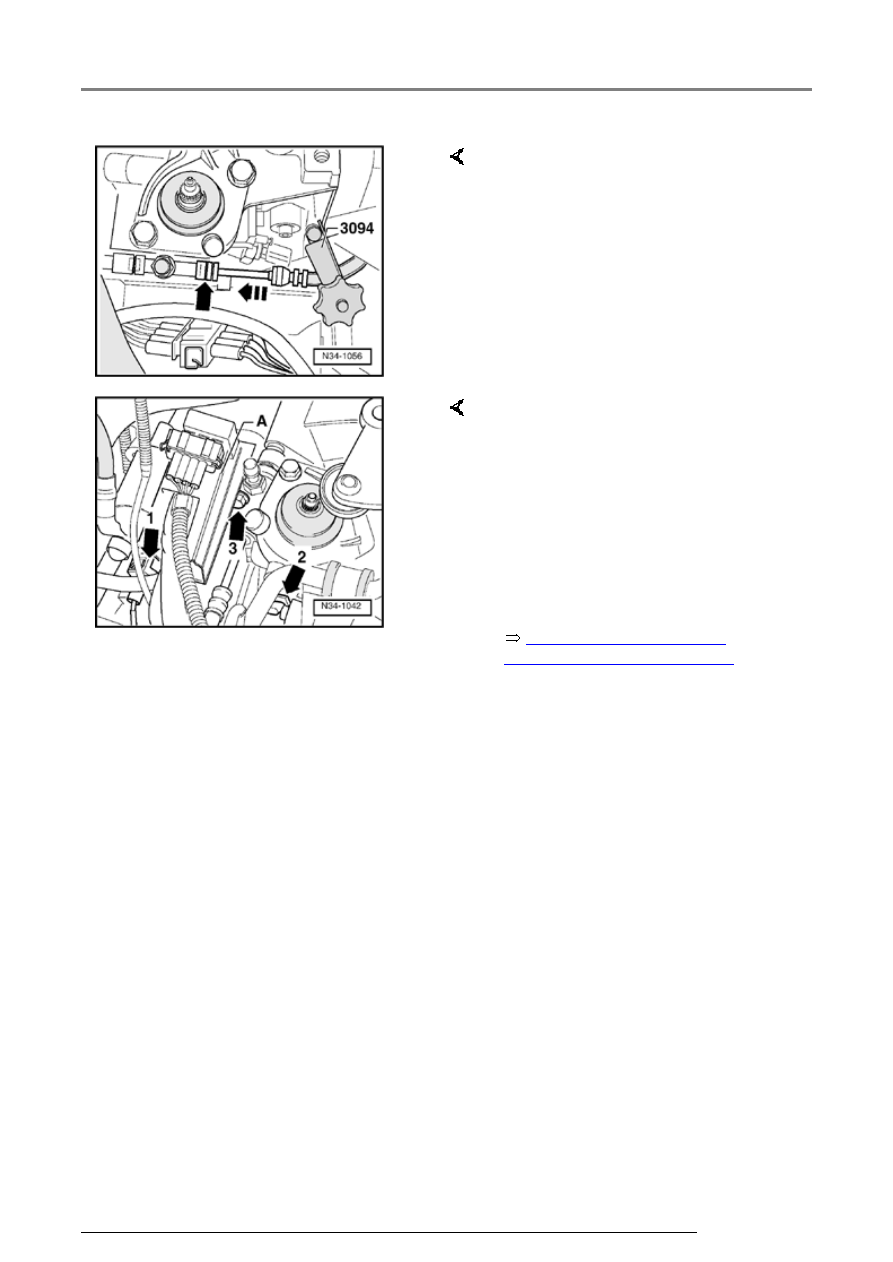

-  Remove special tool 3094.

-  Install upper securing bolt on

starter.



Note:

All repairs on the starter:



Repair Manual, Electrical

Equipment, Repair Group 27



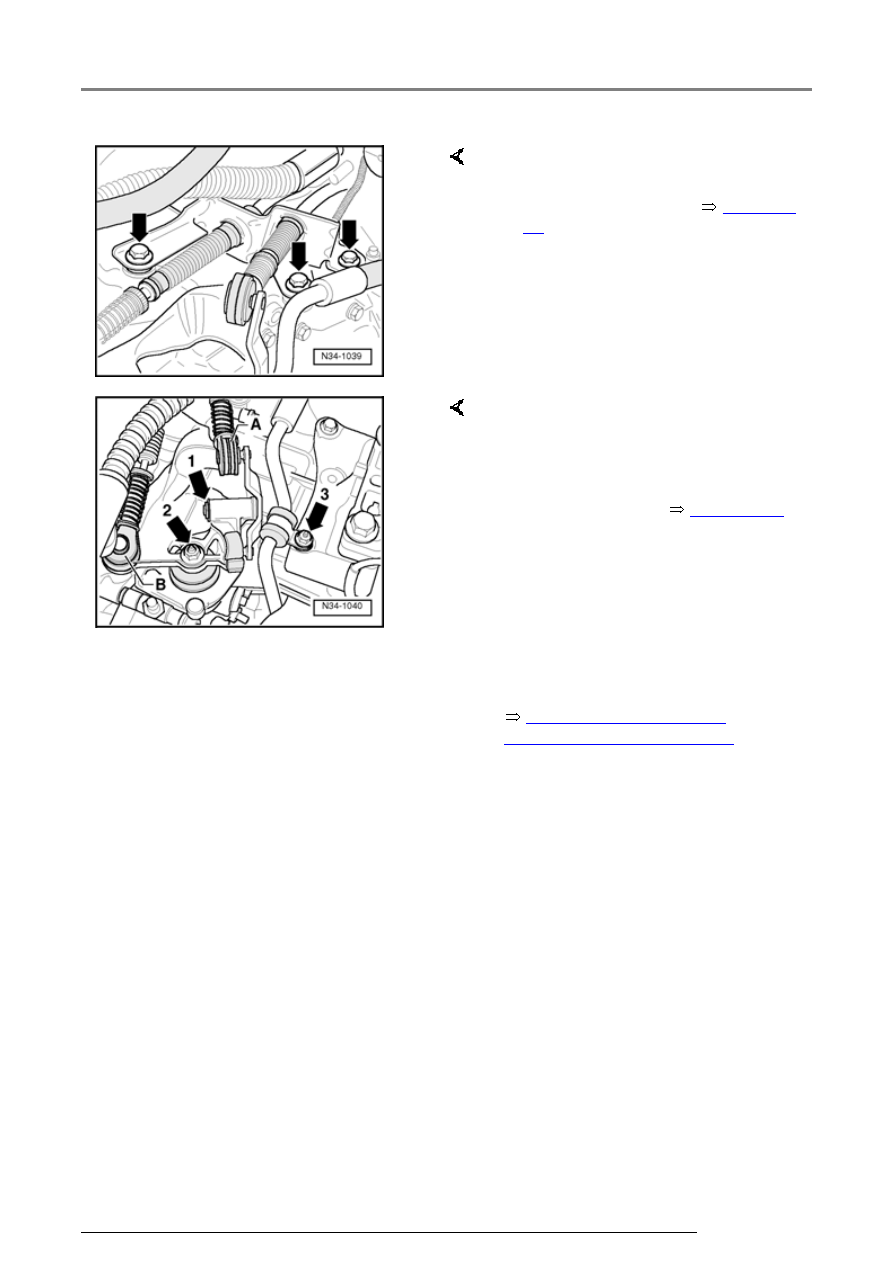

-  Install cable retainer -A- on starter

(arrow -3-).

-  Attach connectors for starter

(arrow -1-) and back-up light
(arrow -2-).

Transmission, removing and installing

34-49





-  Install cable support bracket on

transmission (arrows) and tighten
bolts to torque setting



Page 34-

11

 pos. 6 .





Repair Manual, Electrical

Equipment, Repair Group 27



-  Install gear selector cable -B- with

transmission selector lever (arrow
-2-).

-  Tighten hex nut (arrow -2-) to

prescribed torque



Page 34-10



pos. 16 .

-  Secure gate selector cable -A-

with relay lever using lock washer
(arrow -1-).

-  Install power steering line (arrow -

3-).

-  Install battery carrier.

Transmission, removing and installing
