34-38





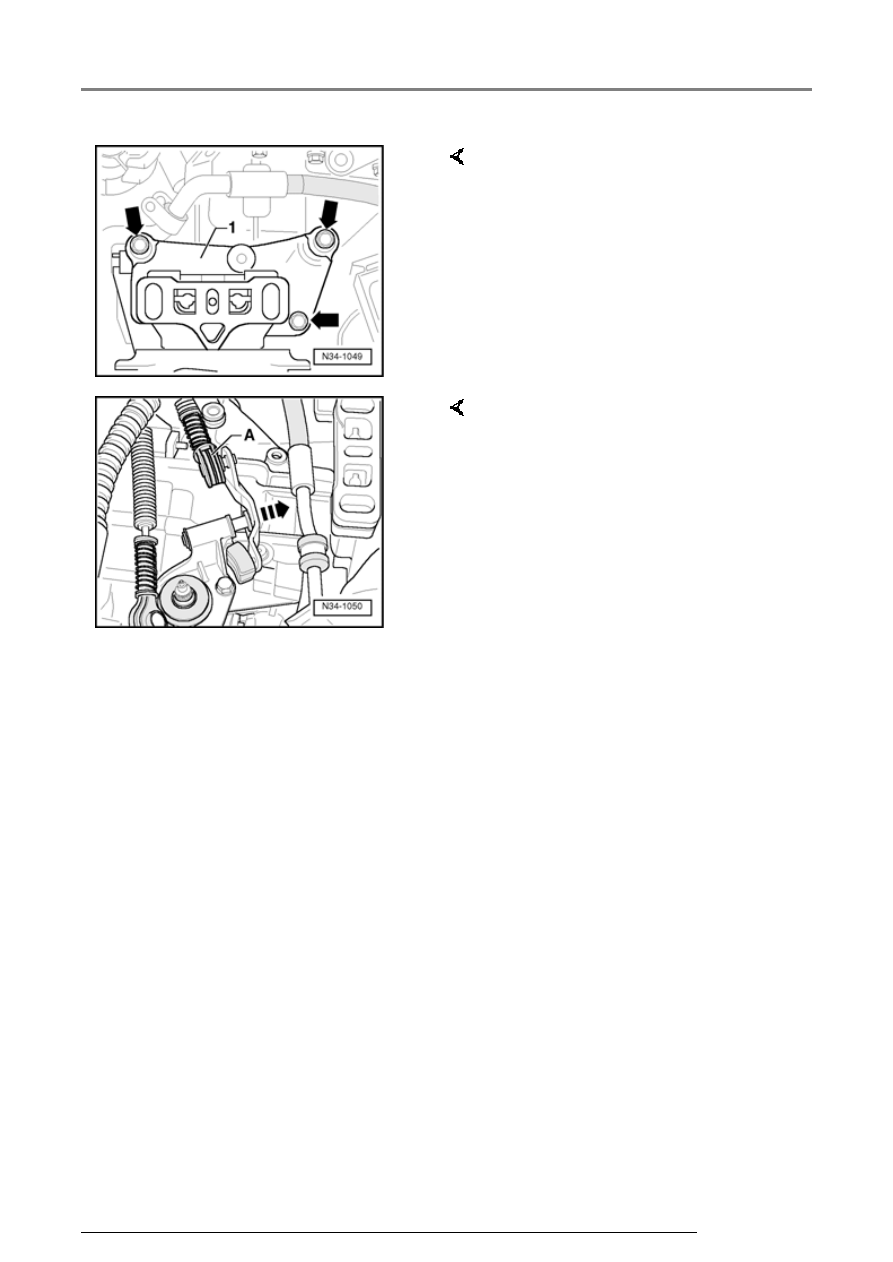

-  Remove left mount -1- from

transmission (arrows).



-  Pull off gate selector cable -A-

with relay lever in direction of
arrow.

-  Tie up selector cable with

transmission selector lever and
gate selector cable with relay
lever.

-  Incline engine/transmission

assembly further by lowering it via
left spindle of support bar 10-
222A.

Transmission, removing and installing

34-39





Note:

Do not damage any of the
connecting lines and hoses when
moving engine/transmission
assembly.

Set up transmission support 3282
with adjustment plate 3282/27 to
remove transmission 02M.

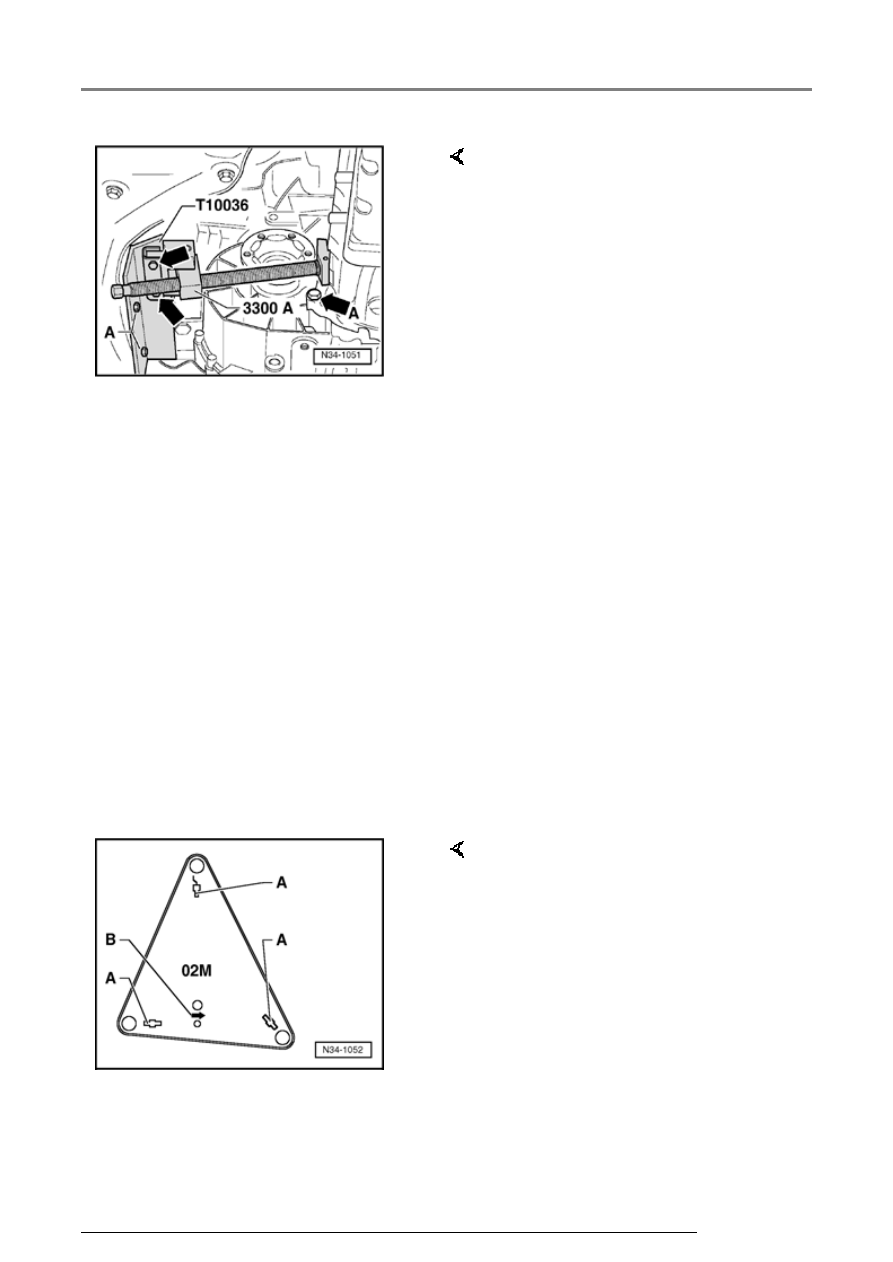

-  Bolt support rail T10036 to both

pendulum support securing holes
on subframe (bolts -A-).

-  Install support 3300 A so that it is

almost touching assembly
mounting and secure (arrows).

-  Press engine/transmission

forward carefully.

-  Remove lower rear

engine/transmission securing
bolts (arrow -A-).

-  Remove lower

engine/transmission securing
bolts.

-  Align arms of transmission

support according to holes in
adjustment plate.



-  Bolt support elements -A-, as

illustrated, on adjustment plate.

Transmission, removing and installing

34-40





Note:

Do not damage power steering line
when lowering transmission.

-  Place transmission jack under

vehicle. Arrow symbol -B- (



Illustration N34-1052) on
adjustment plate points to front of
vehicle.

-  Align adjustment plate parallel to

transmission.

-  Secure transmission to

transmission support 3282 with
bolt -A-.

-  Remove engine/transmission

connecting bolt (arrow).

-  Press transmission off dowel

sleeves and carefully swing
toward subframe.

-  Lower transmission slightly and

incline to left via spindles of
transmission support 3282.

-  Lower transmission carefully,

guiding right side flanged shaft in
area of flywheel and left side
flanged shaft in area of subframe.

-  When lowering, change position

of transmission using
transmission support 3282
spindles.

Transmission, removing and installing

34-41







Transporting the transmission



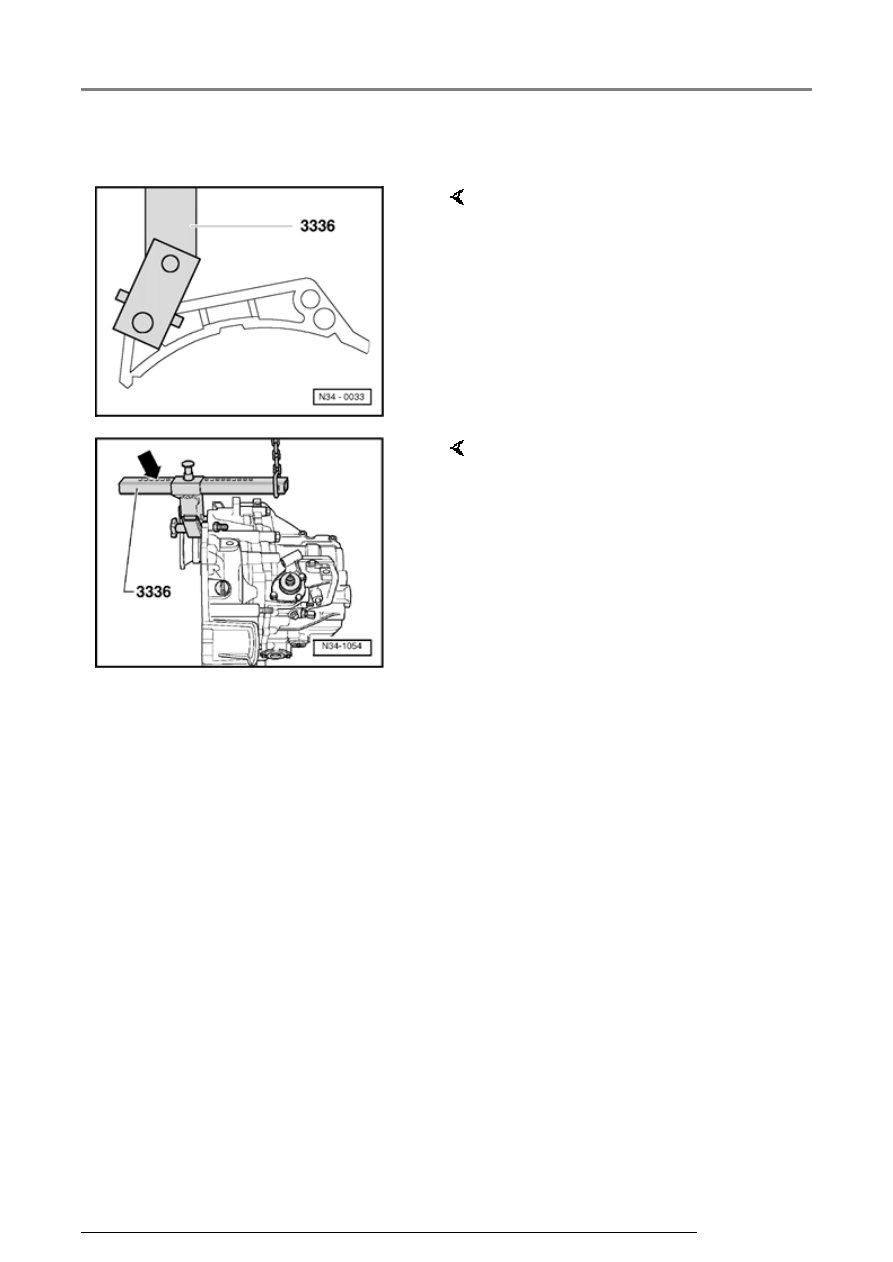

-  Bolt transmission lifting device

3336 to clutch housing.



-  Set support beam on sliding piece

with locking pin (arrow).

   No. of holes visible = 6

-  Take transmission out with

workshop crane and transmission
lifting device 3336.

-  Lower transmission.
