Dimension -a- is measured inclusive of front wheel housing liner; always measure other dimensions -b- to

-e- from centre of hole.

♦

Dimension -f- is measured at centre hole.

Dimensions for securing

screws



Dimension -a-

= 950 mm

Dimension -b-

= 869 mm

Dimension -c-

= 435 mm

Dimension -d-

= 435 mm

Dimension -e-

= 869 mm

Dimension -f-

= 60 mm

5.5.3

Installing

Fitting notes
♦ If side member extension is being installed for first time on new

vehicle and newly painted surfaces, procedure in ⇒  Workshop

manual "Paint"; ⇒Paintwork repairs; ⇒Paint finish; ⇒Mouldings

& Films should be observed.

♦ If the side member extension is removed and reinstalled, only

use adhesive remover -D 002 000 10- to remove the adhesive

remains.

♦ Ensure that surfaces to be bonded are free of dust and grease.
♦ Bond side member extension immediately after cleaning.
♦ Do not remove protective backing until just before you are

ready to install side member extension.

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

5. Mouldings and trims

285



⇒ page 285

 .

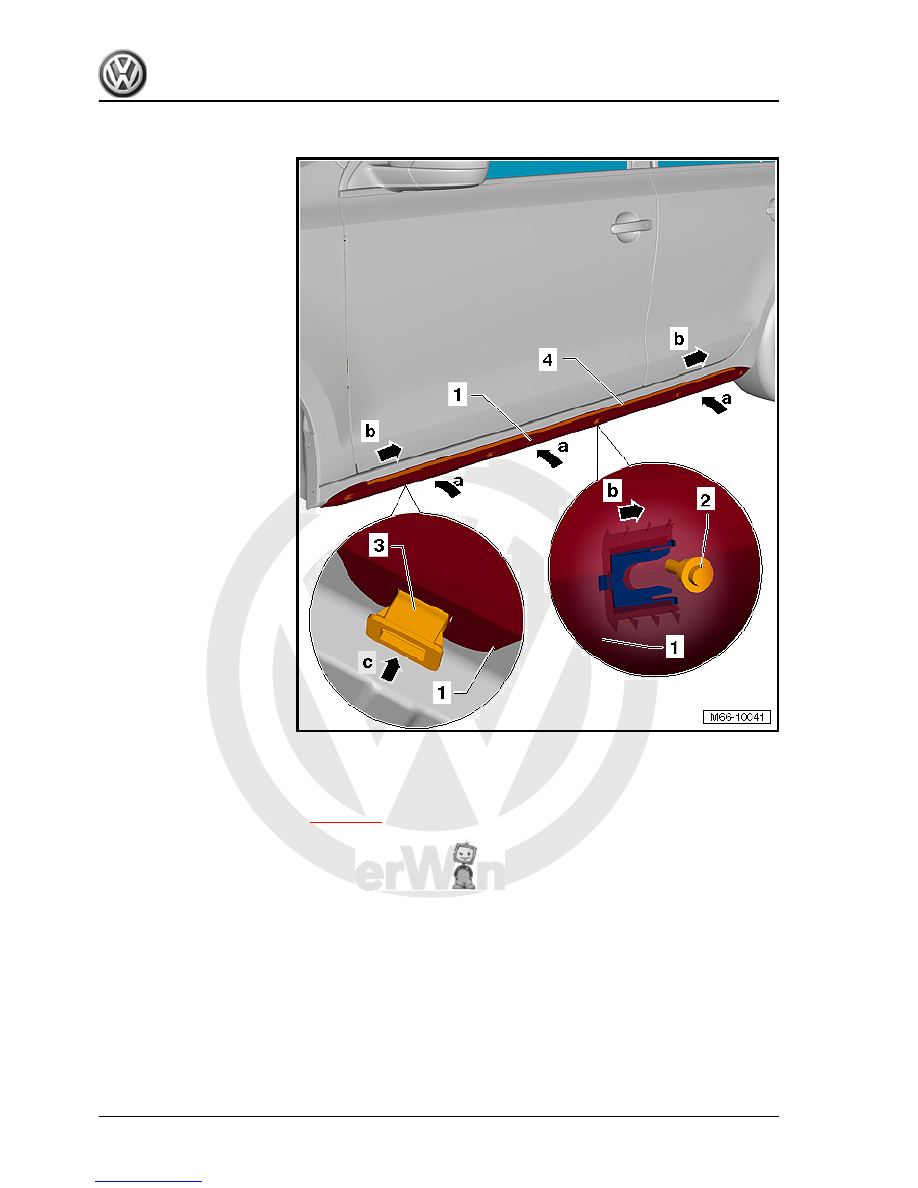

– Screw self-tapping securing screws -2- into pilot-drilled holes.
Specified torque for securing screws -2-: 1.2 Nm
– Mate side member extension -1- with openings on rear via se‐

curing screws -2- until side member extension is in uniform

contact with side member -arrows a-.

– Push side member extension -1- towards rear until it stops

against securing screws -2- -arrows b-

– Press clips -3- into side member extension -1- -arrow c- until

they engage.

– Remove protective backing on top of side member extension

-1- from adhesive strip -4- and press adhesive strip firmly onto

side member.

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

286



6.1

Tools

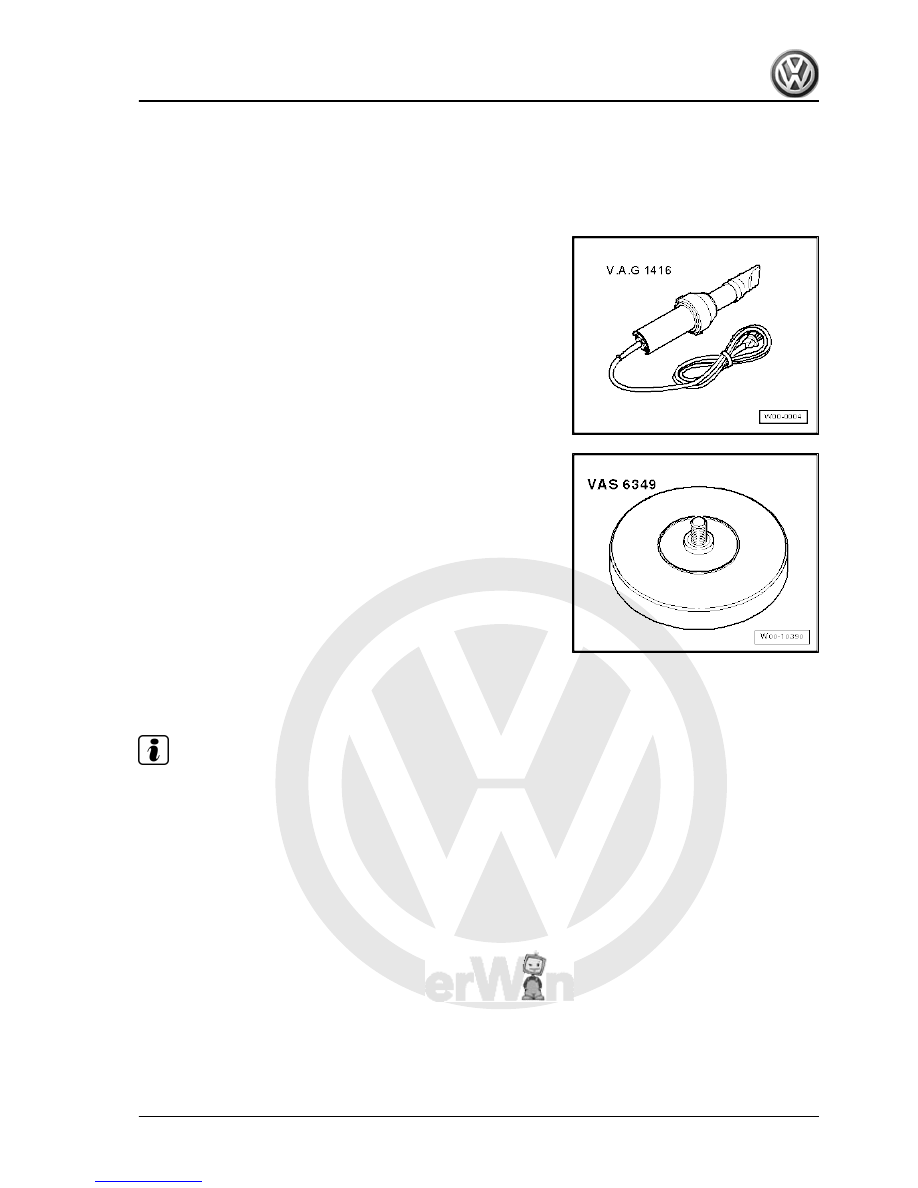

Special tools and workshop equipment required
♦ Hot air blower -V.A.G 1416-

♦ Adhesive strip remover -VAS 6349-

6.2

Installation instructions for lettering and

emblems

Note

♦

Lettering cannot be removed without damage.

♦

Before removing the lettering, heat it with a hot air blower -

V.A.G 1416- .

♦

Only use adhesive remover -D 002 000 10- .

♦

Ensure that the adhesive surfaces are free of dust and grease.

♦

Stick on lettering immediately after cleaning.

♦

Remove protective backing immediately before installation.

♦

Working temperature is approx. 21°C.

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

6. Lettering

287



6.3.1

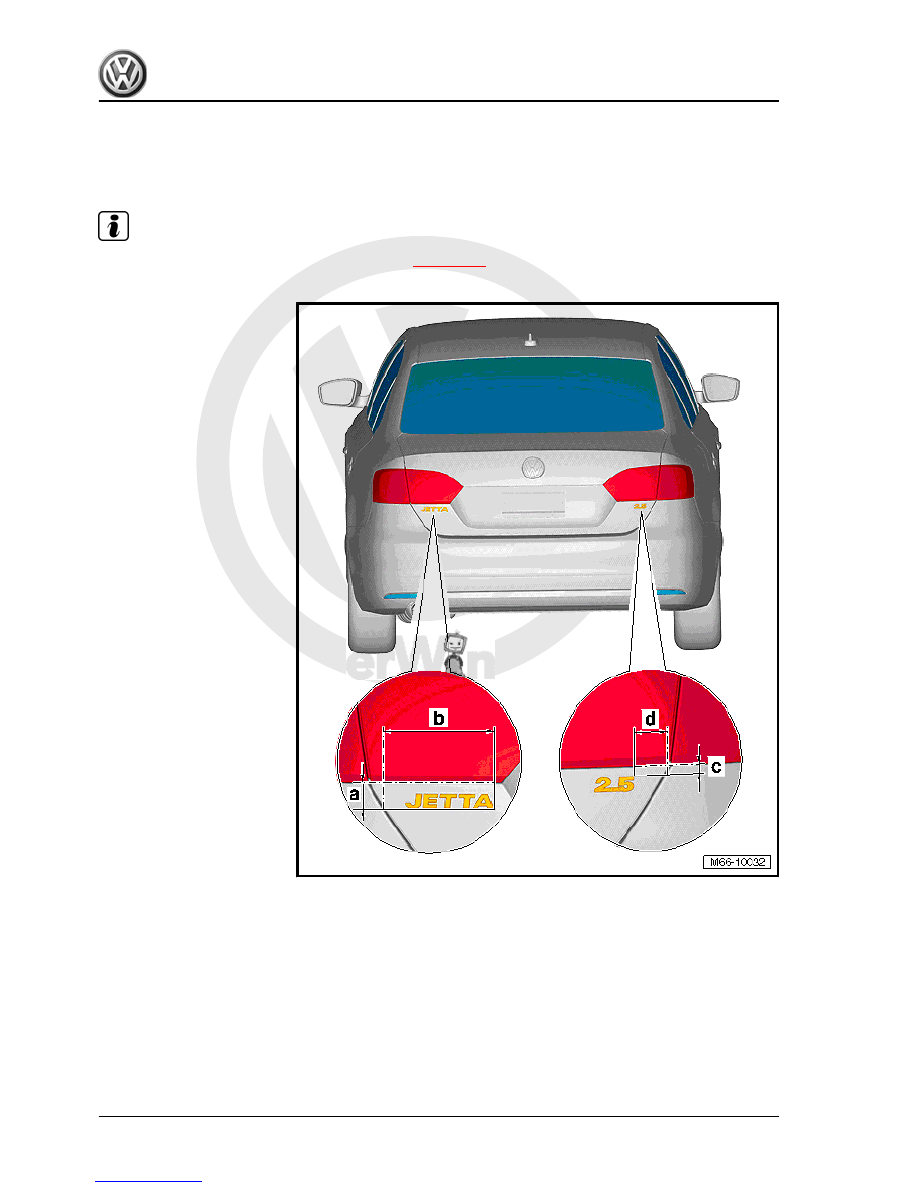

Lettering for model name and engine designation

Note

When fitting the lettering, observe the fitting notes

⇒ page 287

 .

Dimension -a- = 32 mm

From lower edge of tail light to lower edge of lettering

Dimension -b- = 155 mm

From edge of rear lid to inner edge of lettering

Dimension -c- = 14 mm

From lower edge of tail light to upper edge of lettering

Dimension -d- = 43 mm

From edge of rear lid to outer edge of lettering

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤
