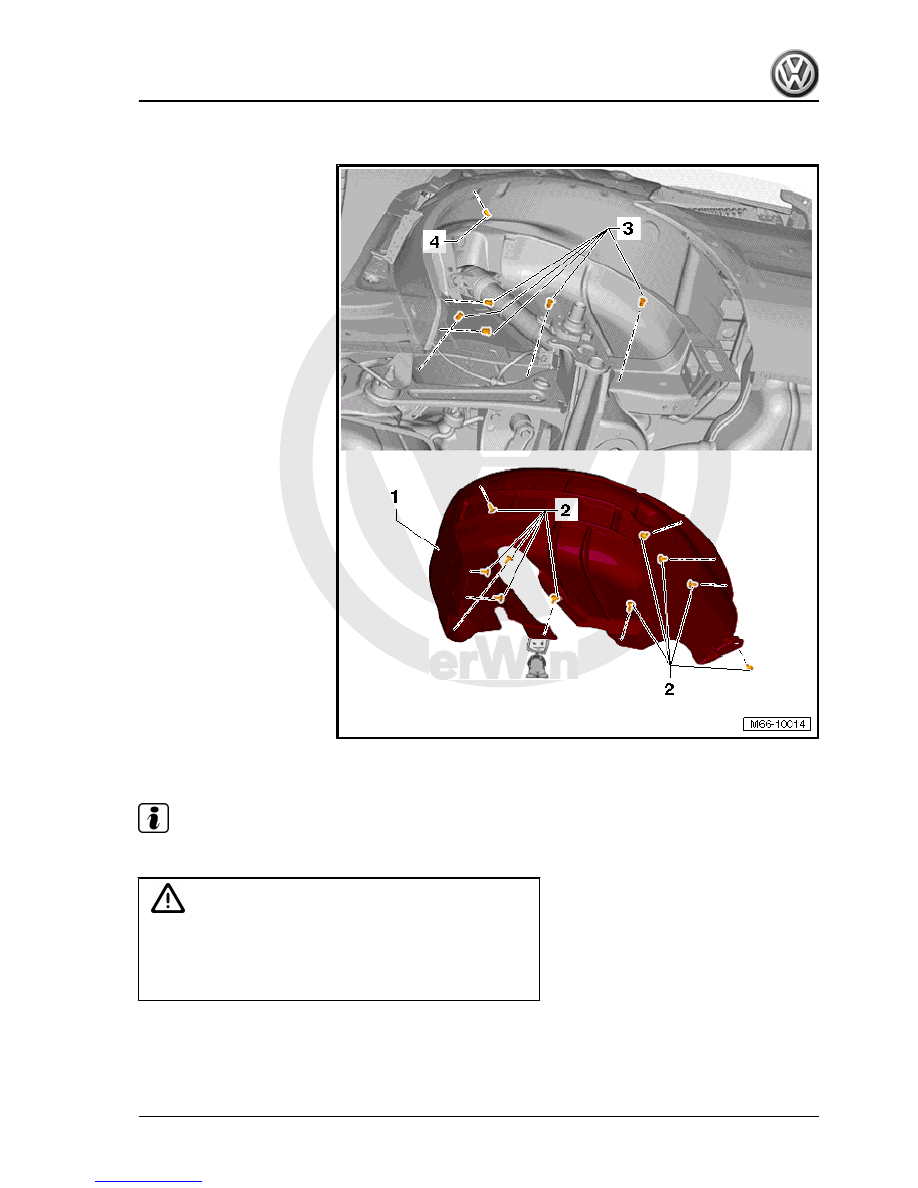

Carry out following work:

Note

Check spreader nuts -3- for damage and renew if necessary.

WARNING

♦ Check gas-tight spreader nuts -4- for damage and renew

if necessary.

♦ The spreader nut seals the interior against exhaust gases

and must always be renewed in the event of damage.

– Insert wheel housing liner -1- into wing.
– Screw in bolts -2- and tighten them.
Specified torque for bolts -2-: 2 Nm.

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

1. Wheel housing liner

241



Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

242



2.1

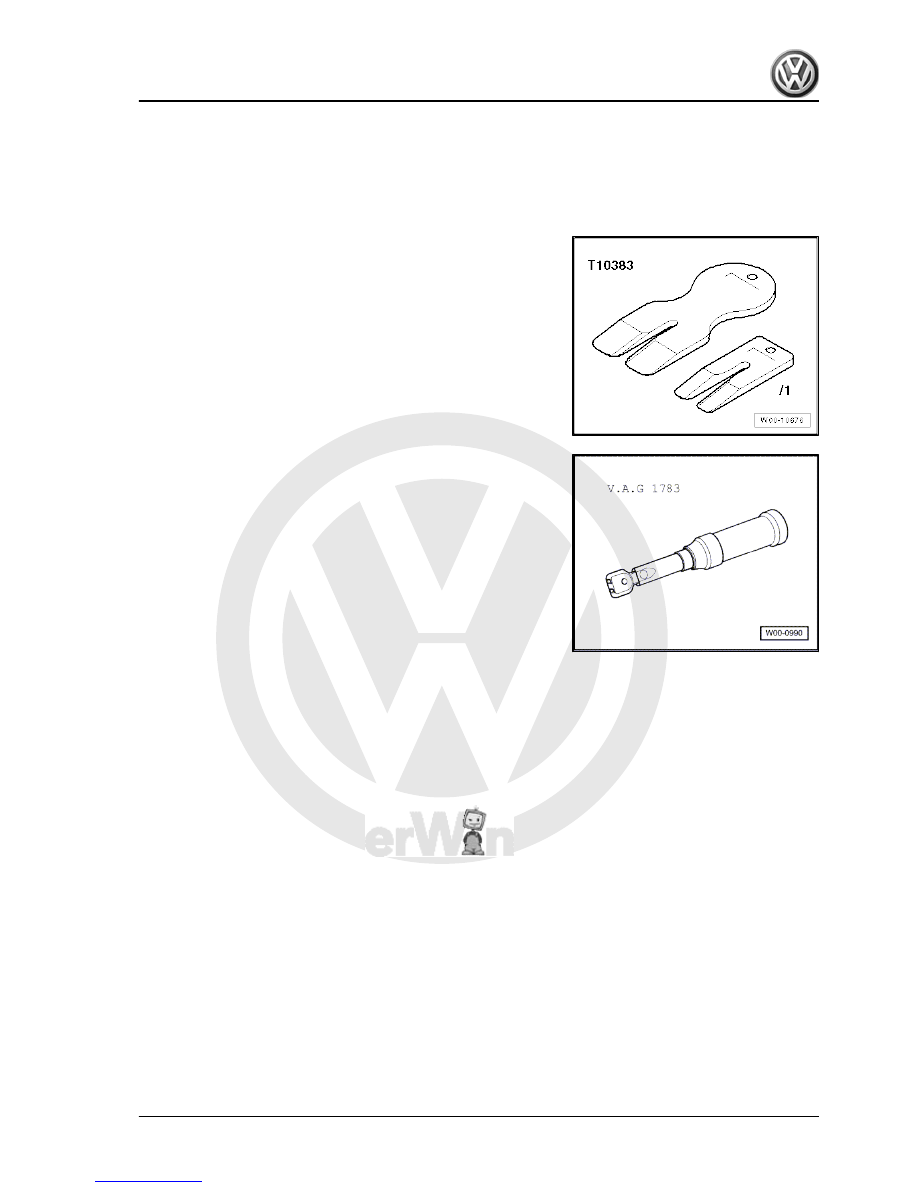

Tools

Special tools and workshop equipment required
♦ Wedges -T10383-

♦ Torque wrench -V.A.G 1783-

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

2. Exterior mirror

243



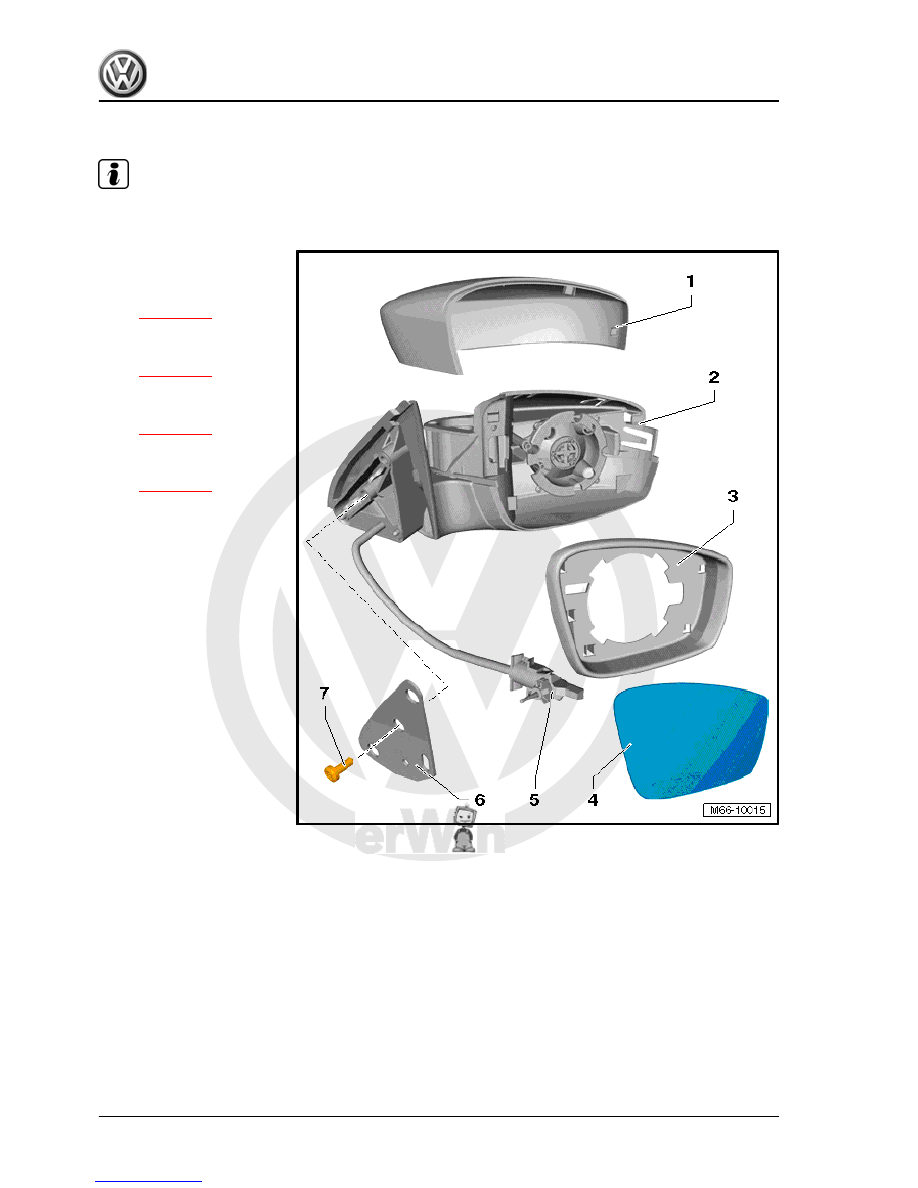

Note

The right side is shown. The left side is similar.

1 - Mirror housing

❑ Material: ABS.
❑ Removing and installing

⇒ page 248

2 - Mirror mounting

❑ Removing and installing

⇒ page 252

3 - Trim

❑ Removing and installing

⇒ page 247

4 - Mirror glass

❑ Removing and installing

⇒ page 245

5 - Adjuster unit

❑ Cannot be separated

from mirror mounting

-2-

6 - Insulation
7 - Bolt

❑ Specified torque: 12 Nm

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

244
