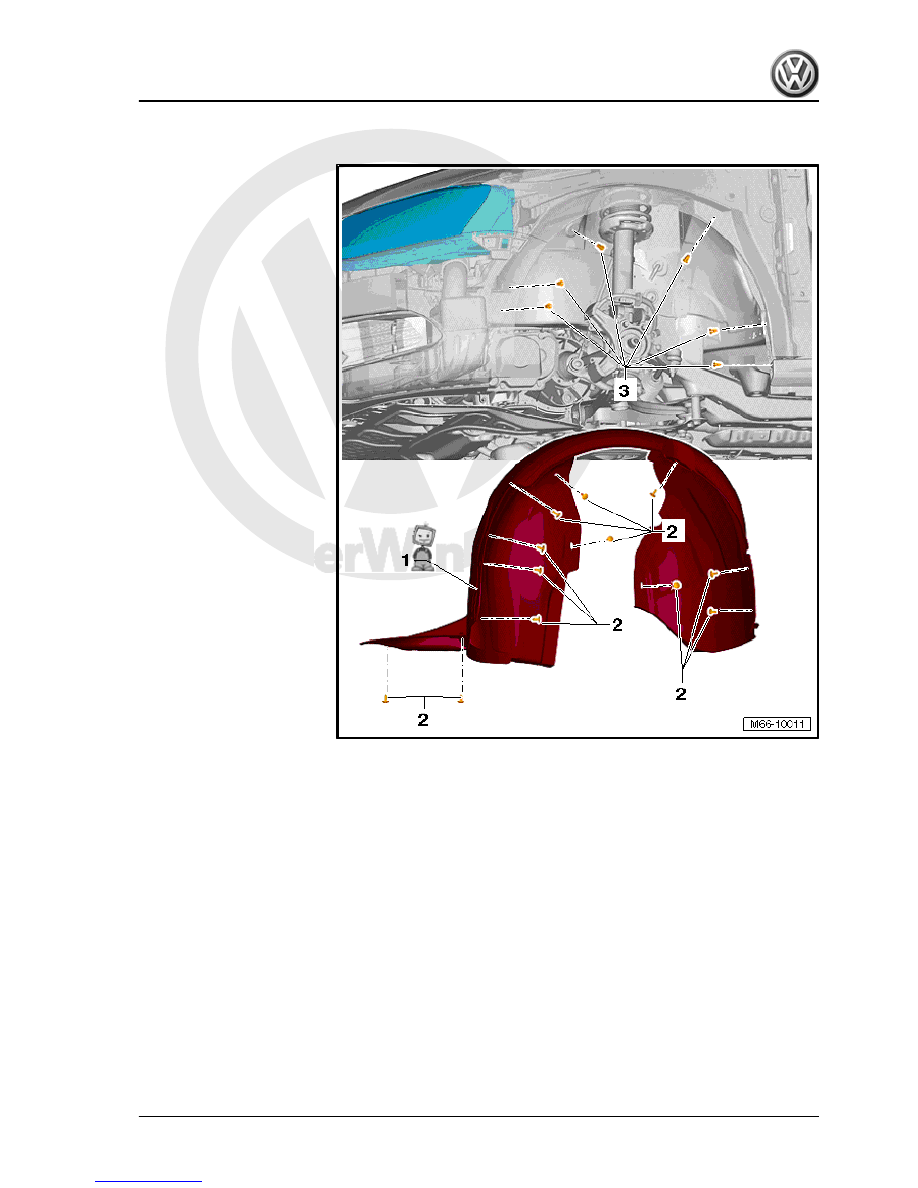

Carry out following work:
– Remove wheel ⇒  Running gear; Rep. gr.  44 ; Specified tor‐

ques for wheel bolts .

– Remove bolts -2- (Qty. 12).
– Pull wheel housing liner -1- out of wing.

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

1. Wheel housing liner

237



Carry out following work:

Note

Check spreader nuts -3- for damage and renew if necessary.

wheel bolts .

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

238



Note

♦

Minor differences may be encountered in respect of wheel housing liner, depending on vehicle model.

♦

Only the left side is shown. The right side is similar.

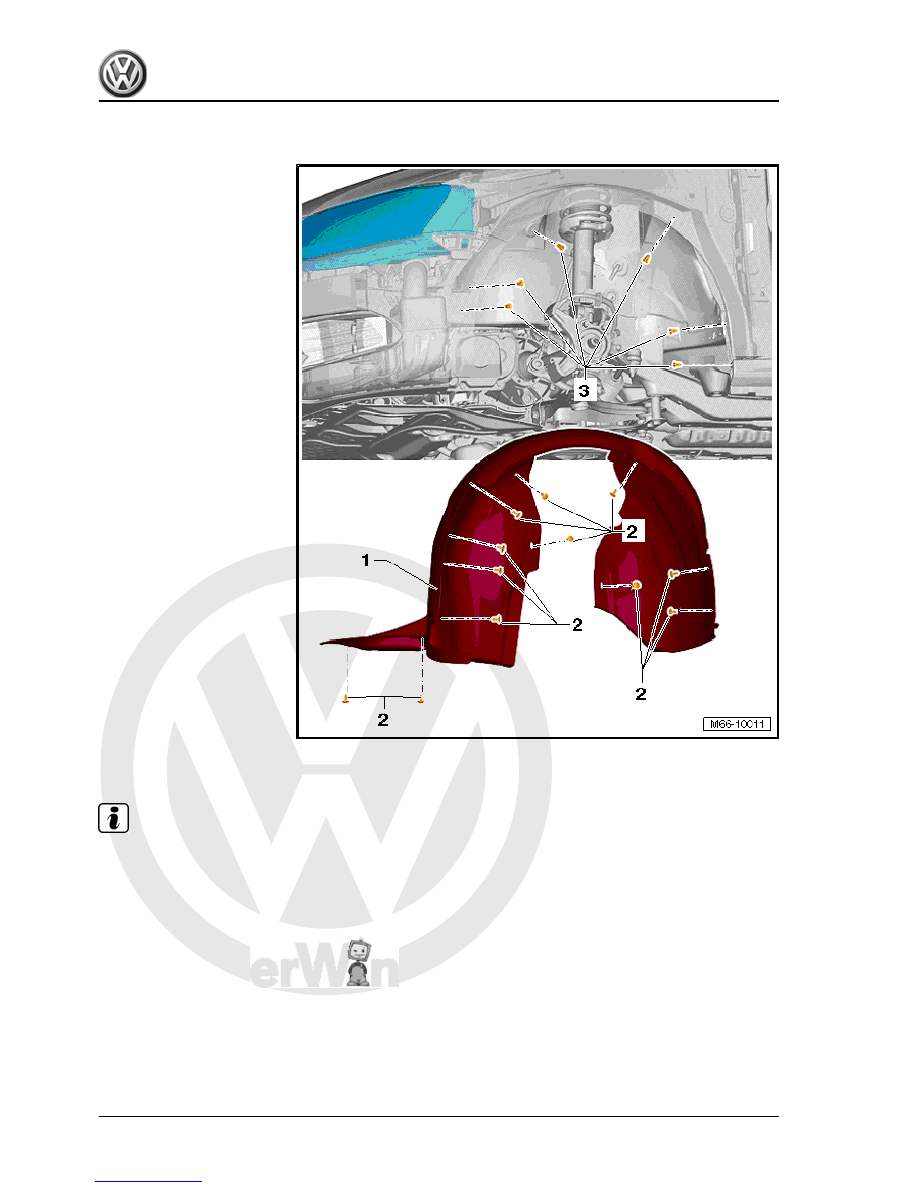

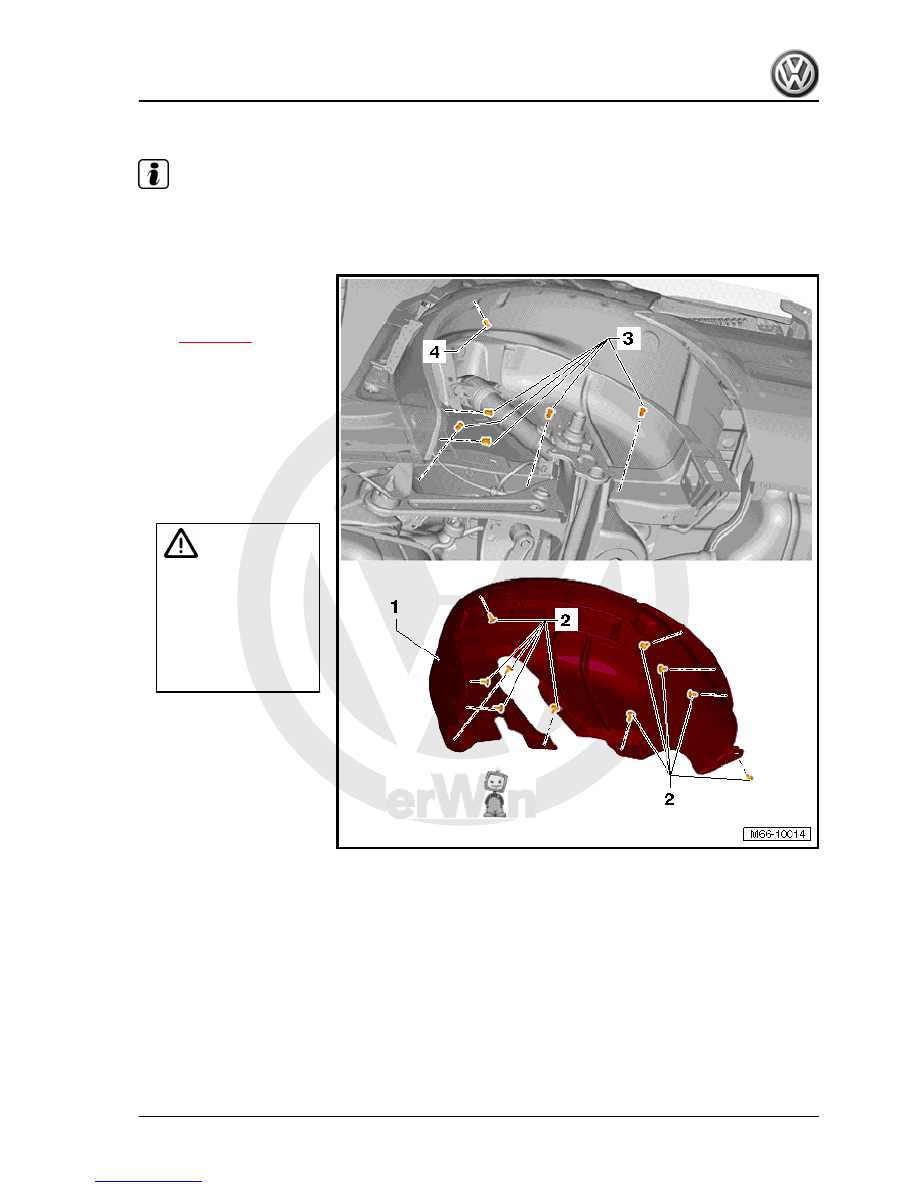

1 - Wheel housing liner

❑ Material PP/EPDM.
❑ Removing and installing

⇒ page 240

2 - Bolt

❑ Qty. 10.
❑ Specified torque: 2 Nm

3 - Expanding nut

❑ Qty. 5.
❑ Renew if damaged

4 - Expanding nut

❑ Gas-tight.

WARNING

♦

Check gas-tight spreader

nuts for damage and re‐

new if necessary.

♦

The spreader nut seals

the interior against ex‐

haust gases and must al‐

ways be renewed in the

event of damage.

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

1. Wheel housing liner

239



housing liner

1.5.1

Removing

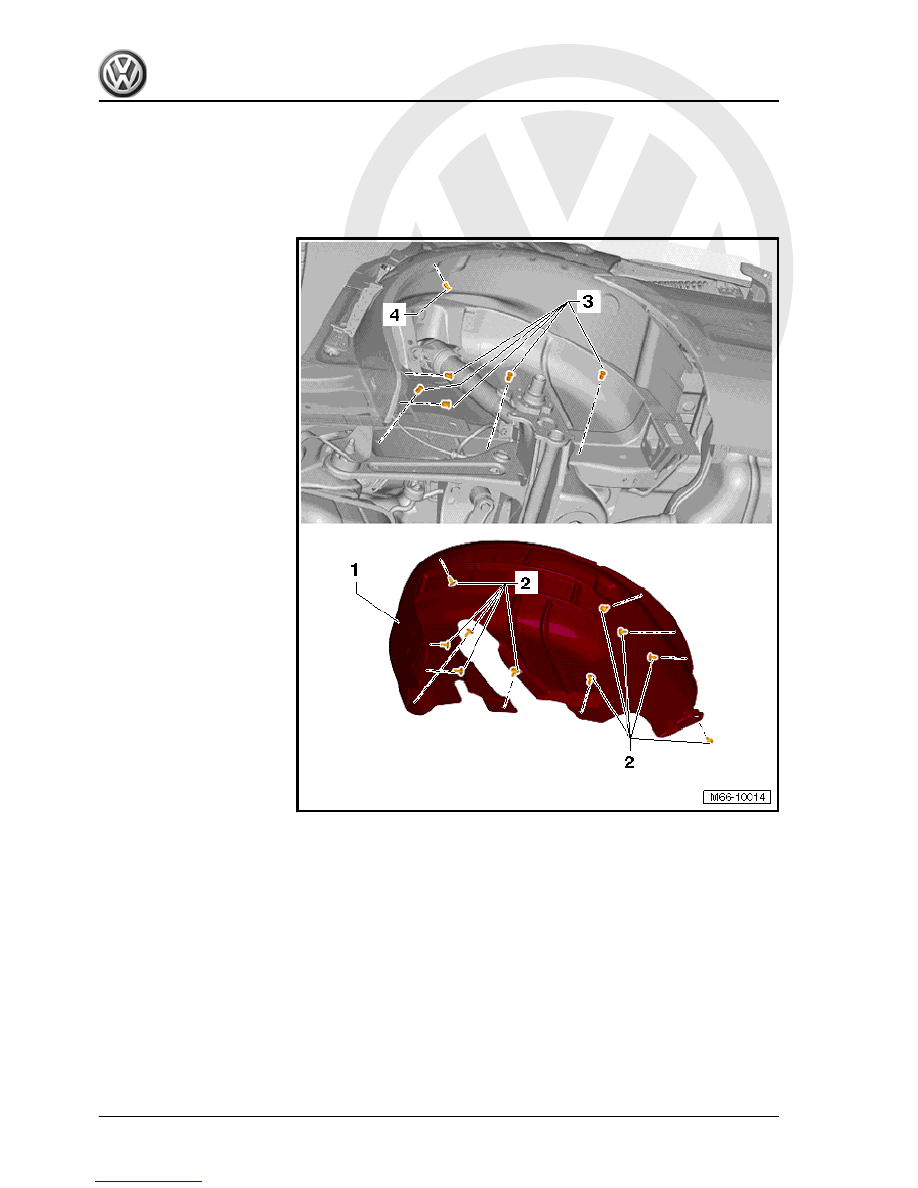

Carry out following work:
– Remove wheel ⇒  Running gear; Rep. gr.  44 ; Specified tor‐

ques for wheel bolts

– Remove bolts -2- (Qty. 10).
– Pull wheel housing liner -1- out of wing.

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

240
