Carry out following work:
– Remove window channel

⇒ page 230

 .

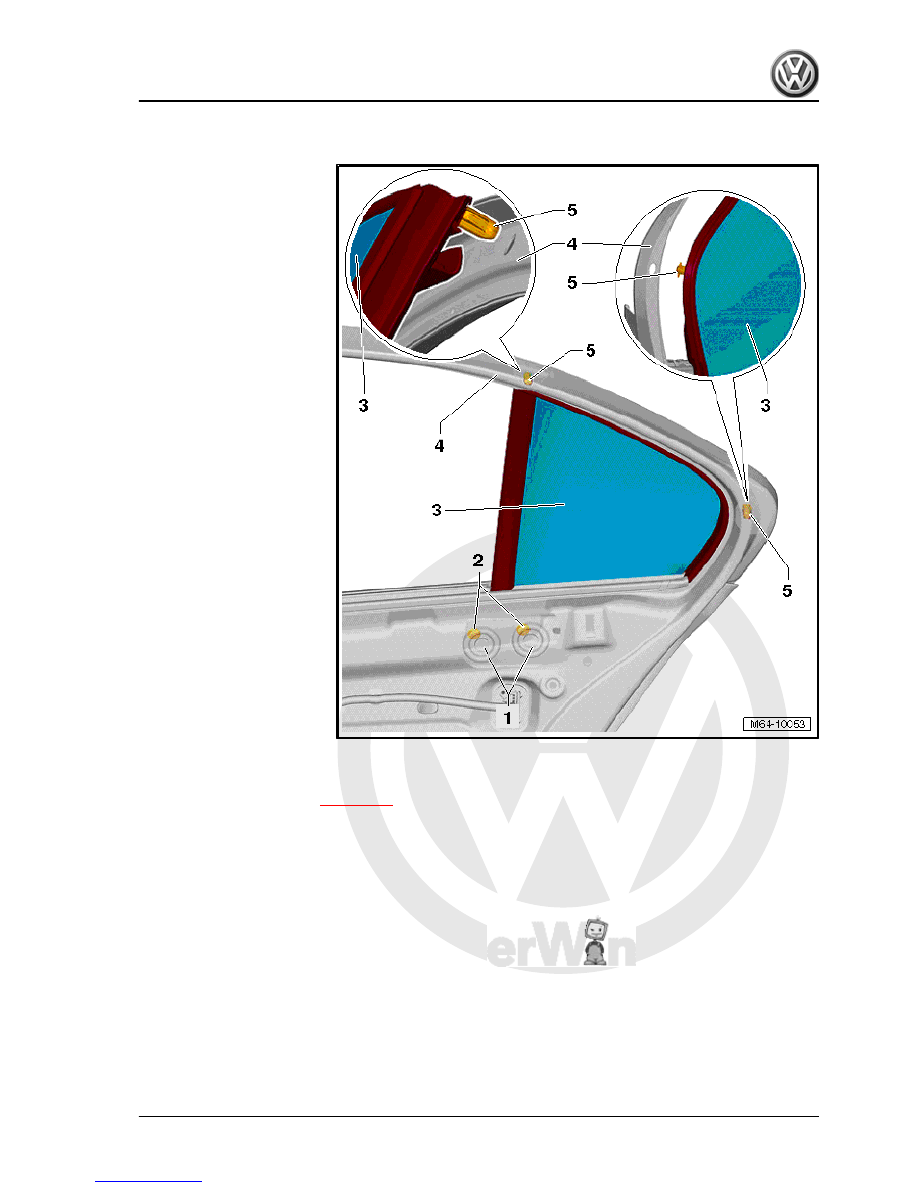

– Lever out cover caps -1-.
– Remove bolts -2-.
– Pull fixed door window -3- away from the door -4- only until the

clips -5- disengage.

– Remove fixed door window -3- upwards out of door -4-.

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

3. Rear door window

233



Carry out following work:

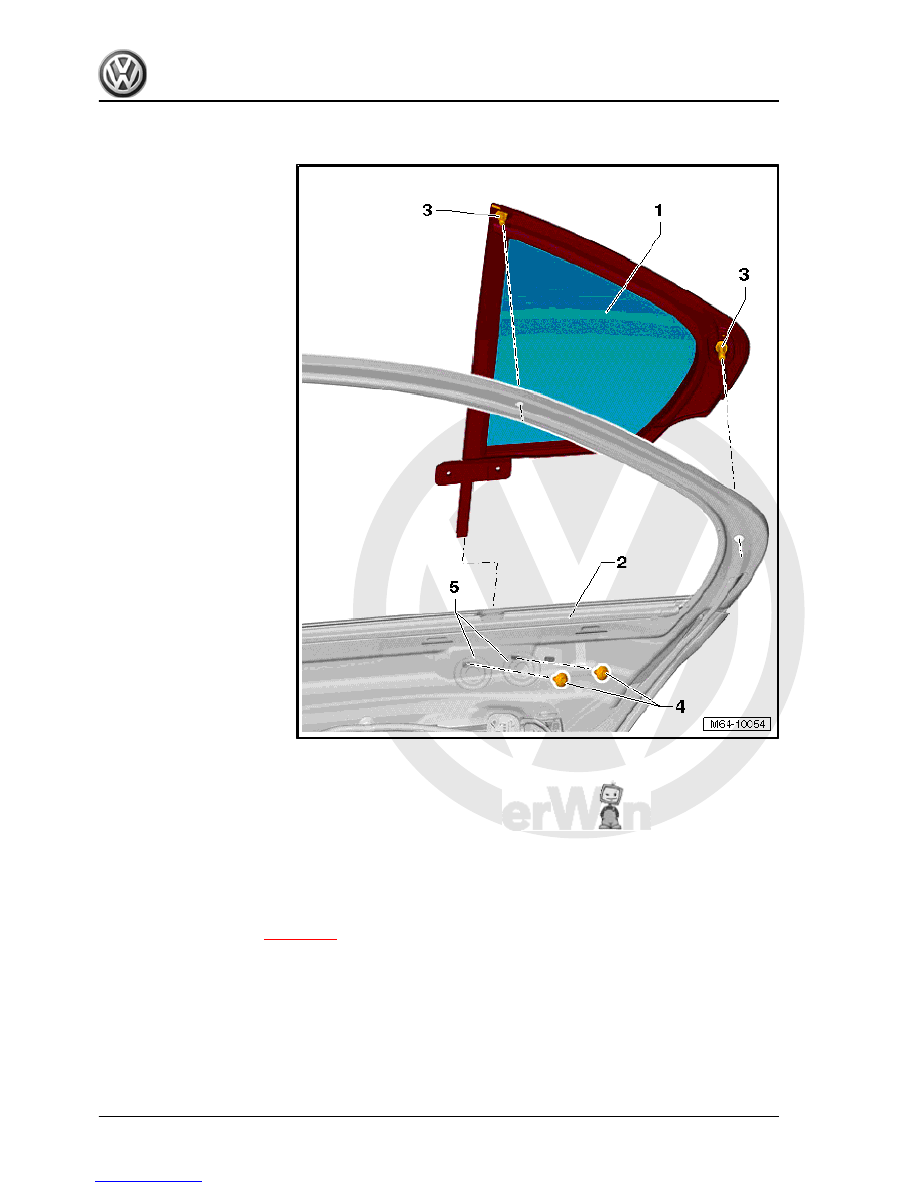

– Push fixed door window -1- into door -2-.
– Press fixed door window -1- evenly onto door -2- until the clips

-3- engage.

– Screw in bolts -4- and tighten them.
Specified torque for bolts -4-: 5.5 Nm.
– Press cover caps -5- into door skin.
– Install window channel

⇒ page 230

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

234



Wheel housing liner

1.1

Tools

Special tools and workshop equipment required

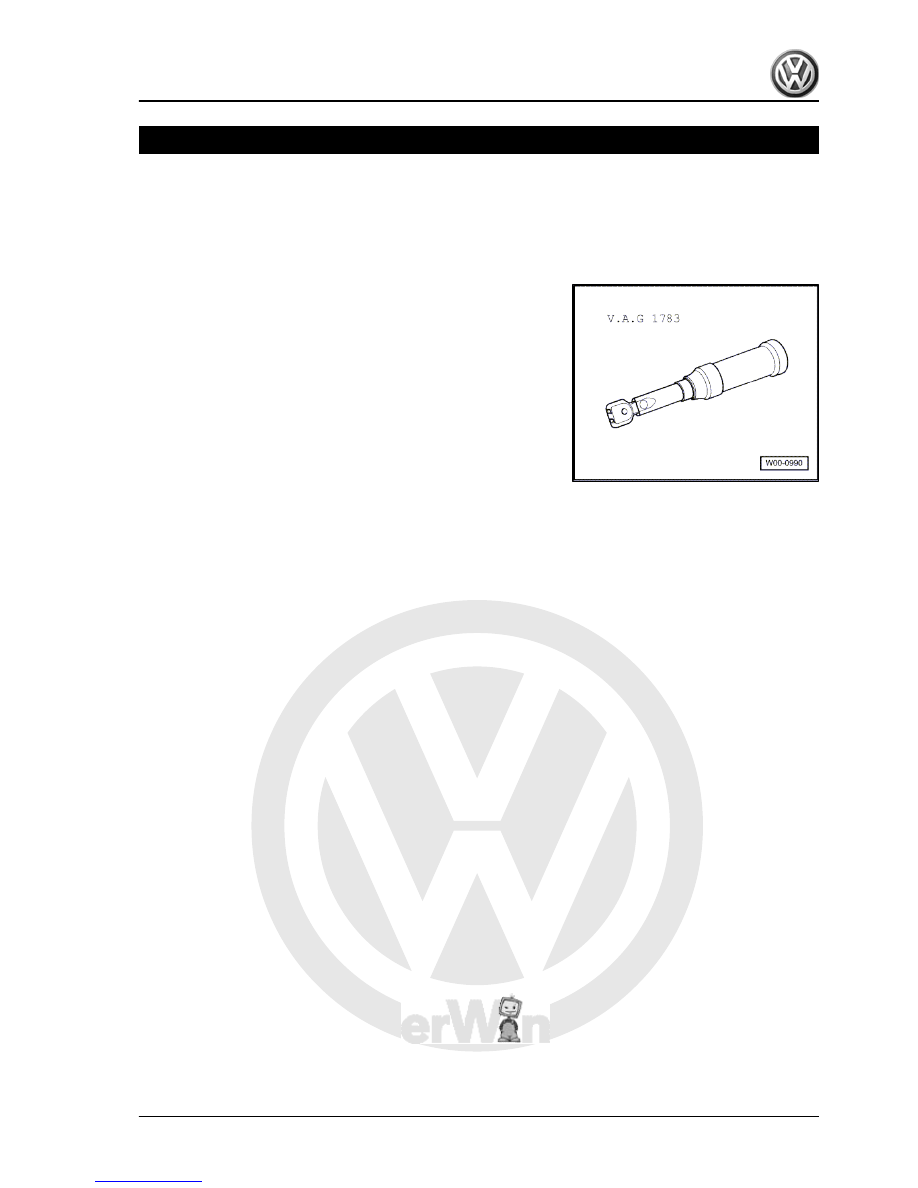

♦ Torque wrench -V.A.G 1783-

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

1. Wheel housing liner

235



Note

♦

Minor differences may be encountered in respect of wheel housing liner, depending on vehicle model.

♦

Only the left side is shown. The right side is similar.

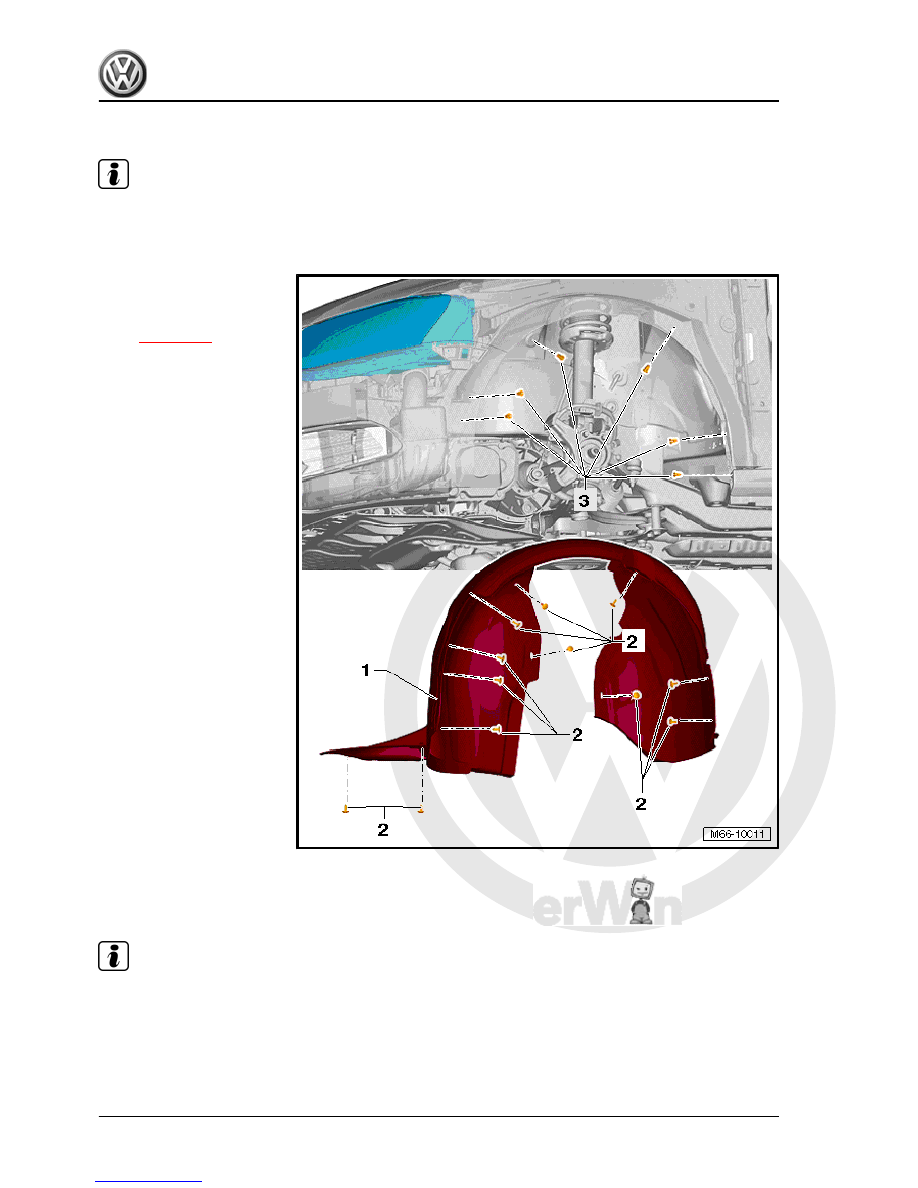

1 - Wheel housing liner

❑ Material PP/EPDM.
❑ Removing and installing

⇒ page 236

2 - Bolt

❑ Qty. 12.
❑ Specified torque: 2 Nm

3 - Expanding nut

❑ Qty. 6.
❑ Renew if damaged

1.3

Removing and installing front wheel

housing liner

Note

♦

The removal and installation sequence is only for the left wheel

housing liner. Removal and installation of the right wheel

housing liner are similar.

♦

The removal and installation procedures may have to be modi‐

fied slightly depending on model variants.

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤
