– Ensure joints are parallel and shut lines are equal ⇒ Body Re‐

pairs; Rep. gr.  00 ; Body gaps; Body, front .

– Fit bolts -2-, -3- and -4- in place and tighten them to the re‐

spective specified torque

⇒ page 174

 .

– Install radiator grille

⇒ page 261

 .

1.6

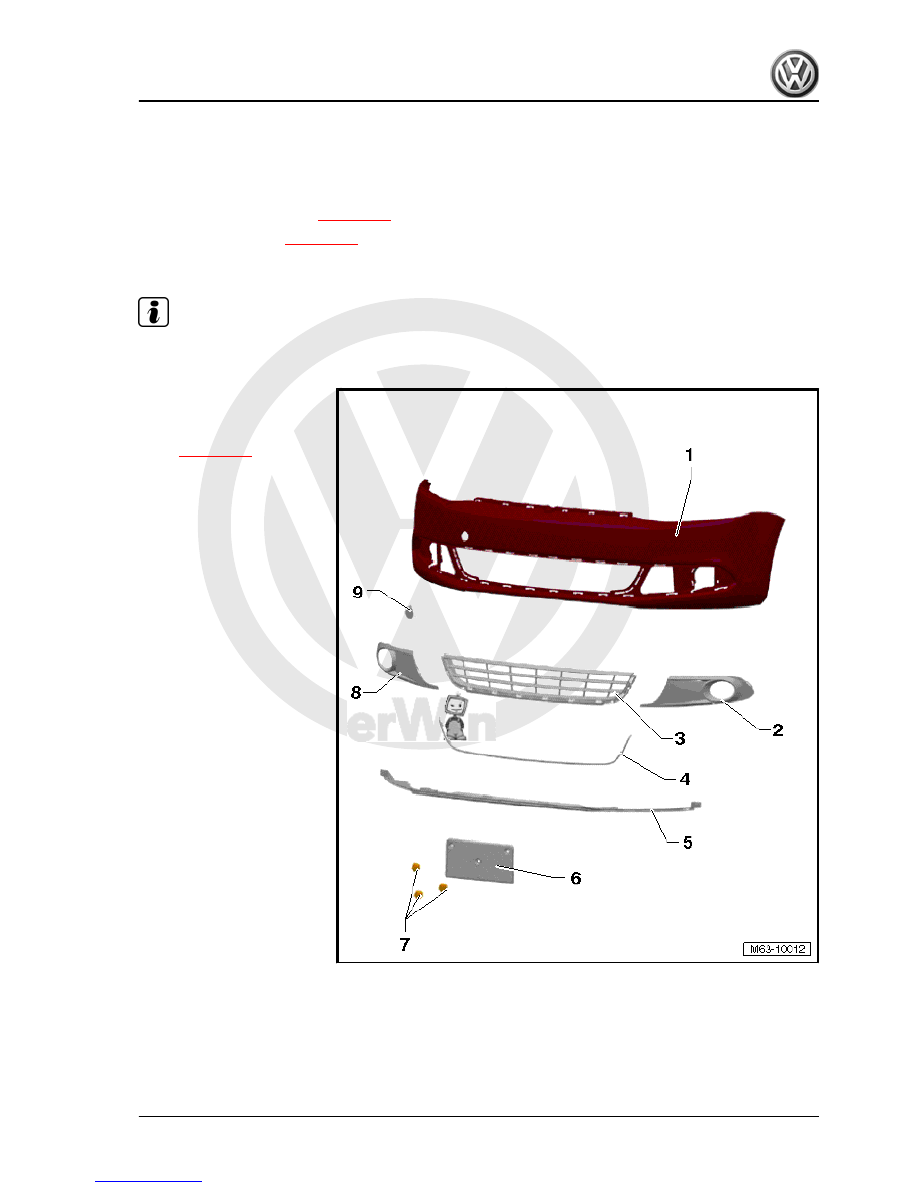

Front bumper cover add-on parts

Note

Minor differences may be encountered on add-on parts, depending on vehicle model.

1 - Front bumper cover

❑ Material PP/EPDM.
❑ Removing and installing

⇒ page 175

2 - Left trim panel

❑ Pull forwards out of de‐

tent.

❑ Different versions, as‐

signment ⇒  Parts cata‐

logue “ETKA”

3 - Centre air intake grille

❑ Only remove when

bumper cover -1- is re‐

moved

❑ Different versions, as‐

signment ⇒  Parts cata‐

logue “ETKA”

4 - Trim strip

❑ For middle air grille -3-,

depending on model

version

5 - Spoiler

❑ Only remove when

bumper cover -1- is re‐

moved

6 - Registration plate carrier

❑ Is not installed in all

models or in all markets.

❑ Different versions, as‐

signment ⇒  Parts cata‐

logue “ETKA”

7 - Clip

❑ For securing the regis‐

tration plate carrier -6-

8 - Right trim panel

❑ Pull forwards out of detent.
❑ Different versions, assignment ⇒  Parts catalogue “ETKA”

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

1. Front bumper cover

177



1.7

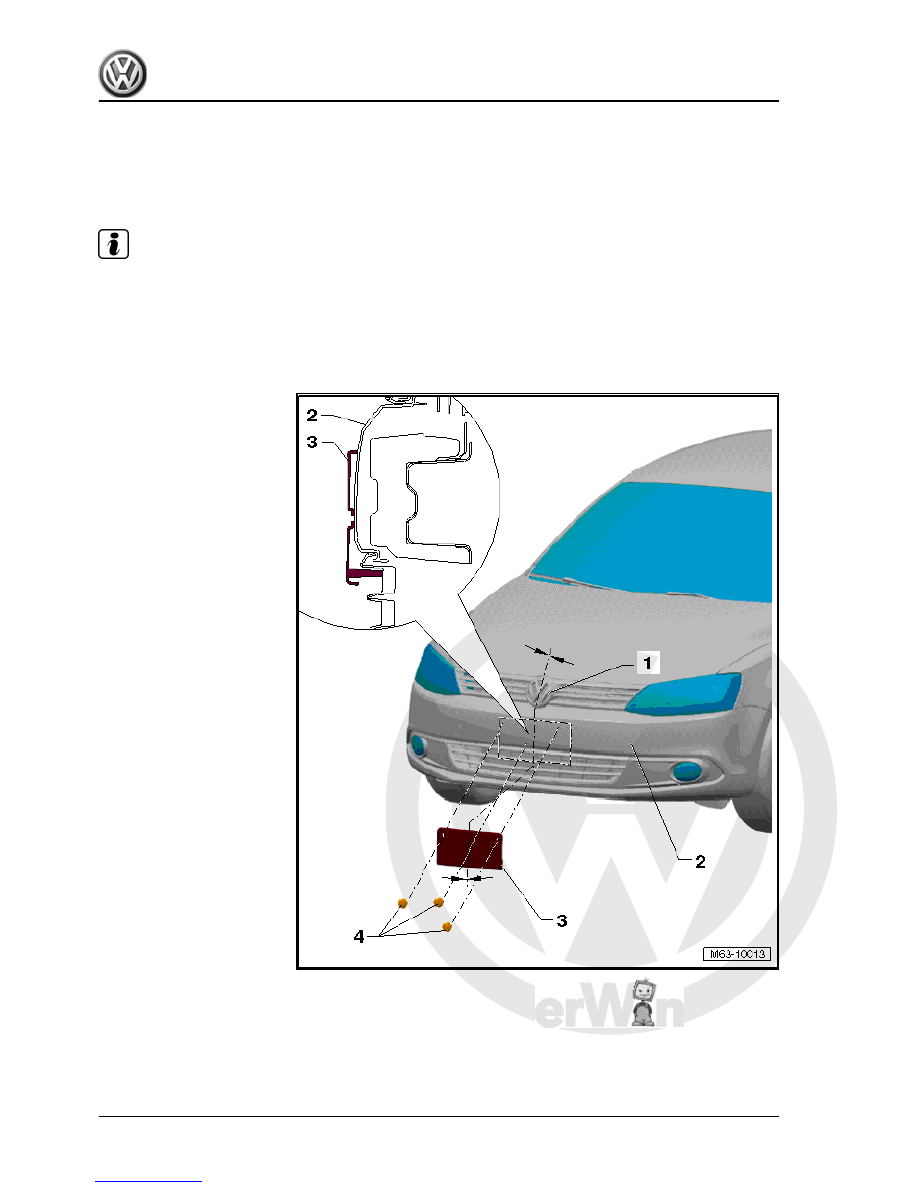

Installing front number plate carrier

Note

♦

Number plate carrier is not installed in all models or in all markets.

♦

Number plate carriers of different sizes are fitted in various markets.

♦

The height of the number plate carrier is specified by the contour to the bumper.

♦

Adherence to a depth of 12 mm is required when drilling holes.

Carry out following work:
Holes exist
– Position number plate carrier -3- on front bumper cover -2- and

press clips -4- in.

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

178



– Set drill depth stop to 12 mm and drill holes.
– Position number plate carrier -3- on front bumper cover -2- and

press clips -4- in.

1.8

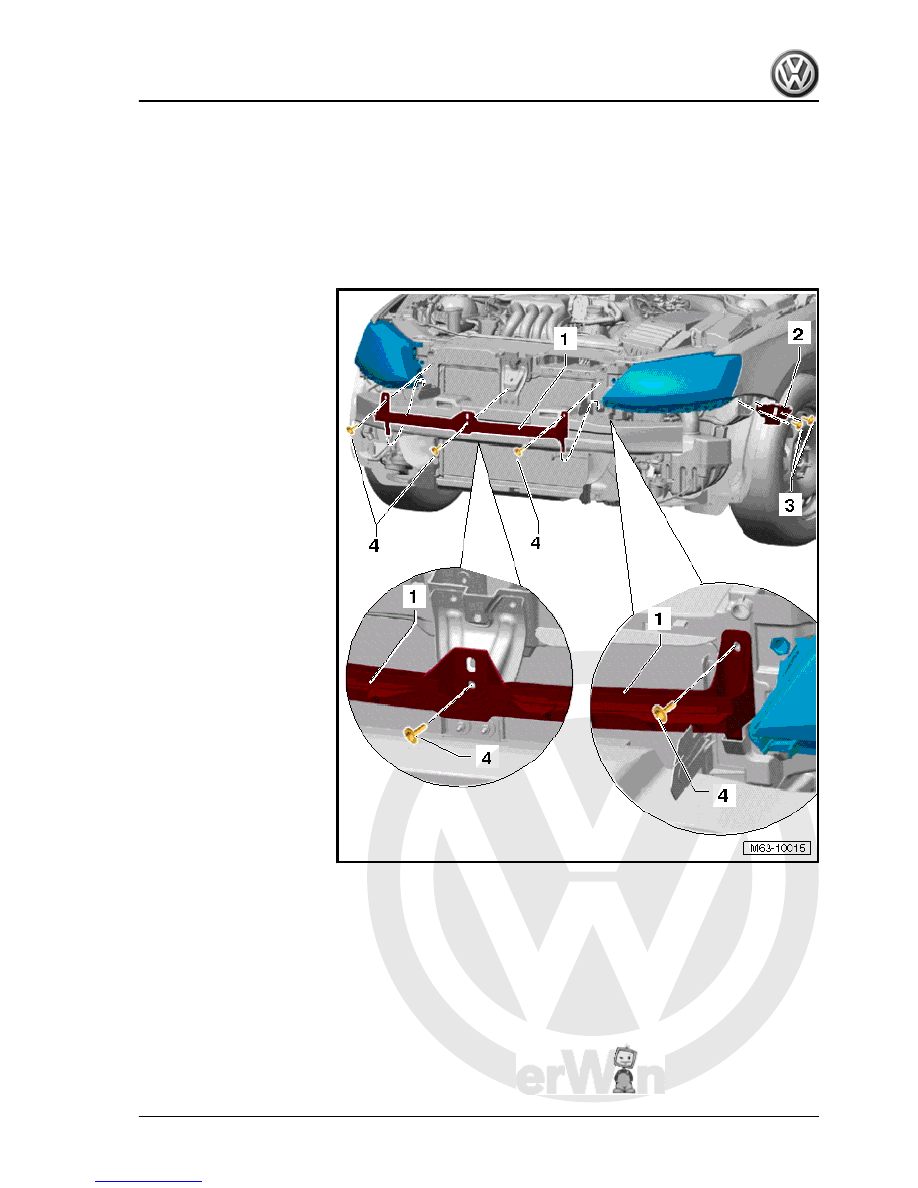

Assembly overview - guides for front bumper cover

1 - Centre guide
2 - Guide section at side

❑ Left and right.

3 - Bolt

❑ Qty. 2 on each side.
❑ Specified torque: 2 Nm

4 - Bolt

❑ Qty. 3.
❑ Specified torque: 8 Nm

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

1. Front bumper cover

179

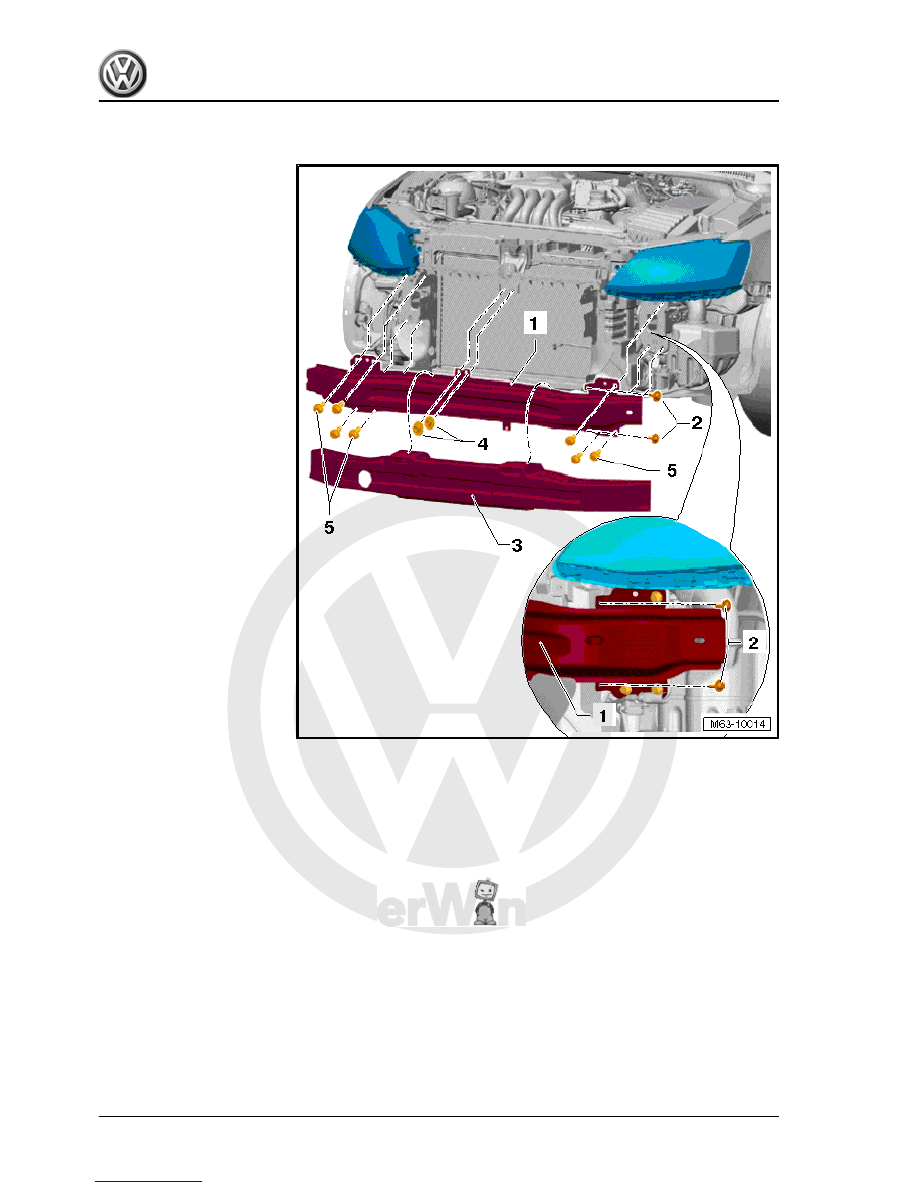

1 - Front bumper carrier
2 - Bolt

❑ Qty. 2 on each side.
❑ Specified torque: 8 Nm

3 - Foam element

❑ Self-adhesive.
❑ Not installed in all model

versions

4 - Nut

❑ Qty. 2.
❑ Specified torque: 8 Nm

5 - Bolt

❑ Qty. 3 on left-hand side
❑ Qty. 4 on right-hand side
❑ Specified torque: 60 Nm

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

180
