Front bumper cover

1.1

Tools

Special tools and workshop equipment required

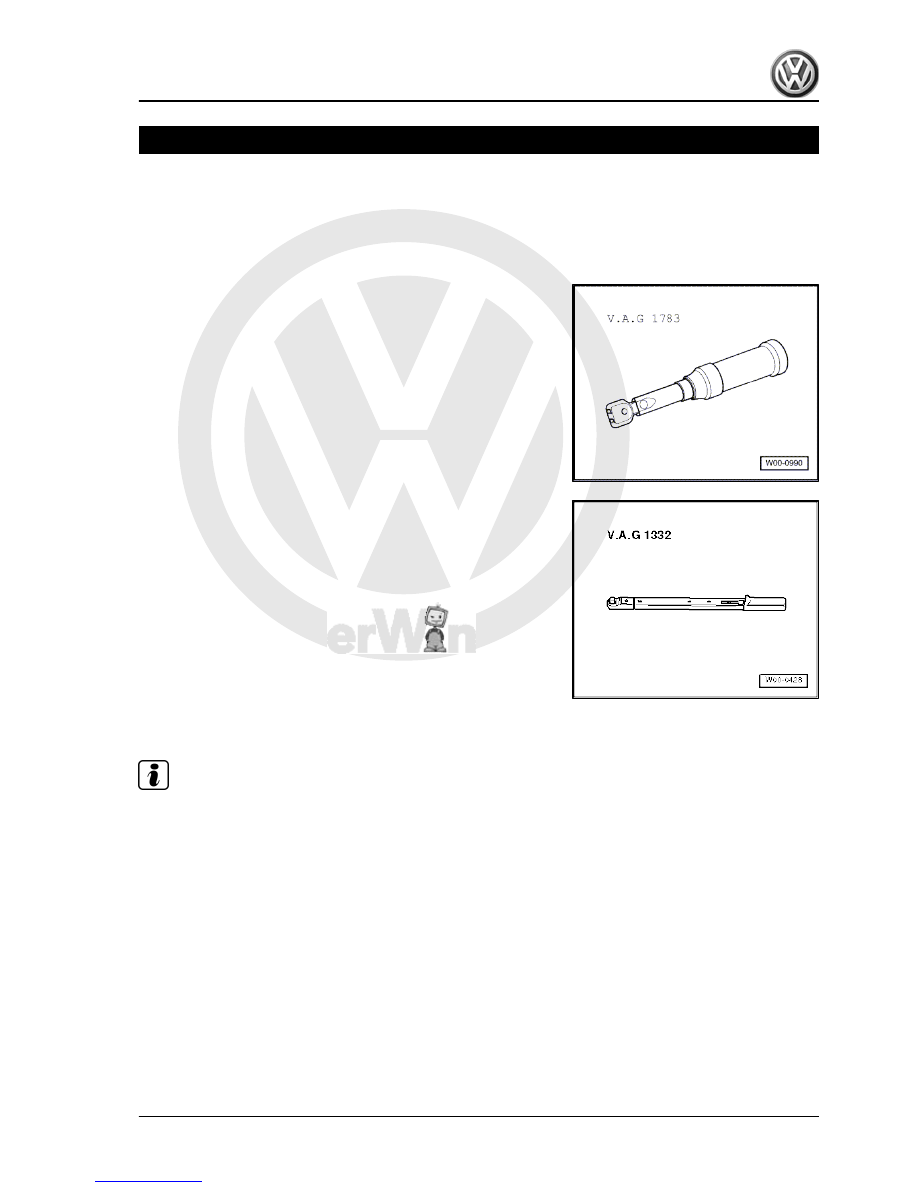

♦ Torque wrench -V.A.G 1783-

♦ Torque wrench -V.A.G 1332-

1.2

Repairing front bumper cover

Note

If bumper cover is damaged, determine whether plastic can be

repaired before renewing bumper.

Description under ⇒ General Information; Body Repairs, General

Body Repairs ; Plastic repair procedures .

1.3

Installing brackets for parking aid sys‐

tem

1.3.1

Tools

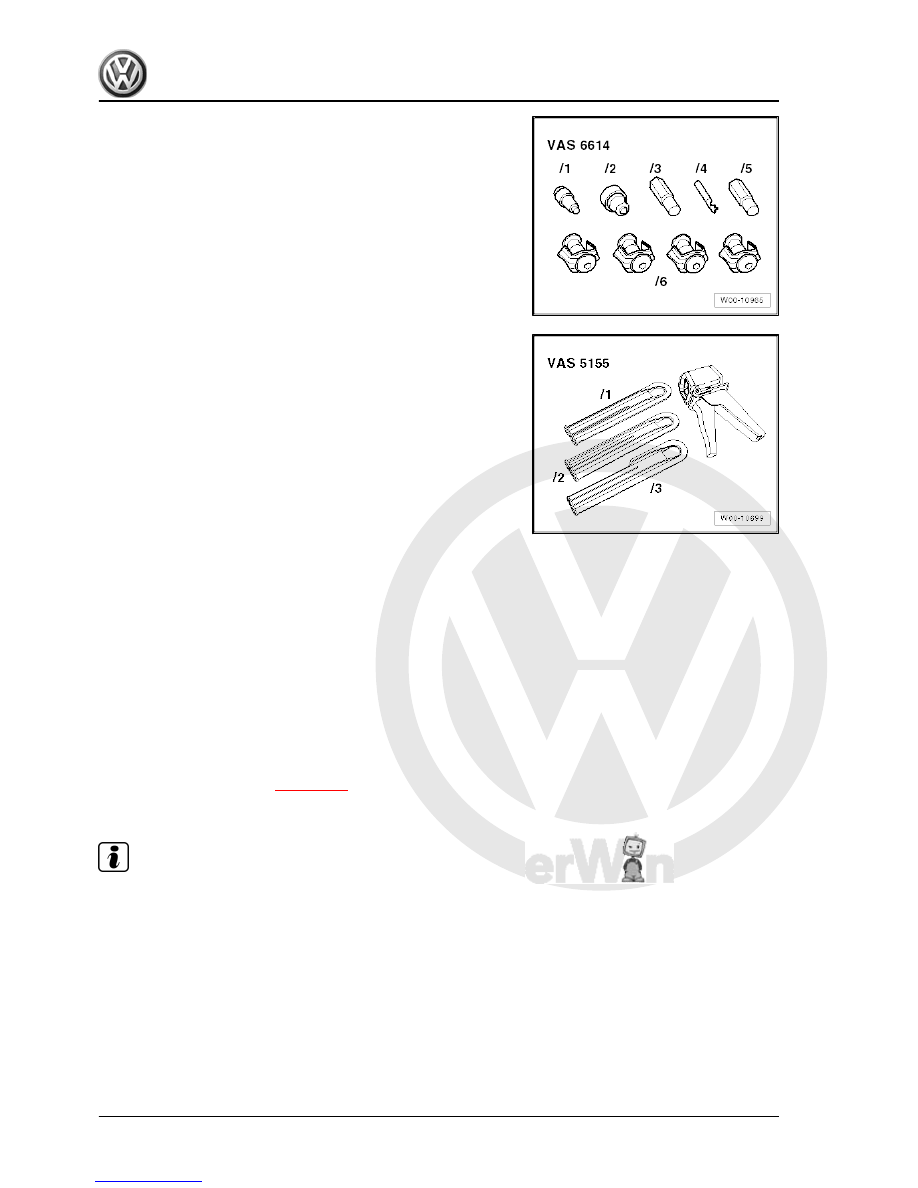

Special tools and workshop equipment required

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

1. Front bumper cover

169



1.3.2

Materials

♦ 2-component plastic adhe‐

sive -D 180 K2 A1-

1)



1



2)



2

♦ Bonding agent for plastics -D

822 150 A1-

1)



1

♦ Cleaning solution -D 009 401

04-

1)



1

♦ Primer applicator



1) Observe manufacturer's instructions enclosed in the packaging.

2) Observe minimum curing period

⇒ page 174

 .

1.3.3

Installing brackets

Note

The brackets are installed after the bumper cover has been pain‐

ted.

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

170



mined.

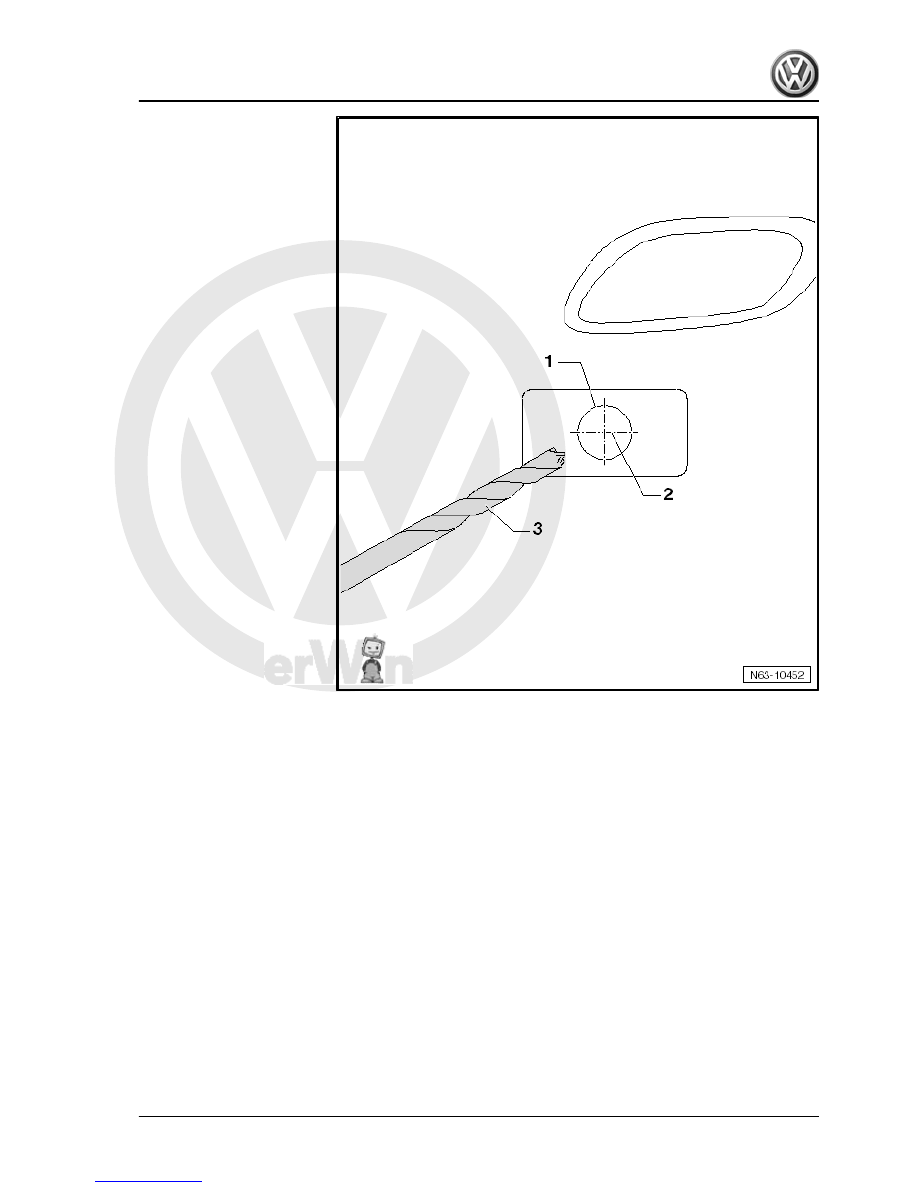

– The holes must be drilled from the inside to the outside with

the drill in the tool kit -3-.

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

1. Front bumper cover

171

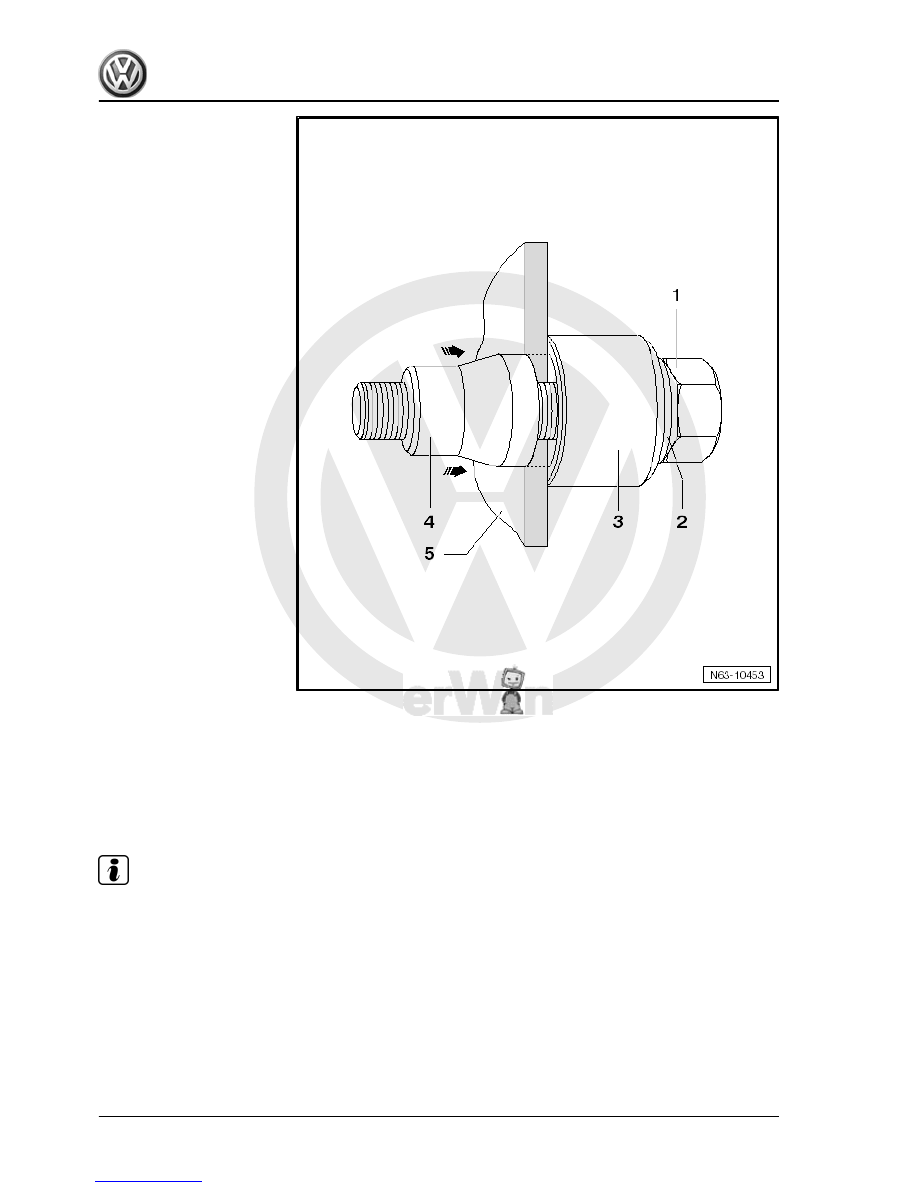

-5-.

– Screw on punch -4-, not quite as far as bumper cover.
– Press punch -4- against bumper cover.
– Tighten hole puncher -1-.

Note

The punch -4- must not turn on the paint of the bumper cover.

– Pull the punch -4- through the material of the bumper cover

-5- -arrows- by turning the bolt head -1-.

– Remove hole puncher and make the next holes.
– Thoroughly clean bumper cover and bracket with cleaning sol‐

ution.

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤
