Volkswagen Jetta / Jetta Hybrid. Manual - part 31

Rear door

1.1

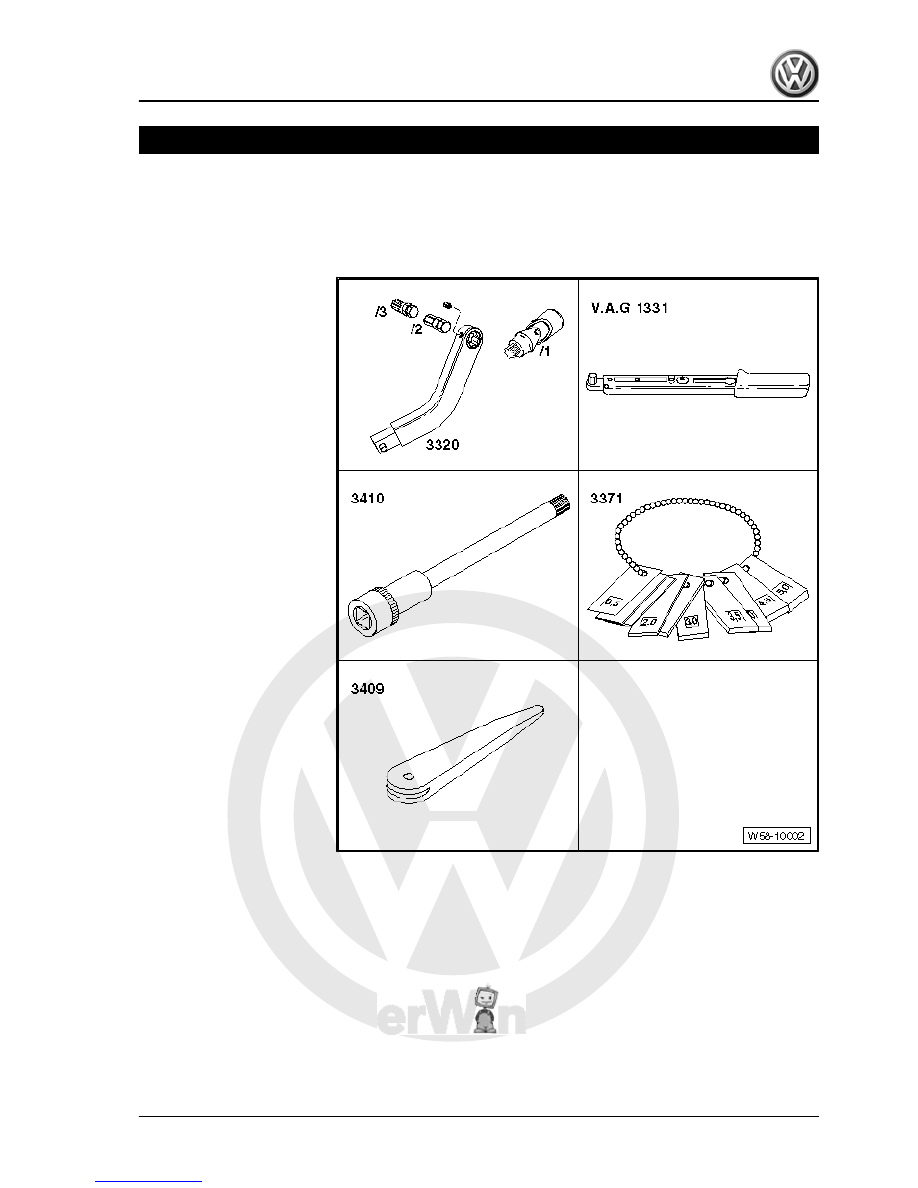

Tools

Special tools and workshop

equipment required
♦ Door alignment tool -3320-
♦ Universal joint for 3320

-3320/1-

♦ Bit for 3320 -3320/2-
♦ Bit for 3320 -3320/3-
♦ Torque wrench -V.A.G

1331-

♦ Socket -3410-
♦ Setting gauge -3371-
♦ Removal wedge -3409-

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

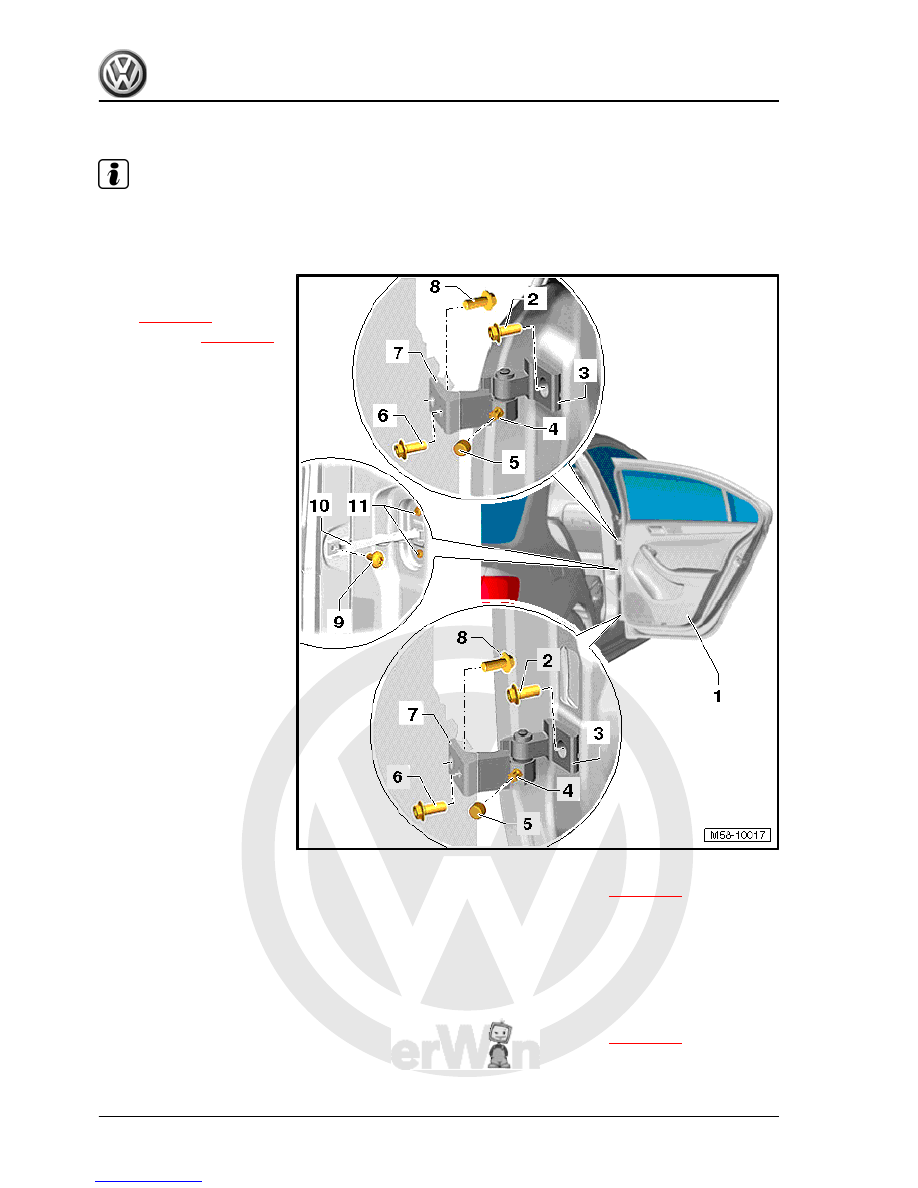

1. Rear door

121



Note

♦

The right side is shown. The left side is similar.

♦

The hinge bolts must always be renewed after they have been loosened.

1 - Door

❑ Removing and installing

⇒ page 123

❑ Adjusting

⇒ page 126

2 - Bolt

❑ Always renew; it is per‐

missible to loosen them

once in order to align

door.

❑ Specified torque: 40 Nm

3 - Door hinge

❑ Hinge is split.
❑ Upper part is secured to

hinge lower part with

bolt -4-.

4 - Bolt

❑ Connects upper part of

hinge -3- to bottom part

of hinge -7-

❑ Specified torque: 23 Nm

5 - Cover

❑ Fit onto bolt -4-.

6 - Bolt

❑ Always renew; it is per‐

missible to loosen them

once in order to align

door.

❑ Specified torque: 40 Nm
❑ Installed from inside ve‐

hicle.

❑ For removal and instal‐

lation, B-pillar lower trim

must be removed ⇒

General body repairs, interior; Rep. gr.  70 ; Pillar and side panel trims .

❑ If the B-pillar has been replaced, other specified torques must be observed

⇒ page 125

7 - Door hinge

❑ Hinge is split.
❑ Lower part is secured to hinge upper part with bolt -4-.

8 - Bolt

❑ Always renew; it is permissible to loosen them once in order to align door.
❑ Specified torque: 40 Nm
❑ If the B-pillar has been replaced, other specified torques must be observed

⇒ page 125

9 - Bolt

❑ Specified torque: 30 Nm

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

122



⇒ page 132

11 - Bolt

❑ Qty. 2.
❑ Specified torque: 9 Nm

1.3

Removing and installing door

Note

The removal and installation sequence is only for the right door.

The removal and installation of the left door is similar.

1.3.1

Removing

Carry out following work:

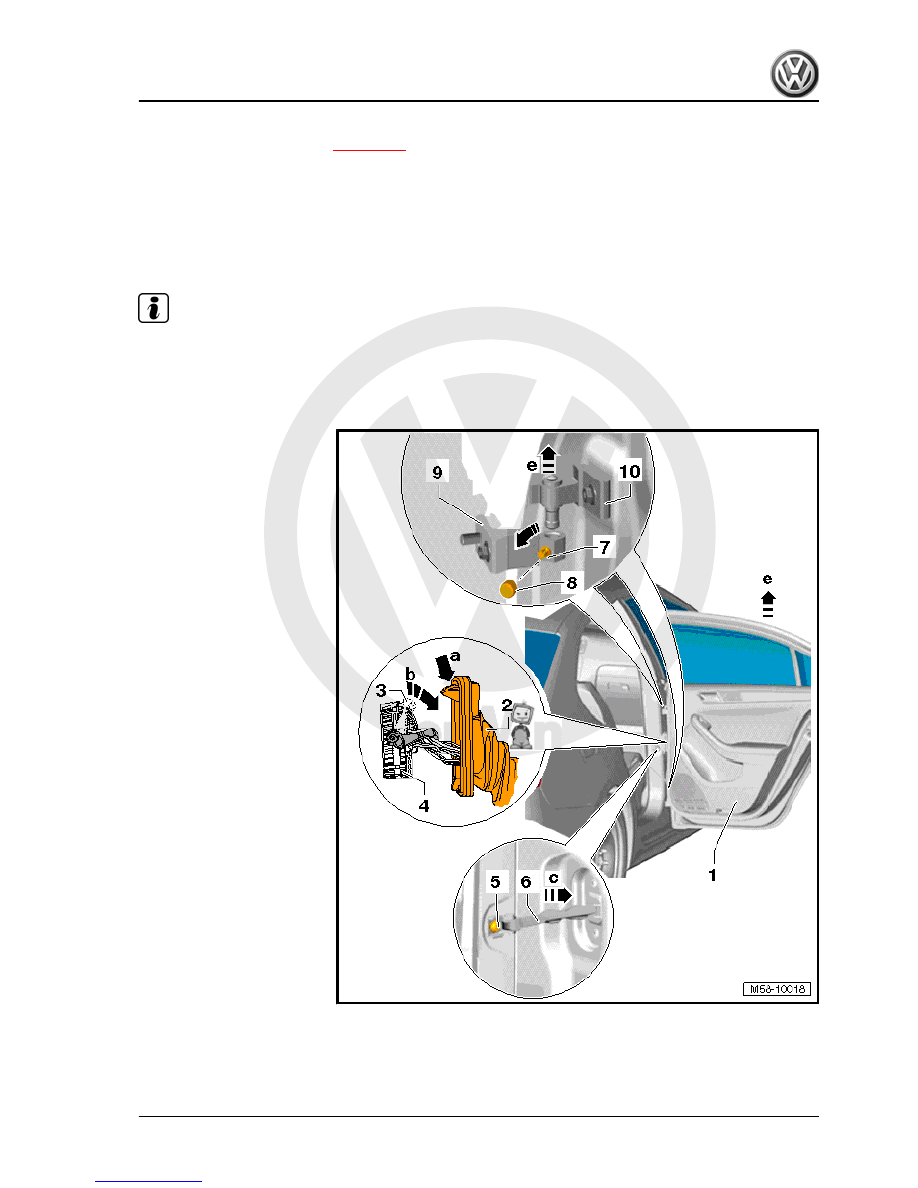

– Release bellows -2- by pressing catch -arrow a- and pull off B-

pillar.

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

1. Rear door

123

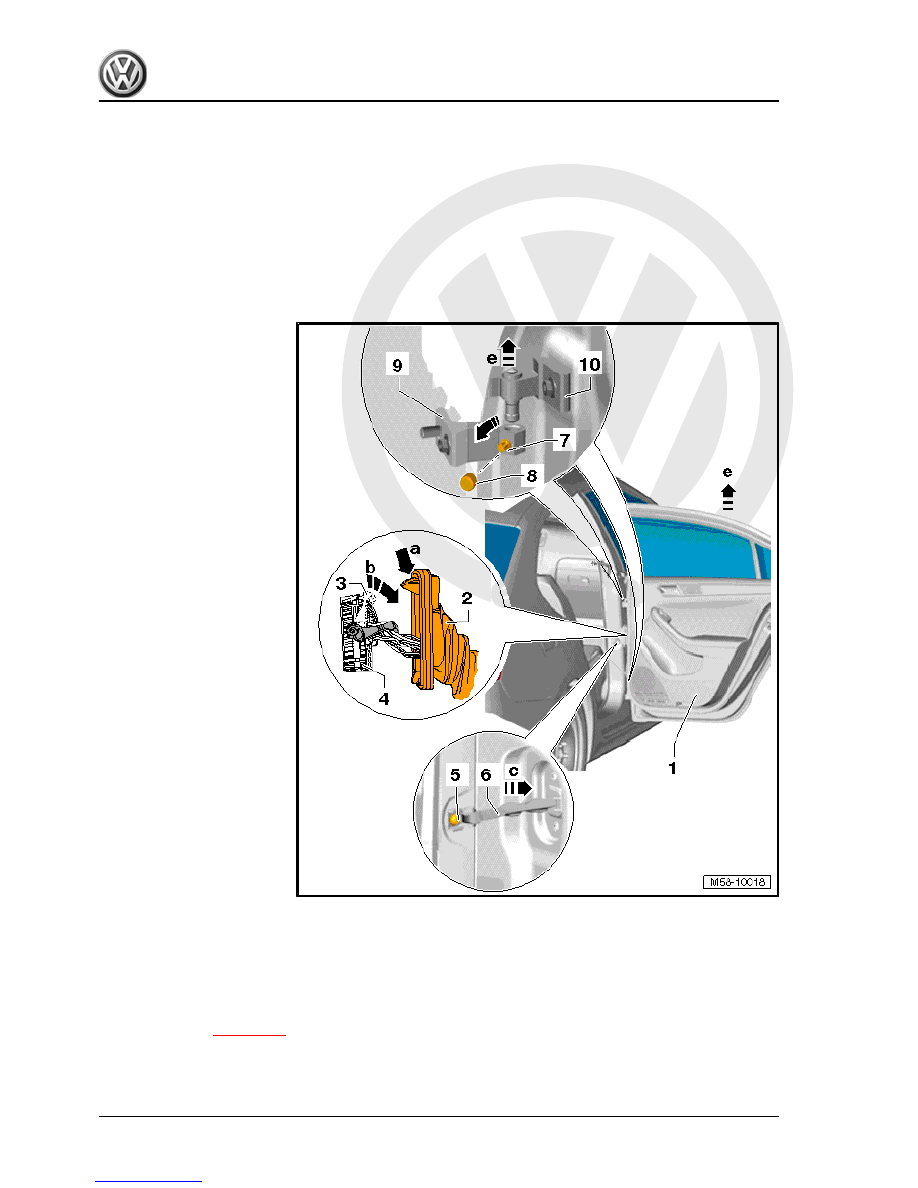

– Remove caps -8- from bolts -7-.
– Loosen bolts -7- at hinges -arrow d-.
– Unscrew bolt -5- for door retaining strap -6-.
– Push door retaining strap -6- inwards -arrow c-.
– Lift door -1- upwards -arrow e- out of hinges -9-.

1.3.2

Installing

Carry out following work:
Install in reverse order of removal.
Specified torque for bolt -5-: 30 Nm.
Specified torque for bolts -7-: 23 Nm.
– Adjusting door

⇒ page 126

– Observe rear door gaps ⇒ Body Repairs; Rep. gr.  00 ; Body

panel gaps/shut lines; Body - middle .
