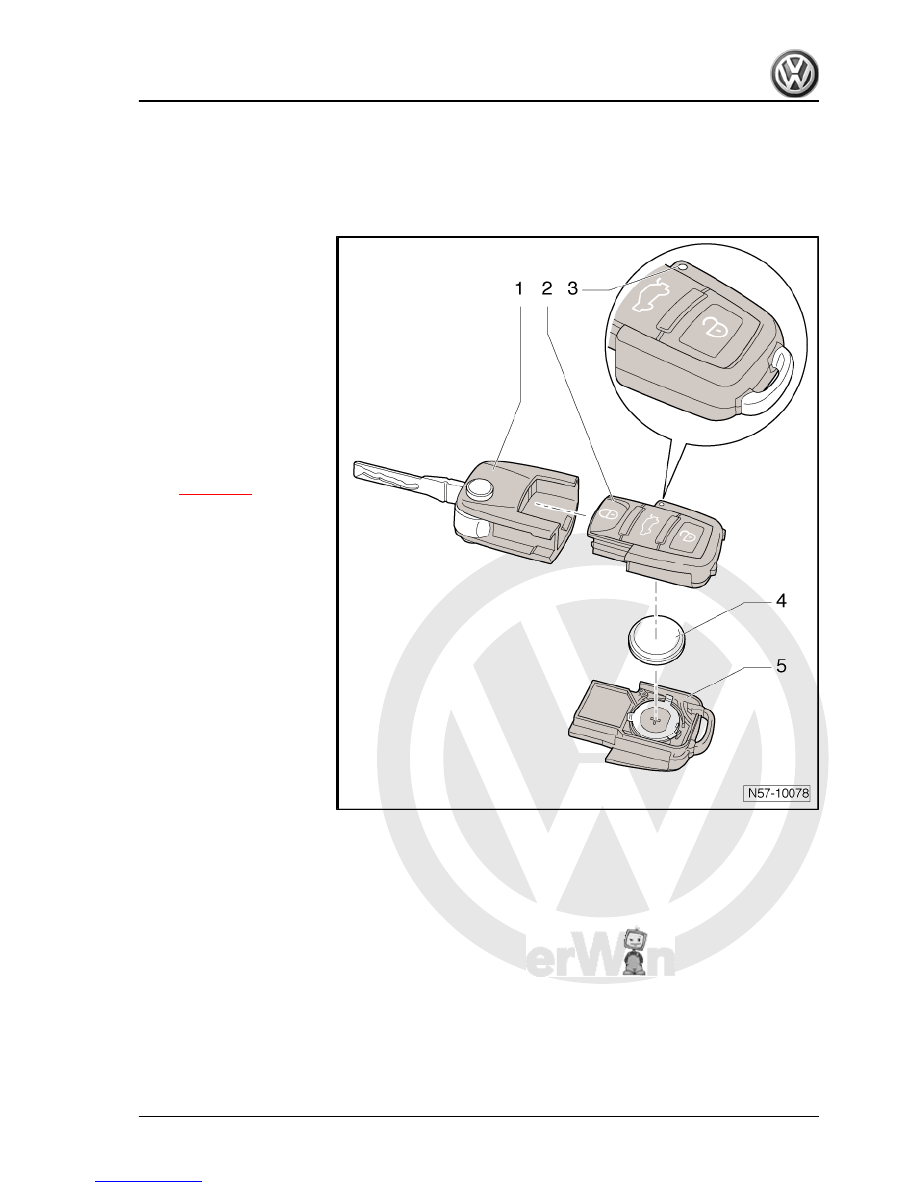

Assembly overview - battery for folding key with remote control

1 - Key with variable code

transponder
2 - Transmitter unit - upper part
3 - LED

❑ When remote control is

operated, this LED must

flash briefly.

❑ If LED does not flash

during remote control

operation, the battery is

dead and must be re‐

newed.

4 - Battery

❑ Removing and installing

⇒ page 118

5 - Transmitter unit - lower part

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

3. Central locking

117



ing key with remote control

3.4.1

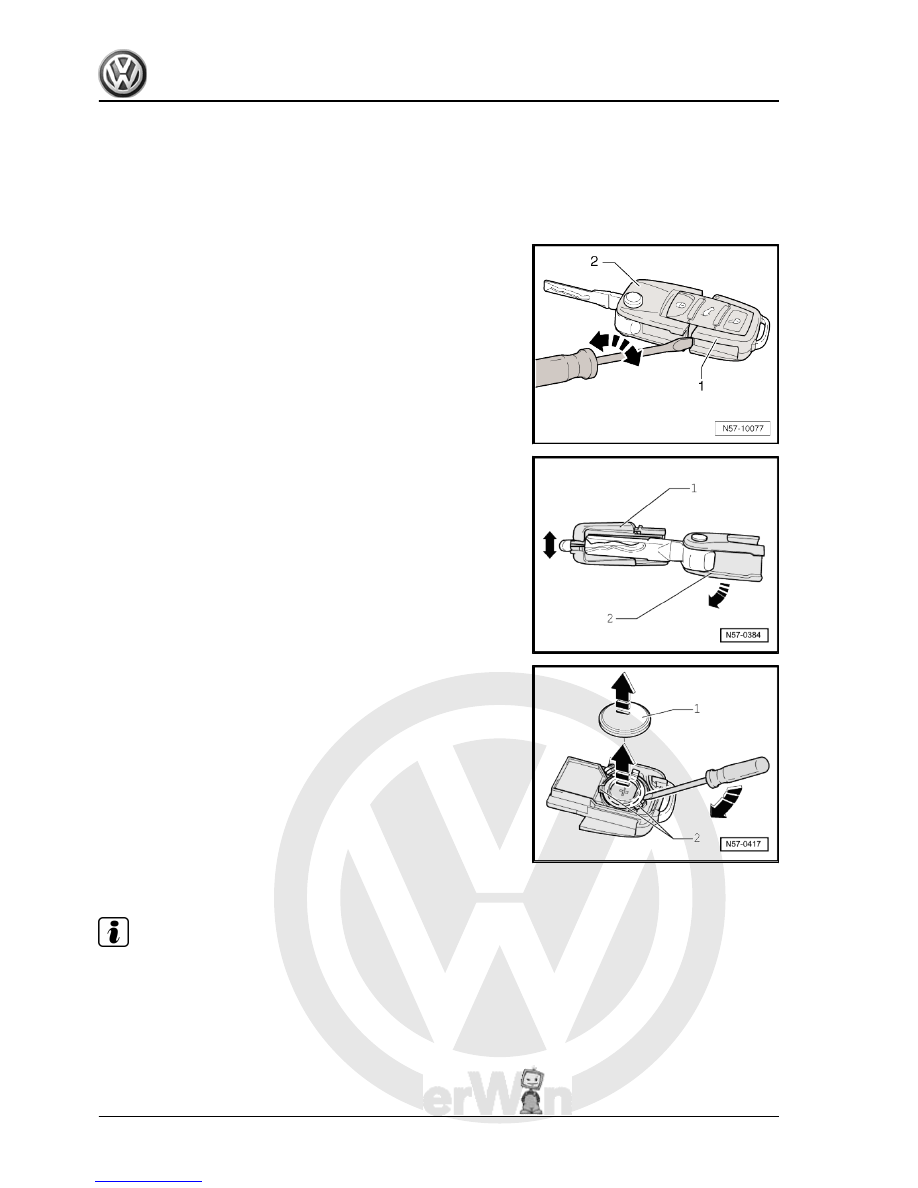

Removing

Carry out following work:
– Insert screwdriver in slot between transmitter unit -1- and key

-2-.

– Turn screwdriver in direction of -arrow- to separate transmitter

unit from key.

– Press transmitter unit -1- apart using profile section of key

-2-.

– Unclip battery -1- from the retainers -2- with a screwdriver in

direction of -arrow-.

3.4.2

Installing

Note

♦

Before installing battery, always press one of the buttons once.

♦

Thus transmitter unit is reset and can recognize a new battery

only now.

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

118



-2- (positive terminal is marked on housing).

– Press battery into -arrow- radio container until it latches into

place, applying only slight pressure while doing so.

– Attach lid and sender unit to each other (do not damage seal).
– Then clip transmitter unit to the key.

3.5

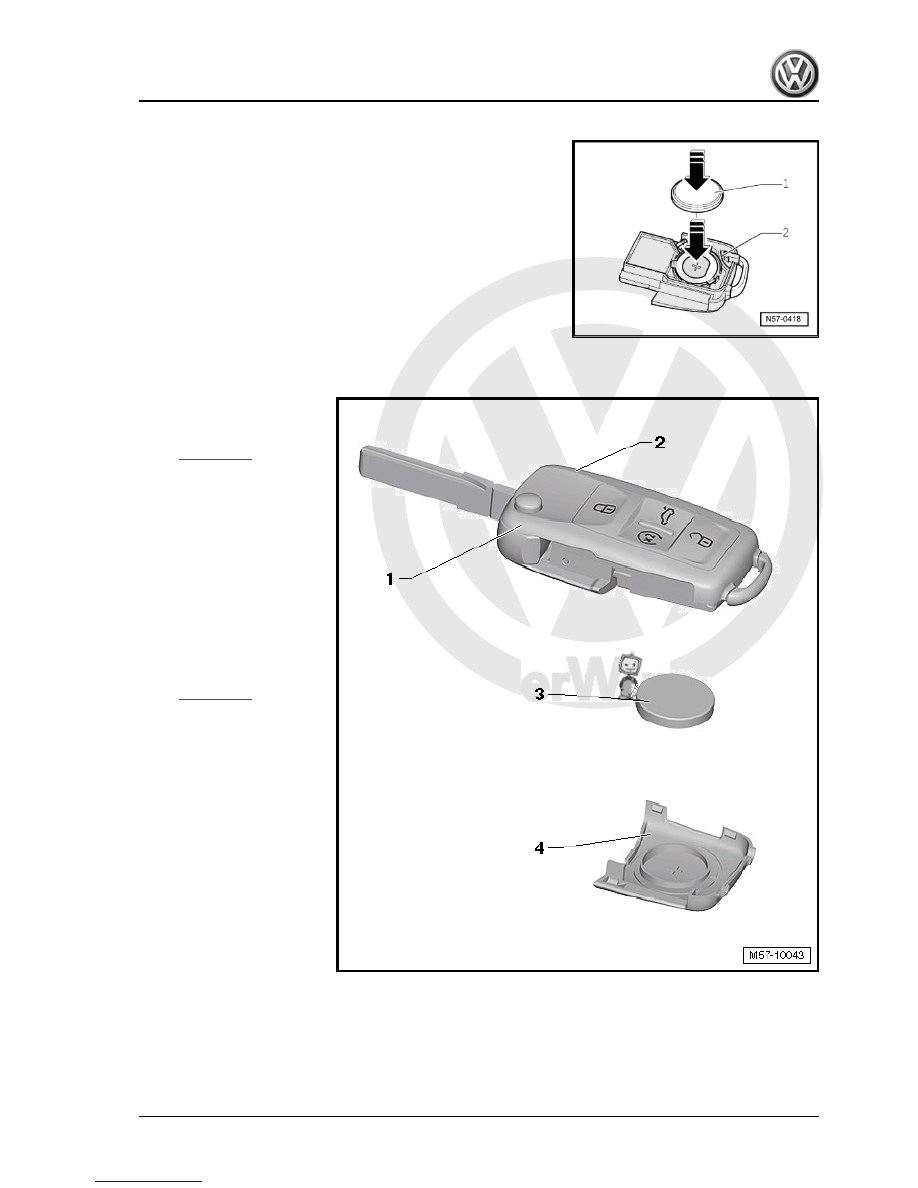

Assembly overview - battery for folding key with cover cap

1 - Key with radio capsule

❑ Adapting keys with re‐

mote control

⇒ page 116

❑ Radio capsule can not

be renewed individually.

2 - LED

❑ When remote control is

operated, this LED must

flash briefly.

❑ If LED does not flash

during remote control

operation, the battery is

dead and must be re‐

newed.

3 - Battery

❑ Removing and installing

⇒ page 120

4 - Cover

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

3. Central locking

119



ing key with cover cap

3.6.1

Removing

Carry out following work:
– Fold out profile section of key.
– Using a screwdriver, unclip cover cap -1- on back of key -2- in

-direction of arrow-.

– Using a suitable screwdriver, unclip battery -1- from battery

compartment of key -2- in -direction of arrow-.

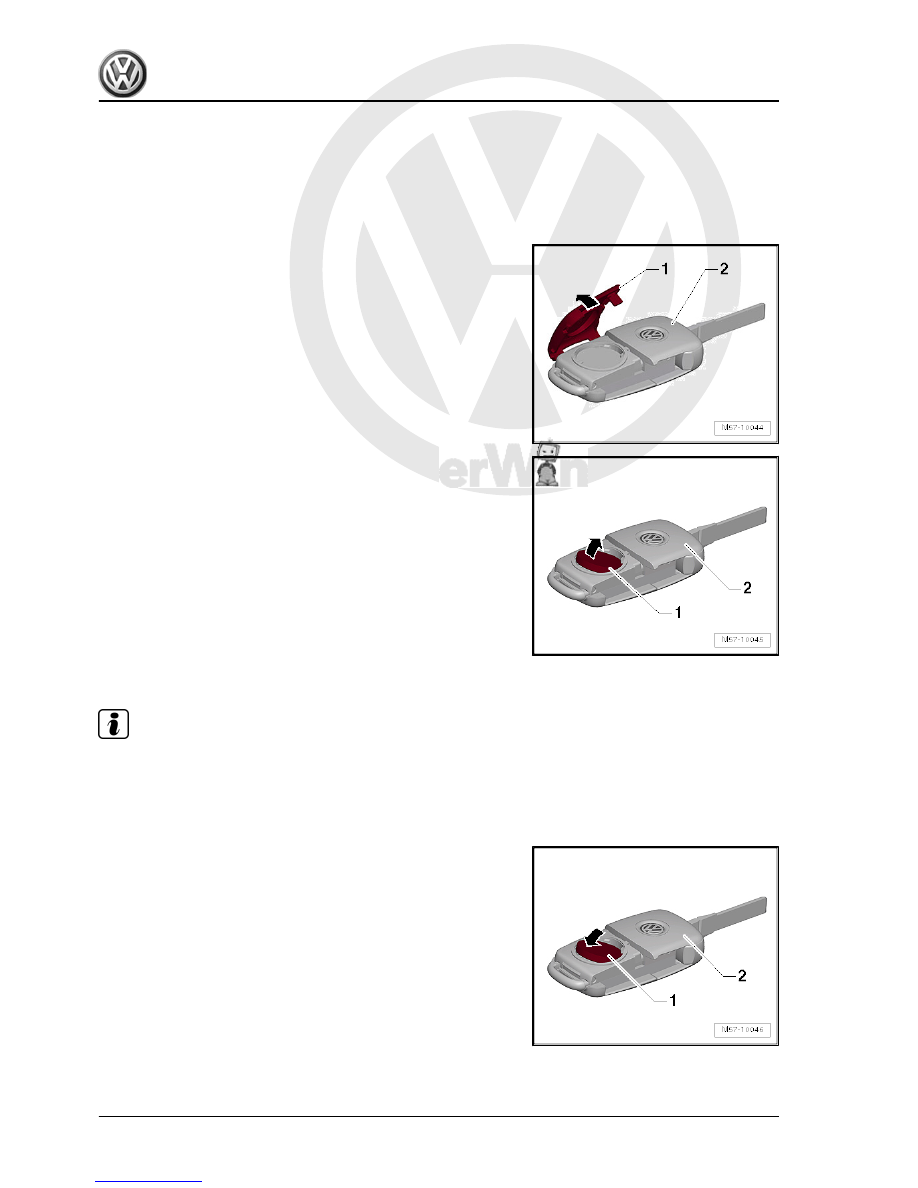

3.6.2

Installing

Note

♦

Before installing battery, always press one of the buttons once.

♦

Thus transmitter unit is reset and can recognize a new battery

only now.

Carry out following work:
Ensure correct polarity and mounting position when installing bat‐

tery.
– Insert battery -1- -arrow- into battery compartment of key -2-

with positive terminal pointing upwards.

– Press battery into battery compartment until it latches into

place, applying only slight pressure while doing so.

– Clip cover cap onto back of key.
