Press a programmed
HomeLink

®

 button to oper-

ate a garage door.

3

Within 1 minute of pressing
the HomeLink

®

 button, after

the garage door operation
has stopped, press the
“Learn” or “Smart” button on
the garage door opener
motor. Within 5 seconds of
the establishment of 2-way
communication with the
garage door opener, both
garage door operation indica-
tors in the vehicle will flash
rapidly (green) and the light
on the garage door opener
motor will blink twice, indicat-
ing that 2-way communica-
tion is enabled.

■

Reprogramming a single
HomeLink

®

 button

When the following procedure is
performed, buttons which
already have devices registered
to them can be overwritten:

1

Press and hold the desired
HomeLink

®

 button.

2

When the HomeLink

®

 indica-

tor starts flashing orange,
release the HomeLink

®

 but-

ton and perform “Program-
ming HomeLink

®

”

1

 (it takes

20 seconds for the
HomeLink

®

 indicator to start

flashing).

■

Before programming

●

Install a new battery in the trans-

mitter.

●

The battery side of the transmitter

must be pointed away from the
HomeLink

®

 buttons.

Press the appropriate
HomeLink

®

 button. The

HomeLink

®

 indicator light

should turn on.
The status of the opening and
closing of a garage door is
shown by the garage door oper-
ation indicators.



Vehicles with auto anti-glare
inside rear view mirror

Opening

Closing

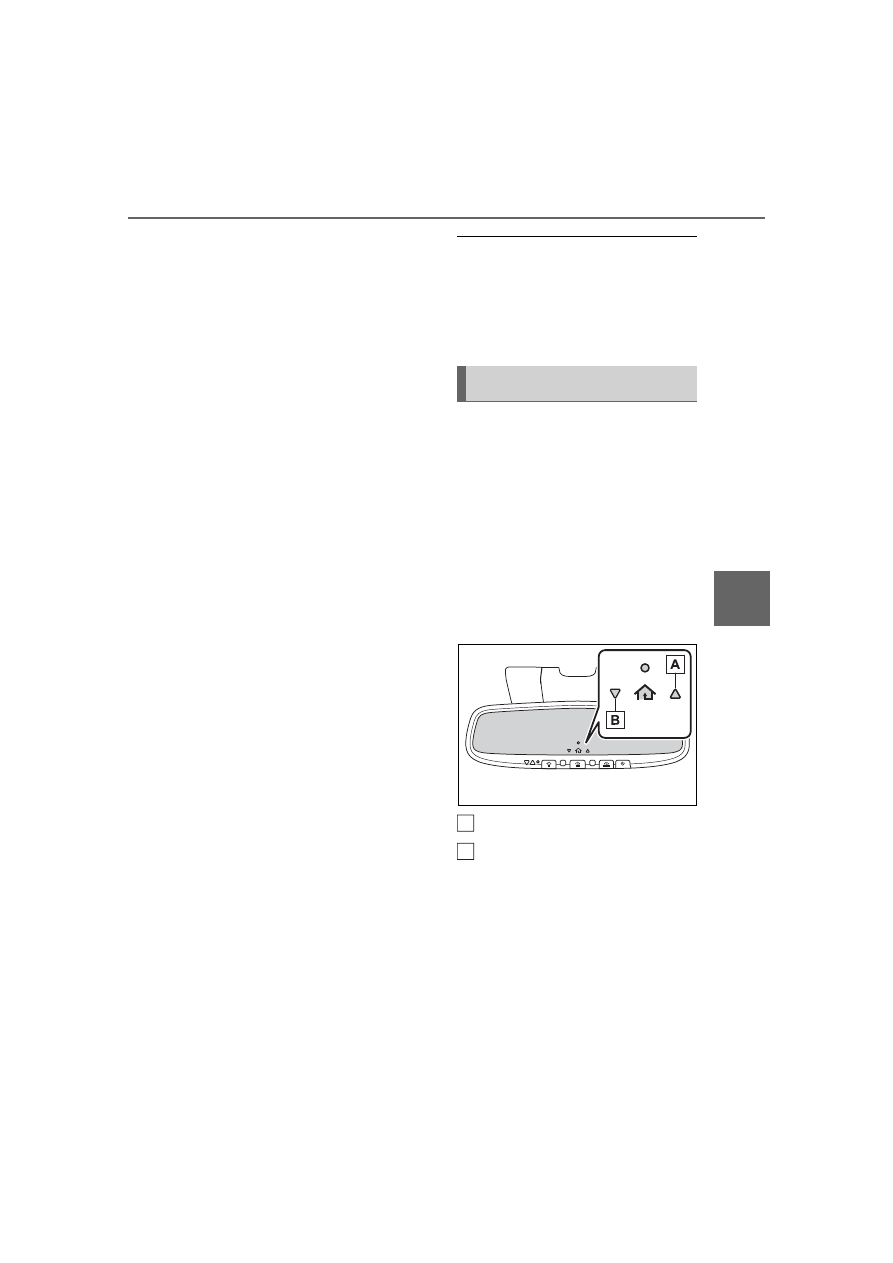

Operating HomeLink

®

A

B

398

5-4. Using the other interior features



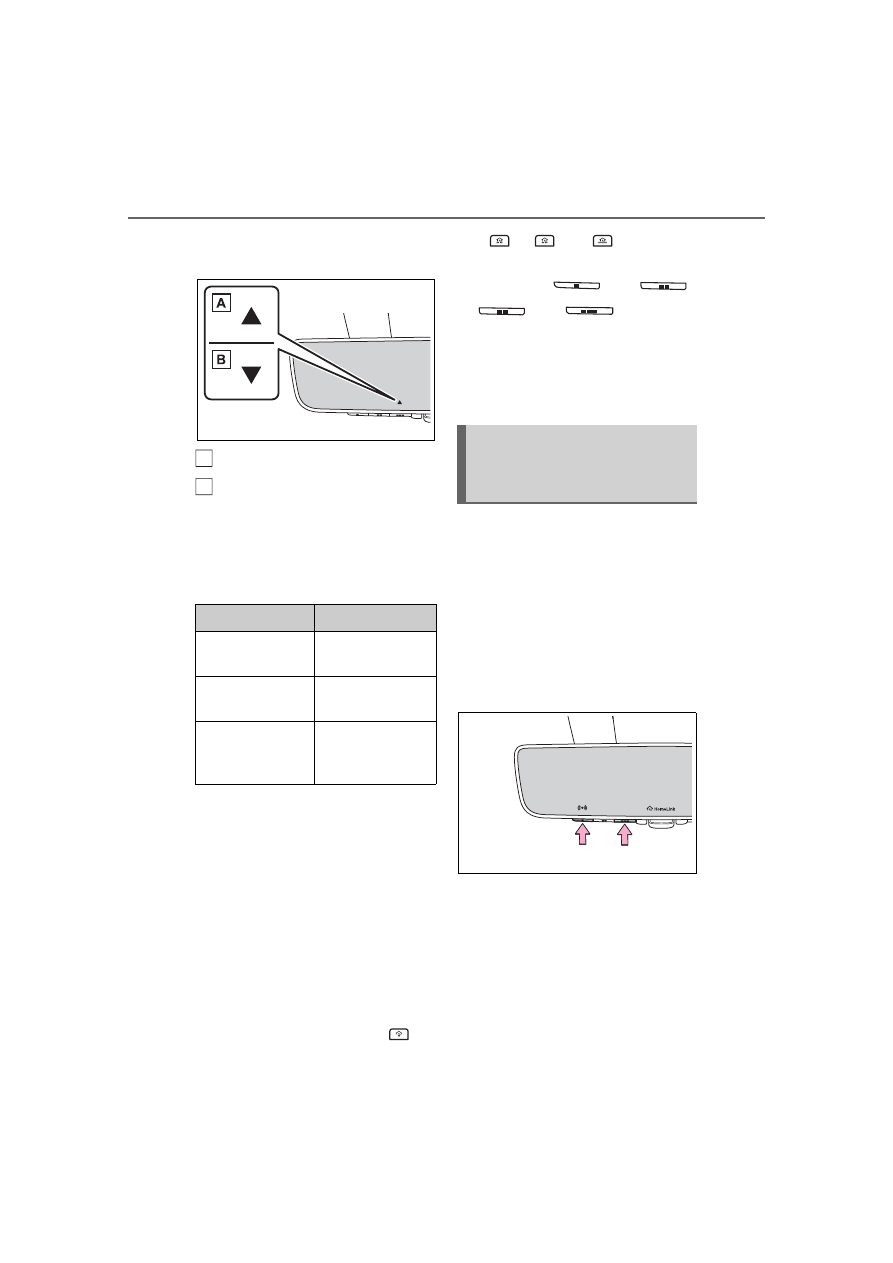

Vehicles with Digital Rear-
view Mirror

Opening

Closing

This function is only available if the
garage door opener motor used is a
compatible device. (To check
device compatibility, refer to
www.homelink.com.)

The indicators can operate
within approximately 820 ft. (250
m) of the garage door. However,
if there are obstructions
between the garage door and
the vehicle, such as houses and
trees, feedback signals from the
garage door may not be
received.
To recall the previous door oper-
ation status, press and release
either HomeLink

®

 buttons



and

 or

 and

 (vehicles

with auto anti-glare inside rear
view mirror),

 and



or

 and

 (vehicles

with Digital Rear-view Mirror)
simultaneously. The last
recorded status will be dis-
played for 3 seconds.

Press and hold the 2 outside
buttons for 10 seconds until the
HomeLink

®

 indicator light

changes from continuously lit
(orange) to rapidly flashing
(green).

If you sell your vehicle, be sure to
erase the programs stored in the
HomeLink

®

 memory.

Color

Status

Orange (flash-

ing)

Currently open-

ing/closing

Green

Opening/closing

has completed

Red (flashing)

Feedback sig-

nals cannot be

received

A

B

Erasing the entire
HomeLink

®

 memory (all

three codes)

399

6

6

Maintena

nce
 a

nd ca

re

Maintenance and care

6-1. Maintenance and care

Cleaning and protecting the

vehicle exterior ..........

400

Cleaning and protecting the

vehicle interior ...........

403

6-2. Maintenance

Maintenance requirements

..................................

406

General maintenance..

407

Emission inspection and

maintenance (I/M) pro-
grams ........................

410

6-3. Do-it-yourself mainte-

nance

Do-it-yourself service pre-

cautions.....................

411

Hood ...........................

413

Positioning a floor jack

415

Engine compartment...

416

12-volt battery .............

422

Tires ............................

424

Tire inflation pressure .

438

Wheels ........................

440

Air conditioning filter....

441

Cleaning the hybrid battery

(traction battery) air intake
vents and filters.........

443

Electronic key battery..

447

Checking and replacing

fuses..........................

449

Light bulbs...................

451

400

6-1. Maintenance and care

6-1.Maintenance and care



Working from top to bottom,
liberally apply water to the
vehicle body, wheel wells and
underside of the vehicle to
remove any dirt and dust.



Wash the vehicle body using
a sponge or soft cloth, such
as a chamois.



For hard-to-remove marks,
use car wash soap and rinse
thoroughly with water.



Wipe away any water.



Wax the vehicle when the
waterproof coating deterio-
rates.

If water does not bead on a clean
surface, apply wax when the vehi-
cle body is cool.

■

Automatic car washes

●

Before washing the vehicle:

• Fold the mirrors

• Disable the power sliding door

system

• Disable the power back door sys-

tem (if equipped)

Start washing from the front of the
vehicle. Make sure to extend the
mirrors before driving.

●

Brushes used in automatic car

washes may scratch the vehicle

surface, parts (wheel, etc.) and

harm your vehicle’s paint.

●

Rear spoiler may not be washable

in some automatic car washes.

There may also be an increased

risk of damage to vehicle.

■

High pressure car washes

As water may enter the cabin, do

not bring the nozzle tip near the

gaps around the doors or perimeter

of the windows, or spray these

areas continuously.

■

Note for a smart key system

If the door handle becomes wet

while the electronic key is within the

effective range, the door may lock

and unlock repeatedly. In that case,

follow the following correction pro-

cedures to wash the vehicle:

●

Place the key in a position 6 ft. (2

m) or more separate from the

vehicle while the vehicle is being

washed. (Take care to ensure that

the key is not stolen.)

●

Set the electronic key to battery-

saving mode to disable the smart

key system. (



P.165)

●

If the electronic key is inside the

vehicle and a door handle

becomes wet during a car wash, a

buzzer may sound outside the

vehicle and “Key Detected in

Vehicle” may be shown on the

multi-information display. To turn

off the alarm, lock all the doors.

■

Wheels and wheel ornaments

●

Remove any dirt immediately by

using a neutral detergent.

●

Wash detergent off with water

immediately after use.

●

To protect the paint from damage,

make sure to observe the follow-

ing precautions.

• Do not use acidic, alkaline or

abrasive detergent

• Do not use hard brushes

• Do not use detergent on the

Cleaning and protect-

ing the vehicle exte-

rior

Perform the following to
protect the vehicle and
maintain it in prime condi-
tion:

Cleaning instructions

401

6-1. Maintenance and care

6

Maintena

nce
 a

nd ca

re

wheels when they are hot, such

as after driving or parking in hot

weather

■

Bumpers

Do not scrub with abrasive cleaners.

■

Plated portions

If dirt cannot be removed, clean the

parts as follows:

●

Use a soft cloth dampened with

an approximately 5% solution of

neutral detergent and water to

clean the dirt off.

●

Wipe the surface with a dry, soft

cloth to remove any remaining

moisture.

●

To remove oily deposits, use alco-

hol wet wipes or a similar product.

WARNING

■

When washing the vehicle

Do not apply water to the inside of

the engine compartment. Doing

so may cause the electrical com-

ponents, etc. to catch fire.

■

When cleaning the windshield

(vehicles with rain-sensing

windshield wipers)

Set the wiper switch to off.

If the wiper switch is in “AUTO”,

the wipers may operate unexpect-

edly in the following situations,

and may result in hands being

caught or other serious injuries

and cause damage to the wiper

blades.

Off

AUTO

●

When the upper part of the

windshield where the raindrop

sensor is located is touched by

hand

●

When a wet rag or similar is

held close to the raindrop sen-

sor

●

If something bumps against the

windshield

●

If you directly touch the raindrop

sensor body or if something

bumps into the raindrop sensor

■

Precautions regarding the

exhaust pipes

Exhaust gasses cause the

exhaust pipes to become quite

hot.
When washing the vehicle, be

careful not to touch the pipes until

they have cooled sufficiently, as

touching hot exhaust pipes can

cause burns.

A

B

402

6-1. Maintenance and care

WARNING

■

Precaution regarding the rear

bumper with Blind Spot Moni-

tor (if equipped)

If the paint of the rear bumper is

chipped or scratched, the system

may malfunction. If this occurs,

consult your Toyota dealer.

NOTICE

■

To prevent paint deterioration

and corrosion on the body

and components (aluminum

wheels, etc.)

●

Wash the vehicle immediately in

the following cases:

• After driving near the sea coast
• After driving on salted roads
• If coal tar or tree sap is present

on the paint surface

• If dead insects, insect droppings

or bird droppings are present on

the paint surface

• After driving in an area contami-

nated with soot, oily smoke,

mine dust, iron powder or chem-

ical substances

• If the vehicle becomes heavily

soiled with dust or mud

• If liquids such as benzene and

gasoline are spilled on the paint

surface

●

If the paint is chipped or

scratched, have it repaired

immediately.

●

To prevent the wheels from cor-

roding, remove any dirt and

store in a place with low humid-

ity when storing the wheels.

■

Cleaning the exterior lights

●

Wash carefully. Do not use

organic substances or scrub

with a hard brush.

This may damage the surfaces

of the lights.

●

Do not apply wax to the sur-

faces of the lights.

Wax may cause damage to the

lenses.

■

When using an automatic car

wash (vehicles with rain-

sensing windshield wipers)

Set the wiper switch to off posi-

tion.

If the wiper switch is in “AUTO”,

the wipers may operate and the

wiper blades may be damaged.

■

When using a high pressure

car wash

●

When washing the vehicle, do

not let water from the high-pres-

sure washer directly hit the

camera or the area around the

camera. Due to the shock from

the high pressure water, it is

possible that the device may not

operate normally.

●

Do not bring the nozzle tip close

to boots (rubber or resin manu-

factured cover), or connectors

or the following parts.

The parts may be damaged if

they come into contact with

high-pressure water.

• Traction related parts
• Steering parts
• Suspension parts
• Brake parts

403

6-1. Maintenance and care

6

Maintena

nce
 a

nd ca

re



Remove dirt and dust using a
vacuum cleaner. Wipe dirty
surfaces with a cloth damp-
ened with lukewarm water.



If dirt cannot be removed,
wipe it off with a soft cloth
dampened with neutral deter-
gent diluted to approximately
1%.
Wring out any excess water
from the cloth and thoroughly
wipe off remaining traces of
detergent and water.

■

Shampooing the carpets

There are several commercial foam-

ing-type cleaners available. Use a

sponge or brush to apply the foam.

Rub in overlapping circles. Do not

use water. Wipe dirty surfaces and

let them dry. Excellent results are

obtained by keeping the carpet as

dry as possible.

■

Handling the seat belts

Clean with mild soap and lukewarm

water using a cloth or sponge. Also

check the belts periodically for

excessive wear, fraying or cuts.

NOTICE

●

Keep the cleaning nozzle at

least 11.9 in. (30 cm) away from

the vehicle body. Otherwise

resin section, such as moldings

and bumpers, may be deformed

and damaged. Also, do not con-

tinuously hold the nozzle in the

same place.

●

Do not spray the lower part of

the windshield continuously. If

water enters the air conditioning

system intake located near the

lower part of the windshield, the

air conditioning system may not

operate correctly.

●

Do not wash the underside of

the vehicle using a high pres-

sure car washer.

Cleaning and protect-

ing the vehicle interior

Perform cleaning in a man-
ner appropriate to each
component and its material.

Protecting the vehicle
interior

404

6-1. Maintenance and care

WARNING

■

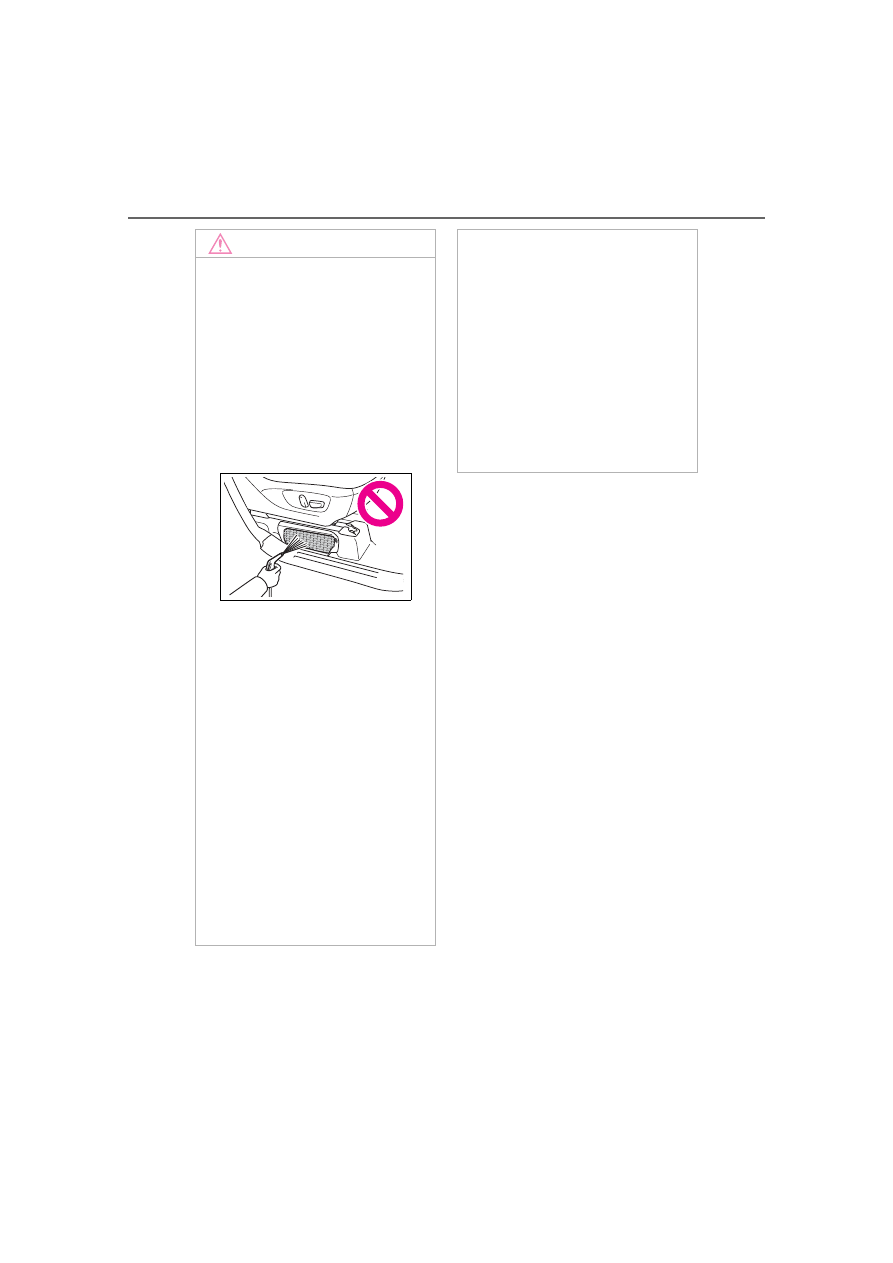

Water in the vehicle

●

Do not splash or spill liquid in

the vehicle, such as on the floor,

on the front seats, in the hybrid

battery (traction battery) air

intake vent or in the luggage

compartment. (



P.85)

Doing so may cause the hybrid

battery, electrical components,

etc. to malfunction or catch fire.

●

Do not get any of the SRS com-

ponents or wiring in the vehicle

interior wet.

(



P.42)

An electrical malfunction may

cause the airbags to deploy or

not function properly, resulting

in death or serious injury.

●

Vehicles with wireless charger:

Do not let the wireless charger

(



P.381) get wet. Failure to do

so may cause the charger to

become hot and cause burns or

could cause electric shock

resulting in death or serious

injury.

■

Cleaning the interior (espe-

cially instrument panel)

Do not use a polish wax or polish

cleaner. The instrument panel

may reflect off the windshield,

obstructing the driver’s view and

leading to an accident, resulting in

death or serious injury.

NOTICE

■

Cleaning detergents

●

Do not use the following types

of detergent, as they may dis-

color the vehicle interior or

cause streaks or damage to

painted surfaces:

• Non-seat portions: Organic sub-

stances such as benzene or

gasoline, alkaline or acidic solu-

tions, dye, and bleach

• Seats: Alkaline or acidic solu-

tions, such as thinner, benzene,

and alcohol

●

Do not use a polish wax or pol-

ish cleaner. The instrument

panel’s or other interior part’s

painted surface may be dam-

aged.

■

Water on the floor

Do not wash the vehicle floor with

water.

Vehicle systems such as the

audio system may be damaged if

water comes into contact with

electrical components such as the

audio system above or under the

floor of the vehicle. Water may

also cause the body to rust.

■

When cleaning the inside of

the windshield

Do not allow glass cleaner to con-

tact the lens. Also, do not touch

the lens. (



P.262)

■

Cleaning the inside of the rear

window

●

Do not use a glass cleaner to

clean the rear window, as this

may cause damage to the rear

window defogger heater wires.

Use a cloth dampened with

lukewarm water to gently wipe

the window clean. Wipe the win-

dow in strokes running parallel

to the heater wires.

405

6-1. Maintenance and care

6

Maintena

nce
 a

nd ca

re



Remove dirt using a water-
dampened soft cloth or syn-
thetic chamois.



Wipe the surface with a dry
soft cloth to remove any
remaining moisture.

■

Cleaning the areas with satin-

finish metal accents

The metal areas use a layer of real

metal for the surface. It is necessary

to clean them regularly. If dirty areas

are left uncleaned for long periods

of time, they may be difficult to

clean.



Remove dirt and dust using a
vacuum cleaner.



Wipe off any excess dirt and
dust with a soft cloth damp-
ened with diluted detergent.

Use a diluted water solution of
approximately 5% neutral wool
detergent.



Wring out any excess water
from the cloth and thoroughly
wipe off all remaining traces
of detergent.



Wipe the surface with a dry,
soft cloth to remove any

remaining moisture. Allow the
leather to dry in a shaded and
ventilated area.

■

Caring for leather areas

Toyota recommends cleaning the

interior of the vehicle at least twice a

year to maintain the quality of the

vehicle’s interior.



Remove dirt and dust using a
vacuum cleaner.



Wipe it off with a soft cloth
dampened with neutral deter-
gent diluted to approximately
1%.



Wring out any excess water
from the cloth and thoroughly
wipe off remaining traces of
detergent and water.

NOTICE

●

Be careful not to scratch or

damage the heater wires.

Cleaning the areas with
satin-finish metal accents
(if equipped)

Cleaning the leather areas

NOTICE

■

Preventing damage to leather

surfaces

Observe the following precautions

to avoid damage to and deteriora-

tion of leather surfaces:

●

Remove any dust or dirt from

leather surfaces immediately.

●

Do not expose the vehicle to

direct sunlight for extended peri-

ods of time. Park the vehicle in

the shade, especially during

summer.

●

Do not place items made of

vinyl, plastic, or containing wax

on the upholstery, as they may

stick to the leather surface if the

vehicle interior heats up signifi-

cantly.

Cleaning the synthetic
leather areas

406

6-2. Maintenance

6-2.Maintenance

■

Repair and replacement

It is recommended that genuine

Toyota parts be used for repairs to

ensure performance of each sys-

tem. If non-Toyota parts are used in

replacement or if a repair shop other

than a Toyota dealer performs

repairs, confirm the warranty cover-

age.

■

Allow inspection and repairs to

be performed by a Toyota

dealer

●

Toyota technicians are well-

trained specialists and are kept up

to date with the latest service

information. They are well

informed about the operations of

all systems on your vehicle.

●

Keep a copy of the repair order. It

proves that the maintenance that

has been performed is under war-

ranty coverage. If any problem

should arise while your vehicle is

under warranty, your Toyota

dealer will promptly take care of it.

General maintenance should be
performed on a daily basis. This
can be done by yourself or by a
Toyota dealer.

Scheduled maintenance should
be performed at specified inter-
vals according to the mainte-
nance schedule.

For details about maintenance
items and schedules, refer to the
“Scheduled Maintenance Guide” or
“Owner’s Manual Supplement”.

Maintenance require-

ments

To ensure safe and econom-
ical driving, day-to-day care
and regular maintenance
are essential. It is the
owner’s responsibility to
perform regular checks.
Toyota recommends the fol-
lowing maintenance:

WARNING

■

If your vehicle is not properly

maintained

Improper maintenance could

result in serious damage to the

vehicle and possible death or seri-

ous injury.

■

Handling of the 12-volt bat-

tery

●

Engine exhaust, some of its

constituents, and a wide variety

of automobile components con-

tain or emit chemicals known to

the State of California to cause

cancer and birth defects and

other reproductive harm. Work

in a well ventilated area.

●

Oils, fuels and fluids contained

in vehicles as well as waste pro-

duced by component wear con-

tain or emit chemicals known to

the State of California to cause

cancer and birth defects or

other reproductive harm. Avoid

exposure and wash any

affected area immediately.

●

12-volt battery posts, terminals

and related accessories con-

tain lead and lead compounds

which are known to cause brain

damage. Wash your hands after

handling. (



P.422)

General maintenance

Scheduled maintenance

407

6-2. Maintenance

6

Maintena

nce
 a

nd ca

re

You can perform some mainte-
nance procedures by yourself.
Please be aware that do-it-your-
self maintenance may affect
warranty coverage.

The use of Toyota Repair Manuals
is recommended.
For details about warranty cover-
age, refer to the separate “Owner’s
Warranty Information Booklet” or
“Owner’s Manual Supplement”.

Do-it-yourself mainte-
nance

General maintenance

Listed below are the general
maintenance items that
should be performed at the
intervals specified in the
“Owner’s Warranty Informa-
tion Booklet” or “Owner’s
Manual Supplement/Sched-
uled Maintenance Guide”. It
is recommended that any
problem you notice should
be brought to the attention
of your Toyota dealer or
qualified service shop for
advice.

WARNING

■

If the hybrid system is run-

ning

Turn the hybrid system off and

ensure that there is adequate

ventilation before performing

maintenance checks.

Engine compartment

Items

Check points

Brake fluid

Is the brake fluid at
the correct level?
(



P.420)

Engine/power
control unit
coolant

Is the
engine/power con-
trol unit coolant at
the correct level?
(



P.419)

Engine oil

Is the engine oil at
the correct level?
(



P.416)

408

6-2. Maintenance

Exhaust sys-
tem

There should not
be any fumes or
strange sounds.

Radiator/con-
denser

The radiator and
condenser should
be free from for-
eign objects.
(



P.420)

Washer fluid

Is there sufficient
washer fluid?
(



P.421)

Luggage compartment

Items

Check points

12-volt battery

Check the connec-
tions. (



P.422)

Vehicle interior

Items

Check points

Accelerator
pedal

• The accelerator

pedal should
move smoothly
(without uneven
pedal effort or
catching).

Hybrid trans-
mission “Park”
mechanism

• When parked on

a slope and the
shift lever is in P,
is the vehicle
securely
stopped?

Items

Check points

Brake pedal

• Does the brake

pedal move
smoothly?

• Does the brake

pedal have
appropriate
clearance from
the floor?
(



P.524)

• Does the brake

pedal have the
correct amount
of free play?
(



P.524)

Brakes

• The vehicle

should not pull to
one side when
the brakes are
applied.

• The brakes

should work
effectively.

• The brake pedal

should not feel
spongy.

• The brake pedal

should not get
too close to the
floor when the
brakes are
applied.

Head
restraints

• Do the head

restraints move
smoothly and
lock securely?

Indica-
tors/buzzers

• Do the indica-

tors and buzzers
function prop-
erly?

Lights

• Do all the lights

come on?

Items

Check points

409

6-2. Maintenance

6

Maintena

nce
 a

nd ca

re

Parking brake

• Does the park-

ing brake oper-
ate normally?

• When parked on

a slope and the
parking brake is
on, is the vehicle
securely
stopped?

Seat belts

• Do the seat belts

operate
smoothly?

• The seat belts

should not be
damaged.

Seats

• Do the seat con-

trols operate
properly?

Steering wheel

• Does the steer-

ing wheel rotate
smoothly?

• Does the steer-

ing wheel have
the correct
amount of free
play?

• There should not

be any strange
sounds coming
from the steer-
ing wheel.

Items

Check points

Vehicle exterior

Items

Check points

Doors

• Do the doors

operate
smoothly?

Engine hood

• Does the engine

hood lock system
work properly?

Fluid leaks

• There should not

be any signs of
fluid leakage
after the vehicle
has been parked.

Tires

• Is the tire infla-

tion pressure
correct?

• The tires should

not be damaged
or excessively
worn.

• Have the tires

been rotated
according to the
maintenance
schedule?

• The wheel nuts

should not be
loose.

Windshield
wipers/rear
window wiper

• The wiper blades

should not show
any signs of
cracking, split-
ting, wear, con-
tamination or
deformation.

• The wiper blades

should clear the
windshield/rear
window without
streaking or skip-
ping.

410

6-2. Maintenance

The OBD system determines
that a problem exists some-
where in the emission control
system. Your vehicle may not
pass the I/M test and may need
to be repaired. Contact your
Toyota dealer to service the
vehicle.



When the 12-volt battery is
disconnected or discharged
Readiness codes that are set
during ordinary driving are
erased.
Also, depending on your driv-
ing habits, the readiness
codes may not be completely
set.



When the fuel tank cap is

loose
The malfunction indicator
lamp comes on indicating a
temporary malfunction and
your vehicle may not pass the
I/M test.

The error code in the OBD sys-
tem will not be cleared unless
the vehicle is driven 40 or more
times.

Contact your Toyota dealer to
prepare the vehicle for re-test-
ing.

Emission inspection

and maintenance (I/M)

programs

Some states have vehicle
emission inspection pro-
grams which include OBD
(On Board Diagnostics)
checks. The OBD system
monitors the operation of
the emission control sys-
tem.

If the malfunction indica-
tor lamp comes on

Your vehicle may not
pass the I/M test in the fol-
lowing situations:

When the malfunction
indicator lamp still
remains on after several
driving trips

If your vehicle does not
pass the I/M test

411

6-3. Do-it-yourself maintenance

6

Maintena

nce
 a

nd ca

re

6-3.Do-it-yourself maintenance

Do-it-yourself service

precautions

If you perform maintenance
by yourself, be sure to fol-
low the correct procedure as
given in these sections.

Maintenance

Items

Parts and tools

12-volt bat-
tery condi-
tion
(



P.422)

• Grease
• Conventional

wrench (for termi-
nal clamp bolts)

Brake fluid
level
(



P.420)

• FMVSS No.116

DOT 3 or SAE
J1703 brake fluid

• FMVSS No.116

DOT 4 or SAE
J1704 brake fluid

• Rag or paper

towel

• Funnel (used only

for adding brake
fluid)

Engine/power
control unit
coolant level
(



P.419)

• “Toyota Super

Long Life Cool-
ant” or a similar
high quality eth-
ylene glycol-based
non-silicate, non-
amine, non-nitrite
and non-borate
coolant with long-
life hybrid organic
acid technology
For the U.S.A.:
“Toyota Super
Long Life Cool-
ant” is pre-mixed
with 50% coolant
and 50% deion-
ized water.
For Canada:
“Toyota Super
Long Life Cool-
ant” is pre-mixed
with 55% coolant
and 45% deion-
ized water.

• Funnel (used only

for adding coolant)

Engine oil
level
(



P.416)

• “Toyota Genuine

Motor Oil” or
equivalent

• Rag or paper

towel

• Funnel (used only

for adding engine
oil)

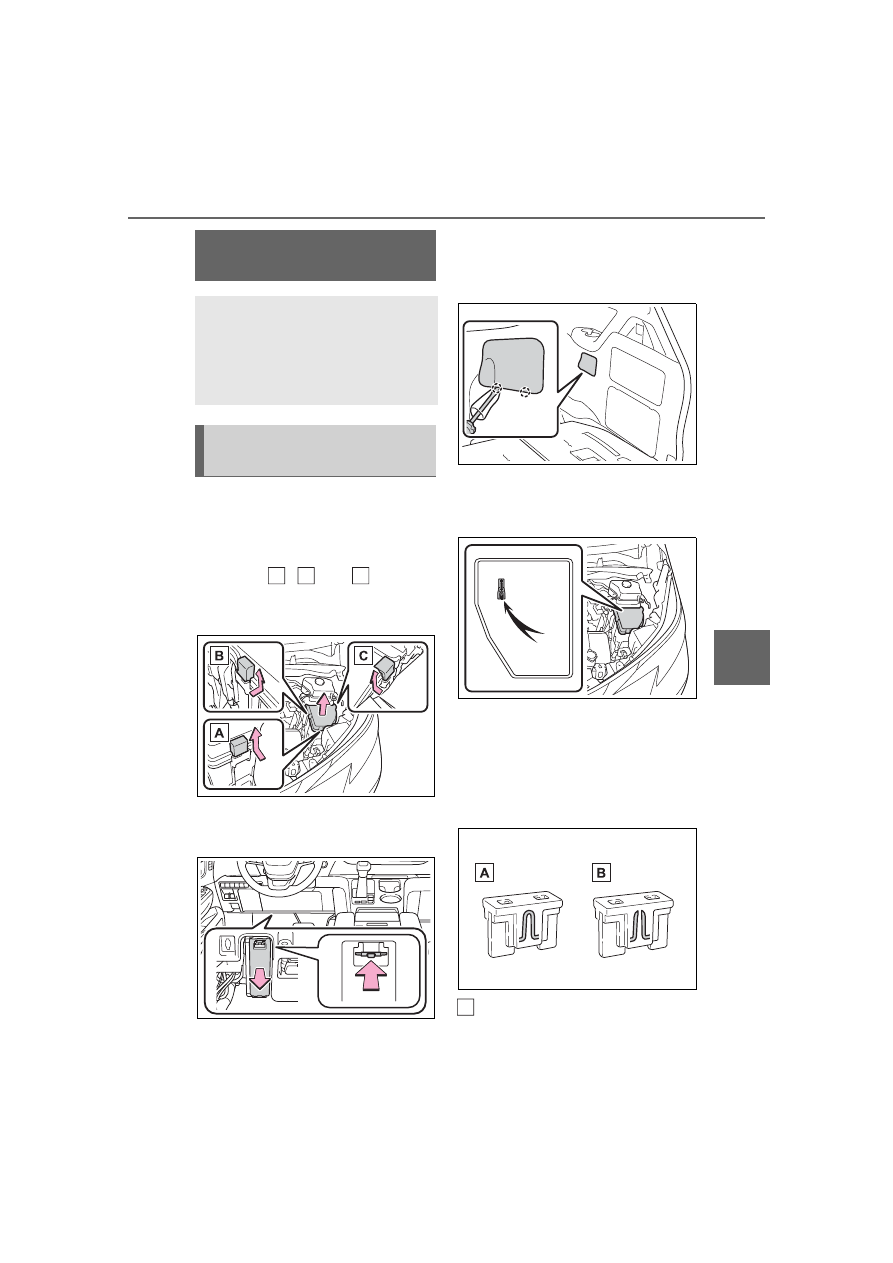

Fuses
(



P.449)

• Fuse with same

amperage rating
as original

Items

Parts and tools

412

6-3. Do-it-yourself maintenance

Hybrid bat-
tery (traction
battery) air
intake vent
(



P.443)

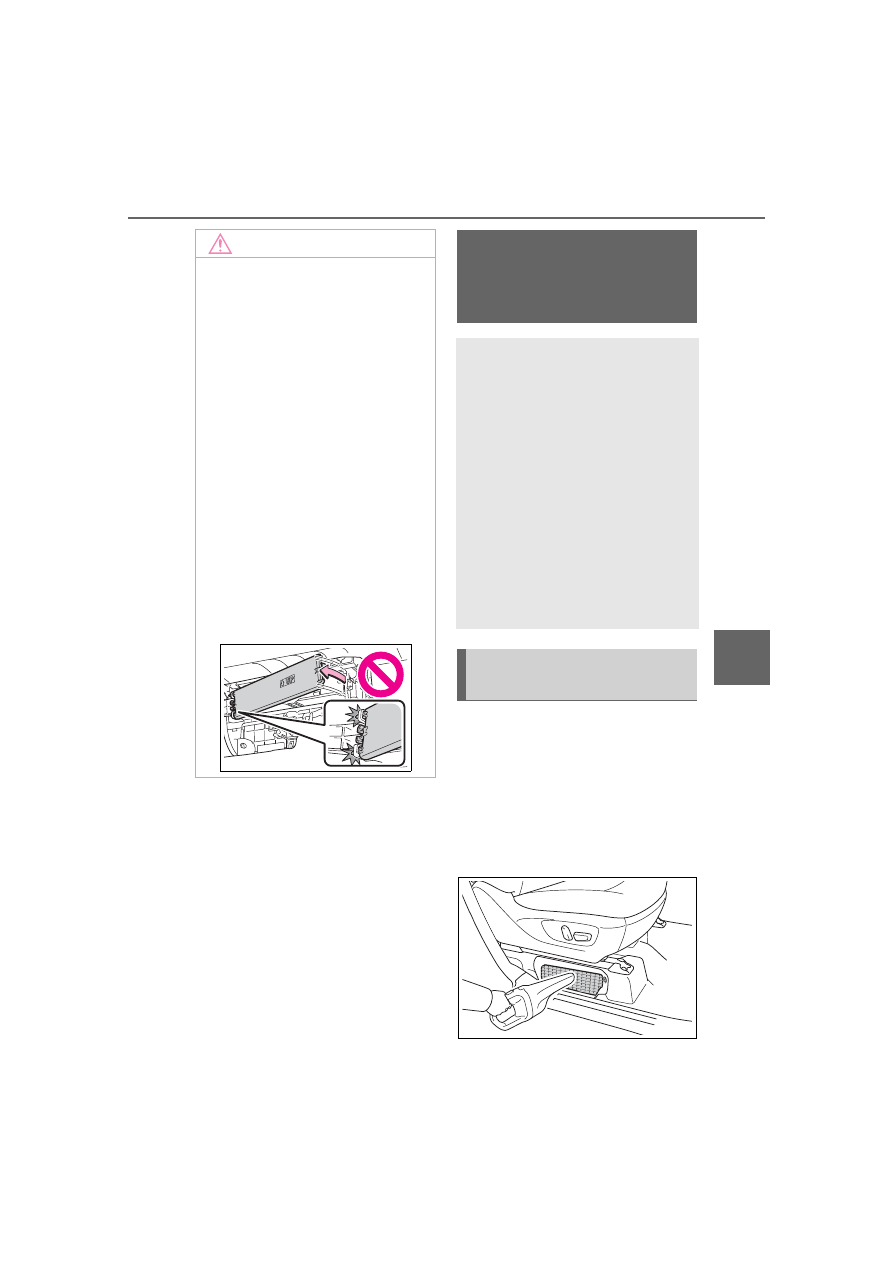

• Vacuum cleaner,

etc,

• Phillips screw-

driver

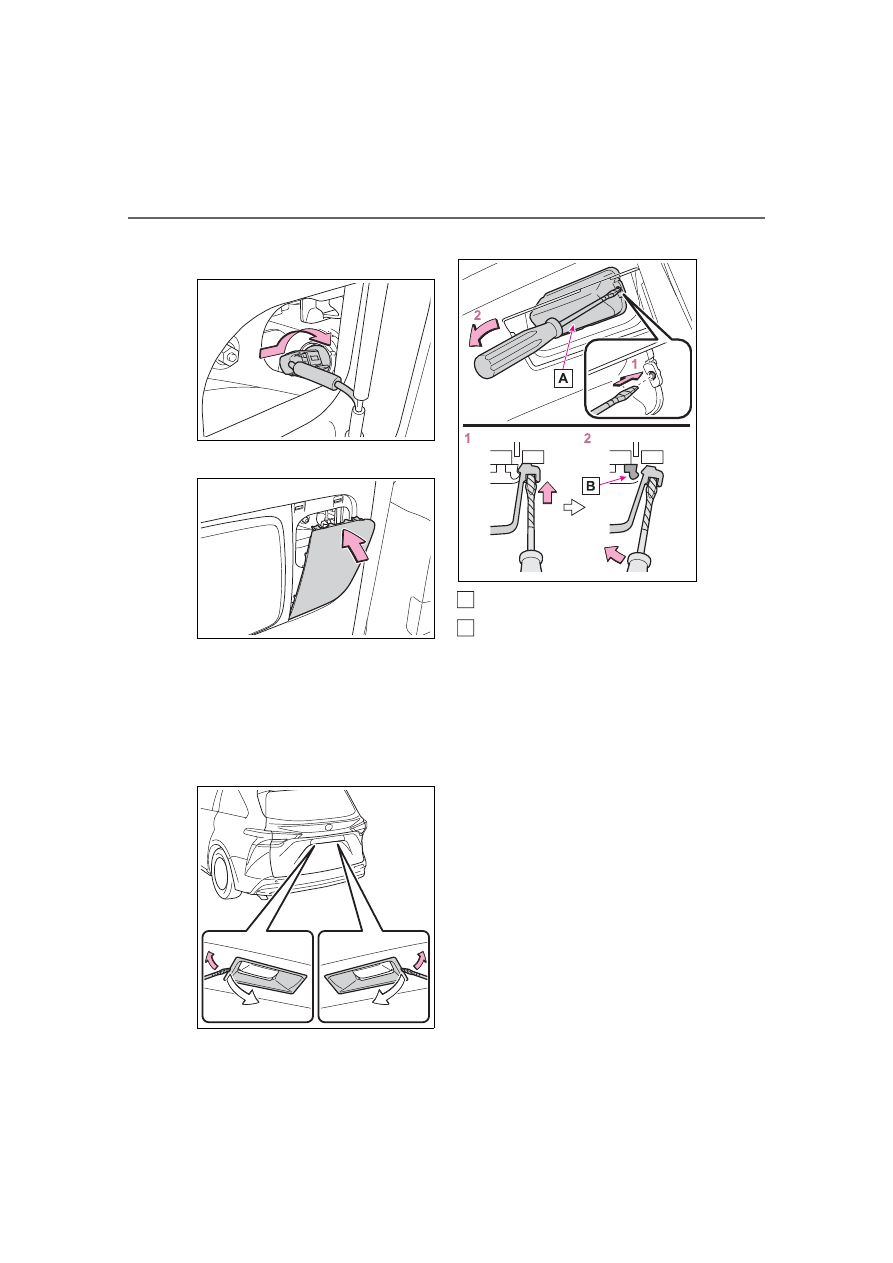

Light bulbs
(



P.451)

• Bulb with same

number and watt-
age rating as origi-
nal

• Phillips-head

screwdriver

• Flathead screw-

driver

• Wrench

Radiator and
condenser
(



P.420)



Tire inflation
pressure
(



P.438)

• Tire pressure

gauge

• Compressed air

source

Washer fluid
(



P.421)

• Water or washer

fluid containing
antifreeze (for win-
ter use)

• Funnel (used only

for adding water or
washer fluid)

WARNING

The engine compartment contains

many mechanisms and fluids that

may move suddenly, become hot,

or become electrically energized.

To avoid death or serious injury,

observe the following precautions.

Items

Parts and tools

■

When working on the engine

compartment

●

Make sure that “IGNITION ON”

on the multi-information display

and the “READY” indicator are

both off.

●

Keep hands, clothing and tools

away from the moving fan.

●

Be careful not to touch the

engine, power control unit, radi-

ator, exhaust manifold, etc. right

after driving as they may be hot.

Oil and other fluids may also be

hot.

●

Do not leave anything that may

burn easily, such as paper and

rags, in the engine compart-

ment.

●

Do not smoke, cause sparks or

expose an open flame to fuel or

the battery. Fuel and battery

fumes are flammable.

●

Be extremely cautious when

working on the battery. It con-

tains poisonous and corrosive

sulfuric acid.

■

When working near the elec-

tric cooling fan or radiator

grille

Be sure the power switch is OFF.
With the power switch in ON, the

electric cooling fan may automati-

cally start to run if the air condi-

tioning is on and/or the coolant

temperature is high. (



P.420)

■

Safety glasses

Wear safety glasses to prevent

flying or falling material, fluid

spray, etc., from getting in your

eyes.

413

6-3. Do-it-yourself maintenance

6

Maintena

nce
 a

nd ca

re

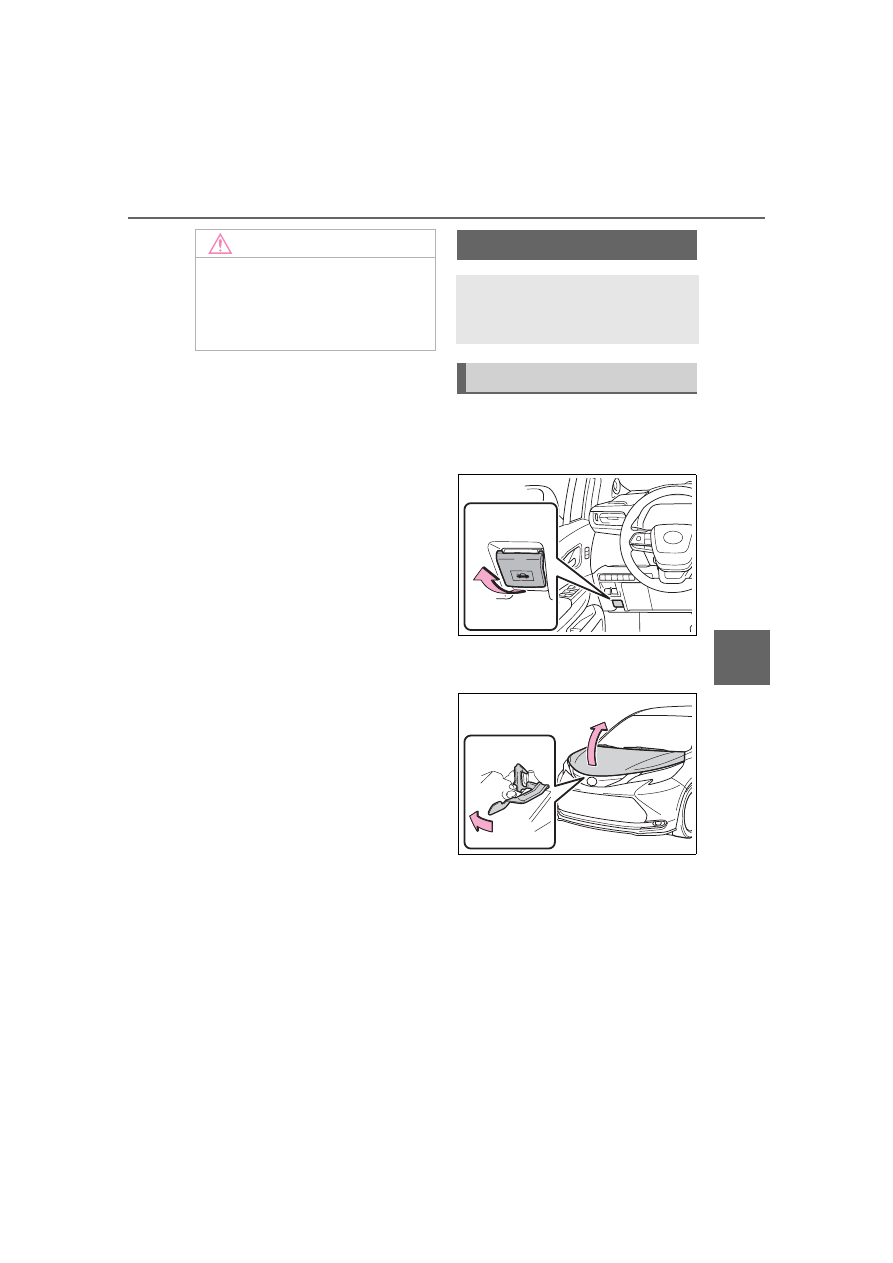

1

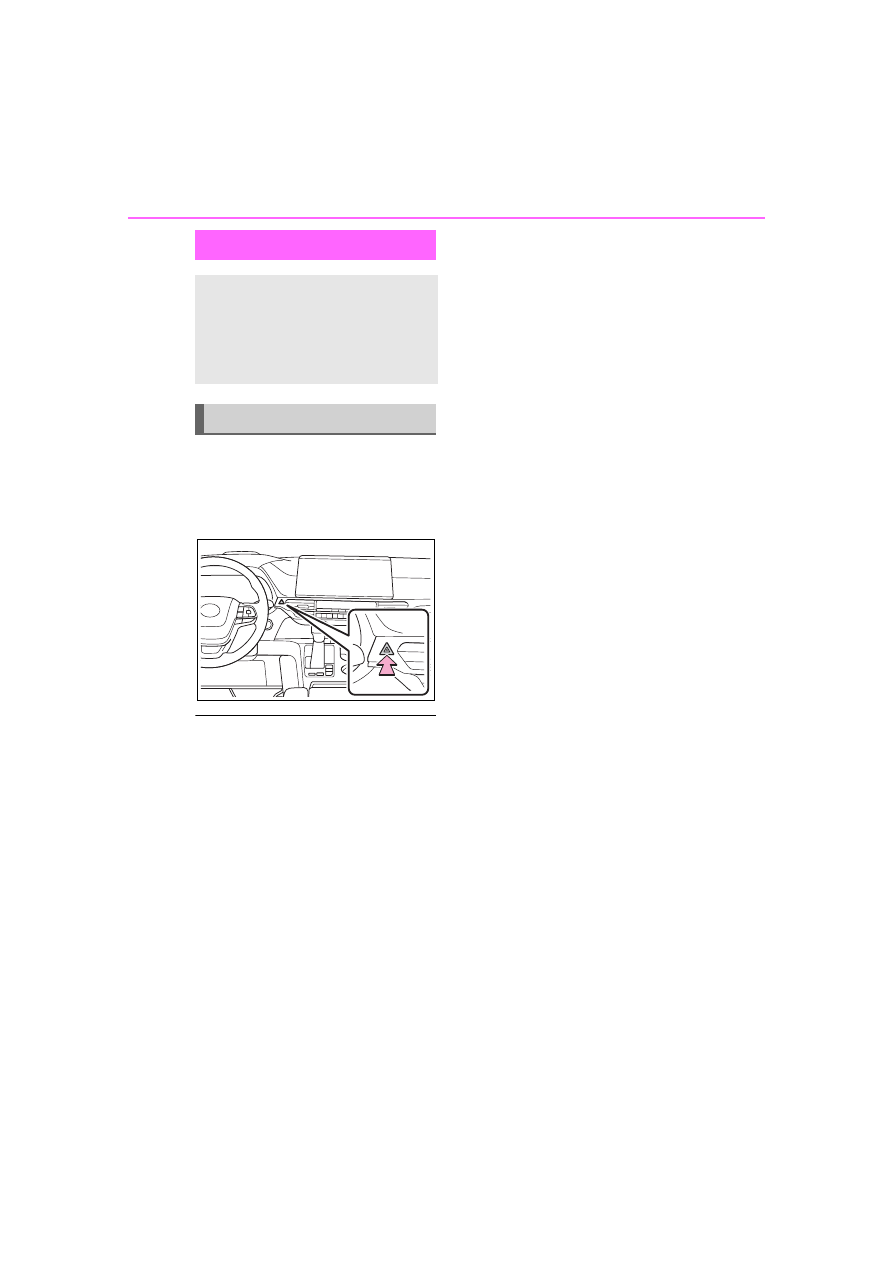

Pull the hood lock release
lever.

The hood will pop up slightly.

2

Push the auxiliary catch lever
to the left and lift the hood.

NOTICE

■

If you remove the air cleaner

filter

Driving with the air cleaner filter

removed may cause excessive

engine wear due to dirt in the air.

Hood

Release the lock from the
inside of the vehicle to open
the hood.

Opening the hood

414

6-3. Do-it-yourself maintenance

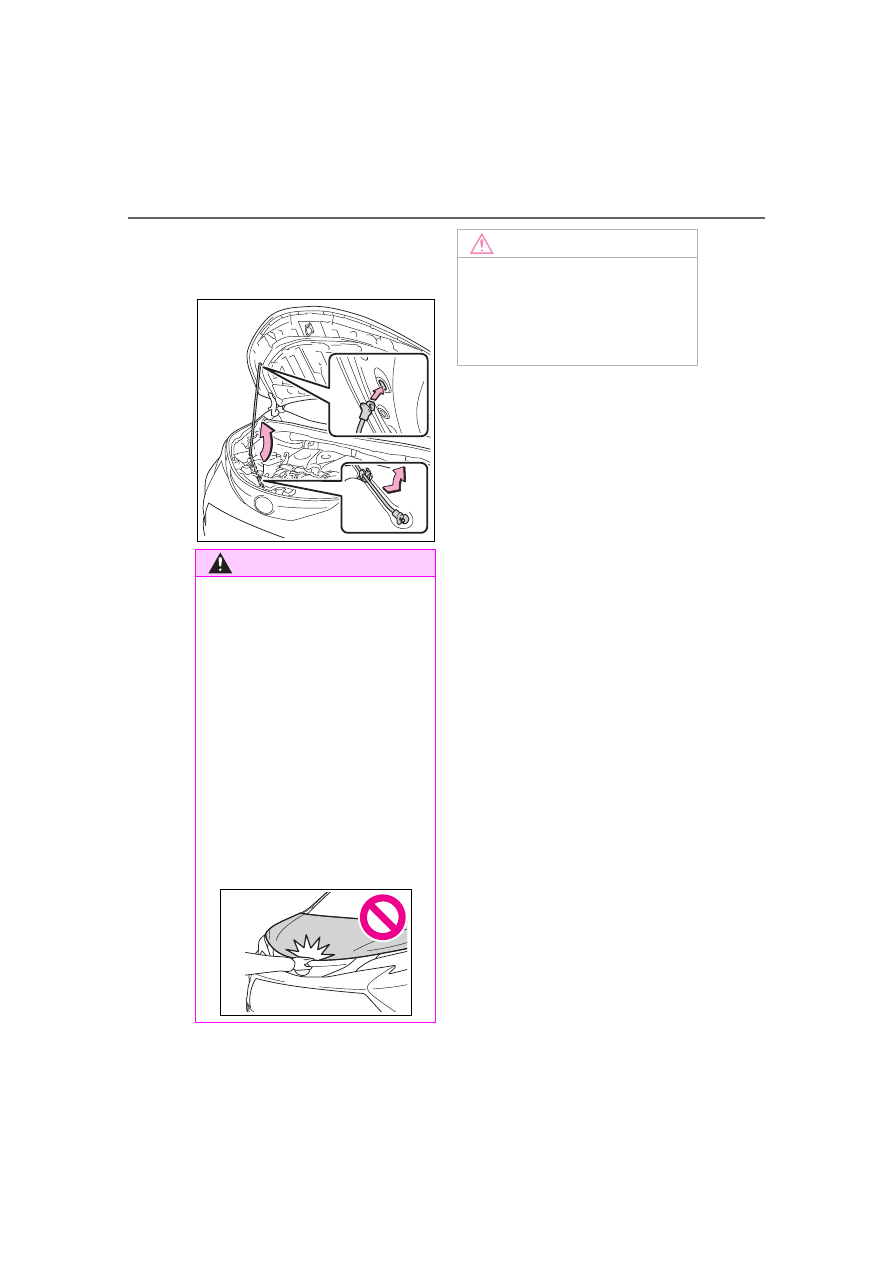

3

Hold the hood open by insert-
ing the supporting rod into
the slot.

WARNING

■

Pre-driving check

Check that the hood is fully closed

and locked.

If the hood is not locked properly,

it may open while the vehicle is in

motion and cause an accident,

which may result in death or seri-

ous injury.

■

After installing the support

rod into the slot

Make sure the rod supports the

hood securely from falling down

on to your head or body.

■

When closing the hood

When closing the hood, take extra

care to prevent your fingers etc.

from being caught.

NOTICE

■

When closing the hood

Be sure to return the support rod

to its clip before closing the hood.

Closing the hood without return-

ing the support rod properly could

cause the hood to bend.

415

6-3. Do-it-yourself maintenance

6

Maintena

nce
 a

nd ca

re

■

Front

■

Rear

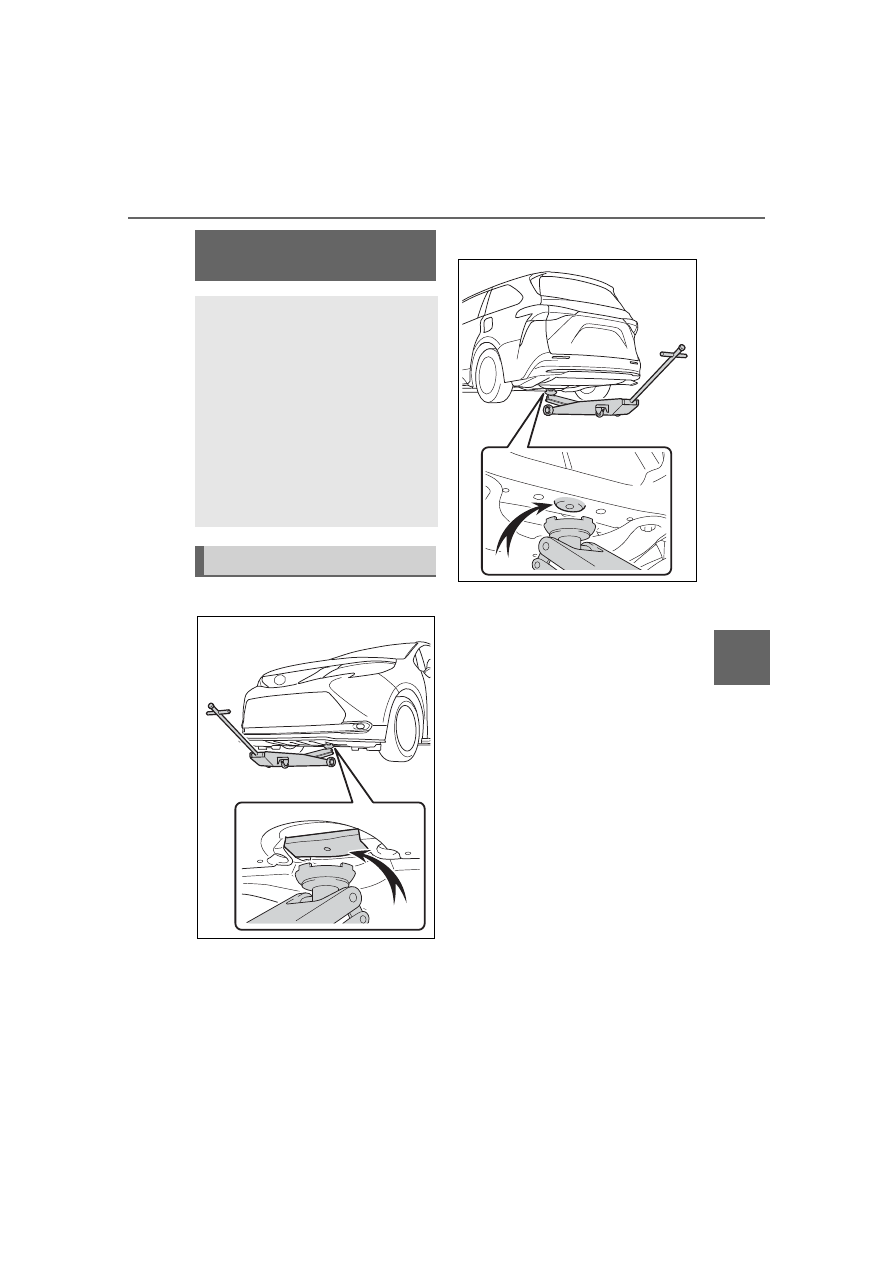

Positioning a floor

jack

When using a floor jack, fol-
low the instructions in the
manual provided with the
jack and perform the opera-
tion safely.
When raising your vehicle
with a floor jack, position
the jack correctly.
Improper placement may
damage your vehicle or
cause injury.

Location of the jack point

416

6-3. Do-it-yourself maintenance

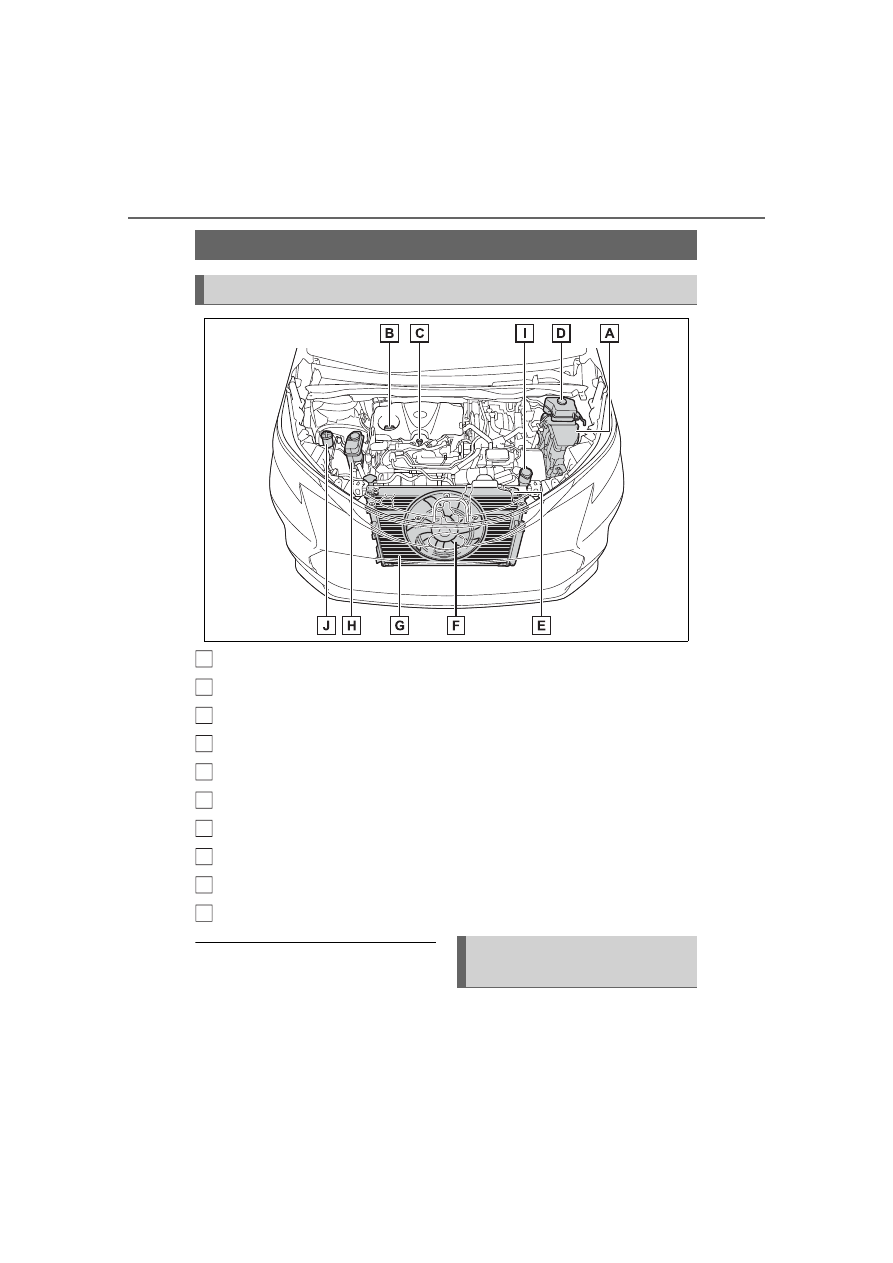

Fuse box (



P.449)

Engine oil filler cap (



P.417)

Engine oil level dipstick (



P.416)

Brake fluid reservoir (



P.420)

Radiator (



P.420)

Electric cooling fan

Condenser (



P.420)

Power control unit coolant reservoir (



P.419)

Washer fluid tank (



P.421)

Engine coolant reservoir (



P.419)

■

12-volt battery



P.422

With the engine at operating
temperature and turned off,

Engine compartment

Components

A

B

C

D

E

F

G

H

I

J

Checking and adding the
engine oil

417

6-3. Do-it-yourself maintenance

6

Maintena

nce
 a

nd ca

re

check the oil level on the dip-
stick.

■

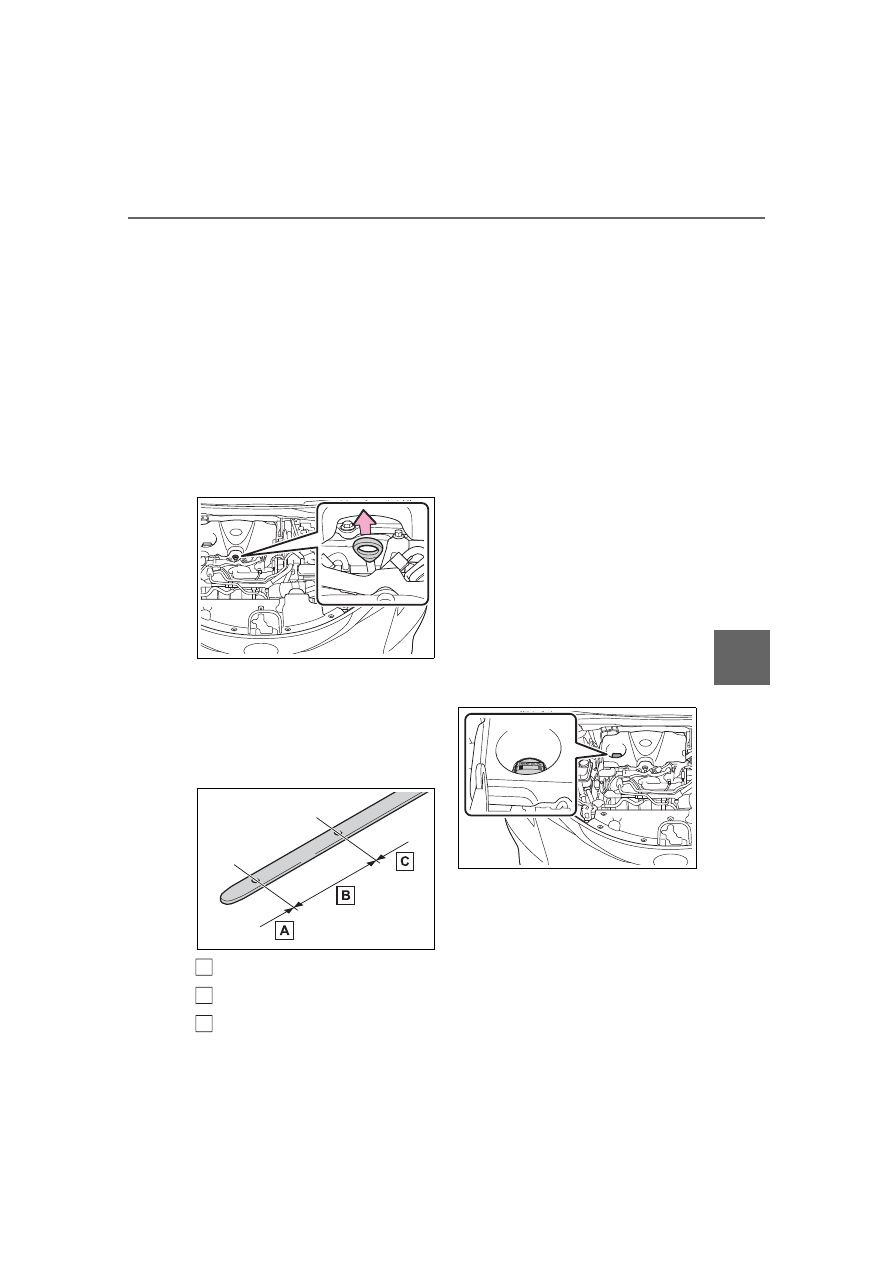

Checking the engine oil

1

Park the vehicle on level
ground. After warming up the
engine and turning off the
engine, wait more than 5
minutes for the oil to drain
back into the bottom of the
engine.

2

Holding a rag under the end,
pull the dipstick out.

3

Wipe the dipstick clean.

4

Reinsert the dipstick fully.

5

Holding a rag under the end,
pull the dipstick out and
check the oil level.

Low

Normal

Excessive

The shape of the dipstick may differ

depending on the type of vehicle or

engine.

6

Wipe the dipstick and reinsert
it fully.

■

Checking the oil type and
preparing the items needed

Make sure to check the oil type
and prepare the items needed
before adding oil.



Engine oil selection



P.521



Oil quantity (Low



 Full)

1.6 qt. (1.5 L, 1.3 Imp. qt.)



Item

Clean funnel

■

Adding engine oil

If the oil level is below or near
the low level mark, add engine
oil of the same type as that
already in the engine.

1

Remove the oil filler cap by
turning it counterclockwise.

2

Add engine oil slowly, check-
ing the dipstick.

3

Install the oil filler cap by
turning it clockwise.

A

B

C

418

6-3. Do-it-yourself maintenance

■

Engine oil consumption

A certain amount of engine oil will

be consumed while driving. In the

following situations, oil consump-

tion may increase, and engine oil

may need to be refilled in between

oil maintenance intervals.

●

When the engine is new, for

example directly after purchasing

the vehicle or after replacing the

engine

●

If low quality oil or oil of an inap-

propriate viscosity is used

●

When driving at high engine

speeds or with a heavy load,

when towing, or when driving

while accelerating or decelerating

frequently

●

When leaving the engine idling for

a long time, or when driving fre-

quently through heavy traffic

■

After changing the engine oil

The engine oil maintenance data

should be reset. Perform the follow-

ing procedures:



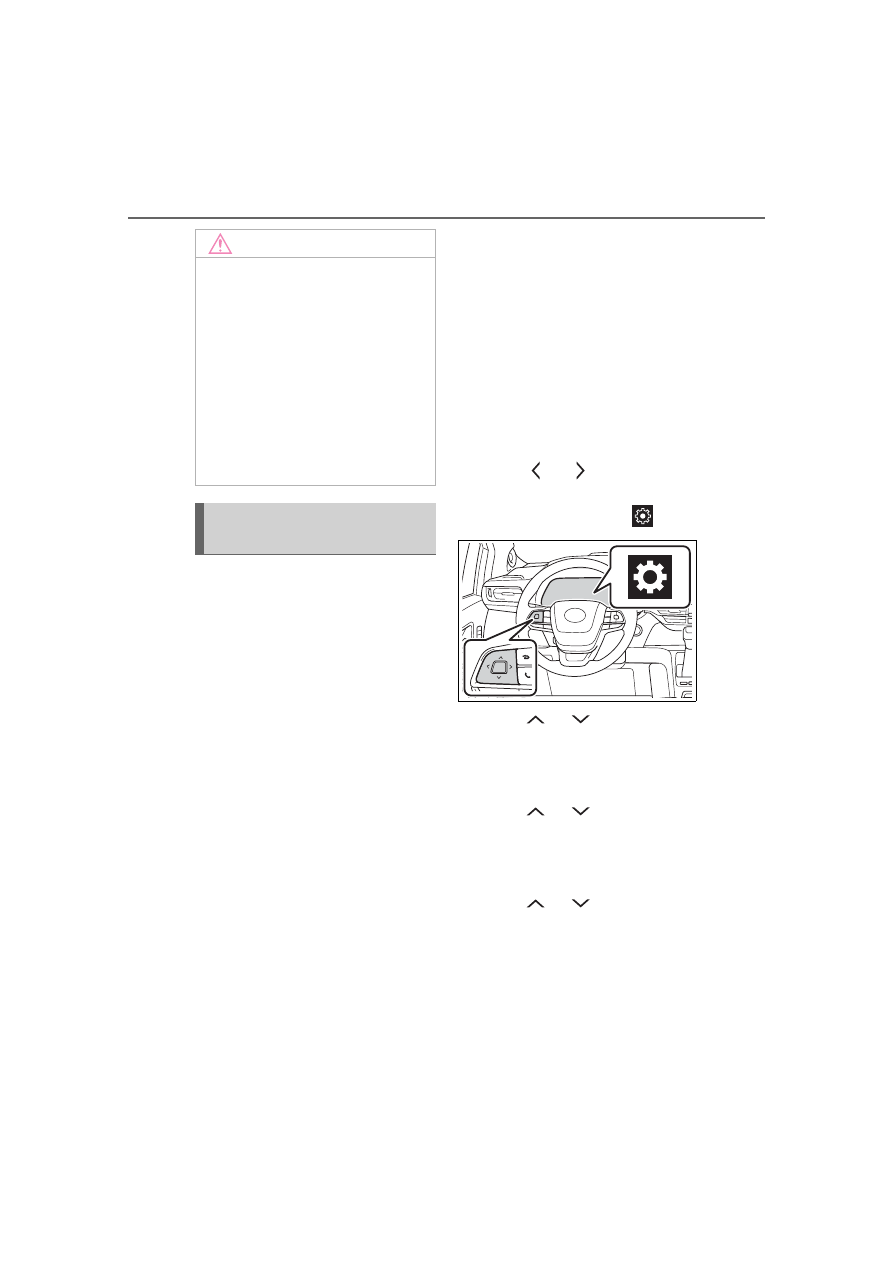

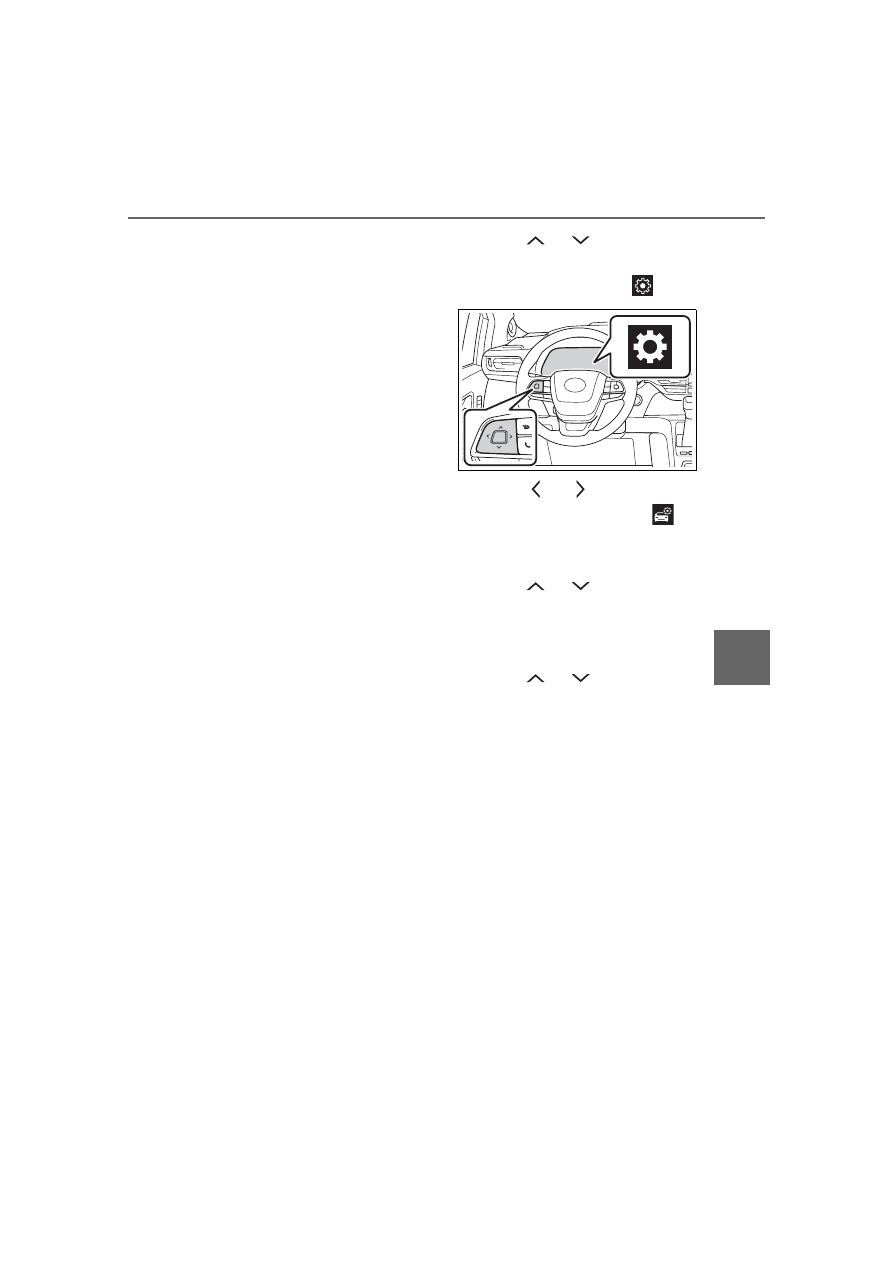

4.2-inch display

1

Press

 or

 of the meter

control switches to select

 on

the multi-information display.

2

Press

 or

 of the meter

control switches, select “Vehicle

Settings” and then press and

hold “OK”.



7-inch display

1

Press

 or

 of the meter

control switches to select

 on

the multi-information display.

2

Press

 or

 of the meter

control switches, select

 and

then press and hold “OK”.

3

Press

 or

 of the meter

control switches, select “Oil

Maintenance” and then press

“OK”.

4

Select “Yes” and press “OK”.

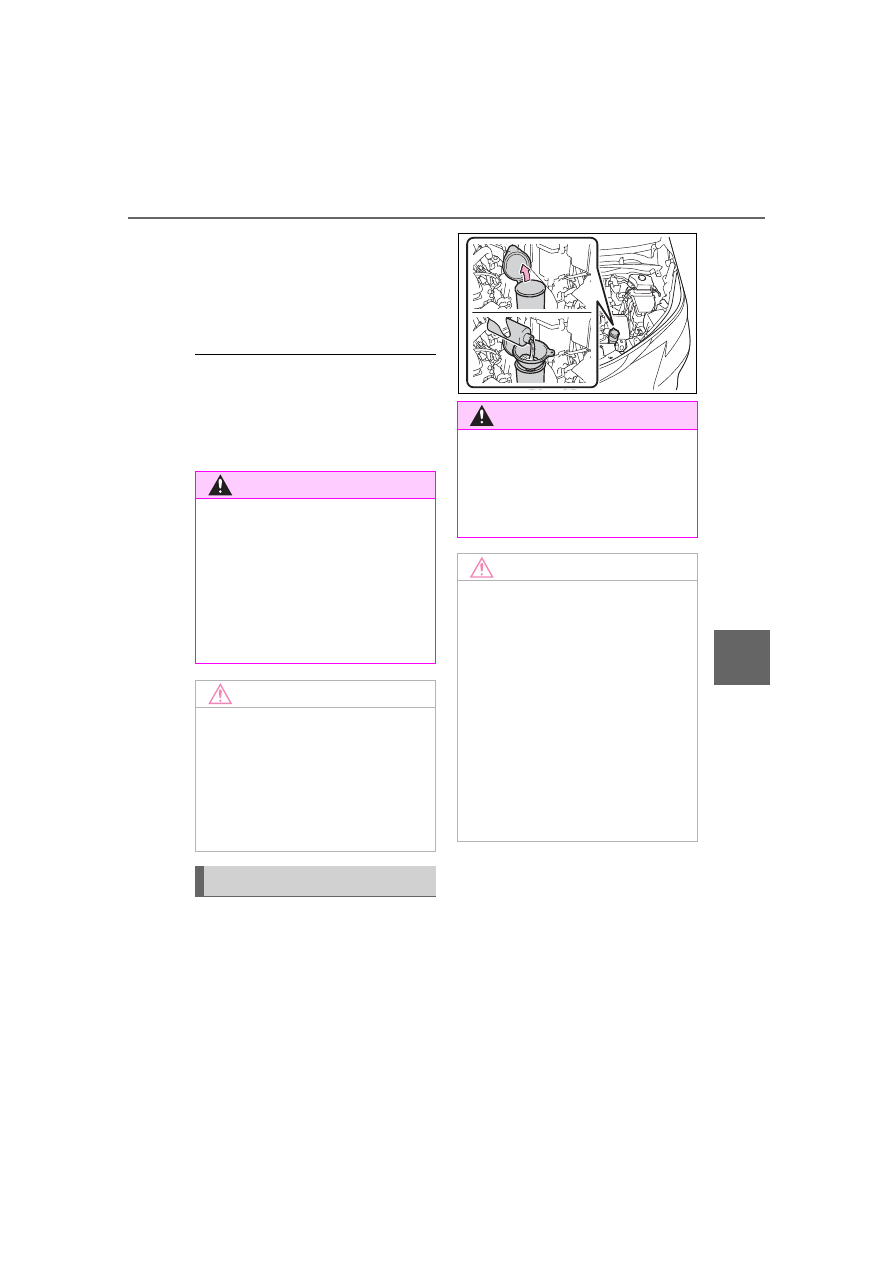

A message will be displayed on the

multi-information display.

WARNING

■

Used engine oil

●

Used engine oil contains poten-

tially harmful contaminants

which may cause skin disorders

such as inflammation and skin

cancer, so care should be taken

to avoid prolonged and

repeated contact. To remove

used engine oil from your skin,

wash thoroughly with soap and

water.

●

Dispose of used oil and filters

only in a safe and acceptable

manner. Do not dispose of used

oil and filters in household trash,

in sewers or onto the ground.

Call your Toyota dealer, service

station or auto parts store for

information concerning recy-

cling or disposal.

●

Do not leave used engine oil

within the reach of children.

NOTICE

■

To prevent serious engine

damage

Check the oil level on a regular

basis.

■

When replacing the engine oil

●

Be careful not to spill engine oil

on the vehicle components.

●

Avoid overfilling, or the engine

could be damaged.

●

Check the oil level on the dip-

stick every time you refill the

vehicle.

419

6-3. Do-it-yourself maintenance

6

Maintena

nce
 a

nd ca

re

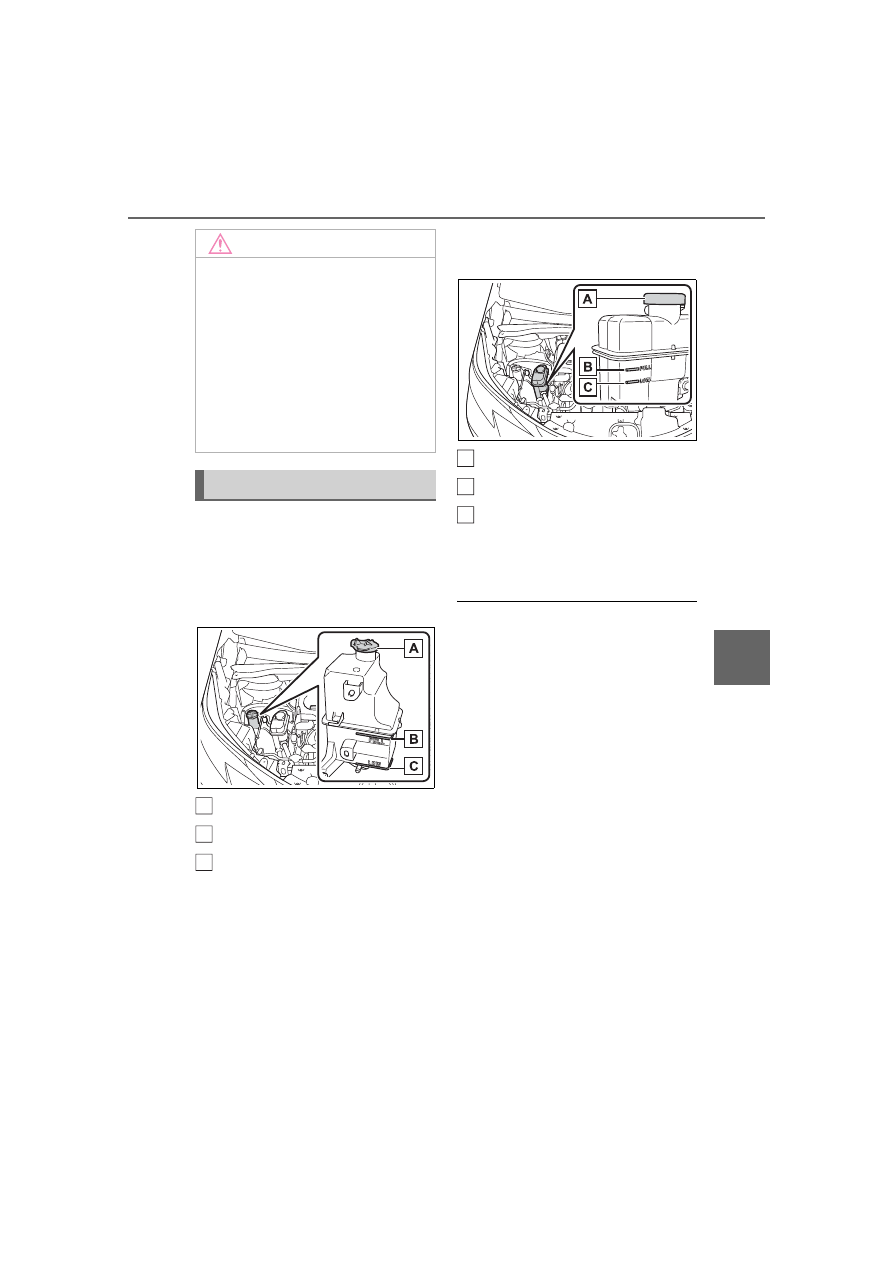

The coolant level is satisfactory
if it is between the “FULL” and
“LOW” lines on the reservoir
when the hybrid system is cold.

■

Engine coolant reservoir

Reservoir cap

“FULL” line

“LOW” line

If the level is on or below the “LOW”
line, add coolant up to the “FULL”
line. (



P.511)

■

Power control unit coolant
reservoir

Reservoir cap

“FULL” line

“LOW” line

If the level is on or below the “LOW”
line, add coolant up to the “FULL”
line. (



P.512)

■

Coolant selection

Only use “Toyota Super Long Life

Coolant” or a similar high quality

ethylene glycol based non-silicate,

non-amine, non-nitrite, and non-

borate coolant with long-life hybrid

organic acid technology.

U.S.A.:

“Toyota Super Long Life Coolant” is

a mixture of 50% coolant and 50%

deionized water. (Minimum tem-

perature: -31°F [-35°C])

Canada:

“Toyota Super Long Life Coolant” is

a mixture of 55% coolant and 45%

deionized water. (Minimum tem-

perature: -44°F [-42°C])

For more details about coolant, con-

tact your Toyota dealer.

■

If the coolant level drops within

a short time of replenishing

Visually check the radiators, hoses,

engine/power control unit coolant

reservoir caps, drain cock and water

pump.

If you cannot find a leak, have your

Toyota dealer, test the cap and

NOTICE

●

Be sure the engine oil filler cap

is properly tightened.

■

If oil is spilled on the engine

cover

To prevent the engine cover from

being damaged, remove any

engine oil from the engine cover

as soon as possible using a neu-

tral detergent. Do not use an

organic solvent such as brake

cleaner.

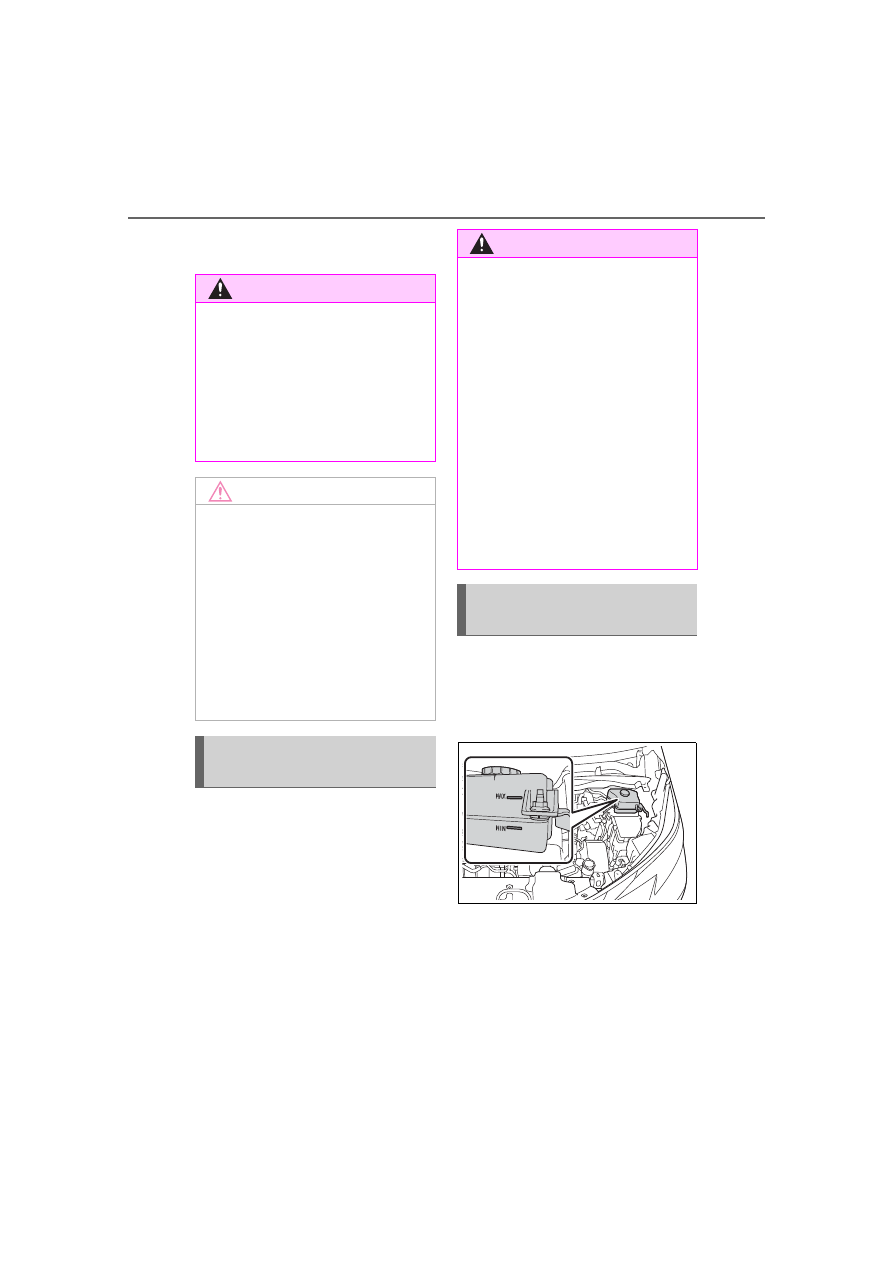

Checking the coolant

A

B

C

A

B

C

420

6-3. Do-it-yourself maintenance

check for leaks in the cooling sys-

tem.

Check the radiator and con-
denser, and clear away any for-
eign objects.
If either of the above parts is
extremely dirty or you are not
sure of their condition, have
your vehicle inspected by your
Toyota dealer.

■

Checking fluid level

The brake fluid level should be
between the “MAX” and “MIN”
lines on the tank.

■

Adding fluid

Make sure to check the fluid
type and prepare the necessary
item.



Fluid type

FMVSS No.116 DOT 3 or SAE

WARNING

■

When the hybrid system is

hot

Do not remove the engine/power

control unit coolant reservoir

caps.
The cooling system may be under

pressure and may spray hot cool-

ant if the cap is removed, causing

serious injuries, such as burns.

NOTICE

■

When adding coolant

Coolant is neither plain water nor

straight antifreeze. The correct

mixture of water and antifreeze

must be used to provide proper

lubrication, corrosion protection

and cooling. Be sure to read the

antifreeze or coolant label.

■

If you spill coolant

Be sure to wash it off with water to

prevent it from damaging parts or

paint.

Checking the radiator and
condenser

WARNING

■

When the hybrid system is

hot

Do not touch the radiator or con-

denser as they may be hot and

cause serious injuries, such as

burns.

■

When the electric cooling fan

is operating

Do not touch the engine compart-

ment.
With the power switch in ON, the

electric cooling fan may automati-

cally start to run if the air condi-

tioning is on and/or the coolant

temperature is high. Be sure the

power switch is OFF when work-

ing near the electric cooling fan or

radiator grille.

Checking and adding the
brake fluid

421

6-3. Do-it-yourself maintenance

6

Maintena

nce
 a

nd ca

re

J1703 brake fluid
FMVSS No.116 DOT 4 or SAE
J1704 brake fluid



Item

Clean funnel

■

Brake fluid can absorb moisture

from the air

Excess moisture in the brake fluid

can cause a dangerous loss of brak-

ing efficiency. Use only newly

opened brake fluid.

If any washer does not work or
“Windshield Washer Fluid Low”
is shown on the multi-informa-
tion display, the washer tank
may be empty. Add washer
fluid.

WARNING

■

When filling the reservoir

Take care as brake fluid can harm

your hands and eyes and damage

painted surfaces.
If fluid gets on your hands or in

your eyes, flush the affected area

with clean water immediately.
If you still experience discomfort,

see a doctor.

NOTICE

■

If the fluid level is low or high

It is normal for the brake fluid level

to go down slightly as the brake

pads wear out or when the fluid

level in the accumulator is high.
If the reservoir needs frequent

refilling, there may be a serious

problem.

Adding the washer fluid

WARNING

■

When adding washer fluid

Do not add washer fluid when the

hybrid system is hot or operating

as washer fluid contains alcohol

and may catch fire if spilled on the

hybrid system, etc.

NOTICE

■

Do not use any fluid other

than washer fluid

Do not use soapy water or engine

antifreeze instead of washer fluid.

Doing so may cause streaking on

the vehicle’s painted surfaces, as

well as damaging the pump lead-

ing to problems of the washer

fluid not spraying.

■

Diluting washer fluid

Dilute washer fluid with water as

necessary.

Refer to the freezing tempera-

tures listed on the label of the

washer fluid bottle.

422

6-3. Do-it-yourself maintenance

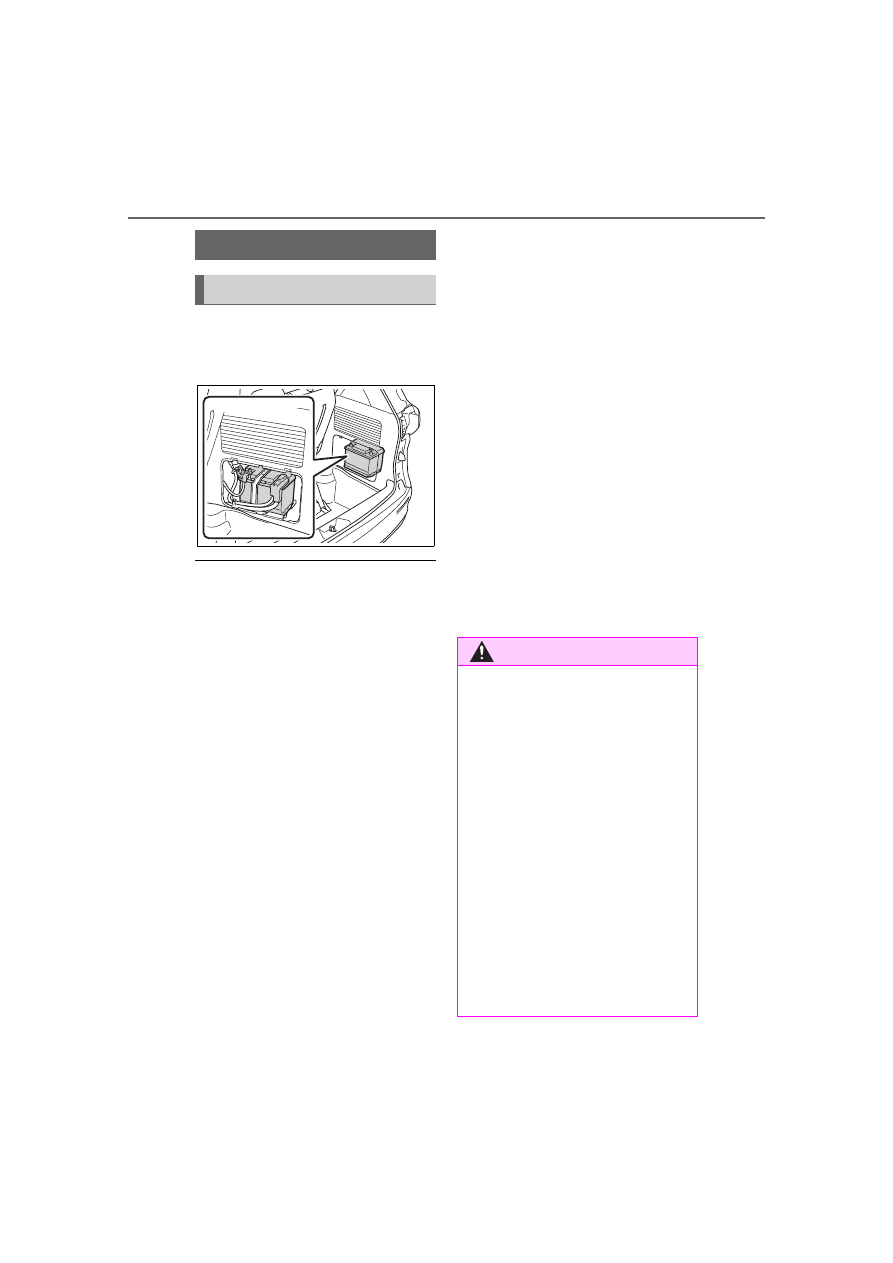

The 12-volt battery is located in
the right-hand side of luggage
compartment.

■

Before recharging

When recharging, the 12-volt bat-

tery produces hydrogen gas which

is flammable and explosive. There-

fore, observe the following precau-

tions before recharging:

●

If recharging with the 12-volt bat-

tery installed on the vehicle, be

sure to disconnect the ground

cable.

●

Make sure the power switch on

the charger is off when connecting

and disconnecting the charger

cables to the 12-volt battery.

■

After recharging/reconnecting

the 12-volt battery

The hybrid system may not start.

Follow the procedure below to ini-

tialize the system.

1

Shift the shift lever to P.

2

Open and close any of the doors.

3

Restart the hybrid system.

●

Unlocking the doors using the

smart key system may not be pos-

sible immediately after reconnect-

ing the 12-volt battery. If this

happens, use the wireless remote

control or the mechanical key to

lock/unlock the doors.

●

Start the hybrid system with the

power switch in ACC. The hybrid

system may not start with the

power switch turned off. How-

ever, the hybrid system will oper-

ate normally from the second

attempt.

●

The power switch mode is

recorded by the vehicle. If the 12-

volt battery is reconnected, the

vehicle will return the power

switch mode to the status it was in

before the 12-volt battery was dis-

connected. Make sure to turn off

the power switch before discon-

nect the 12-volt battery. Take

extra care when connecting the

12-volt battery if the power switch

mode prior to discharge is

unknown.

If the hybrid system will not start

even after multiple attempts at all

methods above, contact your

Toyota dealer.

12-volt battery

Location

WARNING

■

Chemicals in the 12-volt bat-

tery

The 12-volt battery contains poi-

sonous and corrosive sulfuric acid

and may produce hydrogen gas

which is flammable and explosive.

To reduce the risk of death or

serious injury, take the following

precautions while working on or

near the 12-volt battery:

●

Do not cause sparks by touch-

ing the 12-volt battery terminals

with tools.

●

Do not smoke or light a match

near the 12-volt battery.

●

Avoid contact with eyes, skin

and clothes.

●

Never inhale or swallow electro-

lyte.

423

6-3. Do-it-yourself maintenance

6

Maintena

nce
 a

nd ca

re

Remove the cover.

Make sure that the 12-volt bat-
tery terminals are not corroded
and that there are no loose con-

WARNING

●

Wear protective safety glasses

when working near the 12-volt

battery.

●

Keep children away from the

12-volt battery.

■

Where to safely charge the

12-volt battery

Always charge the 12-volt battery

in an open area. Do not charge

the 12-volt battery in a garage or

closed room where there is insuf-

ficient ventilation.

■

Emergency measures regard-

ing electrolyte

●

If electrolyte gets in your eyes

Flush your eyes with clean water
for at least 15 minutes and get
immediate medical attention. If
possible, continue to apply water
with a sponge or cloth while trav-
eling to the nearest medical facil-
ity.

●

If electrolyte gets on your skin

Wash the affected area thor-
oughly. If you feel pain or burning,
get medical attention immediately.

●

If electrolyte gets on your

clothes

It can soak through clothing on to
your skin. Immediately take off the
clothing and follow the procedure
above if necessary.

●

If you accidentally swallow elec-

trolyte

Drink a large quantity of water or
milk. Get emergency medical
attention immediately.

■

When replacing the 12-volt

battery

Use a 12-volt battery designed for

this vehicle. Failure to do so may

cause gas (hydrogen) to enter the

passenger compartment, causing

a fire or explosion.

For replacement of the 12-volt

battery, contact your Toyota

dealer.

■

When there is insufficient 12-

volt battery fluid

Do not use if there is insufficient

fluid in the 12-volt battery. There

is a possible danger that the 12-

volt battery may explode.

NOTICE

■

When recharging the 12-volt

battery

Never recharge the 12-volt bat-

tery while the hybrid system is

operating. Also, be sure all acces-

sories are turned off.

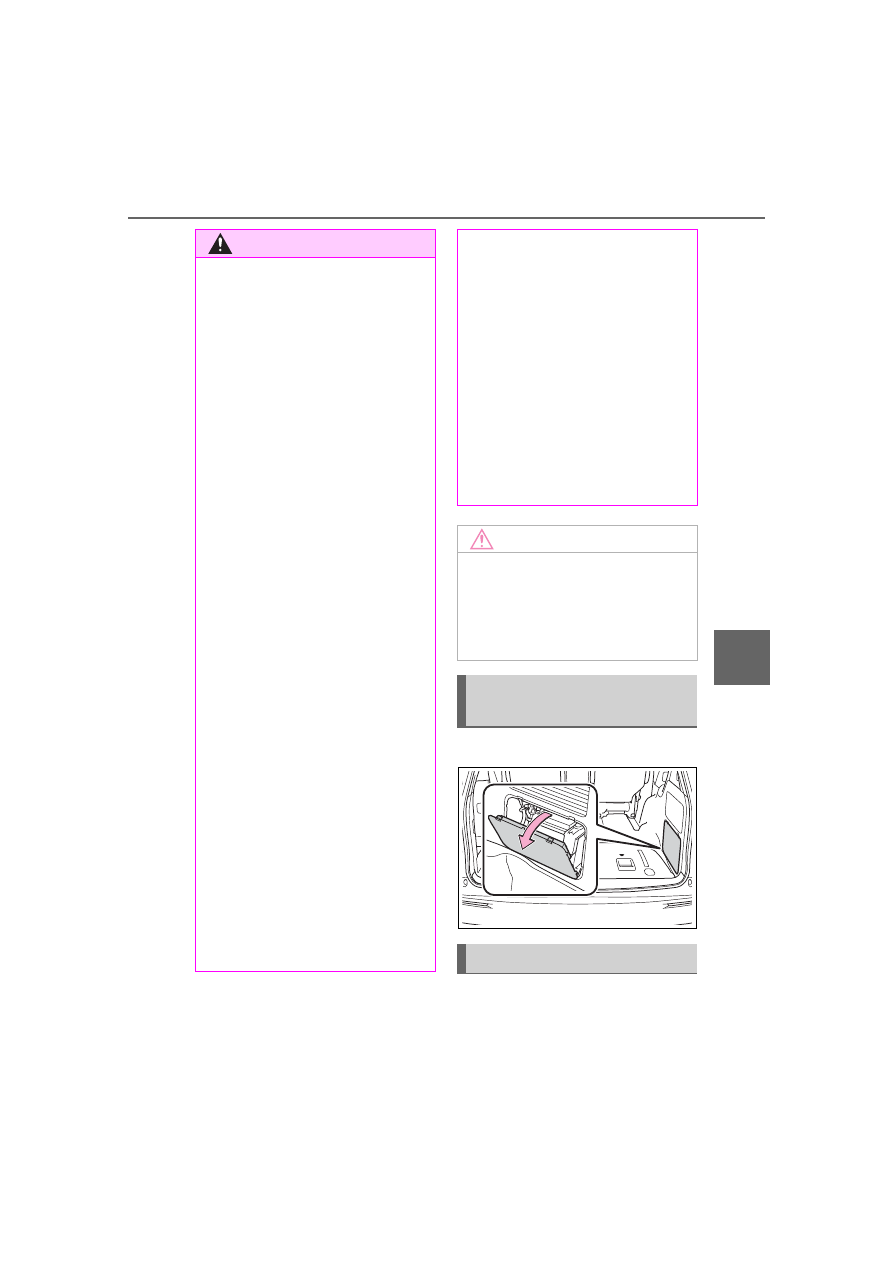

Removing the 12-volt bat-
tery cover

Exterior

424

6-3. Do-it-yourself maintenance

nections, cracks, or loose
clamps.

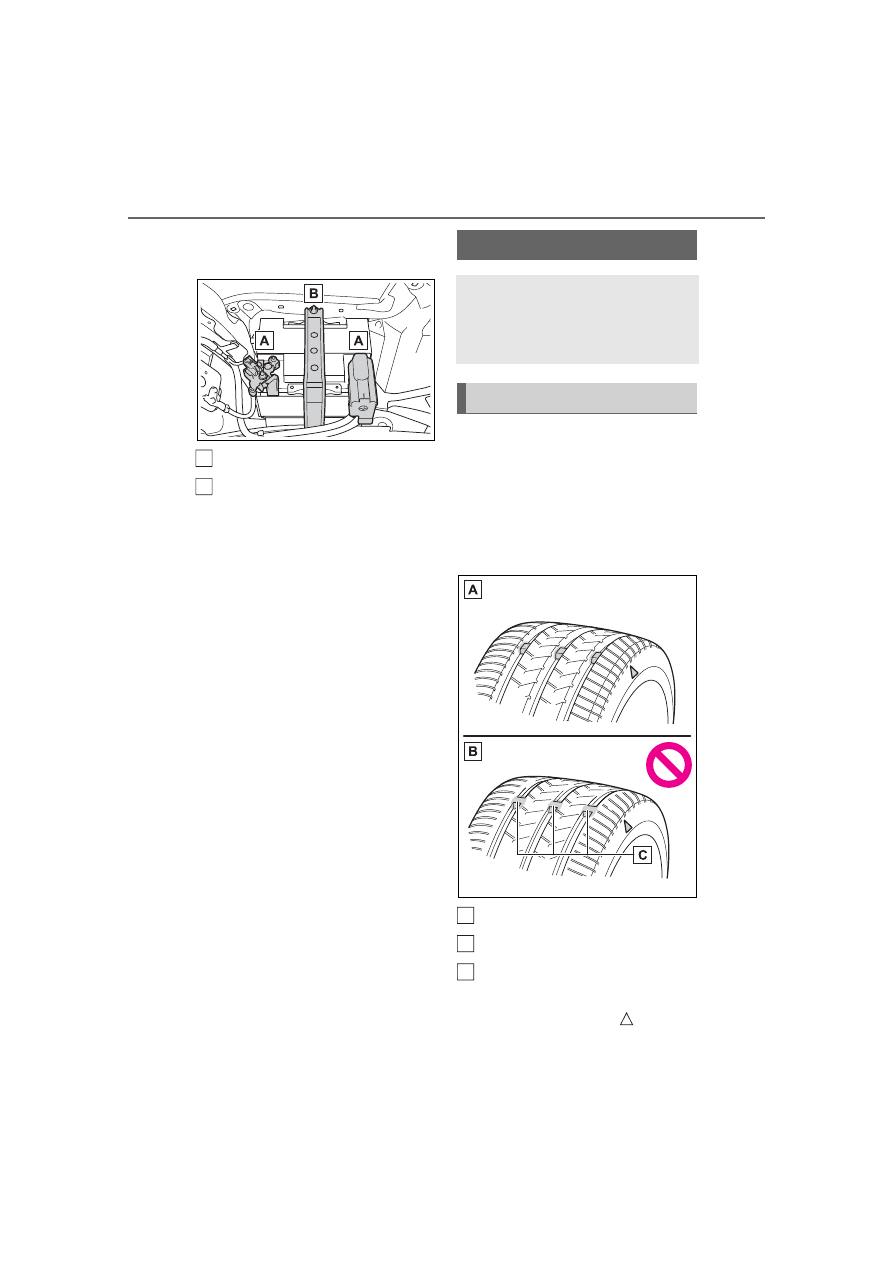

Terminals

Hold-down clamp

Check if the treadwear indica-
tors are showing on the tires.
Also check the tires for uneven
wear, such as excessive wear
on one side of the tread.
Check the spare tire condition
and pressure if not rotated.

New tread

Worn tread

Treadwear indicator

The location of treadwear indicators
is shown by a “TWI” or “

” mark,

A

B

Tires

Replace or rotate tires in
accordance with mainte-
nance schedules and tread-
wear.

Checking tires

A

B

C

425

6-3. Do-it-yourself maintenance

6

Maintena

nce
 a

nd ca

re

etc., molded into the sidewall of
each tire.
Replace the tires if the treadwear
indicators are showing on a tire.

■

When to replace your vehicle’s

tires

Tires should be replaced if:

●

The treadwear indicators are

showing on a tire.

●

You have tire damage such as

cuts, splits, cracks deep enough

to expose the fabric, and bulges

indicating internal damage.

●

A tire goes flat repeatedly or can-

not be properly repaired due to

the size or location of a cut or

other damage.

If you are not sure, consult with your

Toyota dealer.

■

Tire life

Any tire over 6 years old must be

checked by a qualified technician

even if it has seldom or never been

used or damage is not obvious.

■

Maximum load of tire

Check that the maximum load of the

replacement tire is greater than 1/2

of the Gross Axle Weight Ratings

(GAWR) of either the front axle or

the rear axle, whichever is greater.
For the GAWR, see the Certification

Label. For the maximum load of the

tire, see the load limit at maximum

cold tire inflation pressure men-

tioned on the sidewall of the tire.

(



P.530)

■

Tire types

●

Summer tires

Summer tires are high-speed perfor-
mance tires best suited to highway
driving under dry conditions. Since
summer tires do not have the same
traction performance as snow tires,
summer tires are inadequate for
driving on snow-covered or icy
roads. For driving on snow-covered
roads or icy roads, the use of snow
tires is recommended. When install-
ing snow tires, be sure to replace all
four tires.

●

All season tires

All season tires are designed to pro-
vide better traction in snow and to
be adequate for driving in most win-
ter conditions as well as for use
year-round. All season tires, how-
ever, do not have adequate traction
performance compared with snow
tires in heavy or loose snow. Also,
all season tires fall short in accelera-
tion and handling performance com-
pared with summer tires in highway
driving.

●

Snow tires

For driving on snow-covered roads
or icy roads, we recommend using
snow tires. If you need snow tires,
select tires of the same size, con-
struction and load capacity as the
originally installed tires. Since your
vehicle has radial tires as original
equipment, make sure your snow
tires also have radial construction.
Do not install studded tires without
first checking local regulations for
possible restrictions. Snow tires
should be installed on all wheels.
(



P.343)

■

If the tread on snow tires wears

down below 0.16 in. (4 mm)

The effectiveness of the tires as

snow tires is lost.

426

6-3. Do-it-yourself maintenance

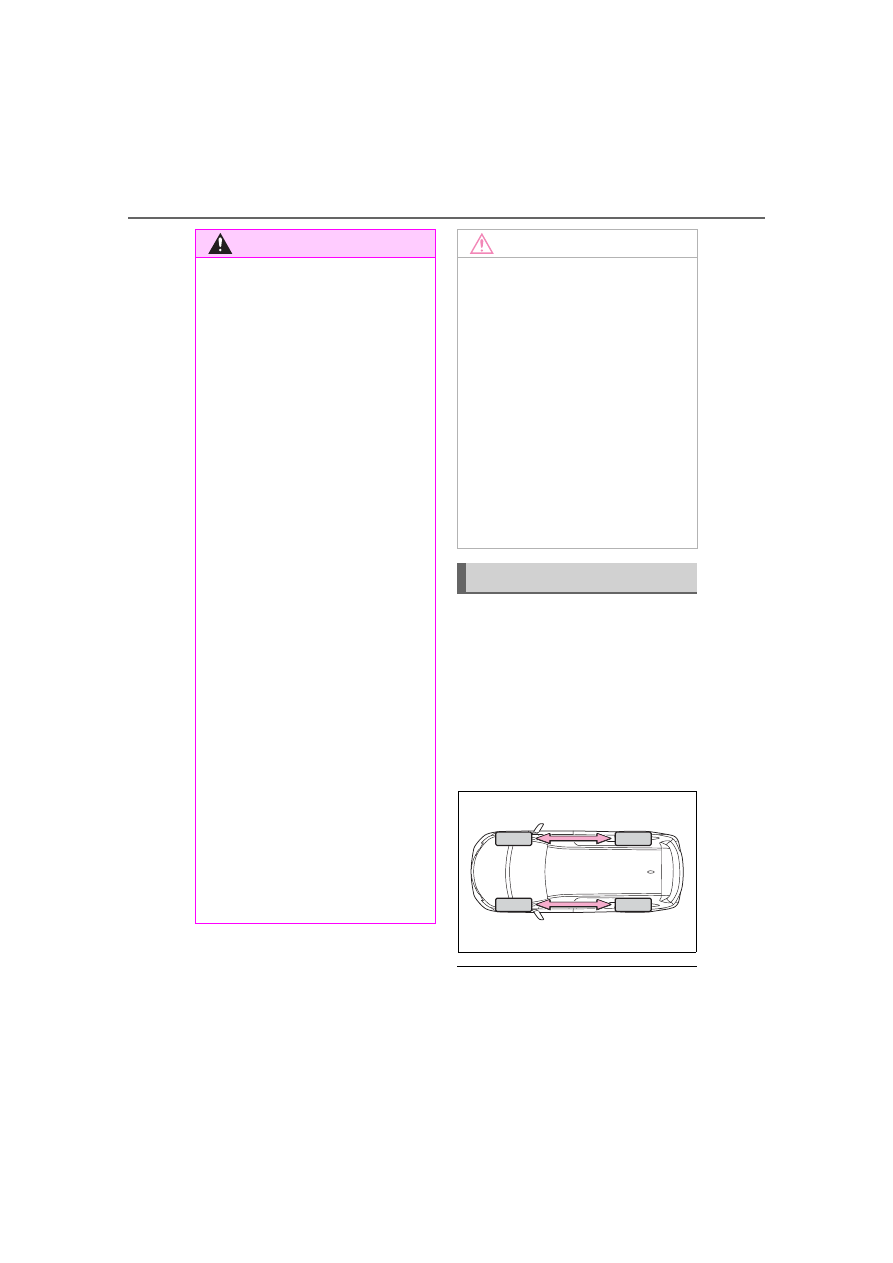

Rotate the tires in the order
shown.

To equalize tire wear and extend
tire life, Toyota recommends that
tire rotation is carried out at the
same interval as tire inspection.
Do not fail to initialize the tire pres-
sure warning system after tire rota-
tion.

■

When rotating the tires

Make sure that the power switch is

OFF. If the tires are rotated while

the power switch is in ON, the tire

WARNING

■

When inspecting or replacing

tires

Observe the following precautions

to prevent accidents.

Failure to do so may cause dam-

age to parts of the drive train as

well as dangerous handling char-

acteristics, which may lead to an

accident resulting in death or seri-

ous injury.

●

Do not mix tires of different

makes, models or tread pat-

terns.

Also, do not mix tires of remark-

ably different treadwear.

●

Do not use tire sizes other than

those recommended by Toyota.

●

Do not mix differently con-

structed tires (radial, bias-belted

or bias-ply tires).

●

Do not mix summer, all season

and snow tires.

●

Do not use tires that have been

used on another vehicle.

Do not use tires if you do not

know how they were used previ-

ously.

●

Vehicles with compact spare

tire: Do not tow if your vehicle

has a compact spare tire

installed.

●

Vehicles without spare tire: Do

not tow anything if a tire that has

been repaired using the emer-

gency tire puncture repair kit is

installed. The load on the tire

may cause unexpected damage

to the tire.

NOTICE

■

Driving on rough roads

Take particular care when driving

on roads with loose surfaces or

potholes.

These conditions may cause

losses in tire inflation pressure,

reducing the cushioning ability of

the tires. In addition, driving on

rough roads may cause damage

to the tires themselves, as well as

the vehicle’s wheels and body.

■

If tire inflation pressure of

each tire becomes low while

driving

Do not continue driving, or your

tires and/or wheels may be

ruined.

Tire rotation

427

6-3. Do-it-yourself maintenance

6

Maintena

nce
 a

nd ca

re

position information will not be

updated. If this accidentally occurs,

either turn the power switch to OFF

and then to ON, or initialize the sys-

tem after checking that the tire pres-

sure is properly adjusted.

Your vehicle is equipped with a
tire pressure warning system
that uses tire pressure warning
valves and transmitters to detect
low tire inflation pressure before
serious problems arise.
The tire pressure warning sys-
tem of this vehicle adopts a 2-
type warning system



When “Adjust Pressure” is
displayed (Normal Warning)

The tire pressure warning light
comes on and a buzzer sounds
when the tire inflation pressure
becomes low due to natural air
leakage or outside temperature.
(Ways of coping:



P.472, 525)



When “Immediately Check
tire when Safe” is displayed
(Emergency Warning)

The tire pressure warning light
comes on and a buzzer sounds
when the tire inflation pressure
becomes low suddenly due to a
blowout. (Ways of coping:



P.472,

481, 491) However, the system
may not be able to detect sudden
tire ruptures (bursting, etc.).
The tire pressure detected by the
tire pressure warning system can
be displayed on the multi-informa-
tion display.

The unit can be changed.



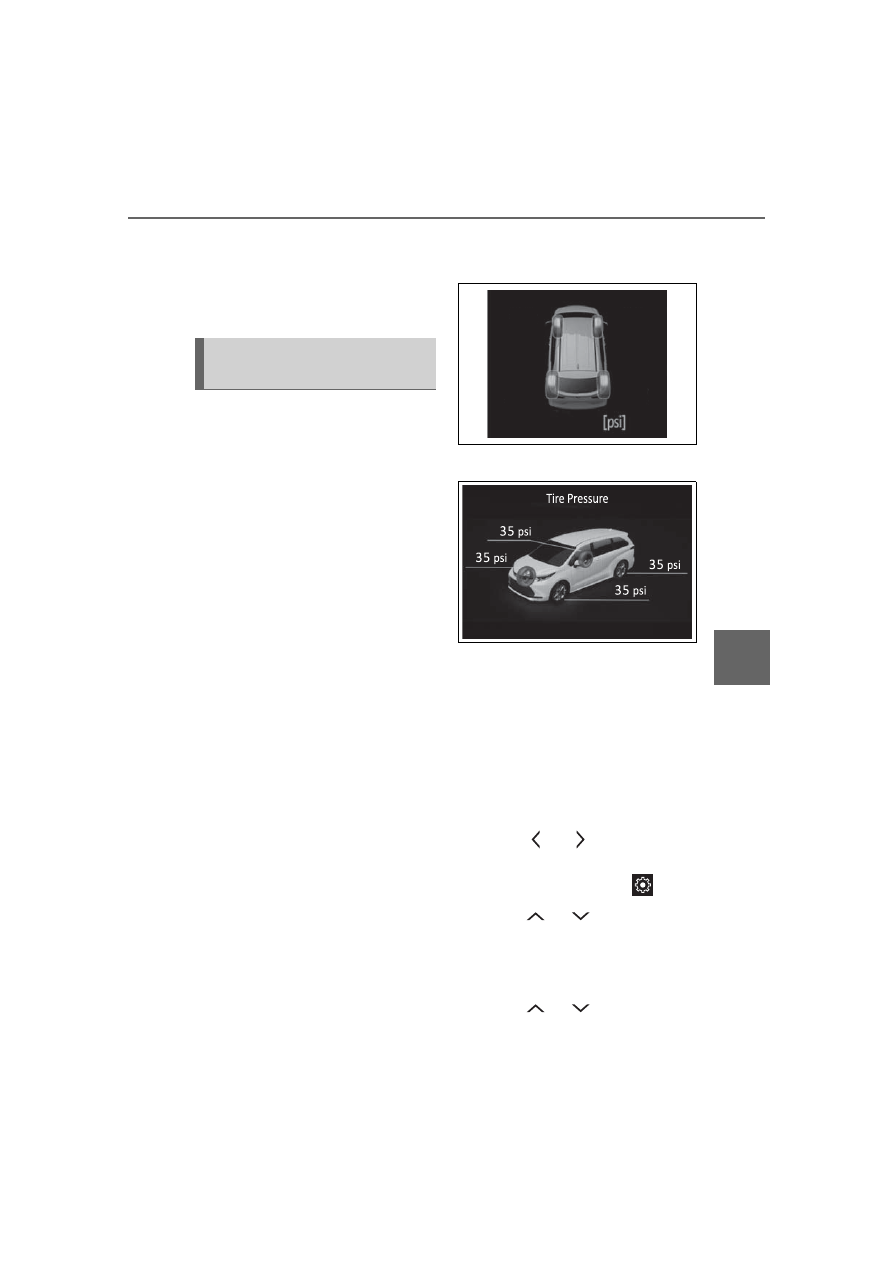

With 4.2-inch display



With 7-inch display

■

How to change the unit



With 4.2-inch display

1

Park the vehicle in a safe
place and turn the power
switch off.

Changing the unit cannot be per-

formed while the vehicle is moving.

2

Turn the power switch to ON.

3

Press

 or

 of the meter

control switches on the steer-
ing wheel and select

.

4

Press

 or

 of the meter

control switches and select
“Vehicle Settings”, and then
press and hold “OK”.

5

Press

 or

 of the meter

control switches and select

Tire pressure warning
system

35

35

35

35

428

6-3. Do-it-yourself maintenance

“TPWS Setting”, and then
press “OK”.

6

Press

 or

 to select

“Setting UNIT”.

7

Press

 or

 to select the

desired unit and then press
“OK”.



With 7-inch display

1

Park the vehicle in a safe
place and turn the power
switch off.

Changing the unit cannot be per-

formed while the vehicle is moving.

2

Turn the power switch to ON.

3

Press

 or

 of the meter

control switches on the steer-
ing wheel and select

.

4

Press

 or

 of the meter

control switches and select

, and then press and hold

“OK”.

5

Press

 or

 of the meter

control switches and select
“TPWS Setting”, and then
press “OK”.

6

Press

 or

 to select

“Setting UNIT”.

7

Press

 or

 to select the

desired unit and then press
“OK”.

■

Routine tire inflation pressure

checks

The tire pressure warning system

does not replace routine tire inflation

pressure checks. Make sure to

check tire inflation pressure as part

of your routine of daily vehicle

checks.

■

Tire inflation pressure

●

It may take a few minutes to dis-

play the tire inflation pressure

after the power switch is turned to

ON. It may also take a few min-

utes to display the tire inflation

pressure after inflation pressure

has been adjusted.

●

Tire inflation pressure changes

with temperature.

The displayed values may also be

different from the values mea-

sured using a tire pressure gauge.

■

Situations in which the tire

pressure warning system may

not operate properly

●

In the following cases, the tire

pressure warning system may not

operate properly.

• If non-genuine Toyota wheels are

used.

• A tire has been replaced with a

tire that is not an OE (Original

Equipment) tire.

• A tire has been replaced with a

tire that is not of the specified size.

• Tire chains, etc. are equipped.

• An auxiliary-supported run-flat tire

is equipped.

• If a window tint that affects the

radio wave signals is installed.

• If there is a lot of snow or ice on

the vehicle, particularly around the

wheels or wheel housings.

• If the tire inflation pressure is

extremely higher than the speci-

fied level.

• If wheel without tire pressure

warning valves and transmitters

are used.

• If the ID code on the tire pressure

warning valves and transmitters is

not registered in the tire pressure

warning computer.

●

Performance may be affected in

the following situations.

• Near a TV tower, electric power

plant, gas station, radio station,

429

6-3. Do-it-yourself maintenance

6

Maintena

nce
 a

nd ca

re

large display, airport or other facil-

ity that generates strong radio

waves or electrical noise

• When carrying a portable radio,

cellular phone, cordless phone or

other wireless communication

device

If tire position information is not cor-
rectly displayed due to the radio
wave conditions, the display may be
corrected by driving and changing
the radio wave conditions.

●

When the vehicle is parked, the

time taken for the warning to start

or go off could be extended.

●

When tire inflation pressure

declines rapidly for example when

a tire has burst, the warning may

not function.

■

Warning performance of the tire

pressure warning system

The warning of the tire pressure

warning system will change in

accordance with the conditions

under which it was initialized. For

this reason, the system may give a

warning even if the tire pressure

does not reach a low enough level,

or if the pressure is higher than the

pressure that was adjusted to when

the system was initialized.

When replacing tires or wheels,
tire pressure warning valves and
transmitters must also be
installed.
When new tire pressure warning
valves and transmitters are
installed, new ID codes must be
registered in the tire pressure
warning computer and the tire

pressure warning system must
be initialized. (



P.433)

■

When replacing the tires and

wheels

If the ID code of the tire pressure

warning valve and transmitter is not

registered, the tire pressure warning

system will not work properly. After

driving for about 20 minutes, the tire

pressure warning light blinks for 1

minute and stays on to indicate a

system malfunction.

Installing tire pressure
warning valves and trans-
mitters

NOTICE

■

Repairing or replacing tires,

wheels, tire pressure warn-

ing valves, transmitters and

tire valve caps

●

When removing or fitting the

wheels, tires or the tire pressure

warning valves and transmit-

ters, contact your Toyota dealer

as the tire pressure warning

valves and transmitters may be

damaged if not handled cor-

rectly.

●

Make sure to install the tire

valve caps. If the tire valve caps

are not installed, water could

enter the tire pressure warning

valves and the tire pressure

warning valves could be bound.

●

When replacing tire valve caps,

do not use tire valve caps other

than those specified.

The cap may become stuck.

430

6-3. Do-it-yourself maintenance

■

The tire pressure warning
system must be initialized
in the following circum-
stances:



When rotating the tires.



When changing the tire.



After registering the ID codes.
(



P.433)



When changing between two
registered wheel sets.

When the tire pressure warning
system is initialized, the current
tire inflation pressure is set as
the benchmark pressure.

■

How to initialize the tire
pressure warning system



With 4.2-inch display

1

Park the vehicle in a safe
place and stop the hybrid
system for 20 minutes or
more.

Initialization cannot be performed

while the vehicle is moving.

2

Adjust the tire inflation pres-
sure to the specified cold tire
inflation pressure level.
(



P.525)

Make sure to adjust the tire pres-

sure to the specified cold tire infla-

tion pressure level. The tire

pressure warning system will oper-

ate based on this pressure level.

3

Start the hybrid system.

4

Press

 or

 of the meter

control switches on the steer-
ing wheel and select

.

5

Press

 or

 of the meter

control switches, select
“Vehicle Settings” and then
press and hold “OK”.

6

Press

 or

 of the meter

control switches, select
“TPWS Setting” and then
press “OK”.

7

Press

 or

 of the meter

control switches, select the
“Setting Pressure”. Then
press and hold “OK”.

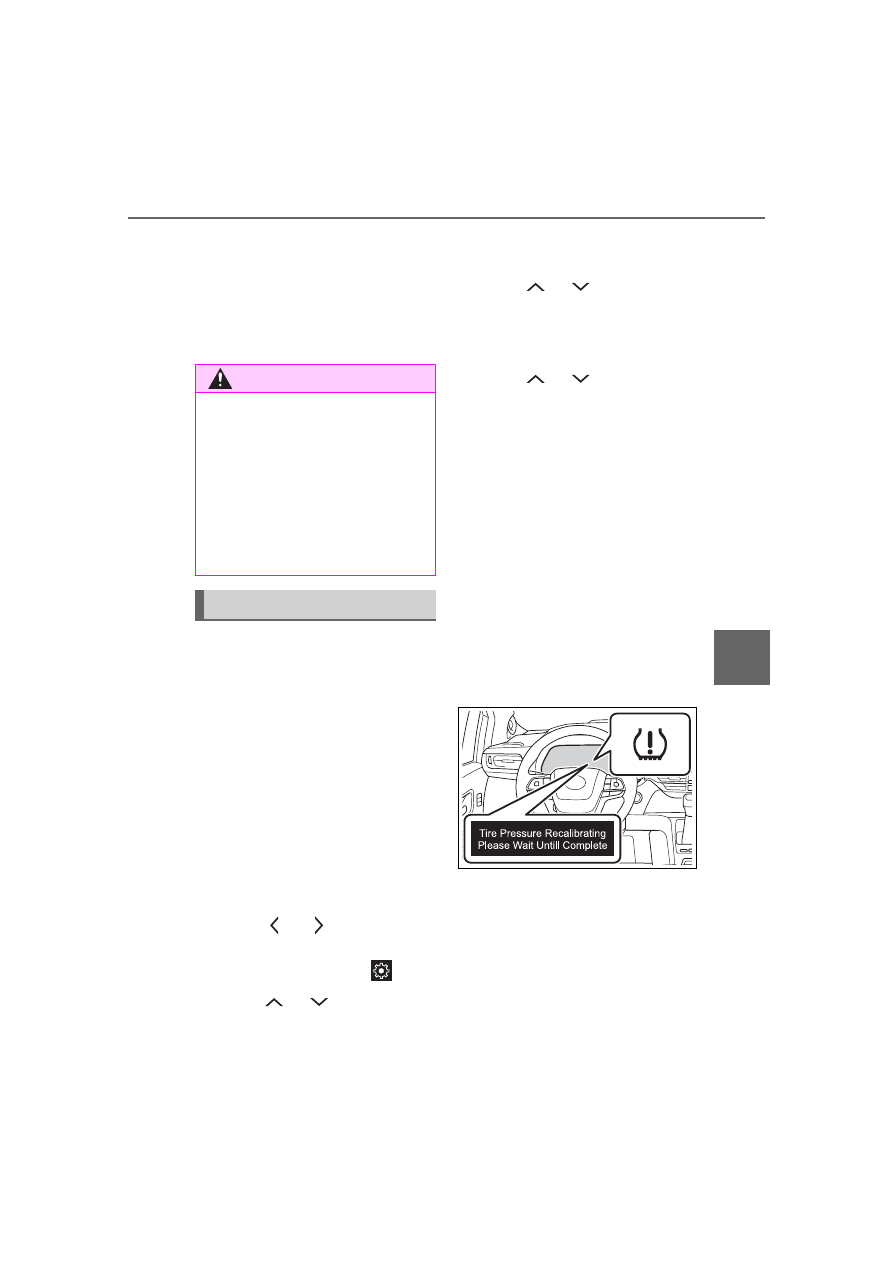

“Setting Tire Pressure Warning

System” will be displayed on the

multi-information display and the

tire pressure warning light will blink

NOTICE

■

To avoid damage to the tire

pressure warning valves and

transmitters (vehicles without

spare tire)

When a tire is repaired with liquid

sealants, the tire pressure warn-

ing valve and transmitter may not

operate properly. If a liquid seal-

ant is used, contact your Toyota

dealer as soon as possible. After

use of liquid sealant, make sure to

replace the tire pressure warning

valve and transmitter when repair-

ing or replacing the tire. (



P.429)

Initializing the tire pres-
sure warning system

OK

431

6-3. Do-it-yourself maintenance

6

Maintena

nce
 a

nd ca

re

3 times.

When the message disappears, ini-

tialization is complete.
A message is displayed on the

multi-information display. Also, “--”

is displayed for inflation pressure of

each tire on the multi-information

display while the tire pressure

warning system determines the

position.

8

Drive straight (with occa-
sional left and right turns) at
approximately 25 mph (40
km/h) or more for approxi-
mately 10 to 30 minutes.

When initialization is complete, the

inflation pressure of each tire will be

displayed on the multi-information

display.
Even if the vehicle is not driven at

approximately 25 mph (40 km/h) or

more, initialization can be com-

pleted by driving for a long time.

However, if initialization does not

complete after driving for 1 hour or

more, park the vehicle in a safe

place for approximately 20 minutes

and then drive the vehicle again.



With 7-inch display

1

Park the vehicle in a safe
place and stop the hybrid
system for 20 minutes or
more.

Initialization cannot be performed

while the vehicle is moving.

2

Adjust the tire inflation pres-
sure to the specified cold tire
inflation pressure level.
(



P.525)

Make sure to adjust the tire pres-

sure to the specified cold tire infla-

tion pressure level. The tire

pressure warning system will oper-

ate based on this pressure level.

3

Start the hybrid system.

4

Press

 or

 of the meter

control switches on the steer-
ing wheel and select

.

5

Press

 or

 of the meter

control switches, select



and then press and hold
“OK”.

6

Press

 or

 of the meter

control switches, select
“TPWS Setting” and then
press “OK”.

7

Press

 or

 of the meter

control switches, select the
“Setting Pressure”. Then
press and hold “OK”.

“Setting Tire Pressure Warning

System” will be displayed on the

multi-information display and the

tire pressure warning light will blink

3 times.

When the message disappears, ini-

tialization is complete.
A message is displayed on the

multi-information display. Also, “--”

is displayed for inflation pressure of

each tire on the multi-information

display while the tire pressure

warning system determines the

position.

8

Drive straight (with occa-
sional left and right turns) at
approximately 25 mph (40

OK

432

6-3. Do-it-yourself maintenance

km/h) or more for approxi-
mately 10 to 30 minutes.

When initialization is complete, the

inflation pressure of each tire will be

displayed on the multi-information

display.
Even if the vehicle is not driven at

approximately 25 mph (40 km/h) or

more, initialization can be com-

pleted by driving for a long time.

However, if initialization does not

complete after driving for 1 hour or

more, park the vehicle in a safe

place for approximately 20 minutes

and then drive the vehicle again.

■

When initializing

●

Initialization is performed while

driving at a vehicle speed of

approximately 25 mph (40 km/h)

or more.

●

Make sure to carry out initializa-

tion after adjusting the tire inflation

pressure. Also, make sure the

tires are cold before carrying out

initialization or tire inflation pres-

sure adjustment.

●

The tire pressure warning system

can be initialized by yourself, but

depending on the driving condi-

tions and driving environment, ini-

tialization may take some time to

complete.

■

The initialization operation

●

If you have accidentally turned the

power switch to OFF during initial-

ization, it is not necessary to

restart the initialization again as

initialization will restart automati-

cally when the power switch has

been turned to ON for the next

time.

●

If you accidentally perform initial-

ization when initialization is not

necessary, adjust the tire inflation

pressure to the specified level

when the tires are cold, and con-

duct initialization again.

●

While the position of each tire is

being determined and the inflation

pressures are not being displayed

on the multi-information display, if

the inflation pressure of a tire

drops, the tire pressure warning

light will come on.

■

If the tire pressure warning sys-

tem is not initialized properly

●

In the following situations, initial-

ization may take longer than usual

to be completed or may not be

possible. Normally, initialization

completes within approximately

30 minutes.

• Vehicle is not driven at approxi-

mately 25 mph (40 km/h) or more

• Vehicle is driven on unpaved

roads

• Vehicle is driven near other vehi-

cles and system cannot recog-

nize tire pressure warning valve

and transmitters of your vehicle

over those of other vehicles.

• If the vehicle is driven in heavy

traffic or another situation where

other vehicles are driven close by,

it may take time for the system to

recognize the tire pressure warn-

ing valve and transmitters of your

vehicle over those of other vehi-

cles.

●

If initialization does not complete

after driving for 1 hour or more,

park the vehicle in a safe place for

approximately 20 minutes and

then drive the vehicle again.

●

If the vehicle is reversed during

initialization, the data up to that

point is reset, so perform the ini-

tialization procedure again from

the beginning.

●

In the following situations, initial-

ization will not be started or was

not completed properly and the

system will not operate properly.

Perform the initialization proce-

dure again.

• If, when attempting to start initial-

ization, the tire pressure warning

light does not blink 3 times.

• If, when the vehicle has been

driven for about 20 minutes after

433

6-3. Do-it-yourself maintenance

6

Maintena

nce
 a

nd ca

re

performing initialization, the tire

pressure warning light blinks for

approximately 1 minute and then

illuminates.

If the inflation pressure of each tire
is still not displayed, have the vehi-
cle inspected by your Toyota dealer.

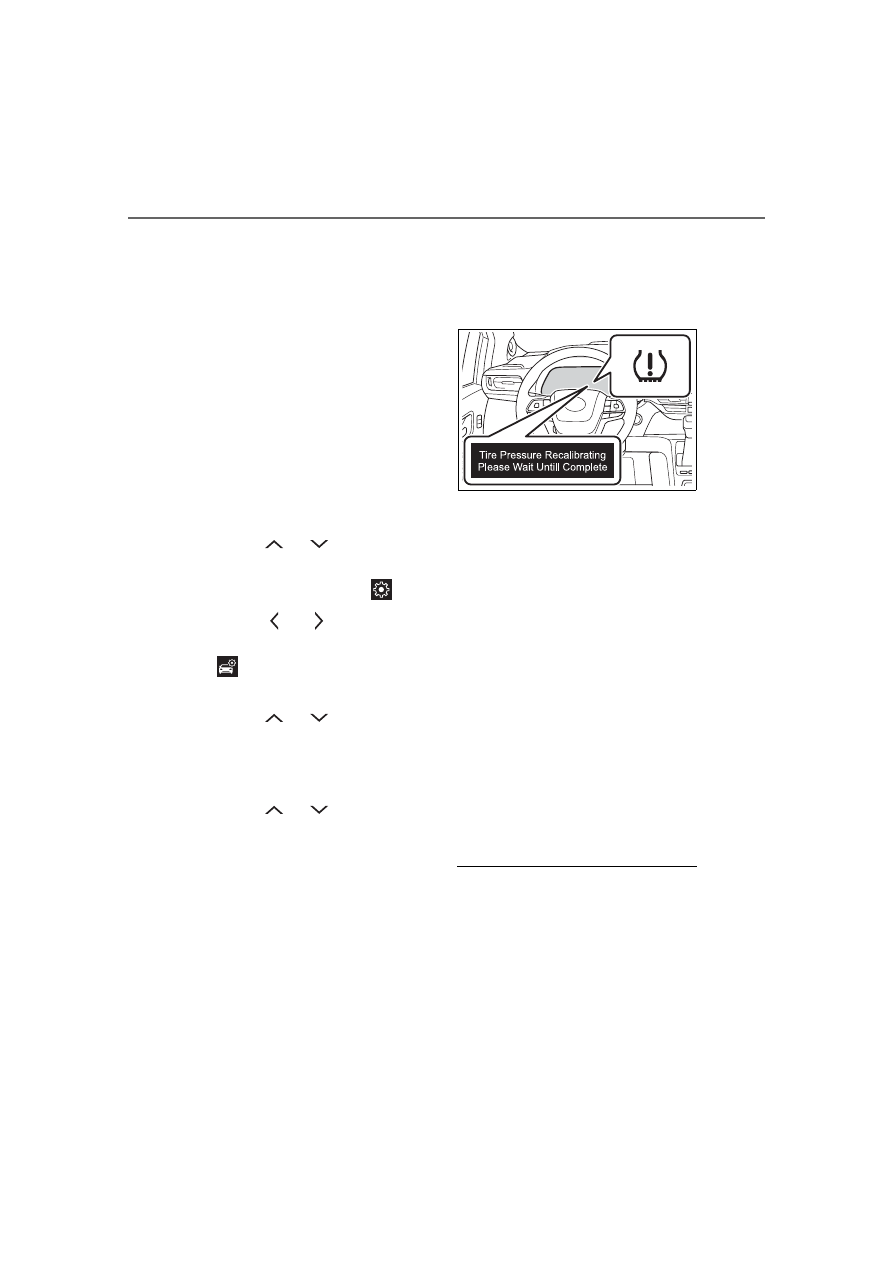

Every tire pressure warning
valve and transmitter has a
unique ID code. When replacing
a tire pressure warning valve
and transmitter, it is necessary
to register the ID code.
When registering the ID codes,
perform the following procedure.



With 4.2-inch display

1

Park the vehicle in a safe
place, wait for approximately
20 minutes, and then start
the hybrid system.

2

Press

 or

 of the meter

control switches on the steer-
ing wheel and select

.

3

Press

 or

 of the meter

control switches and select

“Vehicle Settings”, and then
press and hold “OK”.

4

Press

 or

 of the meter

control switches and select
“TPWS Setting”, and then
press “OK”.

5

Press

 or

 of the meter

control switches and select
“Identifying Each Wheel &
Position”. Then press and
hold “OK” until the tire pres-
sure warning light starts
slowly blinking 3 times.

The change wheel set mode is acti-

vated and registration is started.
Then a message will be displayed

on the multi-information display.
When registration is being per-

formed, the tire pressure warning

light will blink for approximately 1

minute then illuminate and “--” will

be displayed for the inflation pres-

sure of each tire on the multi-infor-

mation display.

6

Drive straight (with occa-
sional left and right turns) at
approximately 25 mph (40
km/h) or more for approxi-
mately 10 to 30 minutes.

When registration is completed, the

tire pressure warning light will go off

and the inflation pressure of each

tire will be displayed on the multi-

WARNING

■

When initializing the tire pres-

sure warning system

Do not initializing tire inflation

pressure without first adjusting

the tire inflation pressure to the

specified level. Otherwise, the tire

pressure warning light may not

come on even if the tire inflation

pressure is low, or it may come on

when the tire inflation pressure is

actually normal.

Registering ID codes

434

6-3. Do-it-yourself maintenance

information display.
Even if the vehicle is not driven at

approximately 25 mph (40 km/h) or

more, registration can be com-

pleted by driving for a long time.

However, if registration does not

complete after driving for 1 hour or

more, perform the procedure again

from the beginning.

7

Initialize the tire pressure
warning system. (



P.430)



With 7-inch display

1

Park the vehicle in a safe
place, wait for approximately
20 minutes, and then start
the hybrid system.

2

Press

 or

 of the meter

control switches on the steer-
ing wheel and select

.

3

Press

 or

 of the meter

control switches and select

, and then press and hold

“OK”.

4

Press

 or

 of the meter

control switches and select
“TPWS Setting”, and then
press “OK”.

5

Press

 or

 of the meter

control switches and select
“Identifying Each Wheel &
Position”. Then press and
hold “OK” until the tire pres-
sure warning light starts
slowly blinking 3 times.

The change wheel set mode is acti-

vated and registration is started.
Then a message will be displayed

on the multi-information display.
When registration is being per-

formed, the tire pressure warning

light will blink for approximately 1

minute then illuminate and “--” will

be displayed for the inflation pres-

sure of each tire on the multi-infor-

mation display.

6

Drive straight (with occa-
sional left and right turns) at
approximately 25 mph (40
km/h) or more for approxi-
mately 10 to 30 minutes.

When registration is completed, the

tire pressure warning light will go off

and the inflation pressure of each

tire will be displayed on the multi-

information display.
Even if the vehicle is not driven at

approximately 25 mph (40 km/h) or

more, registration can be com-

pleted by driving for a long time.

However, if registration does not

complete after driving for 1 hour or

more, perform the procedure again

from the beginning.

7

Initialize the tire pressure
warning system. (



P.430)

■

When registering ID codes

●

ID code registration is performed

while driving at a vehicle speed of

approximately 25 mph (40 km/h)

or more.

●

Before performing ID code regis-

tration, make sure that no wheels

with tire pressure warning valve

and transmitters installed are near

the vehicle.

435

6-3. Do-it-yourself maintenance

6

Maintena

nce
 a

nd ca

re

●

Make sure to initialize the tire

pressure warning system after

registering the ID codes. If the

system is initialized before regis-

tering the ID codes, the initialized

values will be invalid.

●

ID codes can be registered by

yourself, but depending on the

driving conditions and driving

environment, registration may

take some time to complete.

●

As the tires will be warm when

registration is completed, make

sure to allow the tires to cool

before performing initialization.

■

Canceling ID code registration

●

To cancel ID code registration

after it has been started, select

“Identifying Each Wheel & Posi-

tion” on the multi-information dis-

play and press and hold “OK”

again.

●

If ID code registration has been

canceled, the tire pressure warn-

ing light will blink for approxi-

mately 1 minute when the power

switch is turned to ON and then

illuminate. The tire pressure warn-

ing system will be operational

when the tire pressure warning

light turns off.

●

If the warning light does not turn

off even after several minutes

have elapsed, ID code registration

may not have been canceled cor-

rectly. To cancel registration, per-

form the ID code registration start

procedure again and then turn the

power switch off before driving.

■

If ID codes are not registered

properly

●

In the following situations, ID code

registration may take longer than

usual to be completed or may not

be possible. Normally, registra-

tion completes within approxi-

mately 30 minutes.

If ID code registration is not com-

plete after driving for approxi-

mately 30 minutes, continue

driving for a while.

• Vehicle is not parked for approxi-

mately 20 minutes or more before

driving

• Vehicle is not driven at approxi-

mately 25 mph (40 km/h) or more

• Vehicle is driven on unpaved

roads

• Vehicle is driven near other vehi-

cles and system cannot recog-

nize tire pressure warning valve

and transmitters of your vehicle

over those of other vehicles

• Wheel with tire pressure warning

valve and transmitter installed is

inside or near the vehicle

If registration does not complete
after driving for 1 hour or more, per-
form the ID code registration proce-
dure again from the beginning.

●

If the vehicle is reversed during

registration, the data up to that

point is reset, so perform the reg-

istration procedure again from the

beginning.

●

In the following situations, ID code

registration will not be started or

was not completed properly and

the system will not operate prop-

erly. Perform the ID code registra-

tion procedure again.

• If, when attempting to start ID

code registration, the tire pressure

warning light does not blink slowly

3 times.

• If, when the vehicle has been

driven for about 20 minutes after

performing ID code registration,

the tire pressure warning light

blinks for approximately 1 minute

and then illuminates.

If the ID codes cannot be registered
even when performing the above
procedure, contact your Toyota
dealer.

Your vehicle is equipped with
tire pressure warning system

Selecting wheel set

436

6-3. Do-it-yourself maintenance

with the function to have ID
codes registered for a second
wheel set, for example a winter
set. You can register a second
wheel set by yourself or your
Toyota dealer.
After registration of a second
wheel set, either of these two
wheel sets can be selected for
usage with the tire pressure
warning system.

■

Operating conditions for
the function



This function will perform the
change of wheel set only if a
second wheel set has been
registered. If no second wheel
set has been registered, no
change will be made when
selecting this function in the
menu.



Only a change between both
registered wheel set is possi-
ble, mixing between these
wheel sets is not supported.

■

How to change between
wheel sets

1

Have the vehicle fitted with
the preferred wheel set.



With 4.2-inch display

2

Press

 or

 of the meter

control switches on the steer-
ing wheel and select

.

3

Press

 or

 of the meter

control switches and select
“Vehicle Settings”, and then
press and hold “OK”.

4

Press

 or

 of the meter

control switches and select
“TPWS Setting”, and then
press “OK”.

5

Press

 or

 of the meter

control switches and select
“Identifying Each Wheel &
Position”. Then press and
hold “OK” until the tire pres-
sure warning light starts
slowly blinking 3 times.

Afterward, the tire pressure
warning light turns on after
flashing for 1 minute.
After 2 minutes, registration of a
second wheel set is being per-
formed. The tire pressure warn-
ing light will turn off and “--” will
be displayed for the inflation
pressure of each tire on the
multi-information display.

6

Initialize the tire pressure
warning system. (



P.430)

If the tire inflation pressure settings

for the installed tires change, initial-

ization operations are required, but

if the tire inflation pressure settings

are the same, initialization is not

required.

7

Drive straight (with occa-
sional left and right turns) at
approximately 25 mph (40
km/h) or more for approxi-
mately 10 to 30 minutes.

Registration of a second wheel set

is complete when the tire pressure

warning light turns off and the infla-

tion pressure of each tire is dis-

played on the multi-information

display.

437

6-3. Do-it-yourself maintenance

6

Maintena

nce
 a

nd ca

re



With 7-inch display

2

Press

 or

 of the meter

control switches on the steer-
ing wheel and select

.

3

Press

 or

 of the meter

control switches and select

, and then press and hold

“OK”.

4

Press

 or

 of the meter

control switches and select
“TPWS Setting”, and then
press “OK”.

5

Press

 or

 of the meter

control switches and select
“Identifying Each Wheel &
Position”. Then press and
hold “OK” until the tire pres-
sure warning light starts
slowly blinking 3 times.

Afterward, the tire pressure warning

light turns on after flashing for 1

minute.
After 2 minutes, registration of a

second wheel set is being per-

formed. The tire pressure warning

light will turn off and “--” will be dis-

played for the inflation pressure of

each tire on the multi-information

display.

6

Initialize the tire pressure
warning system. (



P.430)

If the tire inflation pressure settings

for the installed tires change, initial-

ization operations are required, but

if the tire inflation pressure settings

are the same, initialization is not

required.

7

Drive straight (with occa-
sional left and right turns) at
approximately 25 mph

(40km/h) or more for approxi-
mately 10 to 30 minutes.

Registration of a second wheel set

is complete when the tire pressure

warning light turns off and the infla-

tion pressure of each tire is dis-

played on the multi-information

display.

438

6-3. Do-it-yourself maintenance

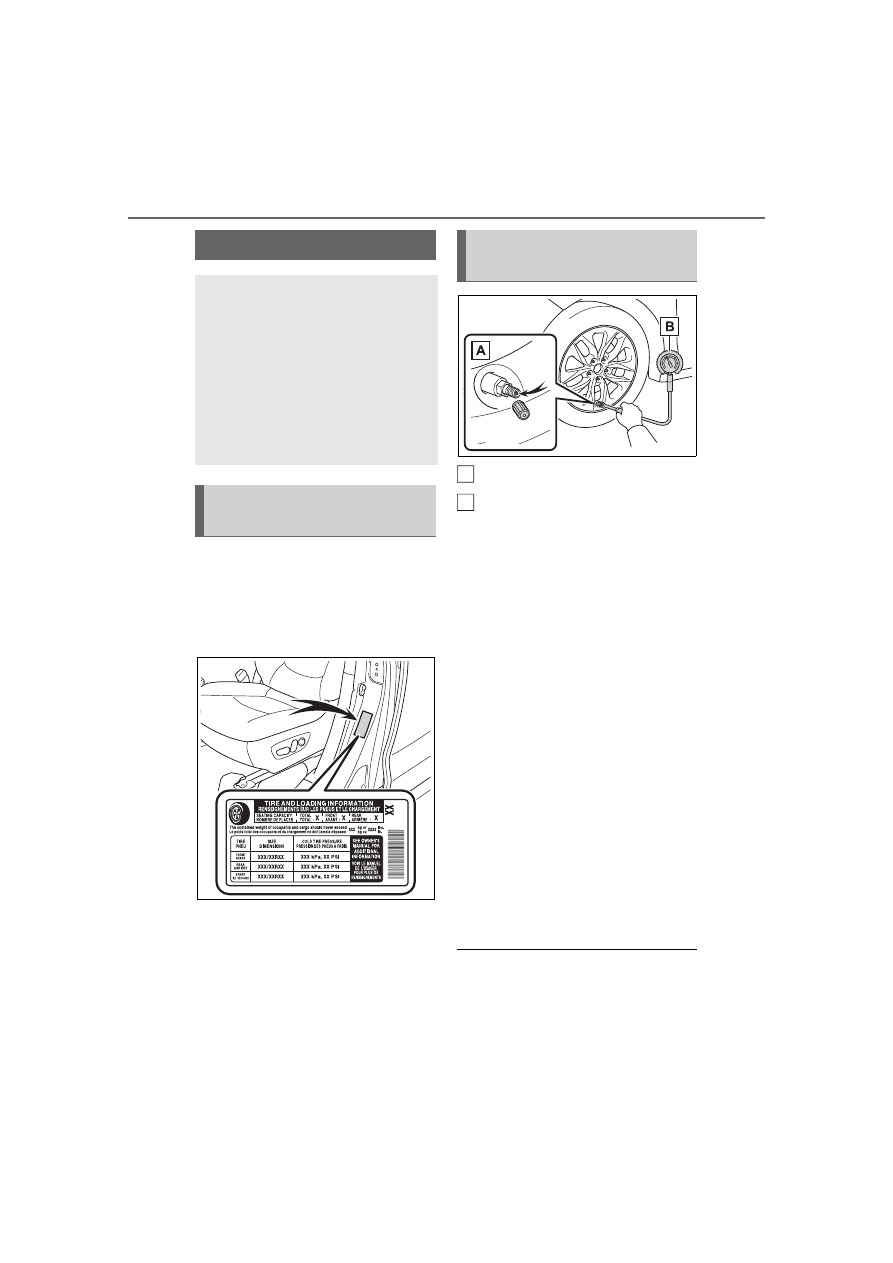

The recommended cold tire
inflation pressure and tire size
are displayed on the tire and
loading information label.
(



P.525)

Tire valve

Tire pressure gauge

1

Remove the tire valve cap.

2

Press the tip of the tire pres-
sure gauge onto the tire
valve.

3

Read the pressure using the
gauge gradations.

4

If the tire inflation pressure is
not at the recommended
level, adjust the pressure. If
you add too much air, press
the center of the valve to
deflate.

5

After completing the tire infla-
tion pressure measurement
and adjustment, apply soapy
water to the valve and check
for leakage.

6

Put the tire valve cap back
on.

■

Tire inflation pressure check

interval

You should check tire inflation pres-

sure every two weeks, or at least

once a month.

Tire inflation pressure

Make sure to maintain the
proper tire inflation pres-
sure. Tire inflation pressure
should be checked at least
once per month. However,
Toyota recommends that
tire inflation pressure be
checked once every two
weeks. (



P.525)

Checking the specified
tire inflation pressure

Inspection and adjust-
ment procedure

A

B

439

6-3. Do-it-yourself maintenance

6

Maintena

nce
 a

nd ca

re

Do not forget to check the spare.

■

Effects of incorrect tire inflation

pressure

Driving with incorrect tire inflation

pressure may result in the following:

●

Reduced fuel economy

●

Reduced driving comfort and poor

handling

●

Reduced tire life due to wear

●

Reduced safety

●

Damage to the drive train

If a tire needs frequent inflating,

have it checked by your Toyota

dealer.

■

Instructions for checking tire

inflation pressure

When checking tire inflation pres-

sure, observe the following:

●

Check only when the tires are

cold.

If your vehicle has been parked

for at least 3 hours or has not

been driven for more than 1 mile

or 1.5 km, you will get an accurate

cold tire inflation pressure reading.

●

Always use a tire pressure gauge.

It is difficult to judge if a tire is

properly inflated based only on its

appearance.

●

It is normal for the tire inflation

pressure to be higher after driving

as heat is generated in the tire. Do

not reduce tire inflation pressure

after driving.

●

Never exceed the vehicle capacity

weight. Passengers and luggage

weight should be placed so that

the vehicle is balanced.

WARNING

■

Proper inflation is critical to

save tire performance

Keep your tires properly inflated.

If the tires are not properly

inflated, the following conditions

may occur which could lead to an

accident resulting in death or seri-

ous injury:

●

Excessive wear

●

Uneven wear

●

Poor handling

●

Possibility of blowouts resulting

from overheated tires

●

Air leaking from between tire

and wheel

●

Wheel deformation and/or tire

damage

●

Greater possibility of tire dam-

age while driving (due to road

hazards, expansion joints,

sharp edges in the road, etc.)

NOTICE

■

When inspecting and adjust-

ing tire inflation pressure

Be sure to put the tire valve caps

back on.

If a valve cap is not installed, dirt

or moisture may get into the valve

and cause an air leak, resulting in

decreased tire inflation pressure.

440

6-3. Do-it-yourself maintenance

When replacing wheels, care
should be taken to ensure that
they are equivalent to those
removed in load capacity, diam-
eter, rim width and inset

*

.

Replacement wheels are avail-
able at your Toyota dealer.

*

: Conventionally referred to as off-

set.

Toyota does not recommend
using the following:



Wheels of different sizes or
types



Used wheels



Bent wheels that have been
straightened

■

When replacing wheels

The wheels of your vehicle are

equipped with tire pressure warning

valves and transmitters that allow

the tire pressure warning system to

provide advance warning in the

event of a loss in tire inflation pres-

sure. Whenever wheels are

replaced, tire pressure warning

valves and transmitters must be

installed. (



P.427, 441)

Wheels

If a wheel is bent, cracked or
heavily corroded, it should
be replaced. Otherwise, the
tire may separate from the
wheel or cause a loss of
handling control.

Wheel selection

WARNING

■

When replacing wheels

●

Do not use wheels that are a dif-

ferent size from those recom-

mended in the Owner’s Manual,

as this may result in a loss of

handling control.

●

Never use an inner tube in a

leaking wheel which is designed

for a tubeless tire. Doing so may

result in an accident, causing

death or serious injury.

■

When installing the wheel

nuts

Never use oil or grease on the

wheel bolts or wheel nuts. Oil and

grease may cause the wheel nuts

to be excessively tightened, lead-

ing to bolt or disc wheel damage.

In addition, the oil or grease can

cause the wheel nuts to loosen

and the wheel may fall off, caus-

ing an accident and resulting in

death or serious injury. Remove

any oil or grease from the wheel

bolts or wheel nuts.

■

Use of defective wheels pro-

hibited

Do not use cracked or deformed

wheels.
Doing so could cause the tire to

leak air during driving, possibly

causing an accident.

441

6-3. Do-it-yourself maintenance

6

Maintena

nce
 a

nd ca

re



Use only Toyota wheel nuts
and wrenches designed for
use with your aluminum
wheels.



When rotating, repairing or
changing your tires, check
that the wheel nuts are still
tight after driving 1000 miles
(1600 km).



Vehicles with 17-inch or 18-
inch tires: Be careful not to
damage the aluminum wheels
when using tire chains.



Use only Toyota genuine bal-
ance weights or equivalent
and a plastic or rubber ham-
mer when balancing your
wheels.

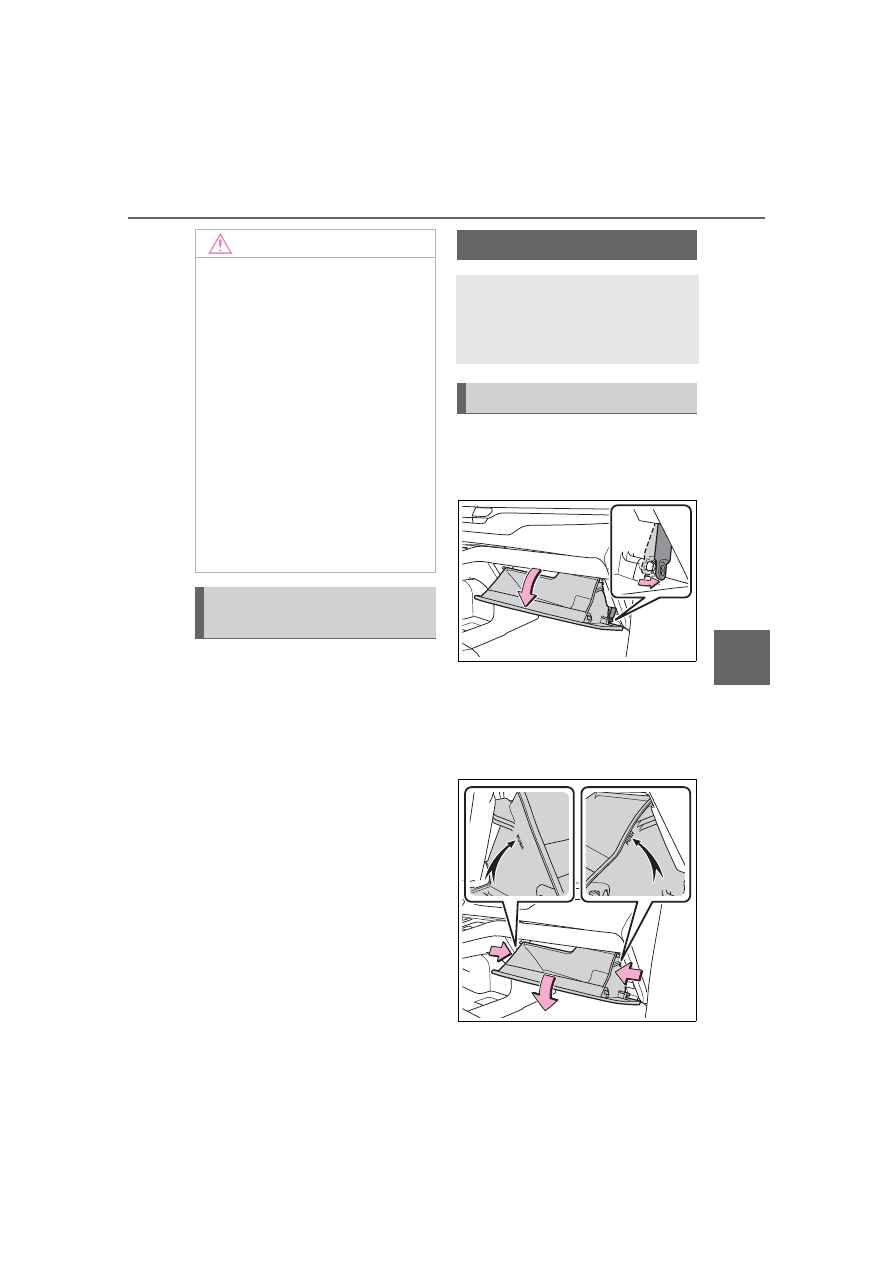

1

Turn the power switch off.

2

Open the glove box and slide
off the damper.

3

Push in each side of the
glove box to disconnect the
claws, and then slowly and
fully open the glove box while
supporting it.

NOTICE

■

Replacing tire pressure warn-

ing valves and transmitters

●

Because tire repair or replace-

ment may affect the tire pres-

sure warning valves and

transmitters, make sure to have

tires serviced by your Toyota

dealer or other qualified service

shop. In addition, make sure to

purchase your tire pressure

warning valves and transmit-

ters at your Toyota dealer.

●

Ensure that only genuine

Toyota wheels are used on your

vehicle.

Tire pressure warning valves

and transmitters may not work

properly with non-genuine

wheels.

Aluminum wheel precau-
tions

Air conditioning filter

The air conditioning filter
must be changed regularly
to maintain air conditioning
efficiency.

Removal method

442

6-3. Do-it-yourself maintenance

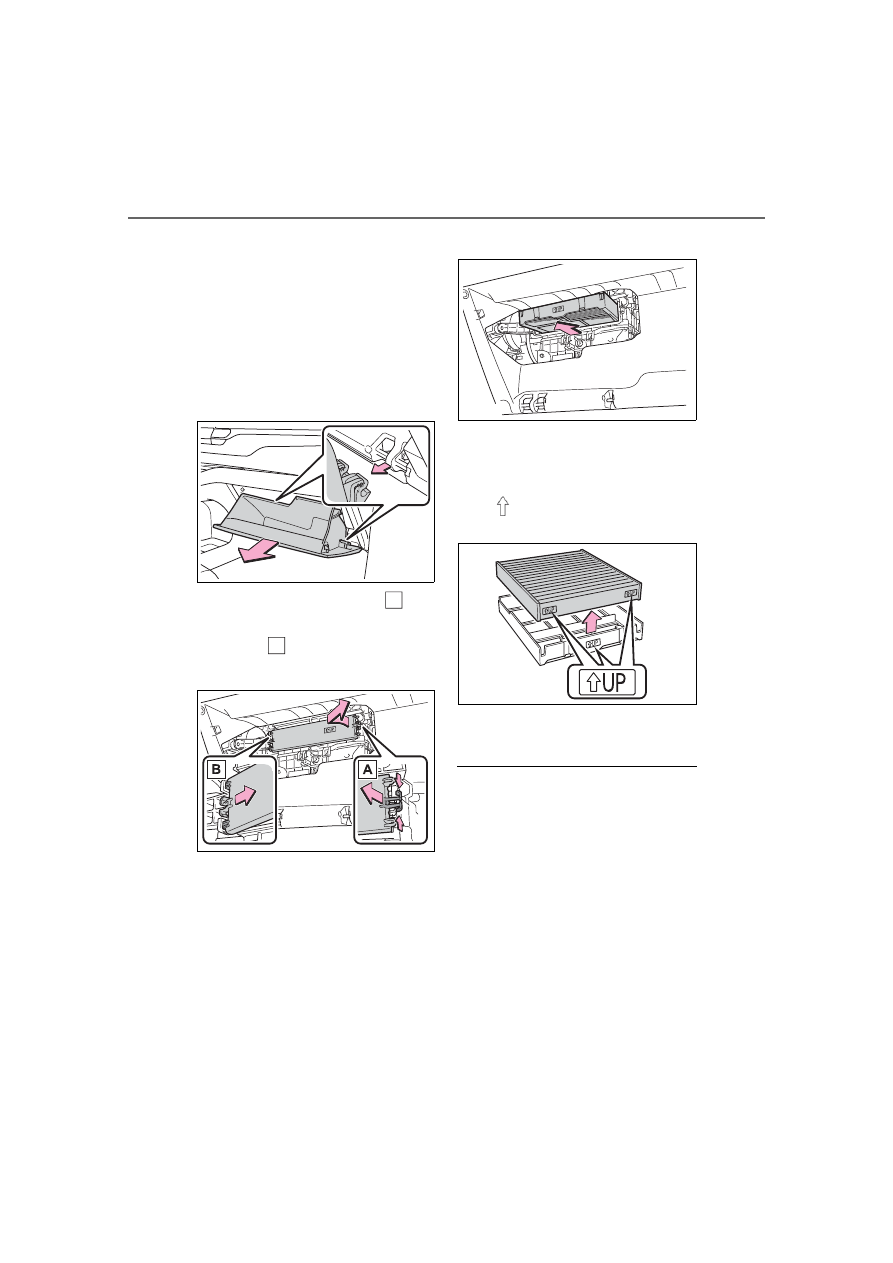

4

With the glove box fully open,
slightly lift up the glove box
and pull toward the seat to
detach the bottom of the
glove box.

Do not use excessive force if the

glove box does not detach when

lightly pulled. Instead, pull toward

the seat while slightly adjusting the

height of the glove box.

5

Unlock the filter cover (

),

pull the filter cover out of the
claws (

), and remove the

filter cover.

6

Remove the filter case.

7

Remove the air conditioning
filter from the filter case and
replace it with a new one.

The “

UP” marks shown on the

filter should be pointing up.

8

When installing, reverse the
steps listed.

■

Checking interval

Inspect and replace the air condi-

tioning filter according to the mainte-

nance schedule. In dusty areas or

areas with heavy traffic flow, early

replacement may be required. (For

scheduled maintenance information,

please refer to the “Owner’s Manual

Supplement” or “Scheduled Mainte-

nance Guide”.)

■

If air flow from the vents

decreases dramatically

The filter may be clogged. Check

the filter and replace if necessary.

A

B

443

6-3. Do-it-yourself maintenance

6

Maintena

nce
 a

nd ca

re

Remove the dust from the air
intake vents with a vacuum
cleaner, etc.

Make sure to only use a vacuum to
suck out dust and clogs. Attempting
to blow out dust and clogs using an
airgun, etc. may push it into the air
intake vent. (



P.446)

NOTICE

■

When using the air condition-

ing system

Make sure that a filter is always

installed. Using the air condition-

ing system without a filter may

cause damage to the system.

■

When removing the glove box

Always follow the specified proce-

dure to remove the glove box

(



P.441). If the glove box is

removed without following the

specified procedure, the hinge of

the glove box may become dam-

aged.

■

To prevent damage to the fil-

ter cover

When moving the filter cover in

the direction of arrow to release

the fitting, pay attention not to

apply excessive force to the

claws. Otherwise, the claws may

be damaged.

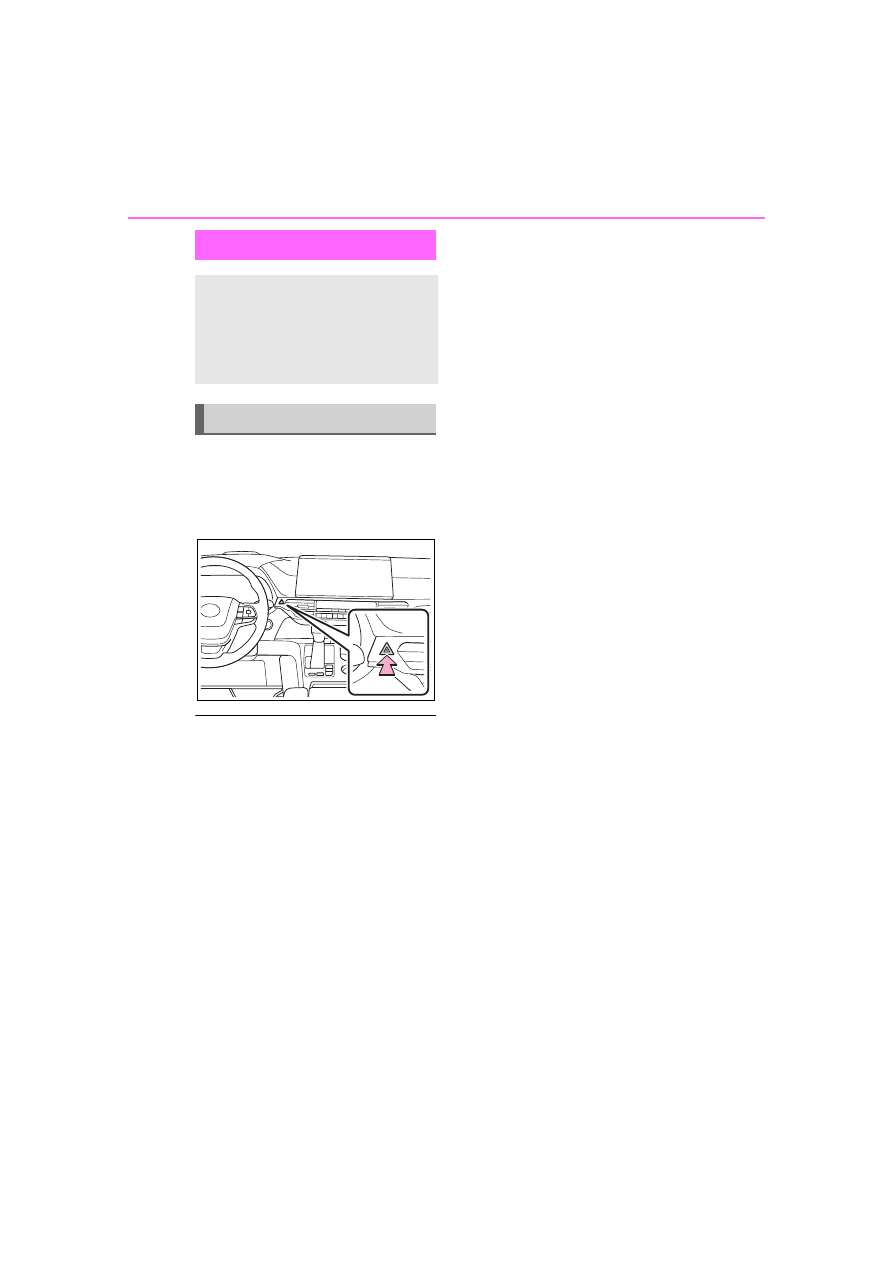

Cleaning the hybrid

battery (traction bat-

tery) air intake vents

and filters

To prevent the fuel econ-
omy from being affected,
visually inspect the hybrid
battery (traction battery) air
intake vents periodically for
dust and clogs. If they are
dusty or clogged or if
“Maintenance Required for
Traction Battery Cooling
Parts See Owner’s Manual”
is shown on the multi-infor-
mation display, clean the air
intake vents using the fol-
lowing procedures:

Cleaning the air intake
vents

444

6-3. Do-it-yourself maintenance

If dust and clogs cannot be com-
pletely removed with the air
intake vent covers installed,
remove the covers and clean
the filters.

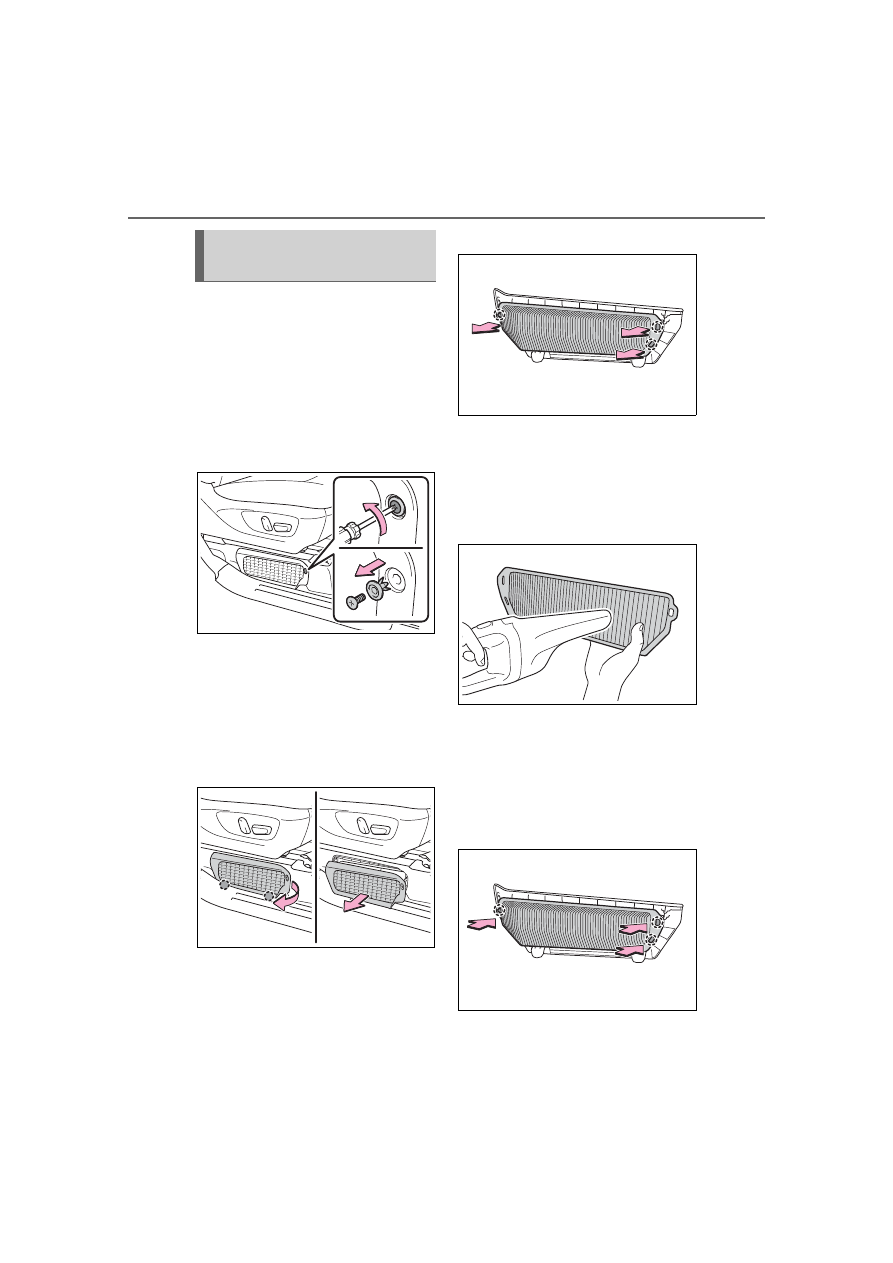

1

Turn the power switch off.

2

Using a Phillips screwdriver,
remove the clip.

3

Remove the air intake vent
cover.

Pull the cover as shown in the illus-

tration to disengage the claws,

starting from the claw in the upper

right corner and pull the cover

toward the front of the vehicle to

remove it.

4

Remove the air intake vent
filter.

Disengage the 3 center claws from

the filter.

5

Remove the dust and clogs
from the filter using a vacuum
cleaner, etc.

Make sure to also remove the dust

and clogs from the inside of the air

intake vent cover.

6

Reinstall the filter to the
cover.

Engage the 3 center claws to install

the filter.
Make sure that the filter is not

crooked or deformed when install-

ing it.

If dust and clogs cannot
be completely removed

445

6-3. Do-it-yourself maintenance

6

Maintena

nce
 a

nd ca

re

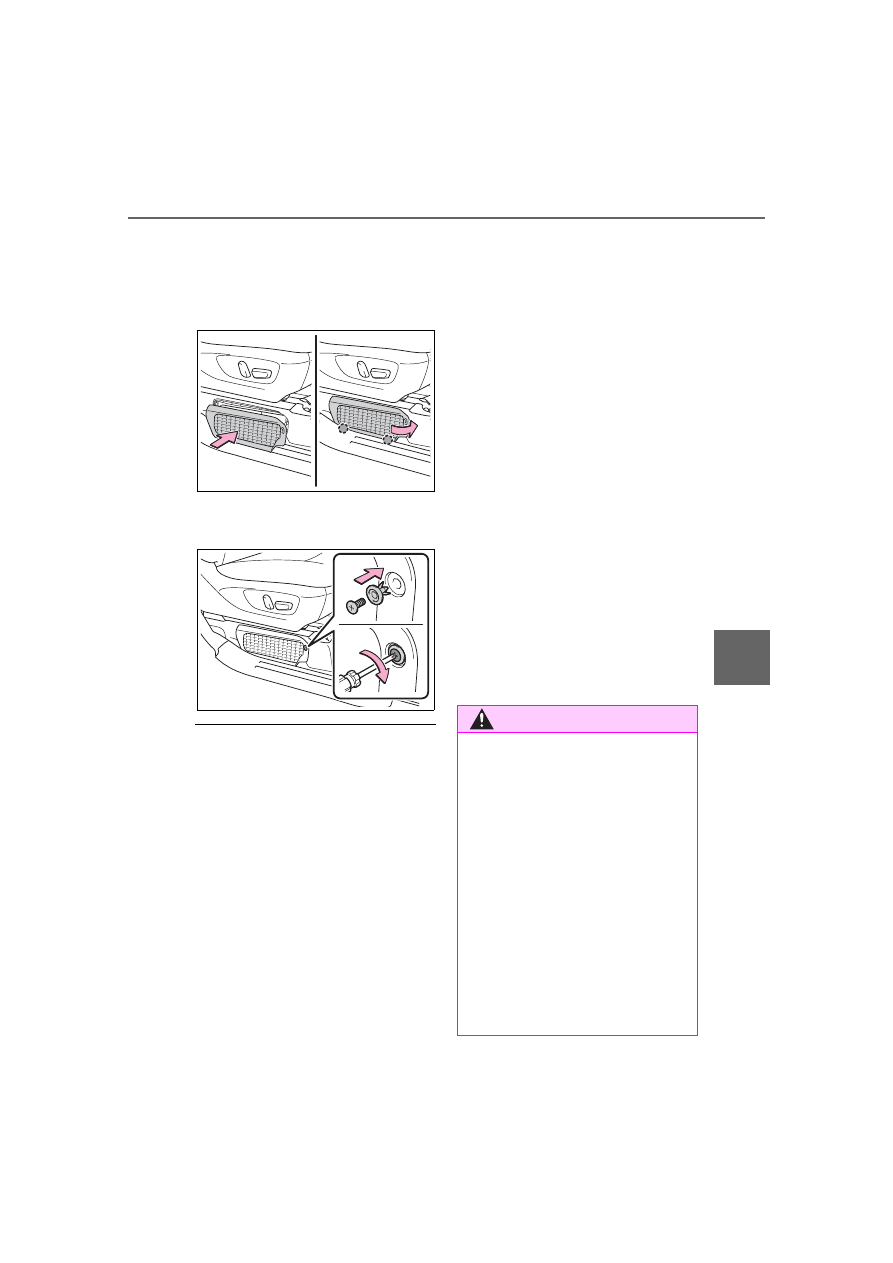

7

Install the air intake vent
cover.

Insert the tab of the cover as shown

in the illustration and push the

cover to engage the claws.

8

Using a Phillips screwdriver,
install the clip.

■

Scheduled maintenance of the

air intake vents is necessary

when

In some situations such as when the

vehicle is used frequently or in

heavy traffic or dusty areas, the air

intake vents may need to be

cleaned more regularly. For details,

refer to “Scheduled Maintenance

Guide” or “Owner’s Manual Supple-

ment”.

■

Cleaning the air intake vents

●

Dust in the air intake vents may

interfere with the cooling of the

hybrid battery (traction battery). If

charging/discharging of the hybrid

battery (traction battery) becomes

limited, the distance that the vehi-

cle can be driven using the electric

motor (traction motor) may be

reduced and the fuel economy

may be reduced. Inspect and

clean the air intake vents periodi-

cally.

●

Improper handling of the air intake

vent covers and filters may result

in damage to them. If you have

any concerns about cleaning the

filters, contact your Toyota dealer.

■

If “Maintenance Required for

Traction Battery Cooling Parts

See Owner’s Manual” is shown

on the multi-information display

●

If this warning message is shown

on the multi-information display,

remove the air intake vent covers

and clean the filters. (



P.444)

●

After cleaning the air intake vents,

start the hybrid system and check

that the warning message is no

longer shown.

It may take approximately 20 min-

utes after the hybrid system is

started until the warning message

disappears. If the warning mes-

sage does not disappear, have

the vehicle inspected by your

Toyota dealer.

WARNING

■

When cleaning the air intake

vents

●

Do not use water or other liq-

uids to clean the air intake

vents. If water is applied to the

hybrid battery (traction battery)

or other components, a mal-

function or fire may occur.

●

Before cleaning the air intake

vents, make sure to turn the

power switch off to stop the

hybrid system.

■

When removing the air intake

vent covers

Do not touch the service plug

located underneath the console

box. (



P.84)

446

6-3. Do-it-yourself maintenance

NOTICE

■

When cleaning the air intake

vents

When cleaning the air intake

vents, make sure to only use a

vacuum to suck out dust and

clogs. If a compressed air blow

gun, etc. is used to blow out dust

and clogs, the dust or clogs may

be pushed into the air intake

vents, which may affect the per-

formance of the hybrid battery

(traction battery) and cause a

malfunction.

■

To prevent damage to the

vehicle

●

Do not allow water or foreign

matter to enter the air intake

vents when the covers are

removed.

●

Carefully handle the removed

filter so that it will not be dam-

aged. If the filter is damaged,

have it replaced with a new filter

by your Toyota dealer.

●

Make sure to reinstall the filters

and covers to their original posi-

tions after cleaning.

●

Do not install anything to the air

intake vents other than the

exclusive filters for this vehicle

or use the vehicle without the fil-

ters installed.

■

If “Maintenance Required for

Traction Battery Cooling

Parts See Owner’s Manual” is

shown on the multi-informa-

tion display

If the vehicle is continuously

driven with the warning message

(indicating that charging/discharg-

ing of the hybrid battery [traction

battery] may become limited) dis-

played, the hybrid battery (traction

battery) may malfunction. If the

warning message is displayed,

clean the air intake vents immedi-

ately.

447

6-3. Do-it-yourself maintenance

6

Maintena

nce
 a

nd ca

re

■

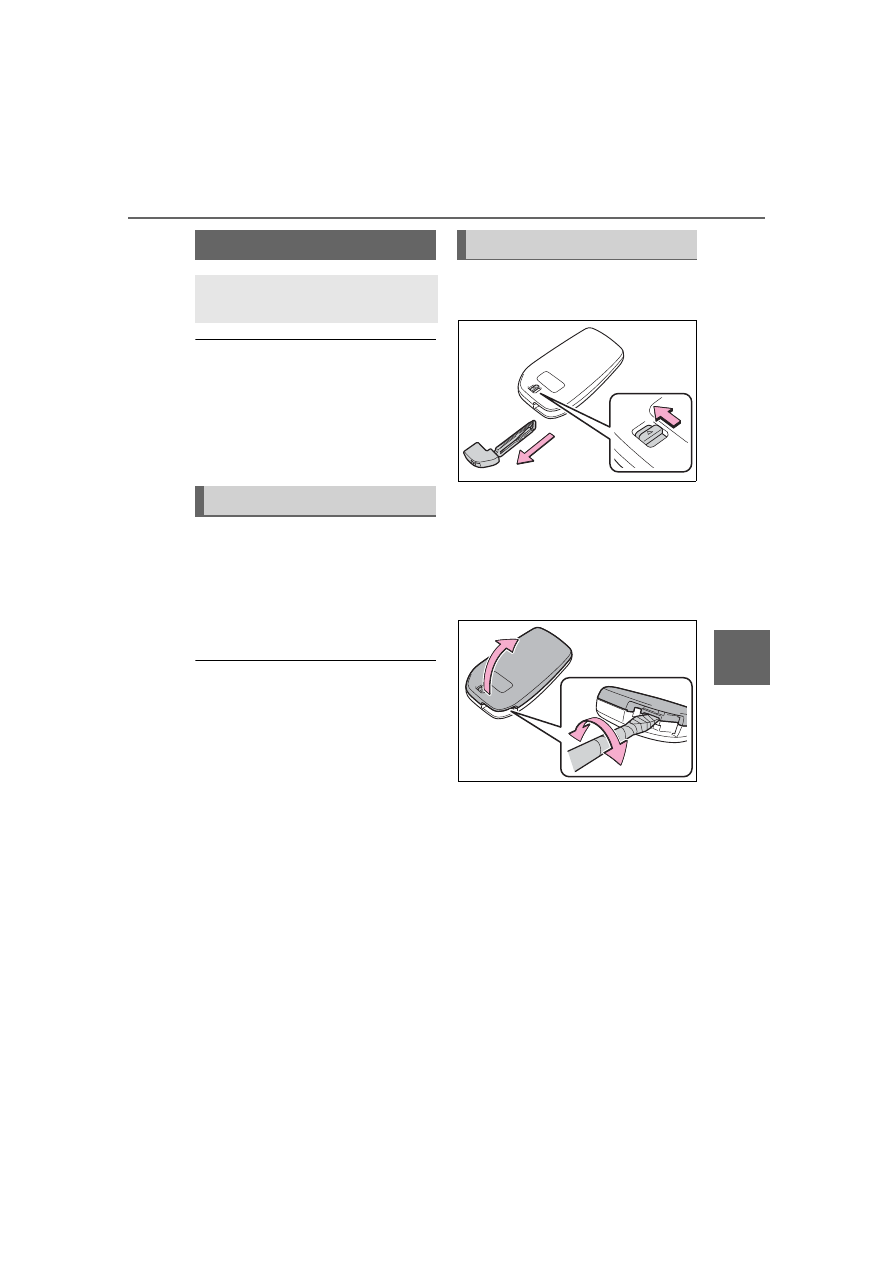

If the key battery is depleted

The following symptoms may occur:

●

The smart key system and wire-

less remote control will not func-

tion properly.

●

The operational range will be

reduced.

Prepare the following before
replacing the battery:



Flathead screwdriver



Small flathead screwdriver



Lithium battery CR2450

■

Use a CR2450 lithium battery

●

Batteries can be purchased at

your Toyota dealer, local electrical

appliance shops or camera stores.

●

Replace only with the same or

equivalent type recommended by

the manufacturer.

●

Dispose of used batteries accord-

ing to the local laws.

1

Release the lock and remove
the mechanical key.

2

Remove the key cover.

Use a screwdriver of an appropriate

size. Forcedly prying may cause

the cover damaged.
To prevent damage to the key,

cover the tip of the flathead screw-

driver with a rag.

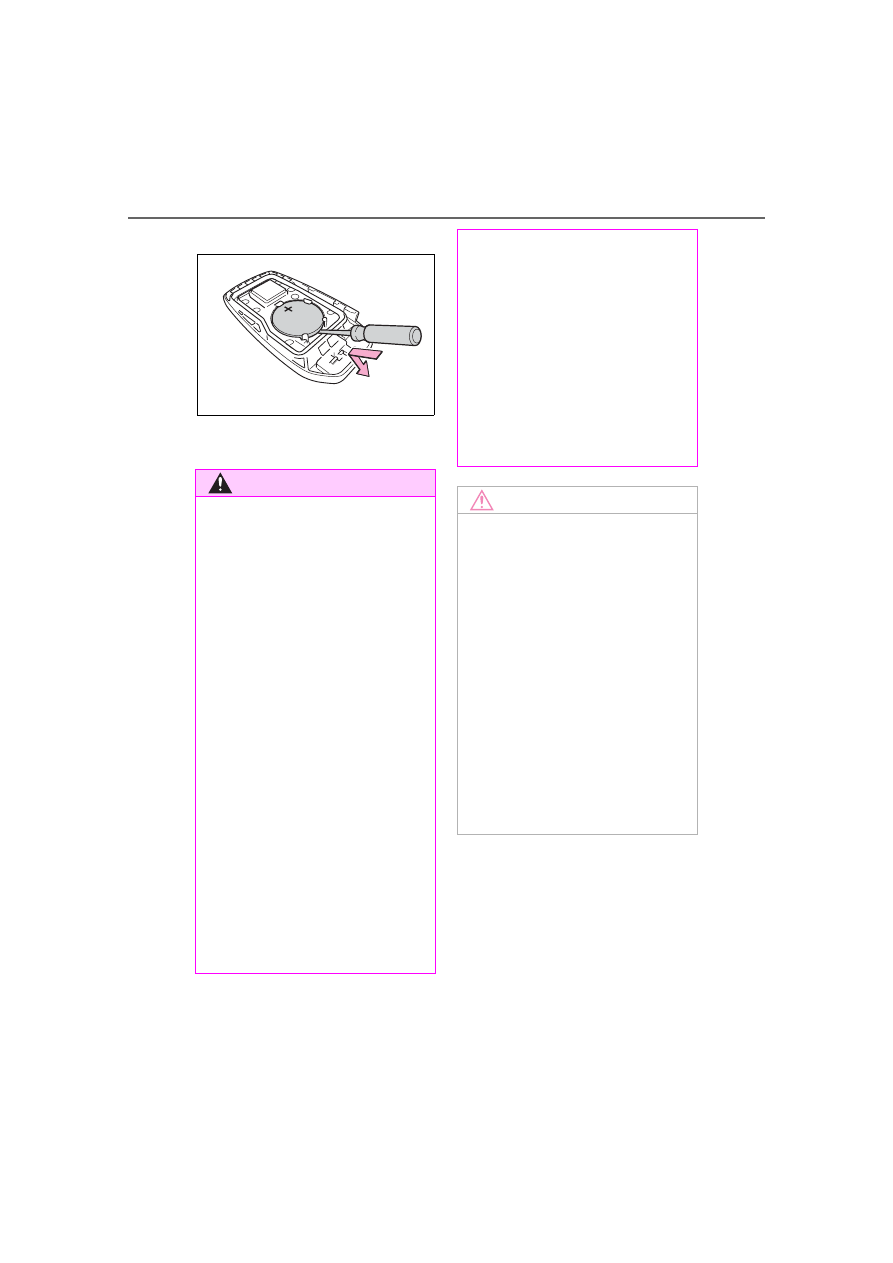

3

Remove the depleted battery
using a small flathead screw-
driver.

When removing the cover, the elec-

tronic key module may stick to the

cover and the battery may not be

visible. In this case, remove the

electronic key module in order to

remove the battery.
When removing the battery, use a

screwdriver of an appropriate size.
Insert a new battery with the “+” ter-

Electronic key battery

Replace the battery with a
new one if it is depleted.

Items to prepare

Replacing the battery

448

6-3. Do-it-yourself maintenance

minal facing up.

4

When installing, reverse the
steps listed.

WARNING

■

Battery precautions

Observe the following precau-

tions.

Failure to do so may result in

death or serious injury.

●

Do not swallow the battery.

Doing so may cause chemical

burns.

●

A coin battery or button battery

is used in the electronic key. If a

battery is swallowed, it may

cause severe chemical burns in

as little as 2 hours and may

result in death or serious injury.

●

Keep away new and removed

batteries from children.

●

If the cover cannot be firmly

closed, stop using the electronic

key and stow the key in the

place where children cannot

reach, and then contact your

Toyota dealer.

●

If you accidentally swallow a

battery or put a battery into a

part of your body, get emer-

gency medical attention imme-

diately.

■

To prevent battery explosion

or leakage of flammable liq-

uid or gas

●

Replace the battery with a new

battery of the same type. If a

wrong type of battery is used, it

may explode.

●

Do not expose batteries to

extremely low pressure due to

high altitude or extremely high

temperatures.

●

Do not burn, break or cut a bat-

tery.

NOTICE

■

When replacing the battery

Use a flathead screwdriver of

appropriate size. Applying exces-

sive force may deform or damage

the cover.

■

For normal operation after

replacing the battery

Observe the following precautions

to prevent accidents:

●

Always work with dry hands.

Moisture may cause the battery

to rust.

●

Do not touch or move any other

component inside the remote

control.

●

Do not bend either of the battery

terminals.

449

6-3. Do-it-yourself maintenance

6

Maintena

nce
 a

nd ca

re

1

Turn the power switch off.

2

Open the fuse box cover.



Engine compartment

Push claw

,

 and

 to com-

pletely release the lock, and then lift
up the cover.



Left side instrument panel

Remove the lid.



Right side luggage compart-
ment

Remove the cover

3

Remove the fuse.

Only type A fuse can be removed

using the pullout tool.

4

Check if the fuse is blown.

Replace the blown fuse with a new

fuse of an appropriate amperage

rating. The amperage rating can be

found on the fuse box lid.



Type A

Normal fuse

Checking and replac-

ing fuses

If any of the electrical com-
ponents do not operate, a
fuse may have blown. If this
happens, check and replace
the fuses as necessary.

Checking and replacing
fuses

A

B

C

A

450

6-3. Do-it-yourself maintenance

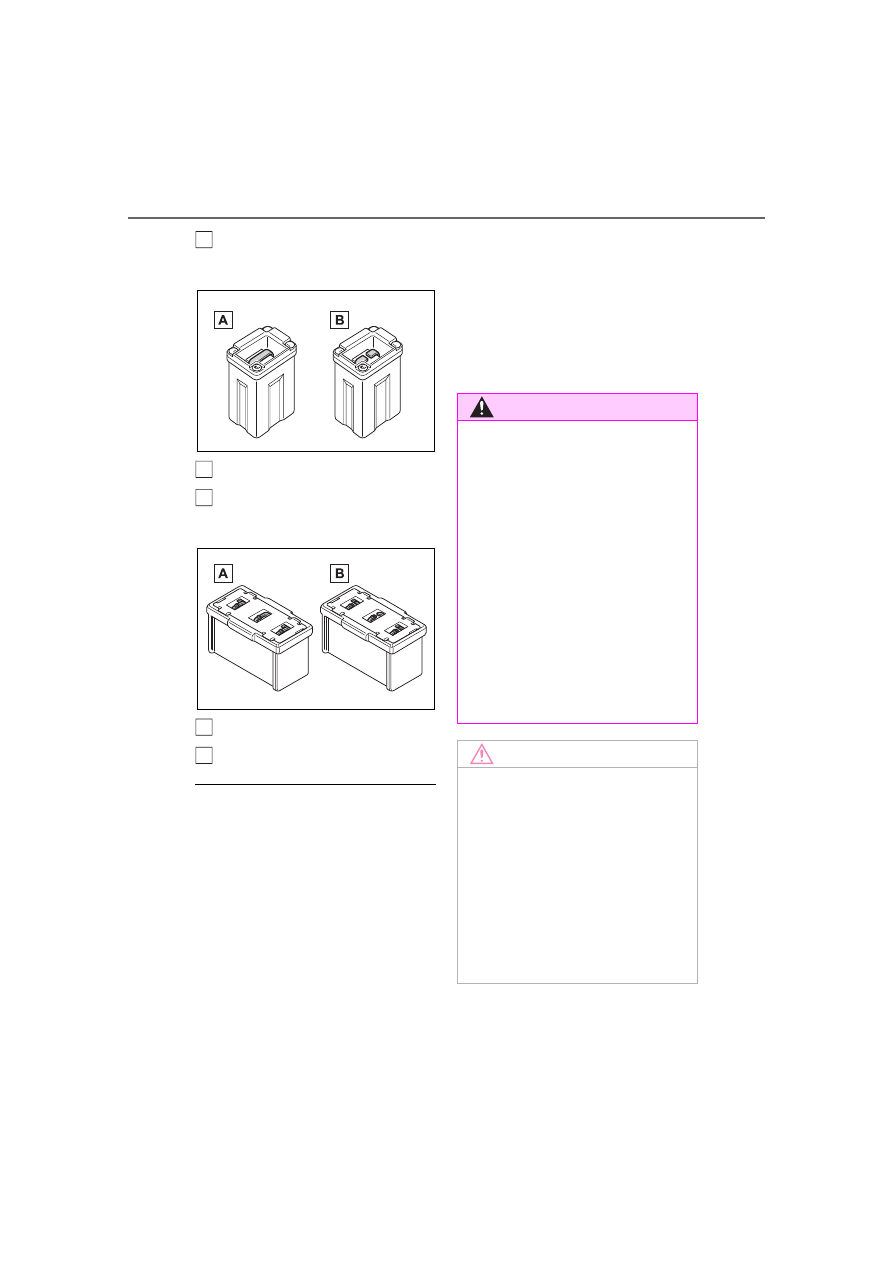

Blown fuse



Type B

Normal fuse

Blown fuse



Type C

Normal fuse

Blown fuse

■

After a fuse is replaced

●

When installing the lid, make sure

that the tab is installed securely.

●

If the lights do not turn on even

after the fuse has been replaced,

a bulb may need replacement.

(



P.451)

●

If the replaced fuse blows again,

have the vehicle inspected by

your Toyota dealer.

■

If there is an overload in a cir-

cuit

The fuses are designed to blow,

protecting the wiring harness from

damage.

■

When replacing light bulbs

Toyota recommends that you use

genuine Toyota products designed

for this vehicle. Because certain

bulbs are connected to circuits

designed to prevent overload, non-

genuine parts or parts not designed

for this vehicle may be unusable.

B

A

B

A

B

WARNING

■

To prevent system break-

downs and vehicle fire

Observe the following precau-

tions.

Failure to do so may cause dam-

age to the vehicle, and possibly a

fire or injury.

●

Never use a fuse of a higher

amperage rating than that indi-

cated, or use any other object in

place of a fuse.

●

Always use a genuine Toyota

fuse or equivalent.

Never replace a fuse with a

wire, even as a temporary fix.

●

Do not modify the fuses or fuse

boxes.

NOTICE

■

Before replacing fuses

Have the cause of electrical over-

load determined and repaired by

your Toyota dealer as soon as

possible.

■

To prevent damage to the

engine compartment fuse box

cover

When opening the fuse box, com-

pletely release the claw locks

before lifting up the cover. Other-

wise, the claws may be damaged.

451

6-3. Do-it-yourself maintenance

6

Maintena

nce
 a

nd ca

re

Check the wattage of the light
bulb to be replaced. (



P.526)

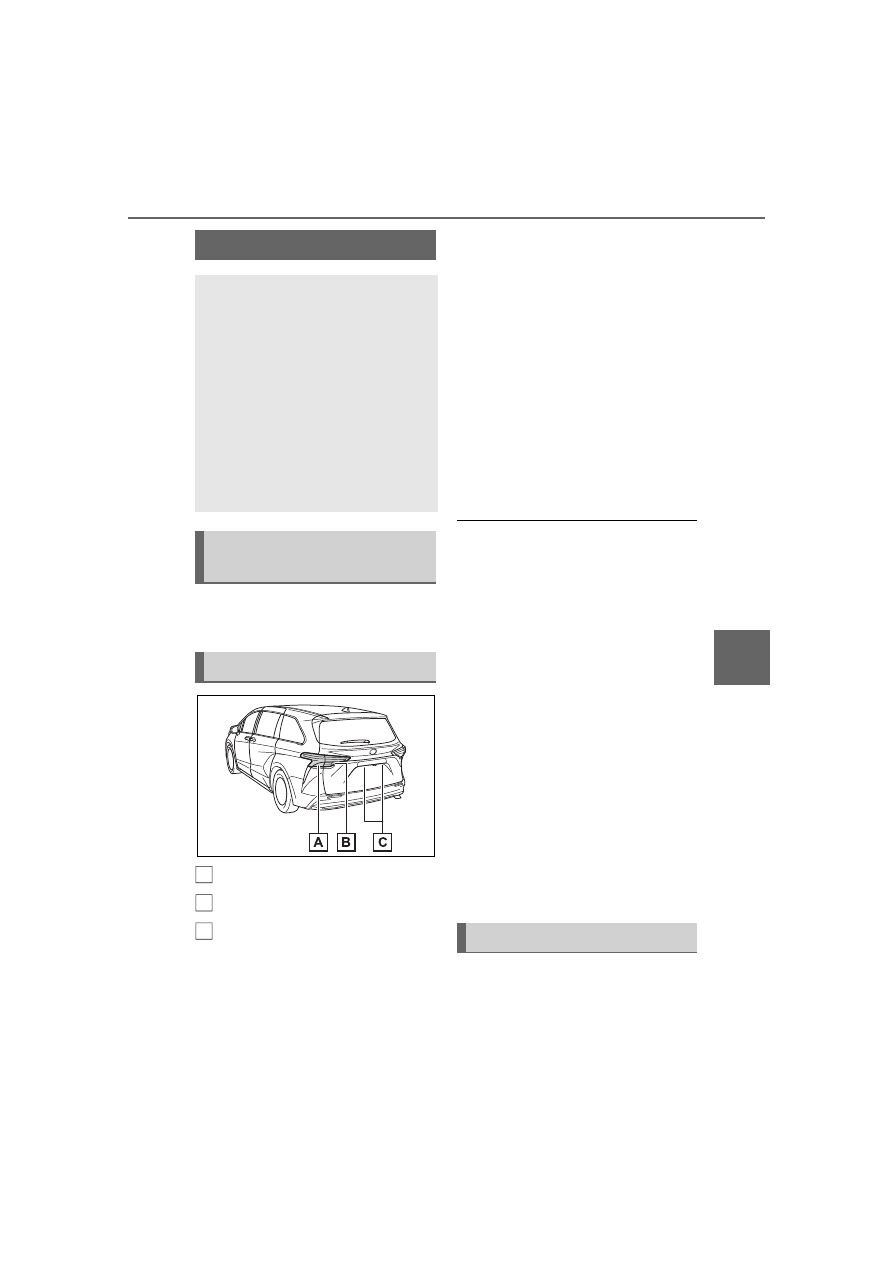

Rear turn signal lights

Back-up lights

License plate lights

■

Lights that need to be
replaced by your Toyota
dealer



Headlights



Daytime running lights



Front turn signal/parking
lights



Front side marker lights



Side turn signal lights



Tail lights



Stop lights



Fog lights (if equipped)



Rear side marker lights



High mounted stoplight



Outer foot lights (if equipped)

■

LED lights

The lights other than the following

lights each consist of a number of

LEDs. If any of the LEDs burn out,

take your vehicle to your Toyota

dealer to have the light replaced.

●

Rear turn signal lights

●

Back-up lights

●

License plate lights

■

Condensation build-up on the

inside of the lens

Temporary condensation build-up

on the inside of the light lens does

not indicate a malfunction. Contact

your Toyota dealer for more infor-

mation in the following situations:

●

Large drops of water have built up

on the inside of the lens.

●

Water has built up inside the light.

■

When replacing light bulbs



P.450

■

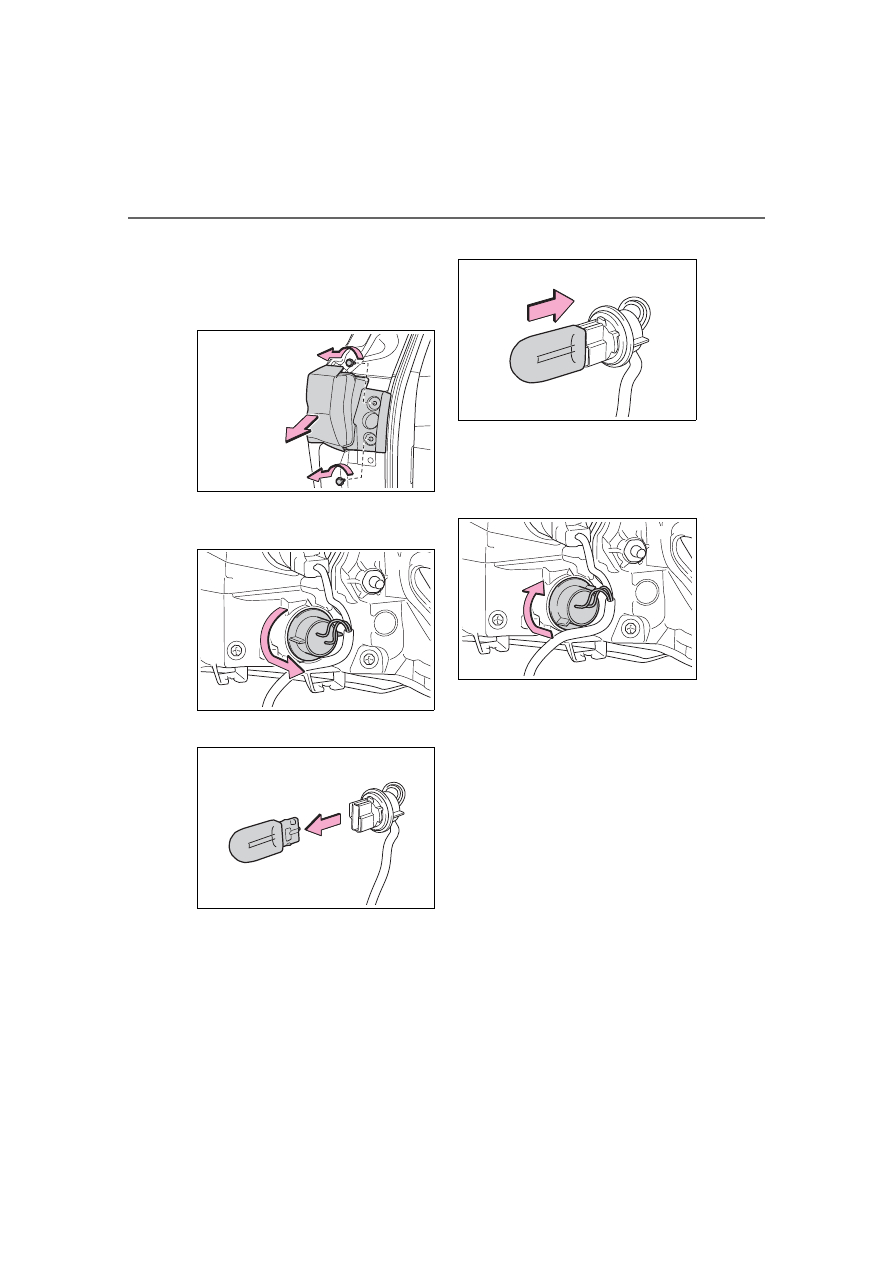

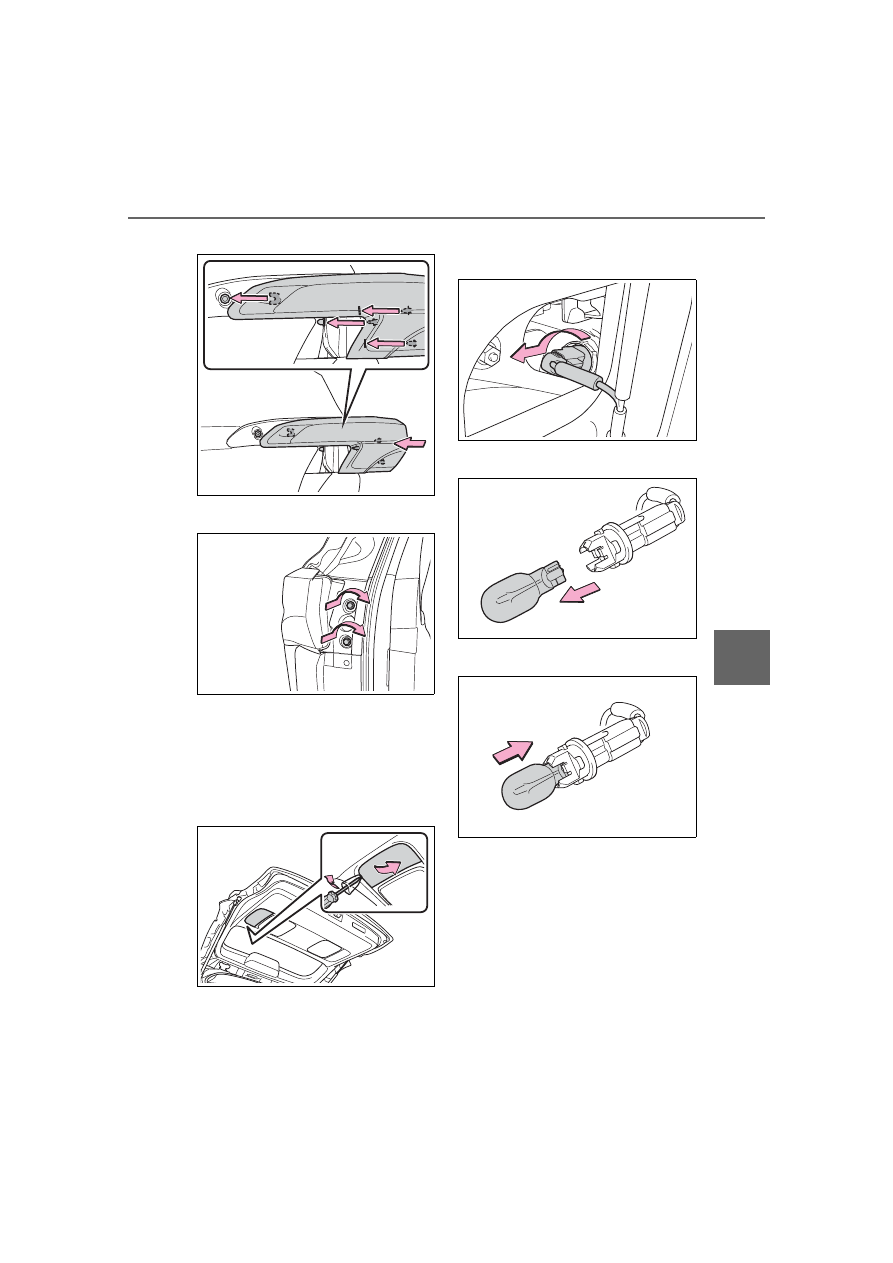

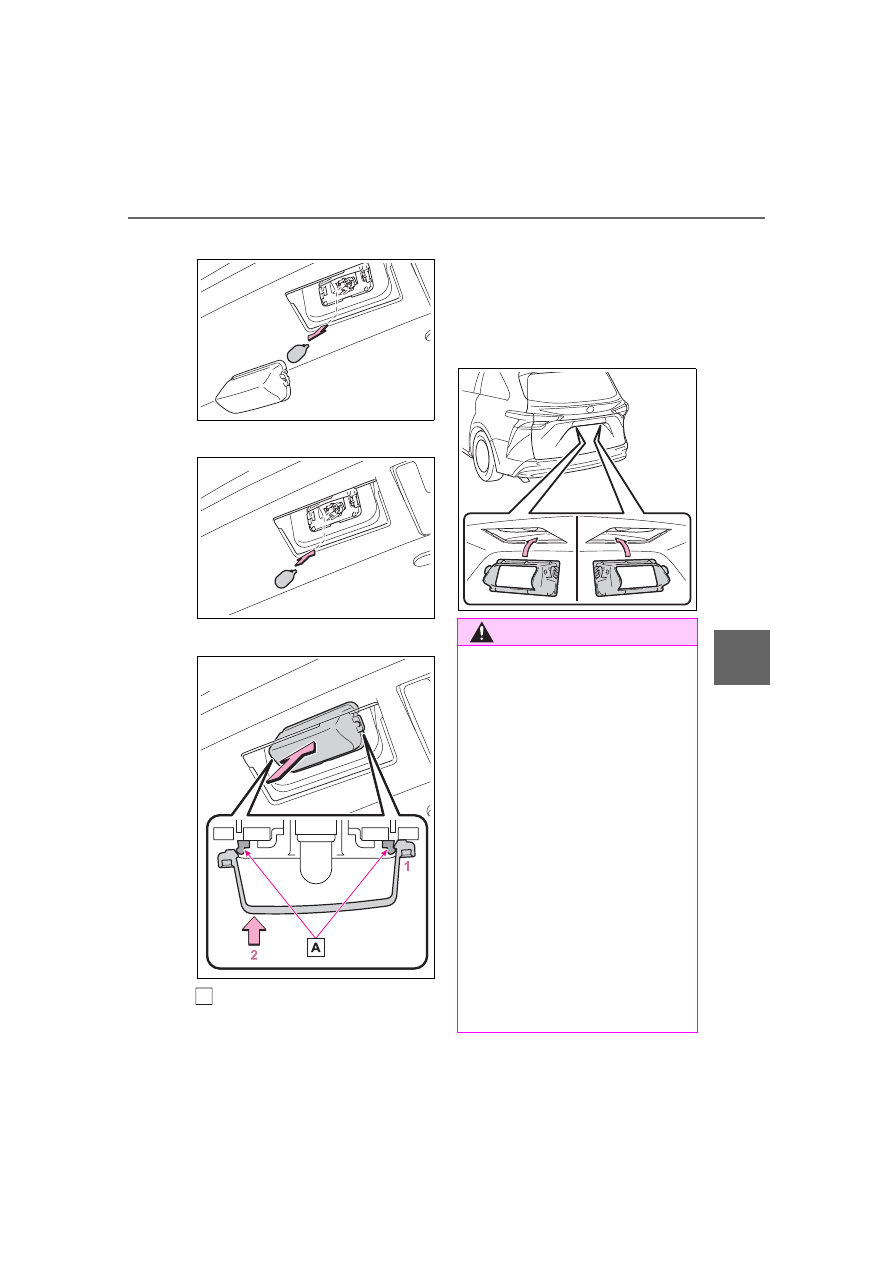

Rear turn signal lights

1

Open the back door.

Light bulbs

You may replace the follow-
ing bulbs by yourself. The
difficulty level of replace-
ment varies depending on
the bulb. If necessary bulb
replacement seems difficult
to perform, contact your
Toyota dealer.
For more information about
replacing other light bulbs,
contact your Toyota dealer.

Preparing for light bulb
replacement

Bulb location

A

B

C

Replacing light bulb

452

6-3. Do-it-yourself maintenance

2

Remove the securing screws
and remove the unit.

Remove the lamp assembly by pull-

ing it directly backward from the

rear of the vehicle.

3

Turn the bulb base counter-
clockwise.

4

Remove the light bulb.

5

Install a new light bulb.

6

Install the bulb base to the
light unit by inserting it and
turning the bulb base clock-
wise.

7

Align the grooves on the light
unit with the claws, and insert
the light unit straight so that
the pin on the light unit fit into
the hole.

Confirm that the light unit is com-

453

6-3. Do-it-yourself maintenance

6

Maintena

nce
 a

nd ca

re

pletely secured.

8

Reinstall the screws.

■

Back-up lights

1

Open the back door and
remove the cover.

To prevent damage to the cover,

wrap the tip of the screwdriver with

a rag, etc.

2

Turn the bulb base counter-
clockwise.

3

Remove the light bulb.

4

Install a new light bulb.

5

Install the bulb base to the
light unit by inserting it and

454

6-3. Do-it-yourself maintenance

turning the bulb base clock-
wise.

6

Reinstall the cover.

■

License plate lights

1

Remove the cover.

Using a flathead screwdriver,

remove the cover.
To prevent damage to the vehicle,

wrap the tip of the flathead screw-

driver with tape, etc.

2

Remove the lens.

Lens

Hook

1

Insert a small flathead screw-
driver, etc. into either the
right or left hole of the lens.

2

Push the screwdriver side-
ways in the direction of the
arrow shown in the illustra-
tion, disengage the hook, and
then remove the lens.

To prevent damage to the vehicle,
wrap the tip of the screwdriver with
tape, etc.

A

B

455

6-3. Do-it-yourself maintenance

6

Maintena

nce
 a

nd ca

re

3

Remove the light bulb.

4

Install a new light bulb.

5

Install the lens.

Hooks

1

Fit the lens into either the

right or left hooks.

2

Push the lens into place.

After installation, confirm that the
lens is properly installed by gently
pulling it.

6

Install the cover.

A

WARNING

■

Replacing light bulb

●

Turn off the light. Do not attempt

to replace the bulb immediately

after turning off the light.

The bulb becomes very hot and

may cause burns.

●

Do not touch the glass portion

of the light bulb with bare

hands. When it is unavoidable

to hold the glass portion, use

and hold with a clean dry cloth

to avoid getting moisture and

oils on the bulb.

Also, if the bulb is scratched or

dropped, it may blow out or

crack.

●

Fully install light bulb and any

parts used to secure it. Failure

to do so may result in heat dam-

age, fire, or water entering the

light unit. This may damage the

light or cause condensation to

build up on the lens.

456

6-3. Do-it-yourself maintenance

WARNING

●

Do not attempt to repair or dis-

assemble light bulbs, connec-

tors, electric circuits or

component parts.

Doing so may result in death or

serious injury due to electric

shock.

■

To prevent damage or fire

●

Make sure bulb is fully seated

and locked.

●

Check the wattage of the bulb

before installing to prevent heat

damage.

457

7

7

Whe

n tr

ouble

 a

rises

When trouble arises

7-1. Essential information

Emergency flashers ....

458

If your vehicle has to be

stopped in an emergency

..................................

459

If the vehicle is trapped in

rising water................

460

7-2. Steps to take in an emer-

gency

If your vehicle needs to be

towed.........................

462

If you think something is

wrong ........................

465

If a warning light turns on or

a warning buzzer sounds

..................................

466

If a warning message is dis-

played........................

477

If you have a flat tire (vehi-

cles without spare tire)

481

If you have a flat tire (vehi-

cles with spare tire) ...

491

If the hybrid system will not

start ...........................

501

If you lose your keys ...

502

If the fuel filler door cannot

be opened .................

503

If the electronic key does

not operate properly ..

504

If the 12-volt battery is dis-

charged .....................

506

If your vehicle overheats

..................................

511

If the vehicle becomes stuck

..................................

514

458

7-1. Essential information

7-1.Essential information

Press the switch.

All the turn signal lights will flash.
To turn them off, press the switch
once again.

■

Emergency flashers

●

If the emergency flashers are

used for a long time while the

hybrid system is not operating

(while the “READY” indicator is

not illuminated), the 12-volt bat-

tery may discharge.

●

If any of the SRS airbags deploy

(inflate) or in the event of a strong

rear impact, the emergency flash-

ers will turn on automatically.

The emergency flashers will turn

off automatically after operating

for approximately 20 minutes. To

manually turn the emergency

flashers off, press the switch

twice. (The emergency flashers

may not turn on automatically

depending on the force of the

impact and conditions of the colli-

sion.)

Emergency flashers

The emergency flashers are
used to warn other drivers
when the vehicle has to be
stopped in the road due to a
breakdown, etc.

Operating instructions

459

7-1. Essential information

7

Whe

n tr

ouble

 a

rises

1

Steadily step on the brake
pedal with both feet and
firmly depress it.

Do not pump the brake pedal

repeatedly as this will increase the

effort required to slow the vehicle.

2

Shift the shift lever to N.



If the shift lever is shifted to N

3

After slowing down, stop the
vehicle in a safe place by the
road.

4

Stop the hybrid system.



If the shift lever cannot be
shifted to N

3

Keep depressing the brake
pedal with both feet to reduce
vehicle speed as much as
possible.

4

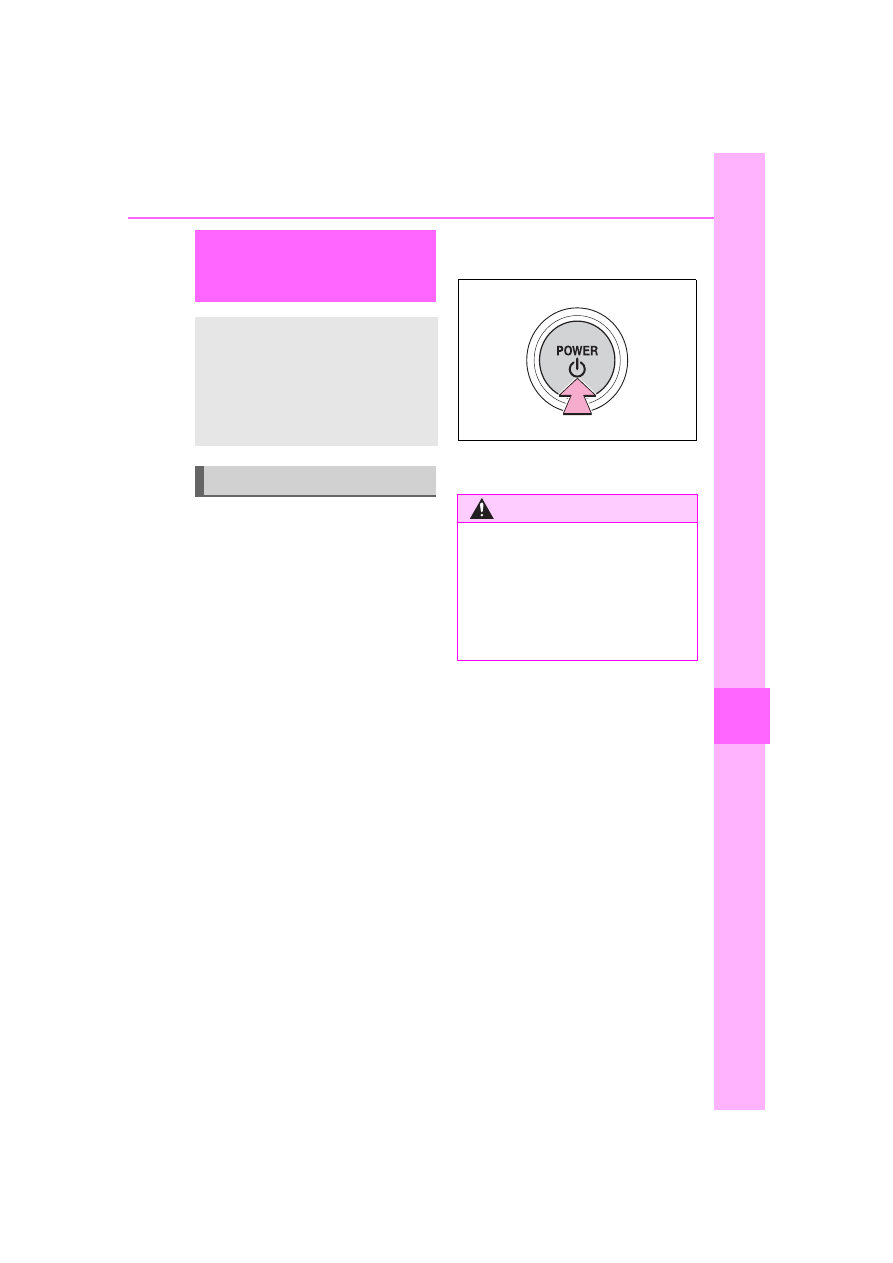

Press and hold the power
switch for 2 consecutive sec-
onds or more, or press it

briefly 3 times or more in suc-
cession.

5

Stop the vehicle in a safe
place by the road.

If your vehicle has to

be stopped in an emer-

gency

Only in an emergency, such
as if it becomes impossible
to stop the vehicle in the
normal way, stop the vehi-
cle using the following pro-
cedure:

Stopping the vehicle

WARNING

■

If the hybrid system has to be

turned off while driving

●

Power assist for the steering

wheel will be lost, making the

steering wheel heavier to turn.

Decelerate as much as possible

before turning off the hybrid sys-

tem.

460

7-1. Essential information



Remove the seat belt first.



If the door can be opened,
open the door and exit the
vehicle.



If the door can not be opened,
open the window using the
power window switch and exit
the vehicle through the win-
dow.



If the window can not be
opened using the power win-
dow switch, remain calm, wait
until the water level inside the
vehicle rises to the point that
the water pressure inside of
the vehicle equals the water
pressure outside of the vehi-
cle, and then open the door
and exit the vehicle.

■

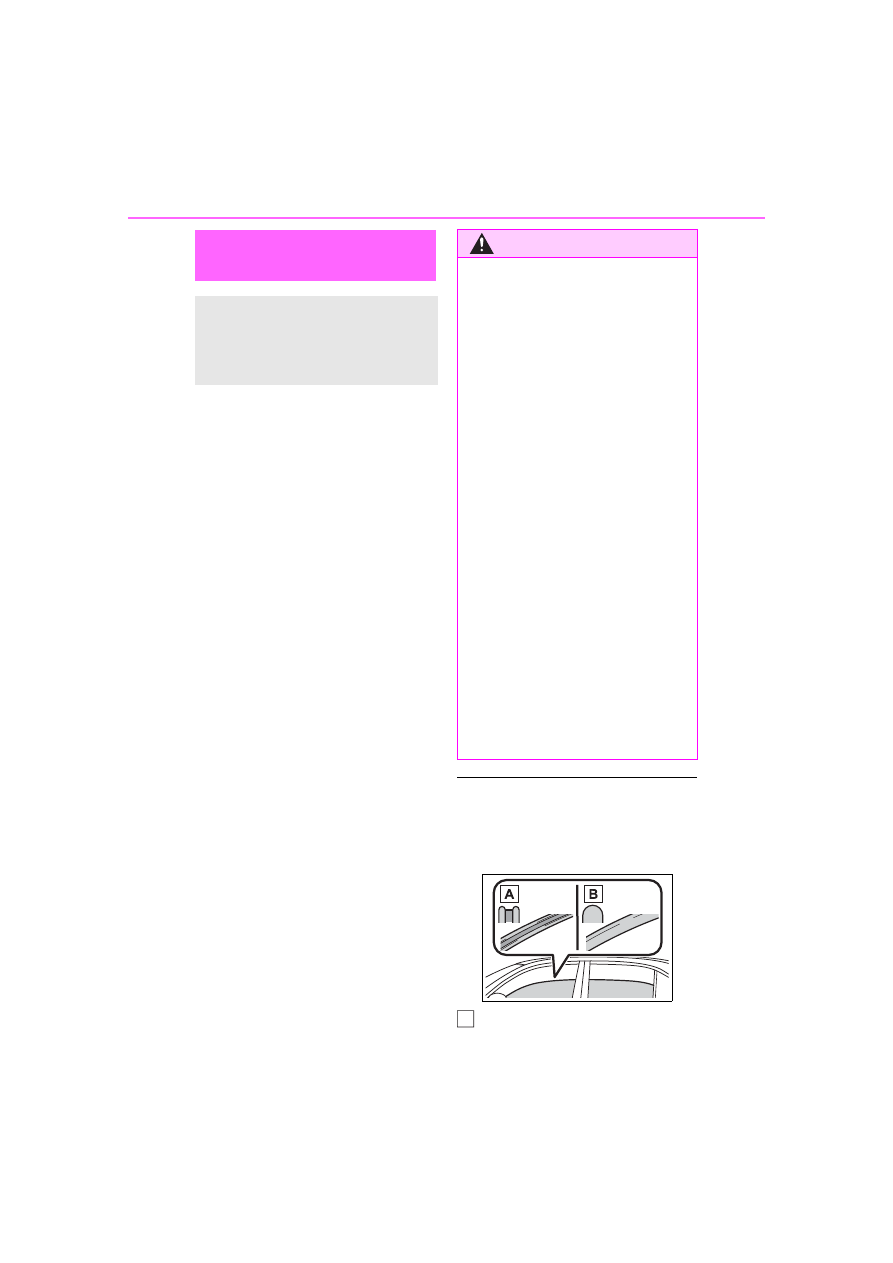

How to distinguish laminated

glass

When looking from the cross-sec-

tional view point, laminated glass is

two sheets of glass pasted together.

Laminated glass

If the vehicle is

trapped in rising water

In the event the vehicle is
submerged in water, remain
calm and perform the fol-
lowing.

WARNING

■

Using an emergency ham-
mer

*1

 for emergency escape

The rear side windows and rear

window of this vehicle can be

shattered by an emergency ham-
mer

*1

 used for emergency

escape, however, since the wind-
shield and front side windows

*2



are laminated glass they can not

be shattered by an emergency
hammer

*1

.

*1

:Contact your Toyota dealer or

aftermarket accessory manu-
facturer for further information
about an emergency hammer.

*2

:Vehicles with laminated glass

■

Escaping the vehicle from the

window

There are cases where escaping

the vehicle from the window is not

possible due to seating position,

passenger body type, etc.
When using an emergency ham-

mer, consider your seat location

and the size of the window open-

ing to ensure that the opening is

accessible and large enough to

escape.

A
