4-5. Using the driving support systems

4

Dr

iv

ing

• When backing up on a slope with

a sharp change in grade

• When a vehicle turns into the

detection area

Multi-information display (7-
inch display)

Multi-information display
(4.2-inch display)

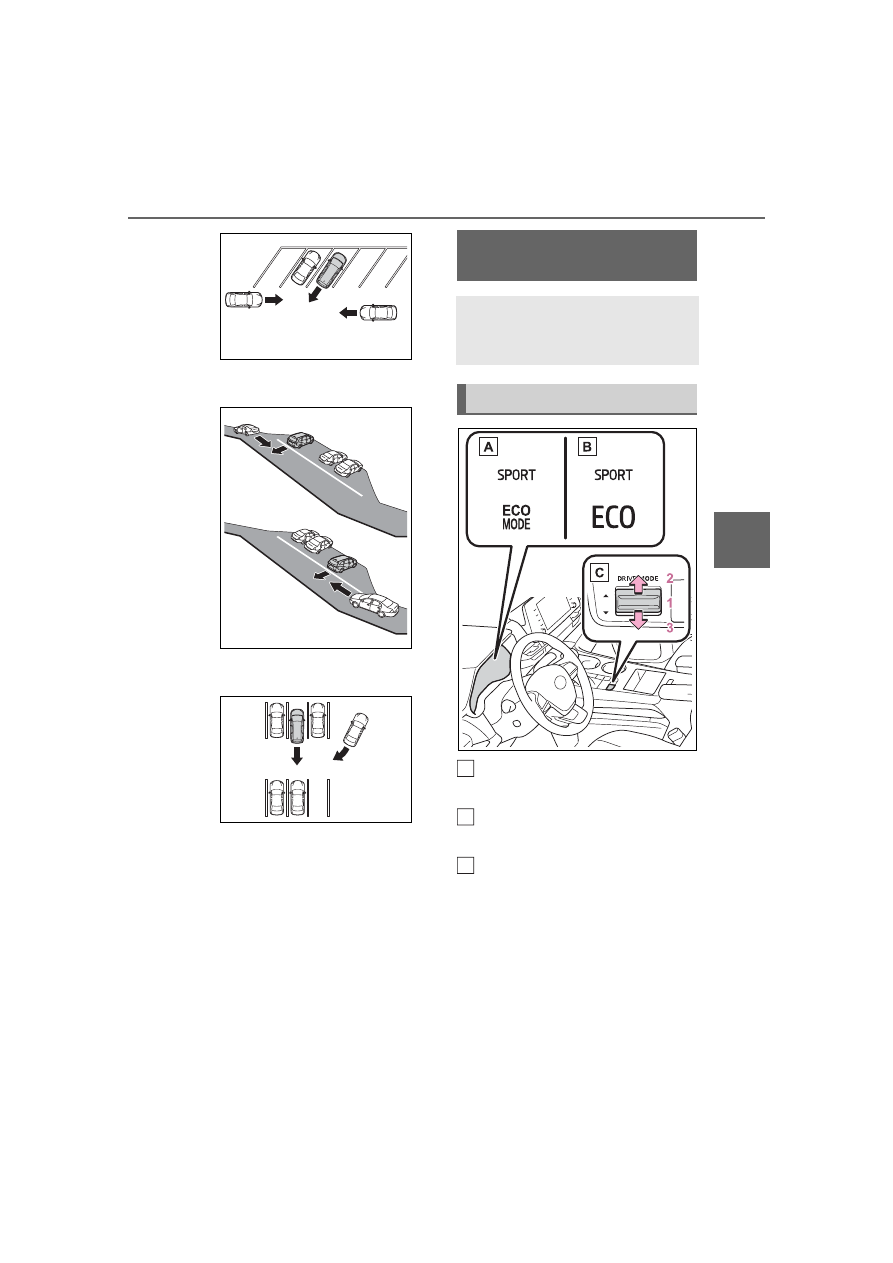

Driving mode select switch

Operate the driving mode select
switch forward or backward to
select the desired driving mode on
the multi-information display.

1

Normal mode

Provides an optimal balance of fuel
economy, quietness, and dynamic
performance. Suitable for normal

Driving mode select

switch

The driving modes can be
selected to suit the driving
and usage conditions.

Selecting a driving mode

A

B

C

334

4-5. Using the driving support systems

driving.

2

Sport mode

Controls the hybrid system to pro-
vide quick, powerful acceleration.
This mode also changes the steer-
ing feel, making it suitable for when
agile driving response is desired,
such as when driving on roads with
many curves.
When Sport mode is selected,
Sport mode indicator comes on.

3

Eco drive mode

Helps the driver accelerate in an
eco-friendly manner and improve
fuel economy through moderate
throttle characteristics and by con-
trolling the operation of the air con-
ditioning system (heating/cooling).
When Eco drive mode is selected,
Eco drive mode indicator comes
on.

■

When changing to a driving

mode other than normal mode

●

The background color of the multi-

information display changes

according to the selected driving

mode.

●

When the speedometer is set to

analog display, the speedometer

display color also changes. (For

vehicles with the 7-inch multi-

information display only)

■

Air conditioning system opera-

tion in Eco drive mode

In Eco drive mode, heating/cooling

operations and the fan speed is con-

trolled to improve fuel efficiency.

Perform the following procedures to

increase the air conditioning perfor-

mance.

●

Turn eco air conditioning mode off

(



P.350)

●

Adjust the fan speed (



P.349)

●

Cancel Eco drive mode

■

Canceling a driving mode

●

Sport mode is automatically can-

celed and the driving mode

returns to normal mode when the

power switch is turned off.

●

Normal mode and Eco drive mode

are not canceled until another

driving mode is selected. (Even if

the power switch is turned off, nor-

mal mode and Eco drive mode will

not be automatically canceled).

335

4-5. Using the driving support systems

4

Dr

iv

ing

■

ECB (Electronically Con-
trolled Brake System)

The electronically controlled
system generates braking force
corresponding to the brake
operation

■

ABS (Anti-lock Brake Sys-
tem)

Helps to prevent wheel lock
when the brakes are applied
suddenly, or if the brakes are
applied while driving on a slip-
pery road surface

■

Brake assist

Generates an increased level of
braking force after the brake
pedal is depressed when the
system detects a panic stop sit-
uation

■

VSC (Vehicle Stability Con-
trol)

Helps the driver to control skid-
ding when swerving suddenly or
turning on slippery road sur-
faces.

■

Enhanced VSC (Enhanced
Vehicle Stability Control)

Provides cooperative control of
the ABS, TRAC, VSC and EPS.
Helps to maintain directional
stability when swerving on slip-
pery road surfaces by con-
trolling steering performance.

■

Trailer Sway Control

Helps the driver to control trailer
sway by selectively applying
brake pressure for individual
wheels and reducing driving
torque when trailer sway is
detected.

■

TRAC (Traction Control)

Helps to maintain drive power
and prevent the drive wheels
from spinning when starting the
vehicle or accelerating on slip-
pery roads

■

Active Cornering Assist
(ACA)

Helps to prevent the vehicle
from drifting to the outer side by
performing inner wheel brake
control when attempting to
accelerate while turning

■

Hill-start assist control

Helps to reduce the backward

Driving assist systems

To keep driving safety and
performance, the following
systems operate automati-
cally in response to various
driving situations. Be
aware, however, that these
systems are supplementary
and should not be relied
upon too heavily when oper-
ating the vehicle.

Summary of the driving
assist systems

336

4-5. Using the driving support systems

movement of the vehicle when
starting on an uphill

■

EPS (Electric Power Steer-
ing)

Employs an electric motor to
reduce the amount of effort
needed to turn the steering
wheel

■

E-Four (Electronic On-
Demand AWD system)
(AWD models)

Automatically switches from
front wheel drive to all-wheel
drive (AWD) according to the
driving conditions, helping to
ensure reliable handling and
stability. Examples of condi-
tions where the system will
switch to AWD are when corner-
ing, going uphill, starting off or
accelerating, and when the road
surface is slippery due to snow,
rain, etc.

■

The Secondary Collision
Brake

When the airbag sensor detects
a collision, the brakes and brake
lights are automatically con-
trolled to reduce the vehicle
speed and that helps reduce the
possibility of further damage
due to a secondary collision

■

When the

TRAC/VSC/ABS/Trailer Sway

Control systems are operating

The slip indicator will flash while the

TRAC/VSC/ABS/Trailer Sway Con-

trol systems are operating.

■

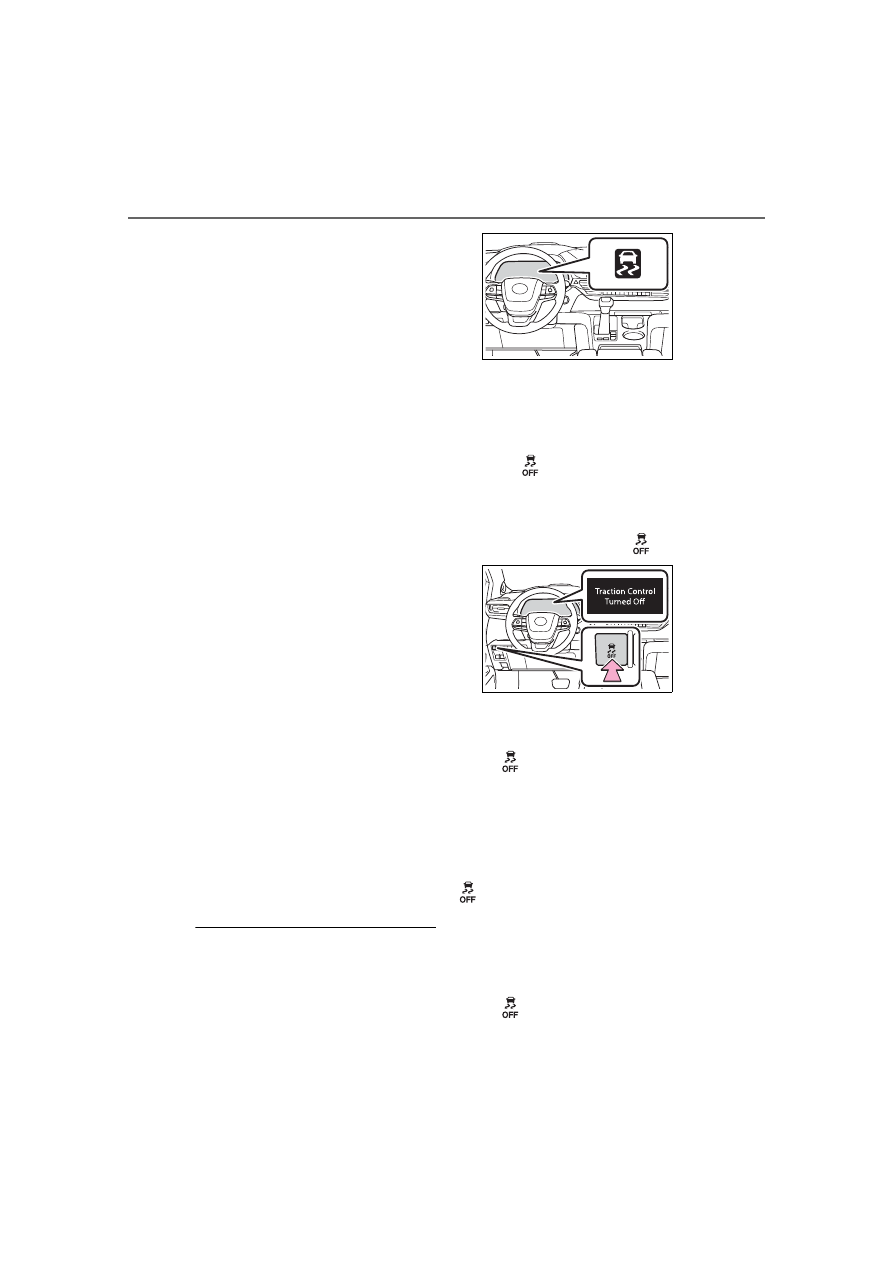

Disabling the TRAC system

If the vehicle gets stuck in mud, dirt

or snow, the TRAC system may

reduce power from the hybrid sys-

tem to the wheels.

Pressing

 to turn the system off

may make it easier for you to rock

the vehicle in order to free it.
To turn the TRAC system off,
quickly press and release

.

“Traction Control Turned Off” will be

shown on the multi-information dis-

play.

Press

 again to turn the system

back on.

■

Turning off the

TRAC/VSC/Trailer Sway Con-

trol systems

To turn the TRAC/VSC/Trailer Sway

Control systems off, press and hold

 for more than 3 seconds while

the vehicle is stopped.
The VSC OFF indicator light will

come on and the “Traction Control

Turned Off” will be shown on the
multi-information display.

*

Press

 again to turn the systems

back on.

337

4-5. Using the driving support systems

4

Dr

iv

ing

*

: PCS will also be disabled (only

Pre-Collision warning is avail-
able). The PCS warning light will
come on and a message will be
displayed on the multi-information
display. (



P.274)

■

When the message is dis-

played on the multi-information

display showing that TRAC has
been disabled even if

 has

not been pressed

TRAC is temporary deactivated. If

the information continues to show,

contact your Toyota dealer.

■

Operating conditions of hill-

start assist control

When the following four conditions

are met, the hill-start assist control

will operate:

●

The shift lever is in a position

other than P or N (when starting

off forward/backward on an

upward incline).

●

The vehicle is stopped.

●

The accelerator pedal is not

depressed.

●

The parking brake is not engaged.

■

Automatic system cancelation

of hill-start assist control

The hill-start assist control will turn

off in any of the following situations:

●

The shift lever is shifted to P or N.

●

The accelerator pedal is

depressed.

●

The parking brake is engaged.

●

2 seconds at maximum elapsed

after the brake pedal is released.

■

Sounds and vibrations caused

by the ABS, brake assist, VSC,

Trailer Sway Control, TRAC and

hill-start assist control systems

●

A sound may be heard from the

engine compartment when the

brake pedal is depressed repeat-

edly, when the hybrid system is

started or just after the vehicle

begins to move. This sound does

not indicate that a malfunction has

occurred in any of these systems.

●

Any of the following conditions

may occur when the above sys-

tems are operating. None of these

indicates that a malfunction has

occurred.

• Vibrations may be felt through the

vehicle body and steering.

• A motor sound may be heard also

after the vehicle comes to a stop.

■

ECB operating sound

ECB operating sound may be heard

in the following cases, but it does

not indicate that a malfunction has

occurred.

●

Operating sound heard from the

engine compartment when the

brake pedal is operated.

●

Motor sound of the brake system

heard from the front part of the

vehicle when the driver’ door is

opened.

●

Operating sound heard from the

engine compartment when one or

two minutes passed after the stop

of the hybrid system.

■

Active Cornering Assist opera-

tion sounds and vibrations

When the Active Cornering Assist is

operated, operation sounds and

vibrations may be generated from

the brake system, but this is not a

malfunction.

■

EPS operation sound

When the steering wheel is oper-

ated, a motor sound (whirring

sound) may be heard. This does not

indicate a malfunction.

■

Automatic reactivation of

TRAC, Trailer Sway Control and

VSC systems

After turning the TRAC, Trailer

Sway Control and VSC systems off,

the systems will be automatically re-

enabled in the following situations:

338

4-5. Using the driving support systems

●

When the power switch is turned

off.

●

If only the TRAC system is turned

off, the TRAC will turn on when

vehicle speed increases.

If both the TRAC and VSC sys-

tems are turned off, automatic re-

enabling will not occur when vehi-

cle speed increases.

■

Operating conditions of Active

Cornering Assist

The system operates when the fol-

lowing occurs.

●

TRAC/VSC can operate

●

The driver is attempting to accel-

erate while turning

●

The system detects that the vehi-

cle is drifting to the outer side

●

The brake pedal is released

■

Reduced effectiveness of the

EPS system

The effectiveness of the EPS sys-

tem is reduced to prevent the sys-

tem from overheating when there is

frequent steering input over an

extended period of time. The steer-

ing wheel may feel heavy as a

result. Should this occur, refrain

from excessive steering input or

stop the vehicle and turn the hybrid

system off. The EPS system should

return to normal within 10 minutes.

■

Secondary Collision Brake

operating conditions

The system operates when the SRS

airbag sensor detects a collision

while the vehicle is in motion. How-

ever, the system does not operate in

any of the following situations.

●

The vehicle speed is below 6 mph

(10 km/h)

●

Components are damaged

■

Secondary Collision Brake

automatic cancellation

The system is automatically can-

celed in any of the following situa-

tions.

●

The vehicle speed drops below

approximately 6 mph (10 km/h)

●

A certain amount of time elapses

during operation

●

The accelerator pedal is

depressed a large amount

■

If a message about AWD is

shown on the multi-information

display (AWD models)

If one of the following messages is

shown on the multi-information dis-

play, perform each action.

●

“AWD System Overheated

Switching to 2WD Mode”

The AWD system is overheating.
Drive the vehicle at low speeds and
stop the vehicle in a safe place with
the hybrid system operating until the
message is cleared. If the message
disappears, it is possible to drive the
vehicle normally.

●

“AWD System Overheated 2WD

Mode Engaged”

The AWD system has been can-
celed and switched to the front-
wheel drive due to overheating.
Drive the vehicle at low speeds and
stop the vehicle in a safe place with
the hybrid system operating until the
message is cleared. If the message
disappears, it is possible to drive the
vehicle normally.

●

“AWD System Malfunction 2WD

Mode Engaged Visit Your Dealer”

The AWD system has been stopped
and switched to the front-wheel
drive due to a malfunction. Have
your vehicle inspected by your
Toyota dealer immediately.

339

4-5. Using the driving support systems

4

Dr

iv

ing

WARNING

■

The ABS does not operate

effectively when

●

The limits of tire gripping perfor-

mance have been exceeded

(such as excessively worn tires

on a snow covered road).

●

The vehicle hydroplanes while

driving at high speed on wet or

slick roads.

■

Stopping distance when the

ABS is operating may exceed

that of normal conditions

The ABS is not designed to

shorten the vehicle’s stopping dis-

tance. Always maintain a safe dis-

tance from the vehicle in front of

you, especially in the following sit-

uations:

●

When driving on dirt, gravel or

snow-covered roads

●

When driving with tire chains

●

When driving over bumps in the

road

●

When driving over roads with

potholes or uneven surfaces

■

TRAC/VSC may not operate

effectively when

Directional control and power may

not be achievable while driving on

slippery road surfaces, even if the

TRAC/VSC system is operating.

Drive the vehicle carefully in con-

ditions where stability and power

may be lost.

■

Active Cornering Assist does

not operate effectively when

●

Do not overly rely on Active

Cornering Assist. Active Corner-

ing Assist may not operate

effectively when accelerating

down slopes or driving on slip-

pery road surfaces.

●

When Active Cornering Assist

frequently operates, Active Cor-

nering Assist may temporarily

stop operating to ensure proper

operation of the brakes, TRAC

and VSC.

■

Hill-start assist control does

not operate effectively when

●

Do not overly rely on hill-start

assist control. Hill-start assist

control may not operate effec-

tively on steep inclines and

roads covered with ice.

●

Unlike the parking brake, hill-

start assist control is not

intended to hold the vehicle sta-

tionary for an extended period

of time. Do not attempt to use

hill-start assist control to hold

the vehicle on an incline, as

doing so may lead to an acci-

dent.

■

When the

TRAC/ABS/VSC/Trailer Sway

Control is activated

The slip indicator flashes. Always

drive carefully. Reckless driving

may cause an accident. Exercise

particular care when the indicator

light flashes.

■

When the TRAC/VSC/Trailer

Sway Control systems are

turned off

Be especially careful and drive at

a speed appropriate to the road

conditions. As these are the sys-

tems to help ensure vehicle stabil-

ity and driving force, do not turn

the TRAC/VSC/Trailer Sway Con-

trol systems off unless necessary.
Trailer Sway Control is part of the

VSC system and will not operate

if VSC is turned off or experiences

a malfunction.

340

4-5. Using the driving support systems

WARNING

■

Replacing tires

Make sure that all tires are of the

specified size, brand, tread pat-

tern and total load capacity. In

addition, make sure that the tires

are inflated to the recommended

tire inflation pressure level.

The ABS, TRAC, Trailer Sway

Control and VSC systems will not

function correctly if different tires

are installed on the vehicle.

Contact your Toyota dealer for

further information when replacing

tires or wheels.

■

Handling of tires and the sus-

pension

Using tires with any kind of prob-

lem or modifying the suspension

will affect the driving assist sys-

tems, and may cause a system to

malfunction.

■

Trailer Sway Control precau-

tion

The Trailer Sway Control system

is not able to reduce trailer sway

in all situations. Depending on

many factors such as the condi-

tions of the vehicle, trailer, road

surface and driving environment,

the Trailer Sway Control system

may not be effective. Refer to

your trailer owner’s manual for

information on how to tow your

trailer properly.

■

If trailer sway occurs

Observe the following precau-

tions.

Failing to do so may cause death

or serious injury.

●

Firmly grip the steering wheel.

Steer straight ahead. Do not try

to control trailer sway by turning

the steering wheel.

●

Begin releasing the accelerator

pedal immediately but very

gradually to reduce speed.

Do not increase speed. Do not

apply vehicle brakes.

If you make no extreme correction
with the steering or brakes, your
vehicle and trailer should stabi-
lize. (



P.220)

■

Secondary Collision Brake

Do not rely solely upon the Sec-

ondary Collision Brake. This sys-

tem is designed to help reduce

the possibility of further damage

due to a secondary collision, how-

ever, that effect changes accord-

ing to various conditions. Overly

relying on the system may result

in death or serious injury.

341

4-6. Driving tips

4

Dr

iv

ing

4-6.Driving tips

When using Eco drive mode, the
torque corresponding to the
accelerator pedal depression
amount can be generated more
smoothly than it is in normal
conditions. In addition, the oper-
ation of the air conditioning sys-
tem (heating/cooling) will be
minimized, improving the fuel
economy. (



P.333)

The Eco-friendly driving is pos-
sible by keeping the indicator of
Hybrid System Indicator within
Eco area. (



P.98, 102)

Shift the shift lever to D when
stopped at a traffic light, or driv-
ing in heavy traffic etc. Shift the
shift lever to P when parking.
When using the N position,
there is no positive effect on fuel
consumption. In the N position,
the gasoline engine operates

but electricity cannot be gener-
ated. Also, when using the air
conditioning system, etc., the
hybrid battery (traction battery)
power is consumed.



Drive your vehicle smoothly.
Avoid abrupt acceleration and
deceleration. Gradual accel-
eration and deceleration will
make more effective use of
the electric motor (traction
motor) without having to use
gasoline engine power.



Avoid repeated acceleration.
Repeated acceleration con-
sumes hybrid battery (trac-
tion battery) power, resulting
in poor fuel consumption. Bat-
tery power can be restored by
driving with the accelerator
pedal slightly released.

Make sure to operate the brakes
gently and in a timely manner. A
greater amount of electrical
energy can be regenerated
when slowing down.

Repeated acceleration and
deceleration, as well as long
waits at traffic lights, will lead to
bad fuel economy. Check traffic

Hybrid vehicle driving

tips

For economical and ecolog-
ical driving, pay attention to
the following points:

Using Eco drive mode

Use of Hybrid System
Indicator

Changing the shift posi-
tion

Accelerator pedal/brake
pedal operation

When braking

Delays

342

4-6. Driving tips

reports before leaving and avoid
delays as much as possible.
When driving in a traffic jam,
gently release the brake pedal
to allow the vehicle to move for-
ward slightly while avoiding
overuse of the accelerator
pedal. Doing so can help control
excessive gasoline consump-
tion.

Control and maintain the vehicle
at a constant speed. Before
stopping at a toll booth or simi-
lar, allow plenty of time to
release the accelerator and gen-
tly apply the brakes. A greater
amount of electrical energy can
be regenerated when slowing
down.

Use the air conditioning only
when necessary. Doing so can
help reduce excessive gasoline
consumption.
In summer: When the ambient
temperature is high, use the
recirculated air mode. Doing so
will help to reduce the burden on
the air conditioning system and
reduce fuel consumption as
well.
In winter: Because the gasoline
engine will not automatically cut
out until it and the interior of the
vehicle are warm, it will con-

sume fuel. Also, fuel consump-
tion can be improved by
avoiding overuse of the heater.

Make sure to check the tire infla-
tion pressure frequently.
Improper tire inflation pressure
can cause poor fuel economy.
Also, as snow tires can cause
large amounts of friction, their
use on dry roads can lead to
poor fuel economy. Use tires
that are appropriate for the sea-
son.

Carrying heavy luggage will lead
to poor fuel economy. Avoid car-
rying unnecessary luggage.
Installing a large roof rack will
also cause poor fuel economy.

Since the gasoline engine starts
up and cuts out automatically
when cold, warming up the
engine is unnecessary. More-
over, frequently driving short
distances will cause the engine
to repeatedly warm up, which
can lead to excess fuel con-
sumption.

Highway driving

Air conditioning

Checking tire inflation
pressure

Luggage

Warming up before driv-
ing

343

4-6. Driving tips

4

Dr

iv

ing



Use fluids that are appropriate
to the prevailing outside tem-
peratures.

• Engine oil
• Engine coolant
• Power control unit coolant
• Washer fluid



Have a service technician
inspect the condition of the
12-volt battery.



Have the vehicle fitted with
four snow tires or purchase a
set of tire chains for the front
tires.

*

Ensure that all tires are the same
size and brand, and that chains
match the size of the tires.

*

: Tire chains cannot be mounted

on vehicles with 20-inch tires.

Winter driving tips

Carry out the necessary
preparations and inspec-
tions before driving the
vehicle in winter. Always
drive the vehicle in a man-
ner appropriate to the pre-
vailing weather conditions.

Pre-winter preparations

WARNING

■

Driving with snow tires

Observe the following precautions

to reduce the risk of accidents.

Failure to do so may result in a

loss of vehicle control and cause

death or serious injury.

●

Use tires of the specified size.

●

Maintain the recommended

level of air pressure.

●

Do not drive in excess of 75

mph (120 km/h), regardless of

the type of snow tires being

used.

●

Use snow tires on all, not just

some wheels.

■

Driving with tire chains (vehi-

cles with 17-inch or 18-inch

tires)

Observe the following precautions

to reduce the risk of accidents.

Failure to do so may result in the

vehicle being unable to be driven

safely, and may cause death or

serious injury.

●

Do not drive in excess of the

speed limit specified for the tire

chains being used, or 30 mph

(50 km/h), whichever is lower.

●

Avoid driving on bumpy road

surfaces or over potholes.

●

Avoid sudden acceleration,

abrupt steering, sudden brak-

ing and shifting operations that

cause sudden engine braking.

●

Slow down sufficiently before

entering a curve to ensure that

vehicle control is maintained.

●

Do not use LTA (Lane Tracing

Assist) system.

344

4-6. Driving tips

Perform the following according
to the driving conditions:



Do not try to forcibly open a
window or move a wiper that
is frozen. Pour warm water
over the frozen area to melt
the ice. Wipe away the water
immediately to prevent it from
freezing.



To ensure proper operation of
the climate control system
fan, remove any snow that
has accumulated on the air
inlet vents in front of the wind-
shield.



Check for and remove any
excess ice or snow that may
have accumulated on the
exterior lights, vehicle’s roof,
chassis, around the tires or on
the brakes.



Remove any snow or mud
from the bottom of your shoes
before getting in the vehicle.

Accelerate the vehicle slowly,
keep a safe distance between
you and the vehicle ahead, and
drive at a reduced speed suit-
able to road conditions.



Park the vehicle and move
the shift lever to P without set-
ting the parking brake. The
parking brake may freeze up,
preventing it from being
released. If the vehicle is
parked without setting the
parking brake, make sure to
block the wheels.
Failure to do so may be dan-
gerous because it may cause
the vehicle to move unexpect-
edly, possibly leading to an
accident.
When the parking brake is in
automatic mode, release the
parking brake after shifting
the shift lever to P. (



P.243)



If the vehicle is left parked
with the brakes damp in cold
temperatures, there is a pos-
sibility of the brakes freezing.



If the vehicle is parked without
setting the parking brake,
confirm that the shift lever
cannot be moved out of P

*

.

*

: The shift lever will be locked if it is

attempted to be shifted from P to
any other position without

NOTICE

■

Repairing or replacing snow

tires

Request repairs or replacement of

snow tires from your Toyota

dealer or legitimate tire retailers.

This is because the removal and

attachment of snow tires affects

the operation of the tire pressure

warning valves and transmitters.

Before driving the vehicle

When driving the vehicle

When parking the vehicle

345

4-6. Driving tips

4

Dr

iv

ing

depressing the brake pedal. If the
shift lever can be shifted from P,
there may be a problem with the
shift lock system. Have the vehi-
cle inspected by your Toyota
dealer immediately.



Vehicles with 17-inch or 18-
inch tires

Use the tire chains of correct
size and type.
Use SAE Class “S” type radial
tire chains, with the exception of
radial cable chains or V-bar type
chains.



Vehicles with 20-inch tires

Tire chains cannot be mounted.
Snow tires should be used
instead.

Regulations regarding the use
of tire chains vary depending on
location and type of road.
Always check local regulations
before installing chains.

■

Tire chain installation

Observe the following precautions

when installing and removing

chains:

●

Install and remove tire chains in a

safe location.

●

Install tire chains on the front tires

only. Do not install tire chains on

the rear tires.

●

Install tire chains on front tires as

tightly as possible. Retighten

chains after driving 1/4 - 1/2 mile

(0.5 - 1.0 km).

●

Install tire chains following the

instructions provided with the tire

chains.

WARNING

■

When parking the vehicle

When parking the vehicle without

applying the parking brake, make

sure to chock the wheels. If you

do not chock the wheels, the vehi-

cle may move unexpectedly, pos-

sibly resulting in an accident.

Selecting tire chains

Regulations on the use of
tire chains (vehicles with
17-inch or 18-inch tires)

NOTICE

■

Fitting tire chains

The tire pressure warning valves

and transmitters may not function

correctly when tire chains are fit-

ted.

346

4-6. Driving tips

347

5

5

Interior

 featur

es

Interior features

5-1. Using the air conditioning

system and defogger

Front automatic air condi-

tioning system ...........

348

Rear automatic air condi-

tioning system ...........

358

Heated steering wheel/seat

heaters/seat ventilators

..................................

361

5-2. Using the interior lights

Interior lights list ..........

363

5-3. Using the storage features

List of storage features

366

Luggage compartment fea-

tures ..........................

372

5-4. Using the other interior

features

Other interior features .

374

Garage door opener....

392

348

5-1. Using the air conditioning system and defogger

5-1.Using the air conditioning system and defogger

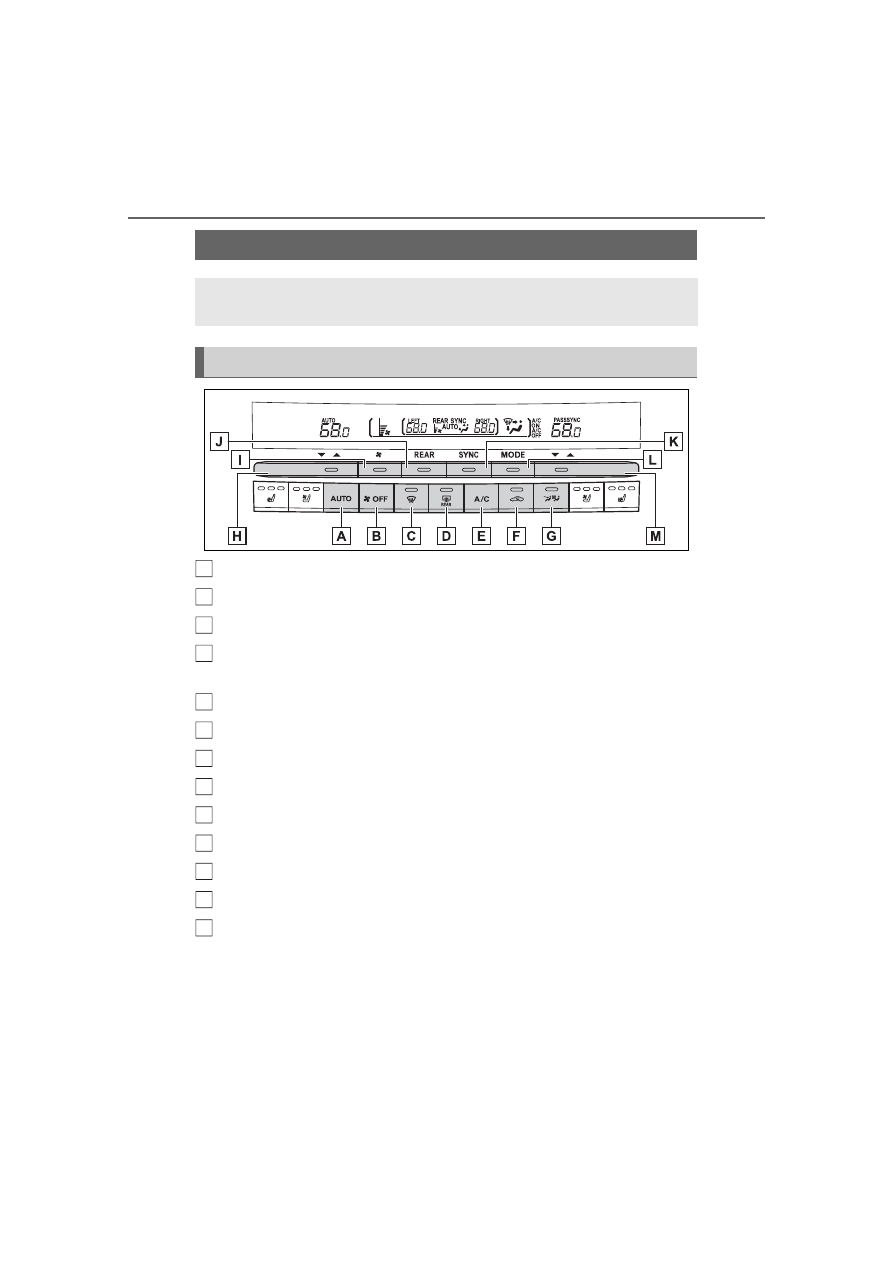

“AUTO” switch (automatic mode)

“OFF” switch

Windshield defogger switch

Rear window defogger/outside rear view mirror defoggers/wind-
shield wiper de-icer switch

“A/C” switch

Outside/recirculated air mode switch

S-FLOW mode switch

Left-hand side temperature control switch

Fan speed control switch

“REAR” switch

“SYNC” switch

Airflow mode control switch

Right-hand side temperature control switch

■

Adjusting the temperature
setting

Operate the each side tempera-
ture control switch upwards to

increase the each side tempera-
ture and operate the switch
downwards to decrease the
each side temperature.

Front automatic air conditioning system

Air outlets and fan speed are automatically adjusted accord-
ing to the temperature setting.

Air conditioning controls

A

B

C

D

E

F

G

H

I

J

K

L

M

349

5-1. Using the air conditioning system and defogger

5

Interior

 featur

es

The air conditioning system
switches between individual and
synchronous modes each time the
“SYNC” switch is operated.
(



P.355)

■

Setting the fan speed

Operate the fan speed control
switch upwards to increase the
fan speed and downwards to
decrease the fan speed.

Pressing the “OFF” switch turns off
the fan.

■

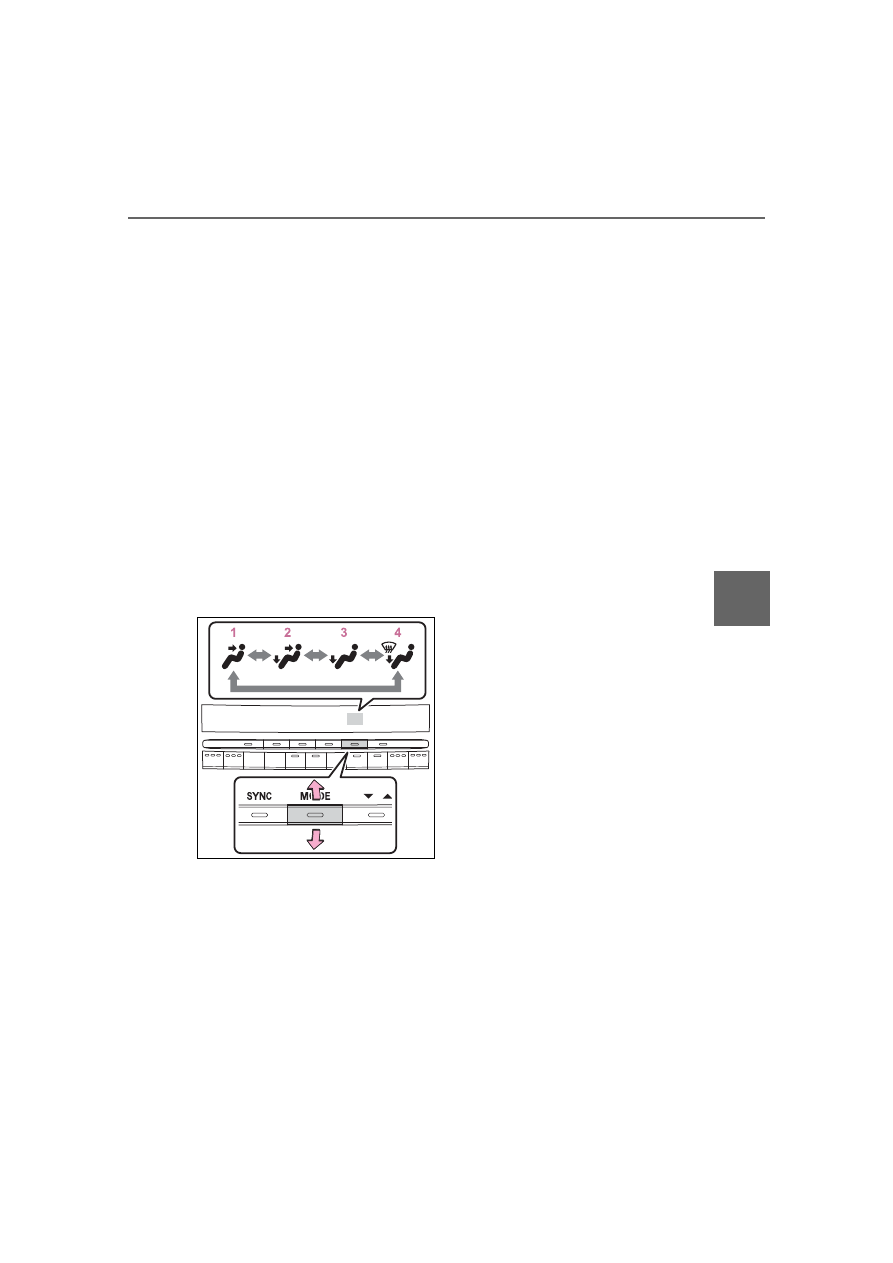

Change the airflow mode

Operate the airflow mode con-
trol switch.

The airflow mode changes as fol-
lows each time the switch is oper-
ated.

1

Upper body

2

Upper body and feet

3

Feet

4

Feet and the windshield
defogger operates

■

Switching between outside
air and recirculated air
modes

Press the outside/recirculated
air mode switch.

The mode switches between out-
side air mode and recirculated air
mode each time the switch is oper-
ated.
When recirculated air mode is
selected, the indicator illuminates
on the outside/recirculated air
mode switch.

■

Set cooling and dehumidifi-
cation function

Press the “A/C” switch.

When the function is on, the “A/C
ON” display on the front air condi-
tioning operation panel appears.

■

Defogging the windshield

Defoggers are used to defog the
windshield and front side win-
dows.
Press the windshield defogger
switch.

Set the outside/recirculated air
mode switch to outside air mode if
the recirculated air mode is used. (It
may switch automatically.)
To defog the windshield and the
side windows quickly, turn the air
flow and temperature up.
To return to the previous mode,
press the windshield defogger
switch again when the windshield is
defogged.
When the windshield defogger
switch is on, the indicator illumi-
nates on the windshield defogger

350

5-1. Using the air conditioning system and defogger

switch.

■

Defogging the rear window
and outside rear view mir-
rors (if equipped), and de-
icing windshield wipers (if
equipped)

Defoggers are used to defog the
rear window and to remove rain-
drops, dew and frost from the
outside rear view mirrors (if
equipped).
The windshield wiper de-icer is
used to prevent ice from building
up on the windshield and wiper
blades.
Press the rear window defog-
ger/outside rear view mirror
defoggers /windshield wiper de-
icer switch.

The defoggers and windshield
wiper de-icer will automatically turn
off after 15 minutes.
When the rear window defog-
ger/outside rear view mirror defog-
gers /windshield wiper de-icer
switch is on, the indicator illumi-
nates on the switch.

■

Eco air conditioning mode

The air conditioning is controlled
with low fuel consumption priori-
tized such as reducing fan
speed, etc.
Select the eco air conditioning
mode switch on the control
screen. (



P.352)

When the eco air conditioning
mode is on, the indicator illumi-
nates on the eco air conditioning

mode switch.

■

Fogging up of the windows

●

The windows will easily fog up

when the humidity in the vehicle is

high. Turning “A/C” switch on will

dehumidify the air from the outlets

and defog the windshield effec-

tively.

●

If you turn “A/C” switch off, the

windows may fog up more easily.

●

The windows may fog up if the

recirculated air mode is used.

■

When driving on dusty roads

Close all windows. If dust thrown up

by the vehicle is still drawn into the

vehicle after closing the windows, it

is recommended that the air intake

mode be set to outside air mode

and the fan speed to any setting

except off.

■

Outside/recirculated air mode

●

Setting to the recirculated air

mode temporarily is recom-

mended in preventing dirty air

from entering the vehicle interior

and helping to cool the vehicle

when the outside air temperature

is high.

●

Outside/recirculated air mode may

automatically switch depending on

the temperature setting or the

inside temperature.

■

When the outside temperature

exceeds 75°F (24°C) and the air

conditioning system is on

●

In order to reduce the air condi-

tioning power consumption, the air

conditioning system may switch to

recirculated air mode automati-

cally. This may also reduce fuel

consumption.

●

Recirculated air mode is selected

as a default mode when the power

switch is turned to ON.

●

It is possible to switch to outside

air mode at any time by pressing

the outside/recirculated air mode

351

5-1. Using the air conditioning system and defogger

5

Interior

 featur

es

switch.

■

Operation of the air condition-

ing system in Eco drive mode

●

In Eco drive mode, the air condi-

tioning system is controlled as fol-

lows to prioritize fuel efficiency:

• Engine speed and compressor

operation controlled to restrict

heating/cooling capacity

• Fan speed restricted when auto-

matic mode is selected

●

To improve air conditioning perfor-

mance, perform the following

operations:

• Adjust the fan speed

• Turn off Eco drive mode (



P.333)

• Turn off Eco air conditioning mode

●

When the driving mode is set to

Eco driving mode, the Eco air con-

ditioning mode will be turned on

automatically. Even in this case,

the Eco air conditioning mode can

be turned off by pressing the Eco

air conditioning mode switch.

■

When the outside temperature

falls to nearly 32°F (0°C)

The dehumidification function may

not operate even when “A/C” switch

is pressed.

■

Ventilation and air conditioning

odors

●

To let fresh air in, set the air condi-

tioning system to the outside air

mode.

●

During use, various odors from

inside and outside the vehicle may

enter into and accumulate in the

air conditioning system. This may

then cause odor to be emitted

from the vents.

●

To reduce potential odors from

occurring:

• It is recommended that the air

conditioning system be set to out-

side air mode prior to turning the

vehicle off.

• The start timing of the blower may

be delayed for a short period of

time immediately after the air con-

ditioning system is started in auto-

matic mode.

●

When parking, the system auto-

matically switches to outside air

mode to encourage better air cir-

culation throughout the vehicle,

helping to reduce odors that occur

when starting the vehicle.

■

Air conditioning filter



P.441

■

Air conditioning system refrig-

erant

●

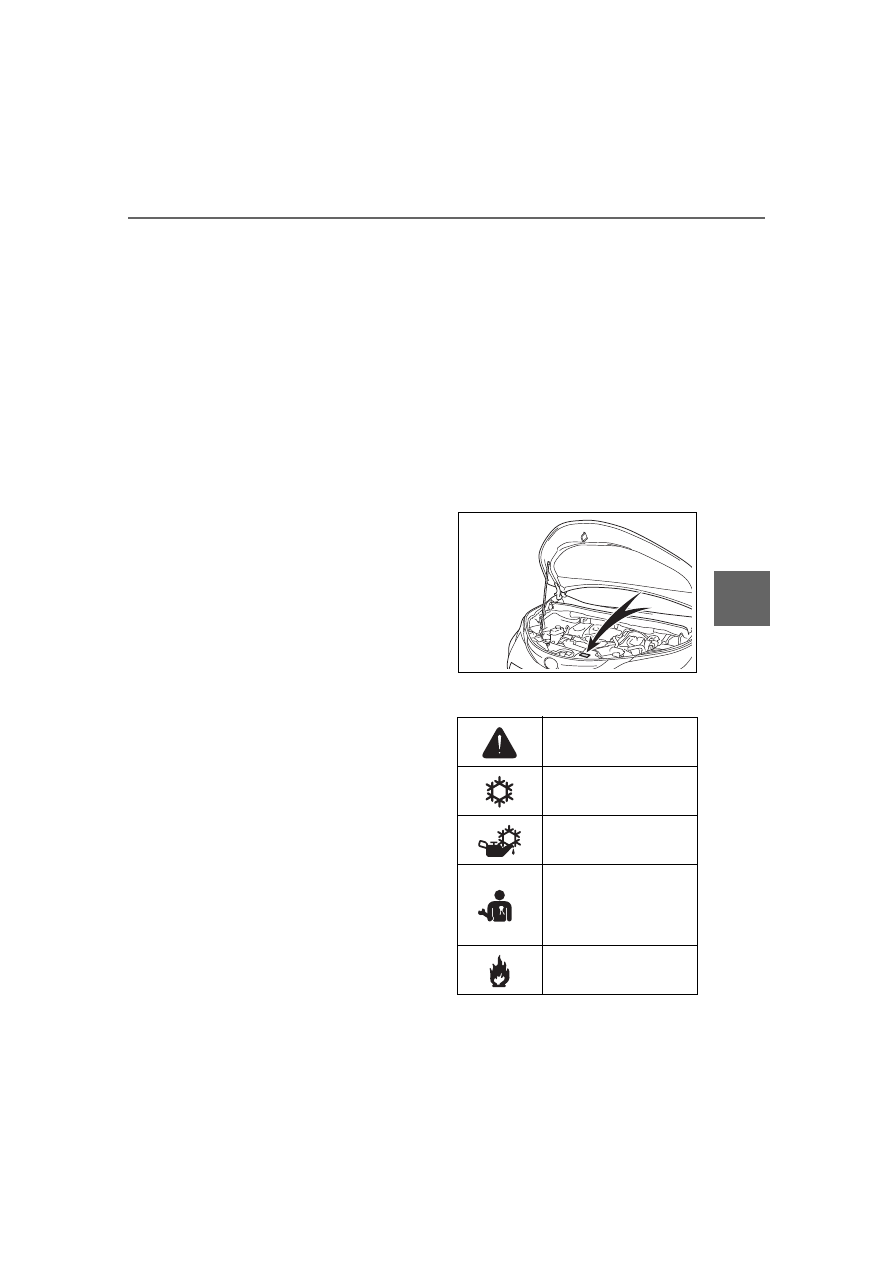

A label regarding the refrigerant of

the air conditioning system is

attached to the hood at the loca-

tion shown in the following illustra-

tion.

●

The meaning of each symbol on

the label are as follows:

■

Customization

Some functions can be customized.

Caution

Air conditioning sys-
tem

Air conditioning sys-
tem lubricant type

Requires registered
technician to service
air conditioning sys-
tem

Flammable refrigerant

352

5-1. Using the air conditioning system and defogger

(Customizable features:



P.551)

■

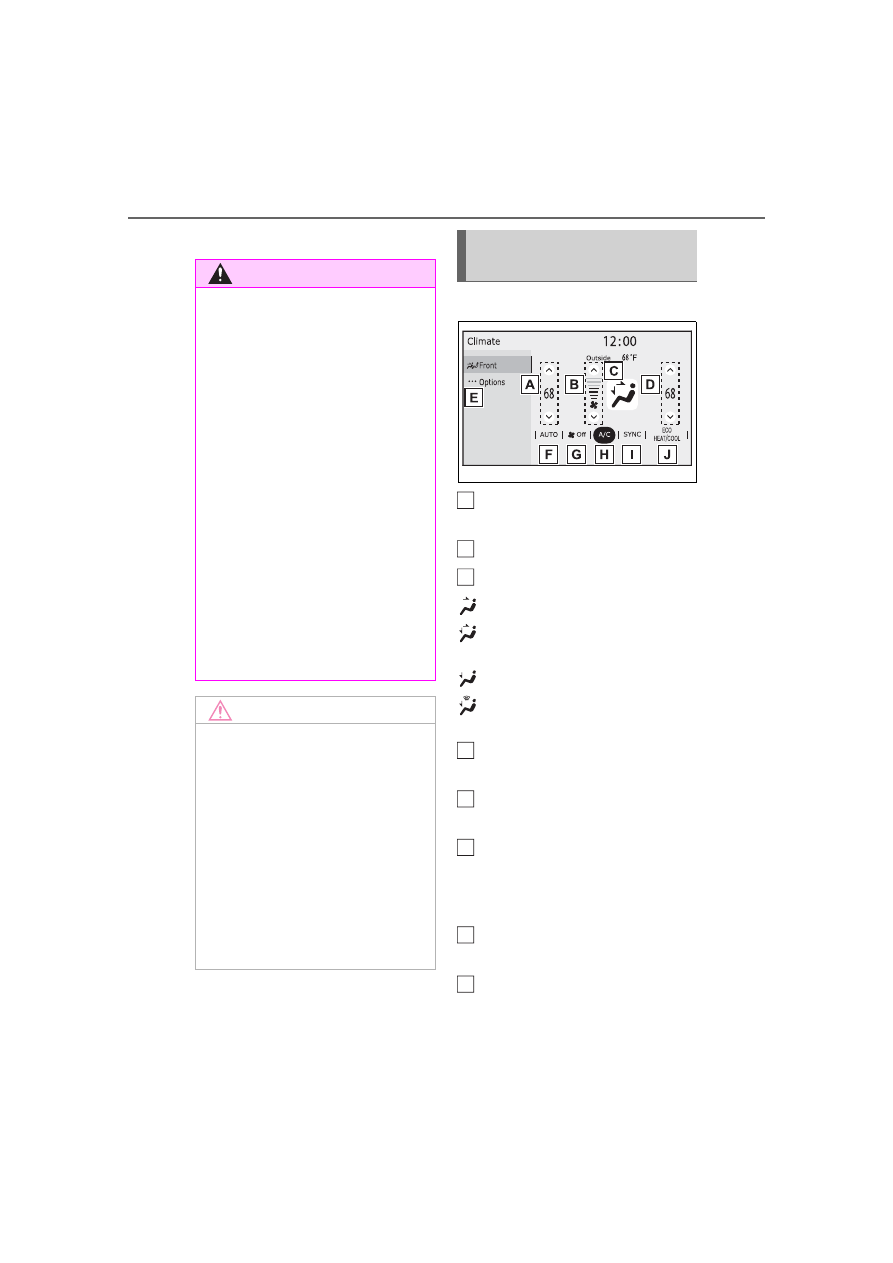

Main control screen

Adjust the left side seat tem-
perature setting

Adjust the fan speed setting

Select the air flow mode

: Air flows to the upper body

: Air flows to the upper body and

feet

: Air flows to the feet

: Air flows to the feet and the

windshield defogger operates

Adjust the right side seat
temperature setting

Display the option control
screen. (



P.353)

“AUTO” switch (automatic
mode)

Set automatic mode on/off
(



P.353)

“OFF” switch

Turn the fan off

Set cooling and dehumidifi-
cation function

If “A/C” switch is not pressed, the

WARNING

■

To prevent the windshield

from fogging up

Do not use the windshield defog-

ger switch during cool air opera-

tion in extremely humid weather.

The difference between the tem-

perature of the outside air and

that of the windshield can cause

the outer surface of the wind-

shield to fog up, blocking your

vision.

■

To prevent burns

●

Vehicles with outside rear view

mirror defoggers: Do not touch

the outside rear view mirror sur-

faces, as they can become very

hot and burn you.

●

Vehicles with windshield wiper

deicer: Do not touch the glass at

lower part of the windshield or

to the side of the front pillars

when the windshield wiper de-

icer is on.

NOTICE

■

To prevent 12-volt battery dis-

charge

Do not leave the air conditioning

system on longer than necessary

when the hybrid system is off.

■

When repairing/replacing

parts of the air conditioning

system

Have repair/replacement per-

formed by your Toyota dealer.

When a part of the air condition-

ing system, such as the evapora-

tor, is to be replaced, it must be

replaced with a new one.

Front air conditioning
control screen

A

B

C

D

E

F

G

H

353

5-1. Using the air conditioning system and defogger

5

Interior

 featur

es

system will blow ambient tempera-
ture air or heated air.

“SYNC” switch (



P.355)

Vehicles with “3-ZONE” mode: If
the indicator on the “SYNC” switch
is off, the temperature for the driver,
front passenger and rear seats can
be adjusted separately.
Vehicles with “4-ZONE” mode: The
temperature for the driver, front
passenger, left-hand side rear
seats and right-hand side rear
seats can be adjusted separately.

Set eco air conditioning
mode

The air conditioning is controlled
with low fuel consumption priori-
tized such as reducing fan speed,
etc.

■

Option control screen

Select “Options” to display the
option control screen.

The functions can be switched on
and off.
When the function is on, the indica-
tor illuminates on the screen.

“SYNC” switch (



P.355)

Vehicles with “3-ZONE” mode: If
the indicator on the “SYNC” switch
is off, the temperature for the driver,
passenger and rear seats can be

adjusted separately.
Vehicles with “4-ZONE” mode: The
temperature for the driver, front
passenger, left-hand side rear
seats and right-hand side rear
seats can be adjusted separately.

Set cooling and dehumidifi-
cation function

If “A/C” switch is not pressed, the
system will blow ambient tempera-
ture air or heated air.

Set eco air conditioning
mode

The air conditioning is controlled
with low fuel consumption priori-
tized such as reducing fan speed,
etc.

1

Press the “AUTO” switch on
the air conditioning operation
panel or select the “AUTO”
switch on the control screen.

The dehumidification function

begins to operate. Air outlets and

fan speed are automatically

adjusted according to the tempera-

ture setting and humidity.

2

Adjust the temperature set-
ting.

3

To stop the operation, press
the “OFF” switch on the air
conditioning operation panel
or select the “OFF” switch on
the control screen.

If the fan speed setting or air
flow modes are operated, the
automatic mode indicator goes
off. However, automatic mode

I

J

A

Using automatic mode

B

C

354

5-1. Using the air conditioning system and defogger

for functions other than that
operated is maintained.

■

Using automatic mode

Fan speed is adjusted automati-

cally according to the temperature

setting and the ambient conditions.
Therefore, the fan may stop for a

while until warm or cool air is ready

to flow immediately after the auto-

matic mode switch is pressed.

This function automatically con-
trols the air conditioning airflow
so that priority is given to the
front seats. When the front pas-
senger seat is not occupied, air-
flow may switch to only the
driver’s seat. Unnecessary air
conditioning is suppressed, con-
tributing to increased fuel effi-
ciency.
Front seat concentrated airflow
mode operates in the following
situations.



No passengers are detected
in the rear seats



The windshield defogger is
not operating

While operating,

 illumi-

nates.

■

Manually turning front seat
concentrated airflow mode
on/off

In front seat concentrated air-
flow mode, directing airflow to

the front seats only and to all
seats can be switched via switch
operation. When the mode has
been switched manually, auto-
matic airflow control stops oper-
ating.

Press

 on the air condition-

ing operation panel and switch
the airflow.



Indicator illuminated: Airflow
to the front seats only



Indicator off: Airflow to all the
seats

■

Operation of automatic airflow

control

●

In order to maintain a comfortable

interior, airflow may be directed to

seats without passengers immedi-

ately after the hybrid system is

started and at other times depend-

ing on the outside temperature.

●

After the hybrid system is started,

if passengers move around inside

or enter/exit the vehicle, the sys-

tem cannot accurately detect the

presence of passengers and auto-

matic airflow control will not oper-

ate.

■

Operation of manual airflow

control

Even if the function is manually

switched to directing airflow to only

the front seats, when a rear seat is

occupied, it may automatically direct

airflow to all seats.

■

To return to automatic airflow

control

1

With the indicator off, turn the

power switch off.

2

After 60 minutes or more elapse,

turn the power switch to ON.

Front seat concentrated
airflow mode (S-FLOW)

355

5-1. Using the air conditioning system and defogger

5

Interior

 featur

es

The air conditioning system can
be switched between the indi-
vidual and synchronous modes.
The mode switches each time
the “SYNC” switch is operated
on the air conditioning operation
panel or the “SYNC” is selected
on the control screen.



Vehicles with “3-ZONE” mode



In the individual mode, the
temperature for the driver,
front passenger, and rear
seats can be adjusted sepa-
rately.



In the synchronous mode, the
driver’s side temperature con-
trol switch can be used to
adjust the temperature for the
driver, front passenger, and
rear seats.

• To adjust the temperature for the

front passenger seat separately
from other seats: operate the
front passenger’s side tempera-
ture control switch. (The “SYNC”
of “PASSSYNC” display disap-
pears)

• To adjust the temperature for the

rear seats separately from the
front seats: when the synchro-
nous mode is on, operate the
“REAR” switch. Then, operate the
driver’s side or front passenger’s
side temperature control switch
upwards to increase the rear
seats temperature and down-

wards to decrease the rear seats
temperature. (The “SYNC” of
“REAR SYNC” display on the
front air conditioning operation
panel and “SYNC” display on the
rear air conditioning operation
panel disappear)



Vehicles with “4-ZONE” mode



In the individual mode, the
temperature for the driver,
front passenger, left-hand
side rear seats, and right-
hand side rear seats can be
adjusted separately by the
corresponding temperature
control switch on the front and
rear air conditioning operation
panels.



In the synchronous mode, the
driver’s side temperature con-
trol switch can be used to
adjust the temperature for the
driver, front passenger, left-
hand side rear seats, and
right-hand side rear seats.

• To adjust the temperature for the

front passenger seat separately
from other seats: operate the
front passenger’s side tempera-
ture control switch. (The “SYNC”
of “PASSSYNC” display disap-
pears)

• To adjust the temperature for the

rear seats separately from the
front seats: when the synchro-
nous mode is on, operate the
“REAR” switch. Then, operate the
driver’s side temperature control
switch upwards to increase the
rear seats temperature and
downwards to decrease the rear

Switching between the
individual and synchro-
nous modes

356

5-1. Using the air conditioning system and defogger

seats temperature. (The “SYNC”
of “REAR SYNC” display on the
front air conditioning operation
panel disappears)
To adjust the temperature for the
right-hand side rear seats sepa-
rately from the left-hand side rear
seats, operate the passenger’s
side temperature control switch.
(The “SYNC” of “RIGHT SYNC”
display on the rear air condition-
ing operation panel disappears)

• To adjust the temperature for the

driver’s seat and passenger’s
seat separately from the rear
seats: when the synchronous
mode is on, operate the passen-
ger’s side temperature control
switch to adjust the front passen-
ger’s seat temperature. Then
operate the “REAR” switch, and
operate the driver’s side tempera-
ture control switch to adjust the
rear seats temperature. (The
“SYNC” of “REAR SYNC” display
and the “SYNC” of “PASSSYNC”
display on the front air condition-
ing operation panel disappear)
To adjust the temperature for the
driver’s seat, operate the “REAR”
switch again and operate driver’s
side temperature switch.

Operate the “REAR” switch.

The modes between the rear air
conditioning system and the front
air conditioning system switches
each time the “REAR” switch is
operated.
The air conditioning system

switches between individual and
synchronous modes each time the
“SYNC” switch is operated.
(



P.355)

If the system is left untouched for
approximately 6 seconds after
changing to the rear air condition-
ing system, the control mode in the
front control panel returns to the
front.



Adjusting the temperature
setting



Vehicles with “3-ZONE” mode

Operate the driver’s or passen-
ger’s side temperature control
switch upwards to increase the
temperature and operate the
switch downwards to decrease
the temperature.



Vehicles with “4-ZONE” mode

Operate the passenger’s side
temperature control switch to
adjust the right-hand rear seats
temperature, and operate the
driver’s side temperature control
switch to adjust the left-hand
side rear seats temperature.
Operate the temperature con-
trol switch upwards to increase
the temperature and operate the
switch downwards to decrease
the temperature.



Fan speed setting

Operate the fan speed control
switch upwards to increase the fan
speed and downwards to decrease
the fan speed.
Touch the “OFF” switch to turn the
fan off.

Changing the rear seat
settings (if equipped)

357

5-1. Using the air conditioning system and defogger

5

Interior

 featur

es



Change the airflow mode

Operate the airflow mode control
switch.
The airflow mode changes each
time the switch is operated.
(



P.359)



Using automatic mode

Press the “AUTO” switch. (



P.359)

■

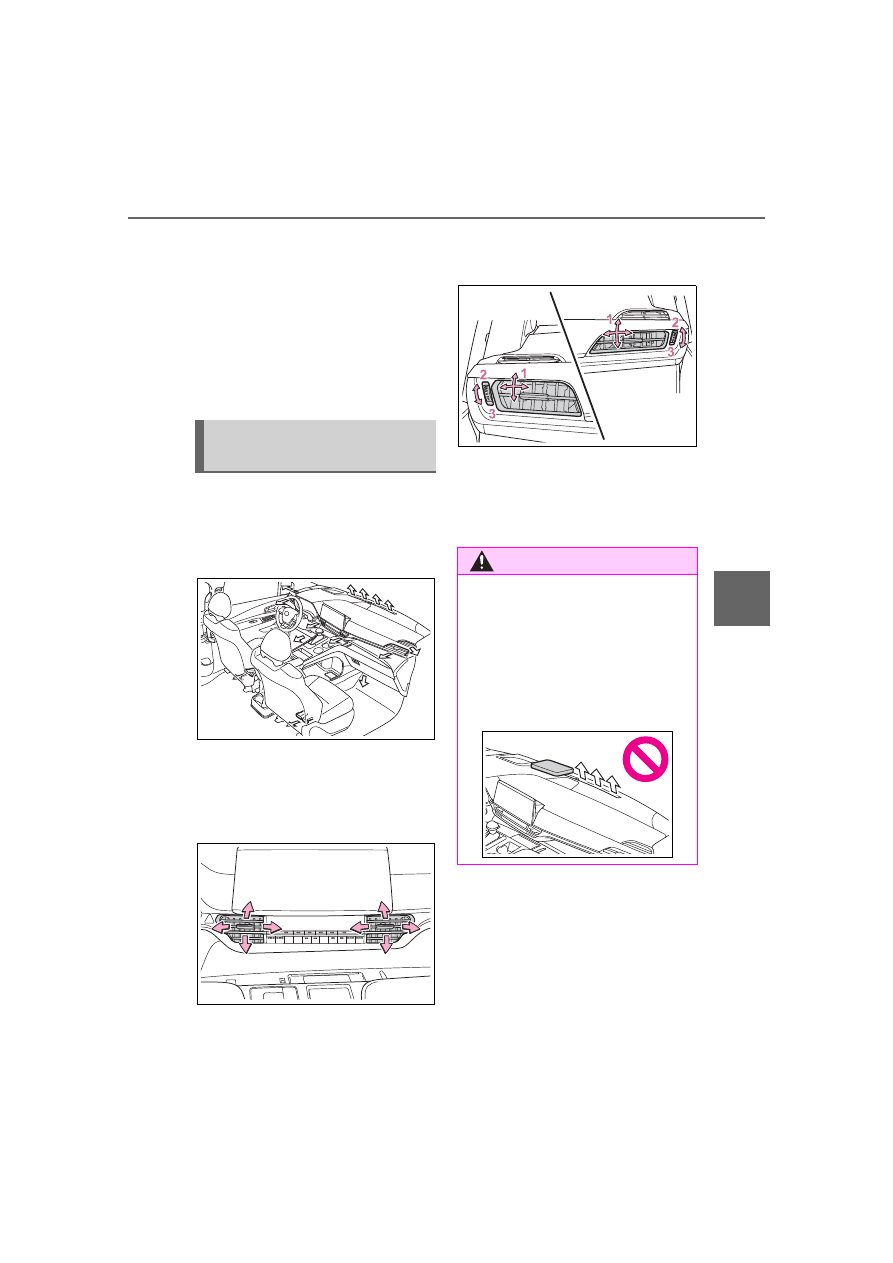

Location of air outlets

The air outlets and air volume
change according to the
selected air flow mode.

■

Adjusting the air flow direc-
tion and opening/closing
the air outlets



Front center outlets

Direct air flow to the left or right,

up or down



Front side outlets

1

Direct air flow to the left or
right, up or down

2

Open the vent

3

Close the vent

Air outlet layout and oper-
ations

WARNING

■

To not interrupt the wind-

shield defogger from operat-

ing

Do not place anything on the

instrument panel which may cover

the air outlets. Otherwise, air flow

may be obstructed, preventing the

windshield defoggers from defog-

ging.

358

5-1. Using the air conditioning system and defogger

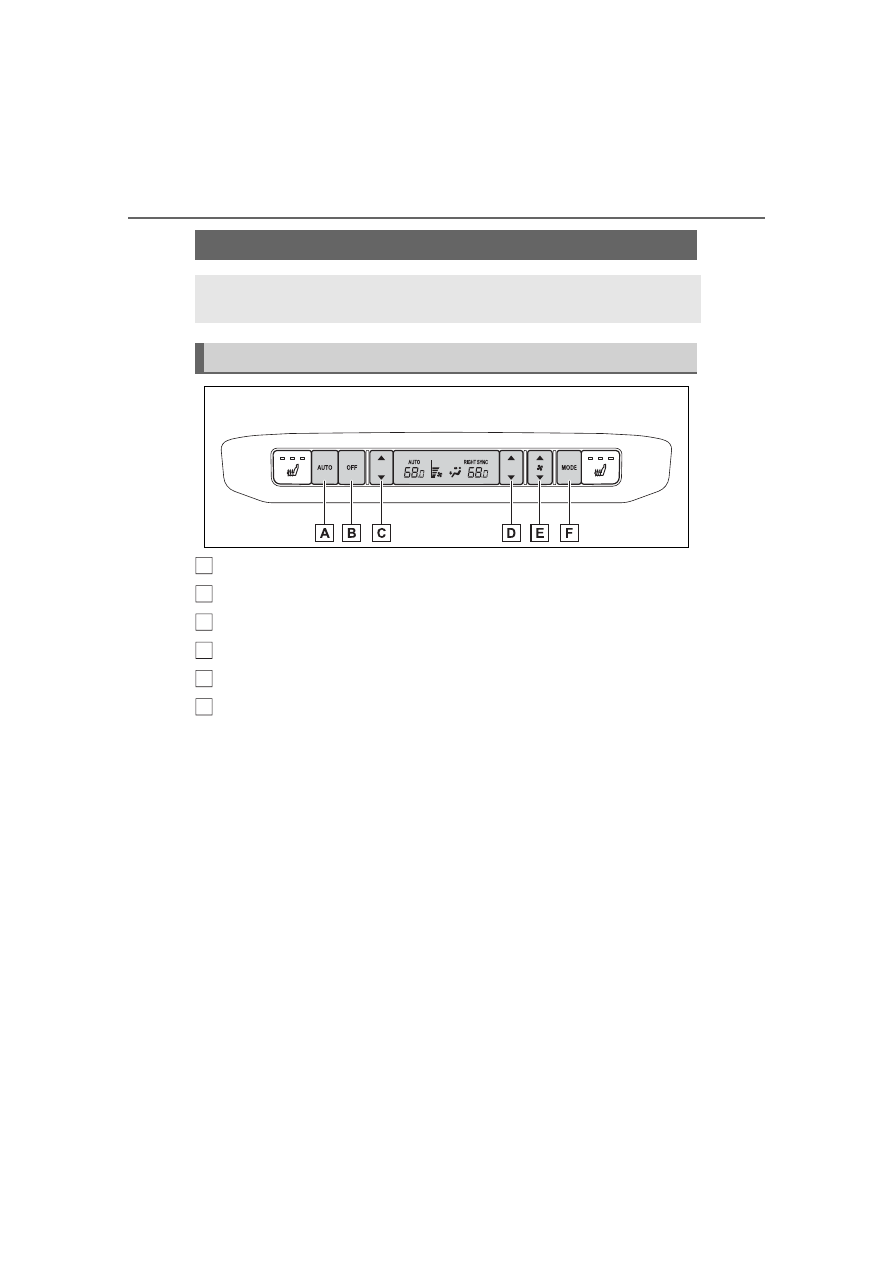

“AUTO” switch (automatic mode)

“OFF” switch

Left-hand side temperature control switch

Right-hand side temperature control switch (if equipped)

Fan speed control switch

Airflow mode control switch

■

Adjusting the temperature
setting



Vehicles with “3-ZONE” mode

In the individual mode, operate
the temperature control switch
upwards to increase the rear
seats temperature and down-
wards to decrease the rear
seats temperature.
To change to the synchronous
mode from the individual mode,
press the “OFF” switch and then
press the “AUTO” switch.



Vehicles with “4-ZONE” mode

To adjust the temperature for
the left-hand side rear seats and
right-hand side rear seats
together, operate the rear left-
hand side temperature control
switch upwards to increase the
temperature and downwards to
decrease the temperature.
To adjust the temperature for
the right-hand side rear seats
separately from the left-hand
side rear seats, operate the
right-hand side temperature
control switch. Then, operate

Rear automatic air conditioning system

Air outlets and fan speed are automatically adjusted accord-
ing to the temperature setting.

Air conditioning controls

A

B

C

D

E

F

359

5-1. Using the air conditioning system and defogger

5

Interior

 featur

es

the left-hand side temperature
control switch to adjust the left-
hand rear seats. (The “SYNC” of
“RIGHT SYNC” display on the
rear air conditioning operation
panel disappears)
To change to the synchronous
mode from the individual mode,
press the “OFF” switch and then
press the “AUTO” switch.

■

Adjusting the fan speed set-
ting

Operate the fan speed control
switch upwards to increase the
fan speed and downwards to
decrease the fan speed.

Press the “OFF” switch to turn off
the fan.

■

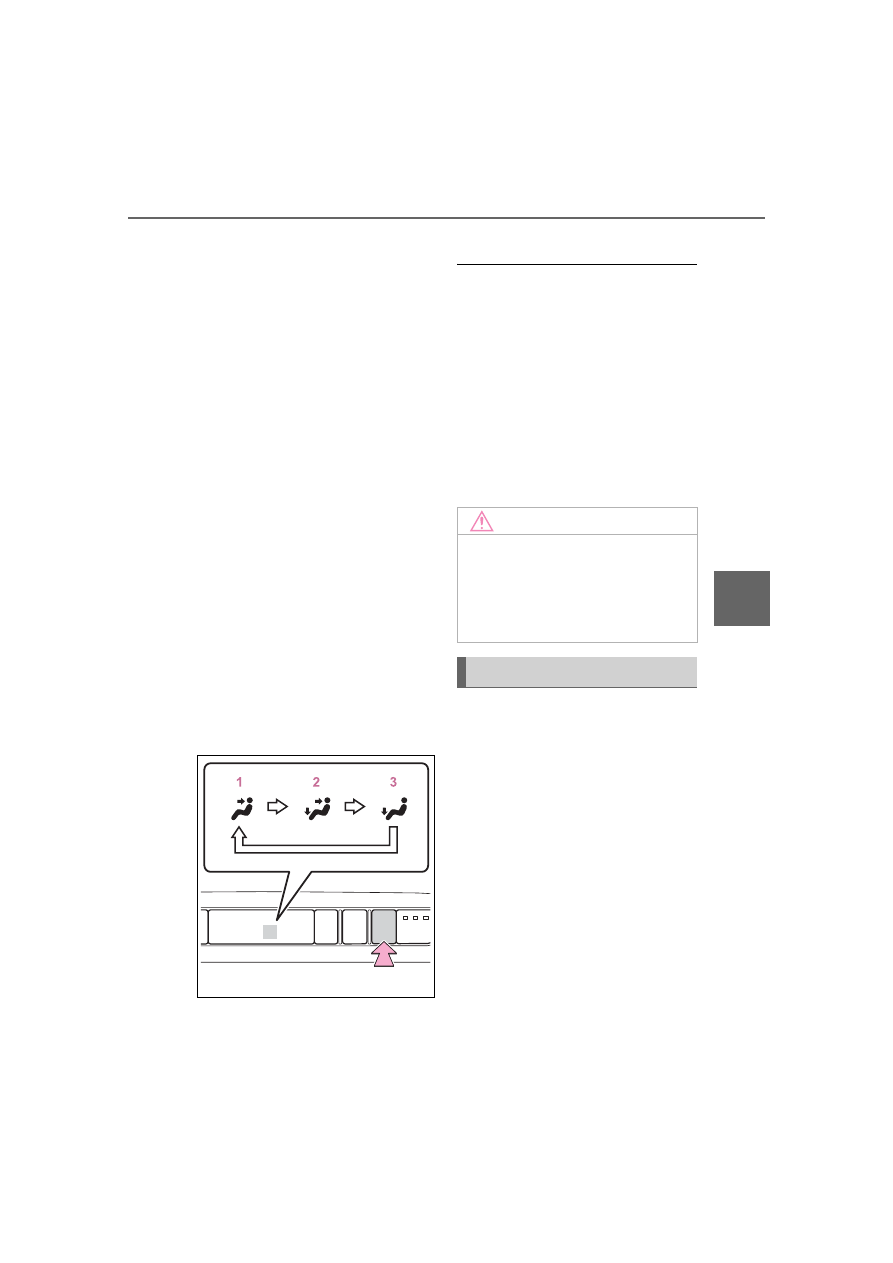

Change the airflow mode

Press the airflow mode control
switch.

The airflow mode changes as fol-
lows each time the switch is
pressed.

1

Upper body

2

Upper body and feet

3

Feet

■

Ventilation and air conditioning

odors

●

During use, various odors from

inside the vehicle may enter into

and accumulate in the air condi-

tioning system. This may then

cause odor to be emitted from the

vents.

●

To reduce potential odors from

occurring: The start timing of the

blower may be delayed for a short

period of time immediately after

the air conditioning system is

started in automatic mode.

1

Press the “AUTO” switch.
(“AUTO” appears on the dis-
play)

The dehumidification function

begins to operate. Air outlets and

fan speed are automatically

adjusted according to the tempera-

ture setting.

2

Adjust the temperature set-
ting.

3

To stop the operation, press
the “OFF” switch.

If the fan speed setting or air flow

modes are operated, the automatic

mode indicator goes off. However,

automatic mode for functions other

than that operated is maintained.

MODE

NOTICE

■

To prevent 12-volt battery dis-

charge

Do not leave the rear air condi-

tioning system on longer than

necessary when the engine is not

running.

Using the automatic mode

360

5-1. Using the air conditioning system and defogger

■

Using automatic mode

Fan speed is adjusted automati-

cally according to the temperature

setting. Therefore, the fan may stop

for a while until warm or cool air is

ready to flow immediately after the

“AUTO” switch is pressed.



P.356

■

Location of air outlets

The air outlets and air volume
changes according to the
selected air flow mode.

■

Adjusting the air flow direc-
tion and opening/closing
the air outlets (side ceiling)

1

Direct air flow to up or down.

2

Direct air flow to the left or
right and turns the knob to
open or close the vent

To close the vent, move the knob
rearward.

Changing the rear seat
settings from the front
control panel

Air outlet layout and oper-
ations

NOTICE

■

To prevent 12-volt battery dis-

charge

Do not leave the air conditioning

system on longer than necessary

when the hybrid system is off.

361

5-1. Using the air conditioning system and defogger

5

Interior

 featur

es

*

: If equipped

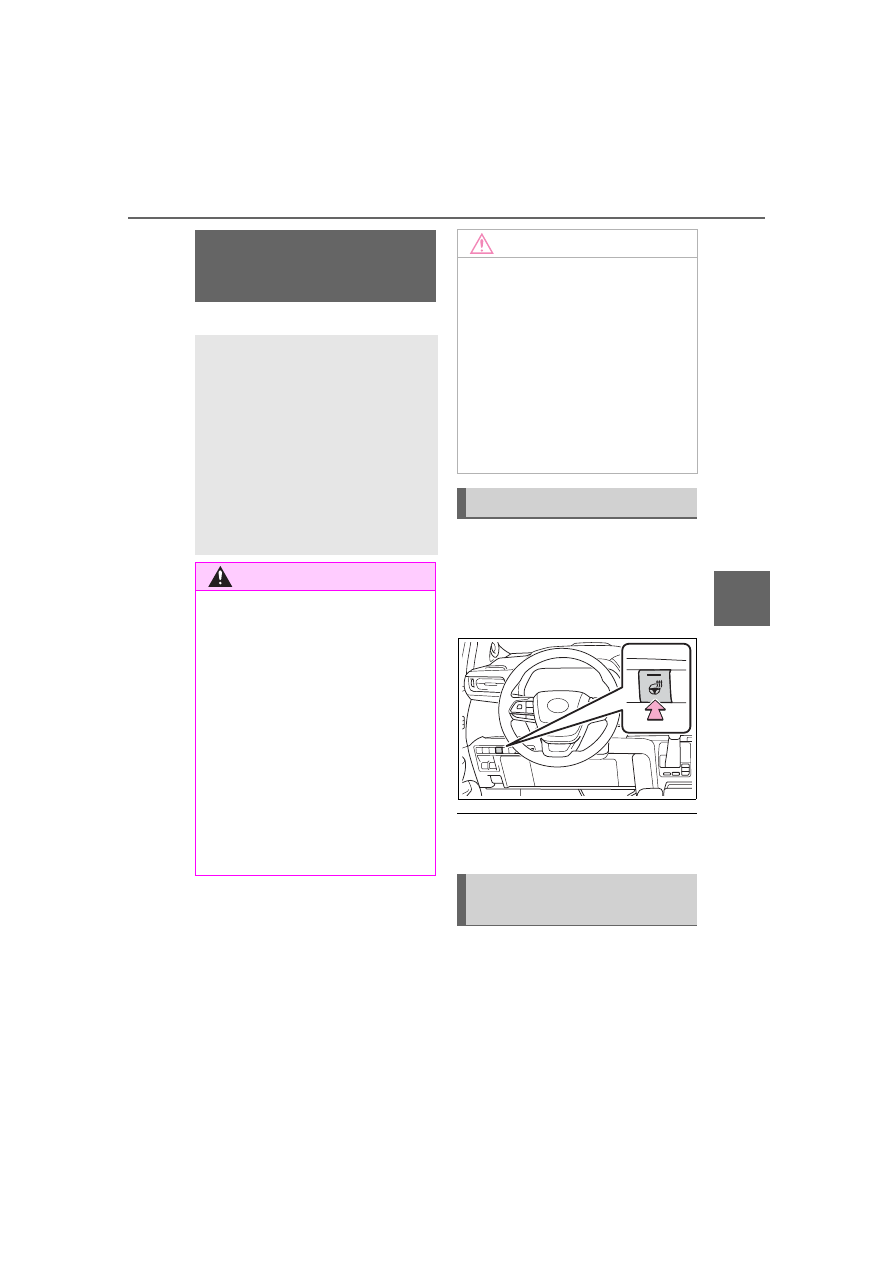

Turns the heated steering wheel
on/off

The indicator light comes on when
the heated steering wheel is oper-
ating.

■

Operation condition

The power switch is in ON.

Each time the switch is pressed,
the operation condition changes
as follows.
Hi (3 segments lit)



 Mid (2

segments lit)



 Lo (1 segment

Heated steering

wheel

*

/seat heat-

ers

*

/seat ventilators

*



Heated steering wheel

Warm up the grip of the steer-
ing wheel



Seat heaters

Warm up the seat upholstery



Seat ventilators

Maintain good ventilation by
sucking air through the seat
upholstery

WARNING

■

To prevent minor burn inju-

ries

Care should be taken if anyone in

the following categories comes in

contact with the steering wheel or

seats when the heater is on:

●

Babies, small children, the

elderly, the sick and the physi-

cally challenged

●

Persons with sensitive skin

●

Persons who are fatigued

●

Persons who have taken alco-

hol or drugs that induce sleep

(sleeping drugs, cold remedies,

etc.)

NOTICE

■

To prevent damage to the

seat heaters and seat ventila-

tors

Do not put heavy objects that

have an uneven surface on the

seat and do not stick sharp

objects (needles, nails, etc.) into

the seat.

■

To prevent 12-volt battery dis-

charge

Do not use the functions when the

hybrid system is off.

Heated steering wheel

Operating the seat heat-
ers

362

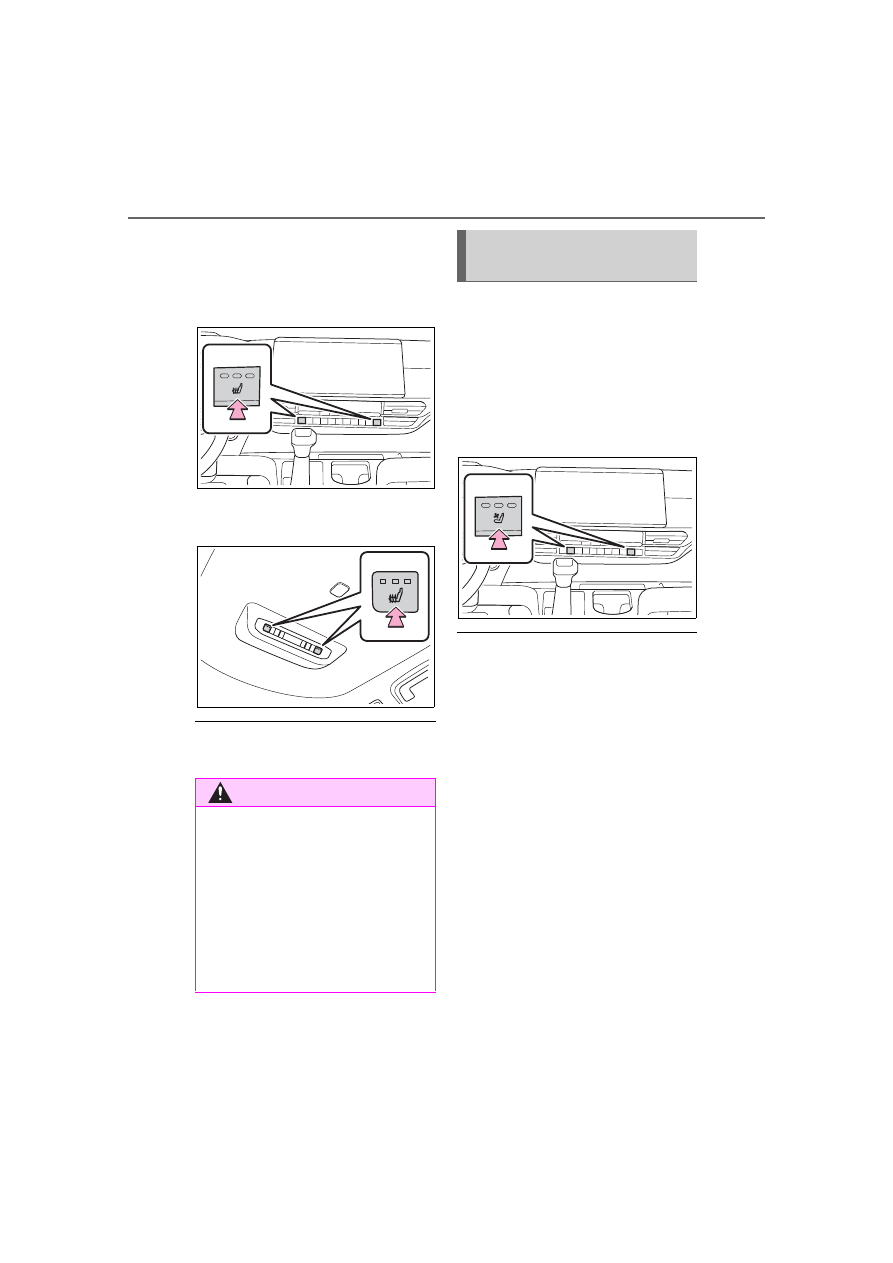

5-1. Using the air conditioning system and defogger

lit)



 Off

The level indicator lights up during
operation.



Front



Rear (second outboard seats)
(if equipped)

■

Operation condition

The power switch is in ON.

Each time the switch is pressed,
the operation condition changes as
follows.
Hi (3 segments lit)



 Mid (2 seg-

ments lit)



 Lo (1 segment lit)





Off
The level indicator lights up during
operation.

■

Operation condition

The power switch is in ON.

■

Air conditioning system-linked

control mode

When a seat ventilator is set to Hi,

the fan speed of the seat ventilator

may increase according to the fan

speed of the air conditioning sys-

tem.

WARNING

■

To prevent causes of over-

heating and minor burn inju-

ries

Observe the following precautions

when using a seat heater:

●

Do not cover the seat with a

blanket or cushion when using

the seat heater.

●

Do not use seat heater more

than necessary.

Operating the seat venti-
lators (front seats)

363

5-2. Using the interior lights

5

Interior

 featur

es

5-2.Using the interior lights

Power switch illumination (



P.231)

Front interior lights/personal lights

*1

 (



P.364, 364)

Shift lever light (if equipped)

Open tray light

*2

 (if equipped)

Door courtesy lights

*1

 (if equipped)

Console tray light

*2

Second row personal lights (Type A)

*1

 (



P.364)

Second row personal lights (Type B)

*1

 (if equipped) (



P.364)

Third row interior light

*1

 (



P.364)

Outer foot lights (if equipped)

*1

:These lights turn on when a door is opened. When the shift lever is in a

position other than P, these lights turn off.

*2

:When the shift lever is in a position other than P, the brightness of these

lights will reduce intensity.

Interior lights list

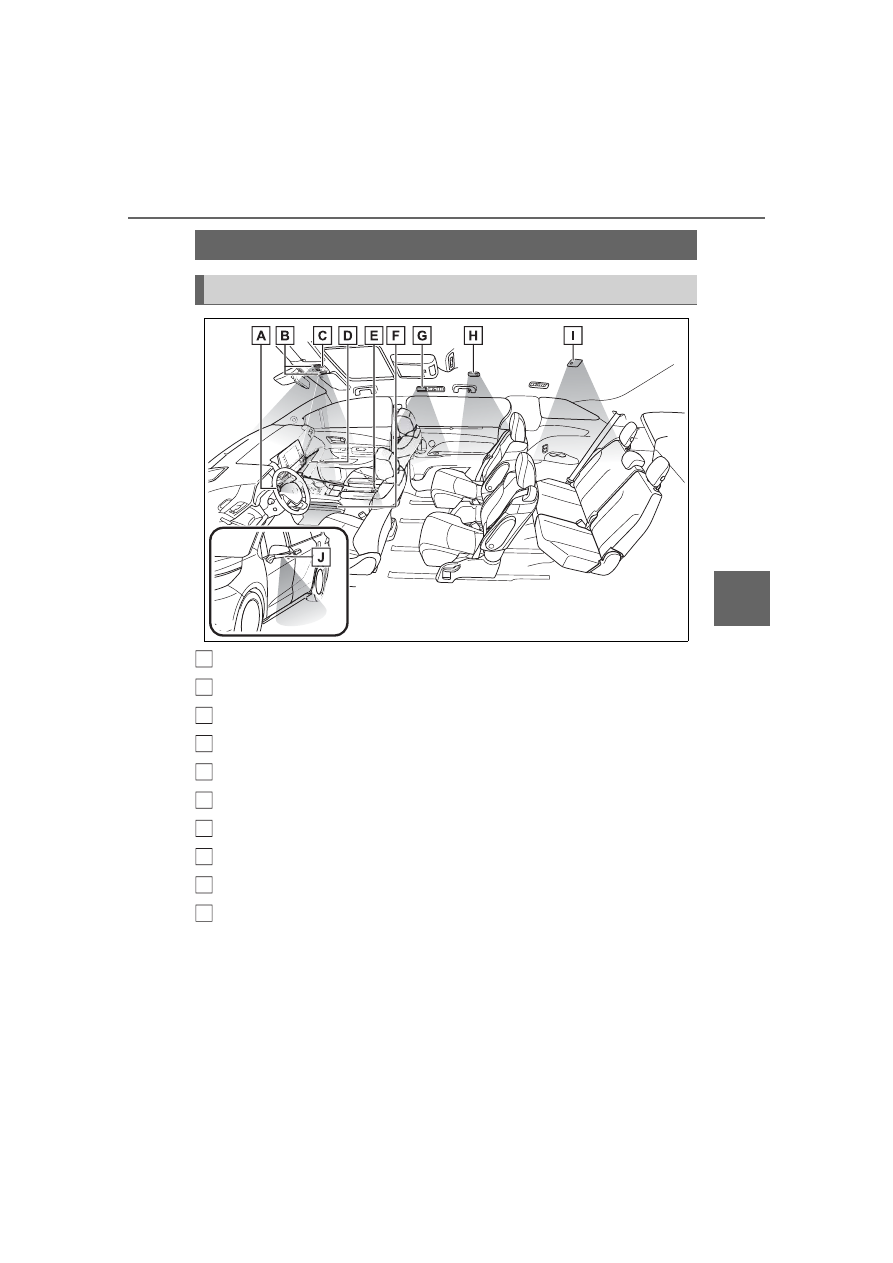

Location of the interior lights

A

B

C

D

E

F

G

H

I

J

364

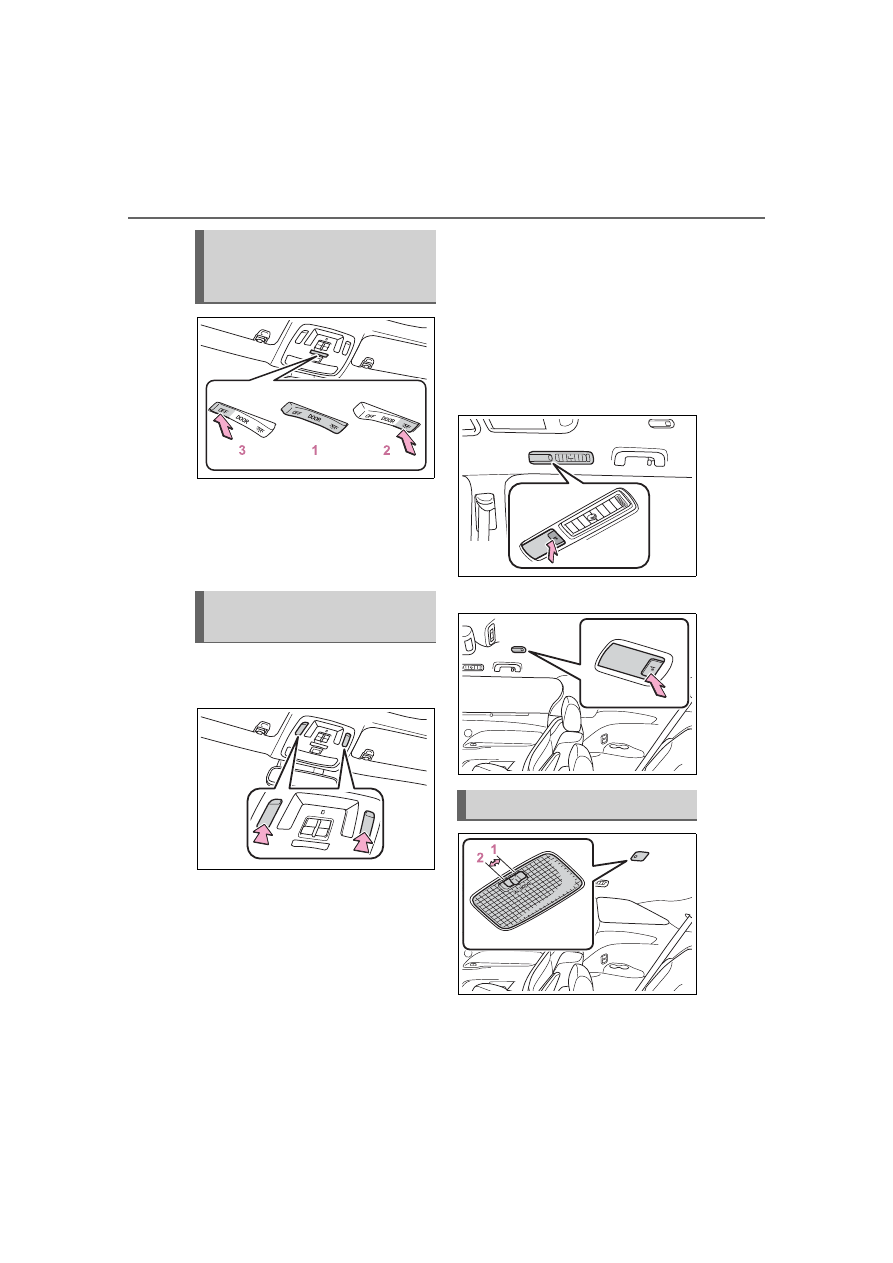

5-2. Using the interior lights

1

Turns the lights on/off linked
to door positions

2

Turns the lights on

3

Turns the lights off

■

Front

Turns the lights on/off

■

Second row

Turns the lights on/off when the
personal/interior light main
switch is in the “DOOR” position.

When a door is opened while the
personal/interior light main switch is
in the “DOOR” position, the lights
turn on.

When the personal/interior light
main switch is in the off position,
the second row personal lights will
not turn on even if the switch is on.
When the personal/interior light
main switch is in the on position,
the second row personal lights will
turn on even if the switch is off.



Type A



Type B (if equipped)

1

Turns the door position on

The rear interior light turns on/off

Operating the per-
sonal/interior light main
switch

Operating the personal
lights

Third row interior light

365

5-2. Using the interior lights

5

Interior

 featur

es

together the front interior lights.
When a door is opened while the
front and rear interior light door
position is on, the lights turn on.

2

Turns the light on

■

Illuminated entry system

The lights automatically turn on/off

according to the power switch

mode, the presence of the elec-

tronic key, whether the doors are

locked/unlocked, and whether the

doors are opened/closed.

■

To prevent the 12-volt battery

from being discharged

If the interior lights remain on when

the power switch is turned to OFF,

the lights will go off automatically

after 20 minutes.

■

The interior lights will turn on

automatically when

If any of the SRS airbags deploy

(inflate) or in the event of a strong

rear impact, the interior lights will

turn on automatically.
The interior lights will turn off auto-

matically after approximately 20

minutes.
The interior lights can be turned off

manually. However, in order to help

prevent further collisions, it is rec-

ommended that they be left on until

safety can be ensured.
(The interior lights may not turn on

automatically depending on the

force of the impact and conditions of

the collision.)

■

Customization

Setting (e.g. the time elapsed before

the lights turn off) can be changed.

(Customizable features:



P.552)

NOTICE

■

To prevent 12-volt battery dis-

charge

Do not leave the lights on longer

than necessary when the hybrid

system is off.

366

5-3. Using the storage features

5-3.Using the storage features

Conversation mirror (



P.370)

Open tray (



P.370)

Glove box (



P.367)

Door pockets (



P.370)

Bottle holders (



P.369)

Auxiliary storage (7-passenger models)

Cup holders (



P.368)

Console box (



P.367)

List of storage features

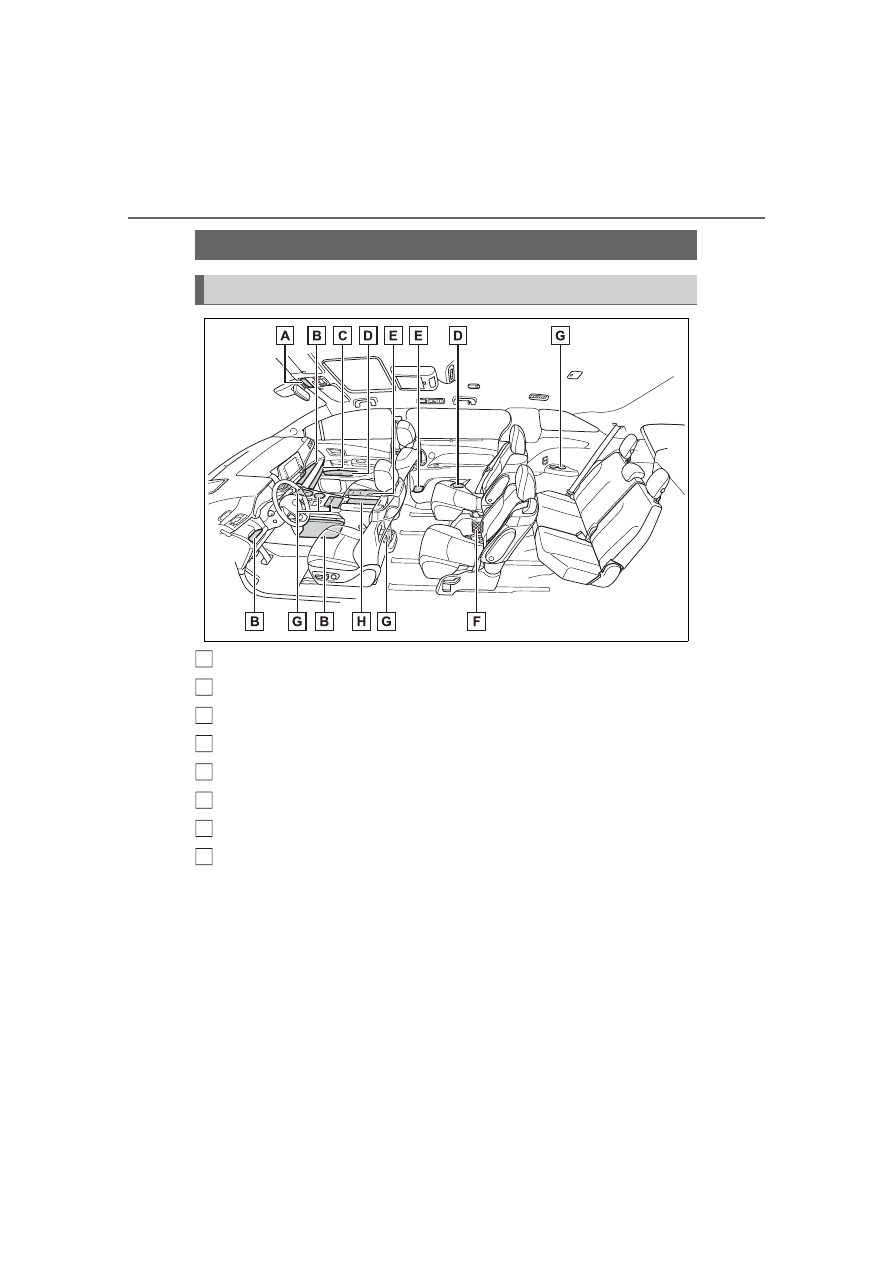

Location of the storage features

A

B

C

D

E

F

G

H

367

5-3. Using the storage features

5

Interior

 featur

es

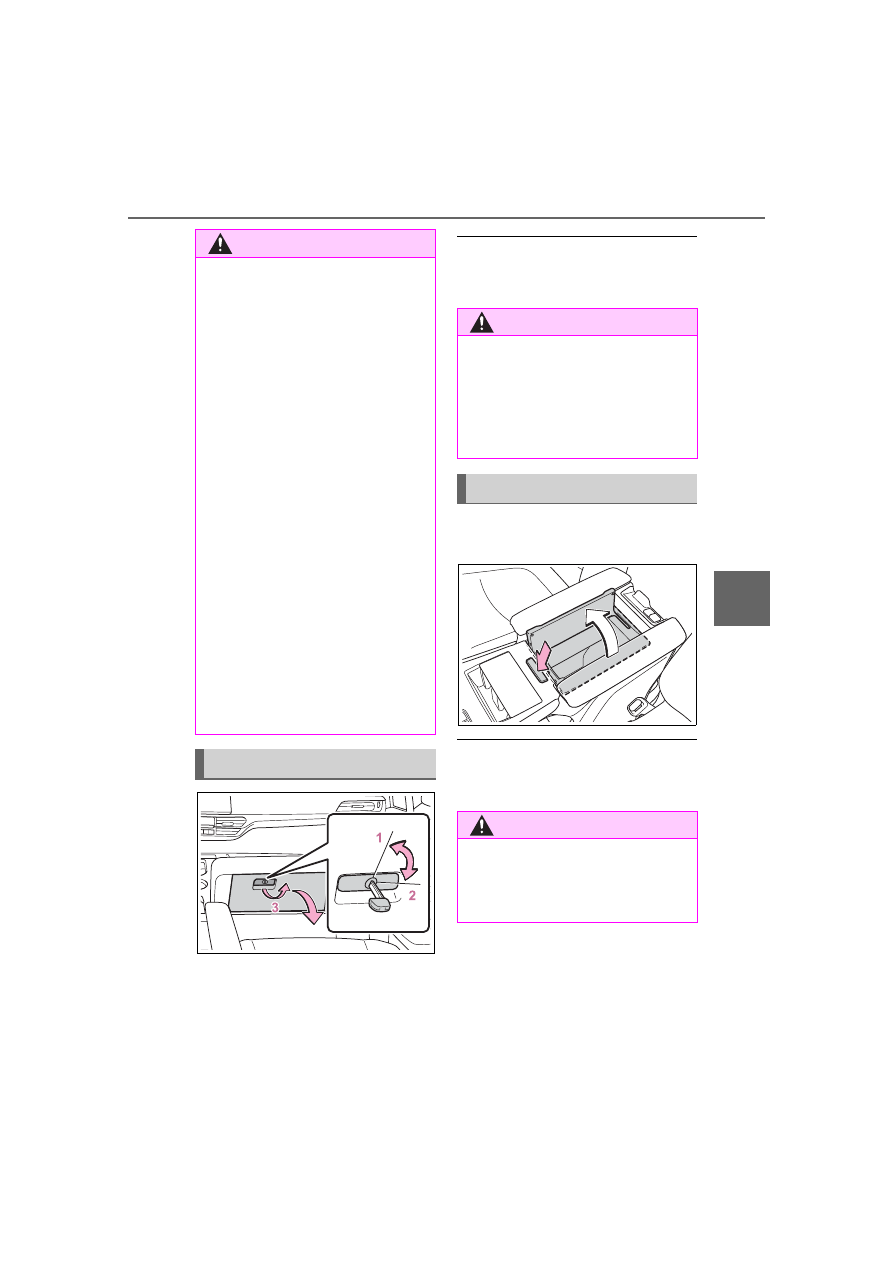

1

Unlock with the mechanical
key

2

Lock with the mechanical key

3

Open (pull up the lever)

■

Glove box light

The glove box light turns on when

the tail lights are on.

Press the button to open the
console box.

■

Console box light

The console box light turns on when

the tail lights are on.

WARNING

■

Items that should not be left

in the vehicle

Do not leave glasses, lighters or

spray cans in the storage spaces,

as this may cause the following

when cabin temperature becomes

high:

●

Glasses may be deformed by

heat or cracked if they come

into contact with other stored

items.

●

Lighters or spray cans may

explode. If they come into con-

tact with other stored items, the

lighter may catch fire or the

spray can may release gas,

causing a fire hazard.

■

When storage compartments

are not in use

When driving or when the storage

compartments are not in use,

keep it closed.
In the event of sudden braking or
sudden swerving, an accident
may occur due to an occupant
being struck by an open lid or the
items stored inside.

Glove box

WARNING

■

Caution while driving

Keep the glove box closed. In the

event of sudden braking or sud-

den swerving, an accident may

occur due to an occupant being

struck by the open glove box or

the items stored inside.

Console box

WARNING

■

Caution while driving

Keep the console box closed.
Injuries may result in the event of

an accident or sudden braking.

368

5-3. Using the storage features



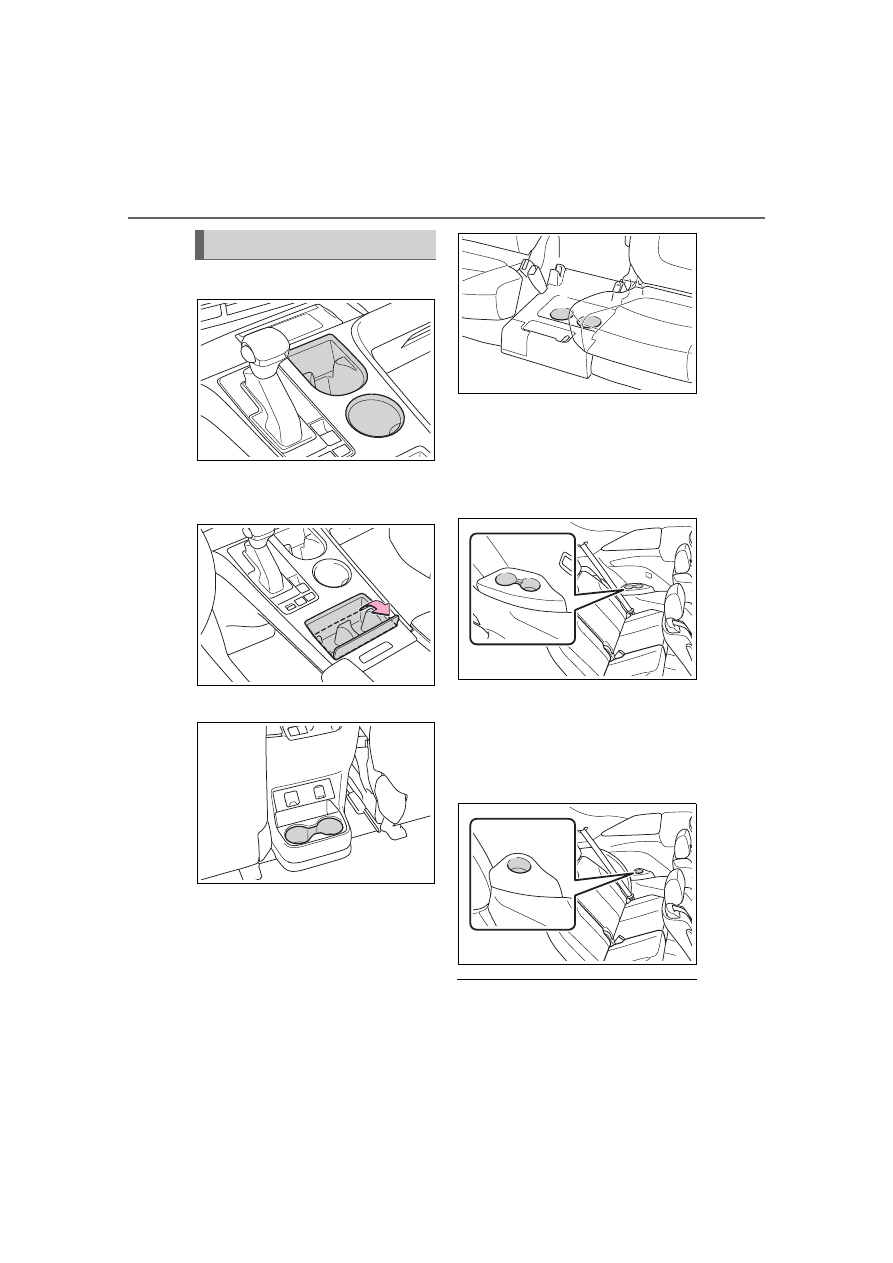

Console box (type A)



Console box (type B)

Open the lid.



Console box (type C)



Second seats (8-passenger
models)

Removing the second center
seat. (



P.174)



Third seats (Vehicles without
spare tire)

Also two cup holders are
installed in the right side of the
third seats.



Third seats (Vehicles with
spare tire)

Also two cup holders are
installed in the right side of the
third seats.

■

Cup holder mats (Type A)

The mats can be removed.

Cup holders

369

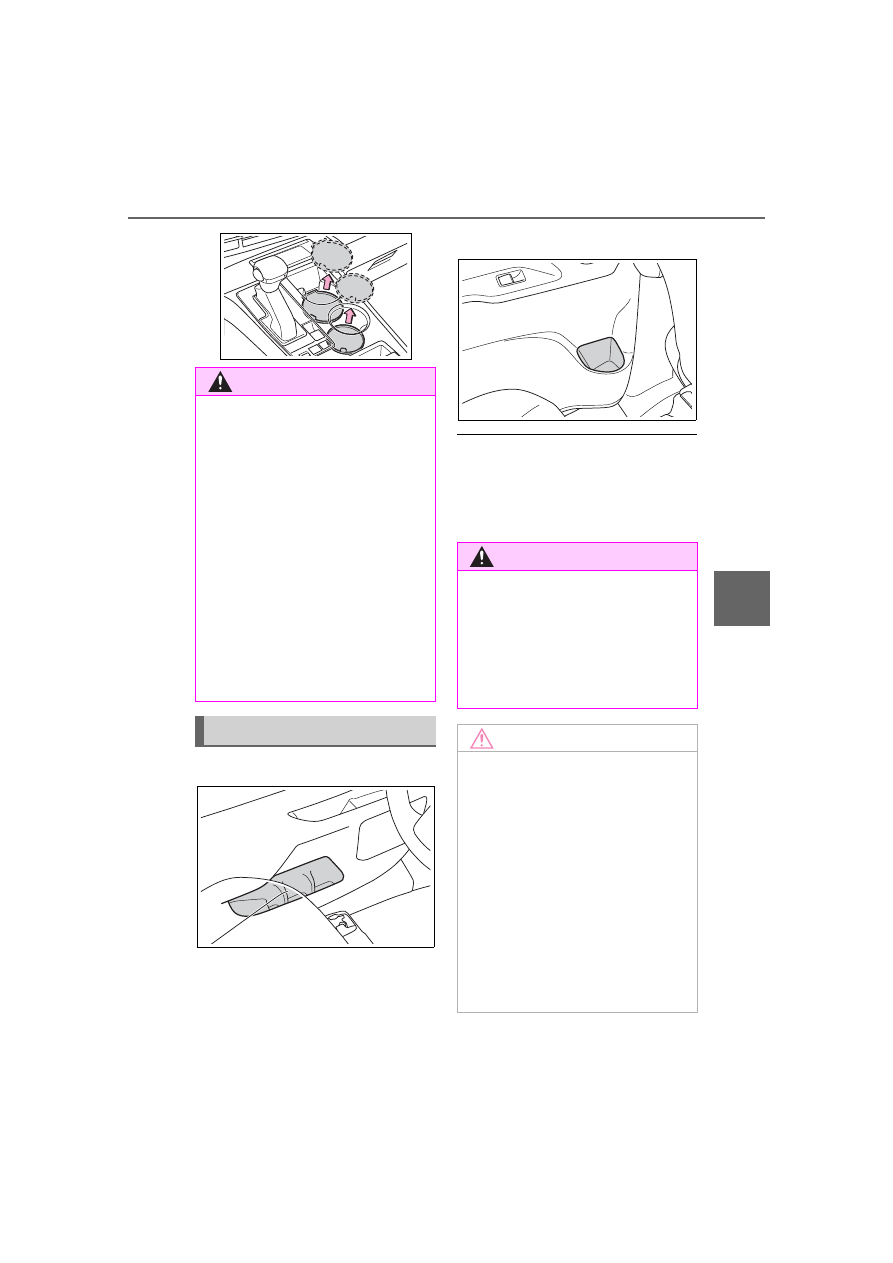

5-3. Using the storage features

5

Interior

 featur

es



Front



Rear

■

Bottle holders

●

When storing a bottle, close the

cap.

●

The bottle may not be stored

depending on its size or shape.

WARNING

■

Items unsuitable for the cup

holders

Do not place anything other than

cups or beverage cans in the cup

holders.

Inappropriate items must not be

stored in the cup holders even if

the lid is closed.

Other items may be thrown out of

the holders in the event of an

accident or sudden braking and

cause injury. If possible, cover hot

drinks to prevent burns.

■

When not in use

Keep the cup holders closed. Inju-

ries may result in the event of

sudden braking, sudden swerv-

ing or an accident.

Bottle holders

WARNING

■

Items unsuitable for the bottle

holders

Do not place anything other than

a bottle in the bottle holders.

Other items may be thrown out of

the holders in the event of an

accident or sudden braking and

cause injury.

NOTICE

■

Items that should be not

stowed in the bottle holders

Do not place open bottles or glass

and paper cups containing liquid

in the bottle holders. The contents

may spill and glasses may break.

■

Rear: When using the sliding

door

Make sure items in the sliding

door bottle holder will not interfere

with the motion of the door before

operating the door. Items that pro-

trude from the bottle holder may

prevent door opening or damage

the vehicle.

370

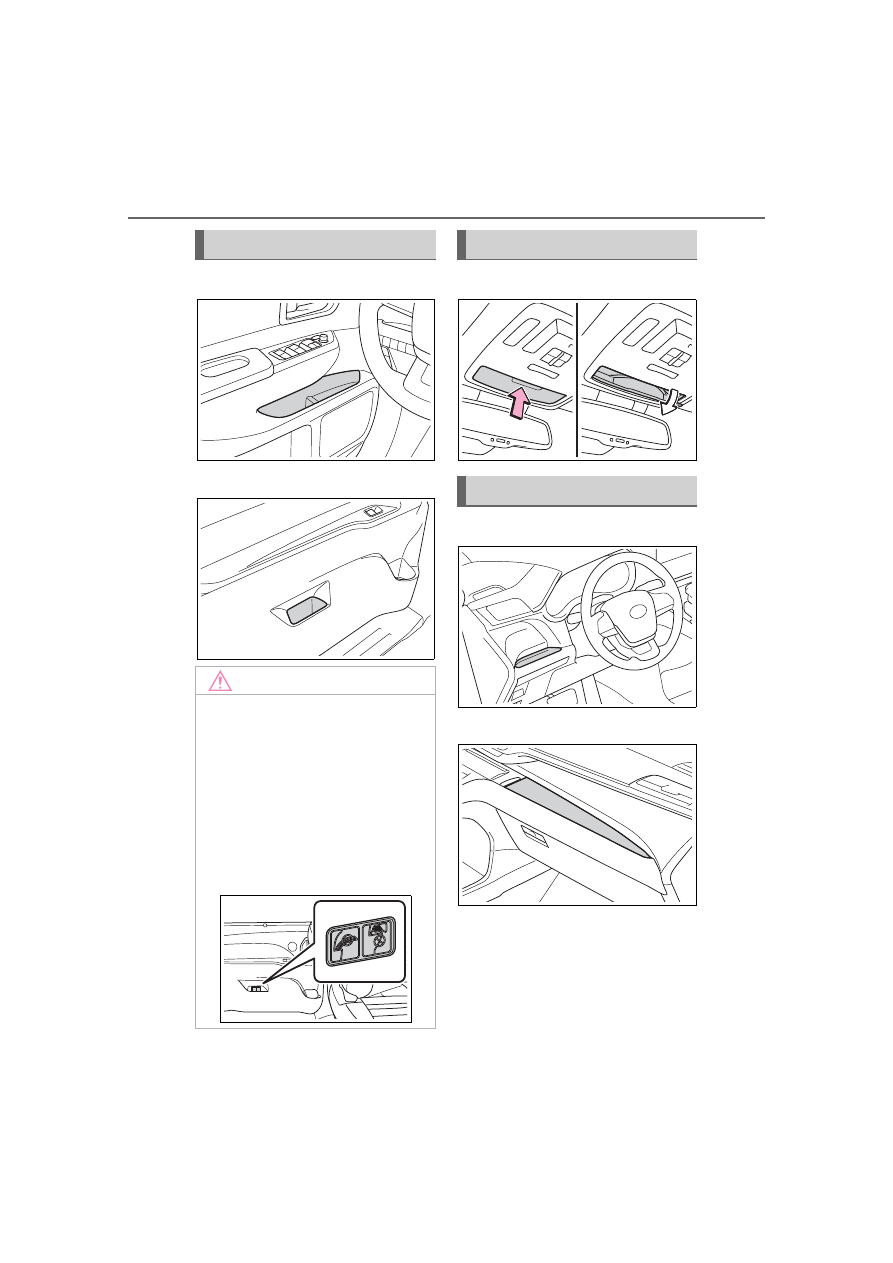

5-3. Using the storage features



Front



Rear

Push the lid.



Driver’s side



Front passenger’s side

Door pockets

NOTICE

■

Rear: When using the sliding

door

Make sure magazines are not

bent or protruding from the sliding

door pockets. Do not insert any-

thing too big so that the shape of

the sliding door pockets is dis-

torted. Such objects may obstruct

the opening/closing of the sliding

doors, damage the sliding door

pockets or the vehicle body, and

may result in a malfunction.

Conversation mirror

Open tray

371

5-3. Using the storage features

5

Interior

 featur

es



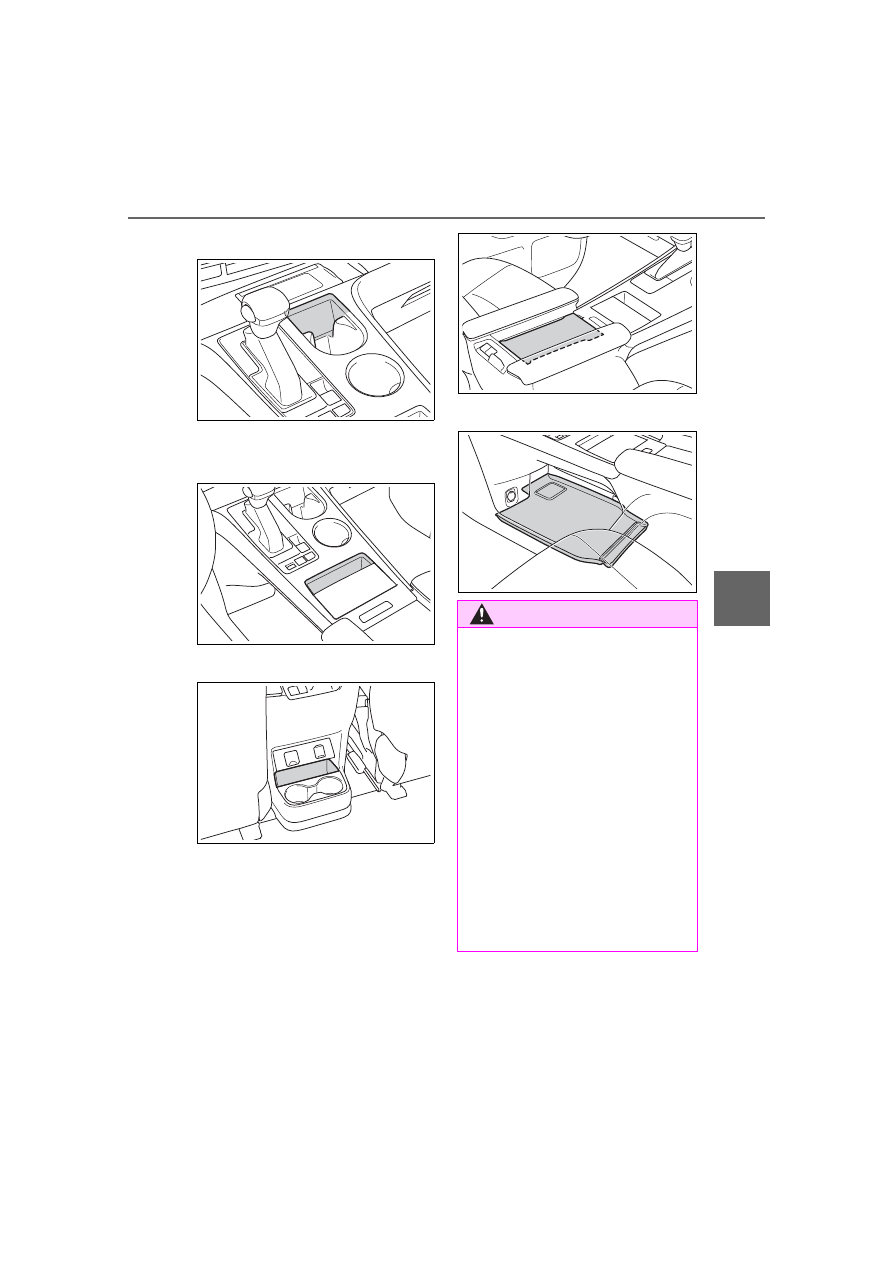

Front of console box (Type A)



Front of console box (Type B)

Open the lid.



Rear of console box



On the console box

Close the console box.



Under the console box

WARNING

■

Items unsuitable for the open

tray

Observe the following precautions

when putting items in the open

tray. Failure to do so may cause

items to be thrown out of the tray

in the event of sudden braking or

steering. In these cases, the items

may interfere with pedal operation

or cause driver distraction, result-

ing in an accident.

●

Do not store items in the tray

that can easily shift or roll out.

●

Do not stack items in the tray

higher than the tray’s edge.

●

Do not put items in the tray that

may protrude over the tray’s

edge.

372

5-3. Using the storage features

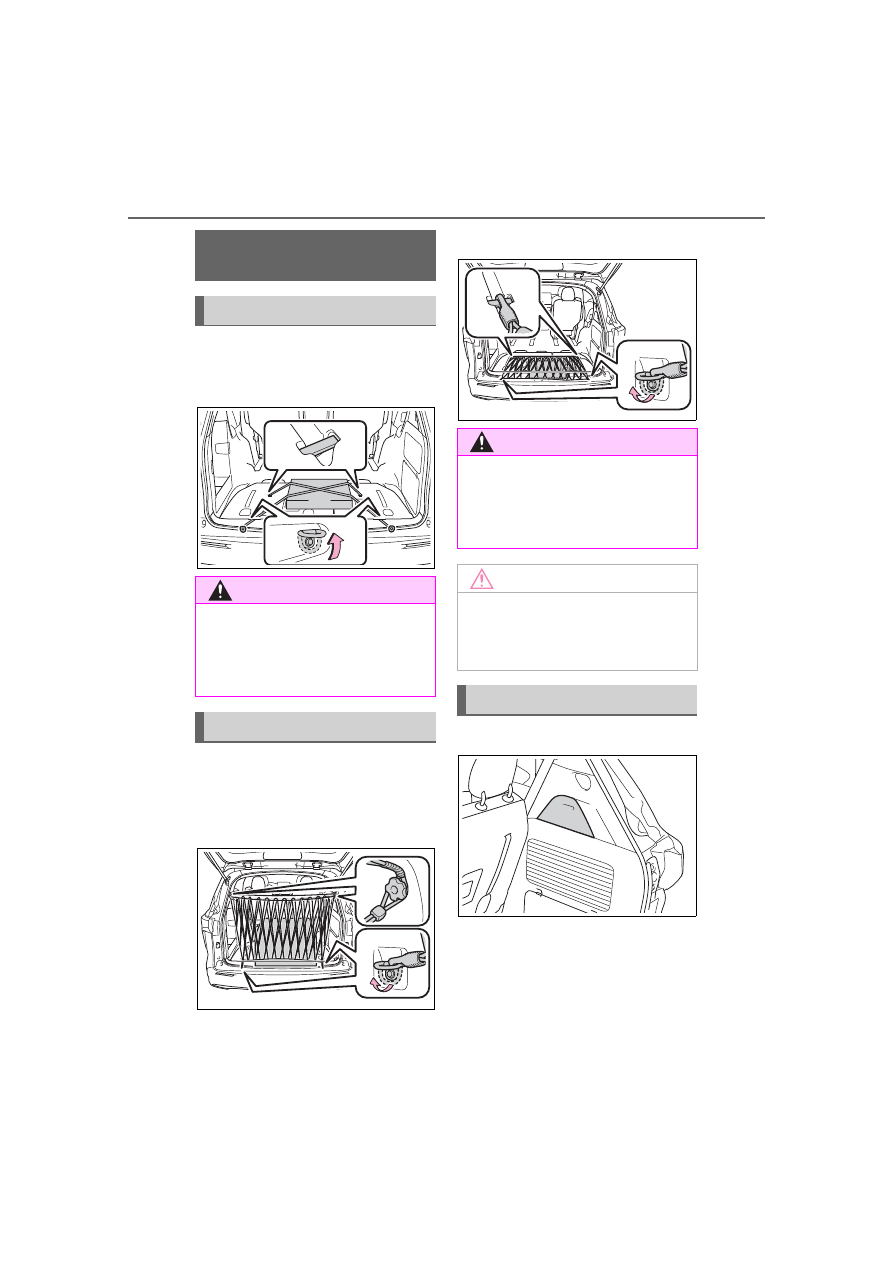

Raise the hook to use.

The cargo hooks are provided for
securing loose items.

To hang the cargo net, use the
cargo net hooks and cargo
hooks.



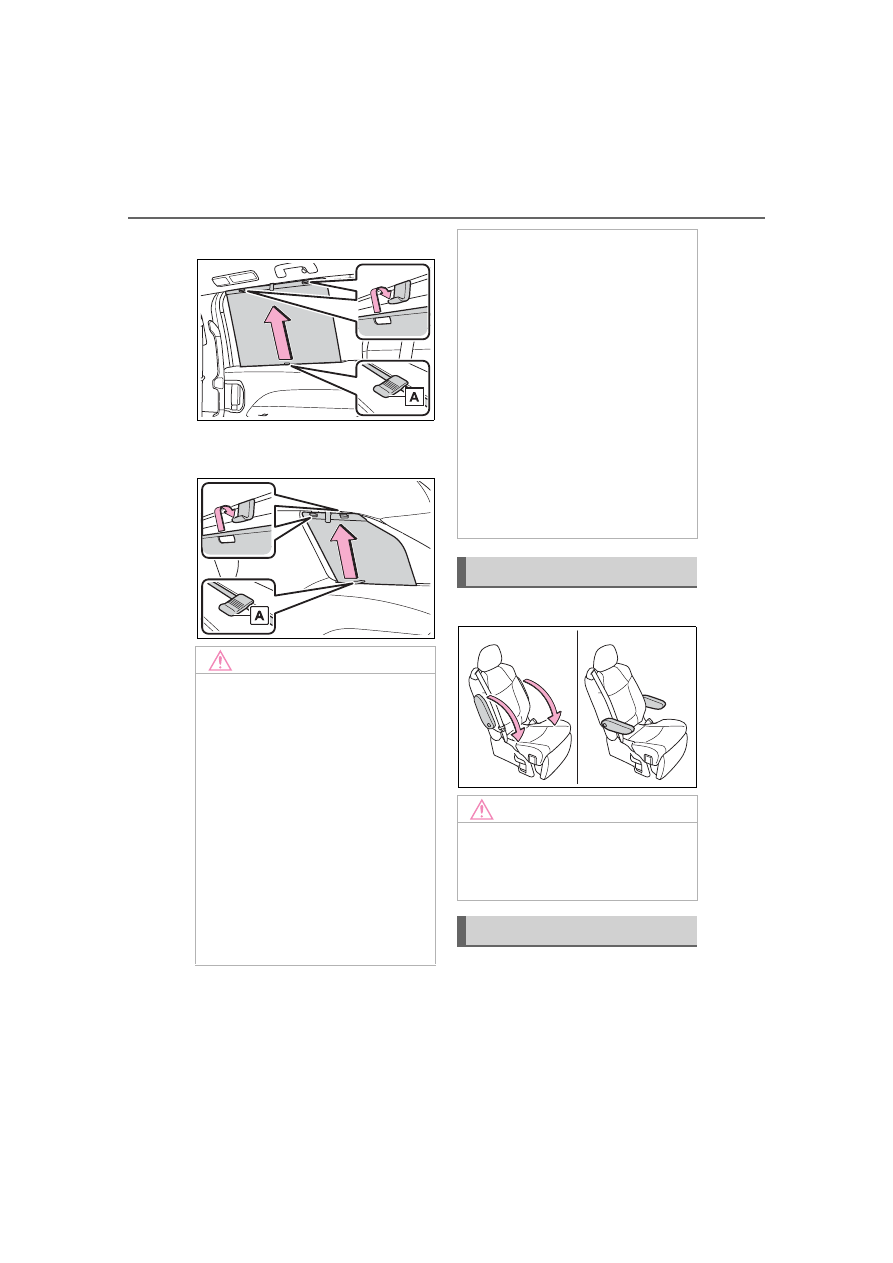

Pattern 1



Pattern 2



Type A



Type B (vehicles without
spare tire only)

Engage the latch buckle.

Luggage compart-

ment features

Cargo hooks

WARNING

■

When cargo hooks are not in

use

To avoid injury, always return the

hooks to their stowed positions

when not in use.

Cargo net hooks

WARNING

■

When the cargo net is not in

use

To avoid injury, always return the

hooks to their stowed positions

when not in use.

NOTICE

■

To prevent damage to the

cargo net hooks

Avoid hanging things other than a

cargo net on them.

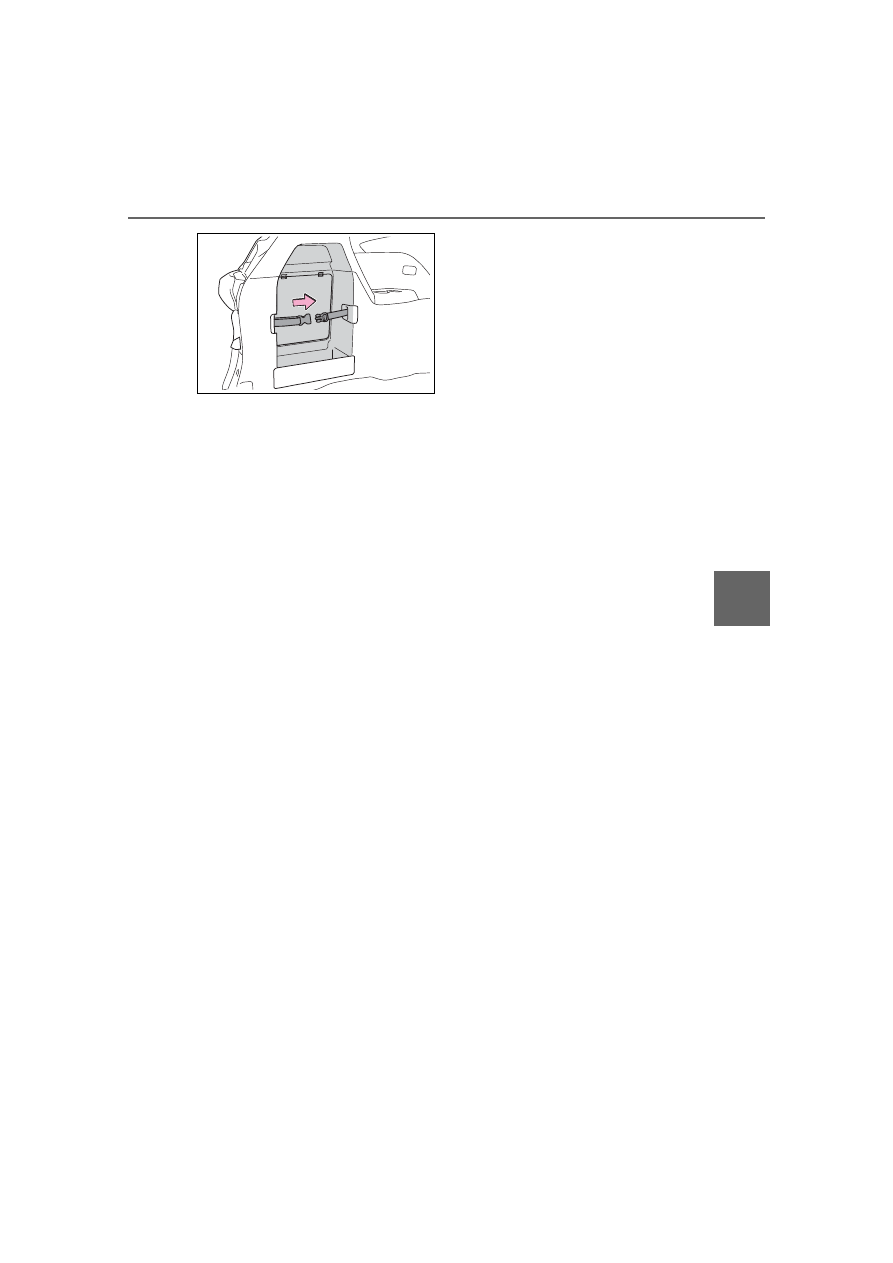

Side auxiliary box

373

5-3. Using the storage features

5

Interior

 featur

es

374

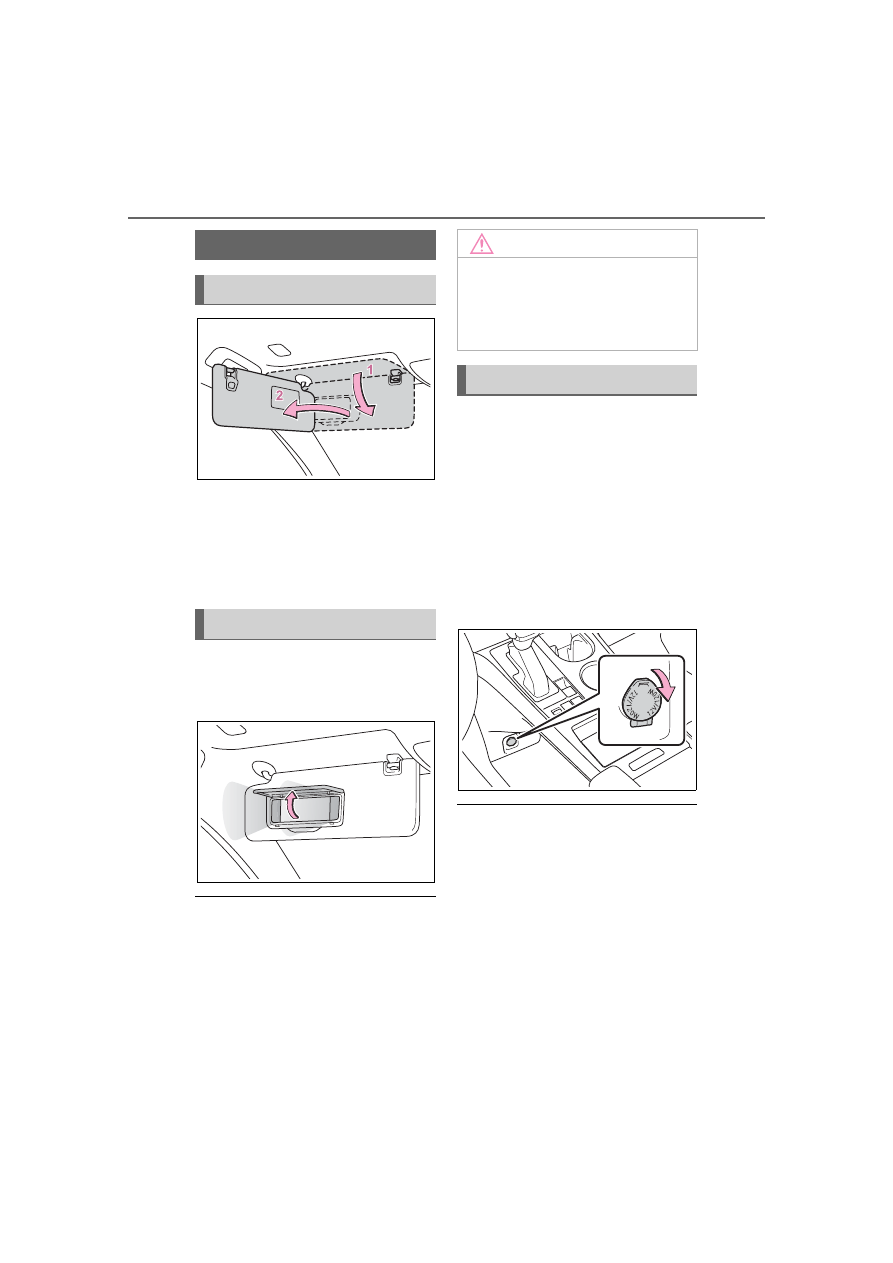

5-4. Using the other interior features

5-4.Using the other interior features

1

To set the visor in the forward
position, flip it down.

2

To set the visor in the side
position, flip down, unhook,
and swing it to the side.

Slide the cover to open.

The light turns on when the cover is
opened.

■

Automatic light off to prevent

12-volt battery discharge

If the vanity lights remain on when

the power switch is turned to OFF,

the lights will go off automatically

after 20 minutes.

Please use a power supply for
electronic goods that use less
than 12 VDC /10 A (power con-
sumption of 120 W).
When using electronic goods,
make sure that the power con-
sumption of all the connected
power outlets is less than 120
W.
Open the lid.

■

The power outlet can be used

when

The power switch is in ACC or ON.

■

When stopping the hybrid sys-

tem

Disconnect electrical devices with

charging functions, such as mobile

battery packs.

If such devices are left connected,

the hybrid system may not stop nor-

mally.

Other interior features

Sun visors

Vanity mirrors

NOTICE

■

To prevent 12-volt battery dis-

charge

Do not leave the vanity lights on

for extended periods while the

hybrid system is off.

Power outlet (12 VDC)

375

5-4. Using the other interior features

5

Interior

 featur

es

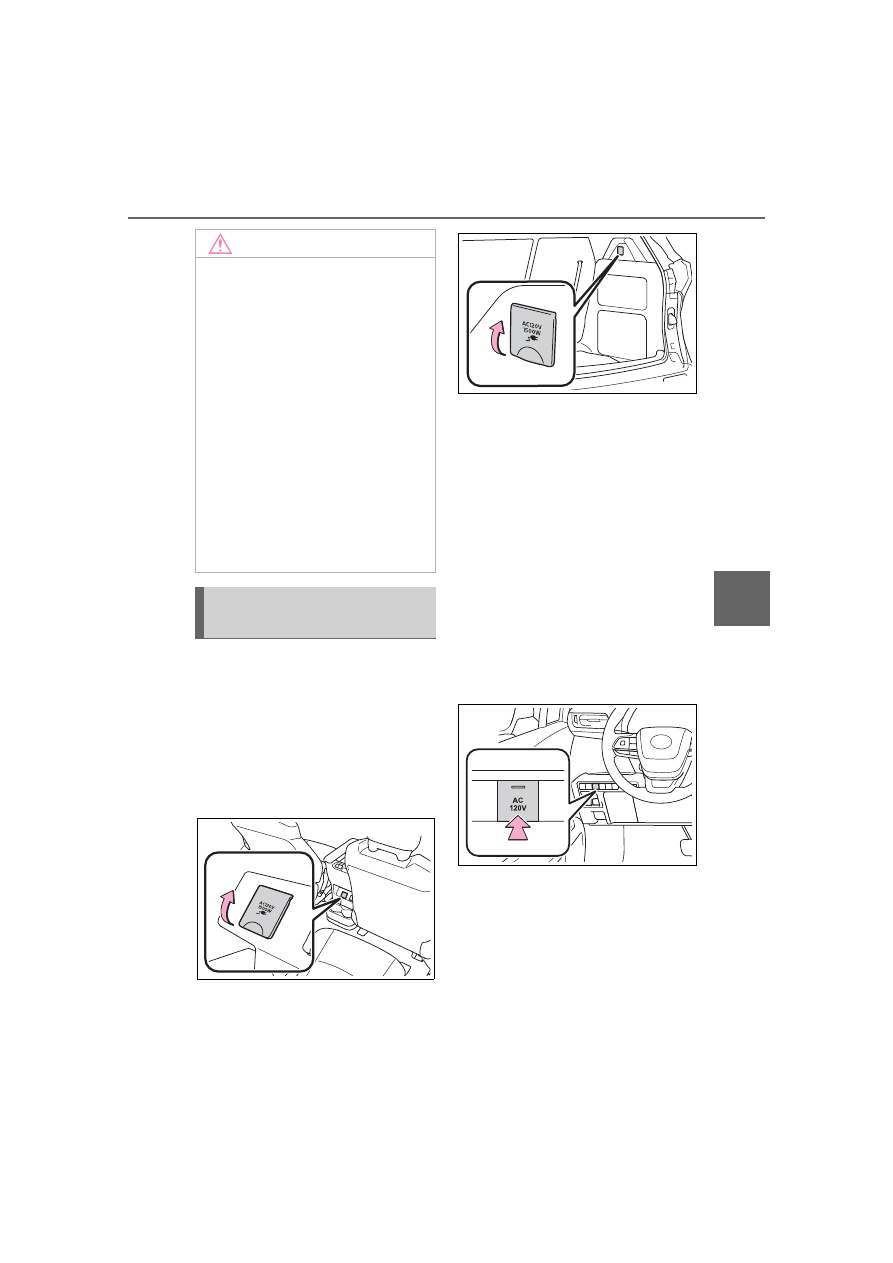

Please use as a power supply
for electronic devices that use
less than 120 VAC (power con-
sumption of 1500 W).

■

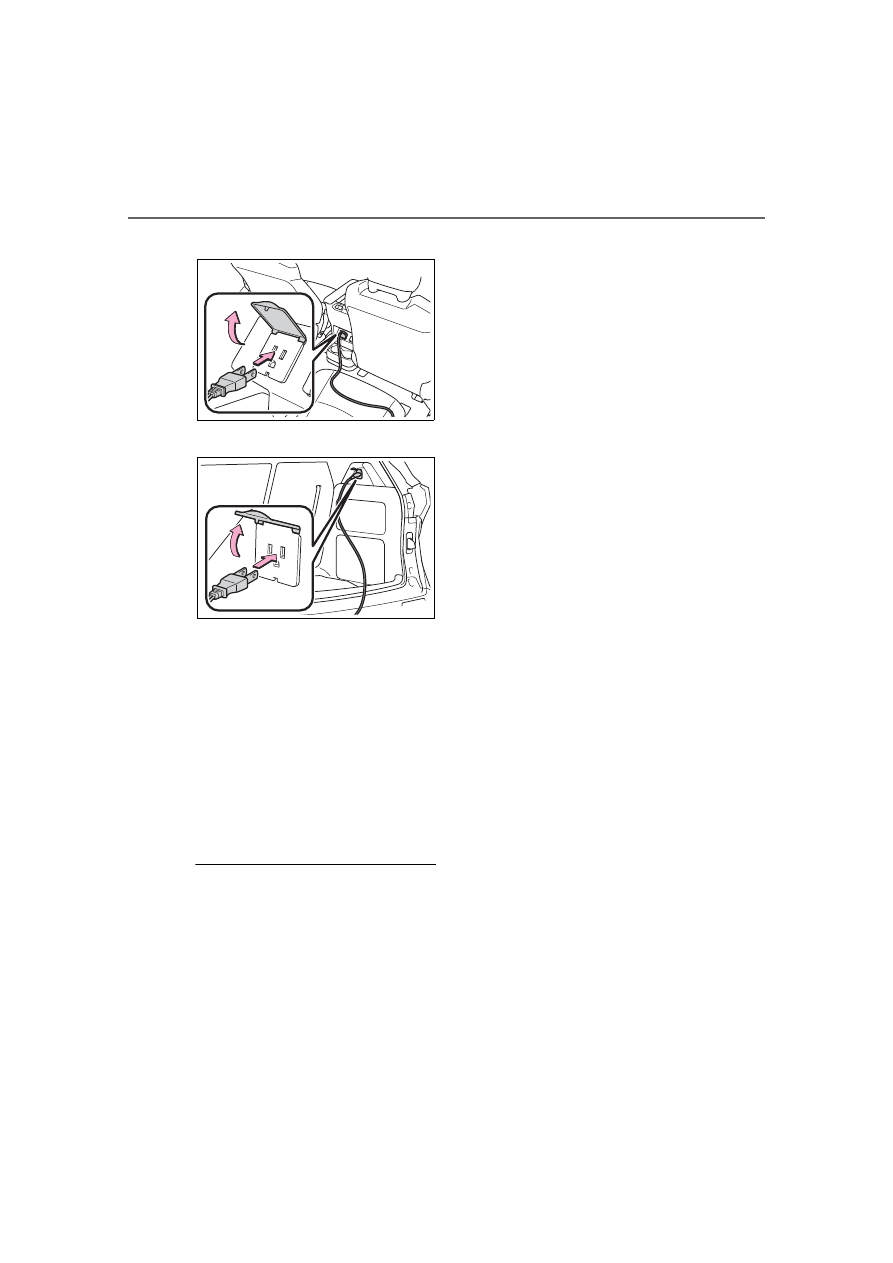

Using the power outlets



Rear of console box

Open the lid.



Luggage compartment

Open the lid.

■

When turning the power
outlets on

1

Check that the parking brake
is engaged, and press the
power switch while depress-
ing the brake pedal.

2

Check that the READY indi-
cator is illuminated, and
press the AC120V switch.

The power outlets can be used

when the indicator on the AC120V

switch is illuminated.
The power outlets are turned off/on

each time the AC120V switch is

pressed.

■

When connecting a device

Open the lid, and fully and
securely insert the plug of the
device into the power outlet.

NOTICE

■

When power outlet is not in

use

To avoid damaging the power out-

let, close the power outlet lid

when the power outlet is not in

use.
Foreign objects or liquids that

enter the power outlet may cause

a short circuit.

■

To prevent blown fuse

Do not use an accessory that

uses more than 12 V 10 A.

■

To prevent 12-volt battery dis-

charge

Do not use the power outlet lon-

ger than necessary when the

hybrid system is off.

Power outlets (120 VAC)
(if equipped)

376

5-4. Using the other interior features



Rear of console box



Luggage compartment

■

When turning the power
outlets off

1

Turn the connected devices
off.

2

Press the AC120V switch to
turn the power outlets off.

3

Disconnect each plug from
the power outlet.

4

Close the lid of each power
outlet.

■

The power outlet can be used

when

The READY indicator is illuminated.

■

Rules/regulations regarding

idling stop

The engine will start automatically to

charge the hybrid battery (traction

battery) if its charge becomes low.

In some municipalities, if the engine

starts while the vehicle is parked or

stopped, it may violate local rules or

regulations regarding idling stop and

you may be penalized. Make sure to

check the local rules and regula-

tions before using the power outlets

while the vehicle is parked or

stopped.

■

Power outlets

●

When connecting a device, make

sure that the total power con-

sumption of all devices connected

to the 120 VAC power outlets is

less than 1500 W. If a device is

connected and the power con-

sumption is exceeded, a protec-

tion circuit will cut the power

supply and the power outlets will

not be able to be used.

●

Depending on the device to be

used, the current flow may be high

and the initial peak wattage may

exceed 1500 W.

In this case, the protection circuit

may operate, and the power out-

lets may not be able to be used.

●

Depending on the connected

device, it may cause interference

with TV and radio broadcasts.

●

The voltage of the power outlets

cannot be measured with a com-

mercially available electrical tes-

ter. If it is necessary to check the

voltage, have the vehicle

inspected by your Toyota dealer.

●

While a power outlet is being

used, a cooling fan sound may be

heard from near a rear seat. This

does not indicate a malfunction.

■

Devices which may not operate

correctly

The following 120 VAC devices may

not operate properly even if their

power consumption is less than

1500 W:

●

Devices with high initial peak watt-

age

●

Measuring devices that process

precise data

●

Devices that require an extremely

377

5-4. Using the other interior features

5

Interior

 featur

es

stable power supply

●

Devices that require a constant

power supply from the power out-

let, such as a device with a timer.

■

When the 120 VAC power out-

lets cannot be used

If the AC120V switch is pressed but

the switch indicator does not illumi-

nate, the protection circuit may have

operated.
In this case, perform the appropriate

procedures as follows.

●

Disconnect the plug of each

device from the power outlets,

check that the total power con-

sumption of all devices to be con-

nected to the power outlets is less

than 1500 W and check that the

devices are not malfunctioning,

reconnect the devices and then

press the AC120V switch again.

●

Check the charge of the hybrid

battery (traction battery)

(



P.122). If the charge is low,

shift the shift lever to P, allow the

engine to run to charge the hybrid

battery (traction battery), and then

press the AC120V switch again.

●

If the temperature inside the vehi-

cle is high, such as after the vehi-

cle has been parked in the sun,

use the air conditioning system to

sufficiently ventilate or cool the

interior, and then press the

AC120V switch again.

●

If the vehicle has been stopped in

a cold area, to protect the hybrid

battery (traction battery), the

power outlets may not be able to

be used. In this case, drive the

vehicle for a while to warm up the

hybrid battery (traction battery),

and then press the AC120V

switch again.

If the power outlets cannot be used

even after performing the appropri-

ate procedures above, have the

vehicle inspected by your Toyota

dealer.

WARNING

■

For safe use

Observe the following precau-

tions.

Failure to do so may lead to an

accident, resulting in death or

serious injury.

●

Do not use devices such as the

following when driving:

• Devices which cannot be prop-

erly secured within the vehicle.

• Devices which may distract the

driver and be a hinderance to

safe driving, such as a TV, DVD

player, etc.

• Unsecured devices which gen-

erate heat, such as a toaster,

microwave, electric heater,

electric kettle, coffee maker,

etc., as they may cause burns

or a fire in the case of sudden

braking or an accident.

• Devices which may fall under

the pedals and prevent the

brake pedal from being

depressed.

●

Do not use devices which pro-

duce steam while the windows

are closed. Doing so may cause

the windows to fog up, reducing

visibility and making it difficult to

drive safely. Also, the steam

may damage or negatively

affect other devices.

●

Do not connect a malfunctioning

device to a power outlet, as

doing so may cause the power

outlets to become inoperable.

●

Do not disconnect the plug of a

device while your hands are wet

or insert a pin or other object

into the power outlet. Also, if a

liquid or snow is on the power

outlet, dry the outlet before

using it.

378

5-4. Using the other interior features

WARNING

●

Do not attempt to modify, disas-

semble or repair a power outlet.

Also, do not replace the 120

VAC inverter with a commer-

cially available one. For infor-

mation on repairs, contact your

Toyota dealer.

●

Be careful not to get any part of

your body caught in the power

outlet lid.

●

Do not let children touch the

power outlets.

●

Keep the power outlets free of

dust and foreign matter.

●

If the plug of a device fits

loosely in a power outlet, even

though it is fully inserted,

replace the power outlet. For

information on replacement,

contact your Toyota dealer.

■

Using the power outlets while

parked or stopped

Observe the following precau-

tions.

Failure to do so may lead to an

accident, possibly resulting in

death or serious injury.

●

Make sure to engage the park-

ing brake and shift the shift

lever to P.

●

Do not leave the vehicle unat-

tended while the READY indica-

tor is illuminated and a device is

connected to a power outlet.

●

Make sure that the hood is

closed. As the engine will start

automatically depending on the

condition of the vehicle, make

sure that nothing is left near or

contacting the exhaust pipes.

Also, do not put your head or

hands anywhere inside the

engine compartment, as the

cooling fan may operate sud-

denly. Keep hands and clothing

(especially a tie, scarf, etc.)

away from the fan as they may

get caught in a fan.

●

Do not use the power outlets in

an area with poor ventilation or

an enclosed area, such as a

garage without a ventilation or

exhaust system, or in an area

where the vehicle may become

surrounded by snow, as the

exhaust gasses may accumu-

late, causing a lack of oxygen.

●

Do not use the power outlets if

the vehicle has a vehicle cover

installed.

●

Do not sleep in the vehicle while

using devices such as an elec-

tric heater.

■

Devices to be connected

Make sure to read any instruction

manual which came with a device

and observe any warnings on the

device. Do not connect a device

to a power outlet if the device is

malfunctioning or its plug is dam-

aged.
Do not use power outlets for med-

ical devices, as the output of the

power outlet may be cut, depend-

ing on the condition of the vehicle.

379

5-4. Using the other interior features

5

Interior

 featur

es

The USB charging ports are
used to supply 2.5A (USB Type-
A) or 3.0A (USB Type-C) of
electricity at 5 V to external
devices. Use the appropriate
terminal for each charging port
type.
The USB charging ports are for
charging only. They are not
designed for data transfer or
other purposes.
Depending on the external
device, it may not charge prop-
erly. Refer to the manual
included with the device before
using a USB charging port.

■

Using the USB charging
ports



In the console box

Open the console box lid.

NOTICE

Observe the following precau-

tions.

Failure to do so may lead to the

power outlets not operating cor-

rectly or damage to the vehicle or

a connected device.

■

To avoid short circuit or mal-

function

●

Do not set a device which gen-

erates heat near the interior

components or on a seat. Heat

may cause these parts to melt

or burn.

●

Do not use devices which are

sensitive to vibration or heat in

the vehicle.

These devices may malfunction

due to vibration while driving or

heat while the vehicle is parked

in the sun.

●

When not using a power outlet,

make sure to close the cover. If

foreign matter or a liquid enters

the power outlet, it may cause a

malfunction or short circuit.

●

Do not use a multi-point outlet

adapter as doing so may over-

load the power outlet.

■

When the ambient tempera-

ture is high

If the temperature inside the vehi-

cle is high, such as after the vehi-

cle has been parked in the sun,

the power outlets may not be able

to be used. Sufficiently ventilate

the interior or use the air condi-

tioning system to cool the interior

before attempting to use the

power outlets.

■

When the ambient tempera-

ture is low

If the vehicle has been stopped in

a cold area, to protect the hybrid

battery (traction battery), the

power outlets may not be able to

be used. In this case, drive the

vehicle for a while to warm up the

hybrid battery (traction battery).

■

To prevent 12-volt battery dis-

charge

Do not use the power outlets lon-

ger than necessary when the

hybrid system is not running.

USB charging ports

380

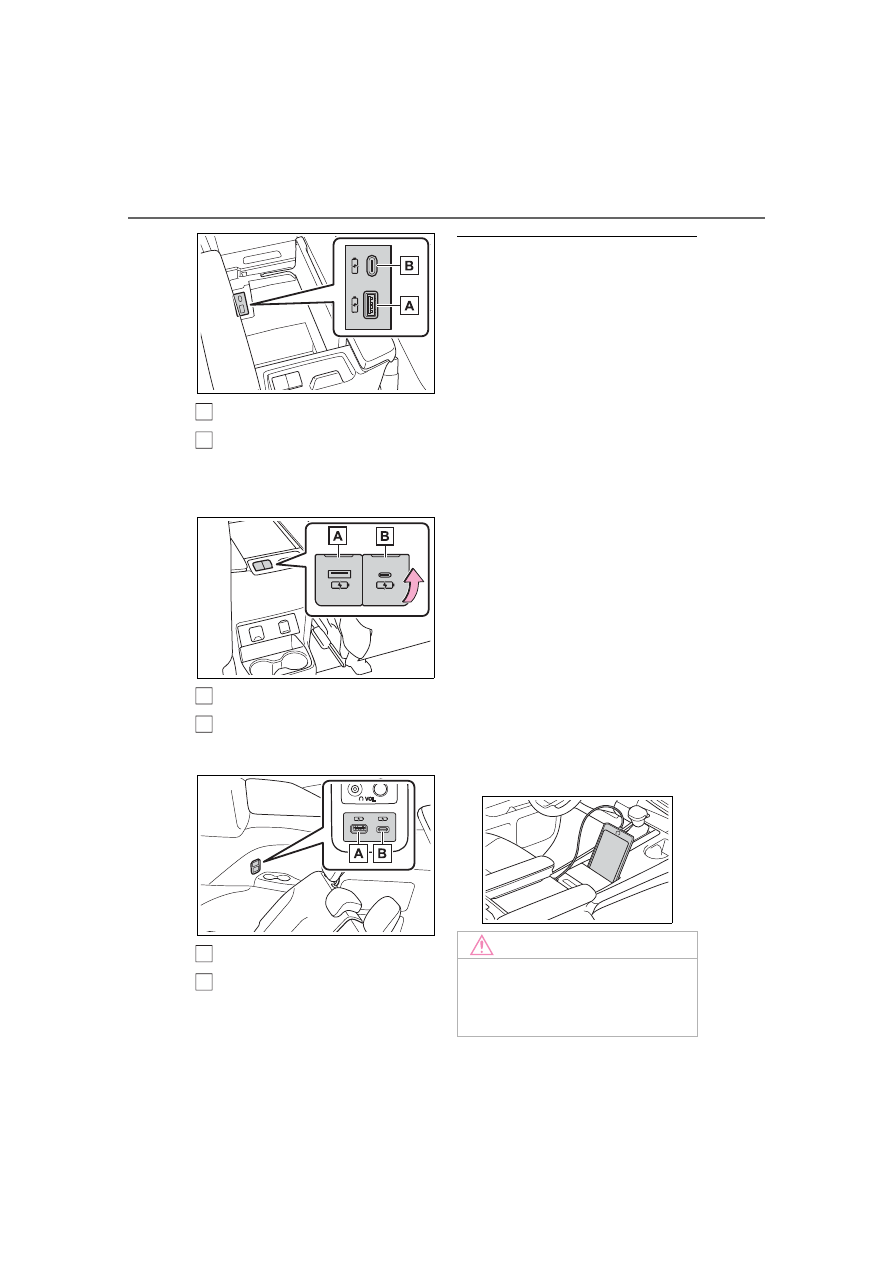

5-4. Using the other interior features

USB Type-A

USB Type-C



Rear of console box

Open the lid.

USB Type-A

USB Type-C



Luggage compartment

USB Type-A

USB Type-C

■

The USB charging ports can be

used when

The power switch is in ACC or ON.

■

Situations in which the USB

charging ports may not operate

correctly

●

USB Type-A: If a device which

consumes more than 2.5 A at 5 V

is connected

USB Type-C: If a device which

consumes more than 3.0 A at 5 V

is connected

●

If a device designed to communi-

cate with a personal computer,

such as a USB memory device, is

connected

●

If the connected external device is

turned off (depending on device)

●

If the temperature inside the vehi-

cle is high, such as after the vehi-

cle has been parked in the sun

■

About connected external

devices

Depending on the connected exter-

nal device, charging may occasion-

ally be suspended and then start

again. This is not a malfunction.

■

When using the USB charging

ports in the console box

The USB charging ports can be

used while the console box lid is

closed.

A

B

A

B

A

B

NOTICE

■

To prevent damage to the

USB charging ports

●

Do not insert foreign objects into

the ports.

381

5-4. Using the other interior features

5

Interior

 featur

es

A portable device can be
charged by just placing Qi stan-
dard wireless charge compatible
portable devices according to
the Wireless Power Consortium,
such as smartphones and
mobile batteries, etc., on the
charge area.

This function cannot be used
with portable devices that are
larger than the charging area.
Also, depending on the portable
device, it may not operate as
normal. Please read the opera-
tion manual for portable devices
to be used.

■

The “Qi” symbol

The “Qi” symbol is a trademark
of the Wireless Power Consor-
tium.

■

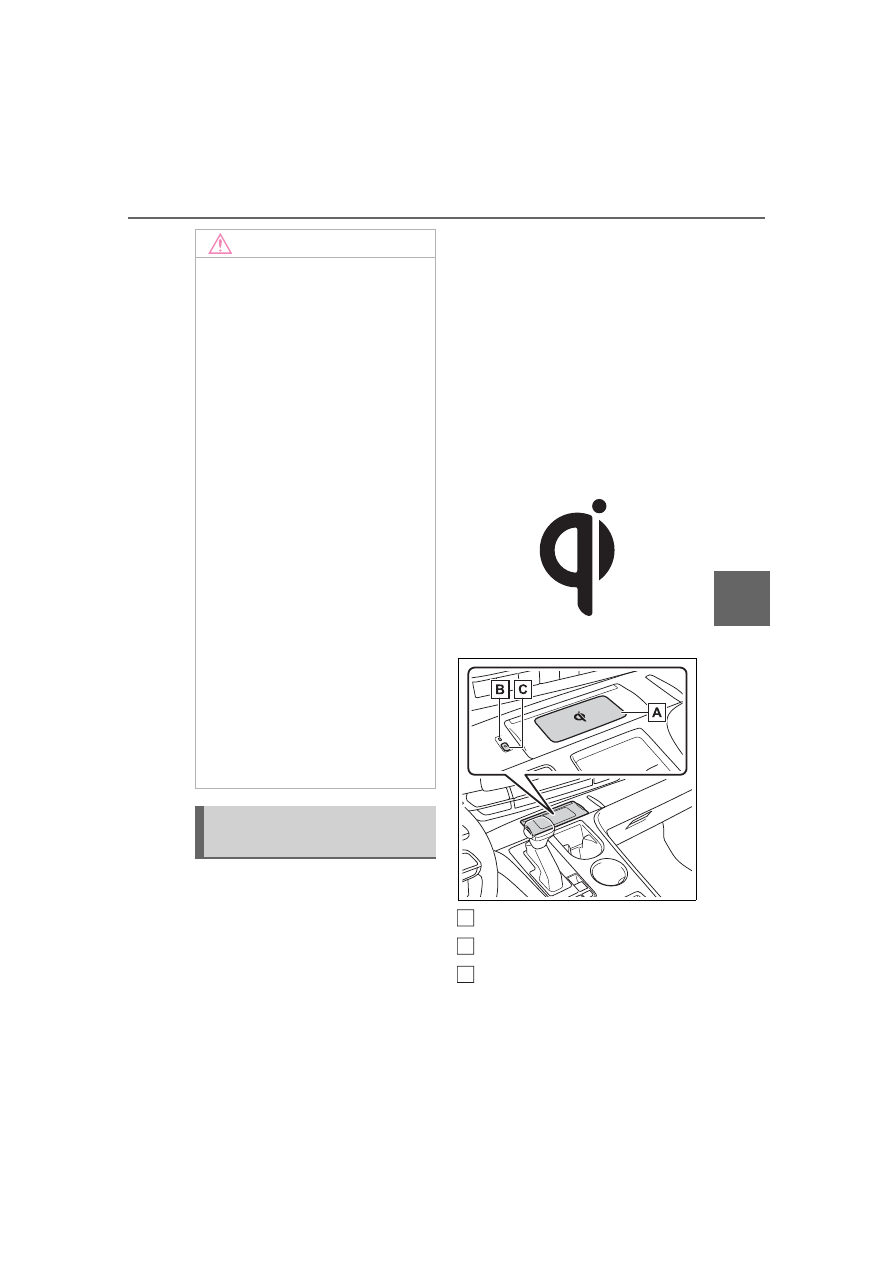

Name for all parts

Charge area

Operation indicator light

Power supply switch

NOTICE

●

Do not spill water or other liq-

uids into the ports.

●

Rear of console box: When the

USB charging ports are not in

use, close the lids. If a foreign

object or liquid enters a port

may cause a short circuit.

●

Do not apply excessive force to

or impact the USB charging

ports.

●

Do not disassemble or modify

the USB charging ports.

■

To prevent damage to exter-

nal devices

●

Do not leave external devices in

the vehicle. The temperature

inside the vehicle may become

high, resulting in damage to an

external device.

●

Do not push down on or apply

unnecessary force to an exter-

nal device or the cable of an

external device while it is con-

nected.

■

To prevent 12-volt battery dis-

charge

Do not use the USB charging

ports for a long period of time

when the hybrid system is off.

Wireless charger (if
equipped)

A

B

C

382

5-4. Using the other interior features

■

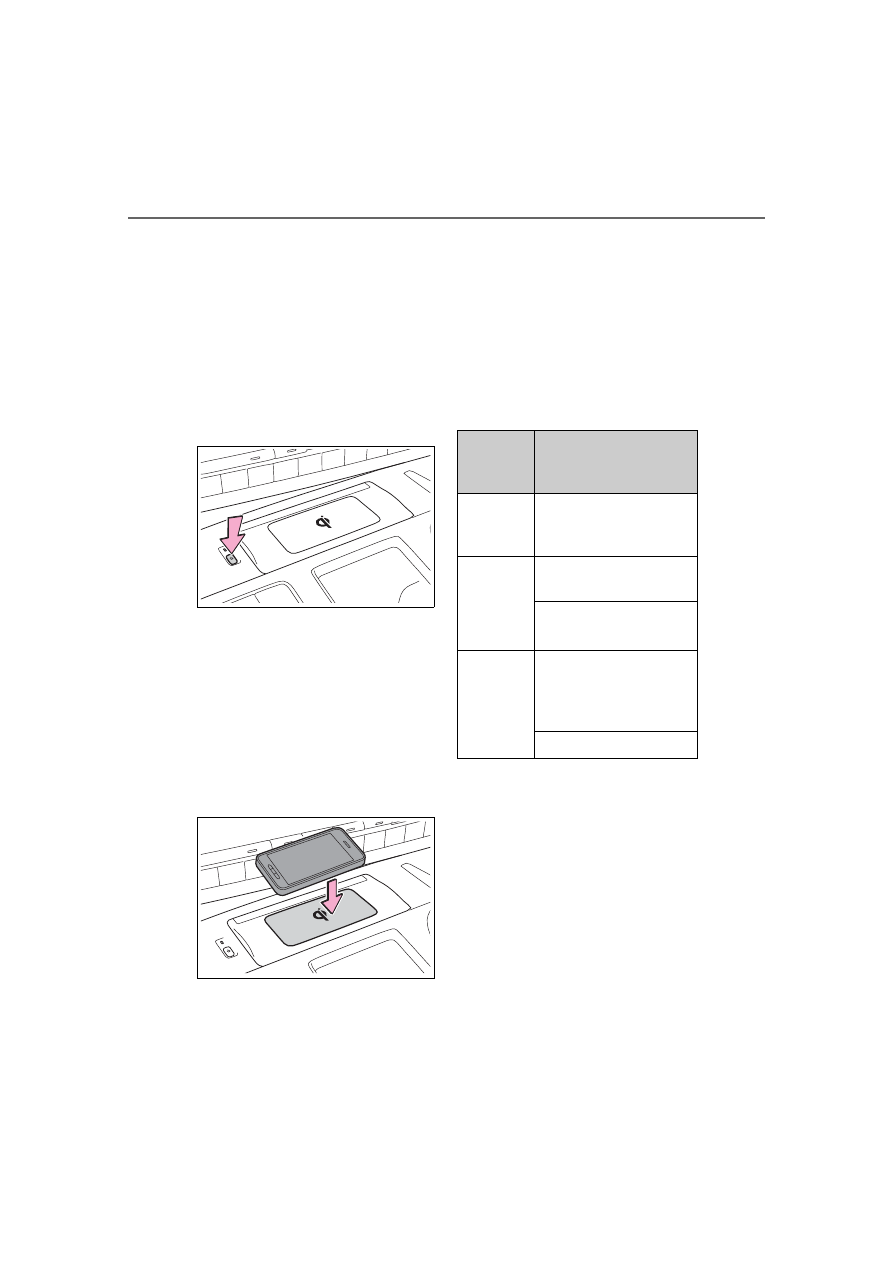

Using the wireless charger

1

Press the power supply
switch of the wireless char-
ger.

Switches on and off with each

press of the power supply switch.
When turned on, the operation indi-

cator light (green) comes on.
Even with the hybrid system off, the

on/off state of the power supply

switch is memorized.

2

Place the charging side of
the portable device down.

When charging, the operation indi-

cator light (orange) comes on.
If charging is not occurring, try plac-

ing the portable device as close to

the center of the charging area as

possible.
When charging is complete, the

operation indicator light (green)

comes on.

■

Recharging function



When charging is complete

and after a fixed time in the
charge suspension state,
charging restarts.



When the portable device is
moved, charging is stopped
for a moment and then it
restarts.

■

Lighting conditions of oper-
ation indicator light

*

: Depending on the portable

device, there are cases where the
operation indicator light will con-
tinue being lit up orange even
after the charging is complete.



When the operation indicator
light flashes

When an error occurs, the oper-
ation indicator light flashes an
orange color.
Handle the error based on the
following tables.

Operation

indicator

light

Conditions

Turning off

When the Wireless
charger power supply
is off

Green
(comes
on)

On Standby (charging
possible state)

When charging is com-
plete

*

Orange
(comes
on)

When placing the por-
table device on the
charging area (detect-
ing the portable device)

Charging

383

5-4. Using the other interior features

5

Interior

 featur

es

• Flashing repeatedly once

every second (Orange)

• Repeatedly flashes 3 times

continuously (Orange)

• Repeatedly flashes 4 times

continuously (Orange)

■

The wireless charger can be

operated when

The power switch is in ACC or ON.

■

Usable portable devices

Qi standard wireless charge stan-

dard can be used on compatible

devices.

However, not all Qi standard

devices and compatibility are guar-

anteed.
Starting with mobile phones and

smartphones, it is aimed for low

power electrically supplied portable

devices of no more than 5W.

■

When covers and accessories

are attached to portable devices

Do not charge in situations where

cover and accessories not able to

handle Qi are attached to the porta-

ble device. Depending on the type

of cover and accessory, it may not

be possible to charge. When

charging is not performed even with

the portable device placed on the

charge area, remove the cover and

accessories.

■

While charging, noise enters

the AM radio

Turn off the wireless charger and

confirm that the noise has

decreased. If the noise decreases,

continuously pushing the power

supply switch of the wireless char-

ger for 2 seconds, the frequency of

the charger can be changed and the

noise can be reduced.Also, on that

occasion, the operation indicator

Suspected

causes

Handling method

Vehicle to char-
ger communica-
tion failure.

If the power
switch is in ACC:
Turn the power
switch to ON.
If the power
switch is in ON:
Turn the power
switch off and
then back to ON.
If the operation
indicator light still
blinks after per-
forming the
above proce-
dure, contact
your Toyota
dealer.

Suspected

causes

Handling method

A foreign sub-
stance is
between the por-
table device and
charge area.

Remove the for-
eign substance
from between
portable device
and the charge
area.

The portable
device is out of
sync due to the
device being
shifted from the
center of the
charge area.

Place the porta-
ble device near
the center of the
charge area.

Suspected

causes

Handling method

Temperature ris-
ing within the
wireless charger.

Stop charging at
once and start
charging again
after for a while.

384

5-4. Using the other interior features

light will flash orange 2 times.

■

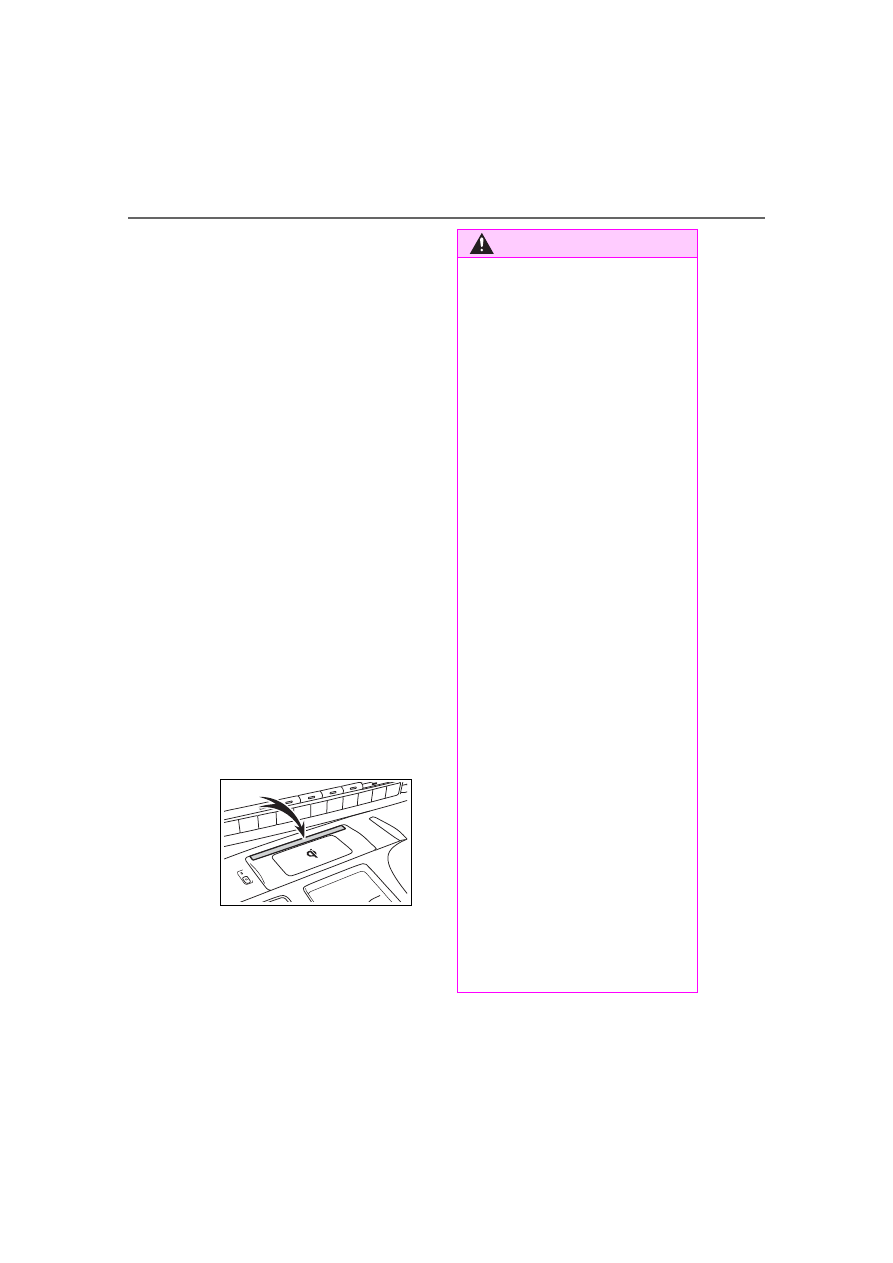

Important points of the wireless

charger

●

If the electronic key cannot be

detected within the vehicle inte-

rior, charging cannot be done.

When the door is opened and

closed, charging may be tempo-

rarily suspended.

●

When charging, the wireless

charging device and portable

device will get warmer, however

this is not a malfunction.

When a portable device gets

warm while charging, charging

may stop due to the protection

function on the portable device

side. In this case, when the tem-

perature of the portable device

drops significantly, charge again.

■

Operation sounds

When the power supply is turned

on, while searching for the portable

device a sound will be produced,

however this is not a malfunction.

■

Cleaning the wireless charger



P.404

■

Label indicating precautions for

using the wireless charger

There is a label on the wireless

charger. Follow the instructions on

the label.

WARNING

■

Caution while driving

When charging a portable device,

for safety reasons, the driver

should not operate the main part

of the portable device while driv-

ing.

■

Caution regarding interfer-

ence with electronic devices

People with implantable cardiac

pacemakers, cardiac resynchroni-

zation therapy-pacemakers or

implantable cardioverter defibrilla-

tors, as well as any other electri-

cal medical device, should consult

their physician about the usage of

the wireless charger. The opera-

tions of the wireless charger may

have an affect on medical

devices.

■

To prevent damage or burns

Observe the following precau-

tions.

Failure to do so may result in a

possibility of equipment failure

and damage, catch fire, burns due

to overheat.

●

Do not insert any metallic

objects between the charging

area and the portable device

while charging

●

Do not attach stickers, metallic

objects, etc., to the charger area

or portable device

●

Do not cover with cloth, etc.,

and charge

●

Do not charge portable devices

other than designated

●

Do not attempt to dismantle for

disassembly or modifications

●

Do not hit or apply a strong

force

385

5-4. Using the other interior features

5

Interior

 featur

es

Pull up the tab

 of the sun-

shade and hook the shade on
using the anchors.

To retract the sunshade, unhook
the sunshade and retract it slowly.

NOTICE

■

Conditions in which the func-

tion may not operate cor-

rectly

In the following conditions, it may

not operate correctly

●

The portable device is fully

charged

●

There is foreign matter between

the charge area and portable

device

●

The temperature of the portable

device gets higher from

charging

●

The charging surface of the por-

table device is facing up

●

The placement of the portable

device is out of alignment with

the charge area

●

Near a TV tower, electric power

plant, gas station, radio station,

large display, airport or other

facility that generates strong

radio waves or electrical noise

●

When the electronic key is in

contact with, or is covered by

the following metallic objects

• Cards to which aluminum foil is

attached

• Cigarette boxes that have alu-

minum foil inside

• Metallic wallets or bags
• Coins
• Hand warmers made of metal
• Media such as CDs and DVDs

●

When other wireless keys (that

emit radio waves) are being

used nearby

In addition, excluding the above-
mentioned, when the charger
does not perform normally or the
operation display lamp is flashing
continuously, it is considered that
the wireless charger is malfunc-
tioning. Contact authorized
Toyota dealer.

■

To prevent failure or damage

to data

●

Do not bring magnetic cards,

such as credit cards, or mag-

netic recording media, etc.,

close to the charger while

charging, otherwise, data may

disappear under the influence of

magnetism. Also, do not bring

precision instruments such as

wrist watches, etc., close to the

charger, as such objects may

break.

●

Do not leave portable devices in

the cabin. The temperature

inside the cabin may become

high, when under the sun, and

cause damage to the device.

■

To prevent 12-volt battery dis-

charge

When the hybrid system is

stopped, do not use the wireless

charger for a long time.

Sunshades

A

386

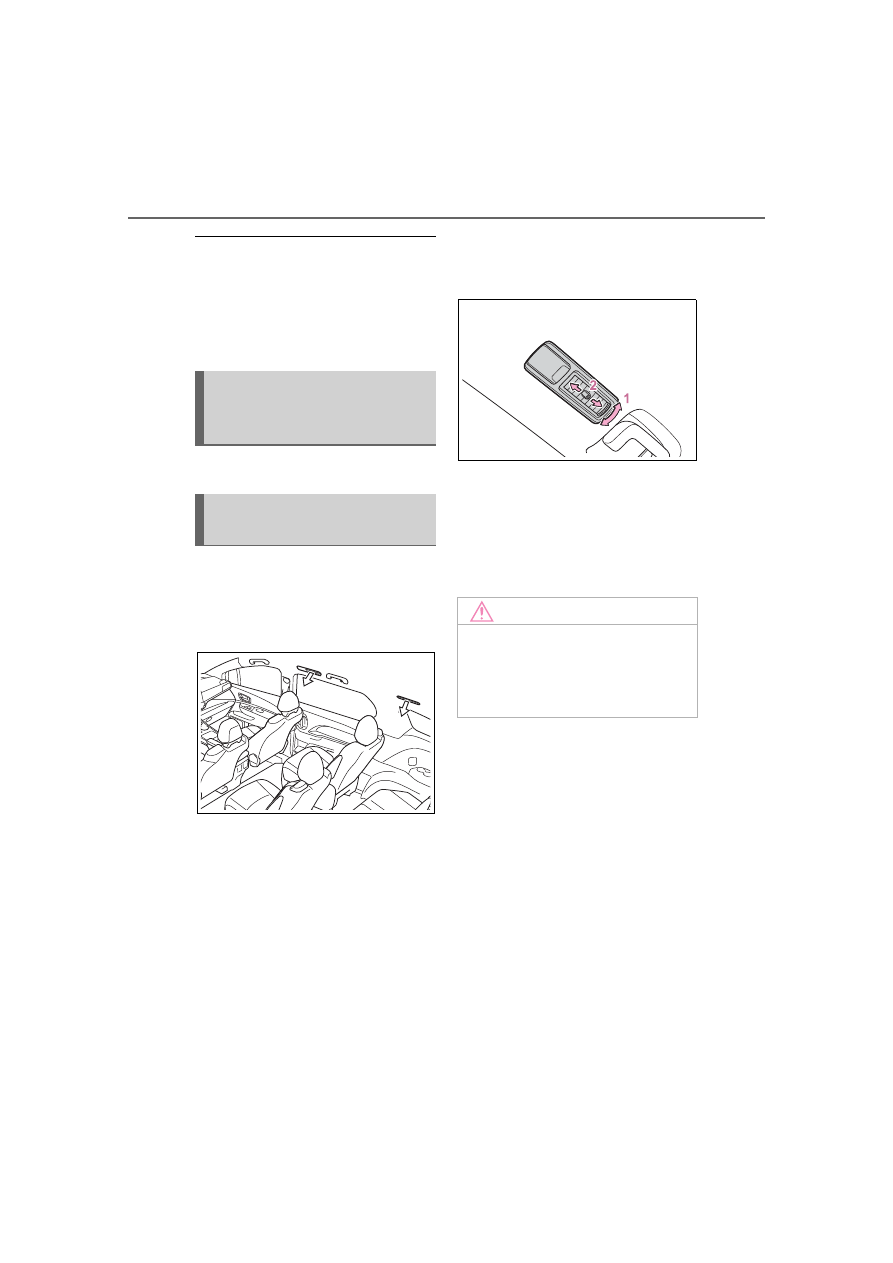

5-4. Using the other interior features



Rear side windows



Rear quarter windows (if
equipped)

Fold down the armrest for use.



Type A

An assist grip installed on the
ceiling can be used to support
your body while sitting on the

NOTICE

■

To ensure normal operation

of the sunshades

Observe the following precau-

tions:

●

Do not place anything where it

may hinder the opening/closing

of the sunshades.

●

Do not attach items to the sun-

shades.

●

Do not apply excessive load to

the sunshades while they are

hanging from the hooks.

●

Do not operate the sunshade for

the rear side windows while the

sliding door is opening/closing.

●

Do not store the sunshade in a

tilted position.

If stored in a tilted position, the

sunshade screen may become

creased.

■

To prevent damage to the

sunshade

Observe the following precau-

tions:

●

Do not use the sunshade when

either hook is detached.

When the sliding door is

opened/closed, the sunshade

may be damaged.

●

Do not pull on the screen while

the hooks are attached.

The screen may be damaged.

Armrest

NOTICE

■

To prevent damage to the

armrest

Do not apply too much load on the

armrest.

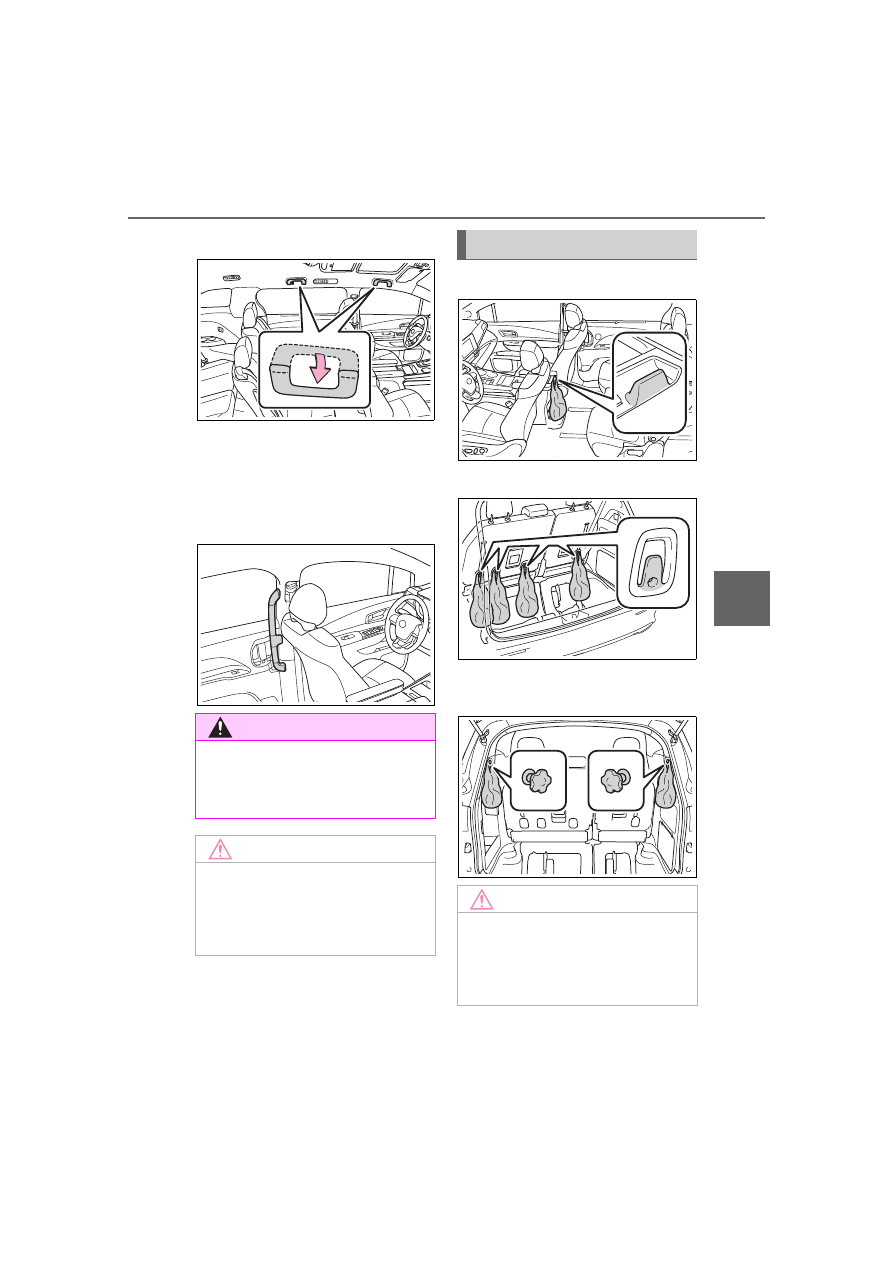

Assist grips

387

5-4. Using the other interior features

5

Interior

 featur

es

seat.



Type B

An assist grip installed on the
pillar can be used when getting
in or out of the vehicle and oth-
ers.



Type A (rear of console box)



Type B (third seatback)



Type C (luggage compart-
ment)

WARNING

■

Assist grips

Type A: Do not use the assist grip

when getting in or out of the vehi-

cle or rising from your seat.

NOTICE

■

To prevent damage to the

assist grip

Do not hang any heavy object or

put a heavy load on the assist

grip.

Grocery bag hooks

NOTICE

■

To prevent damage to the

grocery bag hooks

Type A and B: Do not hang any

object heavier than 6.6 lb. (3 kg)

on the grocery bag hook.

388

5-4. Using the other interior features

The coat hooks are provided
with the rear assist grips.

■

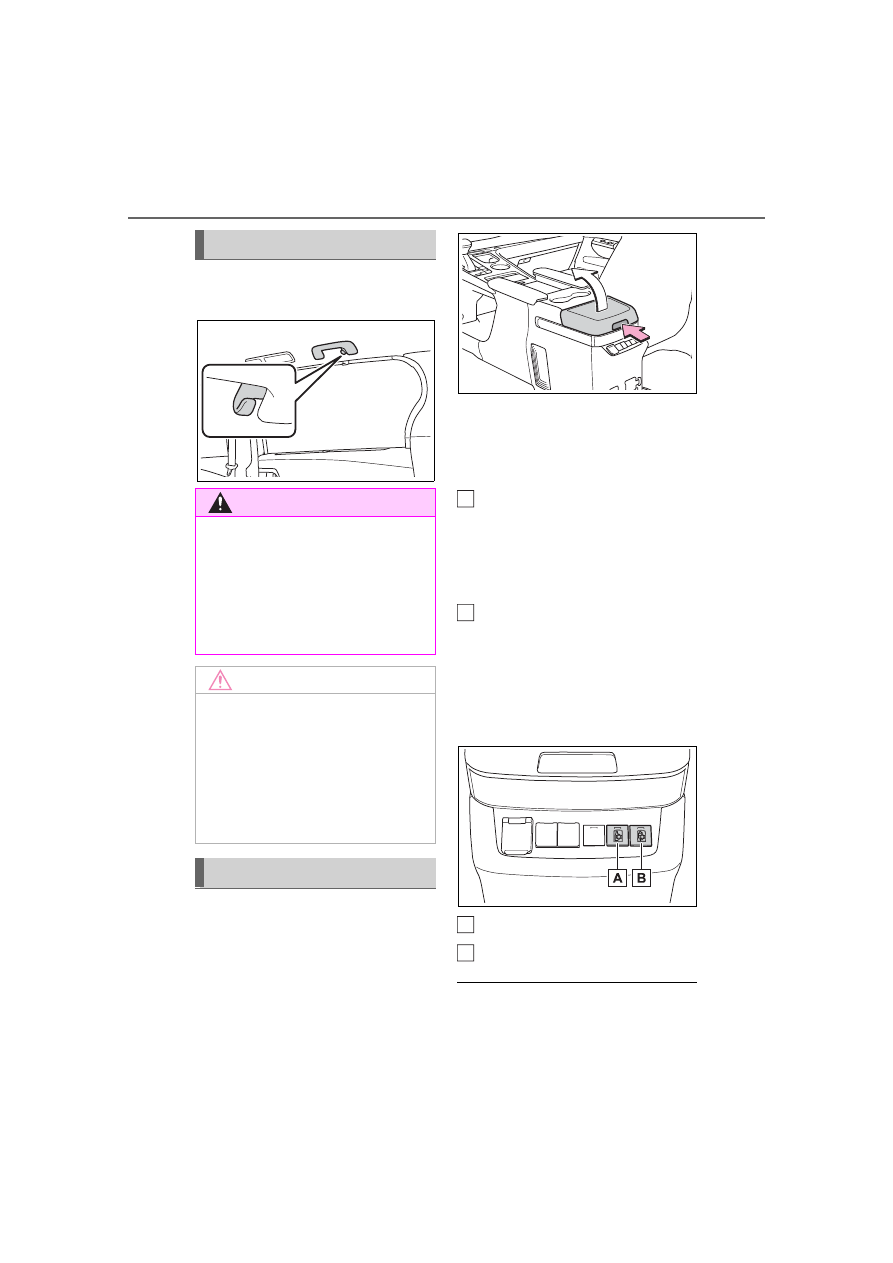

Opening the refrigerator lid

Press the button to open.

■

Turning the refrigerator
on/off

To turn the cooler mode on,
press the cooler mode switch

.

When turned on, the indicator on
the switch comes on.

To turn the freeze mode on,
press the freeze mode switch

.

When turned on, the indicator on
the switch comes on.

To turn the refrigerator off, press
the switch which indicator is illu-
minated.

Cooler mode switch

Freeze mode switch

■

The refrigerator can be used

when

The power switch is in ON.

Coat hooks

WARNING

■

Items that must not be

hanged on the hook

Do not hang coat hangers or

other hard or sharp objects on the

hook. If the SRS curtain shield air-

bags deploy, these items may

become projectiles, causing death

or serious injury.

NOTICE

■

Coat hooks

●

Do not hang heavy objects on

the hooks.

●

When using the coat hook in the

assist grip of the second seats,

be careful not to get the hooked

object caught in the sliding

doors being opened or closed.

Refrigerator (if equipped)

A

B

A

B

389

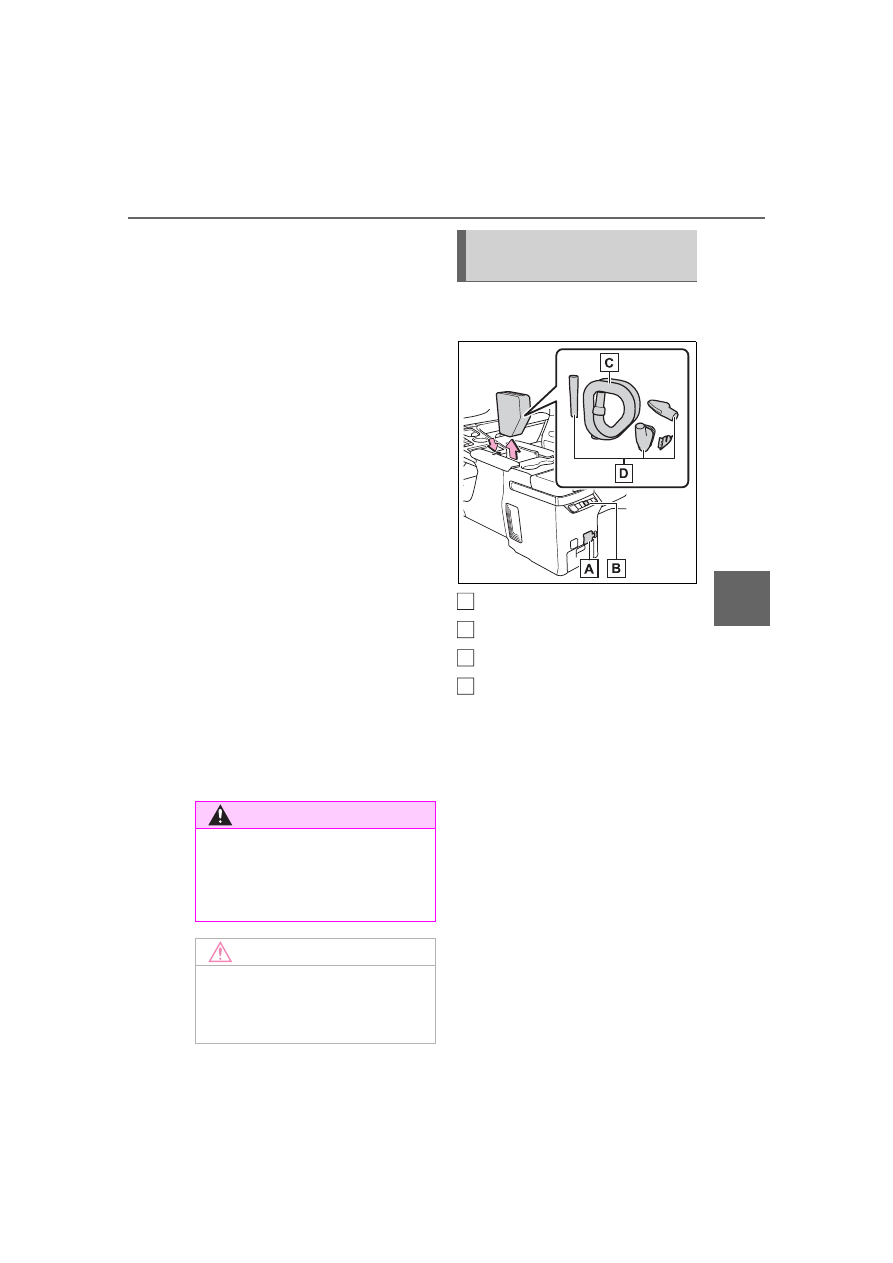

5-4. Using the other interior features

5

Interior

 featur

es

■

Things unsuitable for the refrig-

erator

●

Drinks in unsealed containers

●

Fragile things, perishables or any-

thing with strong odor

■

To use the refrigerator effec-

tively

●

Do not keep too many things in

the refrigerator.

●

Cool things in advance before it is

put in the refrigerator. Especially,

hot things should be cooled off.

●

When storing watery things, wrap

them up.

●

Before using the freeze mode,

make sure that all items in the

cooler box are suitable for freez-

ing.

●

To prevent the inside temperature

from getting higher, avoid stop-

ping the hybrid system for a long

time when using the refrigerator.

■

After using the refrigerator

Water droplets inside of the refriger-

ator may cause an odor. It is recom-

mended to frequently wipe off water

droplets.

■

Cleaning the refrigerator

Clean the inside of the refrigerator

using a soft cloth dampened with a

diluted neutral detergent, and then

make sure to dry.

■

Location of the compo-
nents

Vacuum port

Vacuum cleaner switch

Hose

Cleaning heads

■

Before using the vacuum
cleaner



Stop the vehicle in a safe
place.



Set the parking brake.



Shift the shift lever to P.



Make sure the power switch is
in ON.



Make sure the vacuum dust
bin is securely installed.



Make sure the pre-filter and
main-filter are securely
installed in the dust bin.

WARNING

■

Caution while driving

Always keep the refrigerator

closed to reduce the chance of

injury in case of an accident or

sudden stop.

NOTICE

■

To prevent battery discharge

Do not leave the refrigerator on

longer than necessary when the

hybrid system is not running.

Vacuum cleaner (if
equipped)

A

B

C

D

390

5-4. Using the other interior features

■

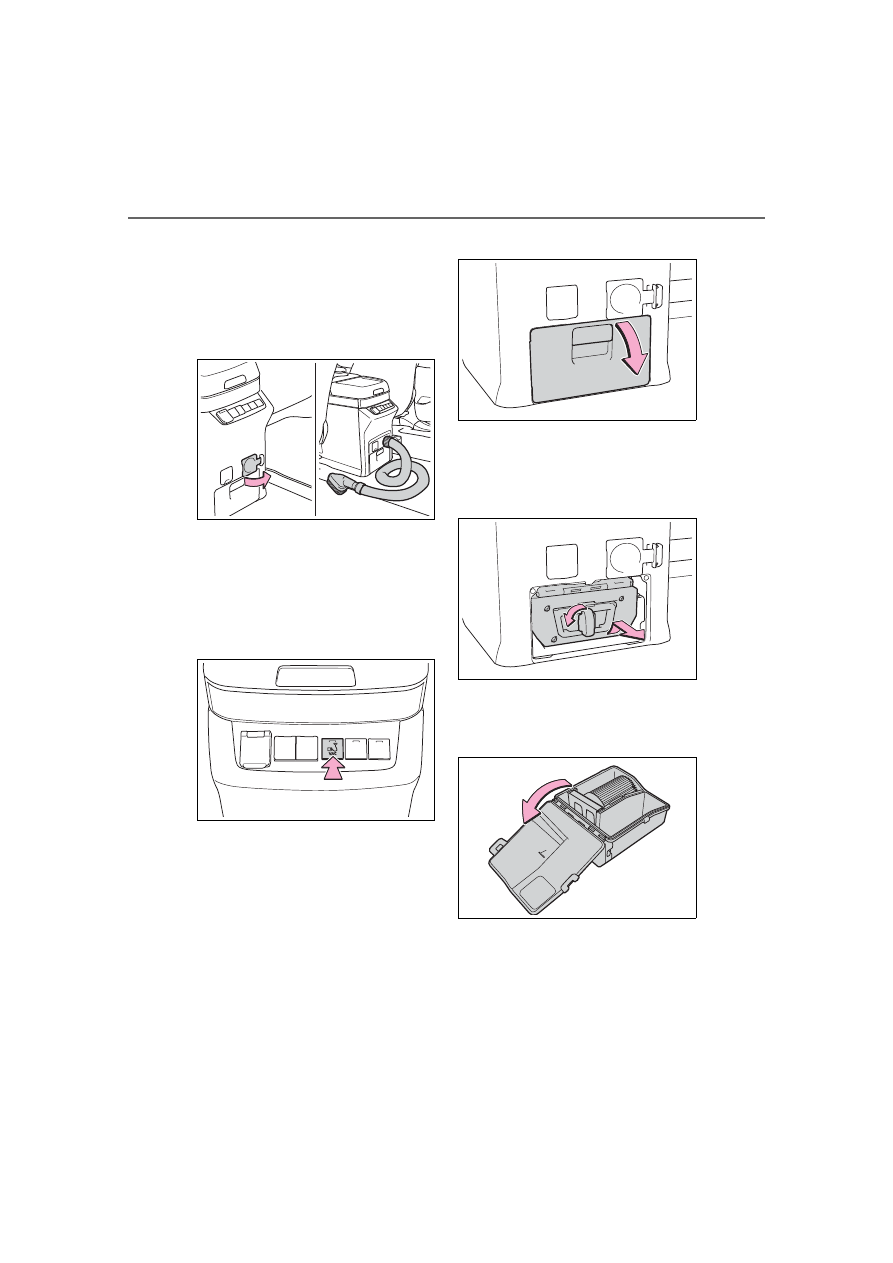

When using the vacuum
cleaner

1

Open the lid and install the
hose and cleaning head.

Make sure that the hose and clean-

ing head are securely installed.

2

Press the switch.

The vacuum cleaner can be used

when the indicator on the switch is

illuminated.
The vacuum cleaner is turned

off/on each time the switch is

pressed.

■

After using the vacuum
cleaner

1

Remove the hose and clean-
ing head and stow them.

2

Remove the access panel.

3

Rotate the handle counter-
clockwise, and lift up and pull
the handle to take out the
dust bin.

4

Open the lid and check the
dust bin, and empty it if nec-
essary.

5

To reinstall the dust bin,
make sure that the handle is

391

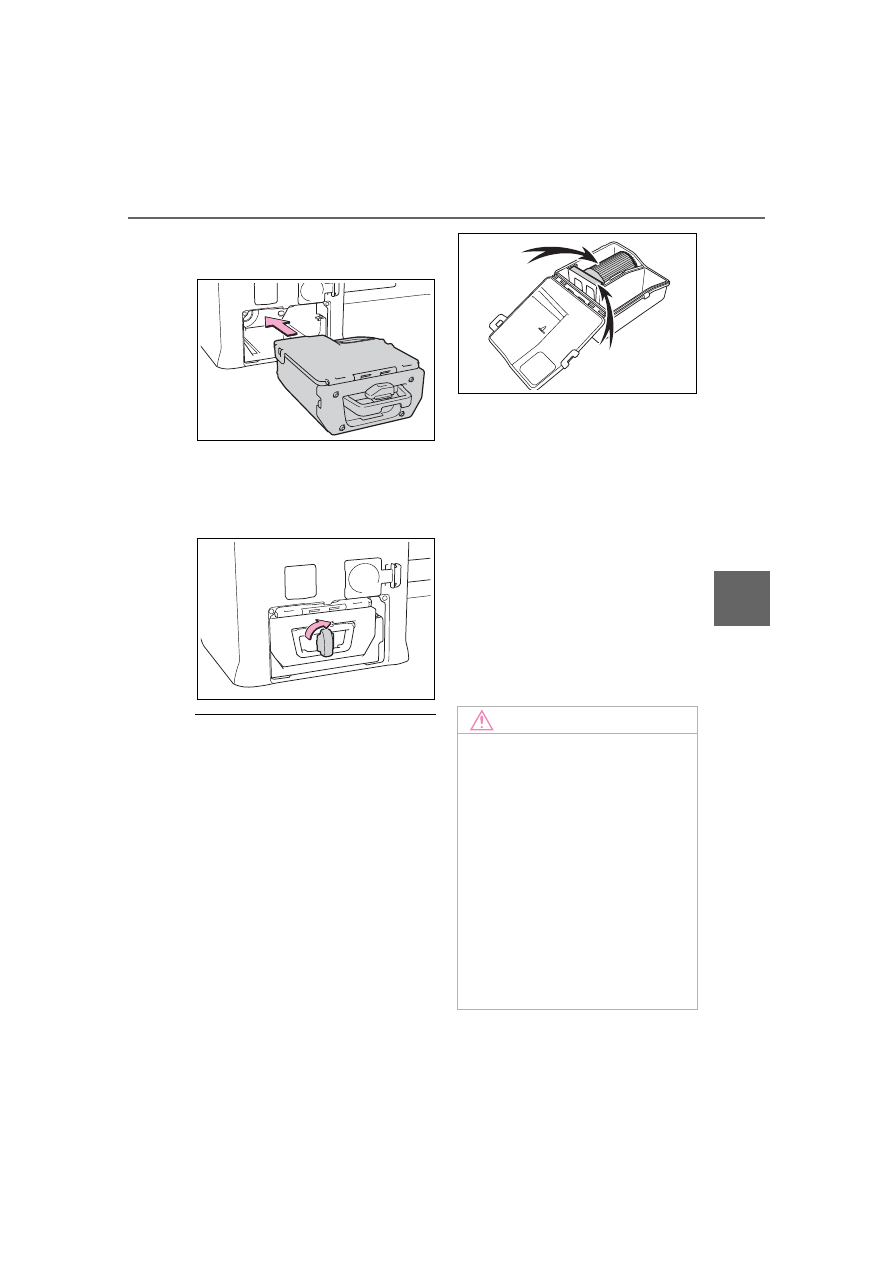

5-4. Using the other interior features

5

Interior

 featur

es

in “up” position and put the
dust bin forward.

6

While pushing the handle
down, rotate the handle
clockwise to secure the dust
bin.

■

Operating conditions of the

vacuum cleaner

The power switch is in ON.

■

Vacuum filter

Toyota recommends checking or

changing the filters after every 10

uses.
Replace the filters if they are

clogged. New filters are available at

your Toyota dealer.

■

If the vacuum cleaner does not

operate properly

Check the following:

●

The vacuum hose is securely

installed

●

The dust bin is securely installed

●

The filters are not clogged

●

The vacuum hose is not damaged

●

The power switch is in ON, and

the parking brake is set.

■

Cleaning the vacuum cleaner

Clean the vacuum cleaner using a

soft cloth dampened with diluted

neutral detergent, and then make

sure to dry all the parts. Take care

not to wet the filter.

NOTICE

■

To prevent damage to the

vacuum cleaner

●

Do not use the vacuum cleaner

without dust bin securely

installed.

●

Do not use the vacuum cleaner

without both pre-filter and main-

filter installed in the dust bin.

●

Do not vacuum liquids or other

spills.

●

Do not apply excessive force to

the vacuum hose.

●

Do not use alcohol or solvent to

clean the vacuum cleaner.

392

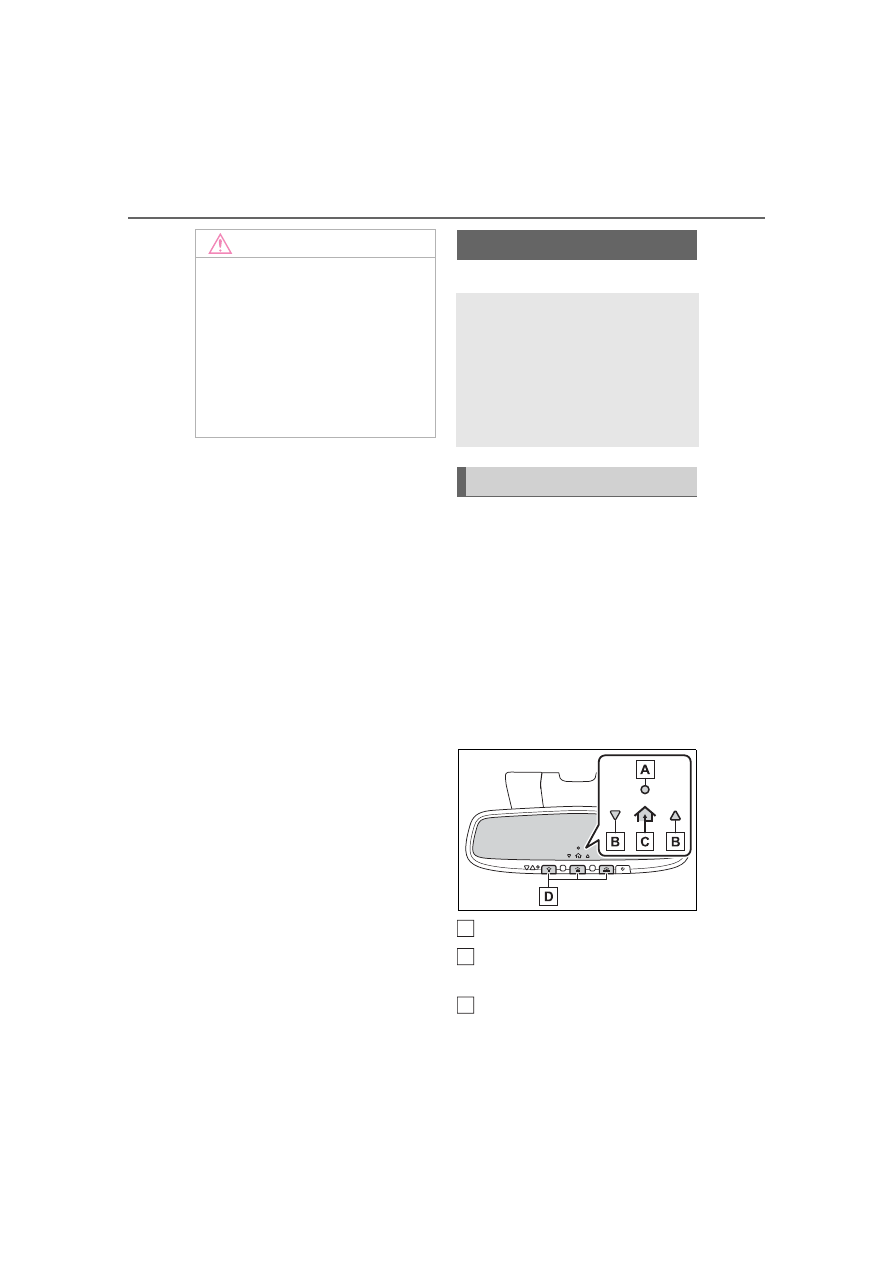

5-4. Using the other interior features

*

: If equipped

The HomeLink

®

 wireless control

system in your vehicle has 3
buttons which can be pro-
grammed to operate 3 different
devices. Refer to the program-
ming methods on the following
pages to determine the method
which is appropriate for the
device.



Vehicles with auto anti-glare
inside rear view mirror

HomeLink

®

 indicator light

Garage door operation indi-
cators

HomeLink

®

 icon

Illuminates while HomeLink

®

 is

NOTICE

●

Do not get the pre-filter and

main-filter wet, or clean the fil-

ters. If the filters get dirty, con-

tact your Toyota dealer to have

the filters changed.

■

To prevent 12-volt battery dis-

charge

Make sure to use the vacuum

cleaner with the power switch in

ON.

Garage door opener

*

The garage door opener can
be programmed using the
HomeLink

®

 to operate

garage doors, gates, entry
doors, door locks, home
lighting systems, security
systems, and other devices.

System components

A

B

C

393

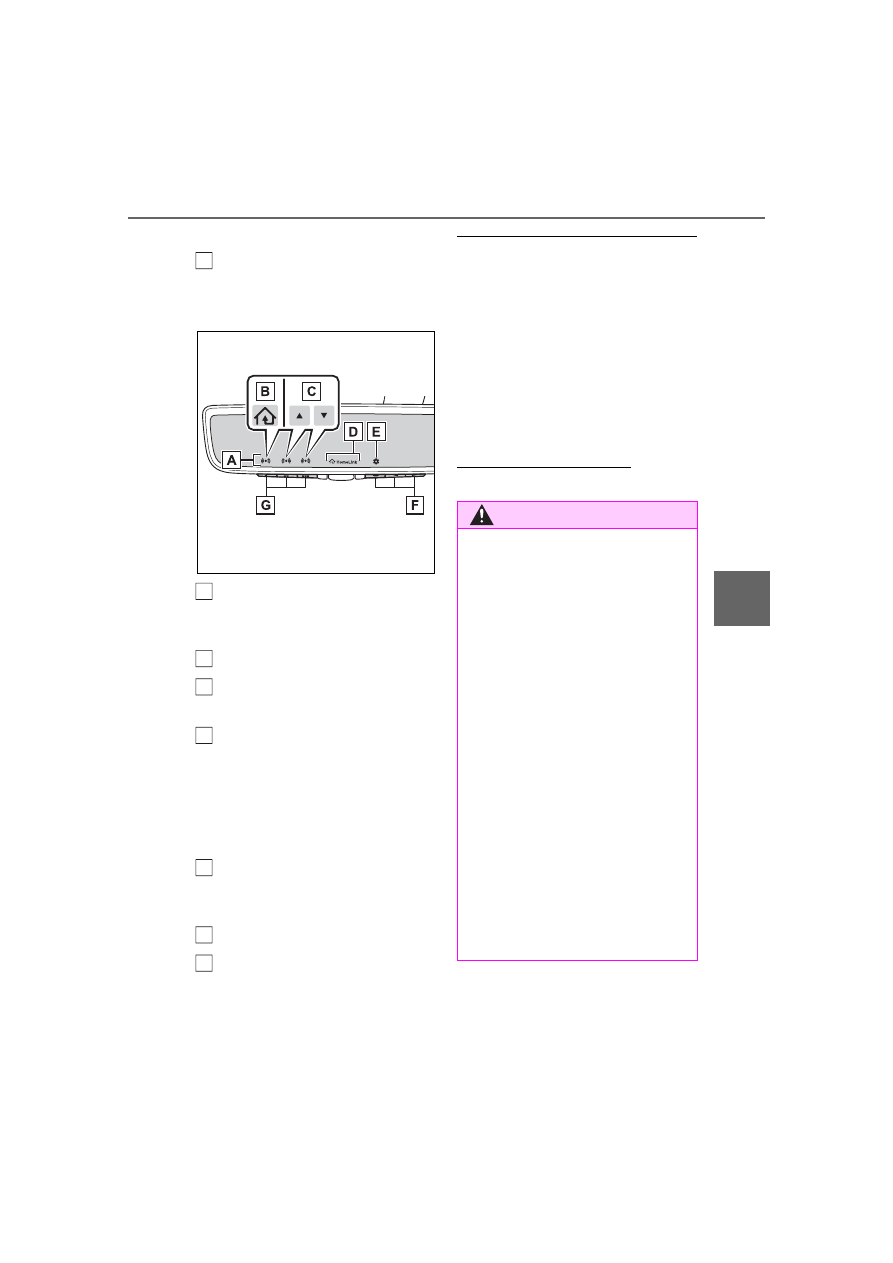

5-4. Using the other interior features

5

Interior

 featur

es

operating.

Buttons



Vehicles with Digital Rear-
view Mirror

HomeLink

®

 indicator light

Illuminates above each button
selected.

HomeLink

®

 icon

Garage door operation indi-
cators

HomeLink

®

 logo

Appears while HomeLink

®

 is oper-

ating.
When the menu button (



P.189) is

pressed, the logo disappears even
while the HomeLink

®

 is operating.

Setting icon

Press the menu button to change
the setting.

Menu buttons

HomeLink

®

 buttons

■

Codes stored in the HomeLink

®



memory

●

The registered codes are not

erased even if the 12-volt battery

cable is disconnected.

●

If learning failed when registering
a different code to a HomeLink

®



button that already has a code

registered to it, the already regis-

tered code will not be erased.

■

When support is necessary

Visit on the web at

www.homelink.com/toyota or call 1-

800-355-3515.

D

A

B

C

D

E

F

G

WARNING

■

When programming a garage

door or other remote control

device

The garage door or other device

may operate, so ensure people

and objects are out of danger to

prevent potential harm.

■

Conforming to federal safety

standards

Do not use the HomeLink

®

 com-

patible transceiver with any

garage door opener or device that

lacks safety stop and reverse fea-

tures as required by federal safety

standards.
This includes any garage door

that cannot detect an interfering

object. A door or device without

these features increases the risk

of death or serious injury.

■

When operating or program-
ming HomeLink

®

Never allow a child to operate or
play with the HomeLink

®

 buttons.

394

5-4. Using the other interior features

■

Before programming
HomeLink

®



During programming, it is pos-
sible that garage doors,
gates, or other devices may
operate. For this reason,
make sure that people and
objects are clear of the
garage door or other devices
to prevent injury or other
potential harm.



It is recommended that a new
battery be placed in the
remote control transmitter for
successful programming.



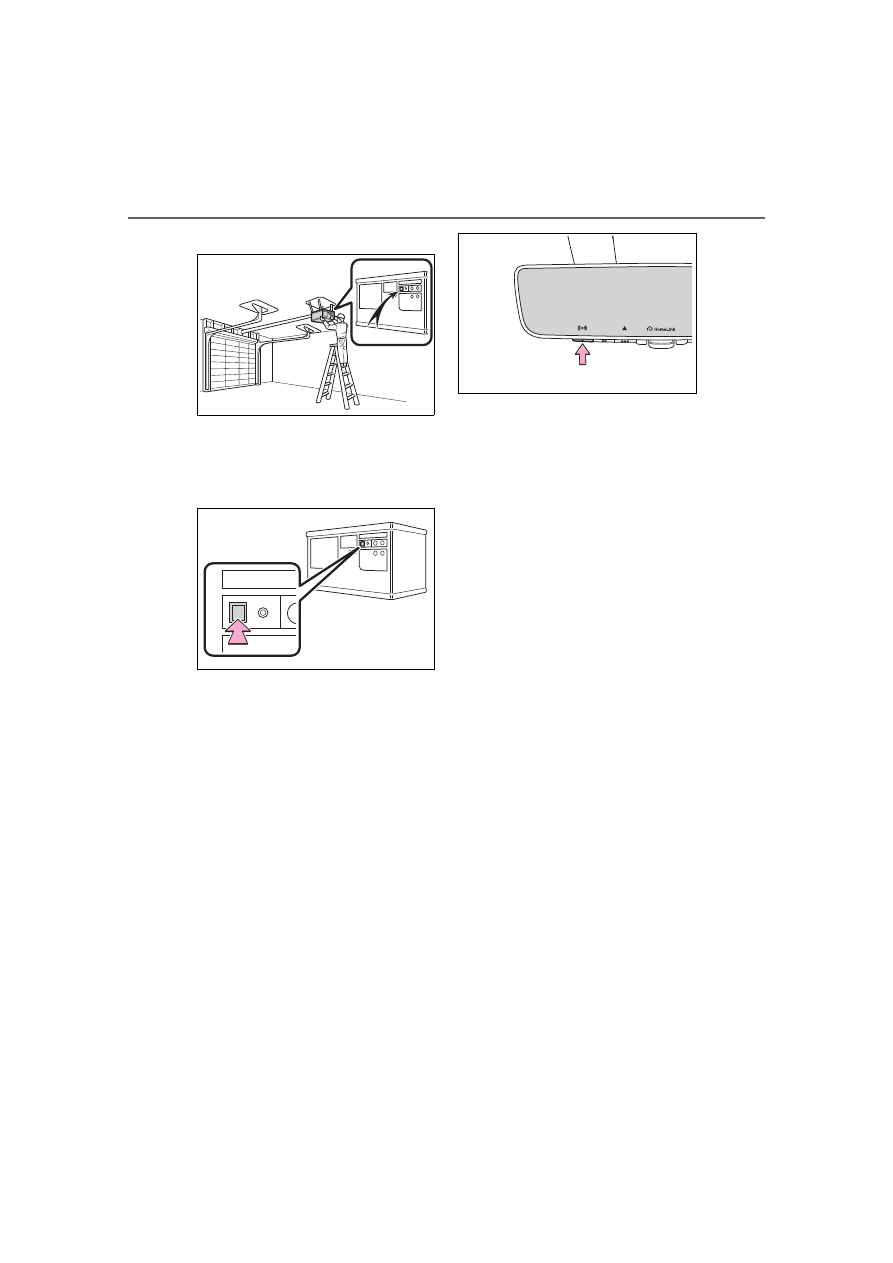

Garage door opener motors
manufactured after 1995 may
be equipped with rolling code
protection. If this is the case,
you may need a stepladder or
other sturdy, safe device to
reach the “Learn” or “Smart”
button on the garage door
opener motor.

■

Programming HomeLink

®

Steps

2

 through

4

 must be per-

formed within 60 seconds, oth-
erwise the HomeLink

®

 indicator

light will stop flashing and pro-
gramming will not be success-
fully completed.

1

Vehicles with Digital Rear
view Mirror: Press the
HomeLink

®

 button or menu

button When the HomeLink

®



button is pressed: Home-
link

®

 Training Tutorial will be

displayed to assist you pro-
gramming the HomeLink

®

.

When the menu button is pressed:
Press the menu button

 and

select the “SET UP”. Homelink

®



Training Tutorial will be displayed

to assist you programming the
HomeLink

®

.

2

Press and release the
HomeLink

®

 button you want

to program and check that
the HomeLink

®

 indicator light

flashes (orange).

3

Point the remote control
transmitter for the device at
the rear view mirror, 1 to 3 in.
(25 to 75 mm) from the
HomeLink

®

 buttons.

Keep the HomeLink

®

 indicator light

in view while programming.

Programming HomeLink

®

395

5-4. Using the other interior features

5

Interior

 featur

es

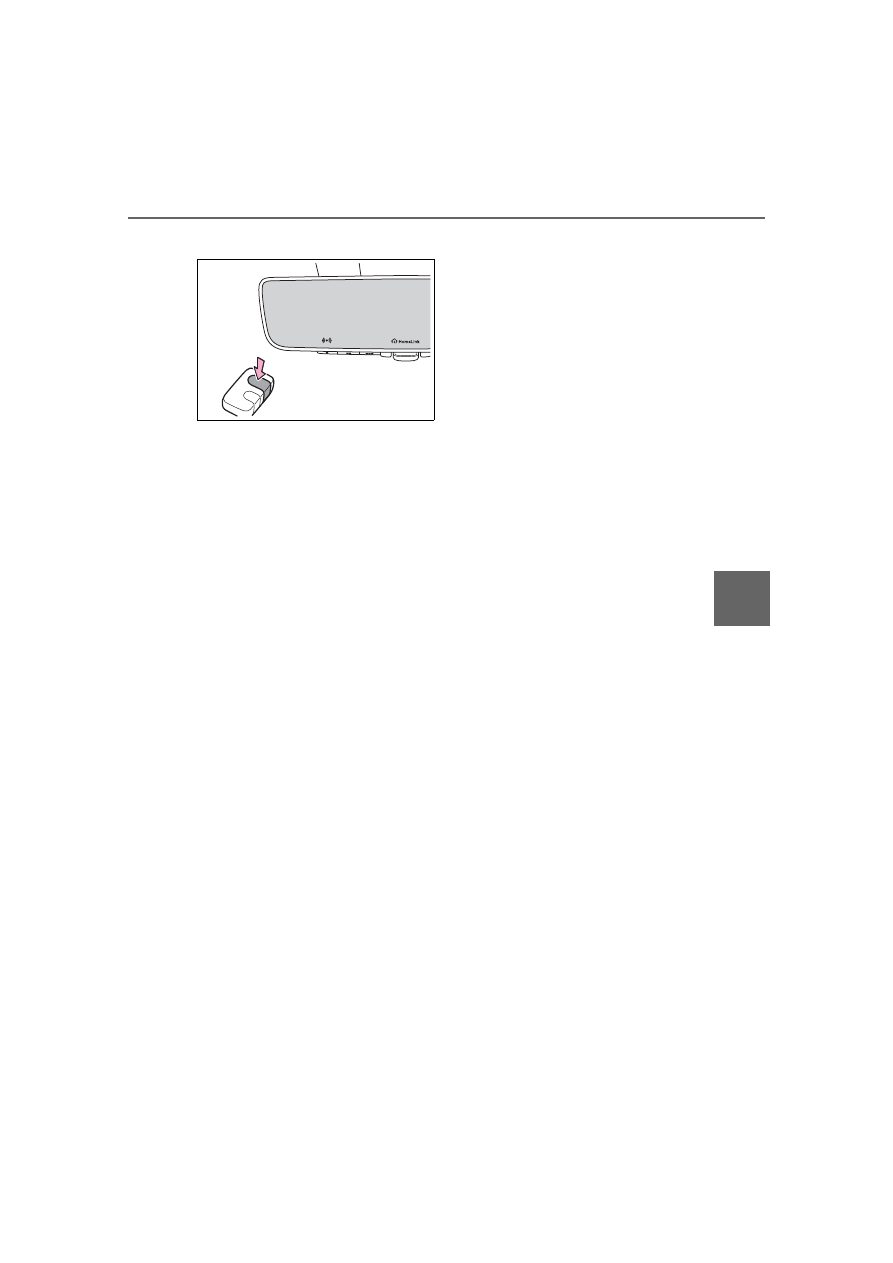

4

Program a device.



Programming a device other
than an entry gate (for U.S.A.
owners)

Press and hold the remote con-
trol transmitter button until the
HomeLink

®

 indicator light

changes from slowly flashing
orange to rapidly flashing green
(rolling code) or continuously lit
green (fixed code), then release
the button.



Programming an entry gate
(for U.S.A. owners)/Program-
ming a device in the Cana-
dian market

Press and release the remote
control transmitter button at 2
second intervals, repeatedly,
until the HomeLink

®

 indicator

light changes from slowly flash-
ing orange to rapidly flashing
(green) (rolling code) or continu-
ously lit (green) (fixed code).

5

Test the HomeLink

®

 opera-

tion by pressing the newly
programmed button and
observing the HomeLink

®



indicator light:



HomeLink

®

 indicator light illu-

minates: Programming of a
fixed code device has com-
pleted. The garage door or
other device should operate
when a HomeLink

®

 button is

pressed and released.



HomeLink

®

 indicator light

flashes rapidly: The garage
door opener or other device is
equipped with a rolling code.
To complete programming,
firmly press and hold the
HomeLink

®

 button for 2 sec-

onds then release it.



If the garage door or other
device does not operate, pro-
ceed to “Programming a roll-
ing code system”.

6

Repeat the steps above to
program another device for
any of the remaining
HomeLink

®

 buttons.

■

Programming a rolling code
system

Two or more people may be
needed to complete rolling code
programming.

1

Locate the “Learn” or “Smart”
button on the garage door
opener motor in the garage.

This button can usually be found

where the hanging antenna wire is

attached to the unit. The name and

color of the button may vary by

manufacturer. Refer to the owner’s

manual supplied with the garage

396

5-4. Using the other interior features

door opener motor for details.

2

Press and release the
“Learn” or “Smart” button.

Perform

3

 within 30 seconds after

performing

2

.

3

Press and hold the desired
HomeLink

®

 button (inside the

vehicle) for 2 seconds and
release it. Repeat this
sequence
(press/hold/release) up to 3
times to complete program-
ming.
If the garage door opener
motor operates when the
HomeLink

®

 button is

pressed, the garage door
opener motor recognizes the
HomeLink

®

 signal.

■

Enabling 2-way communi-
cation with a garage door
(only available for compati-
ble devices)

When enabled, 2-way communi-
cation allows you to check the
status of the opening and clos-
ing of a garage door through
indicators in your vehicle.
2-way communication is only
available if the garage door
opener motor used is a compati-
ble device. (To check device
compatibility, refer to
www.homelink.com.)

1

Within 5 seconds after pro-
gramming the garage door
opener has been completed,
if the garage door opener
motor is trained to
HomeLink

®

, both garage

door operation indicators will
flash rapidly (green) and the
light on the garage door
opener motor will blink twice,
indicating that 2-way commu-
nication is enabled.

If the indicators do not flash, per-

form

2

 and

3

 within the first 10

presses of the HomeLink

®

 button

after programming has been com-
