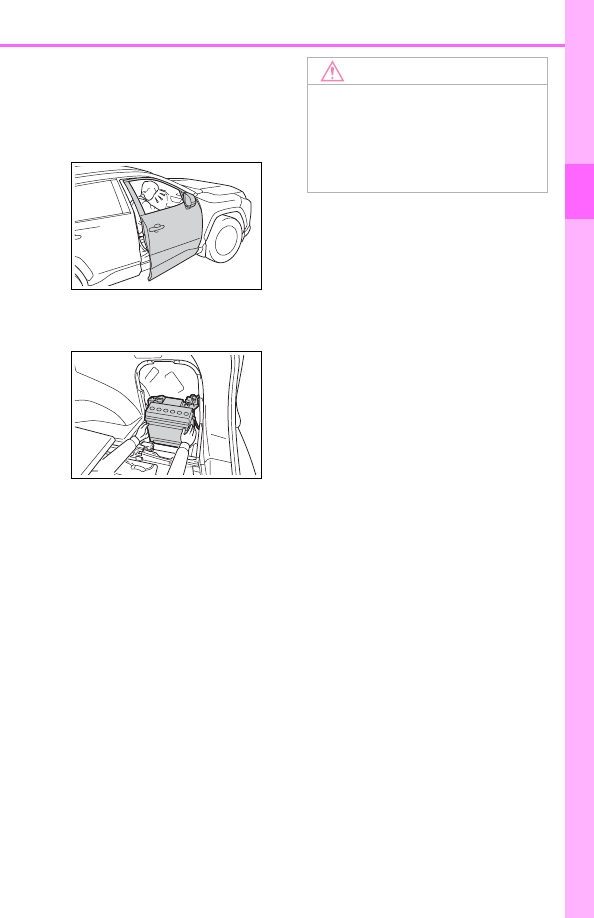

1-4. Hybrid system

When a certain level of impact is
detected by the impact sensor,
the emergency shut off system
blocks the high voltage current
and stops the fuel pump to mini-
mize the risk of electrocution
and fuel leakage. If the emer-
gency shut off system activates,
your vehicle will not restart. To
restart the hybrid system, con-

tact your Toyota dealer.

A message is automatically dis-
played when a malfunction
occurs in the hybrid system or
an improper operation is
attempted.
If a warning message is shown
on the multi-information display,
read the message and follow the
instructions.

■

If a warning light comes on, a

warning message is displayed,

or the 12-volt battery is discon-

nected

The hybrid system may not start. In

this case, try to start the system

again. If the “READY” indicator does

not come on, contact your Toyota

dealer.

NOTICE

●

Do not get water or foreign

materials in the air intake vent

as this may cause a short circuit

and damage the hybrid battery

(traction battery).

●

Do not carry large amounts of

water such as water cooler bot-

tles in the vehicle. If water spills

onto the hybrid battery (traction

battery), the battery may be

damaged. Have the vehicle

inspected by your Toyota

dealer.

●

There is a filter installed to the

air intake vent. When the filter

remains noticeably dirty even

after cleaning the air intake

vent, filter cleaning or replace-

ment is recommended. For

information regarding filter

cleaning or replacement, refer

to P.611.

●

If “Maintenance Required for

Traction Battery Cooling Parts

See Owner’s Manual” is shown

on the multi-information dis-

play, the air intake vent and fil-

ter may be clogged. Refer to

P.611for information on how to

clean the air intake vent.

Emergency shut off sys-
tem

Hybrid warning message

81

1-5. Theft deterrent system

1

F

o

r s

afety
 and s

ecurity

1-5.Theft deterrent system



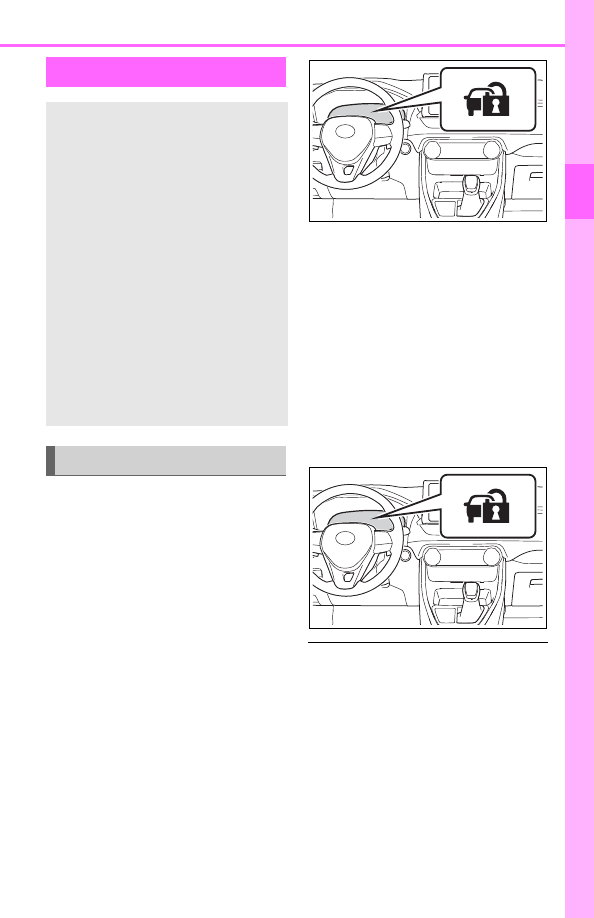

Vehicles without smart key
system

The indicator light flashes after
the key has been removed from
the power switch to indicate that
the system is operating.
The indicator light goes off after
the registered key has been
inserted into the power switch to
indicate that the system has
been canceled.



Vehicles with smart key sys-
tem

The indicator light flashes after
the power switch has been
turned to OFF to indicate that
the system is operating.
The indicator light goes off after
the power switch has been
turned to ACC or ON to indicate
that the system has been can-
celed.

■

System maintenance

The vehicle has a maintenance-free

type immobilizer system.

■

Conditions that may cause the

system to malfunction

●

If the grip portion of the key is in

contact with a metallic object

●

If the key is in close proximity to or

touching a key to the security sys-

tem (key with a built-in transpon-

der chip) of another vehicle

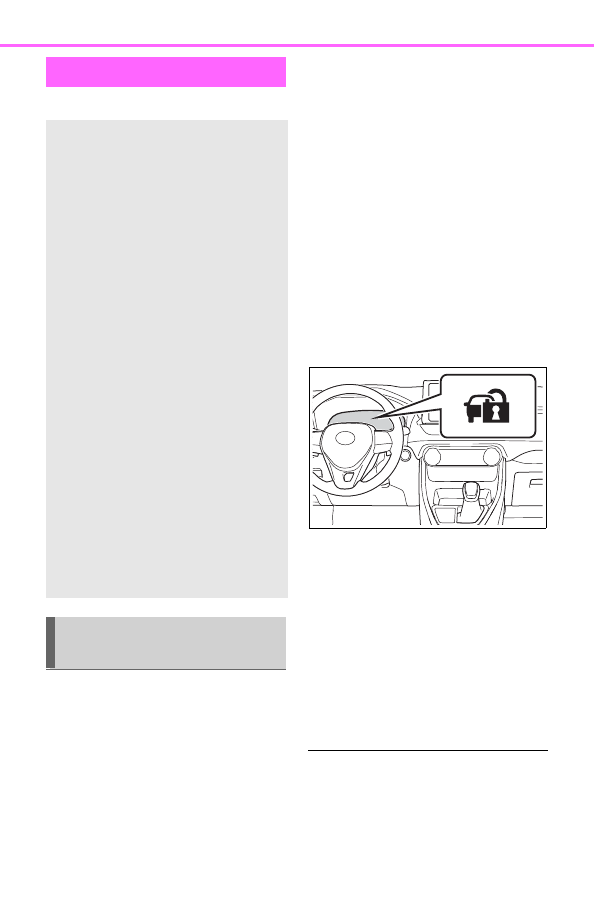

Immobilizer system

The vehicle’s keys have
built-in transponder chips
that prevent the hybrid sys-
tem from starting if a key
has not been previously
registered in the vehicle’s
on-board computer.
Never leave the keys inside
the vehicle when you leave
the vehicle.

This system is designed to
help prevent vehicle theft but
does not guarantee absolute
security against all vehicle
thefts.

Operating the system

82

1-5. Theft deterrent system

■

Certification for the immobilizer system



For vehicles sold in the U.S.A., Hawaii, American Samoa, Guam, Saipan

and Puerto Rico



For vehicles sold in Canada

83

1-5. Theft deterrent system

1

F

o

r s

afety
 and s

ecurity

NOTICE

■

To ensure the system oper-

ates correctly

Do not modify or remove the sys-

tem. If modified or removed, the

proper operation of the system

cannot be guaranteed.

84

1-5. Theft deterrent system

*

: If equipped

■

Items to check before lock-
ing the vehicle

To prevent unexpected trigger-
ing of the alarm and vehicle
theft, make sure of the following:



Nobody is in the vehicle.



The side windows and moon
roof (if equipped) or pan-

oramic moon roof (if
equipped) are closed before
the alarm is set.



No valuables or other per-
sonal items are left in the
vehicle.

■

Setting

Close the doors and hood, and
lock all the doors. The system
will be set automatically after 30
seconds.

The security indicator changes from
being on to flashing when the sys-
tem is set.

■

Canceling or stopping

Do one of the following to deac-
tivate or stop the alarm:



Unlock the doors.



Turn the power switch to ACC
or ON, or start the hybrid sys-
tem. (The alarm will be deacti-
vated or stopped after a few
seconds.)

■

System maintenance

The vehicle has a maintenance-free

type alarm system.

■

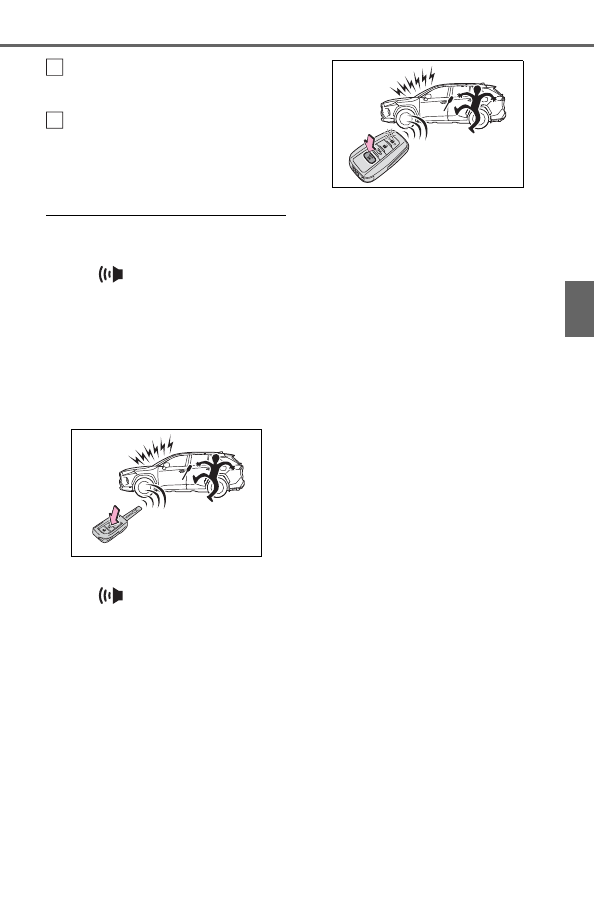

Triggering of the alarm

The alarm may be triggered in the

following situations:

Alarm

*

The alarm uses light and
sound to give an alert when
an intrusion is detected.
The alarm is triggered in the
following situations when
the alarm is set:



Vehicles without smart key
system: A locked door is
unlocked or opened in any
way other than using the
wireless remote control or
key. (The doors will lock
again automatically.)



Vehicles with smart key
system: A locked door is
unlocked or opened in any
way other than using the
entry function, wireless
remote control or mechani-
cal key. (The doors will lock
again automatically.)



The hood is opened.

Setting/canceling/stop-
ping the alarm system

85

1-5. Theft deterrent system

1

F

o

r s

afety
 and s

ecurity

(Stopping the alarm deactivates the

alarm system.)

●

A person inside the vehicle opens

a door or hood, or unlocks the

vehicle using an inside lock but-

ton.

●

The 12-volt battery is recharged or

replaced when the vehicle is

locked. (



P.672)

■

Alarm-operated door lock

In the following cases, depending

on the situation, the door may auto-

matically lock to prevent improper

entry into the vehicle:

●

When a person remaining in the

vehicle unlocks the door and the

alarm is activated.

●

While the alarm is activated, a

person remaining in the vehicle

unlocks the door.

●

When recharging or replacing the

12-volt battery.

■

Customization (Canada only)

The alarm can be set to activate

when the key (vehicles without

smart key system) or mechanical

key (vehicles with smart key sys-

tem) is used to unlock. (Customiz-

able features:



P.707)

NOTICE

■

To ensure the system oper-

ates correctly

Do not modify or remove the sys-

tem. If modified or removed, the

proper operation of the system

cannot be guaranteed.

86

1-5. Theft deterrent system

87

2

2

Ve
hicle status in

for

ma
tio

n a

nd indicators

Vehicle status informa-

tion and indicators

2-1. Instrument cluster

Warning lights and indica-

tors ...............................

88

Gauges and meters (with

4.2-inch display) ...........

94

Gauges and meters (with 7-

inch display) .................

98

Multi-information display

..................................

103

Energy monitor/consump-

tion screen.................

113

88

2-1. Instrument cluster

2-1.Instrument cluster

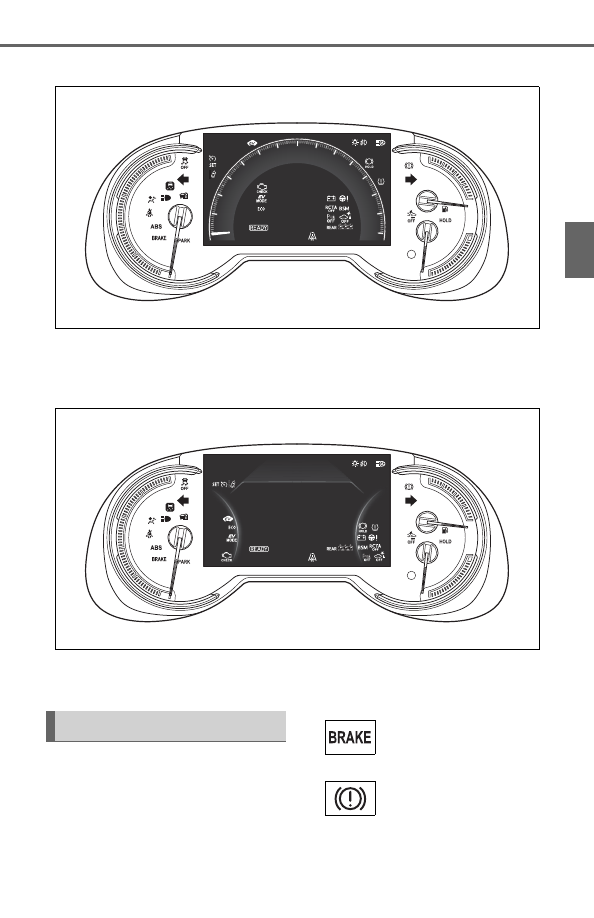

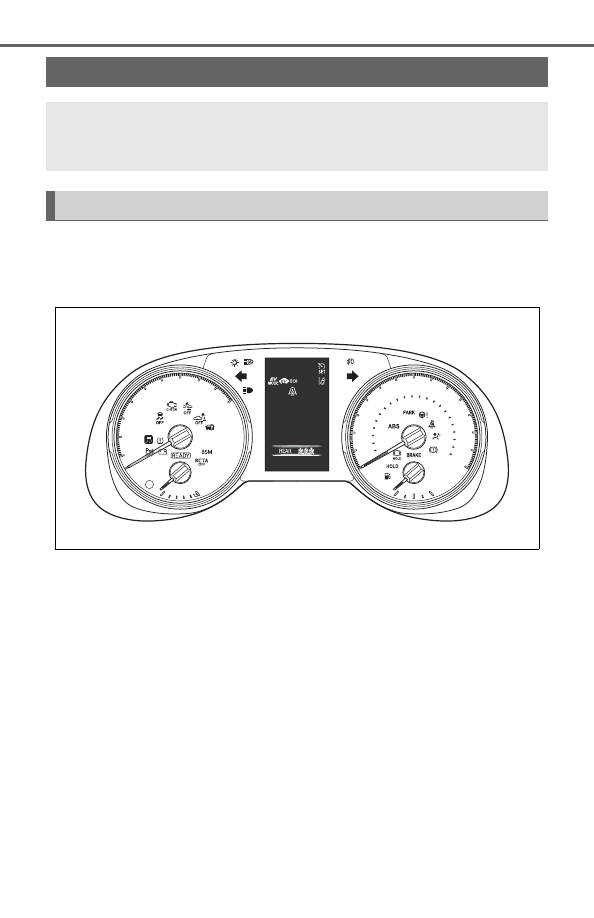

For the purpose of explanation, the following illustrations display all
warning lights and indicators illuminated.

■

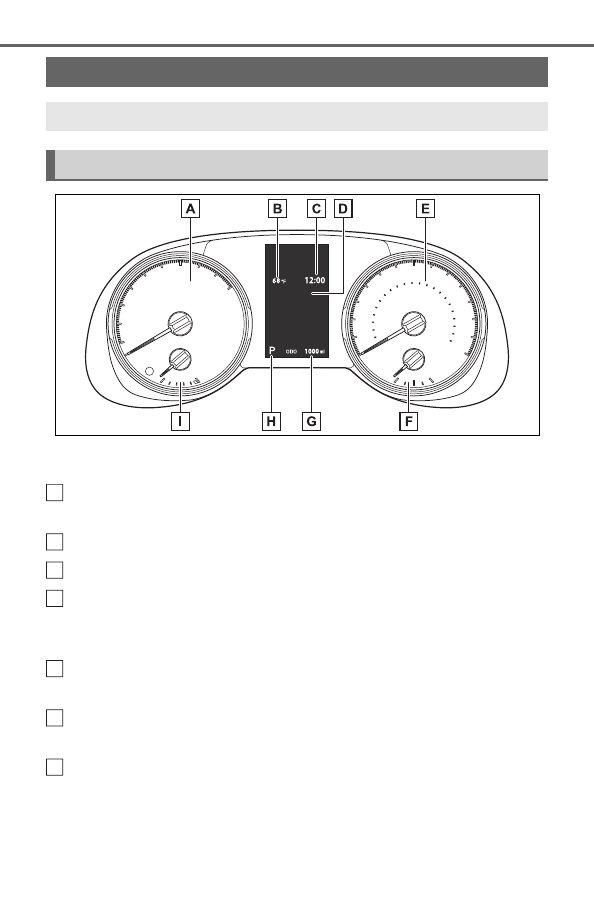

With 4.2-inch display

The units used on the meters and some indicators may differ depending on
the target region.

■

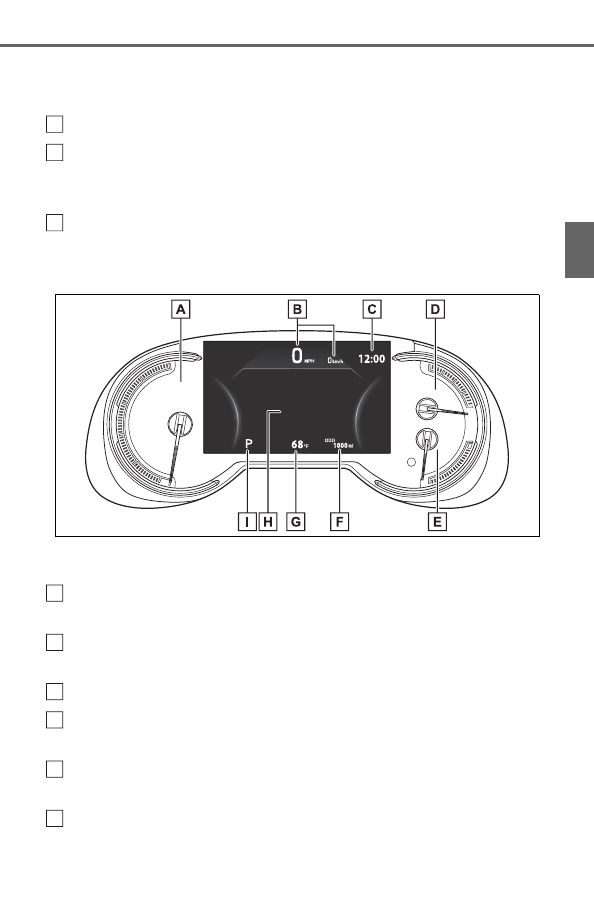

With 7-inch display

The display of the speedometer can be selected from two types,
analog or digital. (



P.109)

Warning lights and indicators

The warning lights and indicators on the instrument cluster,
center panel and outside rear view mirrors inform the driver
of the status of the vehicle’s various systems.

Instrument cluster

89

2-1. Instrument cluster

2

Ve
hicle status in

for

ma
tio

n a

nd indicators



When analog speedometer is displayed

The units used on the meters and some indicators may differ depending on
the target region.



When digital speedometer is displayed

The units used on the meters and some indicators may differ depending on
the target region.

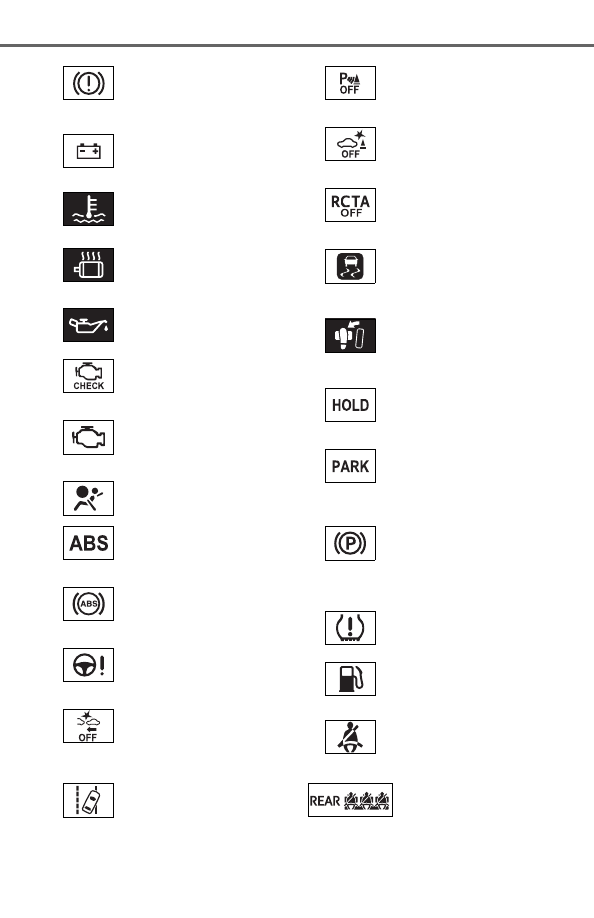

Warning lights inform the driver
of malfunctions in the indicated
vehicle’s systems.

Warning lights

(U.S.A.)

Brake system warn-
ing light

*1

 (



P.642)

(Canada)

(Red)

Brake system warn-
ing light

*1

 (



P.642)

90

2-1. Instrument cluster

*1

:These lights turn on when the

power switch is turned to ON to

(Yellow)

Brake system warn-
ing light

*1

 (



P.642)

Charging system
warning light

*1



(



P.642)

High coolant tempera-
ture warning light

*2



(



P.643)

Hybrid system over-
heat warning light

*2



(



P.643)

Low engine oil pres-
sure warning light

*2



(



P.643)

(U.S.A.)

Malfunction indicator
lamp

*1

 (



P.643)

(Canada)

Malfunction indicator
lamp

*1

 (



P.643)

SRS warning light

*1



(



P.644)

(U.S.A.)

ABS warning light

*1



(



P.644)

(Canada)

ABS warning light

*1



(



P.644)

(Red/yellow)

Electric power steer-
ing system warning
light

*1

 (



P.644)

(Flashes or

illuminates)

PCS warning light

*1



(



P.645)

(Orange)

LTA indicator
(



P.645)

(Flashes)

Intuitive parking assist
OFF indicator

*3

 (if

equipped) (



P.646)

(Flashes)

PKSB OFF indica-
tor

*1

 (if equipped)

(



P.646)

(Flashes)

RCTA OFF indica-
tor

*1

 (if equipped)

(



P.647)

Slip indicator light

*1



(



P.647)

Brake Override Sys-
tem/Drive-Start Con-
trol/PKSB (if
equipped) warning
light

*2

 (



P.648)

(Flashes)

Brake hold operated
indicator

*1

 (



P.648)

(U.S.A.)

(Flashes)

Parking brake indica-
tor (



P.648)

(Canada)
(Flashes)

Parking brake indica-
tor (



P.648)

Tire pressure warning
light

*1

 (if equipped)

(



P.649)

Low fuel level warn-
ing light (



P.649)

Driver’s and front pas-
senger’s seat belt
reminder light
(



P.649)

Rear passengers’ seat
belt reminder lights (if
equipped) (



P.650)

91

2-1. Instrument cluster

2

Ve
hicle status in

for

ma
tio

n a

nd indicators

indicate that a system check is
being performed. They will turn
off after the hybrid system is on,
or after a few seconds. There
may be a malfunction in a sys-
tem if the light does not come on,
or turn off. Have the vehicle
inspected by your Toyota dealer.

*2

:This light illuminates on the

multi-information display with a
message.

*3

:Intuitive parking assist OFF indi-

cator turns on when the power
switch is turned to ON while the
Intuitive parking assist function is
on. It will turn off after a few sec-
onds.

The indicators inform the driver
of the operating state of the
vehicle’s various systems.

WARNING

■

If a safety system warning

light does not come on

Should a safety system light such

as the ABS and SRS warning light

not come on when you start the

hybrid system, this could mean

that these systems are not avail-

able to help protect you in an acci-

dent, which could result in death

or serious injury. Have the vehicle

inspected by your Toyota dealer

immediately if this occurs.

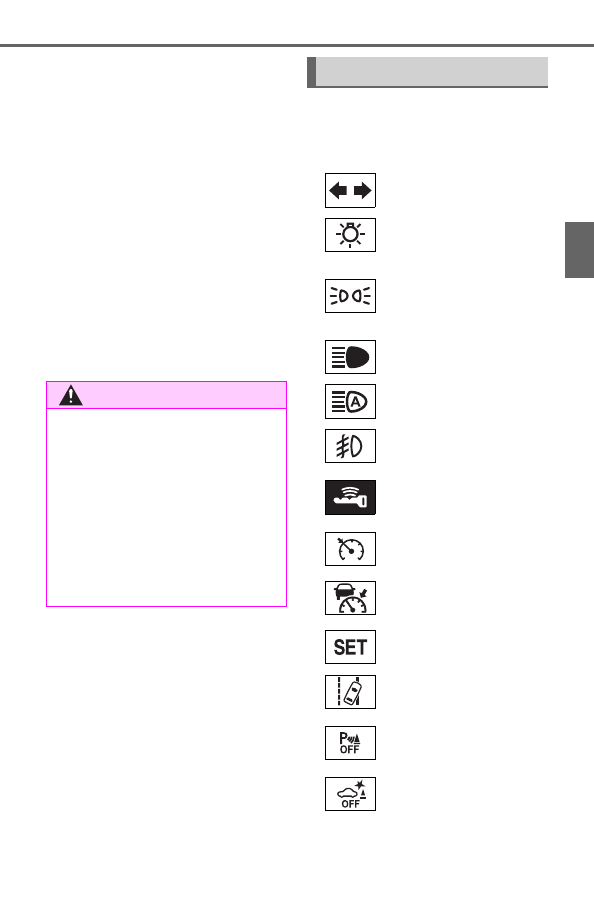

Indicators

Turn signal indicator
(



P.223)

(U.S.A.)

Headlight indicator
(



P.229)

(Canada)

Tail light indicator
(



P.229)

Headlight high beam
indicator (



P.232)

Automatic High Beam
indicator (



P.232)

Fog light indicator (if
equipped) (



P.235)

Smart key system
indicator

*1

 (if

equipped) (



P.212)

Cruise control indica-
tor (



P.271)

Dynamic radar cruise
control indicator
(



P.271)

Cruise control “SET”
indicator (



P.271)

LTA indicator

*2



(



P.263)

Intuitive parking assist
OFF indicator

*3, 4

 (if

equipped) (



P.293)

PKSB OFF indicator

*3, 5



(if equipped) (



P.299)

92

2-1. Instrument cluster

*1

:This light illuminates on the

multi-information display with a
message.

*2

:Depending on the operating con-

ditions of the system, the color
and state (illuminated/blinking) of
the indicator change.

*3

:The light comes on when the

system is turned off.

*4

:Intuitive parking assist OFF indi-

cator turns on when the power
switch is turned to ON while the
Intuitive parking assist function is
on. It will turn off after a few sec-
onds.

*5

:These lights turn on when the

power switch is turned to ON to
indicate that a system check is
being performed. They will turn
off after the hybrid system is on,
or after a few seconds. There
may be a malfunction in a sys-
tem if the lights do not turn on, or
turn off. Have the vehicle
inspected by your Toyota dealer.

*6

:This light illuminates on the out-

side rear view mirrors.

*7

:When the outside temperature is

approximately 37°F (3°C) or
lower, the indicator will flash for
approximately 10 seconds, then
stay on.

*8

:This light illuminates on the cen-

ter panel.

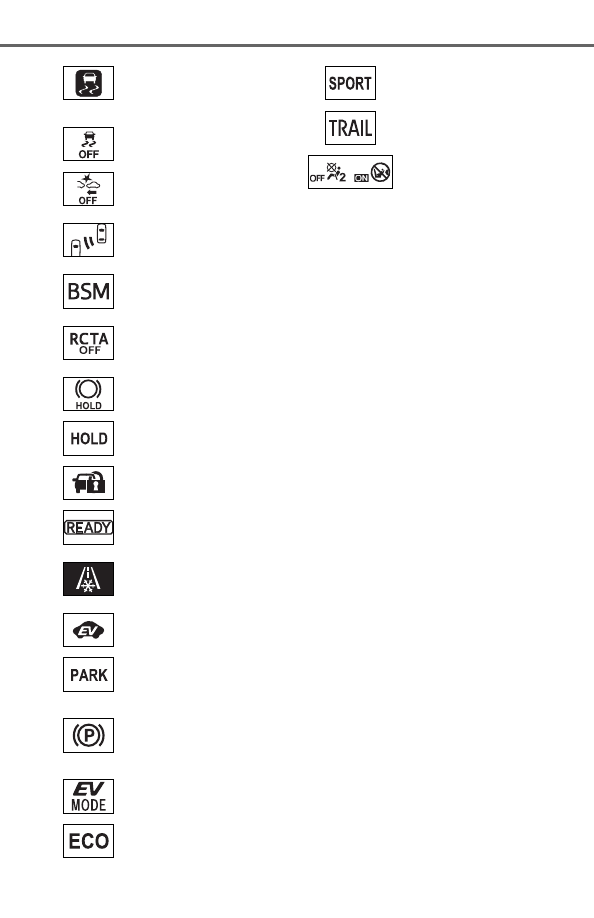

(Flashes)

Slip indicator light

*5



(



P.370)

VSC OFF indicator

*3, 5



(



P.370)

PCS warning light

*3, 5



(



P.252)

BSM outside rear view
mirror indicators

*5, 6

 (if

equipped) (



P.283)

BSM indicator (if
equipped) (



P.283)

RCTA OFF indica-
tor

*3, 5

 (if equipped)

(



P.283)

Brake hold standby
indicator

*5

 (



P.227)

Brake hold operated
indicator

*5

 (



P.227)

Security indicator
(



P.81, 84)

“READY” indicator
(



P.210, 212)

Low outside tempera-
ture indicator

*7



(



P.95, 101)

EV indicator (



P.73)

(U.S.A.)

Parking brake indica-
tor (



P.224)

(Canada)

Parking brake indica-
tor (



P.224)

EV drive mode indica-
tor (



P.217)

Eco drive mode indi-
cator (



P.366)

Sport mode indicator
(



P.366)

Trail Mode indicator
(



P.367)

“AIR BAG ON/OFF”
indicator

*5, 8

 (



P.45)

93

2-1. Instrument cluster

2

Ve
hicle status in

for

ma
tio

n a

nd indicators

■

BSM (Blind Spot Monitor) out-

side rear view mirror indicators

(if equipped)

In order to confirm operation, the

BSM outside rear view mirror indica-

tors illuminate in the following situa-

tions:

●

When the power switch is turned

to ON while the BSM function is
enabled on the

 screen of the

multi-information display.

●

When the BSM function is
enabled on the

 screen of the

multi-information display while the

power switch is in ON.

If the system is functioning correctly,
the BSM outside rear view mirror
indicators will turn off after a few
seconds.
If the BSM outside rear view mirror

indicators do not illuminate or do not

turn off, there may be a malfunction

in the system. If this occurs, have

the vehicle inspected by your

Toyota dealer.

94

2-1. Instrument cluster

The units used on the meter and display may differ depending on the target
region.

Hybrid System Indicator

Displays the Hybrid System Indicator (



P.95)

Outside temperature (



P.95)

Clock (



P.97)

Multi-information display

Presents the driver with a variety of driving-related data (



P.103)

Displays warning messages if a malfunction occurs (



P.654)

Speedometer

Displays the vehicle speed

Fuel gauge

Displays the quantity of fuel remaining in the tank

Odometer and trip meter

Odometer:
Displays the total distance that the vehicle has been driven
Trip meter:
Displays the distance the vehicle has been driven since the meter was last

Gauges and meters (with 4.2-inch display)

The meters display various drive information.

Meter display

A

B

C

D

E

F

G

95

2-1. Instrument cluster

2

Ve
hicle status in

for

ma
tio

n a

nd indicators

reset. Trip meters “A” and “B” can be used to record and display different
distances independently.

Shift position and shift range indicator

Displays the selected shift position or selected shift range (



P.219)

Engine coolant temperature gauge

Displays the engine coolant temperature

■

The meters and display illumi-

nate when

The power switch is in ON.

■

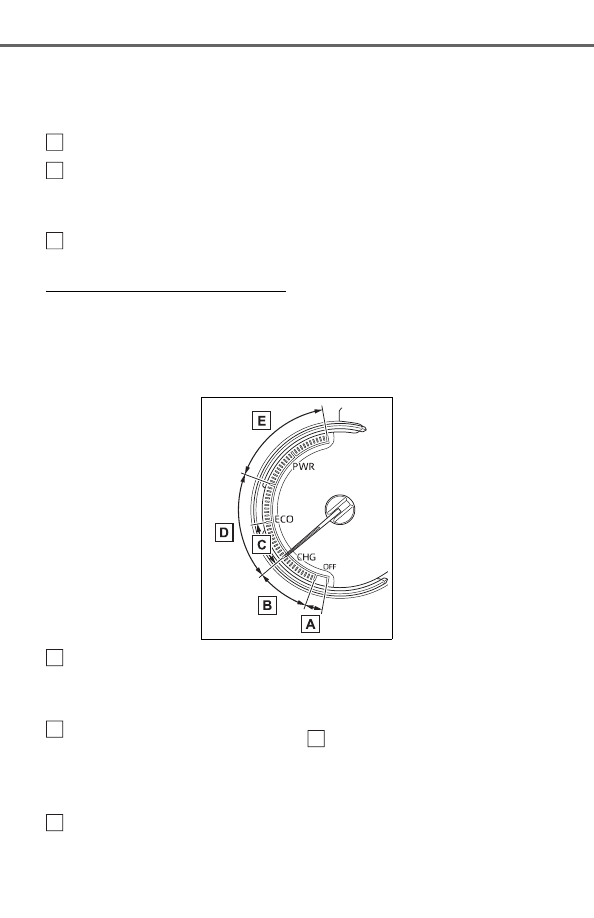

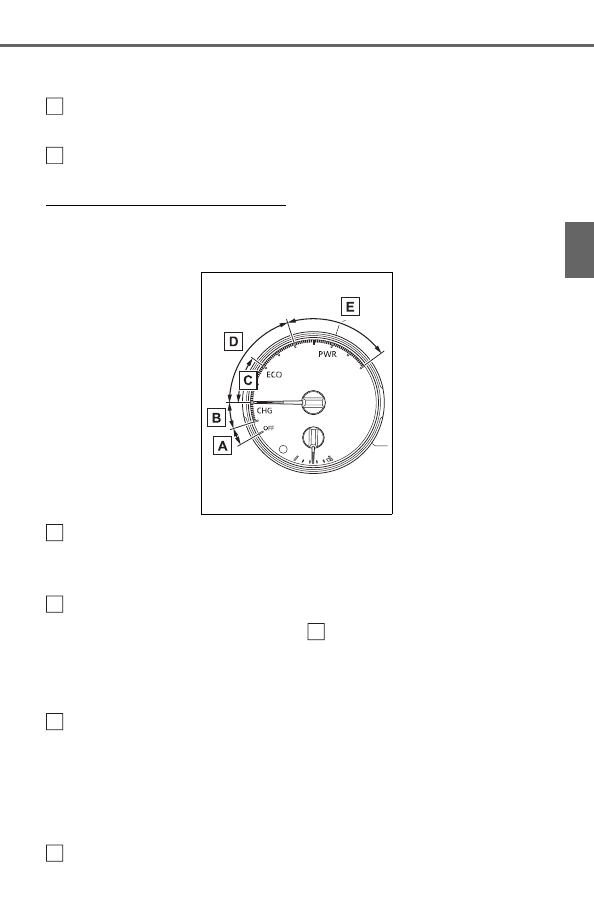

Hybrid System Indicator

READY OFF area

Shows that the hybrid system is not
operating.

Charge area

Shows regeneration

*

 status.

Regenerated energy will be used to
charge the hybrid battery (traction
battery).

Hybrid Eco area

Shows that gasoline engine power
is not being used very often.
The gasoline engine will automati-
cally stop and restart under various
conditions.

Eco area

Shows that the vehicle is being
driven in an Eco-friendly manner.
By keeping the indicator needle
within Eco area, more Eco-friendly
driving can be achieved.

Power area

Shows that an Eco-friendly driving
range is being exceeded (during full
power driving etc.)

*

: When used in this manual, “regen-

eration” refers to the conversion of
energy created by the movement
of the vehicle into electrical
energy.

In the following situation, the Hybrid

System Indicator does not operate.

●

“READY” indicator is not illumi-

H

I

A

B

C

D

E

96

2-1. Instrument cluster

nated.

●

The shift lever is in a range other

than D or S.

■

Outside temperature display

●

In the following situations, the cor-

rect outside temperature may not

be displayed, or the display may

take longer than normal to

change.

• When stopped, or driving at low

speeds (less than 12 mph [20

km/h])

• When the outside temperature

has changed suddenly (at the

entrance/exit of a garage, tunnel,

etc.)

●

When “--” or “E” is displayed, the

system may be malfunctioning.

Take your vehicle to your Toyota

dealer.

●

Displays the outside temperature

within the range of -40°F (-40°C)

to 122°F (50°C).

●

When the outside temperature is

approximately 37°F (3°C) or
lower, the indicator

 will flash

for approximately 10 seconds,

then stay on.

■

Liquid crystal display



P.104

Switches the items of the odom-
eter, trip meter A and trip meter
B by pressing the “ODO TRIP”
switch.
When the trip meter is dis-
played, pressing and holding the
switch will reset the trip meter.

WARNING

■

The information display at

low temperatures

Allow the interior of the vehicle to

warm up before using the liquid

crystal information display. At

extremely low temperatures, the

display monitor may respond

slowly, and display changes may

be delayed.
For example, there is a lag

between the driver’s shifting and

the new shift range appearing on

the display. This lag could cause

the driver to downshift again,

causing rapid and excessive

engine braking and possibly an

accident resulting in death or

injury.

NOTICE

■

To prevent damage to the

engine and its components

The engine may be overheating if

the engine coolant temperature

gauge is in the red zone (“H”). In

this case, immediately stop the

vehicle in a safe place, and check

the engine after it has cooled

completely. (



P.677)

Using the “ODO TRIP”
switch

97

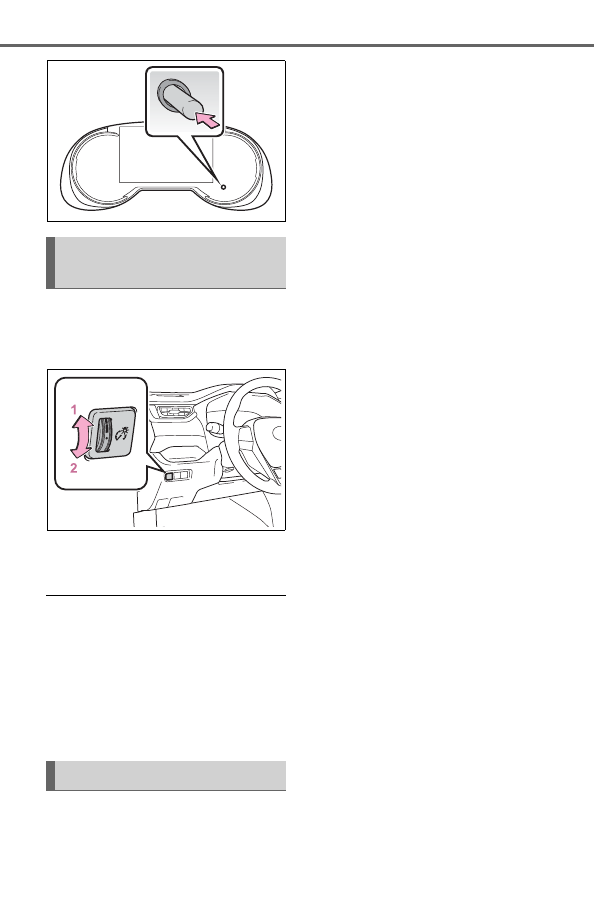

2-1. Instrument cluster

2

Ve
hicle status in

for

ma
tio

n a

nd indicators

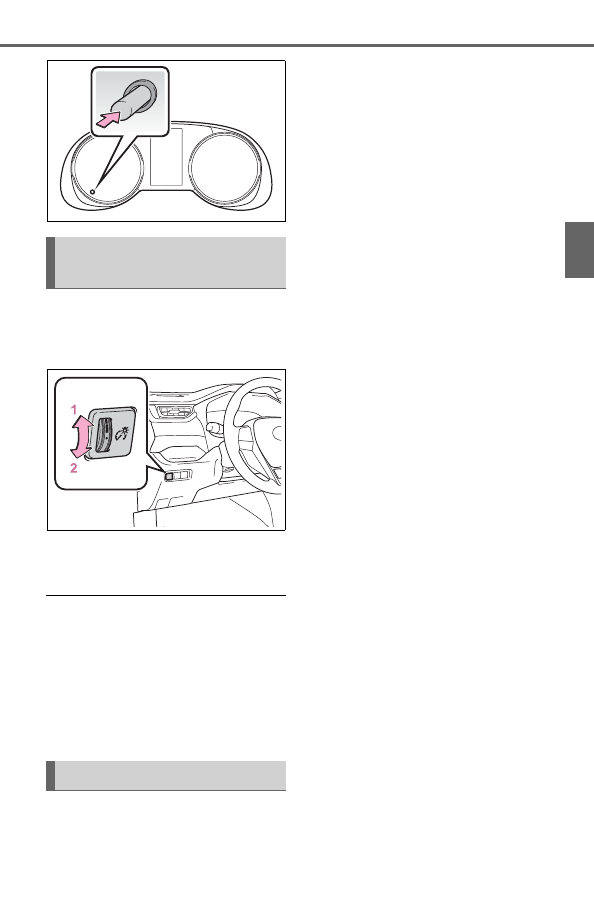

The brightness of the instrument
panel lights can be adjusted by
turning the dial.

1

Brighter

2

Darker

■

Instrument panel brightness

adjustment

The instrument panel brightness

levels when the tail lights are on and

off can be adjusted individually.

However, when the surroundings

are bright (daytime, etc.), turning on

the tail lights will not change the

instrument panel brightness.

The clock can be adjusted on
the audio system screen.



Vehicles with Audio



P.427



Vehicles with Audio Plus or
Premium Audio

Refer to “NAVIGATION AND
MULTIMEDIA SYSTEM
OWNER’S MANUAL”.

Instrument panel light
control

Adjusting the clock

98

2-1. Instrument cluster

The display of the speedometer can be selected from two types,
analog or digital. (



P.109)



Analog speedometer

The units used on the meter and display may differ depending on the target
region.

Hybrid System Indicator

Displays the Hybrid System Indicator (



P.100)

Speedometer

Displays the vehicle speed

Clock (



P.102)

Fuel gauge

Displays the quantity of fuel remaining in the tank

Engine coolant temperature gauge

Displays the engine coolant temperature

Odometer and trip meter

Odometer:
Displays the total distance that the vehicle has been driven
Trip meter:

Gauges and meters (with 7-inch display)

The meters display various drive information.

Meter display

A

B

C

D

E

F

99

2-1. Instrument cluster

2

Ve
hicle status in

for

ma
tio

n a

nd indicators

Displays the distance the vehicle has been driven since the meter was last
reset. Trip meters “A” and “B” can be used to record and display different
distances independently.

Outside temperature (



P.101)

Multi-information display

Presents the driver with a variety of driving-related data (



P.103)

Displays warning messages if a malfunction occurs (



P.654)

Shift position and shift range indicator

Displays the selected shift position or selected shift range (



P.219)



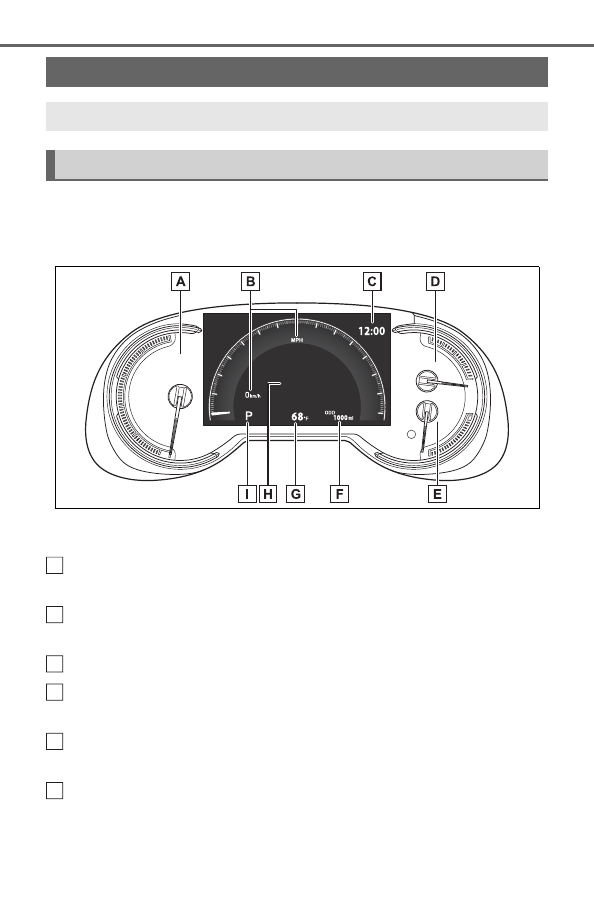

Digital speedometer

The units used on the meter and display may differ depending on the target
region.

Hybrid System Indicator

Displays the Hybrid System Indicator (



P.100)

Speedometer

Displays the vehicle speed

Clock (



P.102)

Fuel gauge

Displays the quantity of fuel remaining in the tank

Engine coolant temperature gauge

Displays the engine coolant temperature

Odometer and trip meter

Odometer:
Displays the total distance that the vehicle has been driven

G

H

I

A

B

C

D

E

F

100

2-1. Instrument cluster

Trip meter:
Displays the distance the vehicle has been driven since the meter was last
reset. Trip meters “A” and “B” can be used to record and display different
distances independently.

Outside temperature (



P.95)

Multi-information display

Presents the driver with a variety of driving-related data (



P.103)

Displays warning messages if a malfunction occurs (



P.654)

Shift position and shift range indicator

Displays the selected shift position or selected shift range (



P.219)

■

The meters and display illumi-

nate when

The power switch is in ON.

■

When changing driving mode

Speedometer color is changed fol-

lowing the selected driving mode or

when Trail Mode is turned on.

(



P.366, 367)

■

Hybrid System Indicator

READY OFF area

Shows that the hybrid system is not
operating.

Charge area

Shows regeneration

*

 status. Regen-

erated energy will be used to charge
the hybrid battery (traction battery).

Hybrid Eco area

Shows that gasoline engine power

is not being used very often.
The gasoline engine will automati-
cally stop and restart under various
conditions.

Eco area

Shows that the vehicle is being
driven in an Eco-friendly manner.
By keeping the indicator needle
within Eco area, more Eco-friendly
driving can be achieved.

G

H

I

A

B

C

D

101

2-1. Instrument cluster

2

Ve
hicle status in

for

ma
tio

n a

nd indicators

Power area

Shows that an Eco-friendly driving
range is being exceeded (during full
power driving etc.)

*

: When used in this manual, “regen-

eration” refers to the conversion of
energy created by the movement
of the vehicle into electrical
energy.

In the following situation, the Hybrid

System Indicator does not operate.

●

“READY” indicator is not illumi-

nated.

●

The shift lever is in a range other

than D or S.

■

Outside temperature display

●

In the following situations, the cor-

rect outside temperature may not

be displayed, or the display may

take longer than normal to

change.

• When stopped, or driving at low

speeds (less than 12 mph [20

km/h])

• When the outside temperature

has changed suddenly (at the

entrance/exit of a garage, tunnel,

etc.)

●

When “--” or “E” is displayed, the

system may be malfunctioning.

Take your vehicle to your Toyota

dealer.

●

Displays the outside temperature

within the range of -40°F (-40°C)

to 122°F (50°C).

●

When the outside temperature is

approximately 37°F (3°C) or
lower, the indicator

 will flash

for approximately 10 seconds,

then stay on.

■

Liquid crystal display



P.104

■

Customization

Settings (e. g. meter display) can be

changed on the

 screen of the

multi-information display. (



P.109)

Switches the items of the odom-
eter, trip meter A and trip meter
B by pressing the “ODO TRIP”
switch.
When the trip meter is dis-
played, pressing and holding the
switch will reset the trip meter.

E

WARNING

■

The information display at

low temperatures

Allow the interior of the vehicle to

warm up before using the liquid

crystal information display. At

extremely low temperatures, the

display monitor may respond

slowly, and display changes may

be delayed.
For example, there is a lag

between the driver’s shifting and

the new shift range appearing on

the display. This lag could cause

the driver to downshift again,

causing rapid and excessive

engine braking and possibly an

accident resulting in death or

injury.

NOTICE

■

To prevent damage to the

engine and its components

The engine may be overheating if

the engine coolant temperature

gauge is in the red zone (“H”). In

this case, immediately stop the

vehicle in a safe place, and check

the engine after it has cooled

completely. (



P.677)

Using the “ODO TRIP”
switch

102

2-1. Instrument cluster

The brightness of the instrument
panel lights can be adjusted by
turning the dial.

1

Brighter

2

Darker

■

Instrument panel brightness

adjustment

The instrument panel brightness

levels when the tail lights are on and

off can be adjusted individually.

However, when the surroundings

are bright (daytime, etc.), turning on

the tail lights will not change the

instrument panel brightness.

The clock can be adjusted on
the audio system screen.



Vehicles with Audio



P.427



Vehicles with Audio Plus or
Premium Audio

Refer to “NAVIGATION AND
MULTIMEDIA SYSTEM
OWNER’S MANUAL”.

Instrument panel light
control

Adjusting the clock

103

2-1. Instrument cluster

2

Ve
hicle status in

for

ma
tio

n a

nd indicators

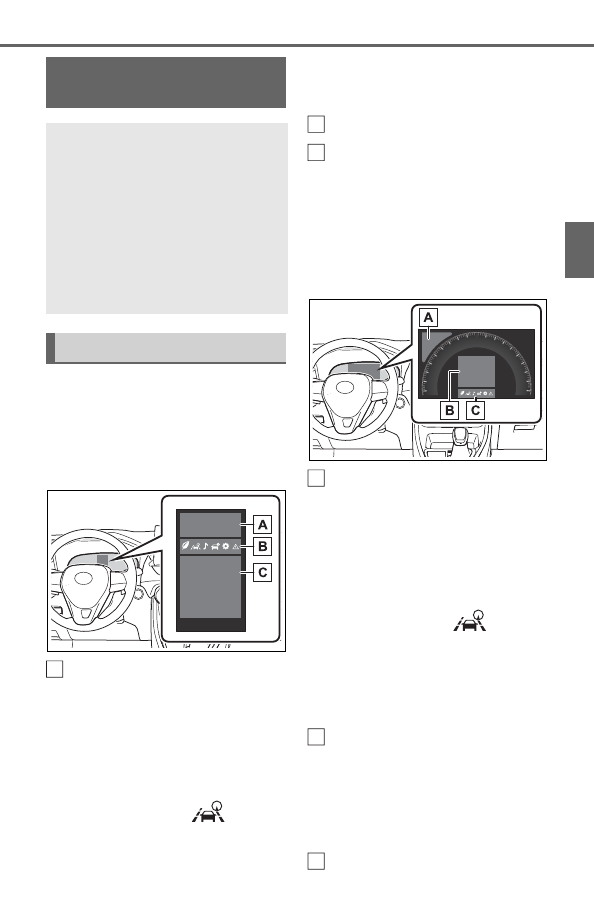

Following information is dis-
played on the multi-information
display.

■

Vehicles with 4.2-inch dis-
play

Driving support system infor-
mation

Displays recognized signs while the
RSA system (if equipped) is operat-
ing. (



P.268)

Displays an image when the follow-
ing systems are operating and a
menu icon other than

 is

selected:
• LTA (Lane Tracing Assist)

(



P.258)

• Dynamic radar cruise control with

full-speed range (



P.271)

Menu icons (



P.104)

Information display area

A variety of information can be dis-
played by selecting a menu icon.
Additionally, warning or sugges-
tion/advice pop-up displays will be
displayed in some situations.

■

Vehicles with 7-inch display

Driving support system infor-
mation

Displays recognized signs while the
RSA system (if equipped) is operat-
ing. (



P.268)

Displays an image when the follow-
ing systems are operating and a
menu icon other than

 is

selected:
• LTA (Lane Tracing Assist)

(



P.258)

• Dynamic radar cruise control with

full-speed range (



P.271)

Information display area

A variety of information can be dis-
played by selecting a menu icon.
Additionally, warning or sugges-
tion/advice pop-up displays will be
displayed in some situations.

Menu icons (



P.104)

Multi-information dis-

play

The multi-information dis-
play is used to display fuel
efficiency related informa-
tion and various types of
driving-related information.
The multi-information dis-
play can also be used to
change the display settings
and other settings.

Display contents

A

B

C

A

B

C

104

2-1. Instrument cluster

■

The multi-information display is

displayed when

The power switch is in ON.

■

When changing driving mode

Background color of the multi-infor-

mation display is changed following

the selected driving mode or when

Trail Mode is turned on. (



P.366,

367)

■

Liquid crystal display

Small spots or light spots may

appear on the display. This phe-

nomenon is characteristic of liquid

crystal displays, and there is no

problem continuing to use the dis-

play.

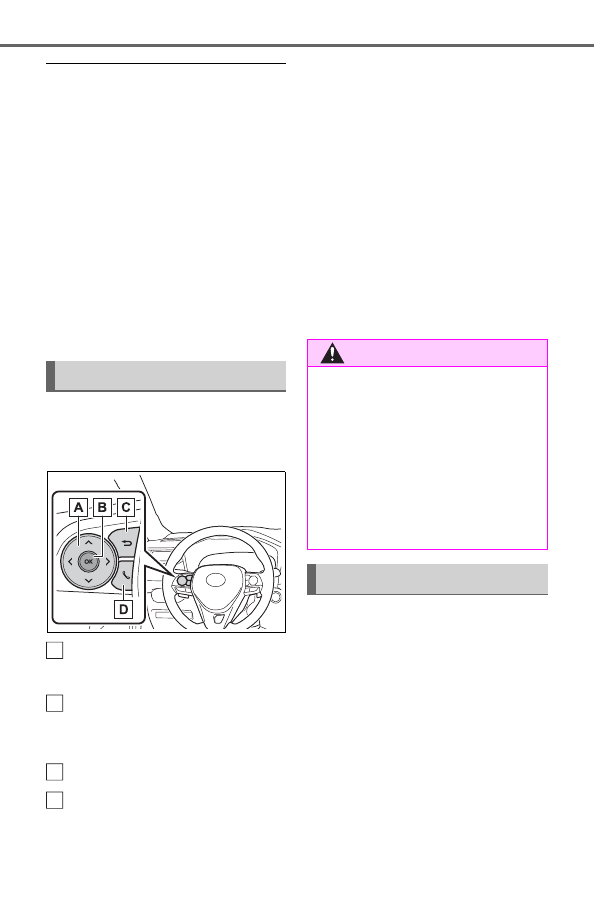

The multi-information display is
operated using the meter control
switches.

Scroll the screen

*

/switch the

display

*

/move the cursor

Press: Enter/Set
Press and hold: Reset/Dis-
play customizable items

Return to the previous screen

Call sending/receiving and
history display (if equipped)
Linked with the hands-free
system, sending or receiving

call is displayed. For details
regarding the hands-free sys-
tem, refer to P.479(vehicles
with Audio) or “NAVIGA-
TION AND MULTIMEDIA
SYSTEM OWNER’S MAN-
UAL” (vehicles with Audio
Plus or Premium Audio).

*

: On screens where the screen can

be scrolled and the display can
be switched, a scroll bar or a
round icon that shows the num-
ber of registered screens is dis-
played.

Information related to each icon
can be displayed by selecting
the icon with the meter control
switches.

Some of the information may be
displayed automatically depending
on the situation.

Changing the display

A

B

C

D

WARNING

■

Caution for use while driving

For safety, avoid operating the

meter control switch while driving

as much as possible, and do not

look continuously at the multi-

information display while driving.

Stop the vehicle and operate the

meter control switch. Failure to do

so may cause a steering wheel

operation error, resulting in an

unexpected accident.

Menu icons

105

2-1. Instrument cluster

2

Ve
hicle status in

for

ma
tio

n a

nd indicators

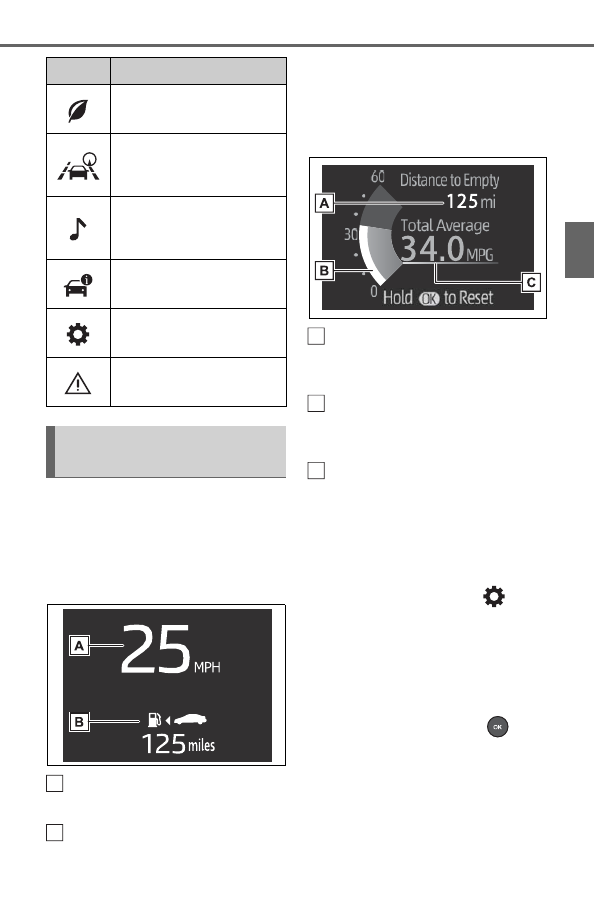

Select to display fuel consump-
tion data in various forms.

■

Speedometer display/Dis-
tance to empty (4.2-inch
display)

Speedometer display

Displays the vehicle speed.

Distance to empty

Displays the driving range with

remaining fuel. (



P.107)

■

Fuel Economy

Following information is dis-
played.

Distance to empty

Displays the driving range with
remaining fuel. (



P.107)

Current fuel economy

Displays the instantaneous current
fuel Economy.

Average fuel economy

Displays the average fuel economy
since the function was reset or the
average fuel economy after starting
or refueling.

*1, 2, 3

The average fuel economy selected
by “Fuel Economy” on the



screen is displayed. (



P.109)

*1

:Use the displayed fuel consump-

tion as a reference only.

*2

:Average fuel economy since the

function was reset can be reset
by pressing and holding

.

*3

:Average fuel economy after

starting is reset each time the
hybrid system stops.

■

ECO Accelerator Guid-
ance/“Eco Score”

Displays a reference operation

Icon

Display

Driving information dis-
play (



P.105)

Driving support system
information display
(



P.107)

Audio system-linked dis-
play (if equipped)
(



P.107)

Vehicle information dis-
play (



P.108)

Settings display
(



P.109)

Warning message dis-
play (



P.112)

Driving information dis-
play

A

B

A

B

C

106

2-1. Instrument cluster

range for using the accelerator
pedal according to driving condi-
tions, and a score result that
evaluates the current driving
status.

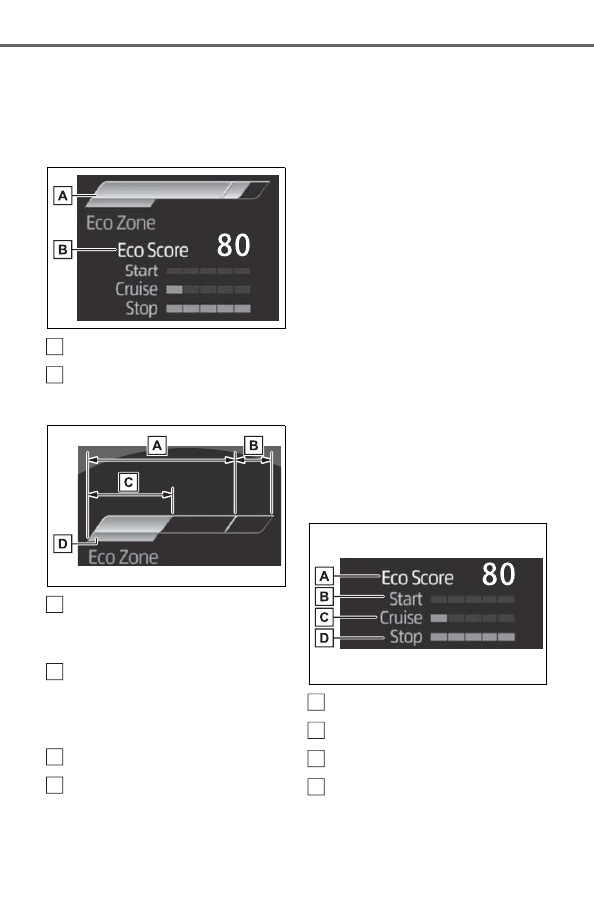

ECO Accelerator Guidance

“Eco Score”



ECO Accelerator Guidance

ECO area

Shows that the vehicle is being
driven in an Eco-friendly manner.

Power area

Shows that an Eco-friendly driving
range is being exceeded (during full
power driving etc.).

Current acceleration

Reference operation range

A zone is displayed in blue under
the Eco area which can be used as
a reference operation range for
using the accelerator pedal accord-

ing to driving conditions such as
starting off and cruising.
The ECO Accelerator Guidance
display changes according to the
driving status, such as when start-
ing off or cruising.
It is easier to drive in an Eco-
friendly manner by driving accord-
ing to the display showing the
accelerator pedal operations and
staying within the reference opera-
tion range.



“Eco Score”

The driving status for the follow-
ing 3 situations are evaluated in
5 levels: Smooth start-off accel-
eration (“Start”), driving without
sudden acceleration (“Cruise”)
and smooth stopping (“Stop”).
Each time the vehicle is
stopped, a score result is dis-
played out of a perfect score of
100 points.

Score result

“Start”

“Cruise”

“Stop”

A

B

A

B

C

D

A

B

C

D

107

2-1. Instrument cluster

2

Ve
hicle status in

for

ma
tio

n a

nd indicators

How to read the bar display:

After starting off, “Eco Score” dis-
play does not start until the vehicle
speed exceeds approximately 12
mph (20 km/h).
The “Eco Score” is reset each time
the vehicle starts off to start a new
evaluation.
When the hybrid system stops, the
current total score result is dis-
played.

*

*

: The score result is displayed only

when “Eco Score” is selected for
“Trip Summary”. (



P.109)

■

Distance to empty

●

This distance is computed based

on your average fuel consump-

tion. As a result, the actual dis-

tance that can be driven may

differ from that displayed.

●

When only a small amount of fuel

is added to the tank, the display

may not be updated. When refuel-

ing, turn the power switch to OFF.

If the vehicle is refueled without

turning the power switch to OFF,

the display may not be updated.

●

When “Refuel” is displayed, the

remaining fuel amount is low and

the distance that can be driven

with the remaining fuel cannot be

calculated.

Refuel immediately.

■

ECO Accelerator Guid-

ance/“Eco Score” will not oper-

ate when

The ECO Accelerator Guid-

ance/“Eco Score” will not operate in

the following situations:

●

The Hybrid System Indicator is not

operating.

●

The vehicle is being driven using

the dynamic radar cruise control

with full-speed range.

■

Driving support system
information display

Select to display the operational
status of the following systems:



LTA (Lane Tracing Assist)
(



P.258)



Dynamic radar cruise control
with full-speed range
(



P.271)

■

Navigation system-linked
display (if equipped)

Select to display the following
navigation system-linked infor-
mation.



Route guidance



Compass display

Select to enable selection of an
audio source or track on the dis-
play.

Score

Bar display

Unrated

Low

High

Driving support system
information display

Audio system-linked dis-
play (if equipped)

108

2-1. Instrument cluster

■

Drive information

2 items that are selected using
the “Drive Info Items” setting
(average speed, distance and
total time) can be displayed ver-
tically.
The displayed information
changes according to the “Drive
Info Type” setting (since the sys-
tem was started or between
resets). (



P.109)

Use the displayed information as a
reference only.
Following items will be displayed.



“Trip”

• “Average Speed”: Displays the

average vehicle speed since
hybrid system start

*

• “Distance”: Displays the distance

driven since hybrid system start

*

• “Total Time”: Displays the

elapsed time since hybrid system
start

*

*

: These items are reset each time

the hybrid system stops.



“Total”

• “Average Speed”: Displays the

average vehicle speed since the
display was reset

*

• “Distance”: Displays the distance

driven since the display was
reset

*

• “Total Time”: Displays the

elapsed time since the display

was reset

*

*

: To reset, display the desired item

and press and hold

.

■

Energy monitor



P.113

■

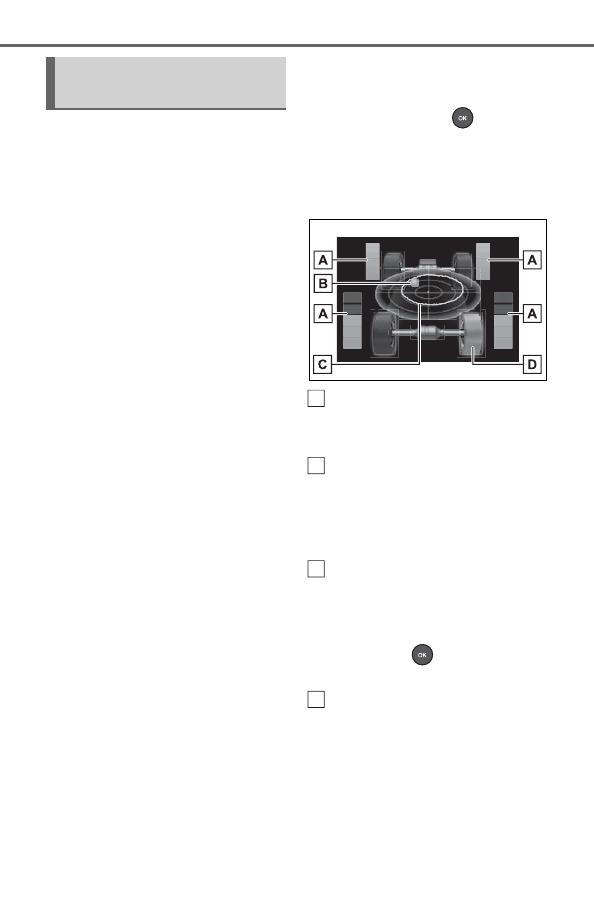

AWD system display

Torque distribution display

Displays the drive status of each
wheel in 6 steps from 0 to 5.

G-force display

*

Displays the size and direction of
the G-force applied to the vehicle
via changes to the position of the
ball on the display.

Maximum G-force course

*

This item is linked with the G-force
display and the course of the past
movement of the ball is displayed.

Press and hold

 to reset the

record.

Wheel spin display

When a tire is spinning, its icon on
the display changes its color and
blinks.

*

: This item is displayed only when

driving mode is set to sport mode.

Vehicle information dis-
play

A

B

C

D

109

2-1. Instrument cluster

2

Ve
hicle status in

for

ma
tio

n a

nd indicators

Vehicle settings and the content
displayed on the screen can be
changed by using the meter
control switches.

■

Setting procedure

1

Operate

 or

 of the

meter control switches and
select

.

2

Operate

 or

 of the

meter control switches and
select the desired item.

• If the function is turned on and

off or the volume, etc. is
changed on the setting
screen, the setting is changed
each time

 is pressed.

• For functions that allow oper-

ation contents, display con-
tents, etc., of function to be
selected, the setting screen is
displayed by pressing and
holding

. When the setting

screen is displayed, select the
setting or desired value (time,
etc.) with

.

3

After changing the settings,
press

 of the meter control

switches.

■

 LTA (Lane Tracing

Assist) (



P.258)

Select to set up the following
items.



“Lane Center”

Select to enable/disable the lane

centering function.



“Steering Assist”

Select to enable/disable steering
wheel assistance.



“Sensitivity”

Select to set the lane departure
alert sensitivity.



“Sway Warning”

Select to enable/disable the vehicle
sway warning.



“Sway Sensitivity”

Select to set the vehicle sway warn-
ing sensitivity.

■

 PCS (Pre-Collision Sys-

tem) (



P.250)

Select to set up the following
items.



PCS on/off

Select to enable/disable the pre-
collision system.



“Sensitivity”

Select to change the pre-collision
warning timing.

■

 BSM (Blind Spot Moni-

tor) (if equipped) (



P.282)

Select to set up the following
items.



BSM (Blind Spot Monitor)
on/off

Select to enable/disable the BSM
system.



“Brightness”

Select to switch the brightness of
the outside rear view mirror indica-
tors. (



P.283)

Settings display

110

2-1. Instrument cluster



“Sensitivity”

Select to change the alert timing for
an approaching vehicle.

■

 (Intuitive parking

assist) (if equipped)
(



P.291)

Select to set up the following
items.



Intuitive parking assist on/off

Select to enable/disable the Intui-
tive parking assist.



“Volume”

Select to set the volume of the
buzzer which sounds when the
Intuitive parking assist is operated.

■

RCTA (Rear Cross Traffic
Alert) (if equipped)
(



P.282)



RCTA (Rear Cross Traffic
Alert) on/off

Select to enable/disable the RCTA
system.



“Volume”

Select to change the RCTA buzzer
volume.

■

 PKSB (Parking Sup-

port Brake System) (if
equipped) (



P.298)

Select to enable/disable the
Parking Support Brake function.

■

 RSA (Road Sign

Assist) (if equipped)
(



P.268)

Select to set up the following
items.



Road Sign Assist on/off

Select to enable/disable the RSA
system.



“Notification method”

Select to change each notification
method used to notify the driver
when the system recognizes
excess speed and Do Not Enter
sign.



“Notification Level”

Select to change each notification
level used to notify the driver when
the system recognizes a speed limit
sign.

■

 Vehicle Settings



 PBD (Power Back Door)

(if equipped) (



P.137)

Select to set up the following items.
• System settings
Select to enable/disable the power
back door system.

• “Hands Free”

*

Select to enable/disable the Hands
Free Power Back Door.
• “Opening Adjustment”
Select the open position when
power back door is fully open.
• “Volume”
Select to set the volume of the
buzzer which sounds when the
power back door system operates.

*

: Vehicles with Hands Free Power

Back Door



“TPWS” (Tire Pressure Warn-
ing System) (if equipped)
(



P.593)

• “Set Pressure”

111

2-1. Instrument cluster

2

Ve
hicle status in

for

ma
tio

n a

nd indicators

Select to initialize the tire pressure
warning system.
• “Change Wheel” (except for mod-

els made in Japan

*

 without tire

inflation pressure display func-
tion)

Select to register the ID codes of
the tire pressure sensors to the tire
pressure warning system.
• “Change Wheel” (for models

made in Japan

*

 without tire infla-

tion pressure display function)

Select to change the tire pressure
warning system sensor ID code set.
To enable this function, a second
set of tire pressure warning system
sensor ID codes must be registered
by a Toyota dealer. For information
regarding changing the registered
ID code set, contact your Toyota
dealer.

*

: The country of production is writ-

ten on the Certification Regula-
tion Label. (



P.684)



“Scheduled Maintenance”
(



P.573)

Select to reset the scheduled main-
tenance information (message indi-
cating maintenance is required and
distance until the next mainte-
nance) after all maintenance is per-
formed.

■

 Settings



“Language”

Select to change the language on
the multi-information display.



“Units”

Select to change the units of mea-
sure displayed.



“Meter Type” (7-inch display)

Select to change the speedometer
display.



 (EV indicator) (



P.73)

Select to enable/disable the EV
indicator.



 (Driving information dis-

play settings)

Select to set up the following items.
• “Hybrid System”
Select to enable/disable the ECO
Accelerator Guidance (



P.105).

• “Fuel Economy”
Select to change the display on
Fuel Economy (



P.105).



 (Audio settings) (if

equipped)

Select to enable/disable



screen.



 (Vehicle information dis-

play settings)

• “Display Contents”
Select to set up the following items.
“Energy monitor”:
Select to enable/disable the Energy
monitor (



P.113)

“AWD”:
Select to enable/disable the AWD
system display (



P.108).

• “Drive Info Type”
Select to change the drive informa-
tion type display between trip and
total. (



P.108).

• “Drive Info Items”
Select to set the items on the upper

112

2-1. Instrument cluster

and lower side of the drive informa-
tion screen from three items, aver-
age speed, distance and total time.



“Trip Summary”

Select to set the items displayed
when the power switch is turned off.



“Pop-Up Display”

Select to enable/disable the follow-
ing pop-up displays, which may
appear in some situations.
• Intersection guidance display of

the navigation system-linked sys-
tem (if equipped)

• Incoming call display of the

hands-free phone system (if
equipped)

• Audio operation (if equipped)
• Volume operation (if equipped)
• Voice control (if equipped)



“MID OFF”

A blank screen is displayed.



“Default Settings”

Select to reset the meter display
settings.

■

Suspension of the settings dis-

play

●

In the following situations, opera-

tion of the settings display will be

temporarily suspended.

• When a warning message

appears on the multi-information

display

• When the vehicle begins to move

●

Settings for functions not

equipped to the vehicle are not

displayed.

●

When a function is turned off, the

related settings for that function

are not selectable.

Select to display warning mes-
sages and measures to be
taken if a malfunction is
detected. (



P.654)

Displays suggestions to the
driver in the following situations.
To select a response to a dis-
played suggestion, use the
meter control switches.

■

Suggestion to turn on the
headlights

If the headlight switch is in other
than

 or

, and the vehicle

speed is 3 mph (5 km/h) or
higher for a certain amount of
time when the surroundings are

WARNING

■

Cautions during setting up

the display

As the hybrid system needs to be

operating during setting up the

display, ensure that the vehicle is

parked in a place with adequate

ventilation. In a closed area such

as a garage, exhaust gases

including harmful carbon monox-

ide (CO) may collect and enter

the vehicle. This may lead to

death or a serious health hazard.

NOTICE

■

During setting up the display

To prevent 12-volt battery dis-

charge, ensure that the hybrid

system is operating while setting

up the display features.

Warning message display

Suggestion function

113

2-1. Instrument cluster

2

Ve
hicle status in

for

ma
tio

n a

nd indicators

dark, a suggestion message will
be displayed.

■

Suggestion to turn off the
headlights

If the headlights are left on for a
certain amount of time after the
power switch has been turned
off, a suggestion message will
be displayed.
When the headlight switch is in
the AUTO position: The mes-
sage asking if you wish to turn
the headlights off is displayed.
To turn the headlights off, select
“Yes”.

If the driver’s door is opened after
the power switch is turned off, this
suggestion message will not be dis-
played.

■

Customization

The suggestion function can be

turned on/off. (Customizable fea-

tures:



P.708)

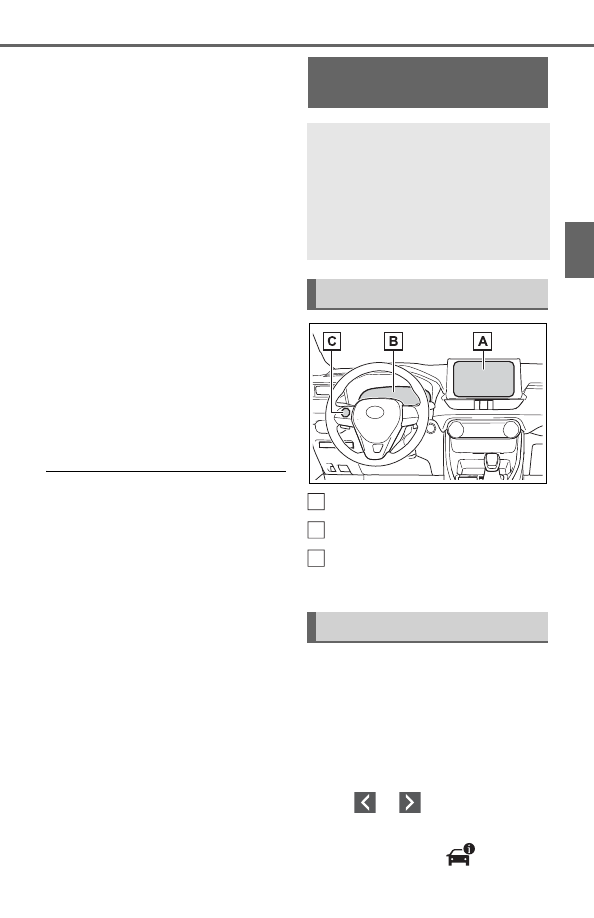

Audio system screen

Multi-information display

Meter control switches
(



P.101)

The energy monitor can be used
to check the vehicle drive status,
hybrid system operation status
and energy regeneration status.

■

Display



Multi-information display

Press

 or

 of the meter

control switches on the steering

wheel and select

, and

Energy monitor/con-

sumption screen

You can view the status of
your vehicle on the multi-
information display and the
audio system screen

*

.

*

: For navigation system or multi-

media system

System components

Energy monitor

A

B

C

114

2-1. Instrument cluster

then press

 or

 to select

the energy monitor display.



Audio or Audio Plus (vehicles
without Data Communication
Module)

1

Press the “MENU” button.

2

Select “Info” on the “Menu”
screen.

If a screen other than “Energy mon-

itor” is displayed, select “Energy”.



Audio or Audio Plus (vehicles
with Data Communication
Module)/Premium Audio

1

Press the “MENU” button.

2

Select “Info” on the “Menu”
screen.

3

Select “ECO” on the “Infor-
mation” screen.

If a screen other than “Energy mon-

itor” is displayed, select “Energy”.

■

Reading the display

The arrows will appear in accor-
dance with the energy flow.
When there is no energy flow,
arrows will not be displayed.

The color of the arrows will change
as follows
Green: When the hybrid battery
(traction battery) is regenerated or
charged.
Yellow: When the hybrid battery
(traction battery) is in use.
Red: When the gasoline engine is
in use.



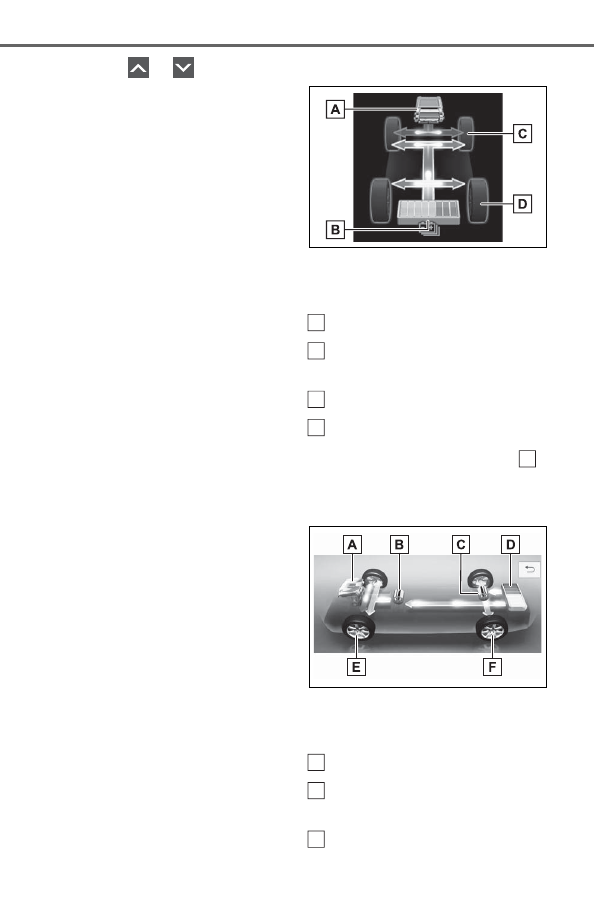

Multi-information display

The image shows all the arrows as
an example. The actual display will
vary depending on conditions.

Gasoline engine

Hybrid battery (traction bat-
tery)

Front tire

Rear tire

*

*

: For FF vehicles, the arrows to



are not displayed.



Audio system screen

The image shows all the arrows as
an example. The actual display will
vary depending on conditions.

Gasoline engine

Front electric motor (traction
motor)

Hybrid battery (traction bat-
tery)

A

B

C

D

D

A

B

C

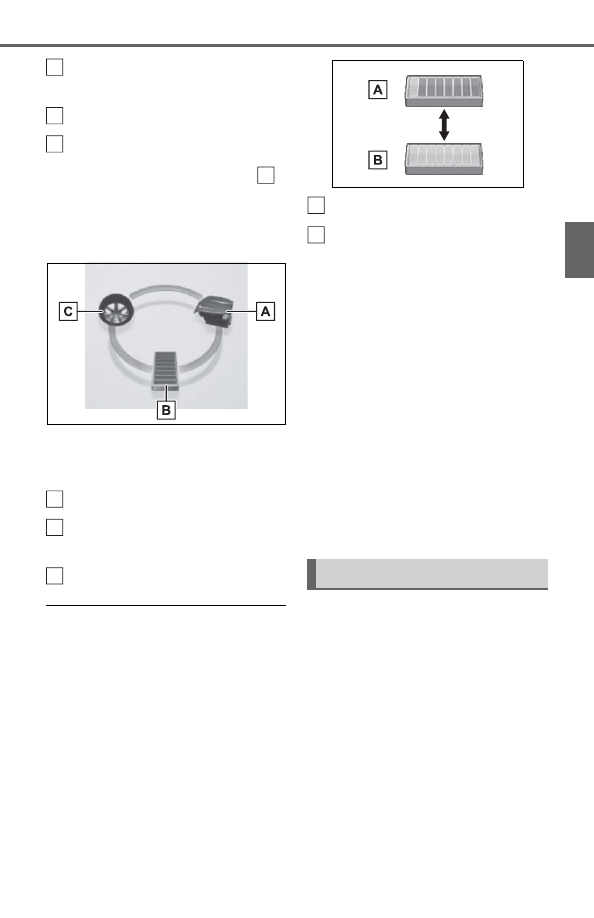

115

2-1. Instrument cluster

2

Ve
hicle status in

for

ma
tio

n a

nd indicators

Rear electric motor (traction
motor)

Front tire

Rear tire

*

*

: For FF vehicles, the arrows to



are not displayed.



Audio system screen (“Home”
screen)

The image shows all the arrows as
an example. The actual display will
vary depending on conditions.

Gasoline engine

Hybrid battery (traction bat-
tery)

Tire

■

Hybrid battery (traction battery)

status

The display changes in 8 levels

according to the remaining charge

amount of the hybrid battery (trac-

tion battery).

●

The figure shows the multi-infor-

mation display as an example for

explanation.

●

These images are examples only,

and may vary slightly from actual

conditions.

Low

High

■

Remaining charge amount

warning of hybrid battery (trac-

tion battery)

●

The buzzer sounds intermittently

when the hybrid battery (traction

battery) remains without charging

while the shift lever is in N, or the

remaining charge amount drops

below a certain level. If the

remaining charge amount drops

further, the buzzer sounds contin-

uously.

●

When a warning message is

shown on the multi-information

display and the buzzer sounds,

follow the instructions displayed

on the screen to perform trouble-

shooting.

■

Display



Audio or Audio Plus (vehicles
without Data Communication
Module)

1

Press the “MENU” button.

2

Select “Info” on the “Menu”
screen.

3

Select “Trip information” or
“History”.

D

E

F

F

A

B

C

Consumption

A

B

116

2-1. Instrument cluster



Audio or Audio Plus (vehicles
with Data Communication
Module)/Premium Audio

1

Press the “MENU” button.

2

Select “Info” on the “Menu”
screen.

3

Select “ECO” on the “Infor-
mation” screen.

4

Select “Trip information” or
“History”.

■

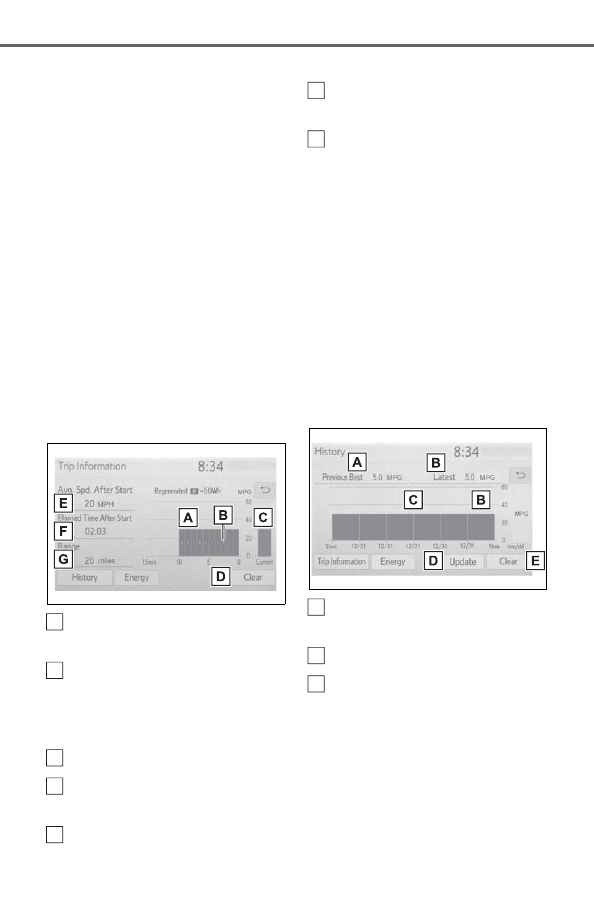

Trip information

If a screen other than “Trip infor-
mation” is displayed, select “Trip
information”.

The image is an example only, and
may vary slightly from actual condi-
tions.

Fuel consumption in the past
15 minutes

Regenerated energy in the
past 15 minutes

One symbol indicates 50 Wh. Up to
5 symbols are shown.

Current fuel consumption

Resetting the consumption
data

Average vehicle speed since
the hybrid system was

started

Elapsed time since the hybrid
system was started

Cruising range (



P.117)

Average fuel consumption for the
past 15 minutes is divided by color
into past averages and averages
attained since the power switch
was last turned to ON. Use the dis-
played average fuel consumption
as a reference.

■

History

If a screen other than “History”
is displayed, select “History”.

The image is an example only, and
may vary slightly from actual condi-
tions.

Best recorded fuel consump-
tion

Latest fuel consumption

Previous fuel consumption
record

• Audio and Audio Plus:
Displays the daily average fuel con-
sumption. (Instead of the date, “Trip
1” through “Trip 5” will be dis-
played.)
• Premium Audio:
Displays the daily average fuel con-
sumption.

A

B

C

D

E

F

G

A

B

C

117

2-1. Instrument cluster

2

Ve
hicle status in

for

ma
tio

n a

nd indicators

Updating the latest fuel con-
sumption data

Resetting the history data

The average fuel consumption his-
tory is divided by color into past
averages and the average fuel con-
sumption since the last time
updated. Use the displayed aver-
age fuel consumption as a refer-
ence.

■

Updating the history data

Update the latest fuel consumption

by selecting “Update” to measure

the current fuel consumption again.

■

Resetting the data

The fuel consumption data can be

deleted by selecting “Clear”.

■

Cruising range

Displays the estimated maximum

distance that can be driven with the

quantity of fuel remaining.
This distance is computed based on

your average fuel consumption. As

a result, the actual distance that can

be driven may differ from that dis-

played.

D

E

118

2-1. Instrument cluster

119

3

3

Be
for
e

driv
in

g

Before driving

3-1. Key information

Keys ............................

120

3-2. Opening, closing and

locking the doors

Side doors...................

127

Back door....................

133

Smart key system .......

147

3-3. Adjusting the seats

Front seats ..................

153

Rear seats...................

154

Driving position memory

..................................

156

Head restraints............

159

3-4. Adjusting the steering

wheel and mirrors

Steering wheel ............

162

Inside rear view mirror

163

Digital Rear-view Mirror

165

Outside rear view mirrors

..................................

174

3-5. Opening, closing the win-

dows and moon roof

Power windows ...........

176

Moon roof....................

179

Panoramic moon roof..

182

120

3-1. Key information

3-1.Key information

The following keys are provided
with the vehicle.



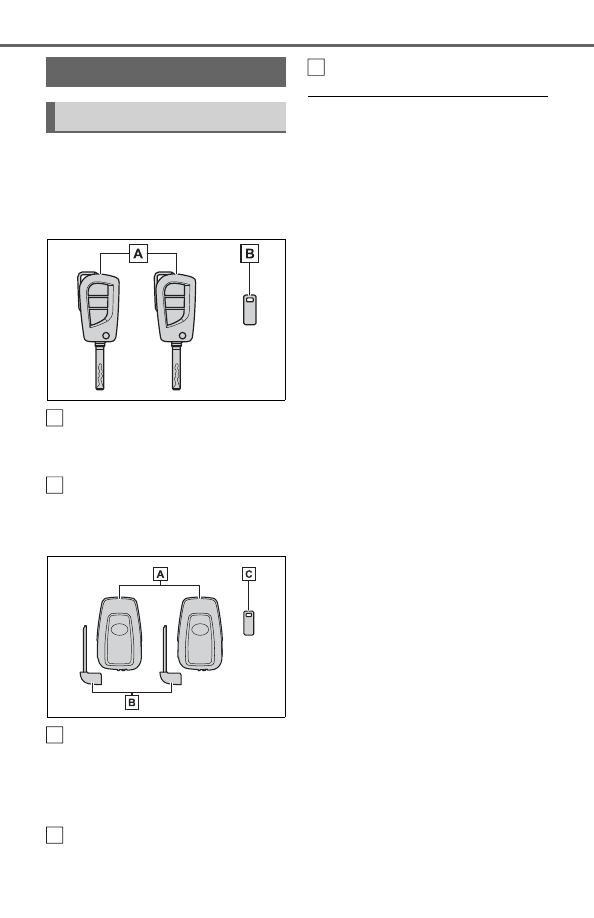

Vehicles without smart key
system

Master keys

Operating the wireless remote con-
trol function (



P.122)

Key number plate



Vehicles with smart key sys-
tem

Electronic keys

• Operating the smart key system

(



P.147)

• Operating the wireless remote

control function (



P.122)

Mechanical keys

Key number plate

■

When riding in an aircraft

When bringing a key with wireless

remote control function onto an air-

craft, make sure you do not press

any buttons on the key while inside

the aircraft cabin. If you are carrying

the key in your bag etc., ensure that

the buttons are not likely to be

pressed accidentally. Pressing a

button may cause the key to emit

radio waves that could interfere with

the operation of the aircraft.

■

Key battery depletion



Vehicles without smart key system

●

The standard battery life is 1 to 2

years.

●

The battery will become depleted

even if the wireless key is not

used. The following symptoms

indicate that the wireless key bat-

tery may be depleted. Replace the

battery when necessary.

(



P.618)

• The wireless remote control does

not operate.

• The detection area becomes

smaller.



Vehicles with smart key system

●

The standard battery life is 1 to 2

years.

●

If the battery becomes low, an

alarm will sound in the cabin and a

message will be displayed on the

multi-information display when the

hybrid system stops.

●

To reduce key battery depletion

when the electronic key is to not

be used for long periods of time,

set the electronic key to the bat-

tery-saving mode. (



P.148)

●

As the electronic key always

receives radio waves, the battery

will become depleted even if the

electronic key is not used. The fol-

lowing symptoms indicate that the

electronic key battery may be

depleted. Replace the battery

Keys

Key types

A

B

A

B

C

121

3-1. Key information

3

Be
for
e

driv
in

g

when necessary.

• The smart key system or the wire-

less remote control does not oper-

ate.

• The detection area becomes

smaller.

• The LED indicator on the key sur-

face does not turn on.

You can replace the battery by your-
self (



P.618). However, as there is

a danger that the electronic key may
be damaged, it is recommended
that replacement is carried out by
your Toyota dealer.

●

To avoid serious deterioration, do

not leave the electronic key within

3 ft. (1 m) of the following electri-

cal appliances that produce a

magnetic field:

• TVs

• Personal computers

• Cellular phones, cordless phones

and battery chargers

• Table lamps

• Induction cookers

■

If a message regarding the state

of the electronic key or power

switch mode, etc. is shown

(vehicles with smart key sys-

tem)

To prevent trapping the electronic

key inside the vehicle, leaving the

vehicle carrying the electronic key

on your person without turning the

power switch to OFF or other pas-

sengers from unintentionally taking

the key out of the vehicle, etc., a

message that prompts the user to

confirm the state of the electronic

key or power switch mode may be

shown on the multi-information dis-

play. In those cases, follow the

instructions on the display immedi-

ately.

■

If “Key Battery Low Replace

Key Battery” is displayed on

the multi-information display

(vehicles with smart key sys-

tem)

The electronic key has a low bat-

tery. Replace the electronic key bat-

tery. (



P.618)

■

Replacing the battery



P.618

■

Confirmation of the registered

key number

The number of keys already regis-

tered to the vehicle can be con-

firmed. Ask your Toyota dealer for

details.

■

If “A New Key has been Regis-

tered Contact Your Dealer for

Details” is displayed on the

multi-information display (vehi-

cles with smart key system)

This message will be displayed

each time the driver’s door is

opened when the doors are

unlocked from the outside for

approximately 10 days after a new

electronic key has been registered.

If this message is displayed but you

have not had a new electronic key

registered, ask your Toyota dealer

to check if an unknown electronic

key (other than those in your pos-

session) has been registered.

NOTICE

■

To prevent key damage

●

Do not drop the keys, subject

them to strong shocks or bend

them.

●

Do not expose the keys to high

temperatures for long periods of

time.

●

Do not get the keys wet or wash

them in an ultrasonic washer,

etc.

●

Do not attach metallic or mag-

netic materials to the keys or

place the keys close to such

materials.

●

Do not disassemble the keys.

122

3-1. Key information

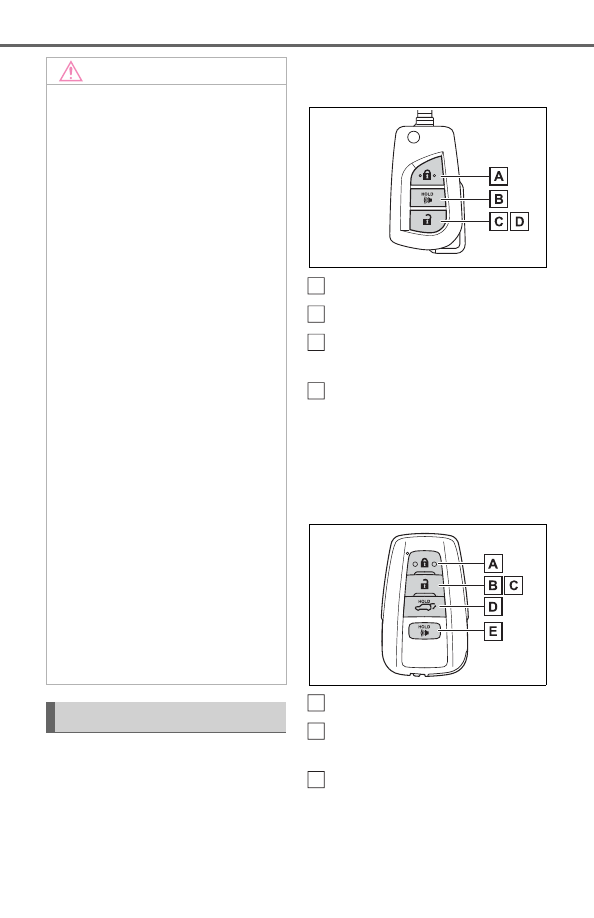

The keys are equipped with the
following wireless remote con-
trol:



Vehicles without smart key
system

Locks all the doors (



P.127)

Sounds the alarm (



P.123)

Unlocks all the doors
(



P.127)

Opens the side windows

*



(



P.127)

*

: This setting must be customized

at your Toyota dealer.



Vehicles with smart key sys-
tem

Locks all the doors (



P.127)

Unlocks all the doors
(



P.127)

Opens the side windows

*1



and the moon roof

*1, 2

 or

panoramic moon roof

*1, 2



(



P.127)

NOTICE

●

Do not attach a sticker or any-

thing else to the surface of the

keys.

●

Do not place the keys near

objects that produce magnetic

fields, such as TVs, audio sys-

tems and induction cookers.

●

Do not place the keys near

medical electrical equipment

such as low-frequency therapy

equipment or microwave ther-

apy equipment, and do not

receive medical attention with

the keys on your person.

■

Carrying the electronic key

on your person (vehicles with

smart key system)

Carry the electronic key 3.9 in.

(10 cm) or more away from elec-

tric appliances that are turned on.

Radio waves emitted from electric

appliances within 3.9 in. (10 cm)

of the electronic key may interfere

with the key, causing the key to

not function properly.

■

In case of a smart key system

malfunction or other key-

related problems (vehicles

with smart key system)



P.670

■

When an electronic key is lost

(vehicles with smart key sys-

tem)



P.668

Wireless remote control

A

B

C

D

A

B

C

123

3-1. Key information

3

Be
for
e

driv
in

g

Opens and closes the power
back door

*2

 (



P.137)

Sounds the alarm (



P.123)

*1

:These settings must be custom-

ized at your Toyota dealer.

*2

:If equipped

■

Theft deterrent panic mode



Vehicles without smart key system

When

 is pressed for longer

than about 1 second, an alarm will
sound intermittently and the vehicle
lights will flash to deter any person
from trying to break into or damage
your vehicle.
To stop the alarm, press any button
on the key.



Vehicles with smart key system

When

 is pressed for longer

than about 1 second, an alarm will
sound intermittently and the vehicle
lights will flash to deter any person
from trying to break into or damage
your vehicle.
To stop the alarm, press any button
on the electronic key.

■

Conditions affecting operation



Vehicles without smart key system

The wireless remote control function
may not operate normally in the fol-
lowing situations.

●

When the wireless key battery is

depleted

●

Near a TV tower, electric power

plant, gas station, radio station,

large display, airport or other facil-

ity that generates strong radio

waves or electrical noise

●

When carrying a portable radio,

cellular phone or other wireless

communication device

●

When the wireless key is in con-

tact with, or is covered by a metal-

lic object

●

When other wireless key (that

emits radio waves) is being used

nearby

●

If window tint with a metallic con-

tent or metallic objects are

attached to the rear window



Vehicles with smart key system



P.148

D

E

124

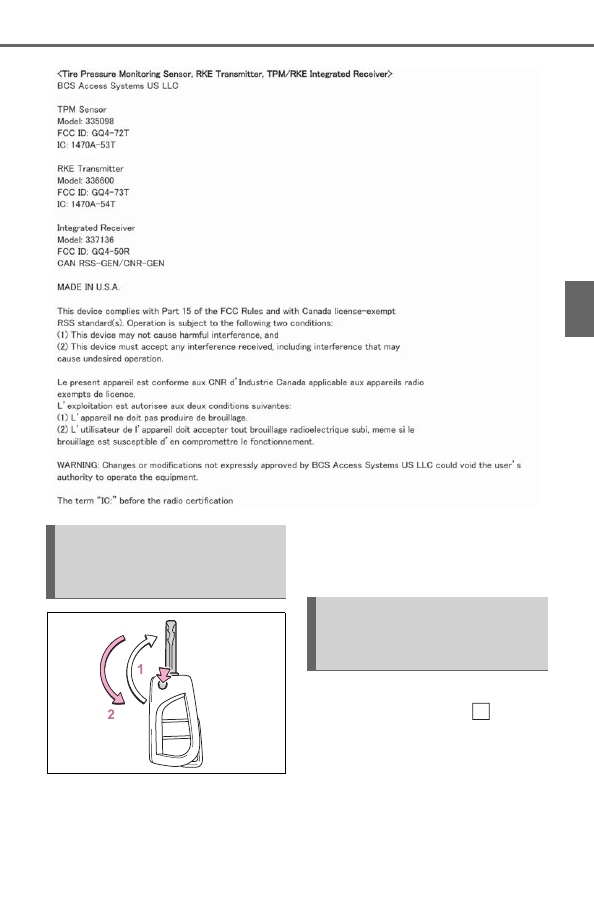

3-1. Key information

■

Certification for wireless remote control

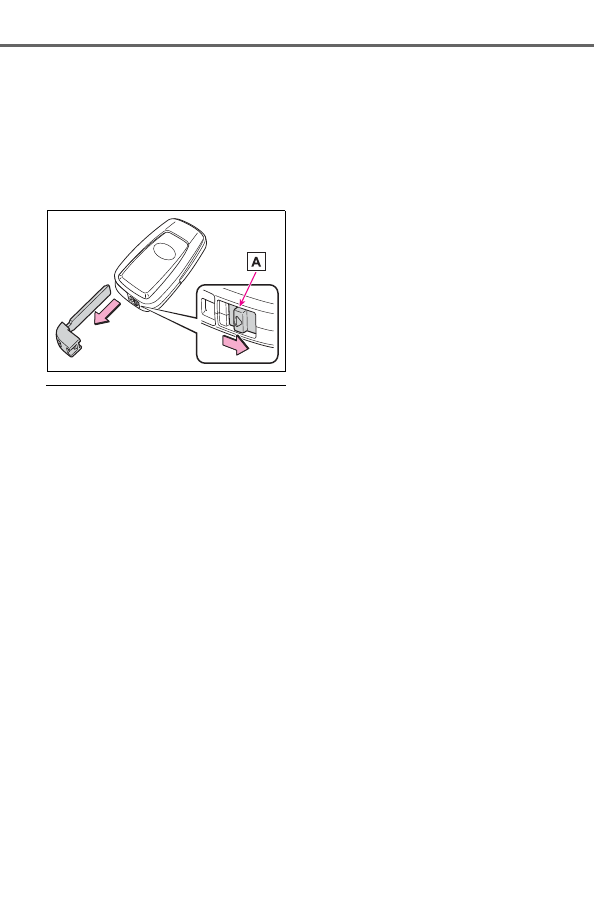

125

3-1. Key information

3

Be
for
e

driv
in

g

1

Releasing

To release the key, press the but-
ton.

2

Folding

To stow the key back in its case,
push the key back to the stowed
position while pressing the button.

To take out the mechanical key,
slide the release lever

 and

take the key out.

The mechanical key can only be
inserted in one direction, as the key
only has grooves on one side. If the
key cannot be inserted in a lock cyl-
inder, turn it over and re-attempt to
insert it.

Using the master key
(vehicles without smart
key system)

Using the mechanical key
(vehicles with smart key
system)

A

126

3-1. Key information

After using the mechanical key,
store it in the electronic key. Carry
the mechanical key together with
the electronic key. If the electronic
key battery is depleted or the entry
function does not operate properly,
you will need the mechanical key.
(



P.670)

■

If you lose your keys



P.668

■

If a wrong key is used

The key cylinder rotates freely to

isolate inside mechanism.

127

3-2. Opening, closing and locking the doors

3

Be
for
e

driv
in

g

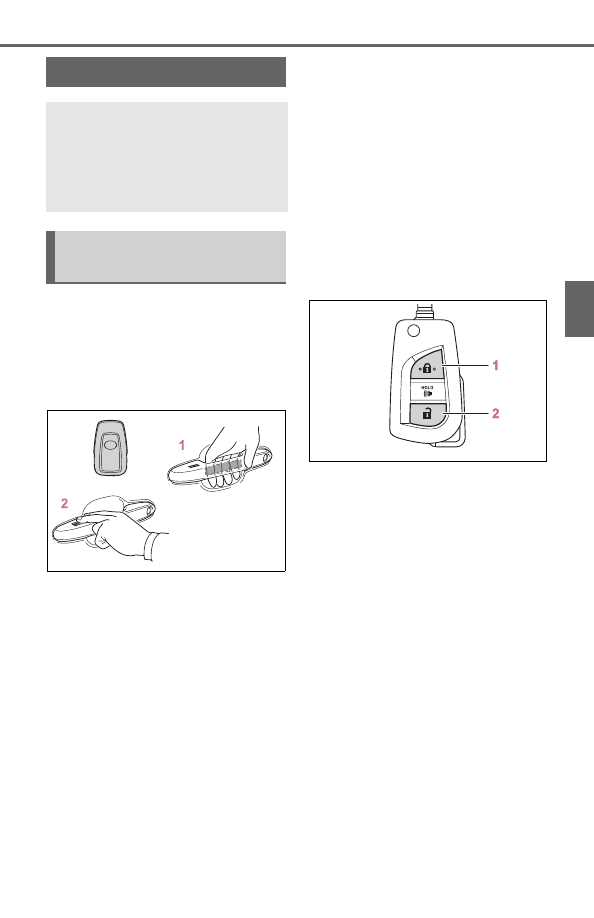

3-2.Opening, closing and locking the doors

■

Using the entry function
(vehicles with smart key
system)

Carry the electronic key to
enable this function.

1

Grip the driver’s door handle
to unlock the door. Holding
the driver’s door handle for
approximately 2 seconds
unlocks all the doors.
Grip the front passenger’s
door handle or rear door han-
dle (some models) to unlock
all the doors

*

.

Make sure to touch the sensor on
the back of the handle.
The doors cannot be unlocked for 3
seconds after the doors are locked.

*

: The door unlock settings can be

changed. (



P.128)

2

Touch the lock sensor (the
indentation on the upper part
of the door handle) to lock
the doors.

Check that the door is securely
locked.

■

Using the wireless remote
control



Vehicles without smart key
system

1

Locks all the doors

Check that the door is securely
locked.

2

Unlocks all the doors

Pressing the button unlocks the
driver’s door. Pressing the button
again within 5 seconds unlocks the
other doors.
Press and hold to open the side
windows.

*

*

: This setting must be customized

at your Toyota dealer.

Side doors

The vehicle can be locked
and unlocked using the
entry function, wireless
remote control, key or door
lock switch.

Unlocking and locking the
doors from the outside

128

3-2. Opening, closing and locking the doors



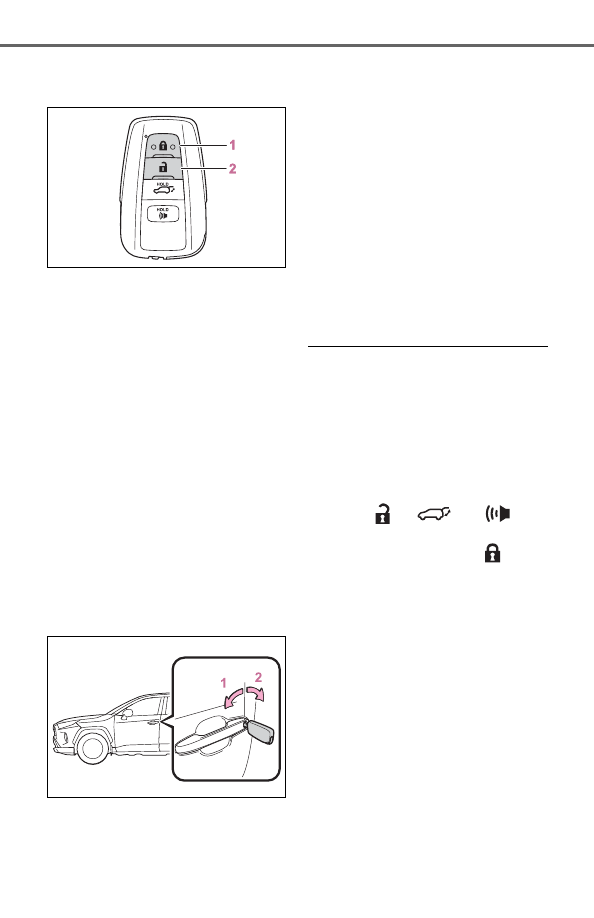

Vehicles with smart key sys-
tem

1

Locks all the doors

Check that the door is securely
locked.

2

Unlocks all the doors

Pressing the button unlocks the
driver’s door. Pressing the button
again within 5 seconds unlocks the
other doors.
Press and hold to open the side
windows and moon roof (if
equipped) or panoramic moon roof
(if equipped).

*

*

: This setting must be customized

at your Toyota dealer.

■

Using the key



Vehicles without smart key
system

1

Locks all the doors

Turn and hold to close the side win-
dows.

*

2

Unlocks all the doors

Turning the key unlocks the driver’s
door. Turning the key again within 5
seconds unlocks the other doors.
Turn and hold to open the side win-
dows.

*

*

: These settings must be custom-

ized at your Toyota dealer.



Vehicles with smart key sys-
tem

The doors can also be locked
and unlocked with the mechani-
cal key. (



P.670)

■

Switching the door unlock func-

tion (vehicles with smart key

system)

It is possible to set which doors the

entry function unlocks using the

wireless remote control.

1

Turn the power switch to OFF.

2

When the indicator light on the

key surface is not on, press and
hold

,

 or

 for

approximately 5 seconds while
pressing and holding

.

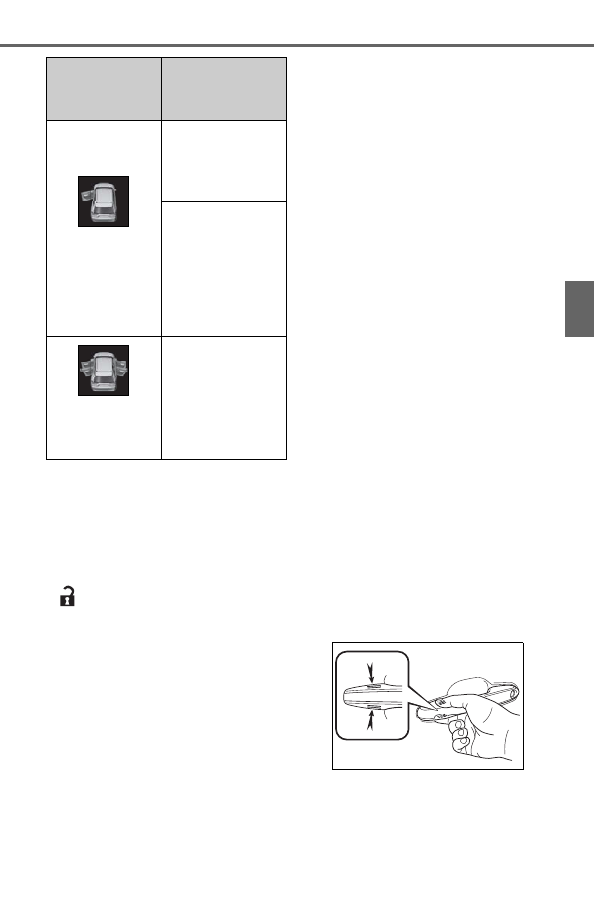

The setting changes each time an
operation is performed, as shown
below. (When changing the setting
continuously, release the buttons,
wait for at least 5 seconds, and
repeat step

2

.)

129

3-2. Opening, closing and locking the doors

3

Be
for
e

driv
in

g

Vehicles with alarm: To prevent

unintended triggering of the alarm,

unlock the doors using the wireless

remote control and open and close

a door once after the settings have

been changed. (If a door is not

opened within 60 seconds after

 is pressed, the doors will be

locked again and the alarm will

automatically be set.)

In a case that the alarm is triggered,

immediately stop the alarm.

(



P.84)

■

Operation signals

Doors: A buzzer sounds and the

emergency flashers flash to indicate

that the doors have been

locked/unlocked using the entry

function or wireless remote control.

(Locked: Once; Unlocked: Twice)
Side windows and moon roof (if

equipped) or panoramic moon roof

(if equipped): A buzzer sounds to

indicate that the side windows and

moon roof or panoramic moon roof

are operating using the wireless

remote control.

■

Security feature



Vehicles without smart key system

If a door is not opened within

approximately 60 seconds after the

vehicle is unlocked using the wire-

less remote control, the security fea-

ture automatically locks the vehicle

again.



Vehicles with smart key system

If a door is not opened within

approximately 60 seconds after the

vehicle is unlocked using the entry

function or wireless remote control,

the security feature automatically

locks the vehicle again. (However,

depending on the location of the

electronic key, the key may be

detected as being in the vehicle. In

this case, vehicle may be unlocked.)

■

When the door cannot be

locked by the lock sensor on

the upper part of the door han-

dle (vehicles with smart key

system)

If the door will not lock even when

the topside sensor area is touched,

try touching both the topside and

underside sensor areas at the same

time.
When gloves are being worn,

remove the gloves.

■

Door lock buzzer (vehicles with

smart key system)

If an attempt to lock the doors using

the smart key system is made when

a door other than the door you are

locking is open, a buzzer sounds

Multi-informa-

tion dis-

play/Beep

Unlocking func-

tion

Exterior: Beeps 3

times

Interior: Pings

once

Holding the
driver’s door han-
dle unlocks only
the driver’s door.

Holding the pas-
senger’s door
handle or press-
ing the back door
opener switch
unlocks all the
doors.

Exterior: Beeps

twice

Interior: Pings

once

Holding a door
handle or press-
ing the back door
opener switch
unlocks all the
doors.

130

3-2. Opening, closing and locking the doors

continuously for 5 seconds. Fully

close all the doors, and lock the

vehicle once more.

■

Setting the alarm (if equipped)

Locking the doors will set the alarm

system. (



P.84)

■

Conditions affecting the opera-

tion of the smart key system or

wireless remote control



Vehicles without smart key system



P.123



Vehicles with smart key system



P.148

■

If the smart key system (if

equipped) or the wireless

remote control does not oper-

ate properly

●

Vehicles with smart key system:

Use the mechanical key to lock

and unlock the doors. (



P.670)

●

Replace the key battery with a

new one if it is depleted. (



P.618)

■

If the 12-volt battery is dis-

charged

The doors cannot be locked and

unlocked using the smart key sys-

tem (if equipped) or wireless remote

control. Lock or unlock the doors

using the key (vehicles without

smart key system) or mechanical

key (vehicles with smart key sys-

tem). (



P.128, 670)

■

Customization

Settings (e.g. unlocking function

using a key) can be changed.

(Customizable features:



P.709)

WARNING

■

To prevent an accident

Observe the following precautions

while driving the vehicle.

Failure to do so may result in a

door opening and an occupant

could be thrown out of the vehicle,

resulting in death or serious

injury.

●

Ensure that all doors are prop-

erly closed and locked.

●

Do not pull the inside handle of

the doors while driving.

Be especially careful for the

front doors, as the doors may

be opened even if the inside

lock buttons are in locked posi-

tion.

●

Set the rear door child-protector

locks when children are seated

in the rear seats.

■

When opening or closing a

door

Check the surroundings of the

vehicle such as whether the vehi-

cle is on an incline, whether there

is enough space for a door to

open and whether a strong wind

is blowing. When opening or clos-

ing the door, hold the door handle

tightly to prepare for any unpre-

dictable movement.

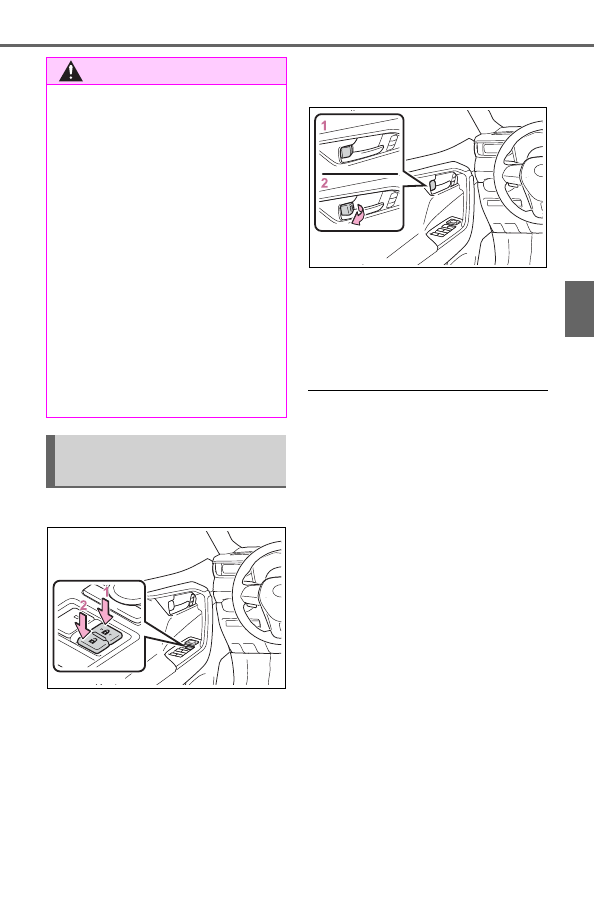

131

3-2. Opening, closing and locking the doors

3

Be
for
e

driv
in

g

■

Using the door lock switch

1

Locks all the doors

2

Unlocks all the doors

■

Using the inside lock but-
tons

1

Locks the door

2

Unlocks the door

The front doors can be opened by
pulling the inside handle even if the
lock buttons are in the lock position.

■

Locking the front doors from

the outside without a key

1

Move the inside lock button to

the lock position.

2

Close the door.



Vehicles without smart key system

The door cannot be locked if the key
is in the power switch.



Vehicles with smart key system

The door cannot be locked if the
power switch is in ACC or ON, or
the electronic key is left inside the
vehicle.
Depending on the position of the
electronic key, the key may not be
detected correctly and the door may
be locked.

■

Open door warning buzzer

If the vehicle speed reaches 3 mph

(5 km/h), a buzzer sounds to indi-

cate that the door(s) or the hood is

not fully closed.

The open door(s) or hood is dis-

played on the multi-information dis-

play.

WARNING

■

When using the wireless

remote control, key or

mechanical key and operating

the power windows, moon

roof (if equipped) or pan-

oramic moon roof (if

equipped)

Operate the power window, moon

roof or panoramic moon roof after

checking to make sure that there

is no possibility of any passenger

having any of their body parts

caught in the side window, moon

roof or panoramic moon roof.

Also, do not allow children to

operate the wireless remote con-

trol, key or mechanical key. It is

possible for children and other

passengers to get caught in the

side window, moon roof or pan-

oramic moon roof.

Unlocking and locking the
doors from the inside

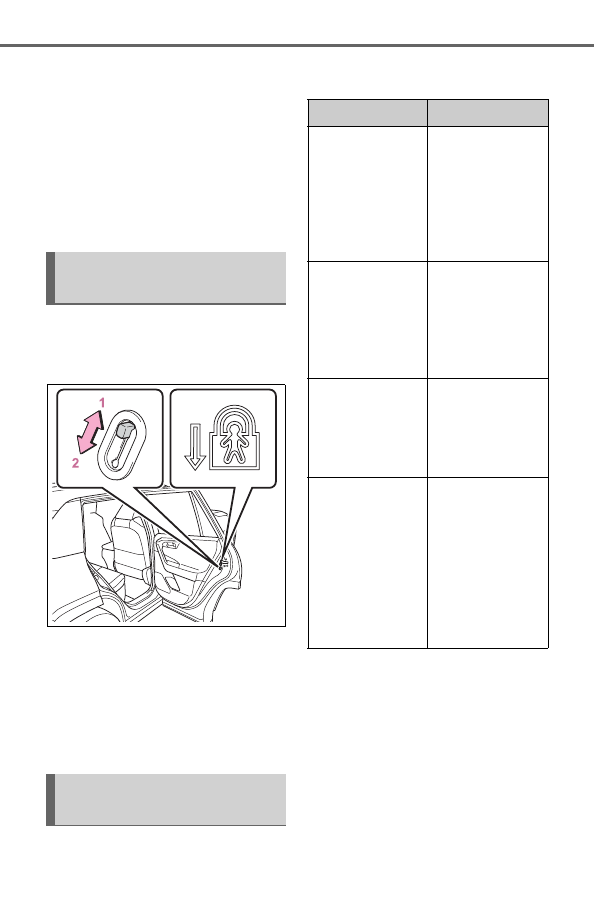

132

3-2. Opening, closing and locking the doors

■

When all the doors are locked

with the entry function (vehicles

with smart key system), wire-

less remote control or key

●

The doors cannot be unlocked

with the door lock switch.

●

The door lock switch can be reset

by unlocking all the doors with the

entry function (vehicles with smart

key system), wireless remote con-

trol or key.

The door cannot be opened
from inside the vehicle when the
lock is set.

1

Unlock

2

Lock

These locks can be set to prevent
children from opening the rear
doors. Push down on each rear
door switch to lock both rear doors.

The following functions can be
set or canceled:

For instructions on customizing,
refer to P.706.

Rear door child-protector
lock

Automatic door locking
and unlocking systems

Function

Operation

Speed linked
door locking
function

All doors are
automatically
locked when
vehicle speed is
approximately
12mph (20 km/h)
or higher.

Shift position
linked door lock-
ing function

All doors are
automatically
locked when
shifting the shift
lever to position
other than P.

Shift position
linked door
unlocking func-
tion

All doors are
automatically
unlocked when
shifting the shift
lever to P.

Driver’s door
linked door
unlocking func-
tion

All doors are
automatically
unlocked when
driver’s door is
opened within
approximately 45
seconds after
turning the power
switch to OFF.

133

3-2. Opening, closing and locking the doors

3

Be
for
e

driv
in

g

Back door

The back door can be
locked/unlocked and
opened/closed by the fol-
lowing procedures.

WARNING

Observe the following precau-

tions.

Failure to do so may result in

death or serious injury.

■

Before driving

●

Make sure that the back door is

fully closed.

If the back door is not fully

closed, it may open unexpect-

edly while driving and hit near-

by objects or luggage in the lug-

gage compartment may be

thrown out, causing an acci-

dent.

●

Do not allow children to play in

the luggage compartment.

If a child is accidentally locked

in the luggage compartment,

they could get heat exhaustion

or other injuries.

●

Do not allow a child to open or

close the back door.

Doing so may cause the back

door to operate unexpectedly,

or cause the child’s hands,

head, or neck to be caught by

the closing back door.

■

Important points while driving

●

Keep the back door closed

while driving.

If the back door is left open, it

may hit near-by objects or lug-

gage in the luggage compart-

ment may be thrown out,

causing an accident.

●

Never let anyone sit in the lug-

gage compartment.

In the event of sudden braking,

sudden swerving or a collision,

they are susceptible to death or

serious injury.

■

Back door handles

Do not hang any object to the

back door handles.

If any object is hung, the back

door may suddenly shut, causing

parts of the body to be caught,

resulting in death or serious

injury.

■

Operating the back door

Observe the following precau-

tions.

Failure to do so may cause parts

of the body to be caught, resulting

in death or serious injury.

●

Remove any heavy loads, such

as snow and ice, from the back

door before opening it. Failure

to do so may cause the back

door to suddenly shut again

after it is opened.

●

When opening or closing the

back door, thoroughly check to

make sure the surrounding area

is safe.

●

If anyone is in the vicinity, make

sure they are safe and let them

know that the back door is

about to open or close.

●

Use caution when opening or

closing the back door in windy

weather as it may move

abruptly in strong wind.

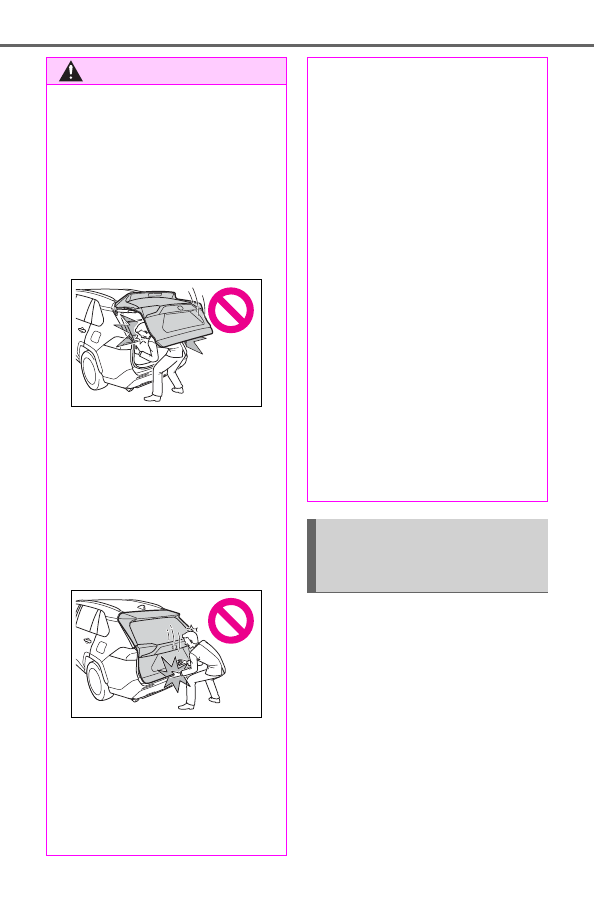

134

3-2. Opening, closing and locking the doors

■

Using the entry function
(vehicles with smart key
system)

Carry the electronic key to
enable this function.

WARNING

●

Vehicles without power back

door: The back door may sud-

denly shut if it is not opened

fully. It is more difficult to open

or close the back door on an

incline than on a level surface,

so beware of the back door

unexpectedly opening or closing

by itself. Make sure that the

back door is fully open and

secure before using the luggage

compartment.

●

Vehicles with power back door:

The back door may suddenly

shut if it is not opened fully,

while on a steep incline. Make

sure that the back door is

secured before using the lug-

gage compartment.

●

When closing the back door,

take extra care to prevent your

fingers, etc. from being caught.

●

Vehicles without power back

door: When closing the back

door, make sure to press it

lightly on its outer surface. If the

back door handle is used to fully

close the back door, it may

result in hands or arms being

caught.

●

Do not pull on the back door

damper stay (vehicles without

power back door) (



P.137) or

back door spindle (vehicles with

power back door) (



P.144) to

close the back door, and do not

hang on the back door damper

stay (vehicles without power

back door) or back door spindle

(vehicles with power back door).

Doing so may cause hands to

be caught or the back door

damper stay (vehicles without

power back door) or back door

spindle (vehicles with power

back door) to break, causing an

accident.

●

Vehicles without power back

door: If a bicycle carrier or simi-

lar heavy object is attached to

the back door, it may suddenly

shut again after being opened,

causing someone’s hands,

head or neck to be caught and

injured. When installing an

accessory part to the back door,

using a genuine Toyota part is

recommended.

Unlocking and locking the
back door from the out-
side

135

3-2. Opening, closing and locking the doors

3

Be
for
e

driv
in

g

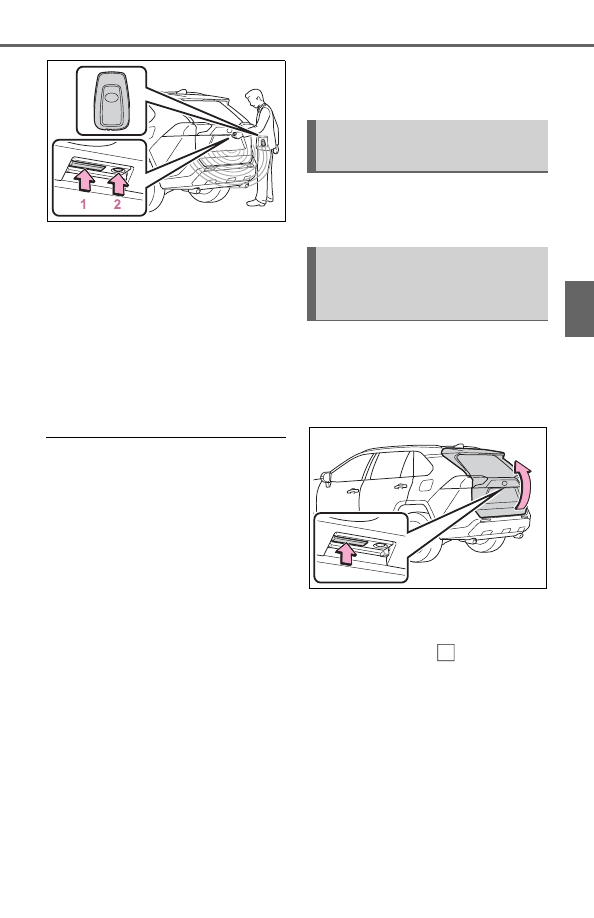

1

Unlocks all the doors

The doors cannot be unlocked for 3
seconds after the doors are locked.

2

Locks all the doors

Check that the door is securely
locked.

■

Using the wireless remote
control



P.127

■

Operation signals

A buzzer sounds and the emer-

gency flashers flash to indicate that

the doors have been

locked/unlocked using the entry

function (if equipped) or wireless

remote control. (Locked: once;

Unlocked: twice)

■

Security feature



Vehicles without smart key system

If a door is not opened within

approximately 60 seconds after the

vehicle is unlocked using the wire-

less remote control, the security fea-

ture automatically locks the vehicle

again.



Vehicles with smart key system

If a door is not opened within

approximately 60 seconds after the

vehicle is unlocked using the entry

function or wireless remote control,

the security feature automatically

locks the vehicle again. (However,

depending on the location of the

electronic key, the key may be

detected as being in the vehicle. In

this case, vehicle may be unlocked.)

■

Using the door lock switch



P.131

■

Open

Raise the back door while
pressing up the back door
opener switch.

■

Close

Lower the back door using the
back door handle

, and make

sure to push the back door
down from the outside to close
it.

Be careful not to pull the back door
sideways when closing the back
door with the handle.

Unlocking and locking the
back door from the inside

Opening/closing the back
door (vehicles without
power back door)

A

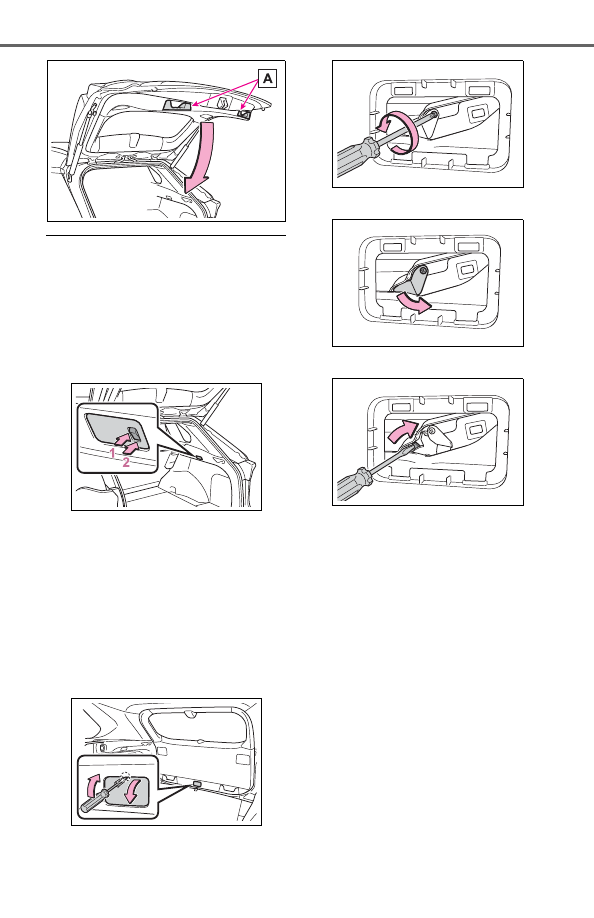

136

3-2. Opening, closing and locking the doors

■

Luggage compartment light

The luggage compartment light

turns on when the back door is

opened with the luggage compart-

ment light switch on.
When the power switch is turned to

OFF, the light will go off automati-

cally after 20 minutes.

1

On

2

Off

■

If the back door opener is inop-

erative

The back door can be unlocked

from the inside.

1

Remove the cover.

To prevent damage, cover the tip of

the screwdriver with a rag.

2

Loosen the screw.

3

Turn the cover.

4

Move the lever.

5

When installing, reverse the

steps listed.

■

Open door warning buzzer



P.131

137

3-2. Opening, closing and locking the doors

3

Be
for
e

driv
in

g

■

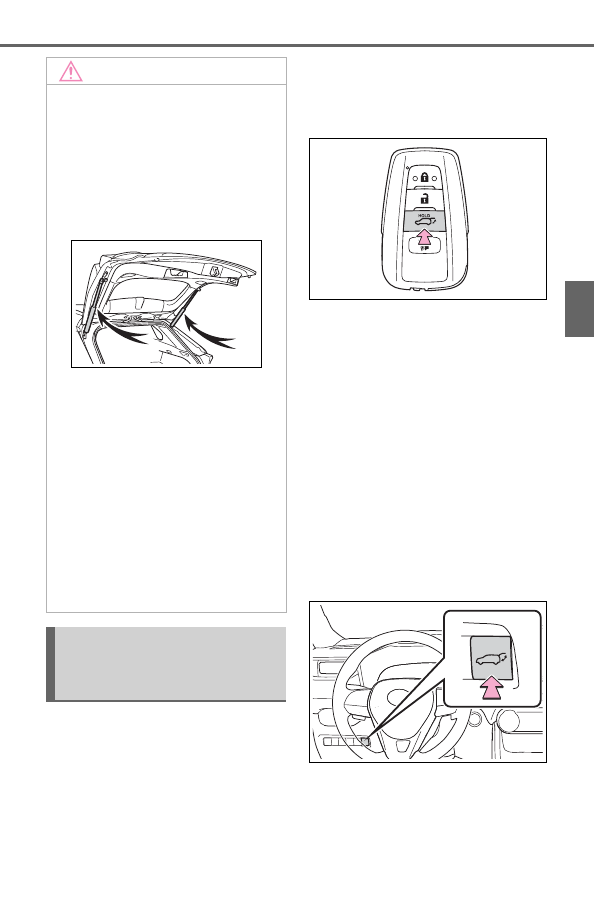

Using the wireless remote
control

Press and hold the switch.

The power back door automatically
opens/closes.
Pressing the switch while the power
back door is opening/closing stops

the operation. When the switch is
pressed and held again during the
halted operation, the back door will
perform the reverse operation.

■

Using the power back door
switch on the instrument
panel

Press and hold the switch.

The power back door automatically
opens/closes.
Unlock the back door before oper-
ating.
Pressing the switch while the power
back door is opening/closing stops
the operation. When the switch is
pressed and held again during the
halted operation, the back door will
perform the reverse operation.

■

Using the back door opener
switch

When the back door is
unlocked: Press the back door

NOTICE

■

Back door damper stays

The back door is equipped with

damper stays that hold the back

door in place.

Observe the following precau-

tions.

Failure to do so may cause dam-

age to the back door damper stay,

resulting in malfunction.

●

Do not attach any foreign

objects, such as stickers, plastic

sheets, or adhesives to the

damper stay rod.

●

Do not touch the damper stay

rod with gloves or other fabric

items.

●

Do not attach any accessories

other than genuine Toyota parts

to the back door.

●

Do not place your hand on the

damper stay or apply lateral

forces to it.

Opening/closing the back
door (vehicles with power
back door)

138

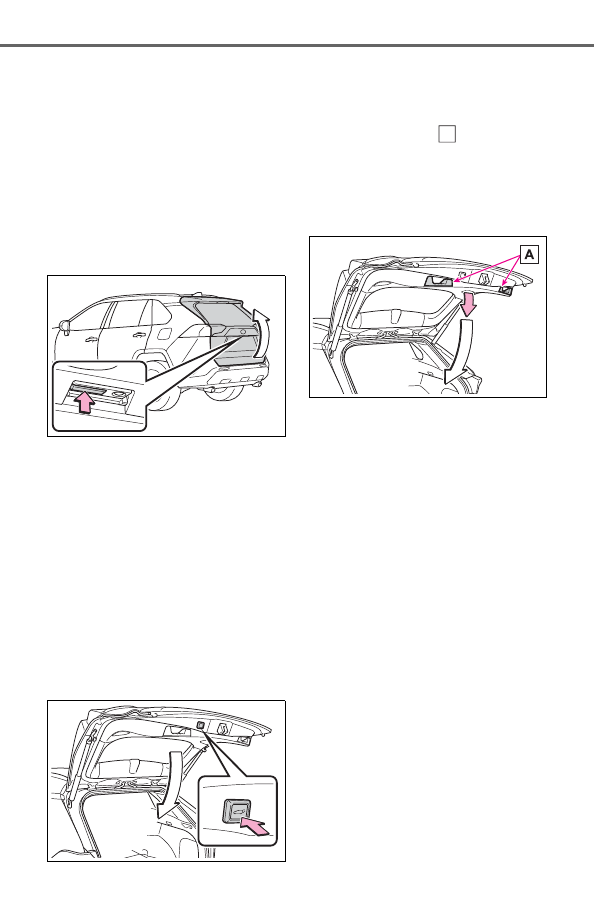

3-2. Opening, closing and locking the doors

opener switch.
When the back door is locked:
While carrying the electronic key
on your person, press and hold
the back door opener switch.

The power back door automatically
opens.
Pressing the switch while the power
back door is opening/closing stops
the operation.

■

Using the power back door
switch on the back door

Press the switch.

The power back door automatically
closes.
Pressing the switch while the power
back door is operating will stop the
operation.
When the switch is pressed again
during the halted operation, the
back door will perform the reverse
operation.

■

Using the back door han-
dles

Lower the back door using the
back door handle

.

The back door closing assist
(



P.140) will be activated, and the

power back door will fully close
automatically.

■

Using the kick sensor (vehi-
cles with Hands Free Power
Back Door)

The Hands Free Power Back
Door enables automatic opening
and closing of the power back
door by putting your foot near
the lower center part of the rear
bumper and moving it away
from the rear bumper. When
operating the Hands Free
Power Back Door, make sure
that the power switch is in OFF,
the Hands Free Power Back
Door operation is enabled
(



P.109) and you are carrying

an electronic key.

1

While carrying an electronic
key, stand within the smart
key system operation range,
approximately 11.8 to 19.7 in.

A

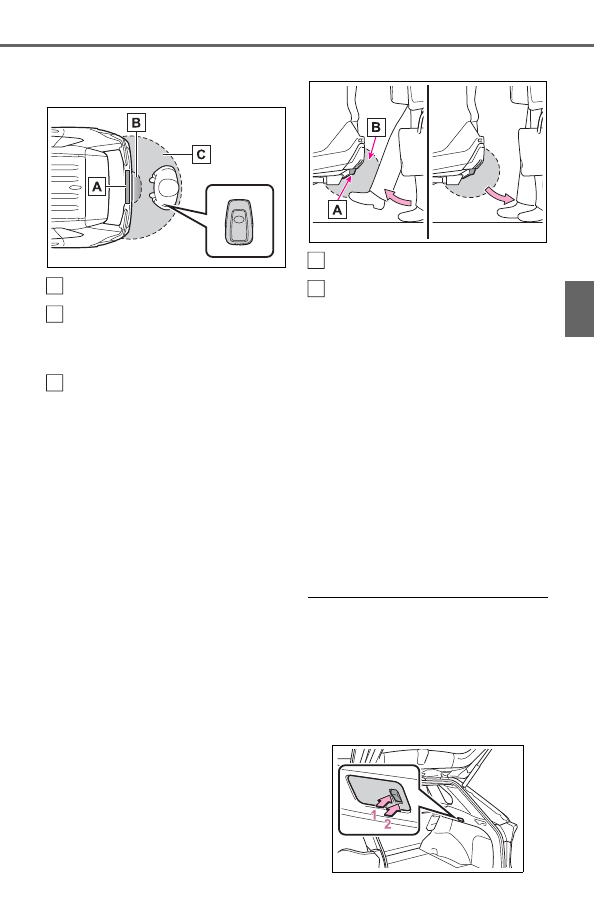

139

3-2. Opening, closing and locking the doors

3

Be
for
e

driv
in

g

(30 to 50 cm) from the rear
bumper.

Kick sensor

Hands Free Power Back
Door operation detection
area

Smart key system operation
detection area (



P.147)

2

Perform a kick operation by
moving your foot to within
approximately 3.9 in. (10 cm)
of the rear bumper and then
pulling it back.

Perform the entire kick operation

within 1 second.
The back door will not start operat-

ing while a foot is detected under

the rear bumper.
Operate the Hands Free Power

Back Door without contacting the

rear bumper with your foot.
If another electronic key is in the

cabin or luggage compartment, it

may take slightly longer than nor-

mal for the operation to occur.

Kick sensor

Hands Free Power Back
Door operation detection
area

3

When the kick sensor detects
that your foot is pulled back,
a buzzer will sound and the
back door will automatically
fully open/close.

If a foot is moved under the rear

bumper while the back door is

opening/closing, the back door will

stop moving.
If a foot is moved under the rear

bumper again during the halted

operation, the back door will per-

form the reverse operation.

■

Luggage compartment light

The luggage compartment light

turns on when the back door is

opened with the luggage compart-

ment light switch on.
When the power switch is turned to

OFF, the light will go off automati-

cally after 20 minutes.

A

B

C

A

B

140

3-2. Opening, closing and locking the doors

1

On

2

Off

■

Back door closer

In the event that the back door is left

slightly open, the back door closer

will automatically close it to the fully

closed position.
Whatever the state of the power

switch, the back door closer oper-

ates.

■

Power back door operating con-

ditions

The power back door can automati-

cally open and close under the fol-

lowing conditions:

●

When the power back door sys-

tem is enabled. (



P.109)

●

When the power switch is in ON,

in addition to the above for the

opening operations, the back door

operates for any of the following

conditions:

• Parking brake is engaged

• The brake pedal is depressed

• The shift lever is in P.

■

Operation of the power back

door

●

A buzzer sounds and the emer-

gency flashers flash twice to indi-

cate that the back door is

opening/closing.

●

When the power back door sys-

tem is disabled, the power back

door does not operate but it can

be opened and closed by hand.

●

When the power back door auto-

matically opens, if an abnormality

due to people or objects is

detected, operation will stop.

■

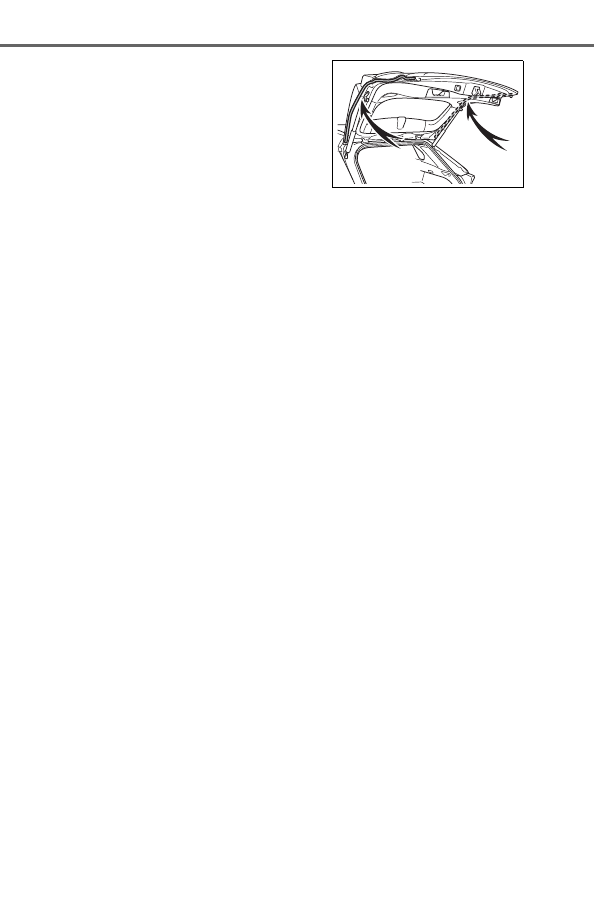

Jam protection function

Sensors are equipped on both sides

of the power back door. If anything

obstructs the power back door while

it is closing, the back door will auto-

matically operate in the opposite

direction or stop.

■

Fall-down protection function

While the power back door is open-

ing automatically, applying exces-

sive force to it will stop the opening

operation to prevent the power back

door from suddenly shutting.

■

Back door closing assist

If the back door is lowered manually

when the back door is stopped at an

open position, the back door will

fully close automatically.

■

Back door reserve lock function

This function is a function which

reserves locking of all doors, before-

hand, when the power back door is

open.
When the following procedure is

performed, all the doors except the

power back door are locked and

then power back door will also be

locked at the same time it is closed.

1

Close all doors, except the back

door.

2

During the power back door clos-

ing operation, lock the doors

using the smart key system from

the side doors (



P.127) or the

wireless remote control.

(



P.127)

A buzzer sounds and the emer-

gency flashers flash to indicate that

all the doors have been closed and

locked.

●

If the electronic key is placed

inside the vehicle after starting a

close operation via the door

reserve lock function, the elec-

tronic key may become locked

inside the vehicle.

●

If the power back door does not

fully close due to the operation of

141

3-2. Opening, closing and locking the doors

3

Be
for
e

driv
in

g

the jam protection function, etc.,

while the back door is automati-

cally closing after a door reserve

lock operation is performed, the

door reserve lock function is can-

celed and all the doors will unlock.

●

Before leaving the vehicle, make

sure that all the doors are closed

and locked.

■

Hands Free Power Back Door

operating conditions (vehicles

with Hands Free Power Back

Door)

The Hands Free Power Back Door

will open/close automatically when

the following conditions are met:

●

The Hands Free Power Back Door

operation is enabled (



P.109)

●

The power switch is in OFF.

●

The electronic key is within the

operational range. (



P.147)

●

A foot is put near the lower center

part of the rear bumper and

moved away from the rear

bumper.

The power back door may also be

operated by putting a hand, an

elbow, a knee, etc. near the lower

center part of the rear bumper and

moving it away from the rear

bumper. Make sure to put it close

enough to the center part of the

rear bumper.

■

Situations in which the Hands

Free Power Back Door may not

operate properly (vehicles with

Hands Free Power Back Door)

In the following situations, the

Hands Free Power Back Door may

not operate properly:

●

When a foot remains under the

rear bumper

●

If the rear bumper is strongly hit

with a foot or is touched for a while

If the rear bumper has been touched
for a while, wait for a short time
before attempting to operate the
Hands Free Power Back Door

again.

●

When operated while a person is

too close to the rear bumper

●

When an external radio wave

source interferes with the commu-

nication between the electronic

key and the vehicle (



P.148)

●

When the vehicle is parked near

an electrical noise source which

affects the sensitivity of the Hands

Free Power Back Door, such as a

pay parking spot, gas station,

electrically heated road, or fluo-

rescent light

●

When the vehicle is near a TV

tower, electric power plant, radio

station, large display, airport or

other facility that generates strong

radio waves or electrical noise

●

When a large amount of water is

applied to the rear bumper, such

as when the vehicle is being

washed or in heavy rain

●

When mud, snow, ice, etc. is

attached to the rear bumper

●

When the vehicle has been

parked for a while near objects

that may move and contact the

rear bumper, such as plants

●

When an accessory is installed to

the rear bumper

If an accessory has been installed,
turn the Hands Free Power Back
Door operation setting off.

■

Preventing unintentional opera-

tion of the Hands Free Power

Back Door (vehicles with Hands

Free Power Back Door)

When an electronic key is in the

operation range, the Hands Free

Power Back Door may operate unin-

tentionally, so be careful in the fol-

lowing situations.

●

When a large amount of water is

applied to the rear bumper, such

as when the vehicle is being

washed or in heavy rain

●

When dirt is wiped off the rear

142

3-2. Opening, closing and locking the doors

bumper

●

When a small animal or small

object, such as a ball, moves

under the rear bumper

●

When an object is moved from

under the rear bumper

●

If someone is swinging their legs

while sitting on the rear bumper

●

If the legs or another part of some-

one’s body contacts the rear

bumper while passing by the vehi-

cle

●

When the vehicle is parked near

an electrical noise source which

affects the sensitivity of the Hands

Free Power Back Door, such as a

pay parking spot, gas station,

electrically heated road, or fluo-

rescent light

●

When the vehicle is near a TV

tower, electric power plant, radio

station, large display, airport or

other facility that generates strong

radio waves or electrical noise

●

When the vehicle is parked in a

place where objects such as

plants are near the rear bumper

●

If luggage, etc. is set near the rear

bumper

●

If accessories or a vehicle cover is

installed/removed near the rear

bumper

●

When the vehicle is being towed

To prevent unintentional operation,
turn the Hands Free Power Back
Door operation setting off. (



P.109)

■

When reconnecting the 12-volt

battery

To enable the power back door to

operate properly, close the back

door manually.

■

If the back door opener is inop-

erative

The back door can be unlocked

from the inside.

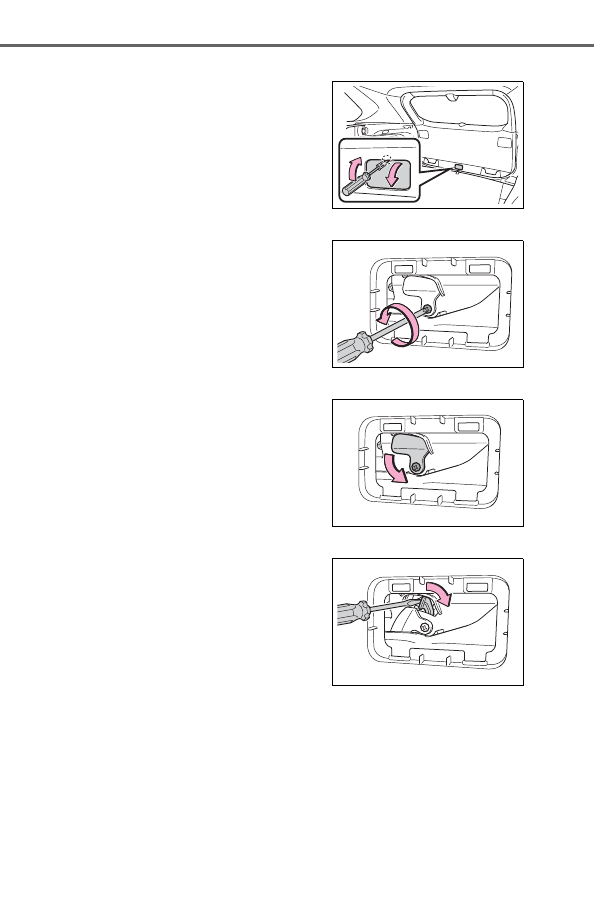

1

Remove the cover.

To prevent damage, cover the tip of

the screwdriver with a rag.

2

Loosen the screw.

3

Turn the cover.

4

Move the lever.

5

When installing, reverse the

steps listed.

■

Customization

Settings (e.g. power back door

opening angle) can be changed.

(Customizable features:



P.711)

143

3-2. Opening, closing and locking the doors

3

Be
for
e

driv
in

g

WARNING

■

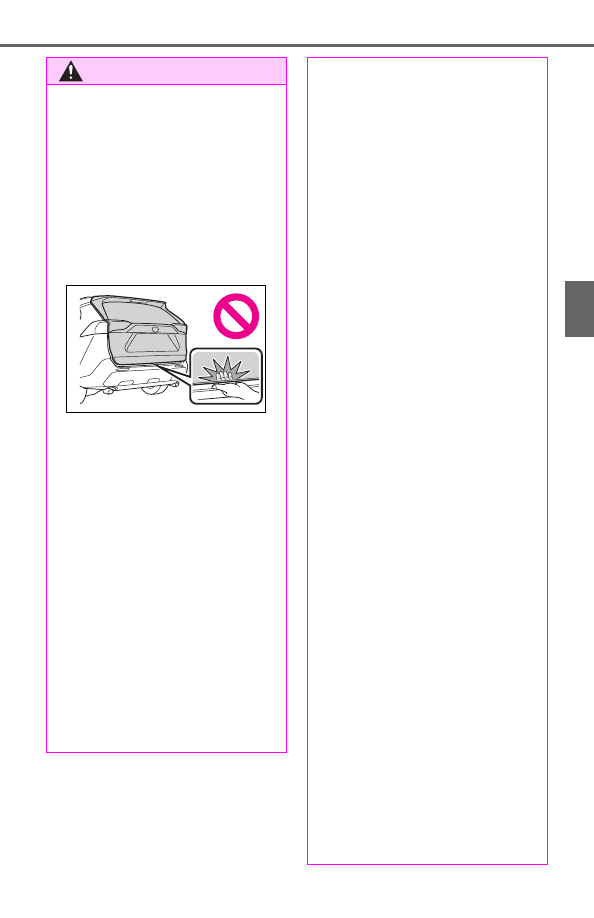

Back door closer

●

In the event that the back door

is left slightly open, the back

door closer will automatically

close it to the fully closed posi-

tion. It takes several seconds

before the back door closer

begins to operate. Be careful

not to catch fingers or anything

else in the back door, as this

may cause bone fractures or

other serious injuries.

●

Use caution when using the

back door closer as it still oper-

ates when the power back door

system is canceled.

■

Power back door

Observe the following precautions

when operating the power back

door.

Failure to do so may cause death

or serious injury.

●

Check the safety of the sur-

rounding area to make sure

there are no obstacles or any-

thing that could cause any of

your belongings to get caught.

●

If anyone is in the vicinity, make

sure they are safe and let them

know that the back door is

about to open or close.

●

If the power back door system is

turned off while the back door is

operating automatically, the

automatic operation is stopped.

The back door then has to be

operated manually. Take extra

care when on an incline, as the

back door may open or close

unexpectedly.

●

If the operating conditions of the

power back door are no longer

met, a buzzer may sound and

the back door may stop opening

or closing. The back door then

has to be operated manually.

Take extra care when on an

incline, as the back door may

open or close abruptly.

●

On an incline, the back door

may suddenly shut after it

opens. Make sure the back door

is fully open and secure.

●

In the following situations, the

power back door may detect an

abnormality and automatic

operation may be stopped. In

this case, the back door has to

be operated manually. Take

extra care when on an incline,

as the back door may open or

close abruptly.

• When the back door contacts an

obstacle

• When the 12-volt battery volt-

age suddenly drops, such as

when the power switch is turned

to ON or the hybrid system is

started during automatic opera-

tion

●

If a bicycle carrier or similar

heavy object is attached to the

back door, it may suddenly shut

again after being opened, caus-

ing someone’s hands, head or

neck to be caught and injured.

When installing an accessory

part to the back door, using a

genuine Toyota part is recom-

mended.
