7-3. Do-it-yourself maintenance

Mainten

ance an

d ca

COROLLA_TMMMS_TMMC_U

The coolant level is satisfactory if it is between the “F” and “L” lines on
the reservoir when the engine is cold.

Reservoir cap
“F” line
“L” line

If the level is on or below the “L”
line, add coolant up to the “F” line.
(

P. 531)

■

Coolant selection
Only use “Toyota Super Long Life Coolant” or a similar high quality ethylene
glycol based non-silicate, non-amine, non-nitrite, and non-borate coolant with
long-life hybrid organic acid technology.

For the U.S.A.: “Toyota Super Long Life Coolant” is a mixture of 50% cool-

ant and 50% deionized water. (Minimum temperature: -31

F

[-35

C])

For Canada: “Toyota Super Long Life Coolant” is a mixture of 55% cool-

ant and 45% deionized water. (Minimum temperature: -44

F

[-42

C])

For more details about engine coolant, contact your Toyota dealer.

■

If the coolant level drops within a short time of replenishing
Visually check the radiator, hoses, engine coolant reservoir caps, drain cock
and water pump.
If you cannot find a leak, have your Toyota dealer test the cap and check for
leaks in the cooling system.

Engine coolant

434

7-3. Do-it-yourself maintenance

COROLLA_TMMMS_TMMC_U

WARNING

■

When the engine is hot
Do not remove the engine coolant reservoir cap or the radiator cap.
(

P. 533)

The cooling system may be under pressure and may spray hot coolant if the
cap is removed, causing serious injuries, such as burns.

NOTICE

■

When adding coolant
Coolant is neither plain water nor straight antifreeze. The correct mixture of
water and antifreeze must be used to provide proper lubrication, corrosion
protection and cooling. Be sure to read the antifreeze or coolant label.

■

If you spill coolant
Be sure to wash it off with water to prevent it from damaging parts or paint.

435

7-3. Do-it-yourself maintenance

Mainten

ance an

d ca

COROLLA_TMMMS_TMMC_U

Check the radiator and condenser and clear away any foreign objects.
If either of the above parts is extremely dirty or you are not sure of
their condition, have your vehicle inspected by your Toyota dealer.

■

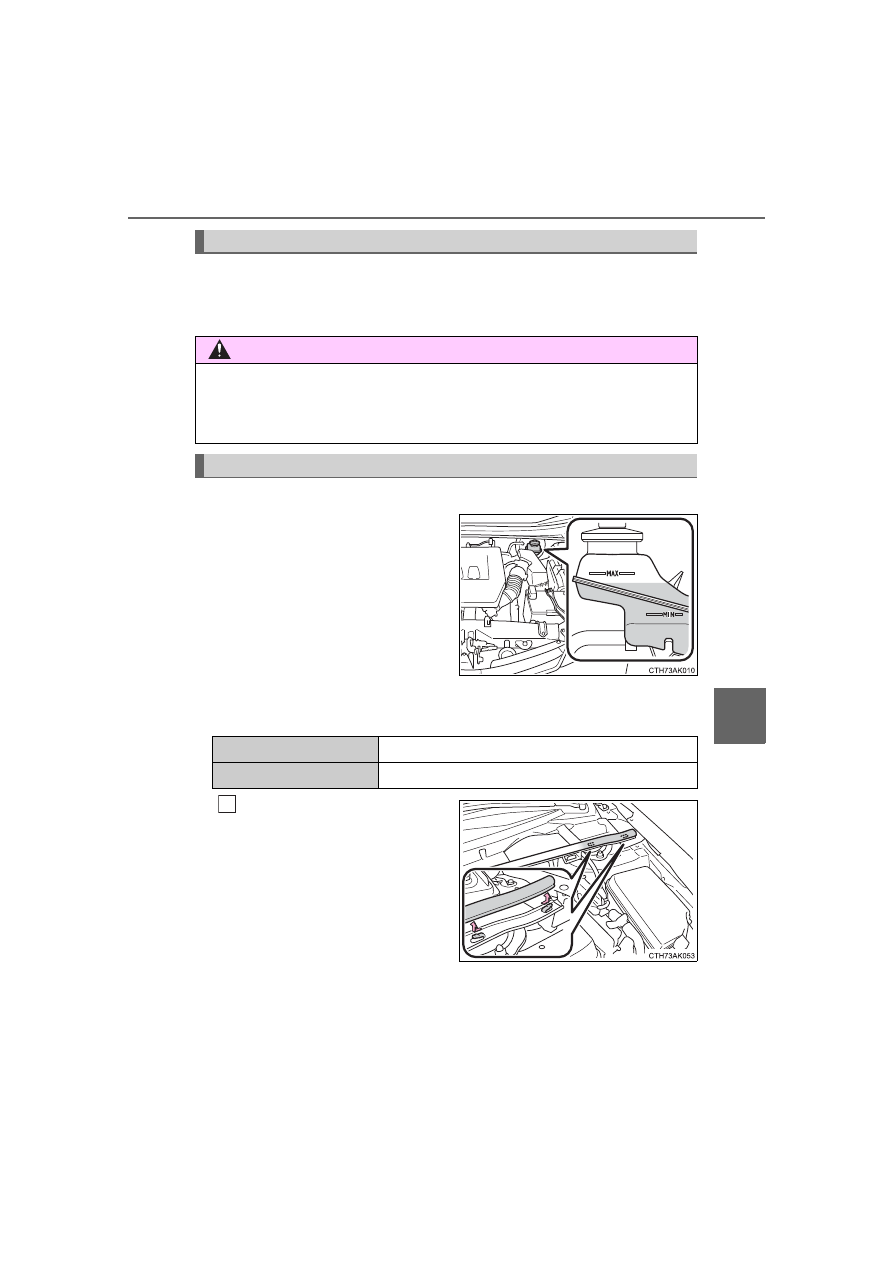

Checking fluid level

The brake fluid level should be
between the “MAX” and “MIN”
lines on the tank.

■

Adding fluid
Make sure to check the fluid type and prepare the necessary item.

Slide and lift up the rubber
strip to partially remove it as
shown.

Radiator and condenser

WARNING

■

When the engine is hot
Do not touch the radiator or condenser as they may be hot and cause seri-
ous injuries, such as burns.

Brake fluid

Fluid type

FMVSS No.116 DOT 3 or SAE J1703 brake fluid

Item

Clean funnel

436

7-3. Do-it-yourself maintenance

COROLLA_TMMMS_TMMC_U

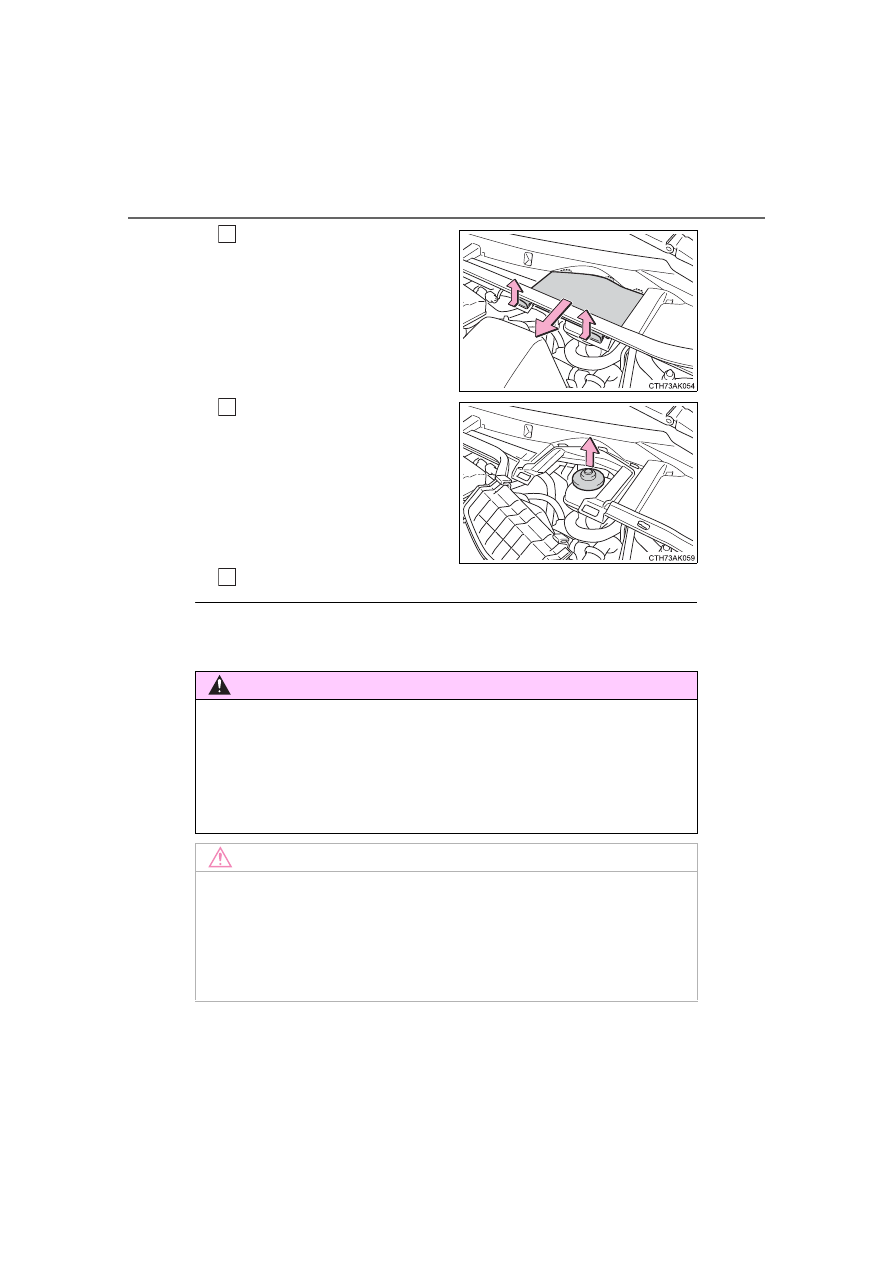

Disconnect the claws and
remove the service cover.

Remove the reservoir cap.

Add brake fluid slowly while checking the fluid level.

■

Brake fluid can absorb moisture from the air
Excess moisture in the brake fluid can cause a dangerous loss of braking effi-
ciency. Use only newly opened brake fluid.

WARNING

■

When filling the reservoir
Take care as brake fluid can harm your hands and eyes and damage
painted surfaces.
If fluid gets on your hands or in your eyes, flush the affected area with clean
water immediately.
If you still experience discomfort, see a doctor.

NOTICE

■

If the fluid level is low or high
It is normal for the brake fluid level to go down slightly as the brake pads
wear out or when the fluid level in the accumulator is high.
However, if the reservoir needs frequent refilling, there may be a serious
problem. Have the vehicle inspected at your Toyota dealer as soon as pos-
sible.

437

7-3. Do-it-yourself maintenance

Mainten

ance an

d ca

COROLLA_TMMMS_TMMC_U

Check the battery as follows.

■

Battery exterior
Make sure that the battery terminals are not corroded and that
there are no loose connections, cracks, or loose clamps.

Terminals
Hold-down clamp

■

Before recharging
When recharging, the battery produces hydrogen gas which is flammable and
explosive. Therefore, observe the following before recharging:

●

If recharging with the battery installed on the vehicle, be sure to disconnect
the ground cable.

●

Make sure the power switch on the charger is off when connecting and dis-
connecting the charger cables to the battery.

■

After recharging/reconnecting the battery (vehicles with a smart key sys-
tem)

●

Unlocking the doors using the smart key system may not be possible imme-
diately after reconnecting the battery. If this happens, use the wireless
remote control or the mechanical key to lock/unlock the doors.

●

Start the engine with the engine switch in ACCESSORY mode. The engine
may not start with the engine switch turned off. However, the engine will
operate normally from the second attempt.

●

The engine switch mode is recorded by the vehicle. If the battery is recon-
nected, the vehicle will return the engine switch mode to the status it was in
before the battery was disconnected. Make sure to turn off the engine
before disconnect the battery. Take extra care when connecting the battery
if the engine switch mode prior to discharge is unknown.

If the system will not start even after multiple attempts, contact your Toyota
dealer.

Battery

438

7-3. Do-it-yourself maintenance

COROLLA_TMMMS_TMMC_U

WARNING

■

Chemicals in the battery
Batteries contain poisonous and corrosive sulfuric acid and may produce
hydrogen gas which is flammable and explosive. To reduce the risk of death
or serious injury, take the following precautions while working on or near the
battery:

●

Do not cause sparks by touching the battery terminals with tools.

●

Do not smoke or light a match near the battery.

●

Avoid contact with eyes, skin and clothes.

●

Never inhale or swallow electrolyte.

●

Wear protective safety glasses when working near the battery.

●

Keep children away from the battery.

■

Where to safely charge the battery
Always charge the battery in an open area. Do not charge the battery in a
garage or closed room where there is insufficient ventilation.

■

How to recharge the battery
Only perform a slow charge (5 A or less). The battery may explode if
charged at a quicker rate.

■

Emergency measures regarding electrolyte

●

If electrolyte gets in your eyes
Flush your eyes with clean water for at least 15 minutes and get immedi-
ate medical attention. If possible, continue to apply water with a sponge or
cloth while traveling to the nearest medical facility.

●

If electrolyte gets on your skin
Wash the affected area thoroughly. If you feel pain or burning, get medical
attention immediately.

●

If electrolyte gets on your clothes
It can soak through clothing on to your skin. Immediately take off the cloth-
ing and follow the procedure above if necessary.

●

If you accidentally swallow electrolyte
Drink a large quantity of water or milk. Get emergency medical attention
immediately.

NOTICE

■

When recharging the battery
Never recharge the battery while the engine is running. Also, be sure all
accessories are turned off.

439

7-3. Do-it-yourself maintenance

Mainten

ance an

d ca

COROLLA_TMMMS_TMMC_U

Add washer fluid in the following
situations:
● A washer does not work.
● The warning message (if

equipped) appears on the multi-
information display. (

P. 497)

Washer fluid

WARNING

■

When adding washer fluid
Do not add washer fluid when the engine is hot or running as washer fluid
contains alcohol and may catch fire if spilled on the engine etc.

NOTICE

■

Do not use any fluid other than washer fluid
Do not use soapy water or engine antifreeze instead of washer fluid.
Doing so may cause streaking on the vehicle’s painted surfaces, as well as
damaging the pump leading to problems of the washer fluid not spraying.

■

Diluting washer fluid
Dilute washer fluid with water as necessary.
Refer to the freezing temperatures listed on the label of the washer fluid bot-
tle.

440

7-3. Do-it-yourself maintenance

COROLLA_TMMMS_TMMC_U

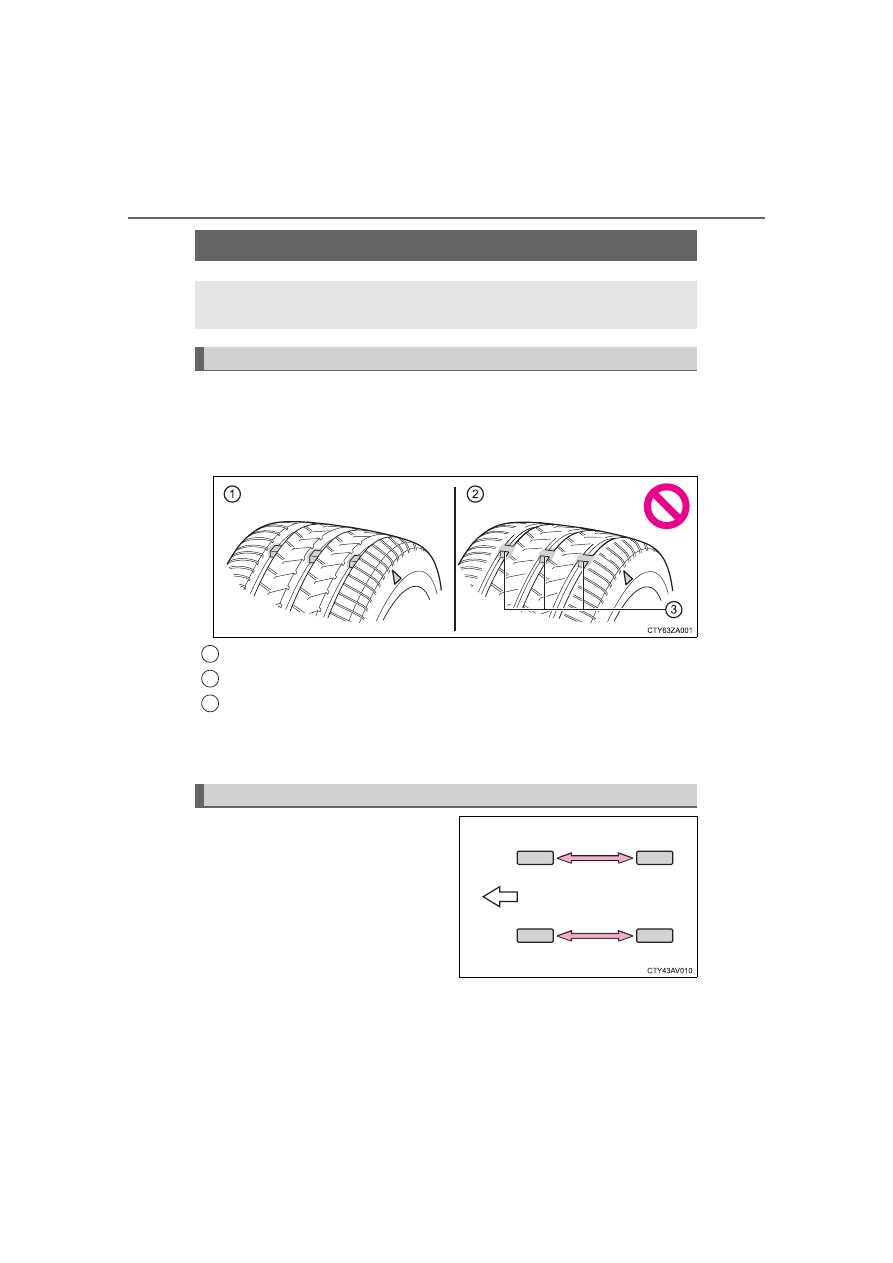

Check if the treadwear indicators are showing on the tires. Also check
the tires for uneven wear, such as excessive wear on one side of the
tread.
Check the spare tire condition and pressure if not rotated.

New tread
Worn tread
Treadwear indicator

The location of treadwear indicators is shown by a “TWI” or “

” mark,

etc., molded into the sidewall of each tire.
Replace the tires if the treadwear indicators are showing on a tire.

Rotate the tires in the order
shown.

To equalize tire wear and extend

tire life, Toyota recommends that

tire rotation is carried out at the

same interval as tire inspection.

Tires

Replace or rotate tires in accordance with maintenance sched-
ules and treadwear.

Checking tires

Tire rotation

Front

441

7-3. Do-it-yourself maintenance

Mainten

ance an

d ca

COROLLA_TMMMS_TMMC_U

Your vehicle is equipped with a tire pressure warning system that uses
tire pressure warning valves and transmitters to detect low tire infla-
tion pressure before serious problems arise. (

P. 480)

◆

Installing tire pressure warning valves and transmitters

When  replacing  tires  or  wheels,  tire  pressure  warning  valves  and
transmitters must also be installed.
When  new  tire  pressure  warning  valves  and  transmitters  are
installed,  new  ID  codes  must  be  registered  in  the  tire  pressure
warning  computer  and  the  tire  pressure  warning  system  must  be
initialized.  Have  tire  pressure  warning  valves  and  transmitter  ID
codes registered by your Toyota dealer. (

P. 443)

◆

Initializing the tire pressure warning system

■

The tire pressure warning system must be initialized in the fol-
lowing circumstances:
● When changing the tire size.
● When the tire inflation pressure is changed such as when chang-

ing traveling speed or load weight.

When the tire pressure warning system is initialized, the current tire
inflation pressure is set as the benchmark pressure.

Tire pressure warning system (if equipped)

442

7-3. Do-it-yourself maintenance

COROLLA_TMMMS_TMMC_U

■

How to initialize the tire pressure warning system

Park the vehicle in a safe place and turn the engine switch off.

Initialization cannot be performed while the vehicle is moving.

Adjust the tire inflation pressure to the specified cold tire inflation
pressure level. (

P. 546)

Make sure to adjust the tire pressure to the specified cold tire infla-

tion pressure level. The tire pressure warning system will operate

based on this pressure level.

Turn  the  engine  switch  to  the “ON”  position  (vehicles  without  a
smart key system) or IGNITION ON mode (vehicles with a smart
key system).

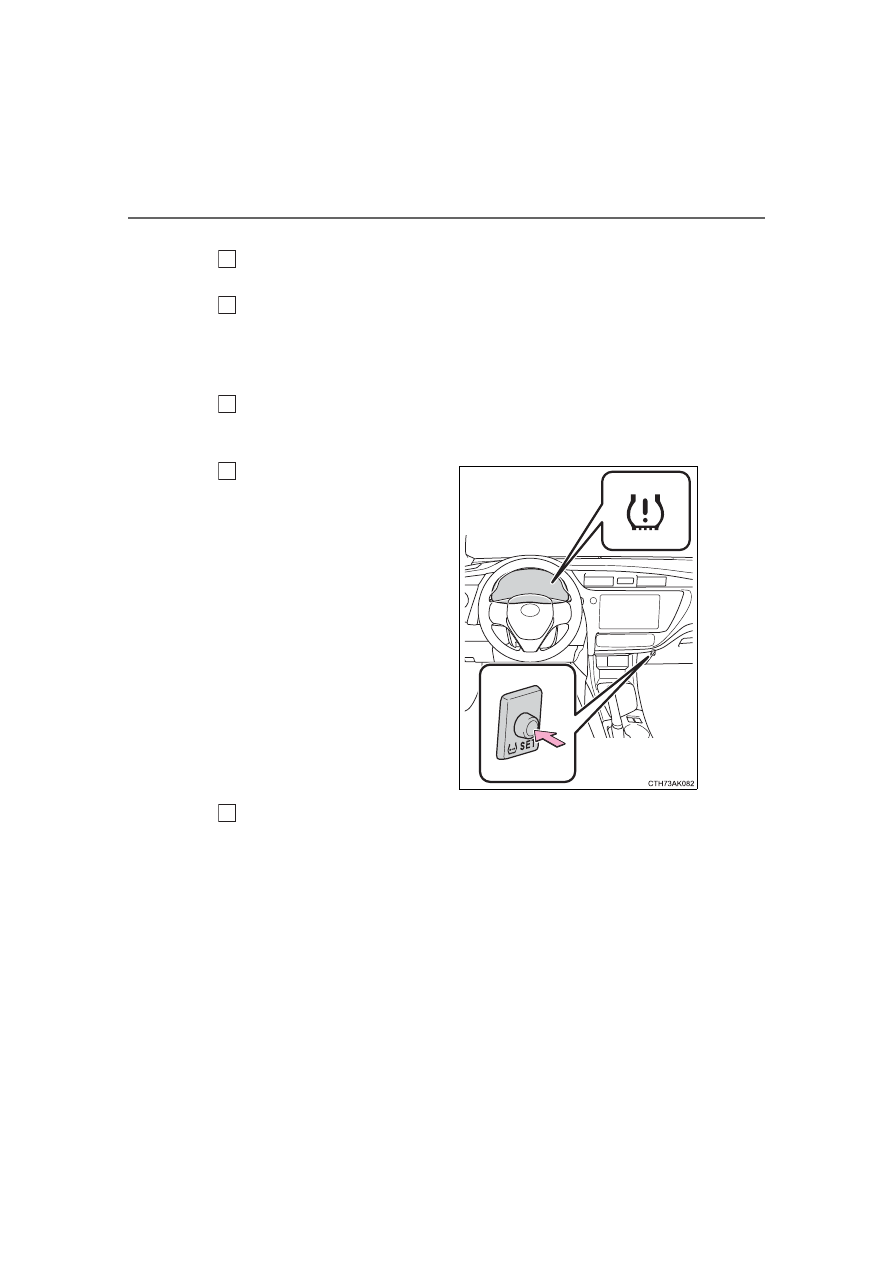

Open  the  glove  box.  Press
and  hold  the  tire  pressure
warning reset switch until the
tire  pressure  warning  light
blinks slowly 3 times.

Vehicles without a smart key system: Wait for a few minutes with
the engine switch in the “ON” position and then turn the engine
switch to the “ACC” or “LOCK” position.
Vehicles with a smart key system: Wait for a few minutes with the
engine switch in IGNITION ON mode and then turn the engine
switch off.

443

7-3. Do-it-yourself maintenance

Mainten

ance an

d ca

COROLLA_TMMMS_TMMC_U

◆

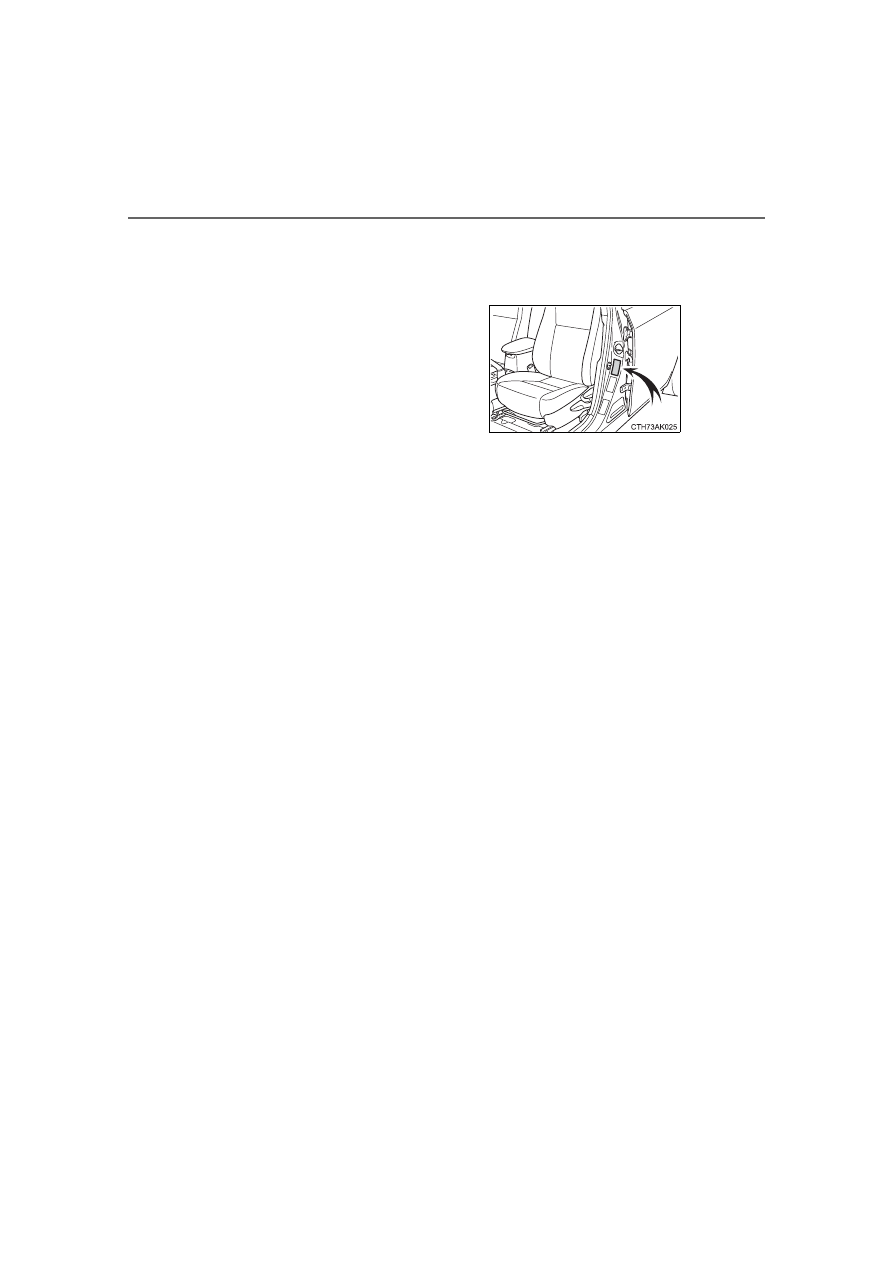

Registering ID codes

The tire pressure warning valve and transmitter is equipped with a
unique ID code. When replacing a tire pressure warning valve and
transmitter, it is necessary to register the ID code. Have the ID code
registered by your Toyota dealer.

■

When to replace your vehicle’s tires
Tires should be replaced if:

●

The treadwear indicators are showing on a tire.

●

You have tire damage such as cuts, splits, cracks deep enough to

expose the fabric, and bulges indicating internal damage

●

A tire goes flat repeatedly or cannot be properly repaired due to the size

or location of a cut or other damage

If you are not sure, consult with your Toyota dealer.

■

Replacing tires and wheels (vehicles with a tire pressure warning

system)
If the ID code of the tire pressure warning valve and transmitter is not reg-

istered, the tire pressure warning system will not work properly. After driv-

ing for about 20 minutes, the tire pressure warning light blinks for 1

minute and stays on to indicate a system malfunction.

■

Tire life
Any tire over 6 years old must be checked by a qualified technician even

if it has seldom or never been used or damage is not obvious.

■

Routine tire inflation pressure checks (vehicles with a tire pressure

warning system)
The tire pressure warning system does not replace routine tire inflation

pressure checks. Make sure to check tire inflation pressure as part of

your routine of daily vehicle checks.

■

Low profile tires (17-inch tires)
Generally, low profile tires will wear more rapidly and tire grip perfor-

mance will be reduced on snowy and/or icy roads when compared to

standard tires. Be sure to use snow tires or tire chains on snowy and/or

icy roads and drive carefully at a speed appropriate for road and weather

conditions.

444

7-3. Do-it-yourself maintenance

COROLLA_TMMMS_TMMC_U

■

Maximum load of tire
Check that the maximum load of the replacement tire is greater than 1/2

of the Gross Axle Weight Ratings (GAWR) of either the front axle or the

rear axle, whichever is greater.

■

Tire types

●

Summer tires
Summer tires are high-speed performance tires best suited to highway

driving under dry conditions. Since summer tires do not have the same

traction performance as snow tires, summer tires are inadequate for

driving on snow-covered or icy roads. For driving on snow-covered

roads or icy roads, the use of snow tires is recommended. When install-

ing snow tires, be sure to replace all four tires.

●

All season tires
All season tires are designed to provide better traction in snow and to

be adequate for driving in most winter conditions as well as for use

year-round. All season tires, however, do not have adequate traction

performance compared with snow tires in heavy or loose snow. Also, all

season tires fall short in acceleration and handling performance com-

pared with summer tires in highway driving.

●

Snow tires
For driving on snow-covered roads or icy roads, we recommend using

snow tires. If you need snow tires, select tires of the same size, con-

struction and load capacity as the originally installed tires. Since your

vehicle has radial tires as original equipment, make sure your snow

tires also have radial construction. Do not install studded tires without

first checking local regulations for possible restrictions. Snow tires

should be installed on all wheels. (

P. 263)

■

Initializing the tire pressure warning system (vehicles with a tire

pressure warning system)
Initialize the system with the tire inflation pressure adjusted to the speci-

fied level.

■

If the tread on snow tires wears down below 0.16 in. (4 mm)
The effectiveness of the tires as snow tires is lost.

For the GAWR, see the Certification

Label. For the maximum load of the tire,

see the load limit at maximum cold tire

inflation pressure mentioned on the

sidewall of the tire. (

P. 551)

445

7-3. Do-it-yourself maintenance

Mainten

ance an

d ca

COROLLA_TMMMS_TMMC_U

■

If you press the tire pressure warning reset switch accidentally (vehi-

cles with a tire pressure warning system)
If initialization is performed, adjust the tire inflation pressure to the speci-

fied level and initialize the tire pressure warning system again.

■

When initialization of the tire pressure warning system has failed

(vehicles with a tire pressure warning system)
Initialization can be completed in a few minutes. However, in the following

cases, the settings have not been recorded and the system will not oper-

ate properly. If repeated attempts to record tire inflation pressure settings

are unsuccessful, have the vehicle inspected by your Toyota dealer.

●

When operating the tire pressure warning reset switch, the tire pressure

warning light does not blink 3 times.

●

After driving for a certain period of time since the initialization has been

completed, the warning light comes on after blinking for 1 minute.

■

Tire pressure warning system certification



For the U.S.A.

FCC ID: HYQ23AAK

FCC ID: PAXPMVC010

NOTE:
This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
FCC WARNING:
Changes or modifications not expressly approved by the party responsi-
ble for compliance could void the user’s authority to operate the equip-
ment.



For Canada

NOTE:
Operation is subject to the following two conditions: (1) this device may
not cause interference, and (2) this device must accept any interference,
including interference that may cause undesired operation of the device.
NOTE:
L’utilisation de ce dispositif est autorisée seulement aux deux conditions
suivantes : (1) il ne doit pas produire de brouillage, et (2) l’utilisateur du
dispositif doit être prêt à accepter tout brouillage radioélectrique reçu,
même si ce brouillage est susceptible de compromettre le fonctionne-
ment du dispositif.

446

7-3. Do-it-yourself maintenance

COROLLA_TMMMS_TMMC_U

WARNING

■

When inspecting or replacing tires
Observe the following precautions to prevent accidents.

Failure to do so may cause damage to parts of the drive train as well as

dangerous handling characteristics, which may lead to an accident

resulting in death or serious injury.

●

Do not mix tires of different makes, models or tread patterns.

Also, do not mix tires of remarkably different treadwear.

●

Do not use tire sizes other than those recommended by Toyota.

●

Do not mix differently constructed tires (radial, bias-belted or bias-ply

tires).

●

Do not mix summer, all season and snow tires.

●

Do not use tires that have been used on another vehicle.

Do not use tires if you do not know how they were used previously.

■

When initializing the tire pressure warning system (vehicles with a

tire pressure warning system)
Do not operate the tire pressure warning reset switch without first

adjusting the tire inflation pressure to the specified level. Otherwise, the

tire pressure warning light may not come on even if the tire inflation

pressure is low, or it may come on when the tire inflation pressure is

actually normal.

447

7-3. Do-it-yourself maintenance

Mainten

ance an

d ca

COROLLA_TMMMS_TMMC_U

NOTICE

■

Repairing or replacing tires, wheels, tire pressure warning valves,

transmitters and tire valve caps (vehicles with a tire pressure warn-

ing system)

●

When removing or fitting the wheels, tires or the tire pressure warning

valves and transmitters, contact your Toyota dealer as the tire pres-

sure warning valves and transmitters may be damaged if not handled

correctly.

●

When replacing tire valve caps, do not use tire valve caps other than

those specified. The cap may become stuck.

■

To avoid damage to the tire pressure warning valves and transmit-

ters (vehicles with a tire pressure warning system)
When a tire is repaired with liquid sealants, the tire pressure warning

valve and transmitter may not operate properly. If a liquid sealant is

used, contact your Toyota dealer or other qualified service shop as soon

as possible. Make sure to replace the tire pressure warning valve and

transmitter when replacing the tire. (

P. 441)

■

Driving on rough roads
Take particular care when driving on roads with loose surfaces or pot-

holes.

These conditions may cause losses in tire inflation pressure, reducing

the cushioning ability of the tires. In addition, driving on rough roads

may cause damage to the tires themselves, as well as the vehicle’s

wheels and body.

■

Low profile tires (17-inch tires)
Low profile tires may cause greater damage than usual to the tire wheel

when sustaining impact from the road surface. Therefore, pay attention

to the following:

●

Be sure to use proper tire inflation pressure. If tires are under-inflated,

they may be damaged more severely.

●

Avoid potholes, uneven pavement, curbs and other road hazards. Fail-

ure to do so may lead to severe tire and wheel damage.

■

If tire inflation pressure of each tire becomes low while driving
Do not continue driving, or your tires and/or wheels may be ruined.

Toyota Corolla (2019 year). Instruction - part 28
