Toyota RAV4 (2018 year). Instruction - part 29

5-22. Bluetooth®

477

■Bluetooth® antenna

The antenna is built into the display.

If the portable audio player is behind the seat or in the glove box or console

box, or is touching or covered by metal objects, the connection status may

deteriorate.

If the cellular phone is behind the seat or in the console box, or touching or

covered by metal objects, the connection status may deteriorate.

■ Battery charge/signal status

● This display may not correspond exactly with the portable audio player or

cellular phone itself.

● This system does not have a charging function.

● The portable audio player or cellular phone battery will be depleted quickly

when the device is connected to Bluetooth®.

■When using the Bluetooth® audio and hands-free system at the same

time

The following problems may occur.

●The Bluetooth® audio connection may be interrupted.

● Noise may be heard during Bluetooth® audio playback.

■ About the contact in this system

The following data is stored for every registered cellular phone. When

5

another phone is connecting, you cannot read the registered data.

● Contact data

● Call history

● Favorite

● Message

When removing a Bluetooth® phone from the system, the above-mentioned

data is also deleted.

■About Bluetooth®

The Bluetooth® word mark and logos are

registered trademarks owned by Blue-

tooth SIG, Inc. and any use of such

marks by Fujitsu Ten Limited is under

license. Other trademarks and trade

names are those of their respective own-

ers.

RAV4_OM_OM0R012U_(U)

5-22. Bluetooth®

479

■ Reconnecting the portable audio player

If the portable audio player is disconnected due to poor reception when the

engine switch is in the “ACC” or “ON” position (vehicles without smart key

system) or ACCESSORY or IGNITION ON mode (vehicles with smart key

system), the system automatically reconnects the portable audio player.

If you have switched off the portable audio player yourself, follow the instruc-

tions below to reconnect:

●Select the portable audio player again

● Enter the portable audio player

■ When you sell your car

Be sure to delete your personal data. (→P. 402)

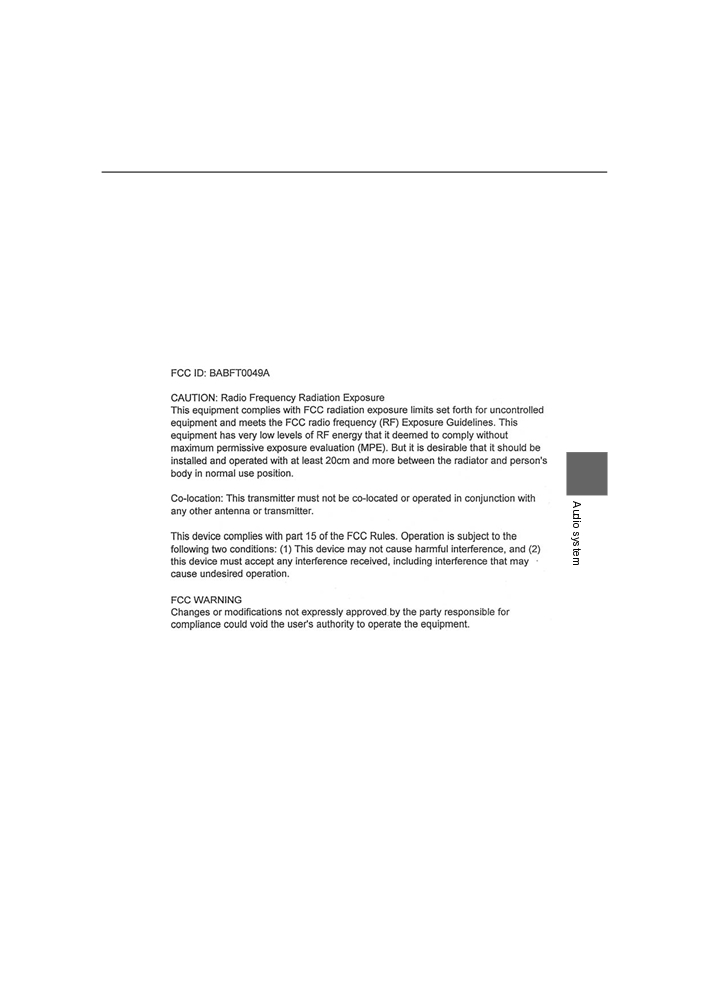

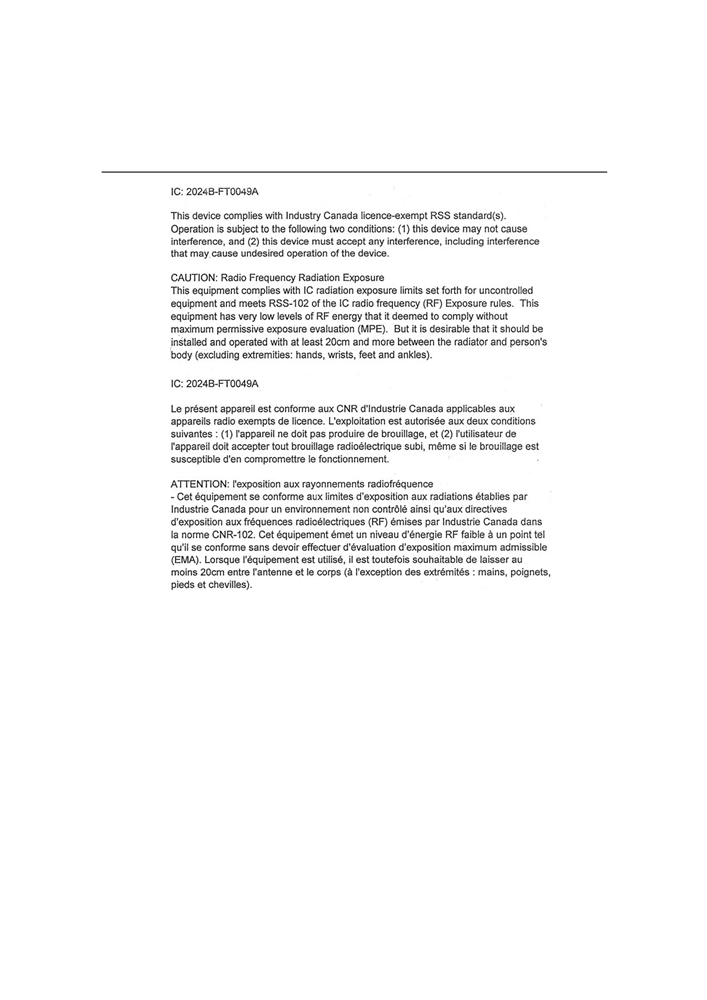

■ Certification

5

RAV4_OM_OM0R012U_(U)

480

5-22. Bluetooth®

RAV4_OM_OM0R012U_(U)

5-22. Bluetooth®

481

WARNING

■While driving

Do not operate the portable audio player, cellular phone or connect a device

to the Bluetooth® system.

■Caution regarding interference with electronic devices

● Your audio unit is fitted with Bluetooth® antennas. People with implantable

cardiac pacemakers, cardiac resynchronization therapy-pacemakers or

implantable cardioverter defibrillators should maintain a reasonable dis-

tance between themselves and the Bluetooth® antennas. The radio waves

may affect the operation of such devices.

● Before using Bluetooth® devices, users of any electrical medical device

other than implantable cardiac pacemakers, cardiac resynchronization

therapy-pacemakers or implantable cardioverter defibrillators should con-

sult the manufacturer of the device for information about its operation

under the influence of radio waves. Radio waves could have unexpected

effects on the operation of such medical devices.

NOTICE

5

■ When leaving the vehicle

Do not leave your portable audio player or cellular phone in the vehicle. The

inside of the vehicle may become hot, causing damage to the portable

audio player or cellular phone.

RAV4_OM_OM0R012U_(U)

482

5-23. Other function

Voice command system

The voice command system enables the hands-free system to

be operated using voice commands.

Using the voice command system

Press the talk switch.

1

1

Select to train voice recogni-

tion.

2

Select to start the voice rec-

ognition tutorial.

Select “OK” and say the desired command.

2

On the list screen, you can select the desired command.

To cancel the voice command system, press and hold the talk switch.

RAV4_OM_OM0R012U_(U)

5-23. Other function

483

■Microphone

→P. 446

■When using the microphone

● It is unnecessary to speak directly into the microphone when giving a com-

mand.

● When “Voice Prompt Interrupt” is set on, it is not necessary to wait for the

confirmation beep before speaking a command. (→P. 406)

● Voice commands may not be recognized if:

• They are spoken too quickly.

• They are spoken at a low or high volume.

• The roof or windows are open.

• Passengers are talking while voice commands are spoken.

• The air conditioning speed is set high.

• The air conditioning vents are turned towards the microphone.

● In the following conditions, the system may not recognize the command

properly and using voice commands may not be possible:

• The command is incorrect or unclear. Note that certain words, accents or

speech patterns may be difficult for the system to recognize.

• There is excessive background noise, such as wind noise.

5

Casual speech recognization

Due to natural language speech recognition technology, this system

enables recognition of a command when spoken naturally. However,

the system cannot recognize every variation of each command.

In some situations, it is possible to omit the command for the proce-

dure and directly state the desired operation.

Not all voice commands are displayed in the shortcut menu.

This function is available in English, Spanish and French.

■ Expression examples for each function

Command

Expression examples

“Call

<name>

Get me <Robert Brown>.

<type>”

I need to call <Robert Brown> at <Work> right away.

Please dial the number <3334445555>.

“Dial <number>”

Ring <3334445555>.

RAV4_OM_OM0R012U_(U)

484

5-23. Other function

Command list

Some recognizable voice commands and their actions are shown

below as examples.

 Basic

Command

Action

Prompts voice guidance to offer examples of com-

“Help”

mands or operation methods

“Go Back”

Returns to the previous screen

 Phone

Command

Action

Places a call to the phone number of the latest outgo-

“Redial”

ing call

Places a call to the phone number of latest incoming

“Call Back”

call

“Show

Recent

Displays the call history screen

Calls”

“Dial <phone num-

Places a call to the said phone number

ber>”

“Call

<contacts>

Places a call to the said phone type of the contact

<phonetypes>”

from the phone book

RAV4_OM_OM0R012U_(U)

5-23. Other function

485

Mobile Assistant

The Mobile Assistant feature will activate Apple’s Siri® Eyes Free

mode via the steering wheel switches. To operate the Mobile Assis-

tant, a compatible cellular phone must be registered and connected to

this system via Bluetooth®. (→P.

438)

1

Press and hold the

until

you hear the beeps.

The Mobile Assistant can be

2

used only when the following

screen is displayed.

To cancel the Mobile Assistant,

5

select “Cancel”, or press and hold

the

on the steering wheel.

To restart the Mobile Assistant for

additional commands, press the

on the steering wheel.

• Mobile Assistant can only be restarted after the system responds to a

voice command.

• After some phone and music commands, the Mobile Assistant feature will

automatically end to complete the requested action.

■ Adjusting the Mobile Assistant volume

The volume of the Mobile Assistant can be adjusted using the

“PWR/VOL” knob or steering wheel volume control switches. The

Mobile Assistant and phone call volumes are synchronized.

RAV4_OM_OM0R012U_(U)

488

6-1. Using the air conditioning system and defogger

Manual air conditioning system∗

Control panel

■ Adjusting the temperature setting

Turn the temperature control dial clockwise (warm) or counterclock-

wise (cool).

If the “A/C” button is not pressed, the system will blow ambient tempera-

ture air or heated air.

■ Adjusting the fan speed setting

Turn the fan speed control dial clockwise (increase) or counter-

clockwise (decrease).

Turning the dial to “0” turns off the fan.

∗: If equipped

RAV4_OM_OM0R012U_(U)

6-1. Using the air conditioning system and defogger

489

■ Changing the air flow mode

Turn the air outlet selector dial

to change the airflow mode.

The positions between the air

outlet selections can also be

selected for more delicate

adjustment.

1

Air flows to the upper body.

2

Air flows to the upper body

and feet.

3

Air flows to the feet.

4

Air flows to the feet and the windshield defogger operates.

Other functions

■ Switching between outside air and recirculated air modes

Press

The mode switches between outside air mode (indicator off) and recir-

culated air mode (indicator on) each time

is pressed.

6

■ Defogging the windshield

Defoggers are used to defog the windshield and front side win-

dows.

Turn the air outlet selector dial to

position.

Set the outside/recirculated air mode button to outside air mode if recir-

culated air mode is used.

Adjust the fan speed and temperature setting.(→P. 488)

If the dehumidification function is not operating, press the “A/C” but-

ton to operate the dehumidification function.

To defog the windshield and the side windows early, turn the air flow and

temperature up.

RAV4_OM_OM0R012U_(U)

490

6-1. Using the air conditioning system and defogger

■ Defogging the rear window and outside rear view mirrors (if

equipped)

Defoggers are used to defog the rear window, and to remove rain-

drops, dew and frost from the outside rear view mirrors.

Press

The defoggers will automatically turn off after a period of time.

■ Windshield wiper de-icer (if equipped)

This feature is used to prevent ice from building up on the wind-

shield and wiper blades.

Press the switch to turn the sys-

tem on/off.

The indicator comes on when

the system is on.

The windshield wiper de-icer will

automatically turn off after a

period of time.

Air outlets

■ Location of air outlets

The air outlets and air volume

changes according to the

selected air flow mode.

RAV4_OM_OM0R012U_(U)

6-1. Using the air conditioning system and defogger

491

■ Adjusting the position of and opening and closing the air out-

lets

 Front center outlets

Direct air flow to the left or

1

right, up or down.

2

Turn the knobs to open or

close the vents.

Turn the knob to open or

3

close the vent for rear seat

occupants.

 Front side outlets

6

Direct air flow to the left or

right, up or down.

1

Open the vent.

2

Close the vent.

RAV4_OM_OM0R012U_(U)

492

6-1. Using the air conditioning system and defogger

■ Operation of the air conditioning system in Eco drive mode

In Eco drive mode, the air conditioning system is controlled to prioritize fuel

efficiency by regulating the engine speed and compressor operation to

restrict the heating/cooling capacity.

To improve air conditioning performance, perform the following operations:

●Adjust the fan speed

● Adjust the temperature setting

● Turn off Eco drive mode (→P. 207)

■Fogging up of the windows

● The windows will easily fog up when the humidity in the vehicle is high.

Turning

on will dehumidify the air from the outlets and defog the wind-

shield effectively.

● If you turn

off, the windows may fog up more easily.

● The windows may fog up if the recirculated air mode is used.

■ Outside/recirculated air mode

When driving on dusty roads such as tunnels or in heavy traffic, set the out-

side/recirculated air mode button to the recirculated air mode. This is effective

in preventing outside air from entering the vehicle interior. During cooling

operation, setting the recirculated air mode will also cool the vehicle interior

effectively.

■ When the outside temperature is low (vehicles with the “A/C” button)

The dehumidification function may not operate even when the “A/C” button is

pressed.

■ Ventilation and air conditioning odors

● To let fresh air in, set the air conditioning system to the outside air mode.

● During use, various odors from inside and outside the vehicle may enter into

and accumulate in the air conditioning system. This may then cause odor to

be emitted from the vents.

● To reduce potential odors from occurring:

It is recommended that the air conditioning system be set to outside air

mode prior to turning the vehicle off.

■ Air conditioning filter

→P. 587

RAV4_OM_OM0R012U_(U)

Content   ..  27  28  29  30   ..
