5-4. Playing an audio CD and MP3/WMA discs

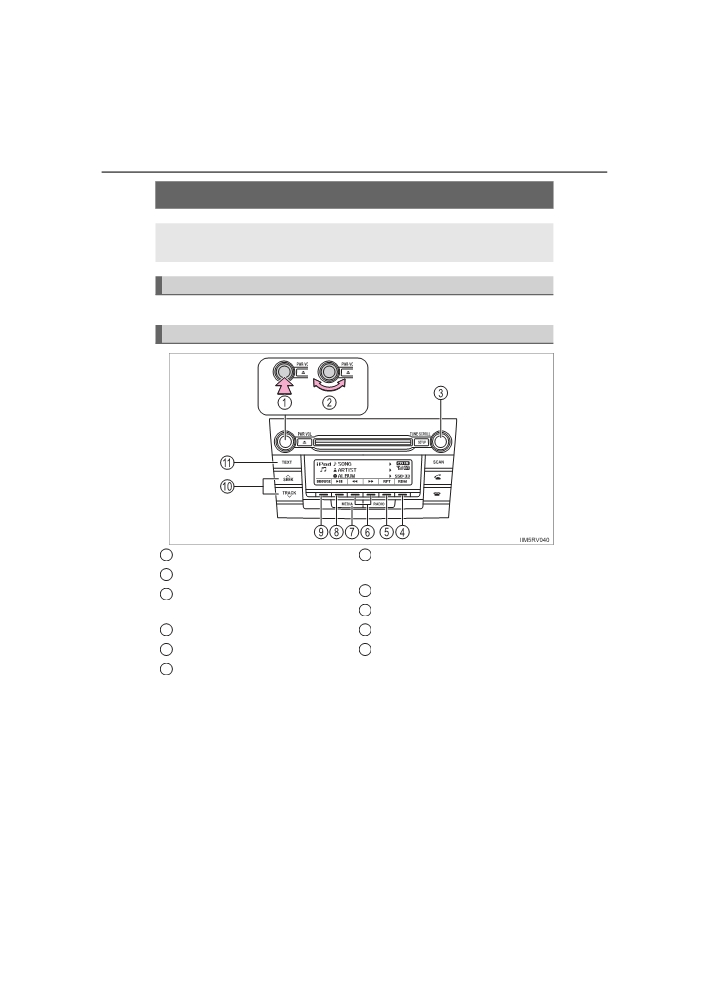

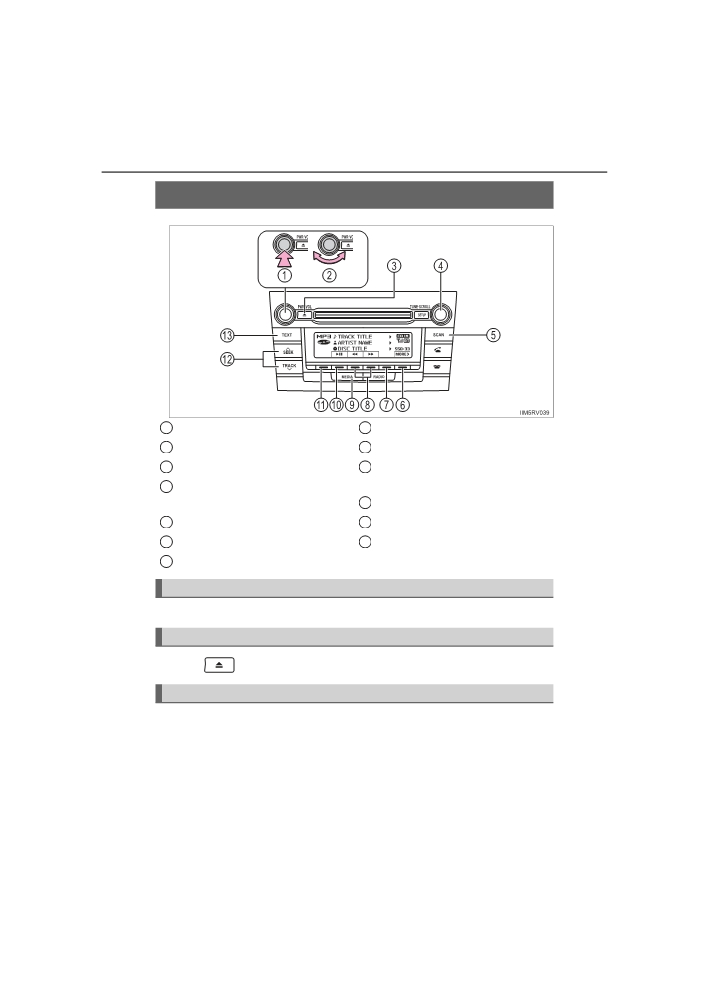

CD player operation∗
1
Power
8
Selecting a folder
2
Volume
9
Fast-forwarding or rewinding
3
CD eject
10
Changing the audio source/
playback
4
Selecting a track or displaying
track list
11
Playback/pause
5
Searching playback
12
Selecting a track
6
Random play or back button
13
Displaying text message
7
Repeat play
Loading CDs
Insert a CD.
Ejecting CDs
Press
and remove the CD.
Using the CD player
■ Selecting a track
Turn the “TUNE•SCROLL” knob or press “∧” to move up or “∨” to
move down using the “SEEK/TRACK” button until the desired track
number is displayed.
∗: If equipped
RAV4_OM_OM0R012U_(U)
5-4. Playing an audio CD and MP3/WMA discs
341
■ Selecting a track from a track list
1
Press the “TUNE•SCROLL” knob.
The track list will be displayed.
2
Turn and press the knob to select a track.
To return to the previous display, press
(BACK).
■ Scanning tracks
Press the “SCAN” button.
1
The first 10 seconds of each track will be played.
To cancel, press the button again.
Press the button again when the desired track is reached.
2
■ Fast-forwarding and rewinding tracks
Press
(
) or
(
).
■ Random play
Press
(RDM).
To cancel, press
(RDM) again.
■ Repeat play
5
Press
(RPT).
To cancel, press
(RPT) again.
■ Playing and pausing tracks
Press
(
).
■ Switching the display
Press the “TEXT” button to display or hide the CD title.
If there are continuing texts,
is displayed.
Press and hold the button to display the remaining texts.
RAV4_OM_OM0R012U_(U)
342
5-4. Playing an audio CD and MP3/WMA discs
Playing back MP3 and WMA discs
■ Selecting folders one at a time
Press
(<FOLDER) or
(FOLDER>) to select the desired
folder.
Press
(MORE>) to display the commands.
■ Selecting a folder and file from folder list
1
Press the “TUNE•SCROLL” knob.
The folder list will be displayed.
2
Turn and press the knob to select a folder and a file.
To return to the previous display, press
(BACK).
■ Returning to the first folder
Press and hold
(<FOLDER) until you hear a beep.
■ Scanning a folder
1
Press and hold the “SCAN” button until you hear a beep.
The first 10 seconds of the first file in each folder will be played.
To cancel, press the button again.
2
When the desired folder is reached, press the button again.
■ Selecting a file
Turn the “TUNE•SCROLL” knob or press “∧” or “∨” on the “SEEK/
TRACK” button to select the desired file.
■ Scanning the files in a folder
Press the “SCAN” button.
1
The first 10 seconds of each file will be played.
To cancel, press the button again.
When the desired file is reached, press the button again.
2
RAV4_OM_OM0R012U_(U)
5-4. Playing an audio CD and MP3/WMA discs
343
■ Fast-forwarding and rewinding files
Press
(
) or
(
).
Press
(<BACK) to display the commands.
■ Random play
Pressing
(RDM) changes modes in the following order:
Folder random→Disc random→Off
Press
(MORE>) to display the command.
■ Repeat play
Pressing
(RPT) changes modes in the following order:
File repeat→Folder repeat*→Off
*: Available except when RDM (random play) is selected
Press
(MORE>) to display the command.
■ Playing and pausing tracks
Press
(
).
Press
(<BACK) to display the command.
■ Switching the display
5
Press the “TEXT” button to display or hide the album title.
If there are continuing texts,
is displayed.
Press and hold the button to display the remaining texts.
RAV4_OM_OM0R012U_(U)
344
5-4. Playing an audio CD and MP3/WMA discs
■ Display
Depending on the contents recorded, the characters may not be displayed
properly or may not be displayed at all.
■Error messages
If an error message is displayed, refer to the following table and take the
appropriate measures. If the problem is not rectified, take the vehicle to your
Toyota dealer.
Message
Cause/Correction procedures
This indicates a problem either in the CD or
“ERROR”
inside the player.
The CD may be dirty, damaged or inserted
“CD CHECK”
upside-down.
Operation has stopped due to a high tempera-
ture inside the player. Wait for a while and
“WAIT”
then press the “MODE” button. If the CD still
cannot be played back, contact your Toyota
dealer.
This indicates that the MP3/WMA file is not
“NO SUPPORT”
included in the CD.
■ Discs that can be used
Discs with the marks shown below can be used.
Playback may not be possible depending on recording format or disc fea-
tures, or due to scratches, dirt or deterioration.
CDs with copy-protect features may not play correctly.
■ CD player protection feature
To protect the internal components, playback is automatically stopped when a
problem is detected while the CD player is being used.
■ If a CD is left inside the CD player or in the ejected position for extended
periods
The CD may be damaged and may not play properly.
■ Lens cleaners
Do not use lens cleaners. Doing so may damage the CD player.
RAV4_OM_OM0R012U_(U)
5-4. Playing an audio CD and MP3/WMA discs
345
■MP3 and WMA files
MP3 (MPEG Audio LAYER3) is a standard audio compression format.
Files can be compressed to approximately 1/10 of their original size by using
MP3 compression.
WMA (Windows Media Audio) is a Microsoft audio compression format.
This format compresses audio data to a size smaller than that of the MP3 for-
mat.
There is a limit to the MP3 and WMA file standards and to the media/formats
recorded by them that can be used.
● MP3 file compatibility
• Compatible standards
MP3 (MPEG1 LAYER3, MPEG2 LSF LAYER3)
• Compatible sampling frequencies
MPEG1 LAYER3: 32, 44.1, 48 (kHz)
MPEG2 LSF LAYER3: 16, 22.05, 24 (kHz)
• Compatible bit rates (compatible with VBR)
MPEG1 LAYER3: 32 - 320 (kbps)
• MPEG2 LSF LAYER3: 8 - 160 (kbps)
• Compatible channel modes: stereo, joint stereo, dual channel and mon-
aural
● WMA file compatibility
5
• Compatible standards
WMA Ver. 7, 8, 9
• Compatible sampling frequencies
32, 44.1, 48 (kHz)
• Compatible bit rates (only compatible with 2-channel playback)
Ver. 7, 8: CBR 48 - 192 (kbps)
Ver. 9: CBR 48 - 320 (kbps)
RAV4_OM_OM0R012U_(U)
346
5-4. Playing an audio CD and MP3/WMA discs
● Compatible media
Media that can be used for MP3 and WMA playback are CD-Rs and CD-
RWs.
Playback in some instances may not be possible, depending on the status
of the CD-R or CD-RW. Playback may not be possible or the audio may
jump if the disc is scratched or marked with fingerprints.
● Compatible disc formats
The following disc formats can be used.
• Disc formats:
CD-ROM Mode 1 and Mode 2
CD-ROM XA Mode 2, Form 1 and Form 2
• File formats:
ISO9660 Level 1, Level 2, (Romeo, Joliet)
MP3 and WMA files written in any format other than those listed above
may not play correctly, and their file names and folder names may not be
displayed correctly.
Items related to standards and limitations are as follows.
• Maximum directory hierarchy: 8 levels
• Maximum length of folder names/file names: 32 characters
• Maximum number of folders: 192 (including the root)
• Maximum number of files per disc: 255
● File names
The only files that can be recognized as MP3/WMA and played are those
with the extension .mp3 or .wma.
● Multi-sessions
As the audio system is compatible with multi-sessions, it is possible to play
discs that contain MP3 and WMA files. However, only the first session can
be played.
● ID3 and WMA tags
ID3 tags can be added to MP3 files, making it possible to record the track
title and artist name, etc.
The system is compatible with ID3 Ver. 1.0, 1.1, and Ver. 2.2, 2.3 ID3 tags.
(The number of characters is based on ID3 Ver. 1.0 and 1.1.)
WMA tags can be added to WMA files, making it possible to record the
track title and artist name in the same way as with ID3 tags.
RAV4_OM_OM0R012U_(U)
5-4. Playing an audio CD and MP3/WMA discs
347
● MP3 and WMA playback
When a disc containing MP3 or WMA files is inserted, all files on the disc
are first checked. Once the file check is finished, the first MP3 or WMA file
is played. To make the file check finish more quickly, we recommend you do
not write in any files other than MP3 or WMA files or create any unneces-
sary folders.
If the discs contain a mixture of music data and MP3 or WMA format data,
only music data can be played.
● Extensions
If the file extensions .mp3 and .wma are used for files other than MP3 and
WMA files, they will be mistakenly recognized and played as MP3 and
WMA files. This may result in large amounts of interference and damage to
the speakers.
● Playback
• To play MP3 file with steady sound quality, we recommend a fixed bit rate
of 128 kbps and a sampling frequency of 44.1 kHz.
• CD-R or CD-RW playback may not be possible in some instances,
depending on the characteristics of the disc.
• There is a wide variety of freeware and other encoding software for MP3
and WMA files on the market, and depending on the status of the encod-
5
ing and the file format, poor sound quality or noise at the start of playback
may result. In some cases, playback may not be possible at all.
• When files other than MP3 or WMA files are recorded on a disc, it may
take more time to recognize the disc and in some cases, playback may
not be possible at all.
• Microsoft, Windows, and Windows Media are the registered trademarks
of Microsoft Corporation in the U.S. and other countries.
RAV4_OM_OM0R012U_(U)
348
5-4. Playing an audio CD and MP3/WMA discs
NOTICE
■ CDs and adapters that cannot be used
Do not use the following types of CDs.
Also, do not use 3 in. (8 cm) CD adapters, DualDiscs or printable discs.
Doing so may damage the player and/or the CD insert/eject function.

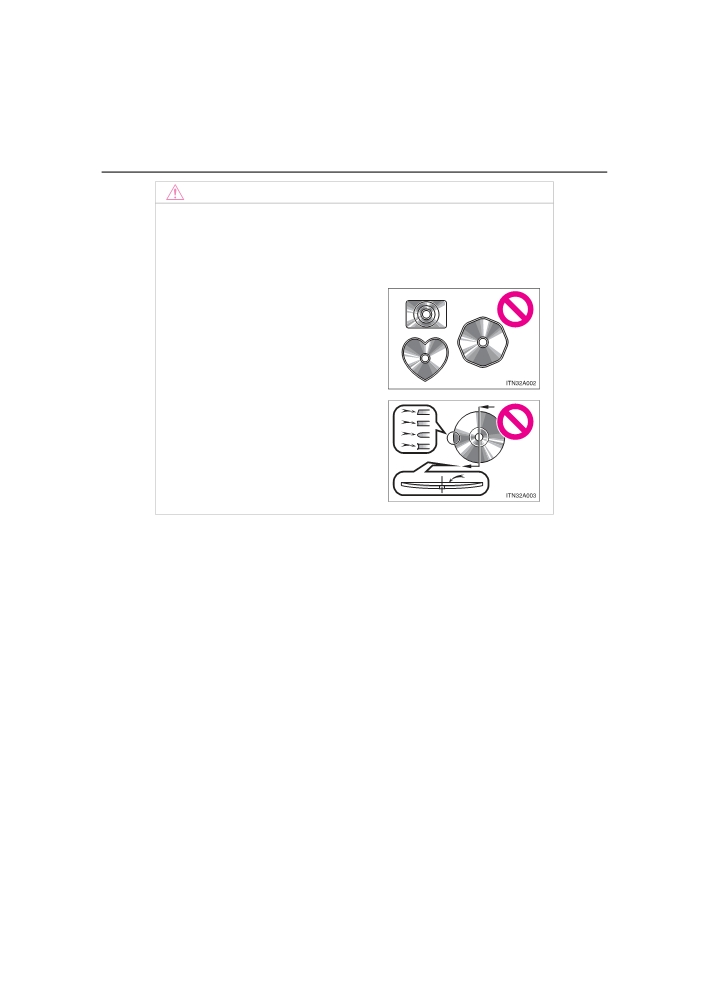

● CDs that have a diameter that is not
4.7 in. (12 cm)
● Low-quality and deformed CDs
RAV4_OM_OM0R012U_(U)
5-4. Playing an audio CD and MP3/WMA discs
349
NOTICE

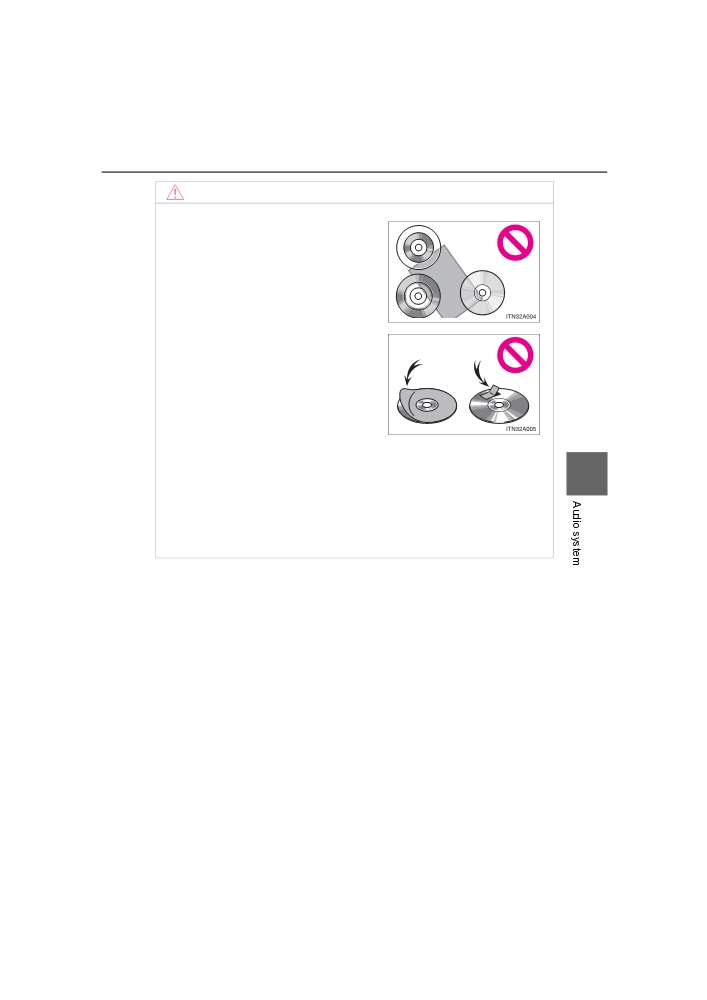

● CDs with a transparent or translucent
recording area
● CDs that have tape, stickers or CD-R
labels attached to them, or that have
had the label peeled off
■ CD Player precautions
Failure to follow the precautions below may result in serious damage to the
CDs or the player itself.
5
● Do not insert anything other than CDs into the CD slot.
● Do not apply oil to the CD player.
● Store CDs away from direct sunlight.
● Never try to disassemble any part of the CD player.
RAV4_OM_OM0R012U_(U)
350
5-5. Using an external device
Listening to an iPod∗
Connecting an iPod enables you to enjoy music from the vehicle
speakers.
Connecting an iPod
→P. 334
Control panel
1
Power
7
Changing the audio source/
playback
2
Volume
8
Playback/pause
3
Selecting an iPod menu/song
or displaying song list
9
iPod menu mode, playback
4
Random play or back button
10
Selecting a song
5
Repeat play
11
Displaying text message
6
Fast-forwarding or rewinding
∗: If equipped
RAV4_OM_OM0R012U_(U)
5-5. Using an external device
351
Selecting a play mode
1
Press
(BROWSE) to select iPod menu mode.
2
Turning the “TUNE•SCROLL” knob clockwise changes the play
mode in the following order:
“Playlists” → “Artists” → “Albums” → “Songs” → “Podcasts” →
“Genres” → “Composers” → “Audiobooks”
3
Press the knob to select the desired play mode.
■ Play mode list
First
Second
Third
Fourth
Play mode
selection
selection
selection
selection
Playlists
“Playlists”
Songs select
-
-
select
Albums
“Artists”
Artists select
Songs select
-
select
Albums
“Albums”
Songs select
-
-
select
5
“Songs”
Songs select
-
-
-
Podcasts
Episodes
“Podcasts”
-
-
select
select
Albums
“Genres”
Genre select
Artists select
Songs select
select
Composers
Albums
“Composers”
Songs select
-
select
select
Audiobooks
Chapter
“Audiobooks”
-
-
select
select
■ Selecting a list
1
Turn the “TUNE•SCROLL” knob to display the first selection list.
2
Press the knob to select the desired item and display the second
selection list.
3
Repeat the same procedure to select the desired item.
To return to the previous selection list, press
(BACK).
Press
(PLAY) to play the desired selection.
RAV4_OM_OM0R012U_(U)
352
5-5. Using an external device
Listening to songs
■ Selecting songs
Turn the “TUNE•SCROLL” knob or press “∧” or “∨” on the “SEEK/
TRACK” button to select the desired song.
■ Selecting a song from the song list
1
Press the “TUNE•SCROLL” knob.
The song list will be displayed.
2
Turn the knob to select a song.
3
Press the knob to play the song.
To return to the previous display, press
(BACK).
■ Fast-forwarding and rewinding songs
Press
(
) or
(
).
■ Repeat play
Press
(RPT).
To cancel, press
(RPT) again.
■ Random play
Pressing
(RDM) changes modes in the following order:
Track random→Album random→Off.
■ Playing and pausing tracks
Press
(
).
■ Switching the display
Press the “TEXT” button to display or hide the album title.
If there are continuing texts,
is displayed.
Press and hold the button to display the remaining texts.
RAV4_OM_OM0R012U_(U)
5-5. Using an external device
353
■About iPod
● “Made for iPod” and “Made for iPhone” mean that an electronic accessory
has been designed to connect specifically to iPod, or iPhone, respectively,
and has been certified by the developer to meet Apple performance stan-
dards.
● Apple is not responsible for the operation of this device or its compliance
with safety and regulatory standards. Please note that the use of this acces-
sory with iPod or iPhone may affect wireless performance.
● iPhone, iPod, iPod classic, iPod nano, iPod shuffle, and iPod touch are
trademarks of Apple Inc., registered in the U.S. and other countries.
■iPod functions
5
● When an iPod is connected and the audio source is changed to iPod mode,
the iPod will resume play from the same point in which it was last used.
● Depending on the iPod that is connected to the system, certain functions
may not be available. Disconnecting the device and reconnecting it once
again may resolve some malfunctions.
● While connected to the system, the iPod cannot be operated with its own
controls. It is necessary to use the controls of the vehicle’s audio system
instead.
■ iPod problems
To resolve most problems encountered when using your iPod, disconnect
your iPod from the vehicle iPod connection and reset it.
For instructions on how to reset your iPod, refer to your iPod Owner’s Man-
ual.
■ Display
→P. 344
RAV4_OM_OM0R012U_(U)
354
5-5. Using an external device
■Error messages
If an error message is displayed, refer to the following table and take the
appropriate measures. If the problem is not rectified, take the vehicle to your
Toyota dealer.
Message
Cause/Correction procedures
This indicates a problem in the iPod or its con-
“ERROR”
nection.
This indicates that there is no music data in
“NO SONGS”
the iPod.
This indicates that some available songs are
“NO PLAYLIST”
not found in a selected playlist.
This indicates that the version of the iPod is
“UPDATE YOUR iPod”
not compatible. Upgrade your iPod software
to the latest version.
■ Compatible models
The following iPod®, iPod nano®, iPod classic®, iPod touch® and iPhone®
devices can be used with this system.
● Made for
• iPod touch (4th generation)
• iPod touch (3rd generation)
• iPod touch (2nd generation)
• iPod touch (1st generation)
• iPod classic
• iPod nano (6th generation)
• iPod nano (5th generation)
• iPod nano (4th generation)
• iPod nano (3rd generation)
• iPod nano (2nd generation)
• iPod nano (1st generation)
• iPhone 4
• iPhone 3GS
• iPhone 3G
• iPhone
This system only supports audio playback.
Depending on differences between models or software versions etc., some
models might be incompatible with this system.
RAV4_OM_OM0R012U_(U)
5-5. Using an external device
355
WARNING
■While driving
Do not connect iPod or operate the controls. Doing so may cause an acci-
dent, resulting in death or serious injury.
NOTICE
■ To prevent damage to iPod
● Do not leave iPod in the vehicle. The temperature inside the vehicle may
become high, resulting in damage to the iPod.
● Do not push down on or apply unnecessary pressure to the iPod while it is
connected as this may damage the iPod or its terminal.
● Do not insert foreign objects into the port as this may damage the iPod or
its terminal.
5
RAV4_OM_OM0R012U_(U)
356
5-5. Using an external device
Listening to USB memory device∗
Connecting a USB memory enables you to enjoy music from the
vehicle speakers.
Connecting a USB memory
→P. 334
Control panel
1
Power
7
Fast-forwarding, rewinding or
selecting a folder
2
Volume
8
Changing the audio source/
3
Selecting a file or displaying
playback
folder list
9
Playback/pause
4
Searching playback
10
Previous commands
5
Next commands, random play
or back button
11
Selecting a file
6
Repeat play
12
Displaying text message
∗: If equipped
RAV4_OM_OM0R012U_(U)
