Toyota RAV4 (2018 year). Instruction - part 15

238

4-5. Using the driving support systems

WARNING

■ To avoid malfunction of the radar sensor

Observe the following precautions.

Otherwise, the radar sensor may not operate properly, possibly leading to

an accident resulting in death or serious injury.

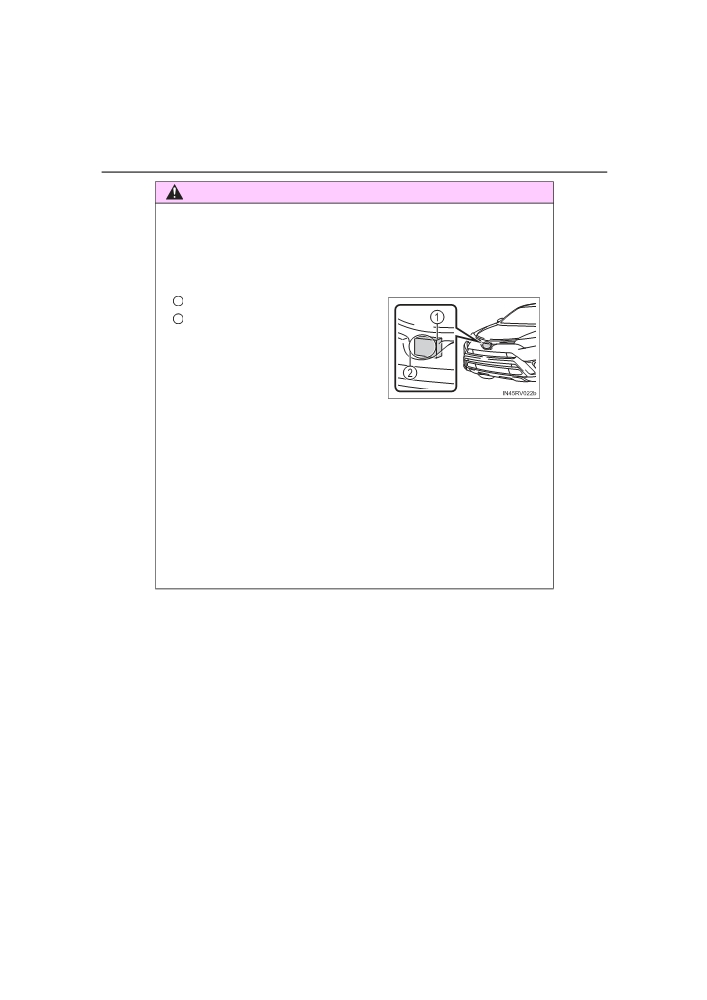

● Keep the radar sensor and front grille emblem clean at all times.

1

Radar sensor

2

Front grille emblem

If the front of the radar sensor or the

front or back of the front grille emblem

is dirty or covered with water droplets,

snow, etc., clean it.

Clean the radar sensor and front grille

emblem with a soft cloth so you do not

mark or damage them.

● Do not attach accessories, stickers (including transparent stickers) or

other items to the radar sensor, front grille emblem or surrounding area.

● Do not subject the radar sensor or surrounding area to a strong impact.

If the radar sensor, front grille, or front bumper has been subjected to a

strong impact, have the vehicle inspected by your Toyota dealer.

● Do not disassemble the radar sensor.

● Do not modify or paint the radar sensor, front grille emblem or surrounding

area.

● If the radar sensor, front grille, or front bumper needs to be removed and

installed, or replaced, contact your Toyota dealer.

RAV4_OM_OM0R012U_(U)

4-5. Using the driving support systems

239

WARNING

■ To avoid malfunction of the camera sensor

Observe the following precautions.

Otherwise, the camera sensor may not operate properly, possibly leading to

an accident resulting in death or serious injury.

● Keep the windshield clean at all times.

• If the windshield is dirty or covered with an oily film, water droplets,

snow, etc., clear the windshield.

• If a glass coating agent is applied to the windshield, it will still be neces-

sary to use the windshield wipers to remove water droplets, etc. from

the area of the windshield in front of the camera sensor.

• If the inner side of the windshield where the camera sensor is installed

is dirty, contact your Toyota dealer.

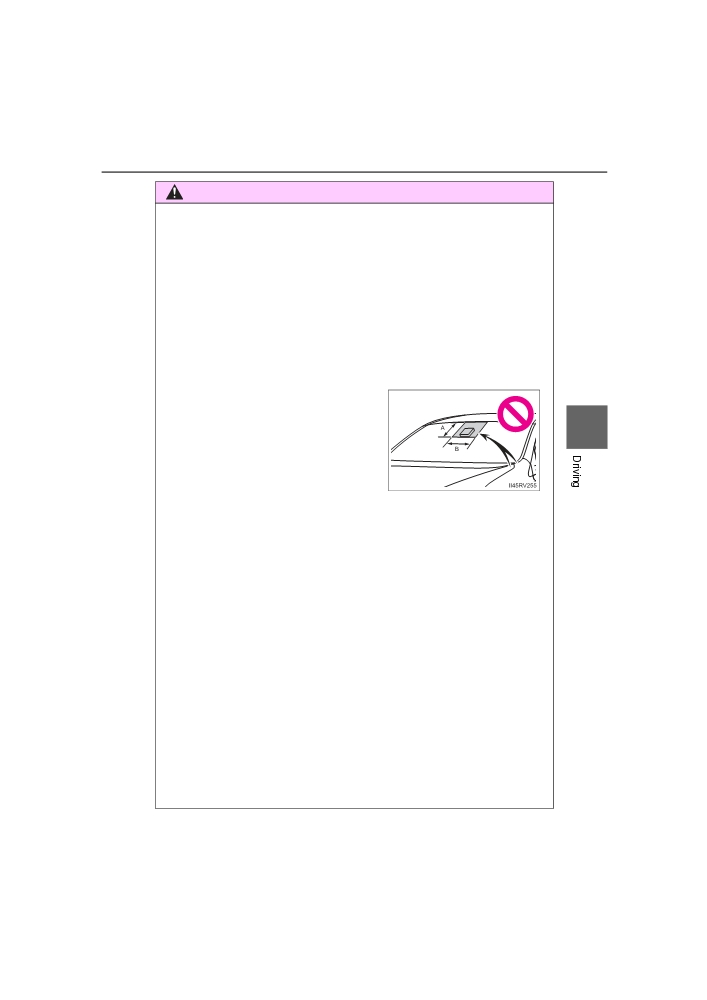

● Do not attach objects, such as stickers,

transparent stickers, etc., and so forth,

to the outer side of the windshield in

4

front of the camera sensor

(shaded

area in the illustration).

A: From the top of the windshield to

approximately 0.4 in. (1 cm) below the

bottom of the camera sensor

B: Approximately

7.9 in.

(20 cm)

(Approximately 4.0 in. (10 cm) to the

right and left from the center of the cam-

era sensor)

● If the part of the windshield in front of the camera sensor is fogged up or

covered with condensation or ice, use the windshield defogger to remove

the fog, condensation or ice. (→P. 489, 497)

● If water droplets cannot be properly removed from the area of the wind-

shield in front of the camera sensor by the windshield wipers, replace the

wiper insert or wiper blade.

If the wiper inserts or wiper blades need to be replaced, contact your Toy-

ota dealer.

● Do not attach window tinting to the windshield.

● Replace the windshield if it is damaged or cracked.

If the windshield needs to be replaced, contact your Toyota dealer.

● Do not get the camera sensor wet.

● Do not allow bright lights to shine into the camera sensor.

● Do not dirty or damage the camera sensor.

When cleaning the inside of the windshield, do not allow glass cleaner to

contact the lens. Also, do not touch the lens. If the lens is dirty or dam-

aged, contact your Toyota dealer.

RAV4_OM_OM0R012U_(U)

240

4-5. Using the driving support systems

WARNING

● Do not subject the camera sensor to a strong impact.

● Do not change the installation position or direction of the camera sensor or

remove it.

● Do not disassemble the camera sensor.

● Do not modify any components of the vehicle around the camera sensor

(inside rear view mirror, etc.) or ceiling.

● Do not attach any accessories that may obstruct the camera sensor to the

hood, front grille or front bumper. Contact your Toyota dealer for details.

● If a surfboard or other long object is to be mounted on the roof, make sure

that it will not obstruct the camera sensor.

● Do not modify the headlights or other lights.

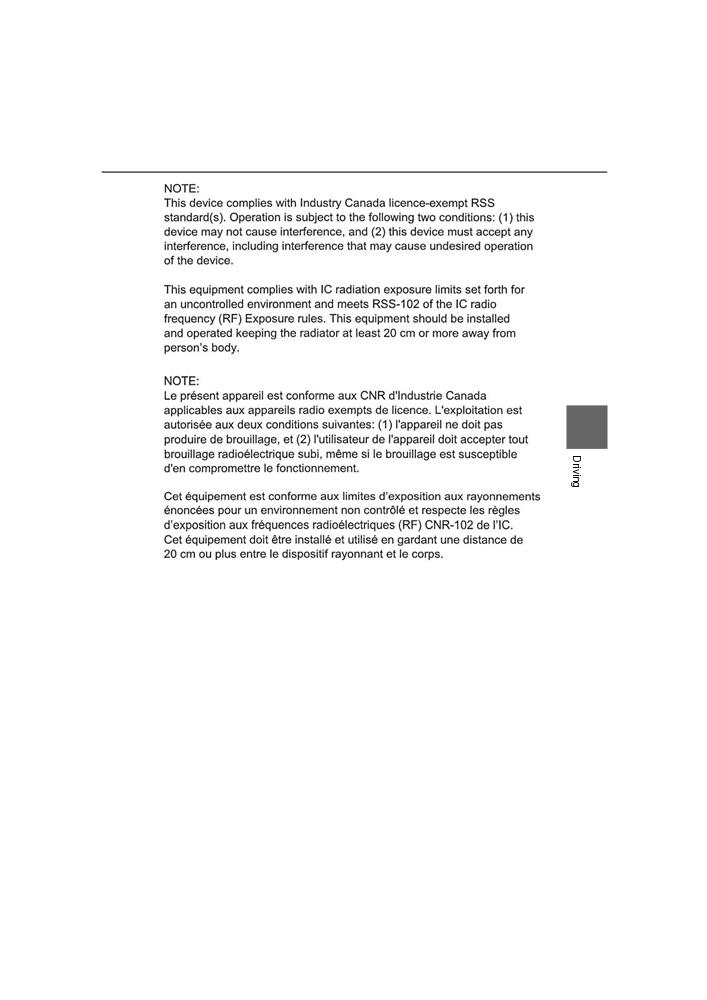

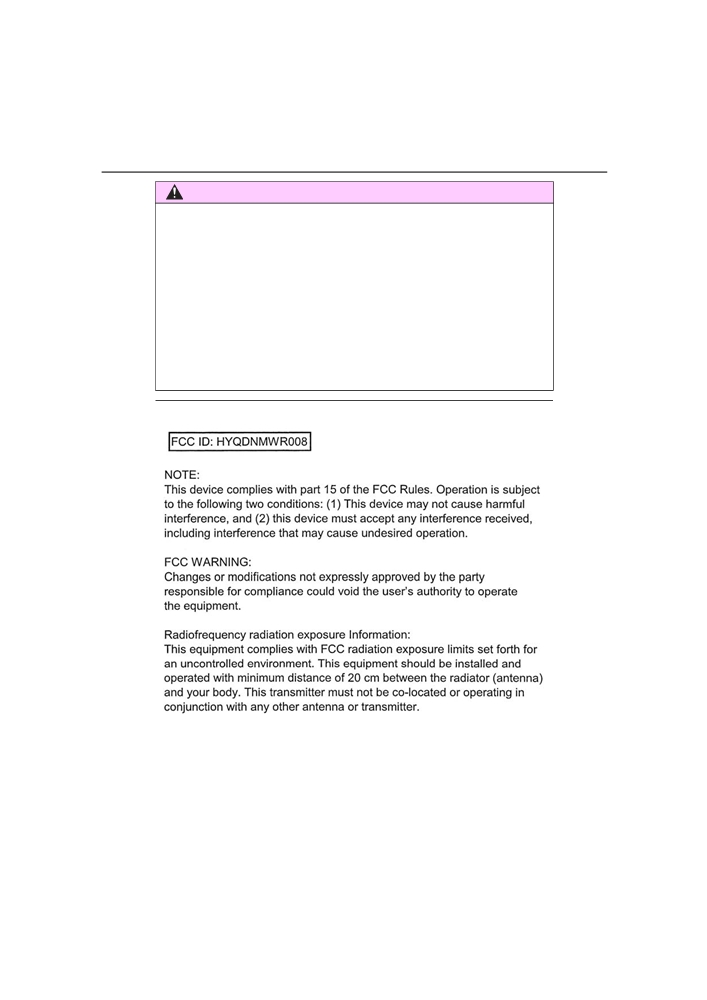

■ Certification

RAV4_OM_OM0R012U_(U)

4-5. Using the driving support systems

241

4

RAV4_OM_OM0R012U_(U)

242

4-5. Using the driving support systems

PCS (Pre-Collision System)∗

The pre-collision system uses a radar sensor and camera sen-

sor to detect vehicles and pedestrians*1 in front of your vehicle.

When the system determines that the possibility of a frontal col-

lision with a vehicle or pedestrian is high, a warning operates to

urge the driver to take evasive action and the potential brake

pressure is increased to help the driver avoid the collision. If the

system determines that the possibility of a frontal collision with

a vehicle or pedestrian is extremely high, the brakes are auto-

matically applied to help avoid the collision or help reduce the

impact of the collision.

The pre-collision system can be disabled/enabled and the warning

timing can be changed. (→P. 246)

*1: Depending on the region in which the vehicle was sold, the pedestrian

detection function may not be available. See the following table for

details.

Countries/areas

Function availability

Regions

U.S. mainland, Canada,

The pedestrian detection

Region A

Hawaii,

function is available

The pedestrian detection

Guam, Saipan, Puerto Rico

Region B

function is not available

The countries and areas for each region listed in the table are cur-

rent as of August 2017. However, depending on when the vehicle

was sold, the countries and areas of each region may be different.

Contact your Toyota dealer for details.

∗: If equipped

RAV4_OM_OM0R012U_(U)

4-5. Using the driving support systems

243

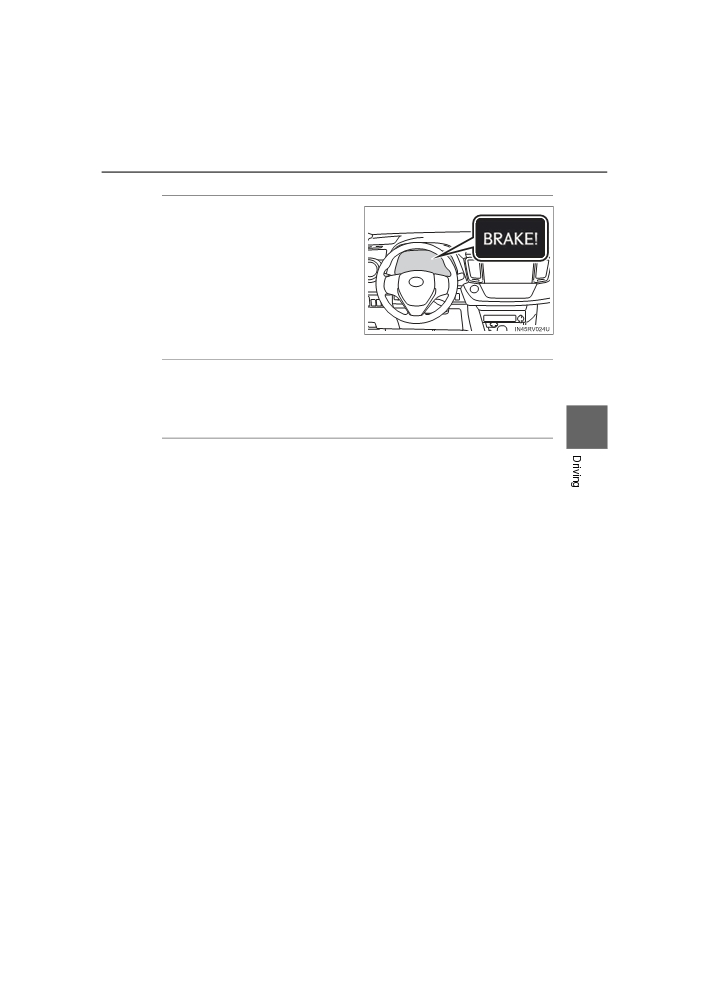

◆ Pre-collision warning

When the system determines

that the possibility of a frontal

collision is high, a buzzer will

sound and a warning message

will be displayed on the multi-

information display to urge the

driver to take evasive action.

◆ Pre-collision brake assist

When the system determines that the possibility of a frontal colli-

sion is high, the system applies greater braking force in relation to

how strongly the brake pedal is depressed.

4

◆ Pre-collision braking

When the system determines that the possibility of a frontal colli-

sion is high, the system warns the driver. If the system determines

that the possibility of a frontal collision is extremely high, the brakes

are automatically applied to help avoid the collision or reduce the

collision speed.

RAV4_OM_OM0R012U_(U)

4-5. Using the driving support systems

245

WARNING

■ When to disable the pre-collision system

In the following situations, disable the system, as it may not operate prop-

erly, possibly leading to an accident resulting in death or serious injury:

●When the vehicle is being towed

● When your vehicle is towing another vehicle

● When transporting the vehicle via truck, boat, train or similar means of

transportation

● When the vehicle is raised on a lift with the engine running and the tires

are allowed to rotate freely

● When inspecting the vehicle using a drum tester such as a chassis dyna-

mometer or speedometer tester, or when using an on vehicle wheel bal-

ancer

●When a strong impact is applied to the front bumper or front grille, due to

an accident or other reasons

4

● If the vehicle cannot be driven in a stable manner, such as when the vehi-

cle has been in an accident or is malfunctioning

●When the vehicle is driven in a sporty manner or off-road

● When the tires are not properly inflated

● When the tires are very worn

● When tires of a size other than specified are installed

● When tire chains are installed

● When a compact spare tire is used

● If equipment (snow plow, etc.) that may obstruct the radar sensor or cam-

era sensor is temporarily installed to the vehicle

RAV4_OM_OM0R012U_(U)

246

4-5. Using the driving support systems

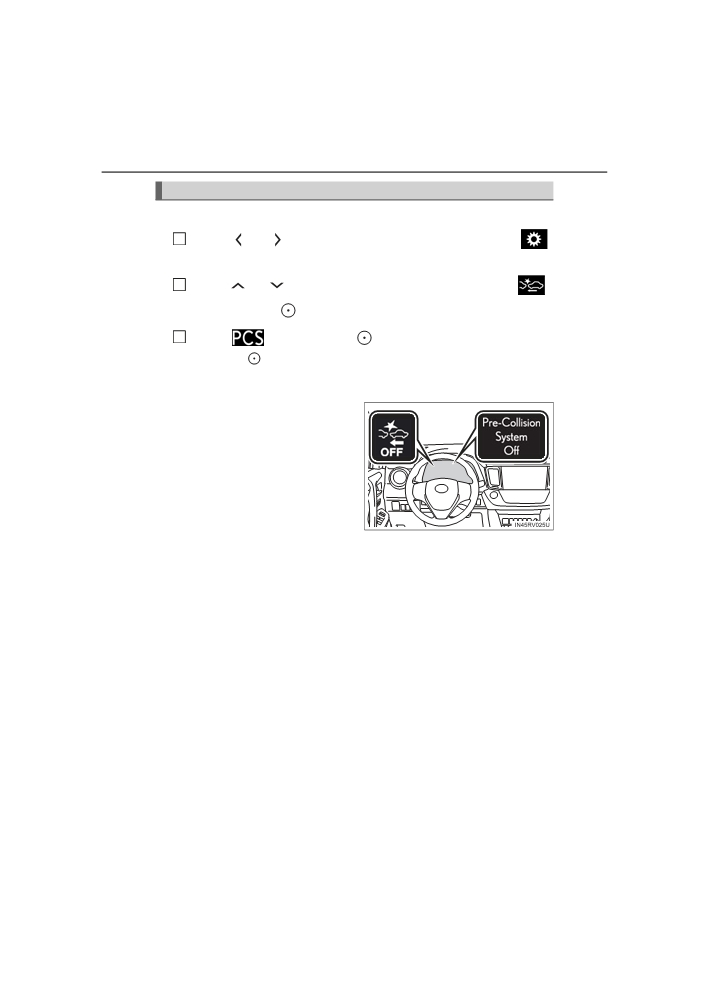

Changing settings of the pre-collision system

■ Enabling/disabling the pre-collision system

1

Press

or

of the meter control switches and select

on the multi-information display.

2

Press

or

of the meter control switches and select

,

and then press

3

Select

and then press

Each time

is pressed, the system will be enabled/disabled.

The system is automatically enabled each time the engine switch is

turned to IGNITION ON mode.

If the system is disabled, the

PCS warning light will turn on

and a message will be dis-

played on the multi-information

display.

RAV4_OM_OM0R012U_(U)

4-5. Using the driving support systems

247

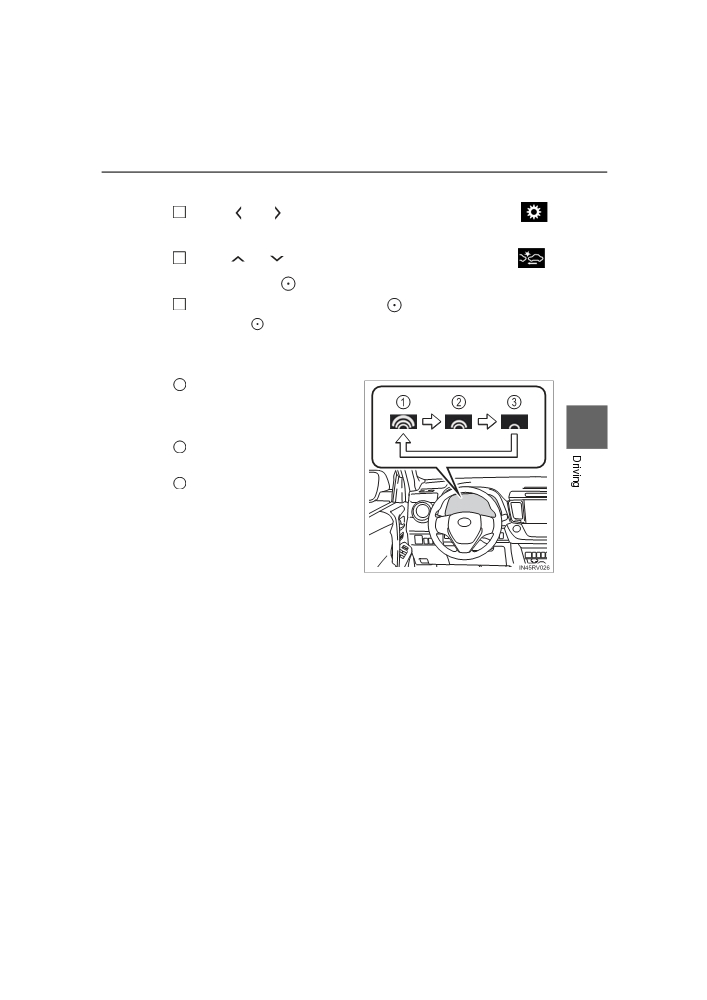

■ Changing the pre-collision warning timing

1

Press

or

of the meter control switches and select

on the multi-information display.

2

Press

or

of the meter control switches and select

,

and then press

3

Select “Sensitivity” and then press

Each time

is pressed, the operation timing of the warning will be

changed.

The operation timing setting is retained when the engine switch is

turned off.

1

Far

The warning will begin to oper-

ate earlier than with the default

4

timing.

2

Middle

This is the default setting.

3

Near

The warning will begin to oper-

ate later than with the default

timing.

RAV4_OM_OM0R012U_(U)

4-5. Using the driving support systems

249

 Region B

(The pedestrian detection function is not available)

The pre-collision system is enabled and the system determines that the pos-

sibility of a frontal collision with a vehicle is high.

Each function is operational at the following speeds:

● Pre-collision warning:

• Vehicle speed is between approximately

10 and 110 mph (15 and

180 km/h).

• The relative speed between your vehicle and the vehicle ahead is

approximately 7 mph (10 km/h) or more.

● Pre-collision brake assist:

• Vehicle speed is between approximately

20 and 110 mph (30 and

180 km/h).

• The relative speed between your vehicle and the vehicle ahead is

approximately 20 mph (30 km/h) or more.

● Pre-collision braking:

• Vehicle speed is between approximately

10 and 110 mph (15 and

4

180 km/h).

• The relative speed between your vehicle and the vehicle ahead is

approximately 7 mph (10 km/h) or more.

The system may not operate in the following situations:

● If a battery terminal has been disconnected and reconnected and then the

vehicle has not been driven for a certain amount of time

● If the shift lever is in R

● If VSC is disabled (only the pre-collision warning function will be opera-

tional)

■ Pedestrian detection function*2

The pre-collision system detects pedestri-

ans based on the size, profile, and motion

of a detected object. However, a pedes-

trian may not be detected depending on

the surrounding brightness and the

motion, posture, and angle of the

detected object, preventing the system

from operating properly. (→P. 254)

*2: For countries/areas specified as Region B (→P. 242), the pedestrian detec-

tion function may not be available.

RAV4_OM_OM0R012U_(U)

250

4-5. Using the driving support systems

■ Cancelation of the pre-collision braking

If either of the following occur while the pre-collision braking function is oper-

ating, it will be canceled:

● The accelerator pedal is depressed strongly.

● The steering wheel is turned sharply or abruptly.

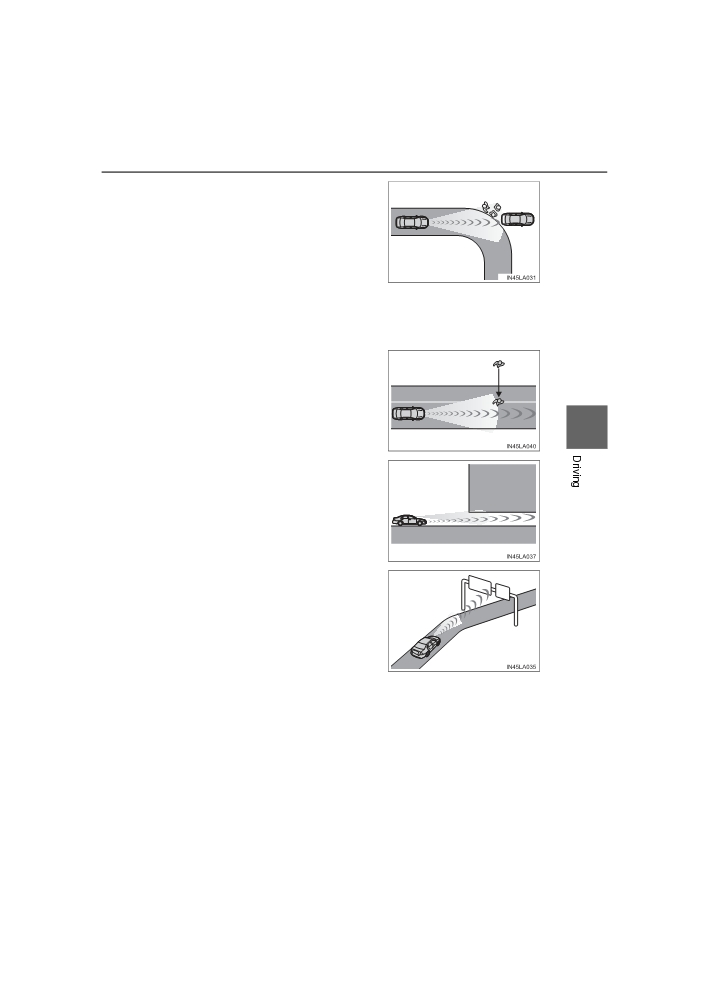

■ Conditions under which the system may operate even if there is no pos-

sibility of a collision

● In some situations such as the following, the system may determine that

there is a possibility of a frontal collision and operate.

• When passing a vehicle or pedestrian*2

• When changing lanes while overtaking a preceding vehicle

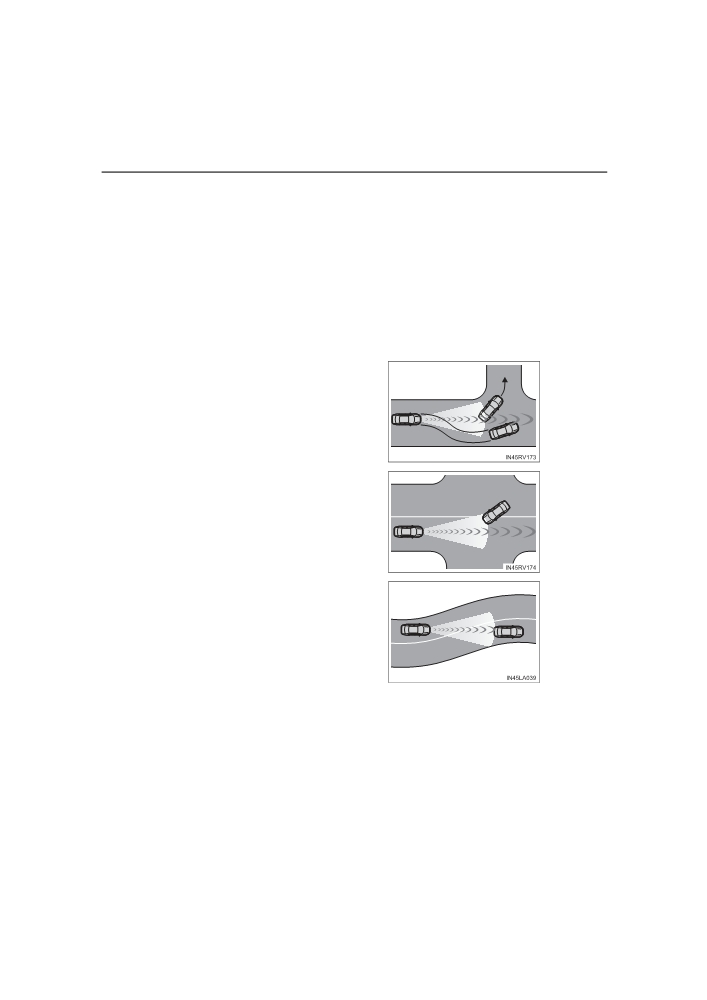

• When overtaking a preceding vehicle that is changing lanes

• When overtaking a preceding vehicle

that is making a left/right turn

• When passing a vehicle in an oncom-

ing lane that is stopped to make a

right/left turn

• When driving on a road where relative

location to vehicle ahead in an adja-

cent lane may change, such as on a

winding road

• When rapidly closing on a vehicle ahead

• If the front of the vehicle is raised or lowered, such as when the road sur-

face is uneven or undulating

• When approaching objects on the roadside, such as guardrails, utility

poles, trees, or walls

RAV4_OM_OM0R012U_(U)

4-5. Using the driving support systems

251

• When there is a vehicle, pedes-

trian*2, or object by the roadside at

the entrance of a curve

• When driving on a narrow path surrounded by a structure, such as in a

tunnel or on an iron bridge

• When there is a metal object (manhole cover, steel plate, etc.), steps, or a

protrusion on the road surface or roadside

• When a crossing pedestrian

approaches very close to the vehi-

cle*2

4

• When passing through a place with a

low structure above the road (low ceil-

ing, traffic sign, etc.)

• When passing under an object (bill-

board, etc.) at the top of an uphill road

• When rapidly closing on an electric toll gate barrier, parking area barrier,

or other barrier that opens and closes

• When using an automatic car wash

RAV4_OM_OM0R012U_(U)

252

4-5. Using the driving support systems

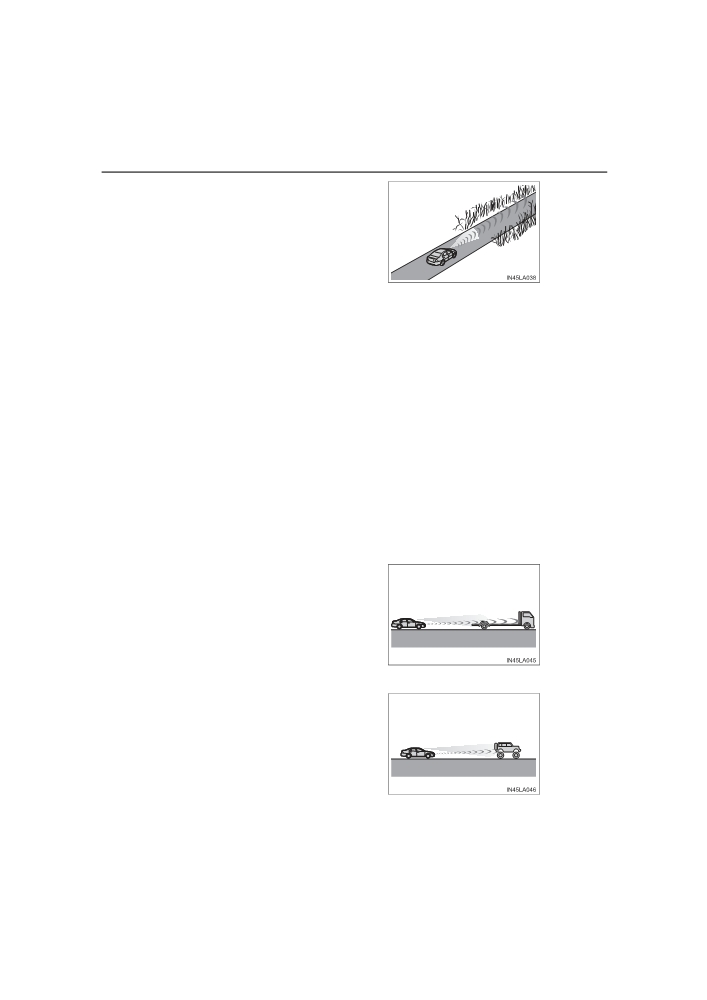

• When driving through or under

objects that may contact the vehicle,

such as thick grass, tree branches, or

a banner

• When the vehicle is hit by water, snow, dust, etc. from a vehicle ahead

• When driving through steam or smoke

• When there are patterns or paint on the road or a wall that may be mis-

taken for a vehicle or pedestrian*2

• When driving near an object that reflects radio waves, such as a large

truck or guardrail

• When driving near a TV tower, broadcasting station, electric power plant,

or other location where strong radio waves or electrical noise may be

present

*2: For countries/areas specified as Region B (→P. 242), the pedestrian

detection function may not be available.

■ Situations in which the system may not operate properly

● In some situations such as the following, a vehicle may not be detected by

the radar sensor and camera sensor, preventing the system from operating

properly:

• If an oncoming vehicle is approaching your vehicle

• If a vehicle ahead is a motorcycle or bicycle

• When approaching the side or front of a vehicle

• If a preceding vehicle has a small rear end, such as an unloaded truck

• If a preceding vehicle has a low rear

end, such as a low bed trailer

• If a vehicle ahead is carrying a load which protrudes past its rear bumper

• If a vehicle ahead has extremely high

ground clearance

• If a vehicle ahead is irregularly shaped, such as a tractor or side car

RAV4_OM_OM0R012U_(U)

4-5. Using the driving support systems

253

• If the sun or other light is shining directly on a vehicle ahead

• If a vehicle cuts in front of your vehicle or emerges from beside a vehicle

• If a vehicle ahead makes an abrupt maneuver (such as sudden swerving,

acceleration or deceleration)

• When suddenly cutting behind a preceding vehicle

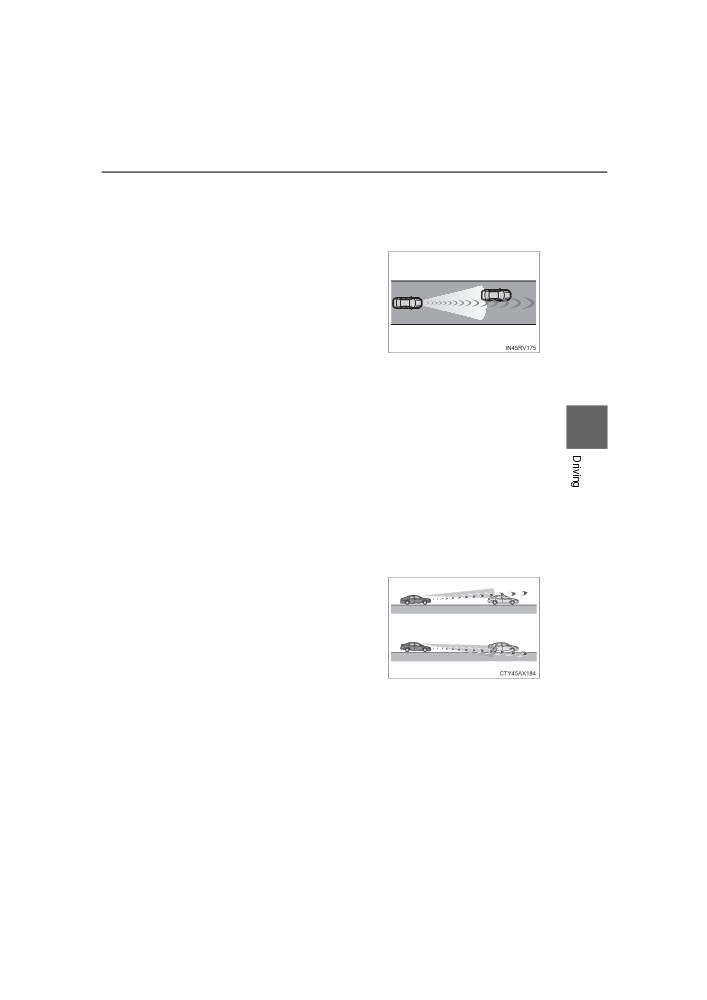

• When a vehicle ahead is not directly

in front of your vehicle

• When driving in inclement weather such as heavy rain, fog, snow or a

sandstorm

• When the vehicle is hit by water, snow, dust, etc. from a vehicle ahead

• When driving through steam or smoke

• When driving in a place where the surrounding brightness changes sud-

4

denly, such as at the entrance or exit of a tunnel

• When a very bright light, such as the sun or the headlights of oncoming

traffic, shines directly into the camera sensor

• When the surrounding area is dim, such as at dawn or dusk, or while at

night or in a tunnel

• After the engine has started the vehicle has not been driven for a certain

amount of time

• While making a left/right turn and for a few seconds after making a left/

right turn

• While driving on a curve and for a few seconds after driving on a curve

• If your vehicle is skidding

• If the front of the vehicle is raised or

lowered

• If the wheels are misaligned

• If a wiper blade is blocking the camera sensor

• The vehicle is wobbling.

• The vehicle is being driven at extremely high speeds.

• When driving on a hill

• If the radar sensor or camera sensor is misaligned

RAV4_OM_OM0R012U_(U)

Content   ..  13  14  15  16   ..
