4-3. Operating the lights and wipers
221

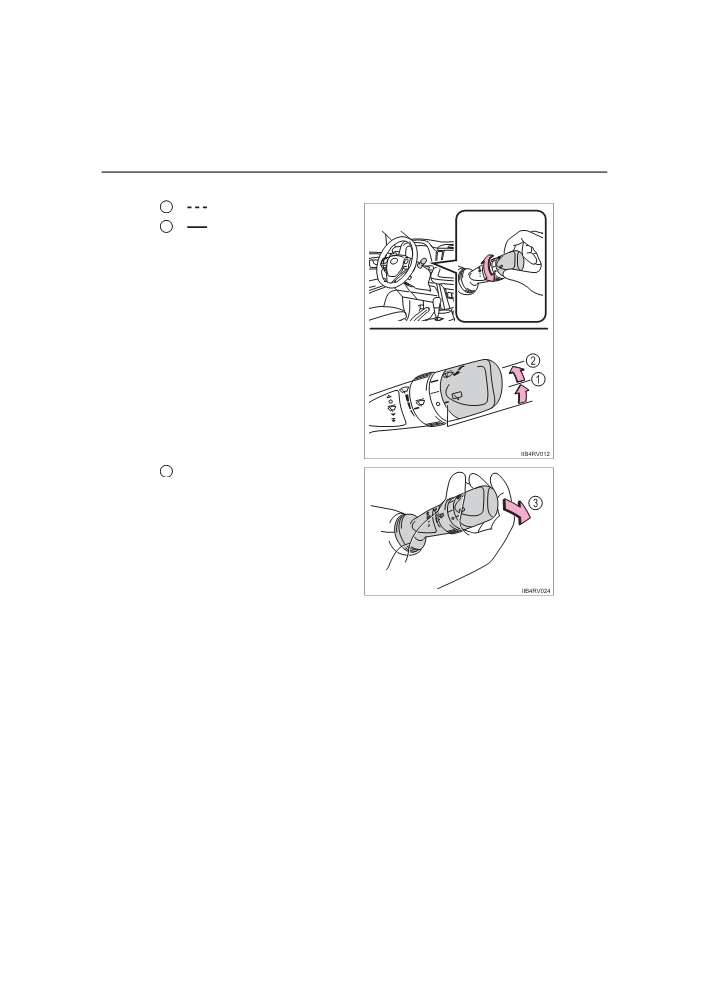

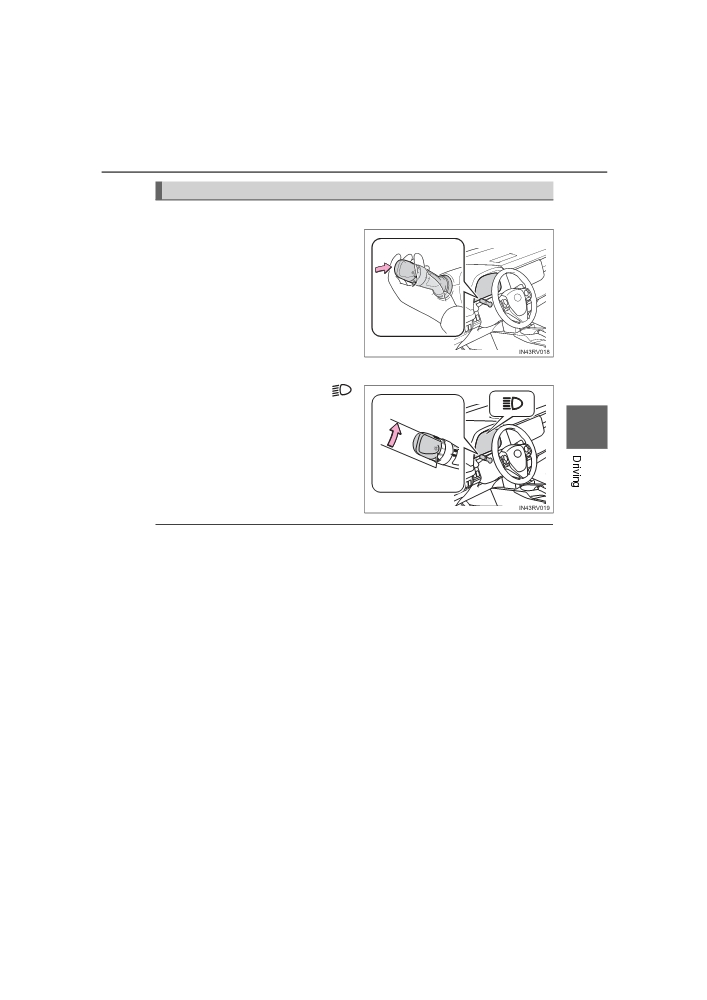

Turning the high beam on/off manually
■ Switching to low beam
Pull the lever to the original
position.
■ Switching to high beam
Turn the light switch to
position.
The Automatic High Beam indi-
4
cator will turn off and the high
beam indicator will turn on.
■High beam automatic turning on or off conditions
● When all of the following conditions are fulfilled, the high beam will be auto-
matically turned on:
• Vehicle speed is above approximately 21 mph (34 km/h).
• The area ahead of the vehicle is dark.
• There are no vehicles ahead with headlights or tail lights turned on.
• There are few streetlights on the road ahead.
● If any of the following conditions are fulfilled, the high beam will be automat-
ically turned off:
• Vehicle speed drops below approximately 17 mph (27 km/h).
• The area ahead of the vehicle is not dark.
• Vehicles ahead have headlights or tail lights turned on.
• There are many streetlights on the road ahead.
RAV4_OM_OM0R012U_(U)
222
4-3. Operating the lights and wipers

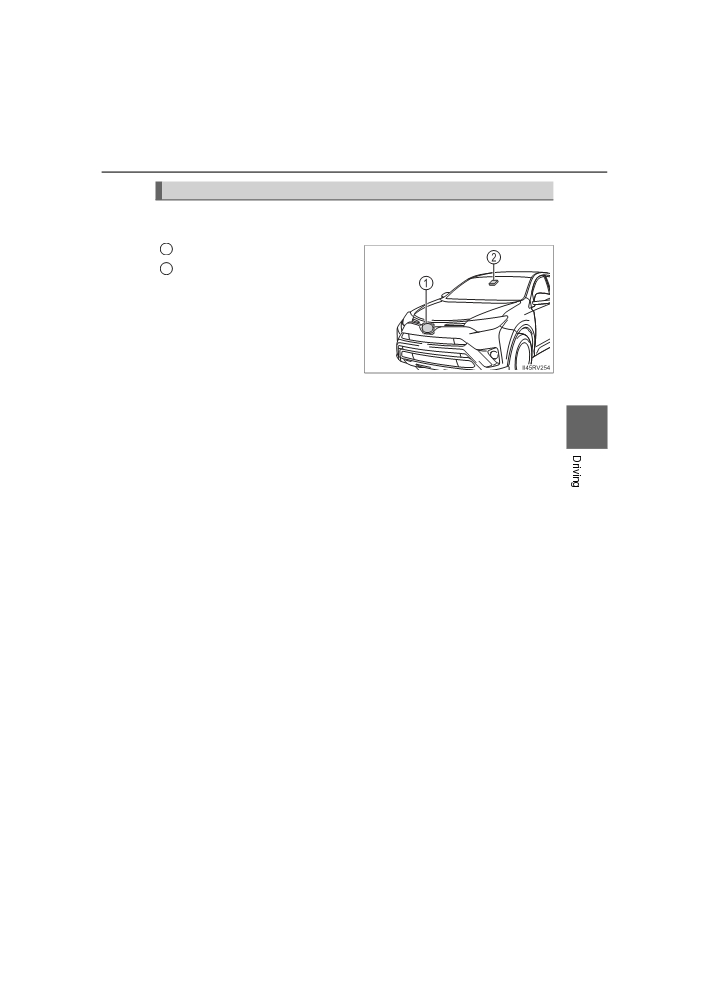

■ Camera sensor detection information
● The high beam may not be automatically turned off in the following situa-
tions:
• When oncoming vehicles suddenly appear from a curve
• When the vehicle is cut in front of by another vehicle
• When vehicles ahead are hidden from sight due to repeated curves, road
dividers or roadside trees
• When vehicles ahead appear from the faraway lane on wide road
• When vehicles ahead have no lights
● The high beam may be turned off if a vehicle ahead that is using fog lights
without using the headlights is detected.
● House lights, street lights, traffic signals, and illuminated billboards or signs
may cause the high beam to switch to the low beams, or the low beams to
remain on.
● The following factors may affect the amount of time taken to turn the high
beam on or off:
• The brightness of headlights, fog lights, and tail lights of vehicles ahead
• The movement and direction of vehicles ahead
• When a vehicle ahead only has operational lights on one side
• When a vehicle ahead is a two-wheeled vehicle
• The condition of the road (gradient, curve, condition of the road surface
etc.)
• The number of passengers and amount of luggage
● The high beam may be turned on or off when the driver does not expect it.
● Bicycles or similar objects may not be detected.
● In the situations shown below, the system may not be able to accurately
detect surrounding brightness levels. This may cause the low beams to
remain on or the high beams to cause problems for pedestrians, vehicles
ahead or other parties. In these cases, manually switch between the high
and low beams.
• In bad weather (rain, snow, fog, sandstorms etc.)
• The windshield is obscured by fog, mist, ice, dirt etc.
• The windshield is cracked or damaged.
• The camera sensor is deformed or dirty.
• The camera sensor temperature is extremely high.
• Surrounding brightness levels are equal to those of headlights, tail lights
or fog lights.
• Vehicles ahead have headlights that are either switched off, dirty, are
changing color, or are not aimed properly.
• When driving through an area of intermittently changing brightness and
darkness.
• When frequently and repeatedly driving ascending/descending roads, or
roads with rough, bumpy or uneven surfaces (such as stone-paved
roads, gravel tracks etc.).
• When frequently and repeatedly taking curves or driving on a winding
road.
RAV4_OM_OM0R012U_(U)
4-3. Operating the lights and wipers
223
• There is a highly reflective object ahead of the vehicle, such as a sign or
a mirror.
• The back of a vehicle ahead is highly reflective, such as a container on a
truck.
• The vehicle’s headlights are damaged or dirty.
• The vehicle is listing or tilting, due to a flat tire, a trailer being towed etc.
• The high beam and low beam are repeatedly being switched between in
an abnormal manner.
• The driver believes that the high beam may be causing problems or dis-
tress to other drivers or pedestrians nearby.
■ Temporarily lowering sensor sensitivity
The sensitivity of the sensor can be temporarily lowered.
1
Turn the engine switch off while the following conditions are met.
• The headlight switch is in
• The headlight switch lever is in high beam position.
2
Turn the engine switch to IGNITION ON mode.
3
Within 5 seconds after
2
, repeat pulling the headlight switch lever to the
4
original position then pushing it to the high beam position quickly 9 times,
then leave the lever in high beam position.
Automatic High Beam (headlights) may turn on even the vehicle is stopped.
■ If a warning message of the Automatic High Beam is displayed
It may indicate a malfunction in the system. Contact your Toyota dealer.
■ Customization
The Automatic High Beam can be turned off.
(Customizable features: →P. 704)
RAV4_OM_OM0R012U_(U)
224
4-3. Operating the lights and wipers

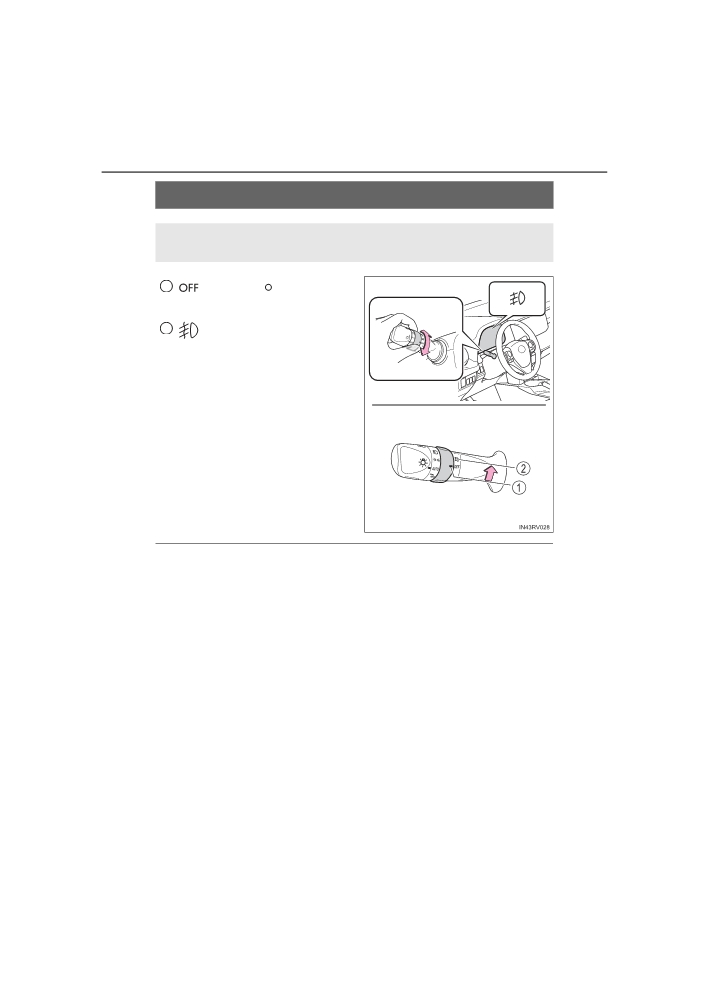

Fog light switch∗
The fog lights secure excellent visibility in difficult driving con-
ditions, such as in rain and fog.
1
(U.S.A.) or
(Canada)
Turns the fog lights off
2
Turns the fog lights on
■ Fog lights can be used when
The headlights are on in low beam.
∗: If equipped
RAV4_OM_OM0R012U_(U)
4-3. Operating the lights and wipers
225
Windshield wipers and washer
Operating the wiper lever

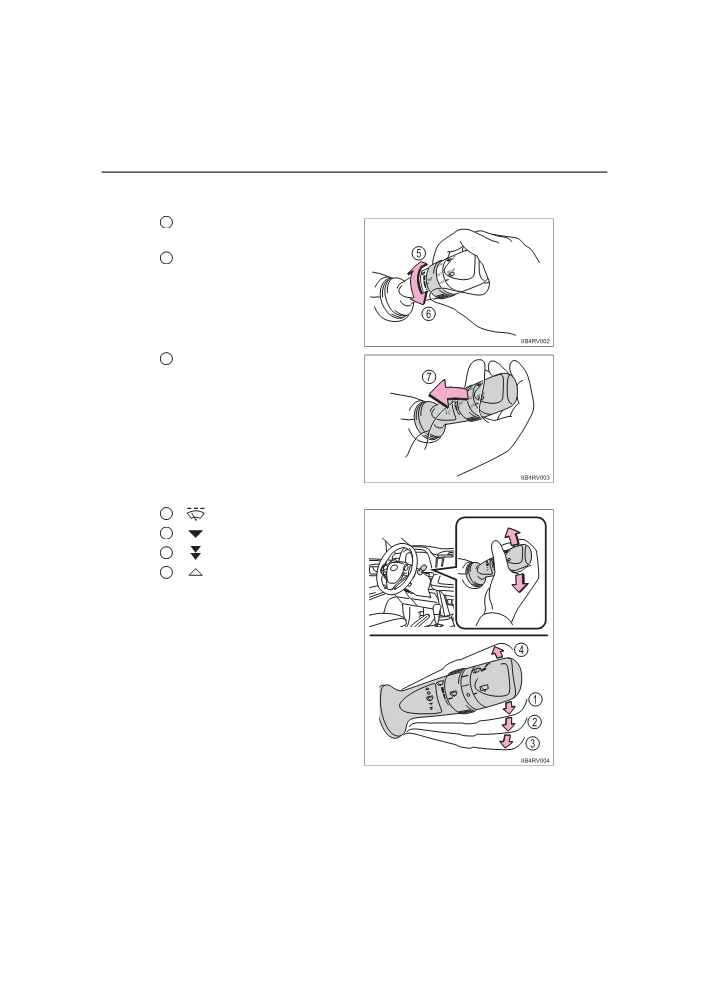

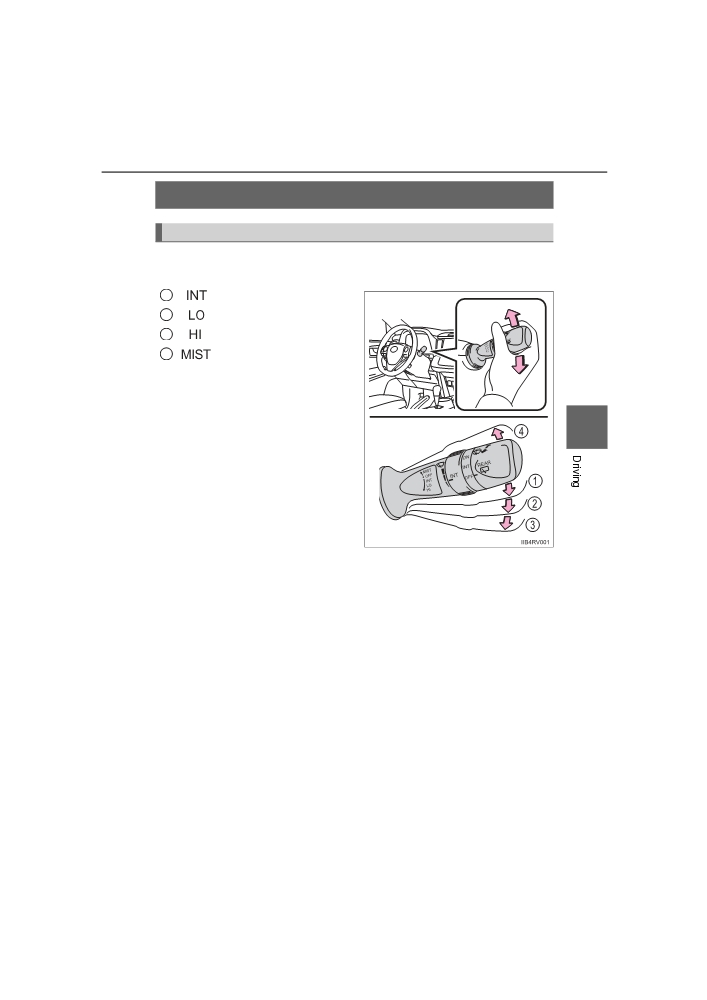

The wiper operation is selected by moving the lever as follows.
For the U.S.A.
1
Intermittent operation
2
Low speed operation
3
High speed operation
4
Temporary operation
4
RAV4_OM_OM0R012U_(U)
226
4-3. Operating the lights and wipers
If equipped, wiper intervals can be adjusted when intermittent opera-
tion is selected.
Increases the intermittent wind-
5
shield wiper frequency
Decreases the intermittent
6
windshield wiper frequency

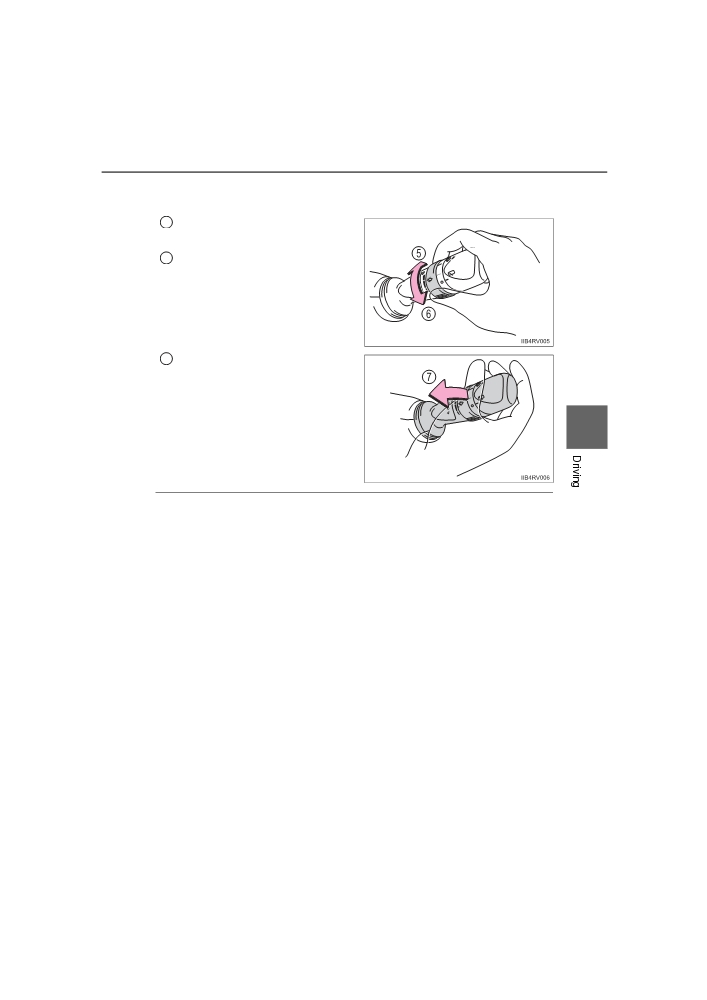

Washer/wiper dual operation
7
The wipers will automatically oper-
ate a couple of times after the
washer squirts.
For Canada
1
Intermittent operation
2
Low speed operation
3
High speed operation
4
Temporary operation
RAV4_OM_OM0R012U_(U)
4-3. Operating the lights and wipers
227
If equipped, wiper intervals can be adjusted when intermittent opera-
tion is selected.
Increases the intermittent wind-
5
shield wiper frequency
Decreases the intermittent
6
windshield wiper frequency
Washer/wiper dual operation
7
The wipers will automatically oper-
ate a couple of times after the
washer squirts.
4
■ The windshield wipers and washer can be operated when
Vehicles without smart key system
The engine switch is in the “ON” position.
Vehicles with smart key system
The engine switch is in IGNITION ON mode.
■ If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the
washer fluid reservoir.
RAV4_OM_OM0R012U_(U)
228
4-3. Operating the lights and wipers
WARNING
■ Caution regarding the use of washer fluid
When it is cold, do not use the washer fluid until the windshield becomes
warm. The fluid may freeze on the windshield and cause low visibility. This
may lead to an accident, resulting in death or serious injury.
NOTICE
■ When the windshield is dry
Do not use the wipers, as they may damage the windshield.
■ When the washer fluid tank is empty
Do not operate the switch continually as the washer fluid pump may over-
heat.
■ When a nozzle becomes blocked
In this case, contact your Toyota dealer.
Do not try to clear it with a pin or other object. The nozzle will be damaged.
■ To prevent battery discharge
Do not leave the wipers on longer than necessary when the engine is off.
RAV4_OM_OM0R012U_(U)
4-3. Operating the lights and wipers
229
Rear window wiper and washer

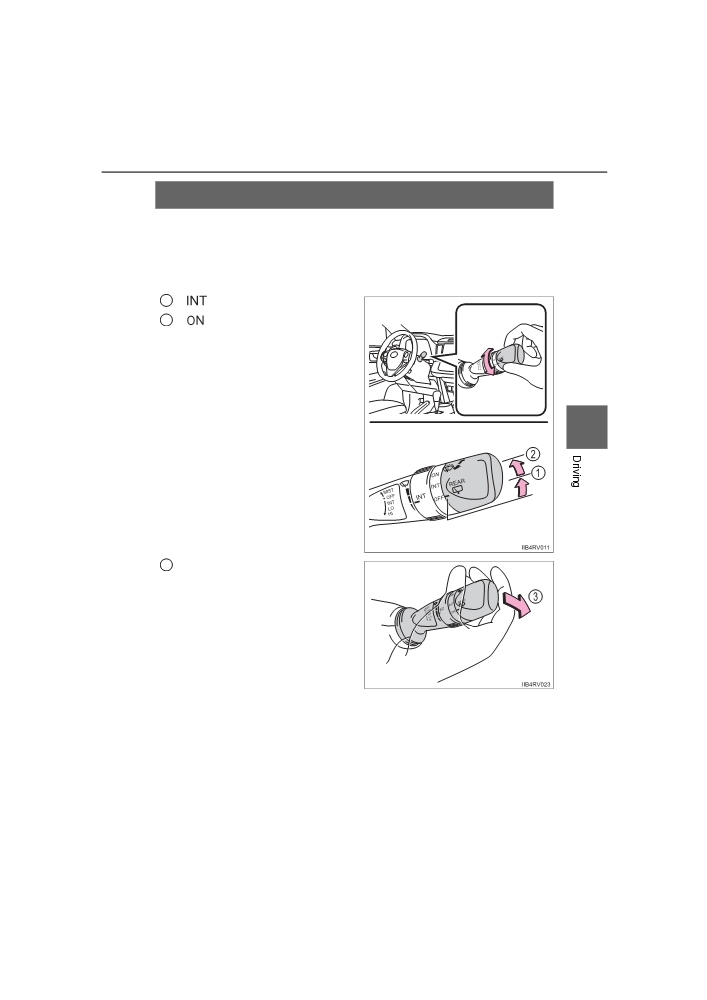

Turning the end of the lever turns on the rear window wiper, and push-
ing the lever away from you turns on the rear window wiper and
washer.
For the U.S.A.
1
Intermittent operation
2
Normal operation
4
Washer/wiper dual operation
3
RAV4_OM_OM0R012U_(U)
230
4-3. Operating the lights and wipers
For Canada
1
Intermittent operation
2
Normal operation
Washer/wiper dual operation
3
RAV4_OM_OM0R012U_(U)
4-3. Operating the lights and wipers
231
■The rear window wiper and washer can be operated when
Vehicles without smart key system
The engine switch is in the “ON” position.
Vehicles with smart key system
The engine switch is in IGNITION ON mode.
■If no washer fluid sprays
Check that the washer nozzle is not blocked if there is washer fluid in the
washer fluid reservoir.
NOTICE
■ When the rear window is dry
Do not use the wiper, as it may damage the rear window.
■ When the washer fluid tank is empty
Do not operate the switch continually as the washer fluid pump may over-
heat.
4
RAV4_OM_OM0R012U_(U)
232
4-4. Refueling
Opening the fuel tank cap
Perform the following steps to open the fuel tank cap:
Before refueling the vehicle
● Close all the doors and windows, and turn the engine switch to the
“LOCK” position (vehicles without smart key system) or off (vehicles
with smart key system).
● Confirm the type of fuel.
■Fuel types
→P. 681
■Fuel tank opening for unleaded gasoline
To help prevent incorrect fueling, your vehicle has a fuel tank opening that
only accommodates the special nozzle on unleaded fuel pumps.
RAV4_OM_OM0R012U_(U)
4-4. Refueling
233
WARNING
■ When refueling the vehicle
Observe the following precautions while refueling the vehicle. Failure to do
so may result in death or serious injury.
● After exiting the vehicle and before opening the fuel door, touch an
unpainted metal surface to discharge any static electricity. It is important to
discharge static electricity before refueling because sparks resulting from
static electricity can cause fuel vapors to ignite while refueling.
● Always hold the grips on the fuel tank cap and turn it slowly to remove it.
A whooshing sound may be heard when the fuel tank cap is loosened.
Wait until the sound cannot be heard before fully removing the cap. In hot
weather, pressurized fuel may spray out the filler neck and cause injury.
● Do not allow anyone that has not discharged static electricity from their
body to come close to an open fuel tank.
● Do not inhale vaporized fuel.
Fuel contains substances that are harmful if inhaled.
4
● Do not smoke while refueling the vehicle.
Doing so may cause the fuel to ignite and cause a fire.
● Do not return to the vehicle or touch any person or object that is statically
charged.
This may cause static electricity to build up, resulting in a possible ignition
hazard.
■ When refueling
Observe the following precautions to prevent fuel overflowing from the fuel
tank:
● Securely insert the fuel nozzle into the fuel filler neck.
● Stop filling the tank after the fuel nozzle automatically clicks off.
● Do not top off the fuel tank.
NOTICE
■Refueling
Do not spill fuel during refueling.
Doing so may damage the vehicle, such as causing the emission control
system to operate abnormally or damaging fuel system components or the
vehicle’s painted surface.
RAV4_OM_OM0R012U_(U)
234
4-4. Refueling

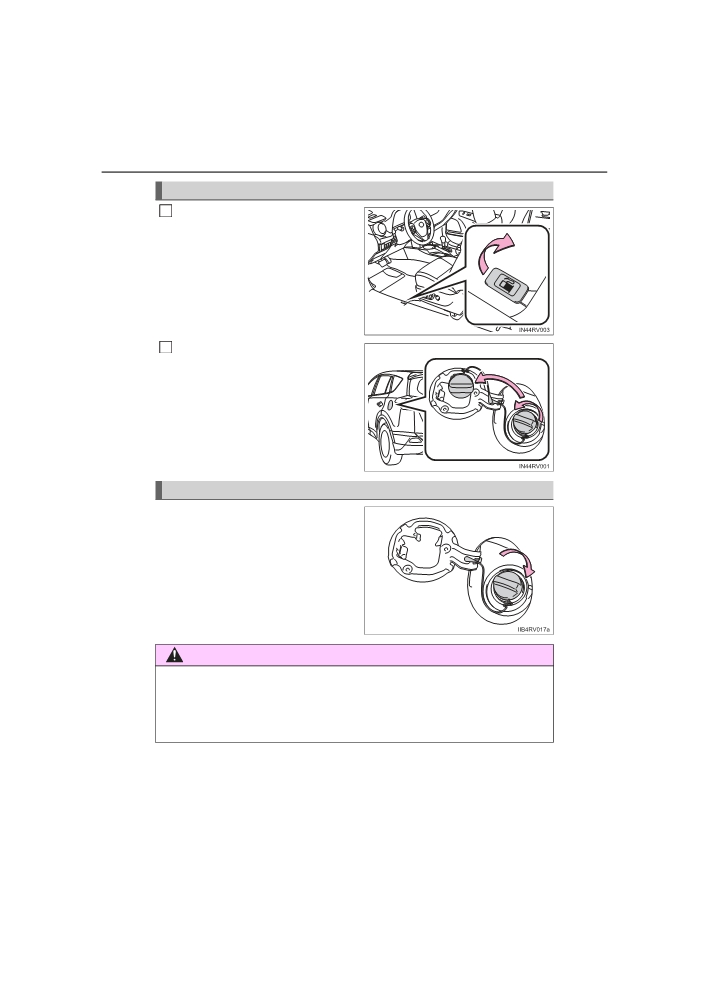

Opening the fuel tank cap
1
Pull up the opener to open the
fuel filler door.
Turn the fuel tank cap slowly to
2
remove it and hang it on the
back of the fuel filler door.
Closing the fuel tank cap
After refueling, turn the fuel tank
cap until you hear a click. Once
the cap is released, it will turn
slightly in the opposite direction.
WARNING
■ When replacing the fuel tank cap
Do not use anything but a genuine Toyota fuel tank cap designed for your
vehicle. Doing so may cause a fire or other incident which may result in
death or serious injury.
RAV4_OM_OM0R012U_(U)
4-5. Using the driving support systems
235
Toyota Safety Sense P∗
The Toyota Safety Sense P consists of the following drive assist
systems and contributes to a safe and comfortable driving expe-
rience:
◆ PCS (Pre-Collision System)
→P. 242
◆ LDA (Lane Departure Alert with steering control)
→P. 256
◆ Automatic High Beam
→P. 220
4
◆ Dynamic radar cruise control
→P. 264
WARNING
■ Toyota Safety Sense P
The Toyota Safety Sense P is designed to operate under the assumption
that the driver will drive safely, and is designed to help reduce the impact to
the occupants and the vehicle in the case of a collision or assist the driver in
normal driving conditions.
As there is a limit to the degree of recognition accuracy and control perfor-
mance that this system can provide, do not overly rely on this system. The
driver is always responsible for paying attention to the vehicle’s surround-
ings and driving safely.
∗: If equipped
RAV4_OM_OM0R012U_(U)
236
4-5. Using the driving support systems
Vehicle data recording
The pre-collision system is equipped with a sophisticated computer
that will record certain data, such as:
•
Accelerator status
•
Brake status
•
Vehicle speed
•
Operation status of the pre-collision system functions
•
Information (such as the distance and relative speed between your
vehicle and the vehicle ahead or other objects)
•
Images from the camera sensor (available only when the pre-colli-
sion braking function or the pre-collision brake assist function was
operating)
•
The pre-collision system does not record conversations, sounds or
images of the inside of the vehicle.
● Data usage
Toyota may use the data recorded in this computer to diagnose
malfunctions, conduct research and development, and improve
quality.
Toyota will not disclose the recorded data to a third party except:
• With the consent of the vehicle owner or with the consent of the
lessee if the vehicle is leased
• In response to an official request by the police, a court of law or a
government agency
• For use by Toyota in a lawsuit
• For research purposes where the data is not tied to a specific
vehicle or vehicle owner
● Recorded images can be erased using a specialized device.
The image recording function can be disabled. However, if the func-
tion is disabled, data from when the pre-collision system operates
will not be available.
RAV4_OM_OM0R012U_(U)
4-5. Using the driving support systems
237
Sensors
Two types of sensors, located behind the front grille and windshield,
detect information necessary to operate the drive assist systems.
1
Radar sensor
2
Camera sensor
4
RAV4_OM_OM0R012U_(U)
