3-2. Opening, closing and locking the doors
153
Smart entry & start system
The following operations can be performed simply by carrying
the electronic key on your person, for example in your pocket.
The driver should always carry the electronic key.
● Unlocks and locks the doors (→P. 144)
● Unlocks and locks the back door (if equipped) (→P. 148)
● Starts and stops the hybrid system (→P. 207)
■ Antenna location
3
1
Antenna outside the cabin
(driver’s
side)*1
2
Antenna outside the cabin (front pas-
senger’s side)*1, 2
3
Antennas inside the cabin
4
Antenna inside the luggage compart-
ment
5
Antenna outside the luggage compart-
ment*2
*1: The illustration is for left-hand drive
vehicles. The antenna locations are
reversed for right-hand drive vehicles.
*2: If equipped
■ Effective range (areas within which the electronic key is detected)
When locking or unlocking the doors
The system can be operated when
the electronic key is within about 0.7
m (2.3 ft.) of driver’s door handle,
front passenger’s door handle* and
back door opener switch*. (Only the
doors detecting the key can be oper-
ated.)
*: If equipped
When starting the hybrid system or changing power switch modes
The system can be operated when the electronic key is inside the vehi-
cle.
PRIUS +_OM_OM47B24E_(EE)
154
3-2. Opening, closing and locking the doors
■ Alarms and warning messages
X Vehicles without multi-information display
The warning buzzer sounds and the warning light illuminates to protect
against unexpected accidents resulting from erroneous operation or theft of
the vehicle. When the warning light illuminates, take appropriate measures
based on the situation.
X Vehicles with multi-information display
An alarm sounds and warning message displays shown on the multi-informa-
tion display are used to protect against unexpected accidents or theft of the
vehicle resulting from erroneous operation. When a warning message is dis-
played, take appropriate measures based on the displayed message.
(→P. 400)
When only an alarm sounds, circumstances and correction procedures are as
follows.
Alarm
Situation
Correction procedure
Vehicles without multi-infor-
mation display: An attempt
was made to lock the doors
using the entry function
while the electronic key was
still inside the passenger
compartment.
Retrieve the electronic
Vehicles without multi-infor-
key from the passenger
mation display: An attempt
compartment and lock
Exterior
alarm
was made to lock either
the doors again.
sounds once for 5
front door by opening a door
seconds
and putting the inside lock
button into the lock position,
then closing the door by
pulling the outside door han-
dle with the electronic key
still inside the vehicle.
An attempt was made to
Close all of the doors
lock the vehicle while a door
and lock the doors
was open.
again.
PRIUS +_OM_OM47B24E_(EE)
3-2. Opening, closing and locking the doors
155
Alarm
Situation
Correction procedure
The power switch was
turned to ACCESSORY
mode while the driver’s door
Turn the power switch
was open (The driver’s door
off
and close the
was opened when the
driver’s door.
power switch was in
Interior
alarm
ACCESSORY mode).
pings repeatedly
The driver’s door was
opened while any shift posi-
Shift the shift position
tion other than P was
to P.
selected without turning off
the power switch.
3
■ Battery-saving function
The battery-saving function will be activated in order to prevent the electronic
key battery and the 12-volt battery from being discharged while the vehicle is
not in operation for a long time.
●In the following situations, the smart entry & start system may take some
time to unlock the doors.
• The electronic key has been left in an area of approximately 2 m (6 ft.) of
the outside of the vehicle for 10 minutes or longer.
• The smart entry & start system has not been used for 5 days or longer.
● If the smart entry & start system has not been used for 14 days or longer,
the doors cannot be unlocked at any doors except the driver’s door. In this
case, take hold of the driver’s door handle, or use the wireless remote con-
trol or the mechanical key, to unlock the doors.
■ Electronic Key Battery-Saving Function
When battery-saving mode is set, battery depletion is minimized by stopping
the electronic key from receiving radio waves.
Press
twice while pressing and
holding
. Confirm that the electronic
key indicator flashes 4 times.
While the battery-saving mode is set, the
smart entry & start system cannot be
used. To cancel the function, press any of
the electronic key buttons.
PRIUS +_OM_OM47B24E_(EE)
156
3-2. Opening, closing and locking the doors
■ Conditions affecting operation
The smart entry & start system, wireless remote control and immobilizer sys-
tem use weak radio waves. In the following situations, the communication
between the electronic key and the vehicle may be affected, preventing the
smart entry & start system, wireless remote control and immobilizer system
from operating properly. (Ways of coping: →P. 450)
● When the electronic key battery is depleted
● Near a TV tower, electric power plant, gas station, radio station, large dis-
play, airport or other facility that generates strong radio waves or electrical
noise
● When the electronic key is in contact with, or is covered by the following
metallic objects
• Cards to which aluminum foil is attached
• Cigarette boxes that have aluminum foil inside
• Metallic wallets or bags
• Coins
• Hand warmers made of metal
• Media such as CDs and DVDs
● When other wireless key (that emit radio waves) is being used nearby
● When carrying the electronic key together with the following devices that
emit radio waves
• When carrying a portable radio, cellular phone, cordless phone or other
wireless communication device
• Another vehicle’s electronic key or a wireless key that emits radio waves
• Personal computers or personal digital assistants (PDAs)
• Digital audio players
• Portable game systems
●If window tint with a metallic content or metallic objects are attached to the
rear window
● When the electronic key is placed near a battery charger or electronic
devices
PRIUS +_OM_OM47B24E_(EE)
3-2. Opening, closing and locking the doors
157
■ Note for the entry function
● Even when the electronic key is within the effective range (detection areas),
the system may not operate properly in the following cases:
• The electronic key is too close to the window or outside door handle, near
the ground, or in a high place when the doors are locked or unlocked.
• The electronic key is on the instrument panel, luggage room, floor, or in
the door pockets or glove box when the hybrid system is started or power
switch modes are changed.
● Do not leave the electronic key on top of the instrument panel or near the
door pockets when exiting the vehicle. Depending on the radio wave recep-
tion conditions, it may be detected by the antenna outside the cabin and the
door will become lockable from the outside, possibly trapping the electronic
key inside the vehicle.
● As long as the electronic key is within the effective range, the doors may be
3
unlocked or locked by anyone. However, only the doors detecting the elec-
tronic key can be used to unlock the vehicle.
●Even if the electronic key is not inside the vehicle, it may be possible to start
the hybrid system if the electronic key is near the window.
● The doors may unlock if a large amount of water splashes on the door han-
dle, such as in the rain or in a car wash when the electronic key is within the
effective range. (The doors will automatically be locked after approximately
30 seconds if the doors are not opened and closed.)
●If the wireless remote control is used to lock the doors when the electronic
key is near the vehicle, there is a possibility that the door may not be
unlocked by the entry function. (Use the wireless remote control to unlock
the doors.)
● Touching the door lock or unlock sensor while wearing gloves may delay or
prevent lock or unlock operation.
●If the door handle becomes wet while the electronic key is within the effec-
tive range, the door may lock and unlock repeatedly. In that case, follow the
following correction procedures to wash the vehicle:
• Place the electronic key in a location 2 m (6 ft.) or more away from the
vehicle. (Take care to ensure that the key is not stolen.)
• Set the electronic key to battery-saving mode to disable the smart entry &
start system. (→P. 155)
● If the electronic key is inside the vehicle and a door handle becomes wet
during a car wash, a message may be shown on the multi-information dis-
play (if equipped) and a buzzer will sound outside the vehicle. To turn off the
alarm, lock all the doors.
● The lock sensor may not work properly if it comes into contact with ice,
snow, mud, etc. Clean the lock sensor and attempt to operate it again, or
use the lock sensor on the lower part of the door handle.
PRIUS +_OM_OM47B24E_(EE)
158
3-2. Opening, closing and locking the doors
● A sudden approach to the effective range or door handle may prevent the
doors from being unlocked. In this case, return the door handle to the origi-
nal position and check that the doors unlock before pulling the door handle
again.
●If there is another electronic key in the detection area, it may take slightly
longer to unlock the doors after the door handle is gripped.
■ When the vehicle is not driven for extended periods
● To prevent theft of the vehicle, do not leave the electronic key within 2 m
(6 ft.) of the vehicle.
● The smart entry & start system can be deactivated in advance. (→P. 477)
■ To operate the system properly
Make sure to carry the electronic key when operating the system. Do not get
the electronic key too close to the vehicle when operating the system from the
outside of the vehicle.
Depending on the position and holding condition of the electronic key, the key
may not be detected correctly and the system may not operate properly. (The
alarm may go off accidentally, or the door lock prevention may not operate.)
■ If the smart entry & start system does not operate properly
●Locking and unlocking the doors: Use the mechanical key. (→P. 450)
● Starting the hybrid system: →P. 450
■ Customization
Settings (e.g. smart entry & start system) can be changed.
(Customizable features: →P. 477)
■ If the smart entry & start system has been deactivated in a customized
setting
● Unlocking and locking the doors:
Use the wireless remote control or mechanical key. (→P. 144, 450)
● Starting the hybrid system and changing power switch modes: →P. 450
● Stopping the hybrid system: →P. 209
PRIUS +_OM_OM47B24E_(EE)
3-2. Opening, closing and locking the doors
159

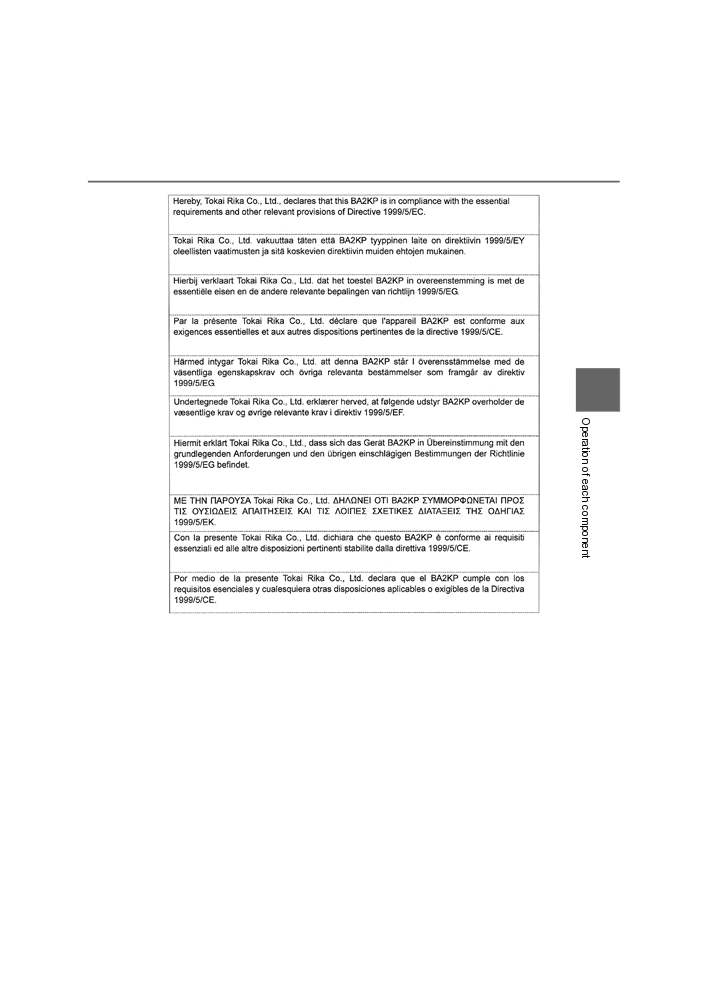

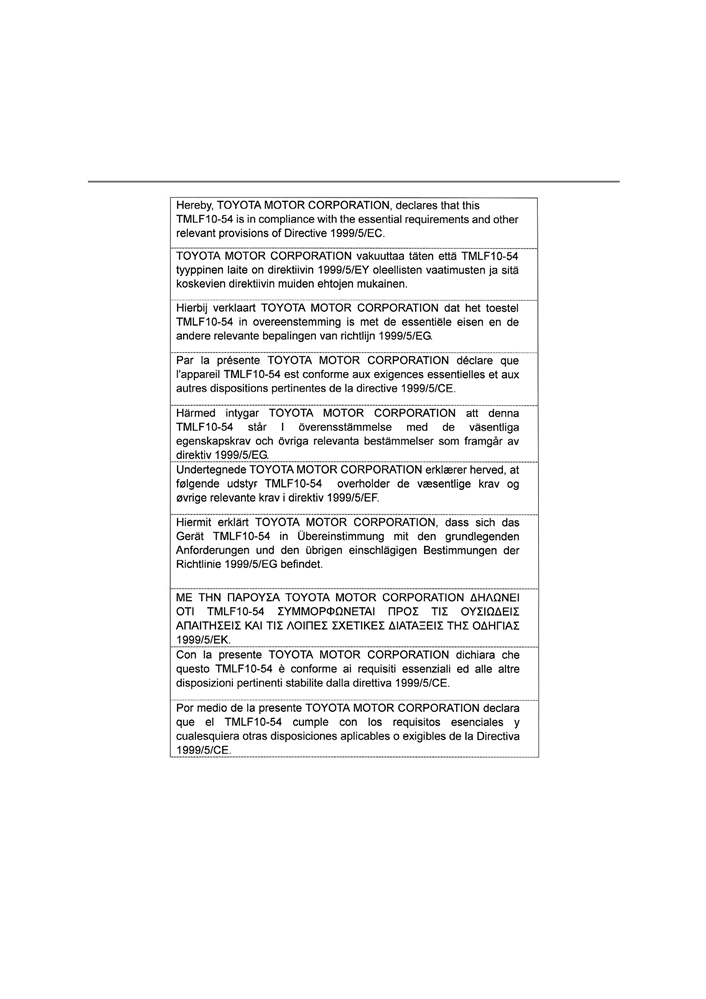

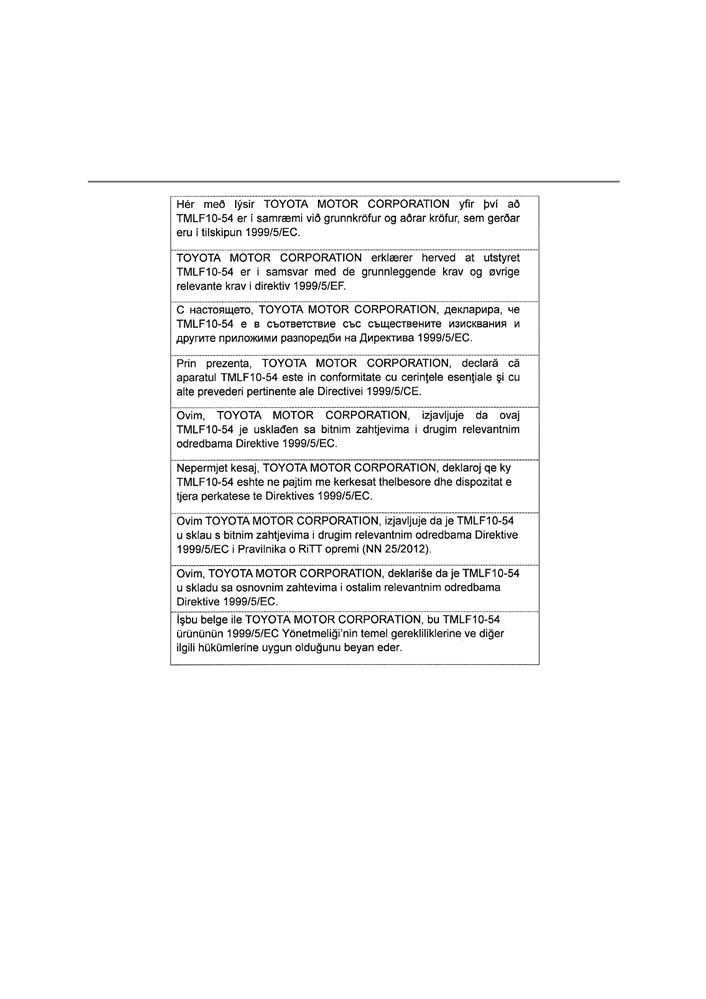

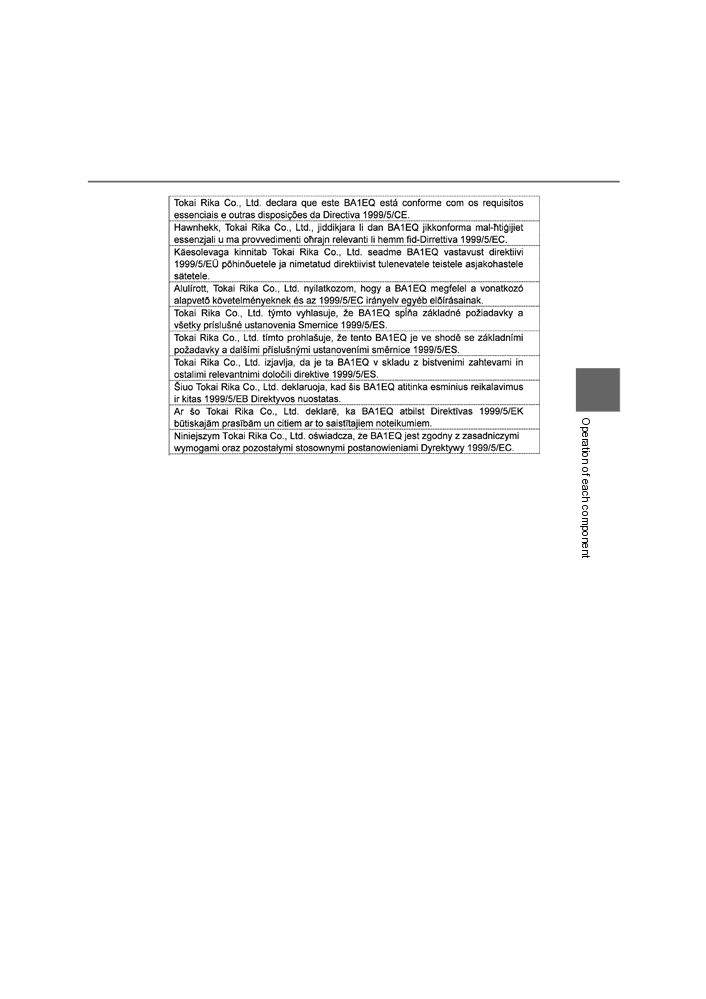

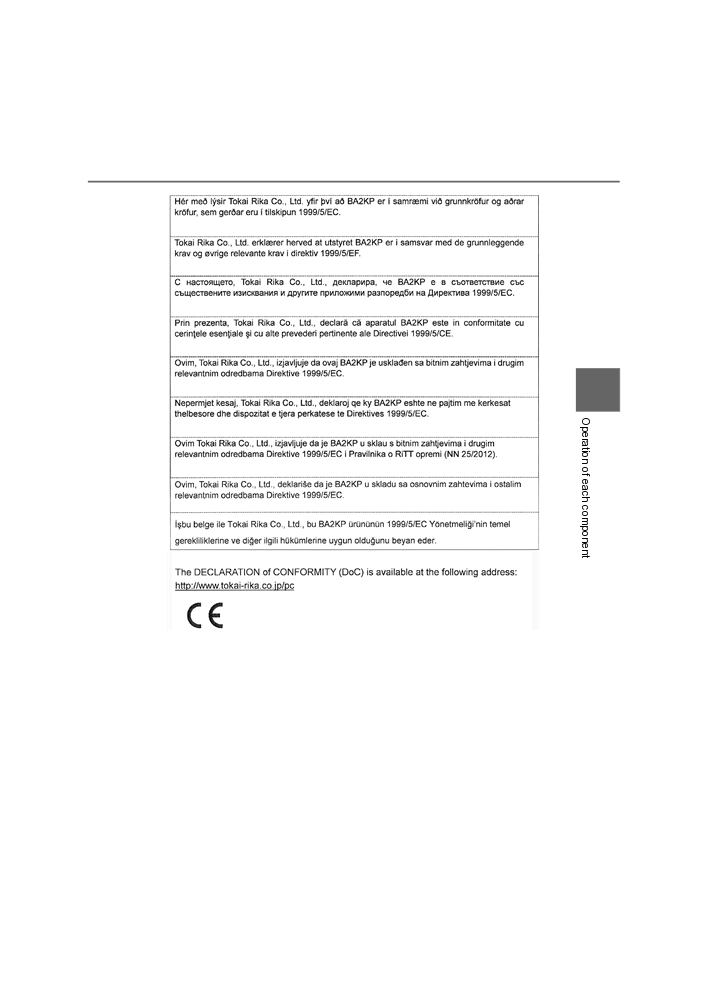

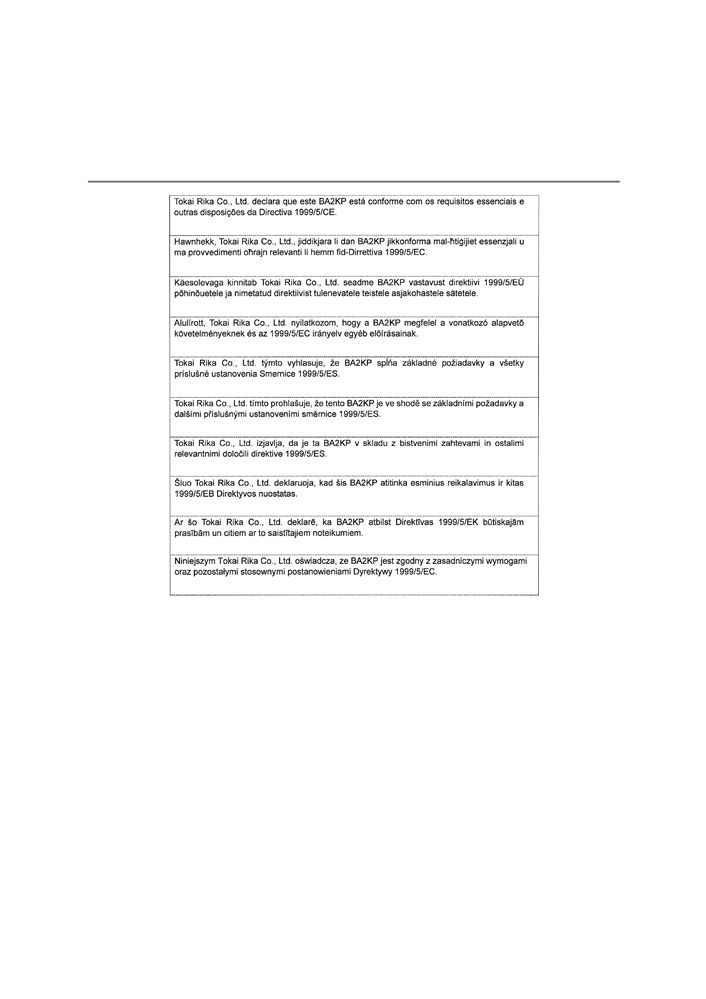

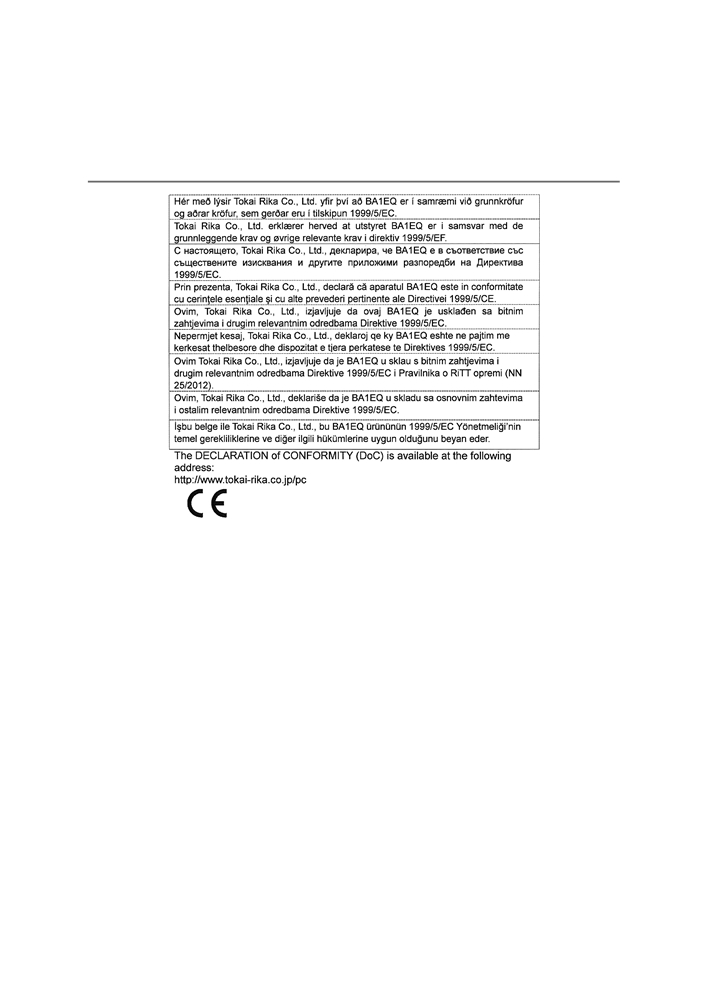

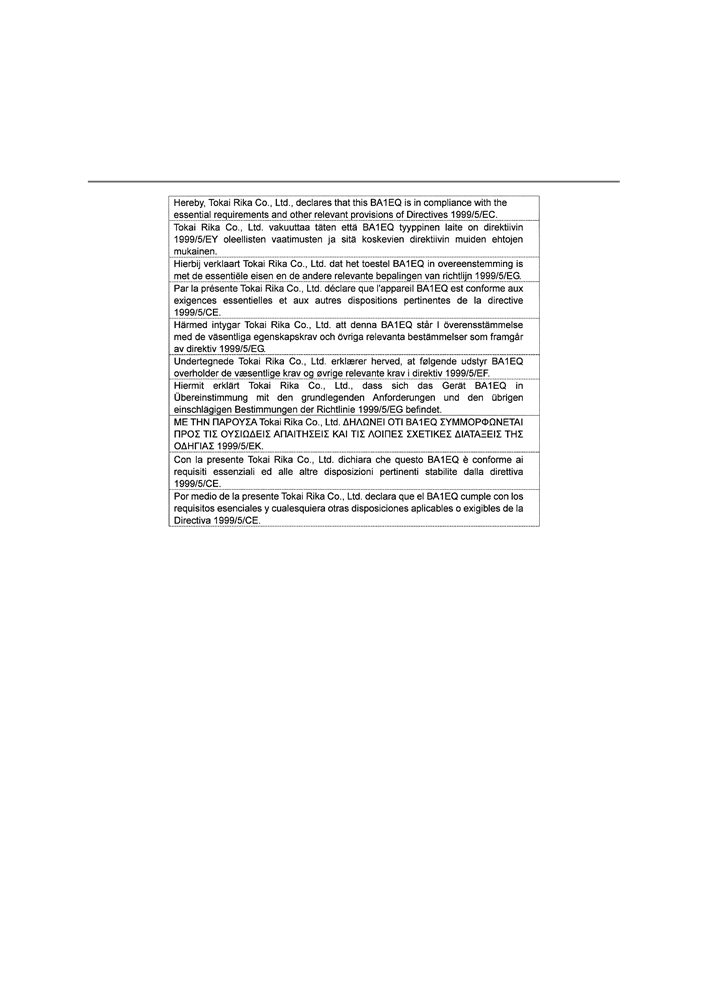

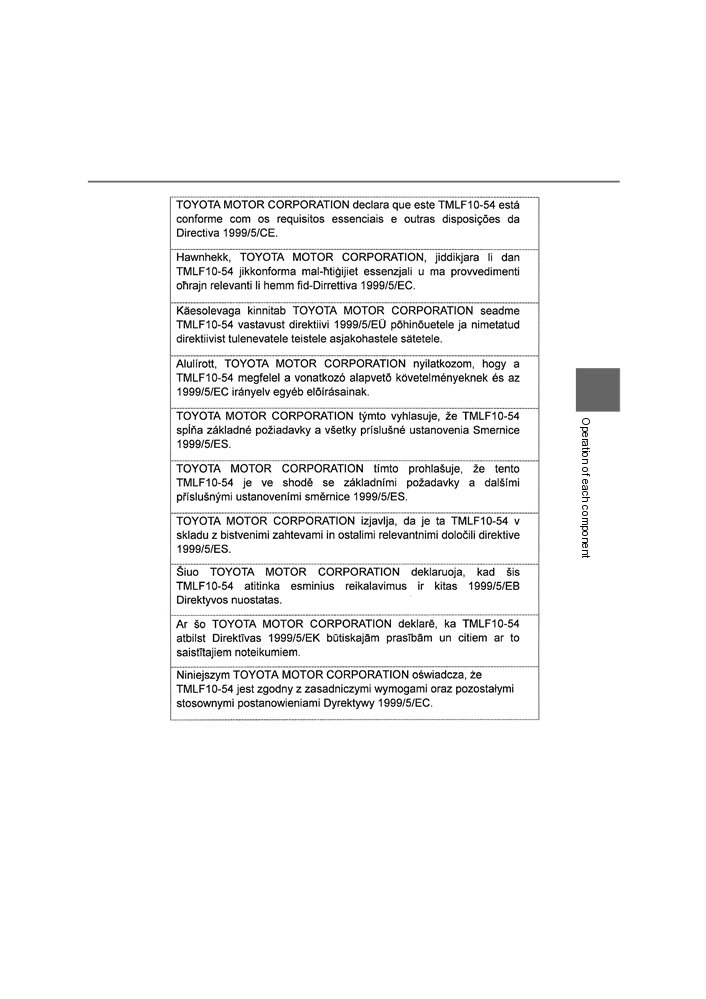

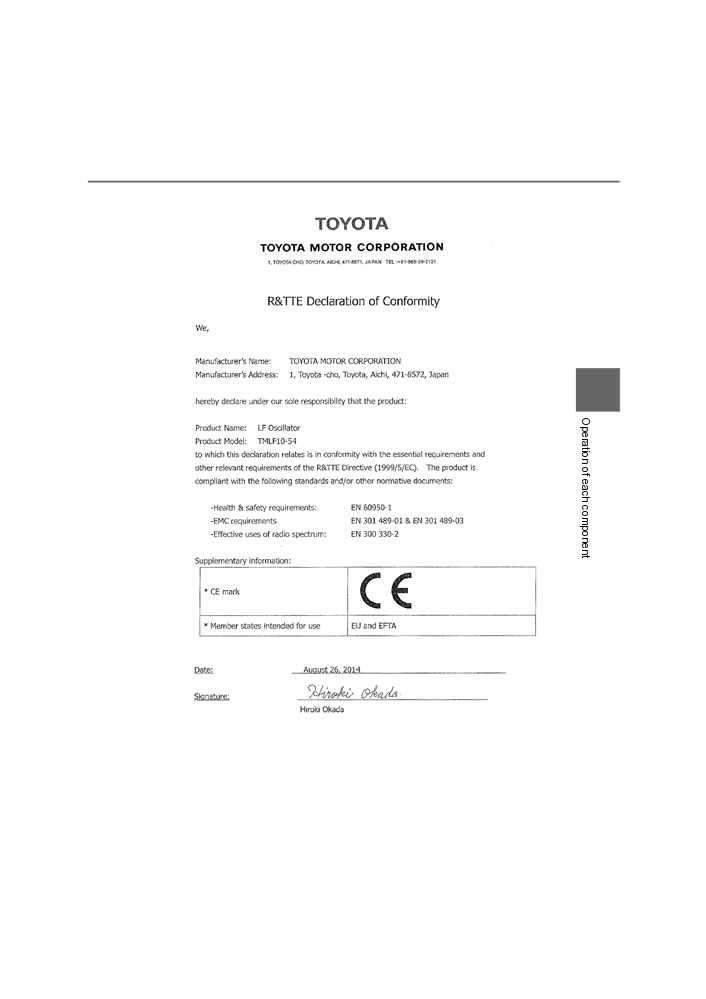

■ Certification for the smart entry & start system
3
PRIUS +_OM_OM47B24E_(EE)
160
3-2. Opening, closing and locking the doors
PRIUS +_OM_OM47B24E_(EE)
3-2. Opening, closing and locking the doors
161
3
PRIUS +_OM_OM47B24E_(EE)
162
3-2. Opening, closing and locking the doors
PRIUS +_OM_OM47B24E_(EE)
3-2. Opening, closing and locking the doors
163
3
PRIUS +_OM_OM47B24E_(EE)
164
3-2. Opening, closing and locking the doors
PRIUS +_OM_OM47B24E_(EE)
3-2. Opening, closing and locking the doors
165
3
PRIUS +_OM_OM47B24E_(EE)
166
3-2. Opening, closing and locking the doors
PRIUS +_OM_OM47B24E_(EE)
3-2. Opening, closing and locking the doors
167
3
PRIUS +_OM_OM47B24E_(EE)
168
3-2. Opening, closing and locking the doors
PRIUS +_OM_OM47B24E_(EE)
3-2. Opening, closing and locking the doors
169
WARNING
■ Caution regarding interference with electronic devices
●People with implantable cardiac pacemakers, cardiac resynchronization
therapy-pacemakers or implantable cardioverter defibrillators should main-
tain a reasonable distance between themselves and the smart entry &
start system antennas. (→P. 153)
The radio waves may affect the operation of such devices. If necessary,
the entry function can be disabled. Ask any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional for details,
such as the frequency of radio waves and timing of the emitted radio
waves. Then, consult your doctor to see if you should disable the entry
function.
●Users of any electrical medical device other than implantable cardiac
3
pacemakers, cardiac resynchronization therapy-pacemakers or implant-
able cardioverter defibrillators should consult the manufacturer of the
device for information about its operation under the influence of radio
waves.
Radio waves could have unexpected effects on the operation of such
medical devices.
Ask any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional for details on disabling the entry function.
On vehicles with the navigation system, the entry function can be disabled
personally. (→P. 477)
PRIUS +_OM_OM47B24E_(EE)
