2. Instrument cluster
119
■ Remaining hybrid battery (traction battery) charge display
The charge amount of the hybrid battery (traction battery) is automatically
controlled by the hybrid system. For this reason, even if electricity is recov-
ered via the regenerative braking, or electricity is generated via the gasoline
engine, the displayed hybrid battery (traction battery) charge amount may not
reach the highest level (level 8). However, this does not indicate a malfunc-
tion.
■ Engine speed
On hybrid vehicles, engine speed is precisely controlled in order to help
improve fuel efficiency and reduce exhaust emissions etc.
■ Brightness of the instrument panel light
2
If the headlight switch is turned to ON while the surrounding area is dark, the
instrument cluster lights will dim.
■ When disconnecting and reconnecting 12-volt battery terminals
The fuel consumption display and average vehicle speed will be reset.
NOTICE
■ To prevent damage to the engine and its components
The engine may be overheating if the high coolant temperature warning
light comes on or flashes. In this case, immediately stop the vehicle in a
safe place, and check the engine after it has cooled completely. (→P. 457)
■ The trip information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.
PRIUS +_OM_OM47B24E_(EE)
120
2. Instrument cluster
Multi-information display∗

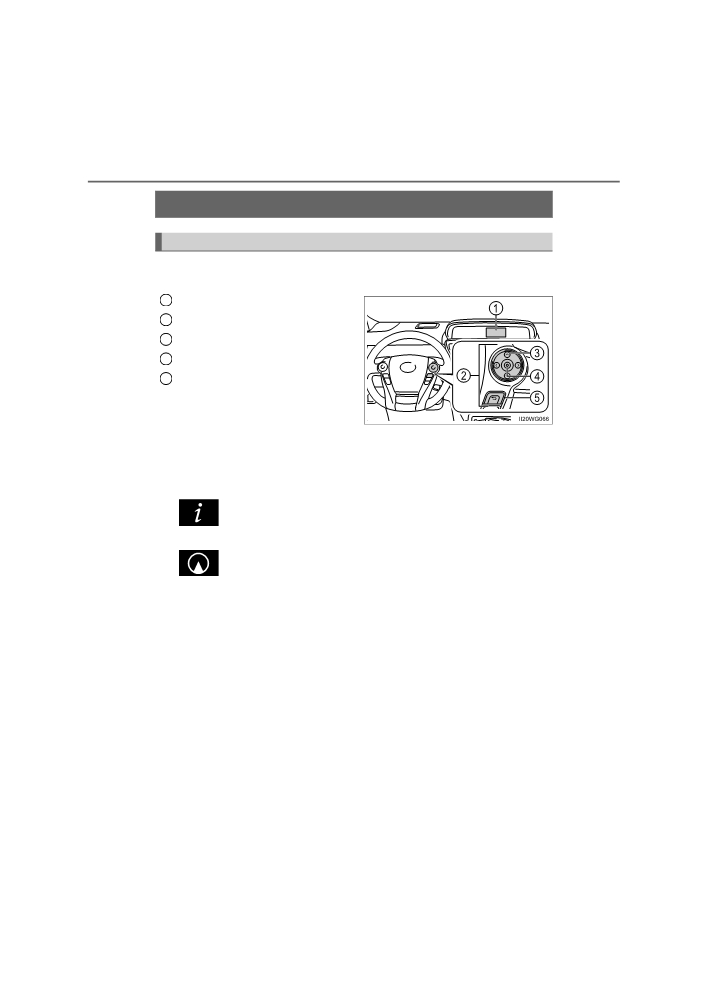

Display contents
The multi-information display presents the driver with a variety of vehi-
cle data.
1
Multi-information display
2
Meter control switches
3
Select an item/change pages
4
Enter/Set
5
Return to the previous screen
● Menu icons
Displays the following information when an icon is selected.
Some of the information may be displayed automatically depending
on the situation.
Drive information
Select to display various drive data. (→P. 122)
Navigation system-linked display (if equipped)
Select to display the following navigation system-linked information.
• Route guidance
• Compass display (north-up display/heading-up display)
∗: If equipped
PRIUS +_OM_OM47B24E_(EE)
2. Instrument cluster
121
Audio system-linked display (if equipped)
Select to enable selection of an audio source or track on the display
using the meter control switches.
Clock
Show the current time on the display.
Cruise control/Dynamic radar cruise control display
(if equipped)
2
Select to display the cruise control/dynamic radar cruise control infor-
mation, when the system is used. (→P. 235, 239)
The displayed icon changes depending on the system used.
Warning message display
Select to display warning messages and measures to be taken if a
malfunction is detected. (→P. 400)
Settings display
Select to change the meter display settings. (→P. 477)
PRIUS +_OM_OM47B24E_(EE)
122
2. Instrument cluster
Drive information
Items displayed can be switched by pressing
or
of the meter
control switches to select
and pressing
or
■ Energy monitor
The current vehicle hybrid system condition is displayed. (→P. 123)
■ Hybrid System Indicator
The hybrid system power output and regenerative charging condi-
tions are displayed. (→P. 116)
■ Eco score/Hybrid System Indicator
The eco-driving total count is displayed. (→P. 125)
■ Fuel consumption and instantaneous fuel consumption per
minute
The fuel consumption and instantaneous fuel consumption per
minute is displayed. (→P. 125)
■ Distance to empty/Average vehicle speed after hybrid system
started/Average fuel consumption after hybrid system started
The possible driving range estimated from the remaining fuel
amount, average vehicle speed after the hybrid system is started,
and average fuel consumption are displayed. (→P. 126)
■ OFF display
The OFF display is displayed.
PRIUS +_OM_OM47B24E_(EE)
2. Instrument cluster
123

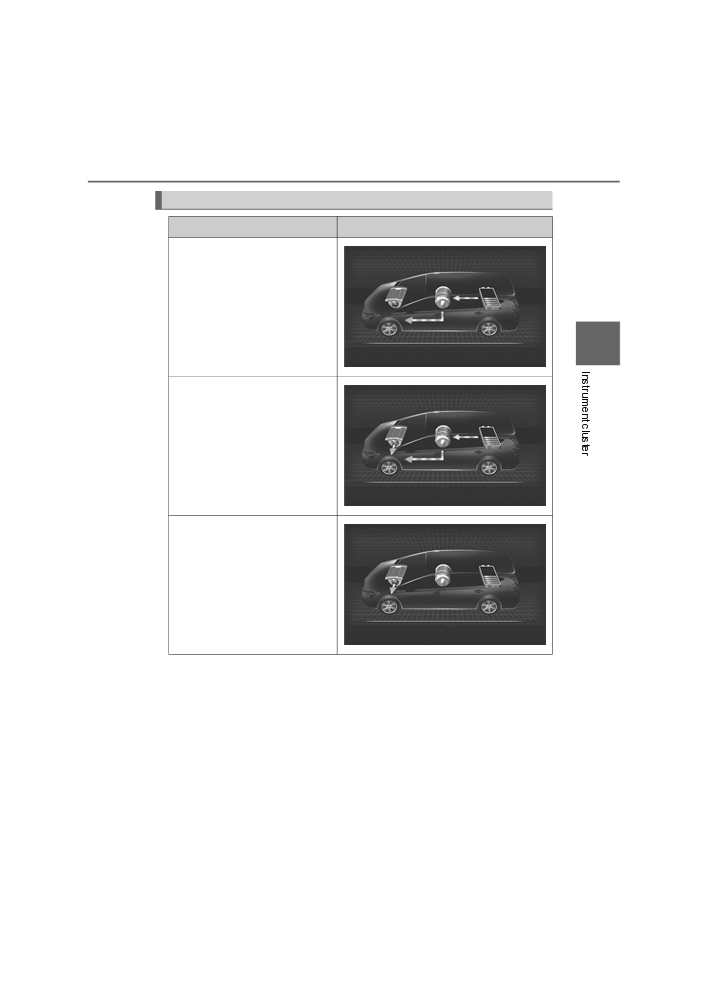

How to read the energy monitor
Energy monitor

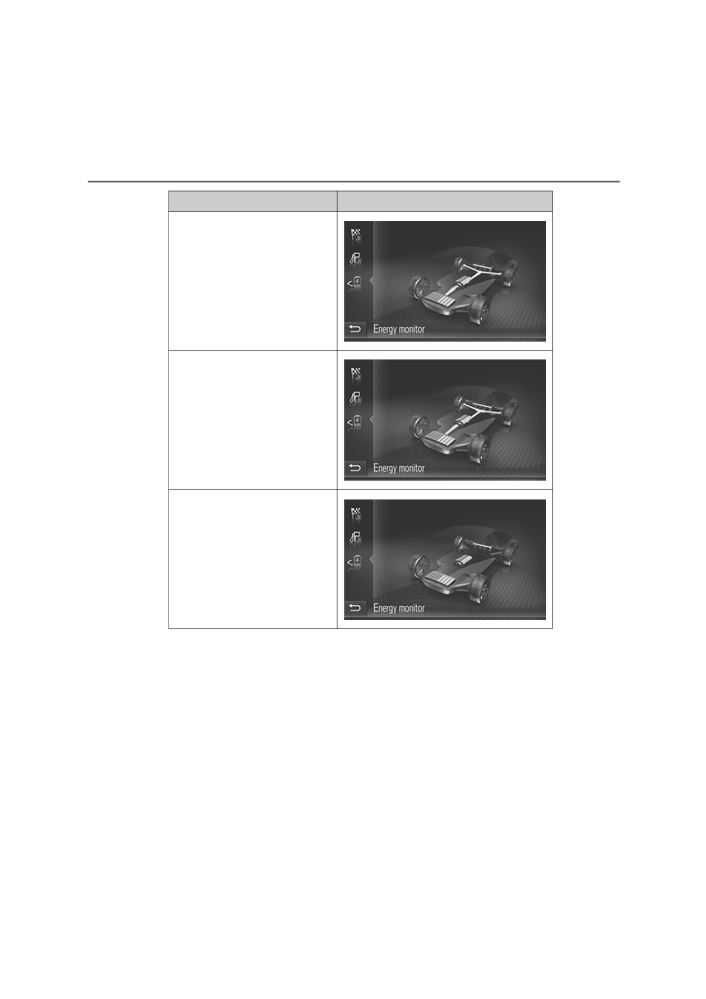

When the vehicle is powered by
the electric motor
(traction
motor)
2
When the vehicle is powered by
both the gasoline engine and
the electric motor
(traction
motor)
When the vehicle is powered by
the gasoline engine
PRIUS +_OM_OM47B24E_(EE)
124
2. Instrument cluster

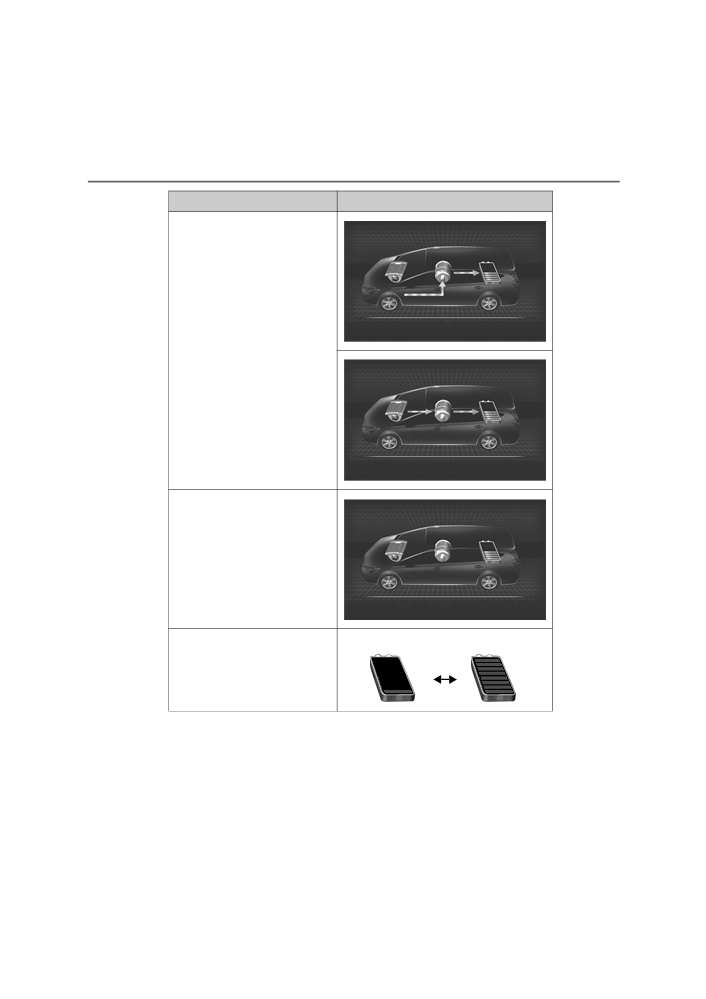

Energy monitor
When the vehicle is charging
the hybrid battery (traction bat-
tery)
When there is no energy flow
Low
Full
Hybrid battery (traction battery)
status
These images are examples only, and may vary slightly from actual
conditions.
PRIUS +_OM_OM47B24E_(EE)
2. Instrument cluster
125

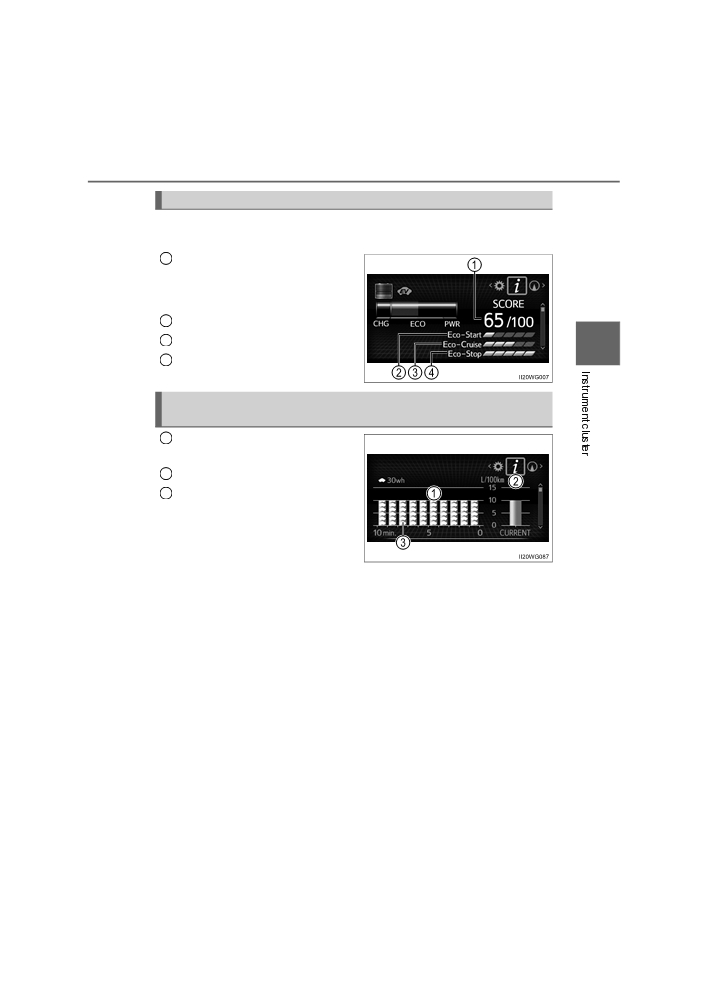

How to read the Eco score
Displays the eco-driving total count to help improve the customer’s
eco-driving techniques and the vehicle’s fuel economy.
1
Score
Totals the counts of Eco-Start, Eco-
Cruise and Eco-Stop and displays
the result.
2
Eco-Start
3
Eco-Cruise
2
4
Eco-Stop
How to read the fuel consumption and instantaneous fuel con-
sumption per minute
1
Fuel consumption in the past 10
minutes
2
Current fuel consumption
3
Regenerated energy in the past
10 minutes
One symbol indicates 30 Wh.
Up to 10 symbols are shown.
PRIUS +_OM_OM47B24E_(EE)
126
2. Instrument cluster

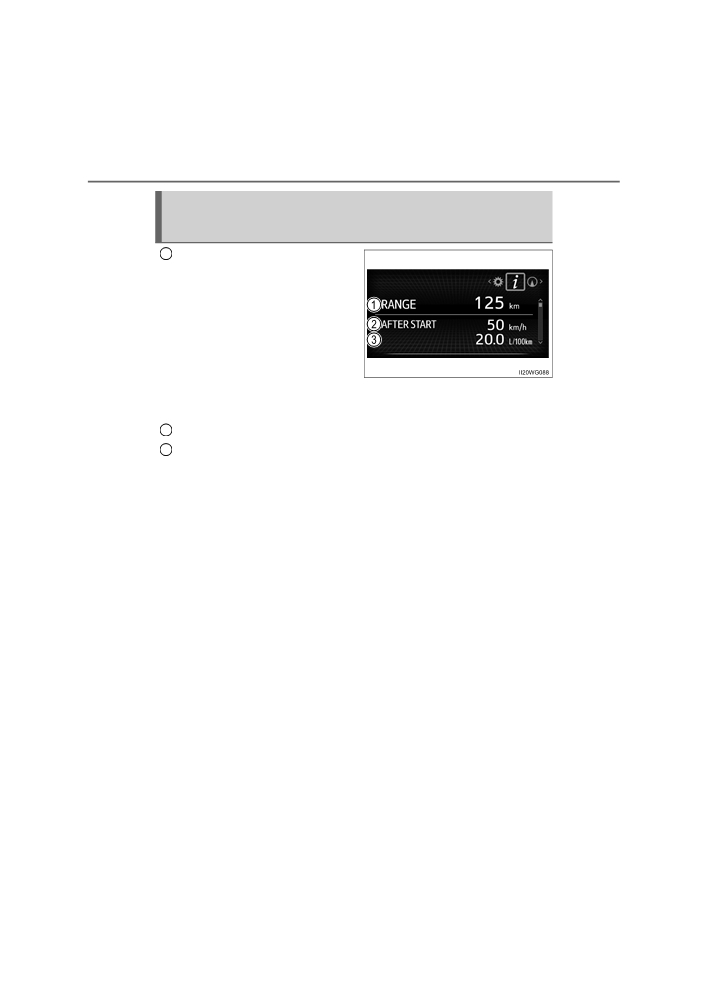

How to read the distance to empty/Average vehicle speed after
hybrid system started/Average fuel consumption after hybrid
system started
1
Distance to empty
• Since it is calculated based on
the average fuel consumption in
the past, it may not be the actual
distance that can be driven to be
displayed.
• When only a small amount of fuel
is added to the tank, the display
may not be updated. When refu-
eling, turn the power switch off. If
the vehicle is refueled without
turning the power switch off, the
display may not be updated.
2
Average vehicle speed after hybrid system started
3
Average fuel consumption after hybrid system started
• Use the displayed average fuel consumption as a reference.
• These images are examples only, and may vary slightly from actual con-
ditions.
PRIUS +_OM_OM47B24E_(EE)
2. Instrument cluster
127
■ System check display
After turning the power switch to ON mode, opening image is displayed while
system operation is checked. When the system check is complete, the nor-
mal screen will return.
■Pop-up display
When a system that supports pop-up displays, such as the air conditioning
system, is operated, a pop-up display will be temporarily displayed.
■ When disconnecting and reconnecting 12-volt battery terminals
The fuel consumption display and average vehicle speed will be reset.
■ Liquid crystal display
2
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.
■ Meter display setting initialization
1
Press
or
on the meter control switch to select
, and then
press
2
Press
or
to select meter setting initialization, press
, and then
select “YES”.
■ Customization
The meter settings can be changed.
(Customizable features: →P. 477)
NOTICE
■ The multi-information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.
PRIUS +_OM_OM47B24E_(EE)
128
2. Instrument cluster
Head-up display∗
The head-up display can be used to project vehicle speed and
other information onto the windshield.

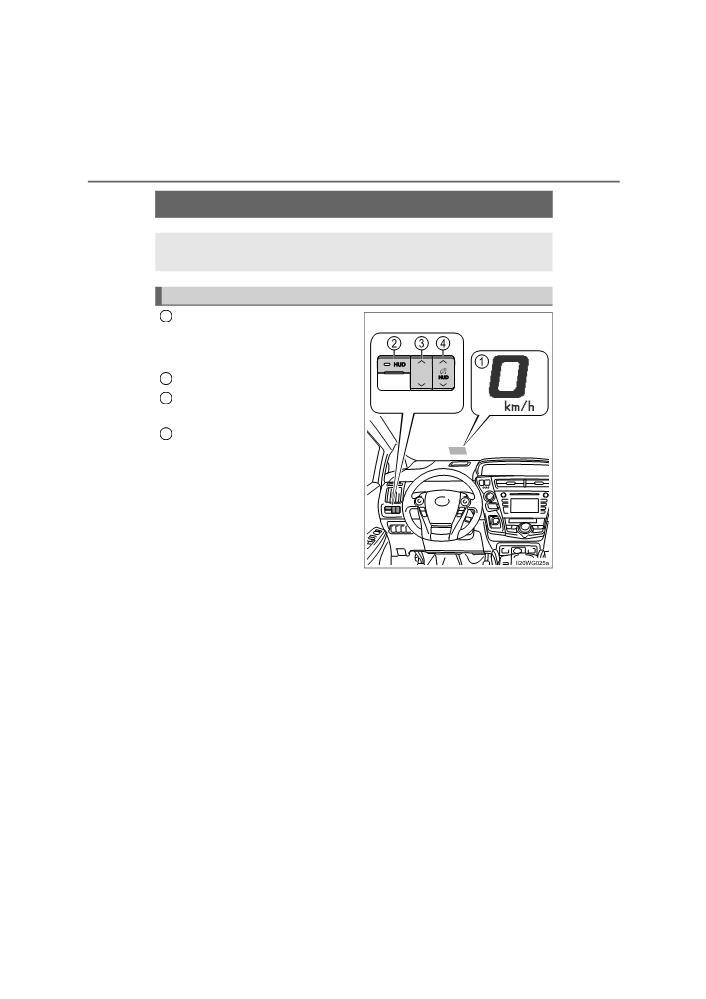

Summary of functions
1
Head-up display
Display brightness will change
automatically according to the
brightness of the surrounding area.
2
“HUD” (Head-up display) switch
3
Display position adjustment
switch
4
Display brightness adjustment
switch
Used to adjust the display bright-
ness to the desired level.
∗: If equipped
PRIUS +_OM_OM47B24E_(EE)
2. Instrument cluster
129
■ Head-up display contents
● Vehicle speed
● Approach warning display (dynamic radar cruise control)
(if
equipped) (→P. 401)
● Pre-crash warning message
(pre-crash safety system)
(if
equipped) (→P. 401)

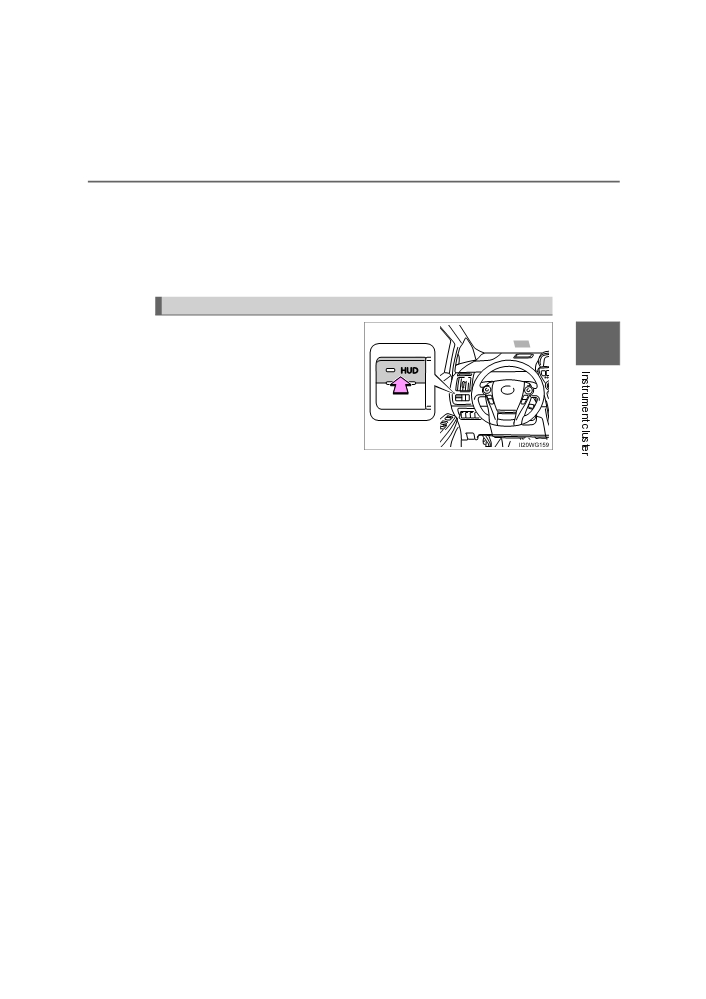

Switching the head-up display
On/off
2
When on, the indicator light on the
“HUD” switch comes on.
PRIUS +_OM_OM47B24E_(EE)
130
2. Instrument cluster
Setting up the display

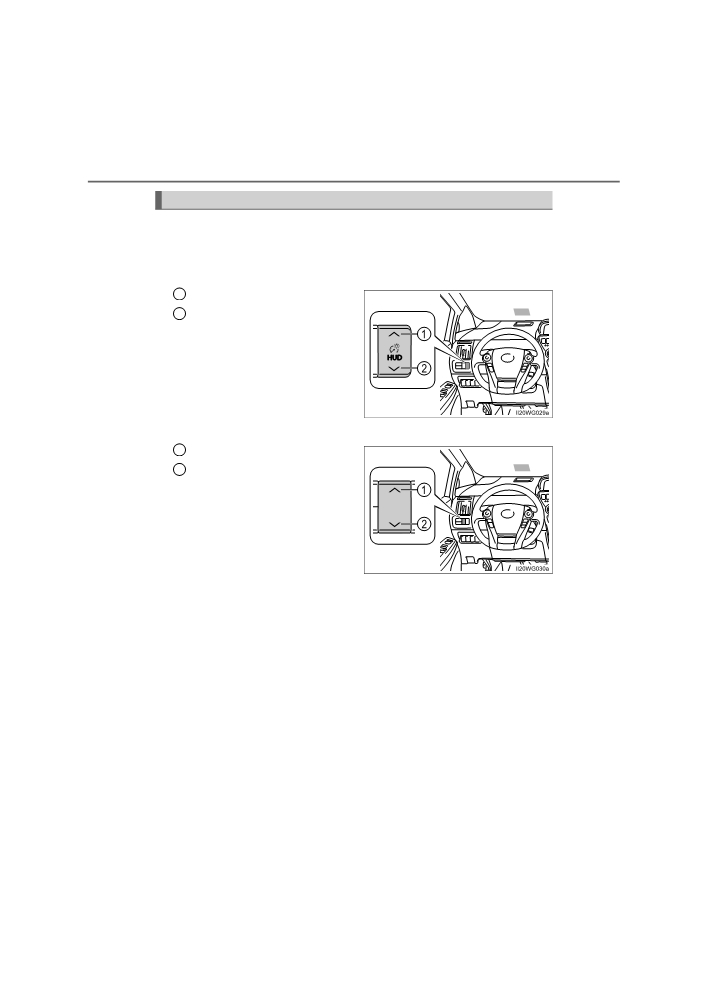

■ Setting the brightness
The brightness of the display is automatically adjusted in accor-
dance with the brightness of the surrounding environment. How-
ever, the brightness can also be manually adjusted in 5 stages.
1
Brighter
2
Darker
■ Adjusting the display position
1
Higher
2
Lower
PRIUS +_OM_OM47B24E_(EE)
2. Instrument cluster
131
■ System check display
After switching the power switch to ON mode, system operation is checked.
When the system check is complete, the normal screen will return.
■When driving on snowy roads or in other bright environments
When the highest level of brightness has been reached, the display can be
made even brighter by pressing and holding “∧” on the brightness control but-
ton.
Pressing “∨” on the brightness control button or turning the power switch off
will cause the brightness level to revert to the original level.
■ Head-up display
2
● The head-up display may seem dark and hard to see when viewed through
sunglasses, especially polarized sunglasses.
Adjust the brightness of the head-up display or remove your sunglasses.
● When the head-up display is turned off, it will remain off even if the power
switch is turned to ON mode after the power switch has been turned off.
■ When the 12-volt battery is disconnected
The head-up display settings will be reset.
PRIUS +_OM_OM47B24E_(EE)
132
2. Instrument cluster

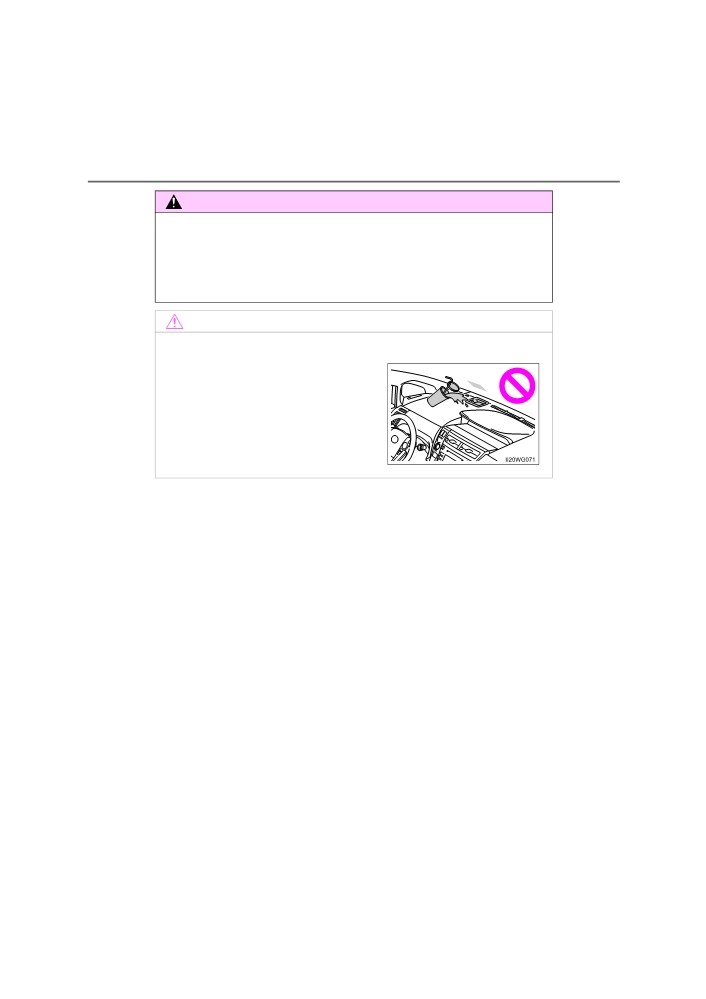

WARNING
■ Before using the head-up display
Check that the position and brightness of the head-up display image does
not interfere with safe driving. Incorrect adjustment of the image’s position
or brightness may obstruct the driver’s view and lead to an accident, result-
ing in death or serious injury.
NOTICE
■ To prevent damage to the components
If an object falls into the opening of the
head-up display, remove it immediately.
Also, avoid spilling water or other liquids
near the head-up display opening as this
may cause mechanical damage.
PRIUS +_OM_OM47B24E_(EE)
2. Instrument cluster
133

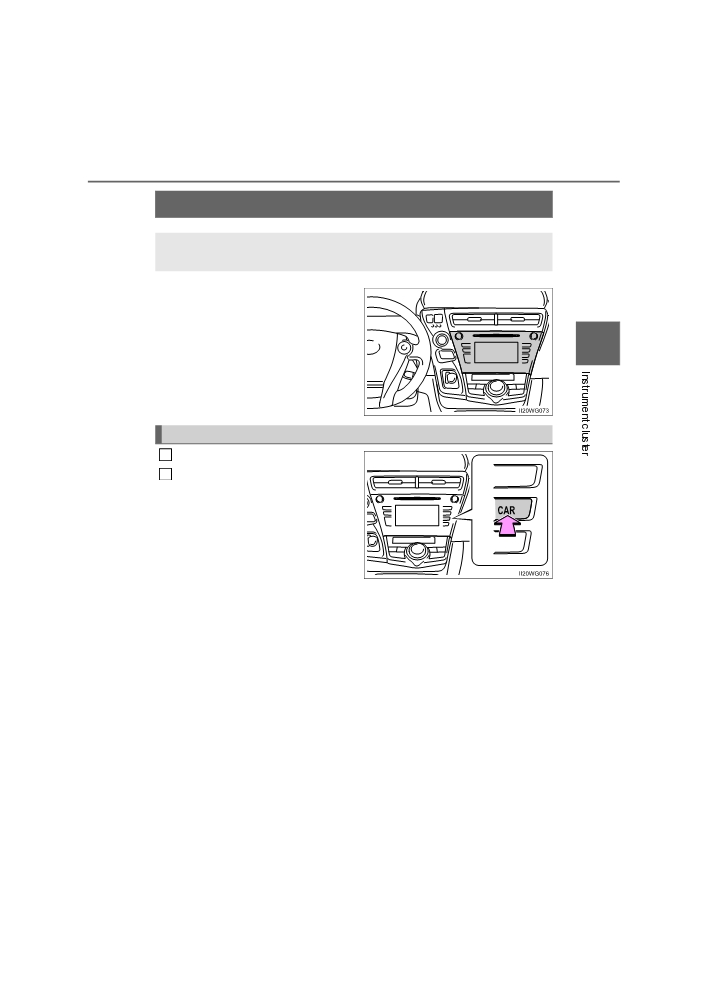

Energy monitor/consumption screen
You can view the status of your hybrid system on the audio sys-
tem screen.
Audio system
2
Energy monitor
1
Press the “CAR”.
2
Select “Energy monitor” on the
“CAR” screen.
PRIUS +_OM_OM47B24E_(EE)
134
2. Instrument cluster
Audio system screen
When the vehicle is powered by
the electric motor
(traction
motor)
When the vehicle is powered by
both the gasoline engine and
the electric motor
(traction
motor)
When the vehicle is powered by
the gasoline engine
PRIUS +_OM_OM47B24E_(EE)
2. Instrument cluster
135

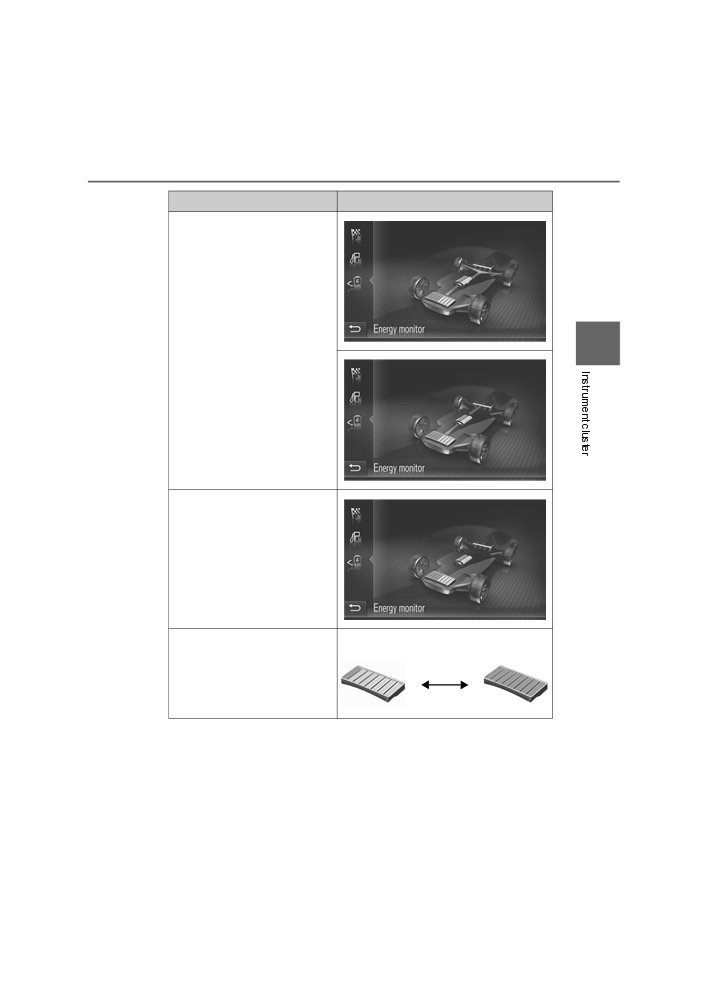

Audio system screen
When the vehicle is charging
2
the hybrid battery (traction bat-
tery)
When there is no energy flow
Low
Full
Hybrid battery (traction battery)
status
These images are examples only, and may vary slightly from actual
conditions.
PRIUS +_OM_OM47B24E_(EE)
