About iPod

●

“Made for iPod” and “Made for iPhone” mean that an electronic acces-
sory has been designed to connect specifically to iPod, or iPhone,
respectively, and has been certified by the developer to meet Apple per-
formance standards.

●

Apple is not responsible for the operation of this device or its compliance
with safety and regulatory standards. Please note that the use of this
accessory with iPod or iPhone may affect wireless performance.

●

iPhone, iPod, iPod classic, iPod nano and iPod touch are trademarks of
Apple Inc., registered in the U.S. and other countries.

■

iPod functions

●

When an iPod is connected and the audio source is changed to iPod
mode, the iPod will resume play from the same point in which it was last
used.

●

Depending on the iPod that is connected to the system, certain functions
may not be available. If a function is unavailable due to a malfunction (as
opposed to a system specification), disconnecting the device and recon-
necting it once again may resolve the problem.

●

While connected to the system, the iPod cannot be operated with its own
controls. It is necessary to use the controls of the vehicle’s audio system
instead.

231

3-2. Using the audio system

Inte
rior fea

tures

MATRIX_U

■

iPod problems

To resolve most problems encountered when using your iPod, disconnect
your iPod from the vehicle iPod connection and reset it.
For instructions on how to reset your iPod, refer to your iPod Owner's Man-
ual.

■

Display
→P. 211

■

Error messages

“iPod ERROR”:

This indicates that the data in the iPod cannot be read.

“ERROR 3”:

This indicates that the iPod may be malfunctioning.

“ERROR 4”:

This indicates that an overcurrent error has occurred.

“ERROR 5”:

This indicates that an iPod communication error has
occurred.

“ERROR 6”:

This indicates that an authentication error has occurred.

“NO SONGS”:

This indicates that there is no music data in the iPod.

“NO PLAYLIST”: This indicates that some available songs are not found in

a selected playlist.

“UPDATE YOUR iPOD”: This indicates that the version of the iPod is not

compatible. Upgrade your iPod software to the lat-
est version.

232

3-2. Using the audio system

MATRIX_U

■

Compatible models

The following iPod



, iPod nano



, iPod classic



, iPod touch



and iPhone



devices can be used with this system.

●

Made for

• iPod touch (4th generation)
• iPod touch (3rd generation)
• iPod touch (2nd generation)
• iPod touch (1st generation)
• iPod classic
• iPod with video
• iPod nano (6th generation)
• iPod nano (5th generation)
• iPod nano (4th generation)
• iPod nano (3rd generation)
• iPod nano (2nd generation)
• iPod nano (1st generation)
• iPhone 4
• iPhone 3GS
• iPhone 3G
• iPhone

Depending on differences between models or software versions etc., some
models might be incompatible with this system.

Items related to standards and limitations are as follows:

●

Maximum number of lists in device: 9999

●

Maximum number of songs in device: 65535

●

Maximum number of songs per list: 65535

CAUTION

■

Caution while driving

Do not connect the iPod or operate the controls.

233

3-2. Using the audio system

Inte
rior fea

tures

MATRIX_U

NOTICE

■

To prevent damage to iPod

●

Do not leave the iPod in the vehicle. The temperature inside may become
high, resulting in damage to the player.

●

Do not push down on or apply unnecessary pressure to the iPod while it is
connected as this may damage the iPod or its terminal.

●

Do not insert foreign objects into the port as this may damage the iPod or
its terminal.

234

3-2. Using the audio system

MATRIX_U

Operating a USB memory

∗

Connecting a USB memory enables you to enjoy music from the
vehicle speakers.

■

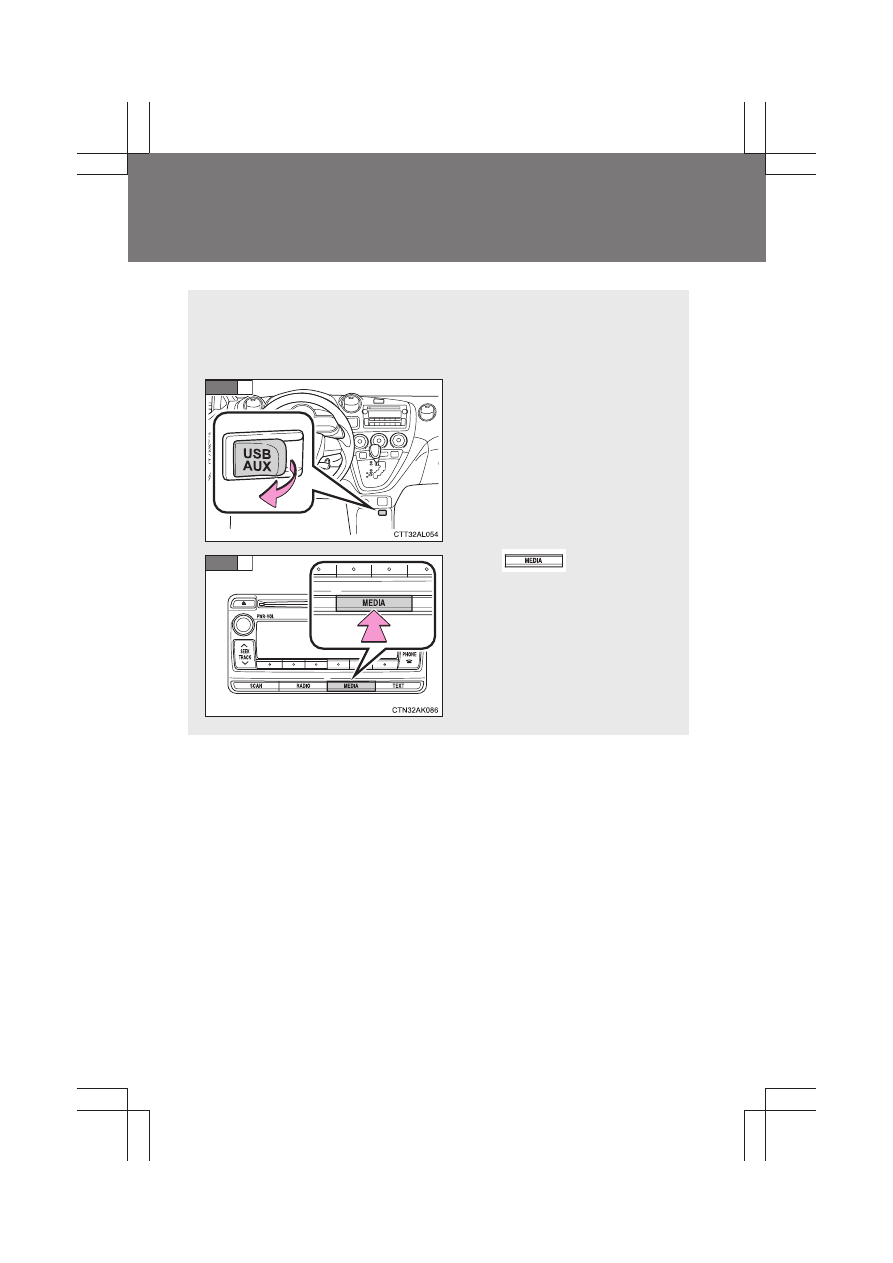

Connecting a USB memory

Open the cover and connect a
USB memory.

Turn on the power of the USB
memory if it is not turned on.

Press .

STEP

∗

: If equipped

235

3-2. Using the audio system

Inte
rior fea

tures

MATRIX_U

■

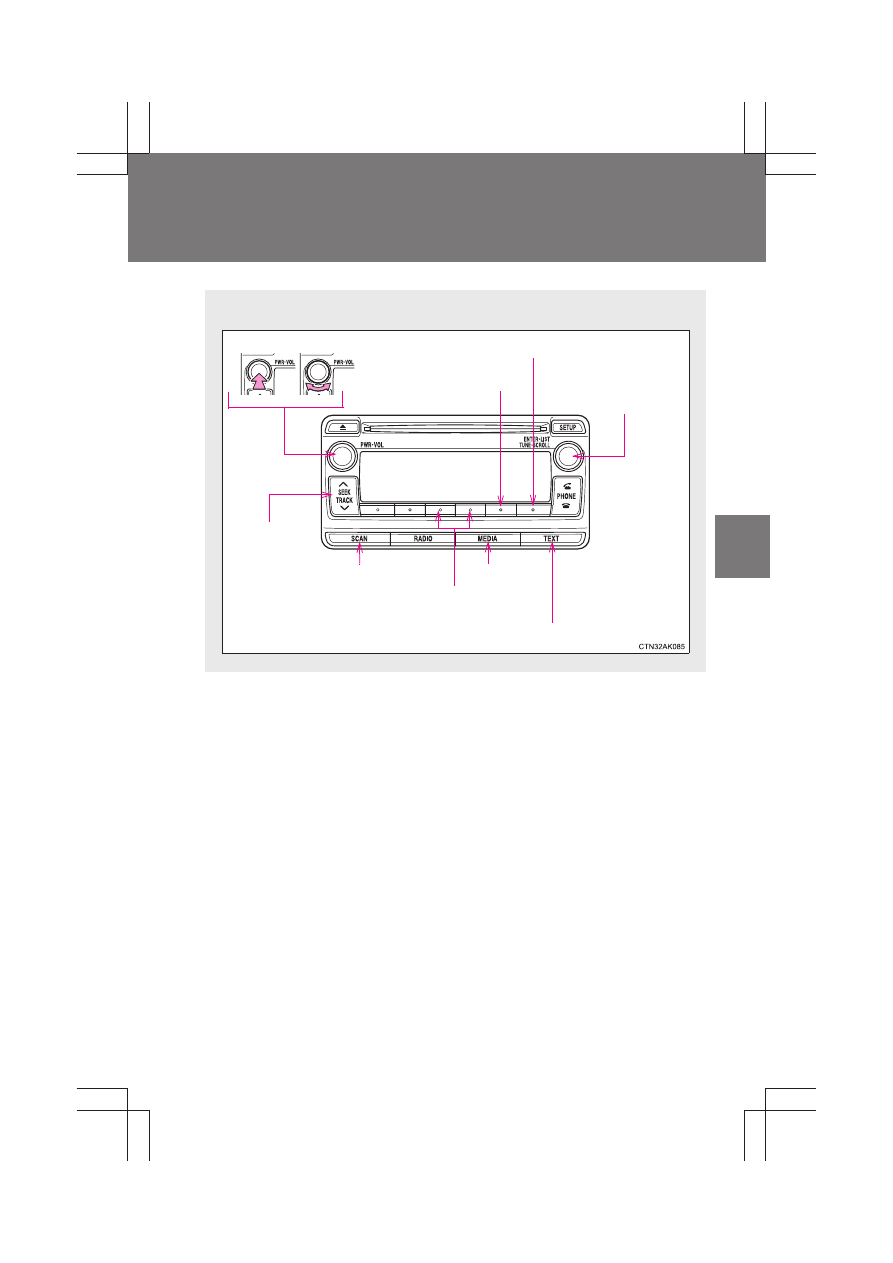

Control panel

Volume

Power

Selecting a file
or displays
folder list

Random playback

Repeat play

Playback

Search playback

Displays text message

Selecting a folder,
fast-forwarding and rewinding

Selecting a
track

236

3-2. Using the audio system

MATRIX_U

Selecting a folder

■

Selecting folders one at a time

To select the desired folder, press

(

) or

(

■

Selecting a folder and file from a folder list

Press .

The folder list will be displayed.

Turn and press

to select a folder and a file.

To return to the previous display, press

(BACK).

■

Returning to the first folder

Press and hold

(

) until you hear a beep.

Scanning a folder

Press and hold

until you hear a beep.

The first 10 seconds of the first file in the each folder will be played.

When the desired folder is reached, press

again.

Selecting files

Turn

, or press “

∧” or “∨” on

to select the desired file.

STEP

237

3-2. Using the audio system

Inte
rior fea

tures

MATRIX_U

Scanning files

Press .

The first 10 seconds of all files in the folder will be played.

When the desired file is reached, press

again.

Fast-forwarding and reversing files

→P. 229

Random playback

Pressing

(RDM) changes modes in the following order:

Folder random

→ Disc random → Off

Repeat play

Pressing

(RPT) changes modes in the following order:

File repeat

→ Folder repeat* → Off

*: Available except when RDM (random playback) is selected

Switching the display

Press .

Track title, Artist name and Album title (MP3 only) are shown on the dis-
play.

To return to the previous display, press

(BACK).

STEP

238

3-2. Using the audio system

MATRIX_U

■

USB memory functions

●

Depending on the USB memory that is connected to the system, the
device itself may not be operable and certain functions may not be avail-
able. If the device is inoperable or a function is unavailable due to a mal-
function (as opposed to a system specification), disconnecting the device
and reconnecting it once again may resolve the problem.

●

If the USB memory still does not begin operation after being discon-
nected and reconnected, format the memory.

■

Display
→P. 212

■

Error messages

“ERROR”:

This indicates a problem in the USB memory or its connection.

“NO MUSIC”: This indicates that no MP3/WMA files are included in the USB

memory.

■

USB memory

●

Compatible device

USB memory that can be used for MP3 and WMA playback.

●

Compatible device formats

The following device formats can be used:

• USB communication formats: USB2.0 FS (12 mbps)
• File formats: FAT16/32 (Windows)
• Correspondence class: Mass storage class
MP3 and WMA files written in any format other than those listed above
may not play correctly, and their file names and folder names may not be
displayed correctly.

Items related to standards and limitations are as follows:

• Maximum directory hierarchy: 8 levels
• Maximum number of folder in device: 999 (including the root)
• Maximum number of files in device: 9999
• Maximum number of files per folder: 255

239

3-2. Using the audio system

Inte
rior fea

tures

MATRIX_U

●

MP3 and WMA files

MP3 (MPEG Audio LAYER 3) is a standard audio compression format.

Files can be compressed to approximately 1/10 of their original size using
MP3 compression.

WMA (Windows Media Audio) is a Microsoft audio compression format.

This format compresses audio data to a size smaller than that of the MP3
format.

There is a limit to the MP3 and WMA file standards that can be used and to
the media/formats on which the files are recorded.

●

MP3 file compatibility

• Compatible standards

MP3 (MPEG1 AUDIO LAYERII, III, MPEG2 AUDIO LAYERII, III,
MPEG2.5)

• Compatible sampling frequencies

MPEG1 AUDIO LAYERII, III: 32, 44.1, 48 (kHz)
MPEG2 AUDIO LAYERII, III: 16, 22.05, 24 (kHz)
MPEG2.5: 8, 11.025, 12 (kHz)

• Compatible bit rates (compatible with VBR)

MPEG1 AUDIO LAYERII, III: 32-320 (kbps)
MPEG2 AUDIO LAYERII, III: 32-160 (kbps)
MPEG2.5: 32-160 (kbps)

• Compatible channel modes: stereo, joint stereo, dual channel and

monaural

●

WMA file compatibility

• Compatible standards

WMA Ver. 7,8,9

• Compatible sampling frequencies

HIGH PROFILE 32, 44.1, 48 (kHz)

• Compatible bit rates

HIGH PROFILE 32-320 (kbps, VBR)

●

File names

The only files that can be recognized as MP3/WMA and played are those
with the extension .mp3 or .wma.

240

3-2. Using the audio system

MATRIX_U

●

ID3 and WMA tags

ID3 tags can be added to MP3 files, making it possible to record the track
title, artist name, etc.

The system is compatible with ID3 Ver. 1.0, 1.1, and Ver. 2.2, 2.3, 2.4 ID3
tags. (The number of characters is based on ID3 Ver. 1.0 and 1.1.)

WMA tags can be added to WMA files, making it possible to record the
track title and artist name in the same way as with ID3 tags.

●

MP3 and WMA playback

When a device containing MP3 or WMA files is plugged in, all files in the
USB memory device are first checked. Once the file check is finished, the
first MP3 or WMA file is played. To make the file check finish more quickly,
we recommend you do not write in any files other than MP3 or WMA files
or create any unnecessary folders.

●

Extensions

If the file extensions .mp3 and .wma are used for files other than MP3 and
WMA files, they will be mistakenly recognized and played as MP3 and
WMA files. This may result in large amounts of interference and damage
to the speakers.

●

Playback

• To play MP3 files with steady sound quality, we recommend a fixed bit

rate of at least 128 kbps and a sampling frequency of 44.1 kHz.

• There is a wide variety of freeware and other encoding software for

MP3 and WMA files on the market, and depending on the status of the
encoding and the file format, poor sound quality or noise at the start of
playback may result. In some cases, playback may not be possible at
all.

• Microsoft, Windows, and Windows Media are the registered trade-

marks of Microsoft Corporation in the U.S.A. and other countries.

CAUTION

■

Caution while driving

Do not use a USB memory, or connect a USB memory.

241

3-2. Using the audio system

Inte
rior fea

tures

MATRIX_U

NOTICE

■

To prevent damage to a USB memory

●

Do not leave a USB memory in the vehicle. The temperature inside may
become high, resulting in damage to the player.

●

Do not push down on or apply unnecessary pressure to the USB memory
while it is connected as this may damage the USB memory or its terminal.

●

Do not insert foreign objects into the port as this may damage the USB
memory or its terminal.

243

3-2. Using the audio system

Inte
rior fea

tures

MATRIX_U

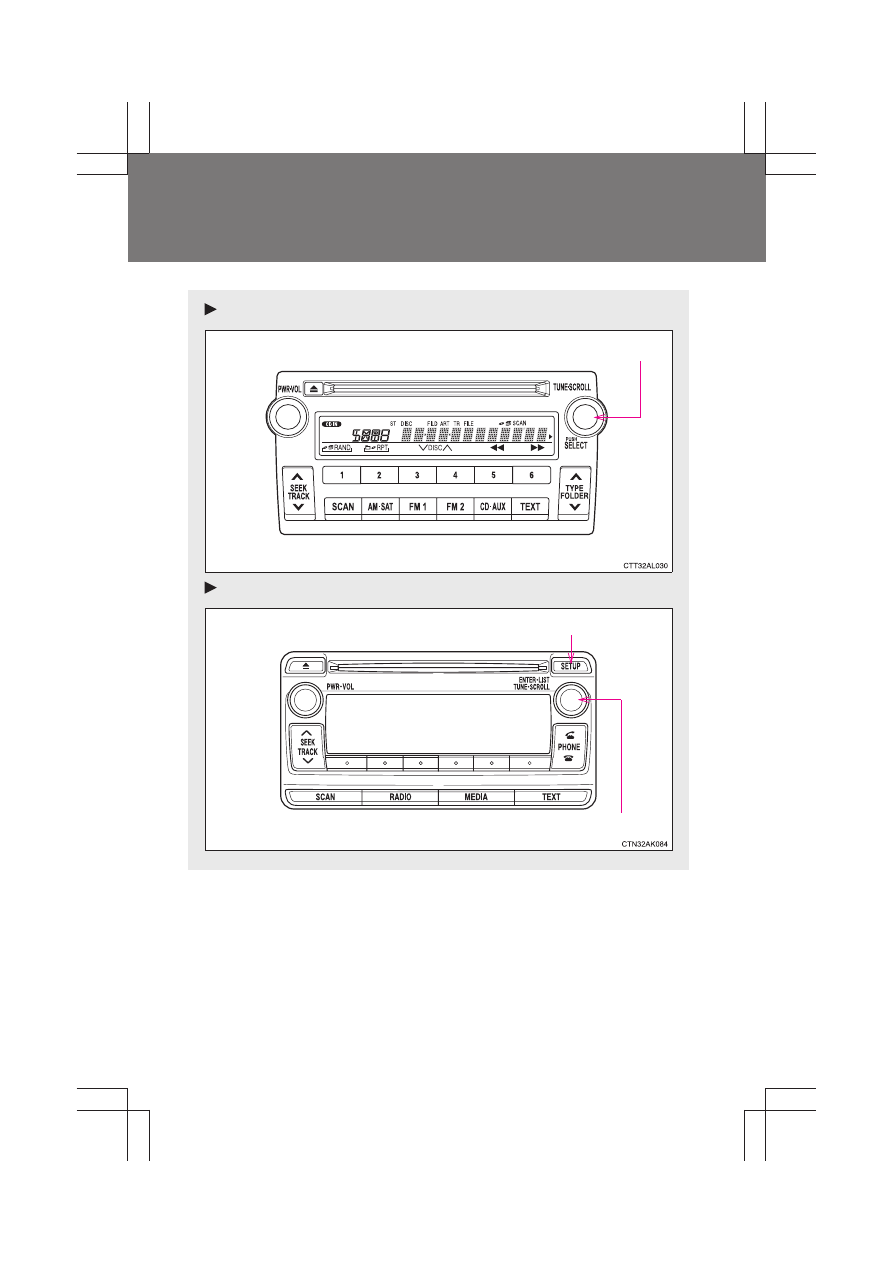

Using the audio control function

■

Changing sound quality modes
Type A

Pressing

selects the mode to be changed in the following

order.

“BAS”

→“TRE”→“FAD”→“BAL”→“ASL”

Type B

Press .

Turn

to select “Sound Setting”.

Press .

Turn

to select the desired mode.

“BASS”,

“TREBLE”, “FADER”, “BALANCE”, or “ASL”

Press .

STEP

244

3-2. Using the audio system

MATRIX_U

■

Adjusting sound quality

Turning

adjusts the level.

Type A

*: The sound quality level is adjusted individually in each radio mode or

CD mode.

Mode

displayed

Sound qual-

ity mode

Level

Turn to the

left

Turn to the

right

“BAS”

Bass*

-5 to 5

Low

High

“TRE”

Treble*

-5 to 5

“FAD”

Front/rear

volume

balance

R7 to F7

Shifts to rear

Shifts to

front

“BAL”

Left/right

volume

balance

L7 to R7

Shifts to left Shifts to right

245

3-2. Using the audio system

Inte
rior fea

tures

MATRIX_U

Type B

*: The sound quality level is adjusted individually in each audio mode.

■

Adjusting the Automatic Sound Levelizer (ASL)

When “ASL” is selected, turning

to the right

changes the amount of “ASL” in the order of “LOW”, “MID” and
“HIGH”.

Turning

to the left turns “ASL” off.

ASL automatically adjusts the volume and tone quality according to vehi-
cle speed.

Mode

displayed

Sound qual-

ity mode

Level

Turn to the

left

Turn to the

right

“BASS”

Bass*

-5 to 5

Low

High

“TREBLE”

Treble*

-5 to 5

“FADER”

Front/rear

volume

balance

F7 to R7

Shifts to rear

Shifts to

front

“BALANCE”

Left/right

volume

balance

L7 to R7

Shifts to left Shifts to right

Toyota Matrix (2014 year). Instruction - part 15
