Toyota Matrix (2014 year). Instruction

198

3-2. Using the audio system

MATRIX_U

CAUTION

■

U.S.A. (type B)

FCC ID: ACJ932PTA184

FCC WARNING:
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.

This transmitter must not be co-located or operated in conjunction with any
other antenna or transmitter.

This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment and meets the FCC radio frequency (RF) Expo-
sure Guidelines in Supplement C to OET65. This equipment has very low
levels of RF energy that it deemed to comply without maximum permissive
exposure evaluation (MPE). But it is desirable that it should be installed and
operated keeping the radiator at least 20cm or more away from person's
body (excluding extremities: hands, wrists, feet and ankles).

●

Laser products

• Do not take this unit apart or attempt to make any changes yourself.

This is an intricate unit that uses a laser pickup to retrieve information
from the surface of compact discs.
The laser is carefully shielded so that its rays remain inside the cabinet.
Therefore, never try to disassemble the player or alter any of its parts
since you may be exposed to laser rays and dangerous voltages.

• This product utilizes a laser.

Use of controls or adjustments or performance of procedures other
than those specified herein may result in hazardous radiation expo-
sure.

• The use of optical instruments with this product will increase eye haz-

ard.

199

3-2. Using the audio system

Inte
rior fea

tures

MATRIX_U

CAUTION

■

U.S.A. (with Display Audio system)

FCC ID: ACJ932CQ-US70G0

FCC WARNING:
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.

This transmitter must not be co-located or operated in conjunction with any
other antenna or transmitter.

●

Laser products

• Do not take this unit apart or attempt to make any changes yourself.

• This product utilizes a laser.

Use of controls or adjustments or performance of procedures other
than those specified herein may result in hazardous radiation expo-
sure.

• The use of optical instruments with this product will increase eye haz-

ard.

200

3-2. Using the audio system

MATRIX_U

CAUTION

■

Canada (type B and Display Audio system)

This device complies with Industry Canada licence-exempt RSS
standard(s).

Operation is subject to the following two conditions:

(1) this device may not cause interference, and

(2) this device must accept any interference, including interference that may
cause undesired operation of this device.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables
aux appareils radio exempts de licence.
L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne
doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter
tout brouillage radioélectrique subi, même si le brouillage est susceptible
d’en compromettre le fonctionnement.

Under Industry Canada regulations, this radio transmitter may only operate
using an antenna of a type and maximum (or lesser) gain approved for the
transmitter by Industry Canada. To reduce potential radio interference to
other users, the antenna type and its gain should be so chosen that the
equivalent isotropically radiated power (e.i.r.p.) is not more than that neces-
sary for successful communication.

Conformément à la réglementation d’Industrie Canada, le présent émetteur
radio peut fonctionner avec une antenne d’un type et d’un gain maximal (ou
inférieur) approuvé pour l’émetteur par Industrie Canada. Dans le but de
réduire les risques de brouillage radioélectrique à l’intention des autres
utilisateurs, il faut choisir le type d’antenne et son gain de sorte que la
puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l’intensité
nécessaire à l’établissement d’une communication satisfaisante.

201

3-2. Using the audio system

Inte
rior fea

tures

MATRIX_U

CAUTION

This equipment complies with IC radiation exposure limits set forth for an
uncontrolled environment and meets RSS-102 of the IC radio frequency
(RF) Exposure rules. This equipment has very low levels of RF energy that it
deemed to comply without maximum permissive exposure evaluation
(MPE). But it is desirable that it should be installed and operated keeping the
radiator at least 20cm or more away from person's body (excluding extremi-
ties: hands, wrists, feet and ankles).

Cet équipement est conforme aux limites d’exposition aux rayonnements
énoncées pour un environnement non contrôlé et respecte les règles
d’exposition aux fréquences radioélectriques (RF) CNR-102 de l’IC. Cet
équipement émet une énergie RF très faible qui est considérée conforme
sans évaluation de l’exposition maximale autorisée.
Cependant, cet équipement doit être installé et utilisé en gardant une
distance de 20 cm ou plus entre le dispositif rayonnant et le corps (à
l’exception des extrémités : mains, poignets, pieds et chevilles).

203

3-2. Using the audio system

Inte
rior fea

tures

MATRIX_U

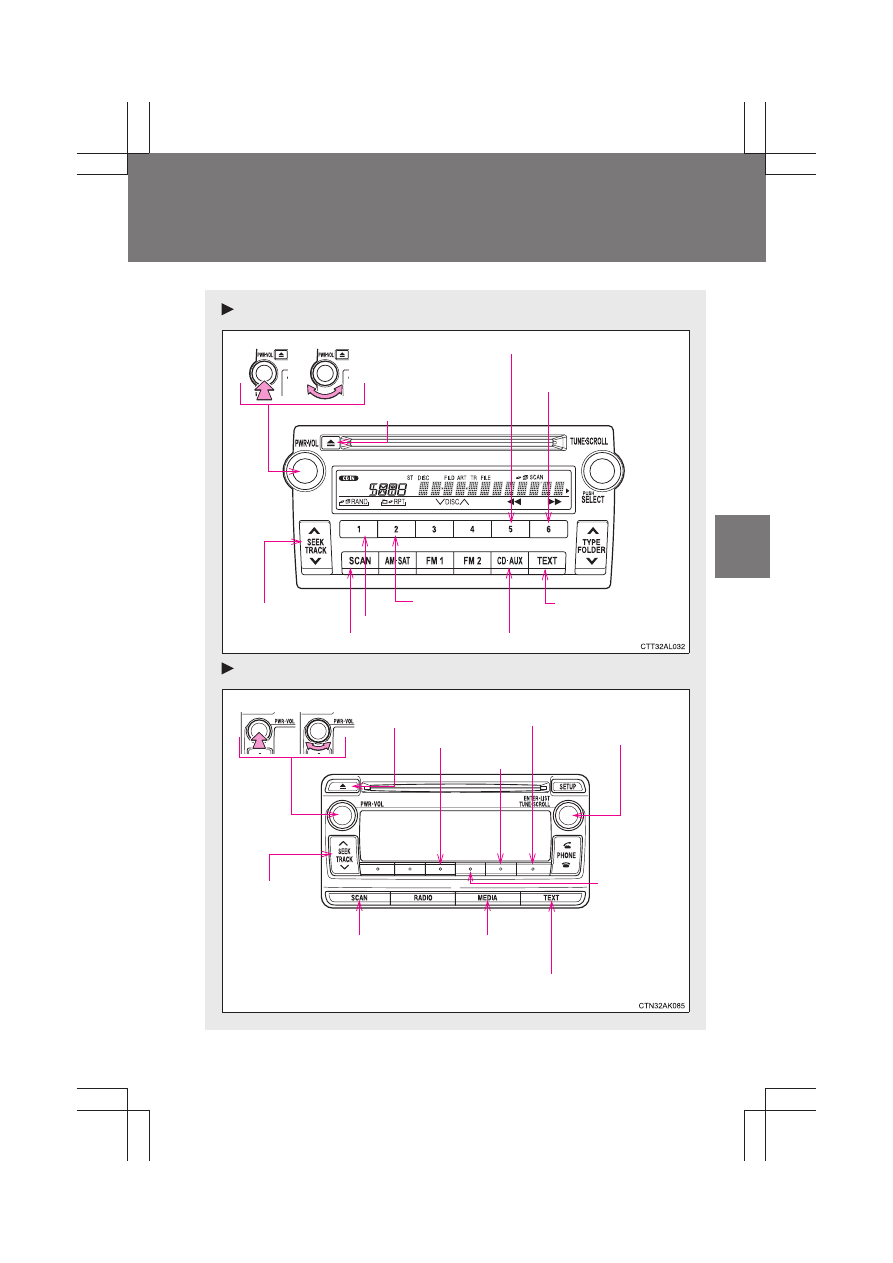

Using the radio

Type A

Type B

Volume

Seeking the
frequency

Station selector

AM/FM
mode buttons

Adjusting the
frequency

Power

Scanning for receivable stations

Power

Volume

Adjusting the
frequency or
selecting items

Seeking
the frequency

AM/FM mode button

Scanning for
receivable stations

Station selector

Displays text message

204

3-2. Using the audio system

MATRIX_U

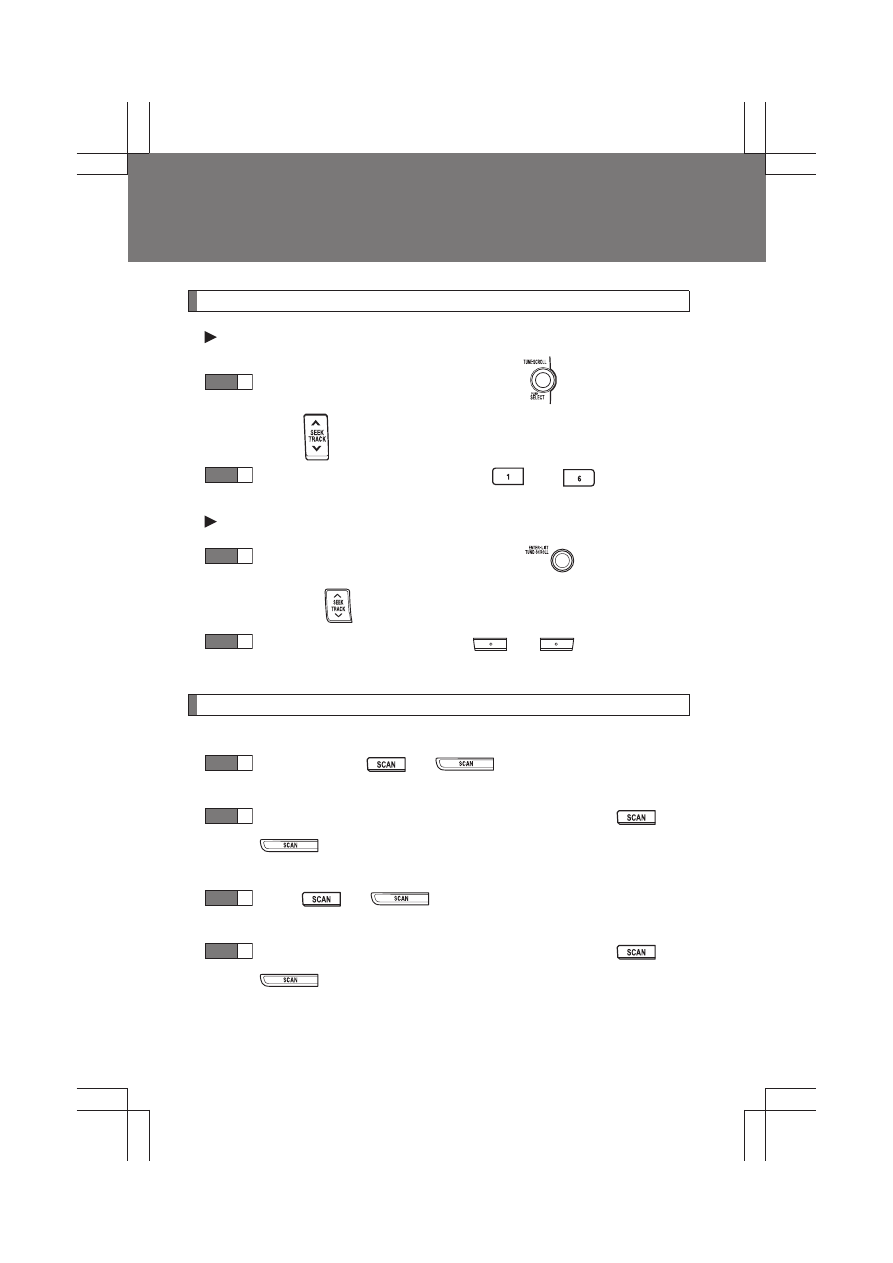

Setting station presets

Type A

Search for desired stations by turning

or pressing “

∧

” or

“

∨” on

Press and hold the button (from

) the station

is to be set to until you hear a beep.

Type B

Search for desired stations by turning

or pressing “

∧

”

or “

∨” on

Press and hold a button (from

) until you hear

a beep.

Scanning radio stations

■

Scanning the preset radio stations

Press and hold

until you hear a beep.

Preset stations will be played for 5 seconds each.

When the desired station is reached, press

once again.

■

Scanning all radio stations within range

Press

All stations with reception will be played for 5 seconds each.

When the desired station is reached, press

once again.

STEP

205

3-2. Using the audio system

Inte
rior fea

tures

MATRIX_U

Switching the display

Type A

Press .

Each time

is pressed, the display changes in the following order:

Title (song/program title)

→ Name (artist name/feature)/Title (song/pro-

gram title).

Type B

Press .

If the text continues past the end of the display, “

” is displayed. Press

■

Reception sensitivity

●

Maintaining perfect radio reception at all times is difficult due to the con-
tinually changing position of the antenna, differences in signal strength
and surrounding objects, such as trains, transmitters, etc.

●

The radio antenna is mounted on the rear roof. The antenna can be
removed from the base by turning it.

■

Certifications for the radio tuner

This device complies with Part 15 of the FCC Rules and RSS-210 Rules.
Operation is subject to the following two conditions; (1) This device may not
cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.

CAUTION

■

FCC WARNING

Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.

207

3-2. Using the audio system

Inte
rior fea

tures

MATRIX_U

Using the CD player

Type A

Type B

Volume

Random playback

Selecting a track

Repeat play

Playback

Power

CD eject

Displays text
message

Search playback

Reverse

Fast-forward

Power

Volume

Search playback

CD eject

Displays text message

Playback

Selecting a
track or displays
track list

Repeat play

Random playback

Selecting a
track

Reverse

Fast-forward

208

3-2. Using the audio system

MATRIX_U

Loading CDs

Insert a CD.

Ejecting CDs

Press

and remove the CD.

Selecting a track

Type A

Press “

∧

” to move up or “

∨” to move down using

until the desired

track number is displayed.

Type B

Turn

or press “

∧

” to move up or “

∨” to move down using

until the desired track number is displayed.

Fast-forwarding and reversing tracks

Type A

Press

(reverse)

(fast-forward).

Type B

To fast-forward or reverse, press

(

) or

(

209

3-2. Using the audio system

Inte
rior fea

tures

MATRIX_U

Selecting a track from a track list (type B)

Press .

The track list will be displayed.

Turn and press

to select a track.

To return to the previous display, press

(BACK).

Scanning tracks

Type A

Press .

The first ten seconds of each track will be played.

To cancel, press

again.

Press

again when the desired track is reached.

Type B

Press .

The first ten seconds of each track will be played.

Press

again when the desired track is reached.

Selecting a CD (with a CD changer) (type A)

Press

STEP

210

3-2. Using the audio system

MATRIX_U

Repeat play

Type A

■

Repeating a track
Press

(RPT).

To cancel, press the button once more (without a CD changer), or twice
more (with a CD changer).

■

Repeating all of the tracks on a CD (with a CD changer)
Press and hold

(RPT) until you hear a beep.

To cancel, press the button again.

Type B
Press

(RPT).

To cancel, press the button once more.

Random playback

■

Current CD
Type A
Press

(RAND).

Songs are played in random order.

To cancel, press the button once more (without a CD changer), or twice
more (with a CD changer).

Type B
Press

(RDM).

To cancel, press the button once more.

■

All CDs (with a CD changer) (type A)
Press and hold

(RAND) until you hear a beep.

Tracks on all loaded CDs are played in a random order.

To cancel, press the button again.

211

3-2. Using the audio system

Inte
rior fea

tures

MATRIX_U

Switching the display

Type A

Press .

Each time

is pressed, the display changes in the following order:

Track no./Elapsed time

→ CD title → Track name.

Type B

Press .

Track title, Artist name and Disc title are shown on the display.

To return to the previous display, press

(BACK).

■

Display

Up to 12 characters can be displayed at a time.
If there are 13 characters or more, pressing and holding

for 1 second or more will display the remaining characters.

A maximum of 24 (type A) or 64 (type B) characters can be displayed.

is pressed for 1 second or more again or has not

been pressed for 6 seconds or more, the display will return to the first 12
characters.

Depending on the contents recorded, the characters may not be displayed
properly or may not be displayed at all.

212

3-2. Using the audio system

MATRIX_U

■

Error messages

“ERROR” (type B): This indicates a problem either in the CD or inside the

player.

“CD CHECK” (type A): This indicates a problem either in the CD or inside

the player. The CD may be dirty, damaged or inserted
up-side down.

“CD CHECK” (type B): The CD may be dirty, damaged or inserted up-side

down.

“WAIT” or “PLEASE WAIT”: Operation has stopped due to a high tempera-

ture inside the player. Wait for a while and then

press

. Contact your Toyota

dealer if the CD still cannot be played back.

■

Discs that can be used

Discs with the marks shown below can be used.
Playback may not be possible depending on the recording format or disc
features, or due to scratches, dirt or deterioration.

CDs with copy-protect features may not be used.

■

CD player protection feature

To protect the internal components, playback is automatically stopped when
a problem is detected while the CD player is being used.

■

If CDs are left inside the CD player or in the ejected position for
extended periods

CDs may be damaged and may not play properly.

■

Lens cleaners

Do not use lens cleaners. Doing so may damage the CD player

213

3-2. Using the audio system

Inte
rior fea

tures

MATRIX_U

NOTICE

■

CDs and adapters that cannot be used

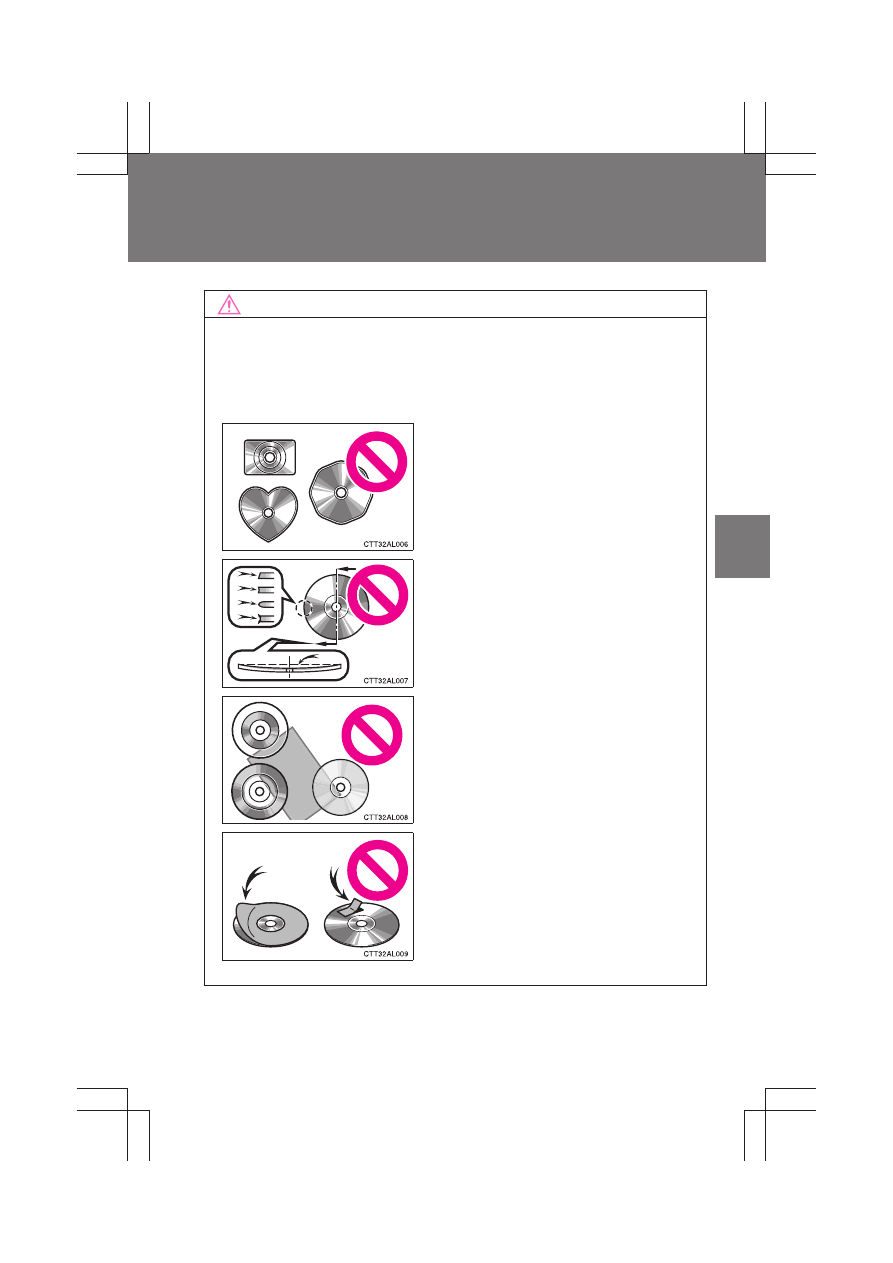

Do not use the following types of CDs.
Also, do not use 3 in. (8 cm) CD adapters, DualDiscs or printable discs.
Doing so may damage the CD player and/or the CD insert/eject function.

●

CDs that have a diameter that is not 4.7
in. (12 cm)

●

Low-quality and deformed CDs

●

CDs with a transparent or translucent
recording area

●

CDs that have had tape, stickers or CD-
R labels attached to them, or that have
had the label peeled off

Toyota Matrix (2014 year). Instruction - part 13
