ME–72

METER  –  LIGHT CONTROL RHEOSTAT

ME

REMOVAL

1.

DISCONNECT CABLE FROM NEGATIVE BATTERY
TERMINAL

2.

REMOVE NO. 1 INSTRUMENT PANEL REGISTER
ASSEMBLY (See page

IP-13

)

3.

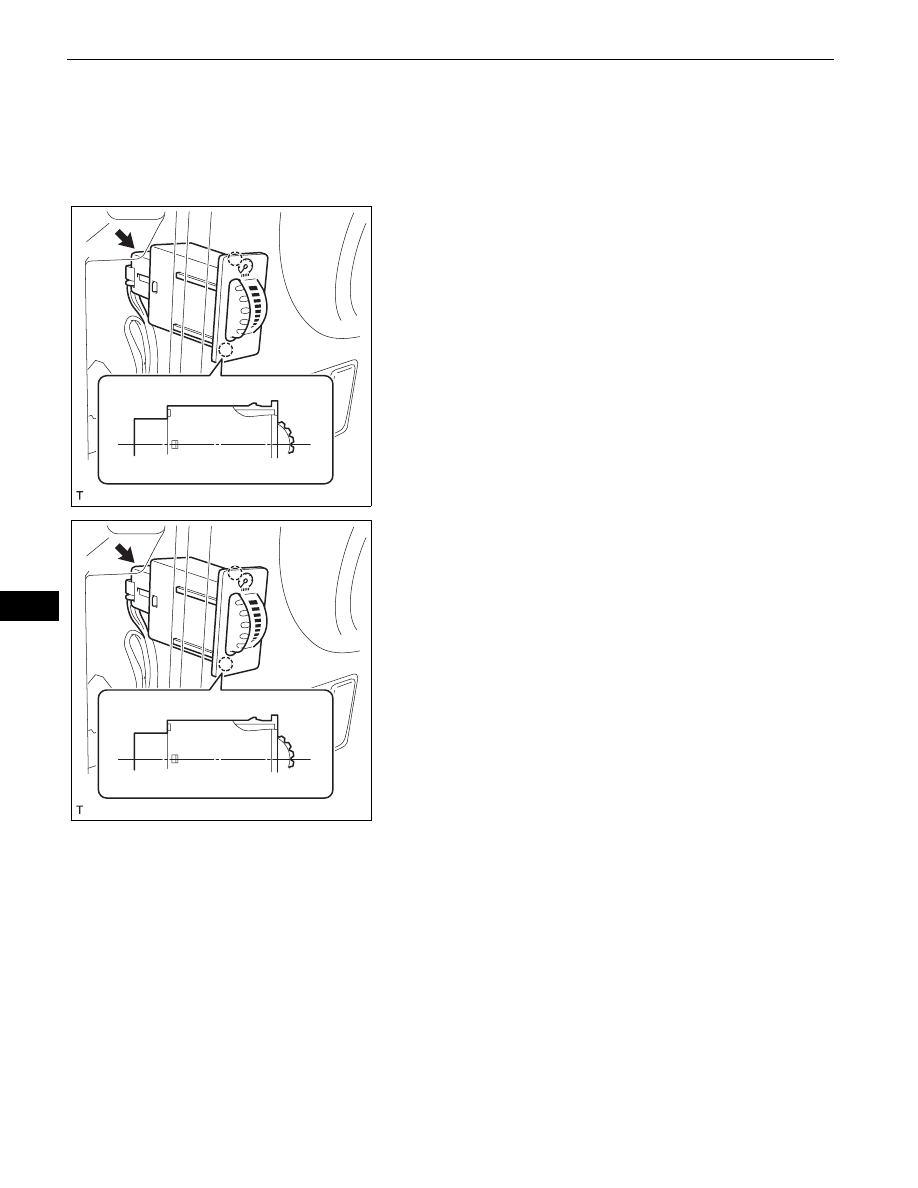

REMOVE LIGHT CONTROL RHEOSTAT
(a) Disconnect the connector.
(b) Disengage the 2 claws and remove the light control

rheostat.

INSTALLATION

1.

INSTALL LIGHT CONTROL RHEOSTAT
(a) Engage the 2 claws and install the light control

rheostat.

(b) Connect the connector.

2.

INSTALL NO. 1 INSTRUMENT PANEL REGISTER
ASSEMBLY (See page

IP-30

)

3.

CONNECT CABLE TO NEGATIVE BATTERY
TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)

E127936

E127936

MIRROR  –  POWER MIRROR CONTROL SYSTEM

MI–1

MI

POWER MIRROR CONTROL
SYSTEM

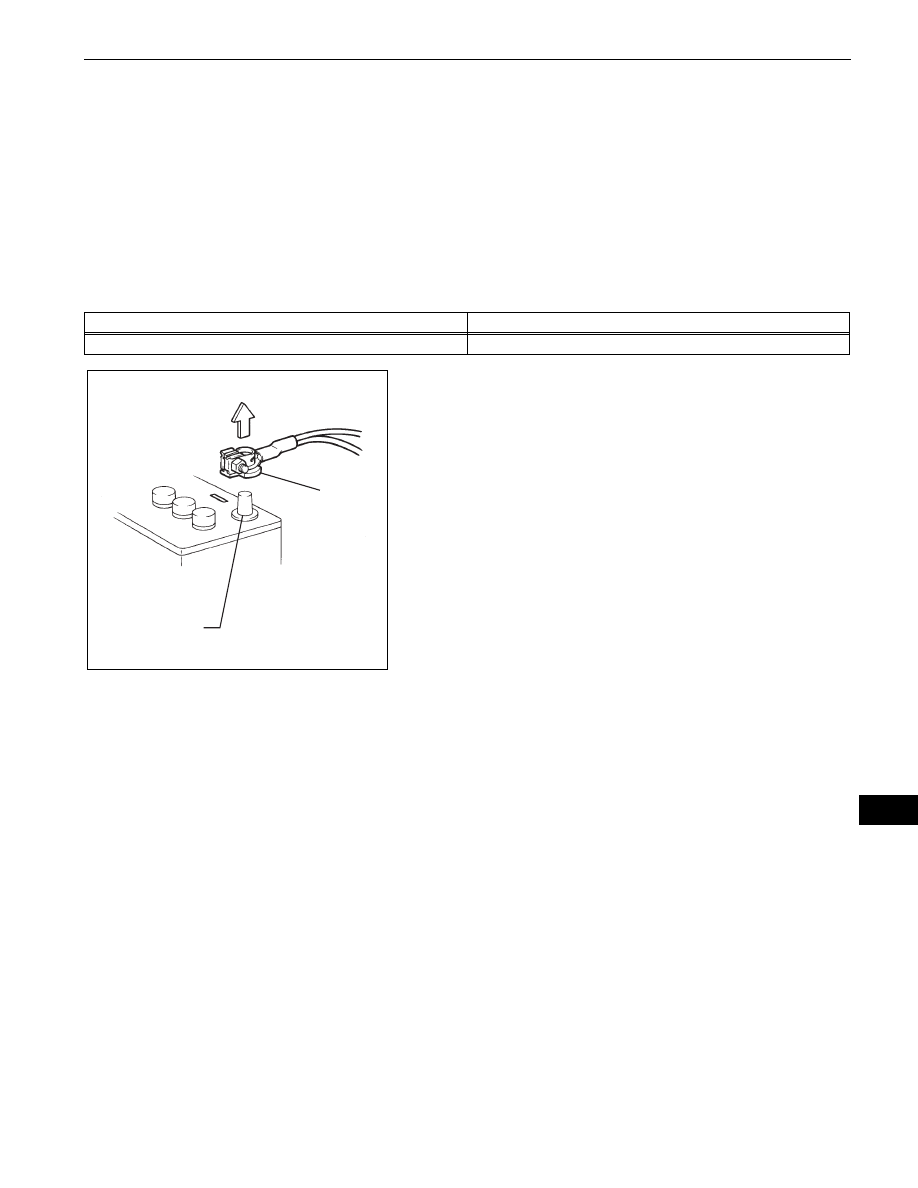

PRECAUTION

1.

DISCONNECT AND RECONNECT CABLE OF
NEGATIVE BATTERY TERMINAL
NOTICE:
When disconnecting the cable from the negative (-)
battery terminal, initialize the following systems after
the cable is reconnected.

(a) Before performing electronic work, disconnect the

cable from the negative (-) battery terminal in order
to prevent it from shorting and burning out.

(b) Before disconnecting and reconnecting the battery

cable, turn the ignition switch OFF and the headlight
dimmer switch OFF. Then loosen the terminal nut
completely. Do not damage the cable or terminal.

(c) When the battery cable is disconnected, the clock

and radio settings and stored DTCs are erased.
Therefore, before disconnecting the battery cable,
make a notes of them.

System Name

See procedure

METER / GAUGE SYSTEM

See page

ME-10

Negative (-)
Battery Terminal

Cable

D033496E01

MI–2

MIRROR  –  POWER MIRROR CONTROL SYSTEM

MI

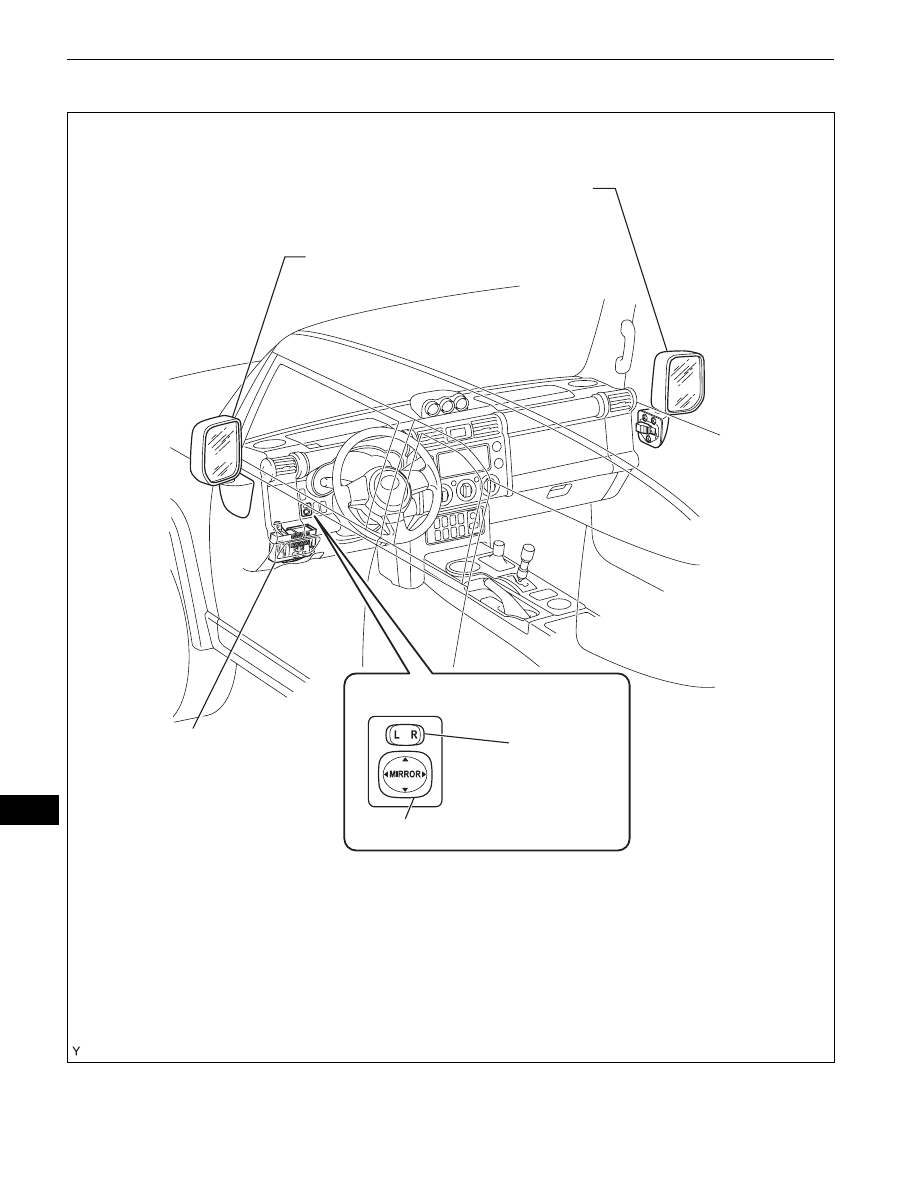

PARTS LOCATION

- ACC FUSE

LEFT / RIGHT
ADJUSTMENT
SWITCH

MIRROR SWITCH

OUTER MIRROR SWITCH ASSEMBLY

OUTER REAR VIEW MIRROR
ASSEMBLY LH

OUTER REAR VIEW MIRROR
ASSEMBLY RH

MAIN BODY ECU
(DRIVER SIDE J/B)

B136057E01

MIRROR  –  POWER MIRROR CONTROL SYSTEM

MI–3

MI

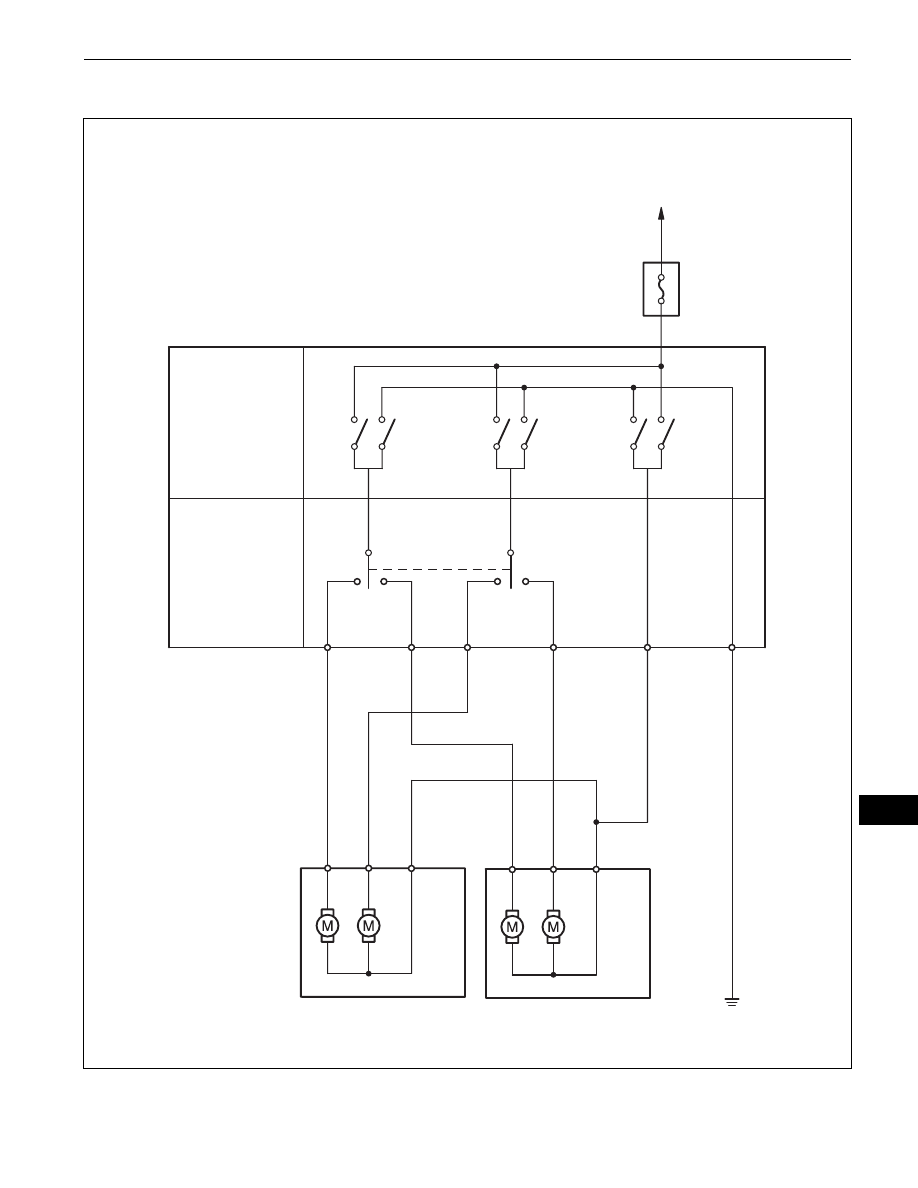

SYSTEM DIAGRAM

ACC

Outer Mirror Switch

To Battery

Mirror Switch
(Operation Switch)

Left / Right
Adjustment
Switch
(Selection Switch)

Left

Left/
Up

Right

Left

Right

Left

Right

Up

Down

Right/
Down

MLH

MRH

MLV

MRV

M+

E

Outer Rear View Mirror LH

Outer Rear View Mirror RH

B

MH

MV

M+

MH

MV

M+

B117149E03
