ME–64

METER  –  FUEL SENDER GAUGE ASSEMBLY

ME

BODY ELECTRICAL

METER

FUEL SENDER GAUGE ASSEMBLY

COMPONENTS

37 (377, 27)

N*m (kgf*cm, ft*lbf)  : Specified torque

FRONT DOOR
SCUFF PLATE LH

REAR DOOR SCUFF PLATE LH

REAR SEAT CUSHION ASSEMBLY LH

CENTER FLOOR SILENCER PAD LH

37 (377, 27)

A129922E01

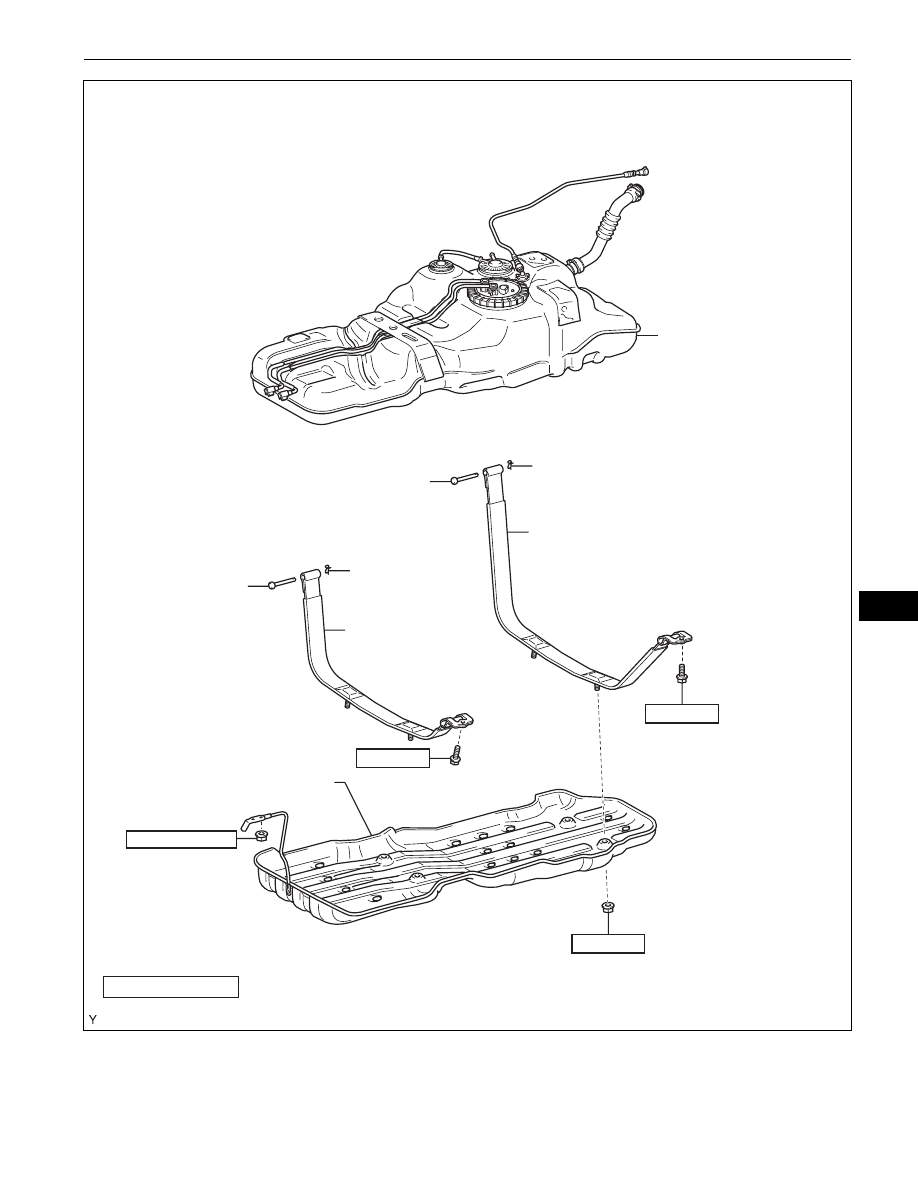

METER  –  FUEL SENDER GAUGE ASSEMBLY

ME–65

ME

FUEL TANK ASSEMBLY

FUEL TANK BAND

FUEL TANK BAND

PIN

PIN

N*m (kgf*cm, ft*lbf)  : Specified torque

20 (204, 15)

CLIP

CLIP

40 (408, 30)

40 (408, 30)

NO.1 FUEL TANK PROTECTOR
SUB-ASSEMBLY

Z

5.5 (56, 49 in.*lbf)

A129896E01

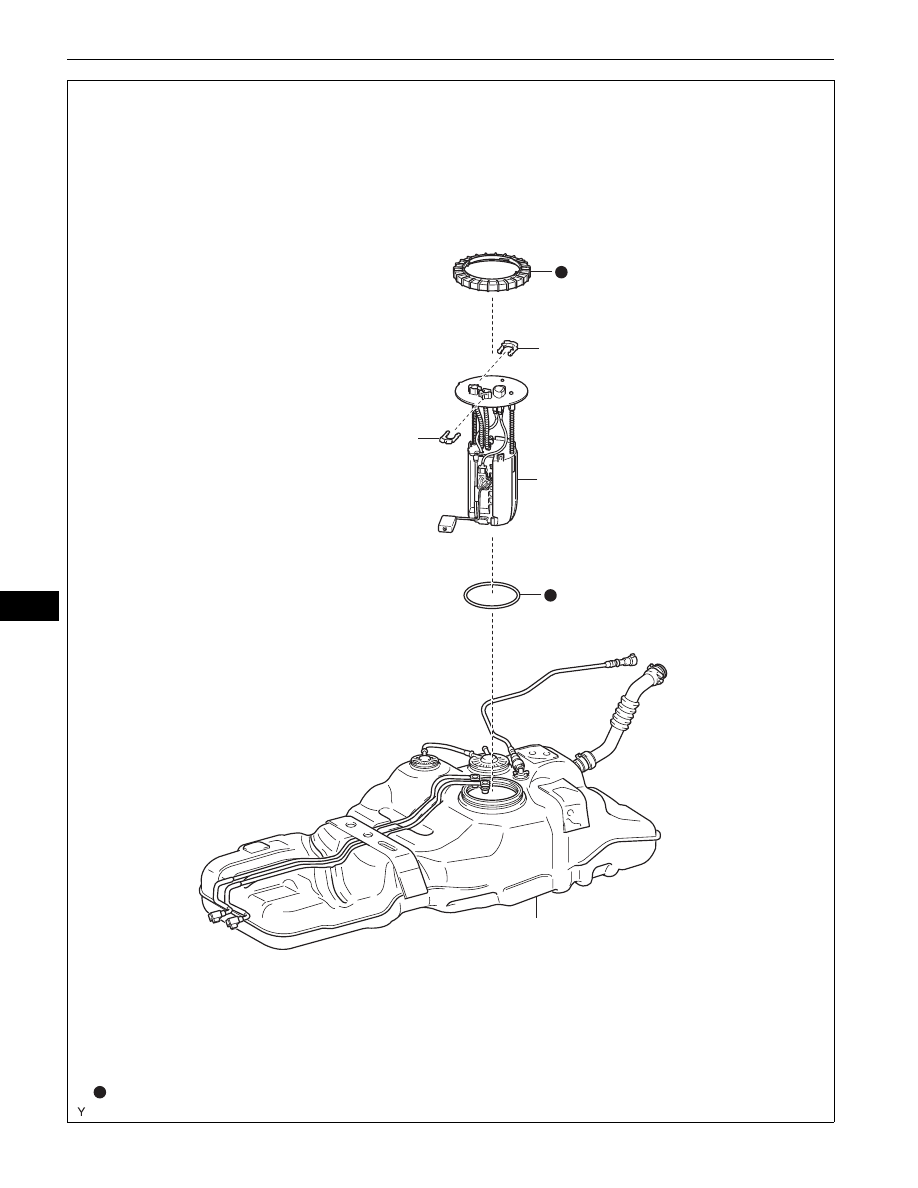

ME–66

METER  –  FUEL SENDER GAUGE ASSEMBLY

ME

FUEL TANK ASSEMBLY

GASKET

RETAINER

JOINT CLIP

JOINT CLIP

Non-reusable part

FUEL SUCTION WITH PUMP
AND GAUGE TUBE ASSEMBLY

A130150E02

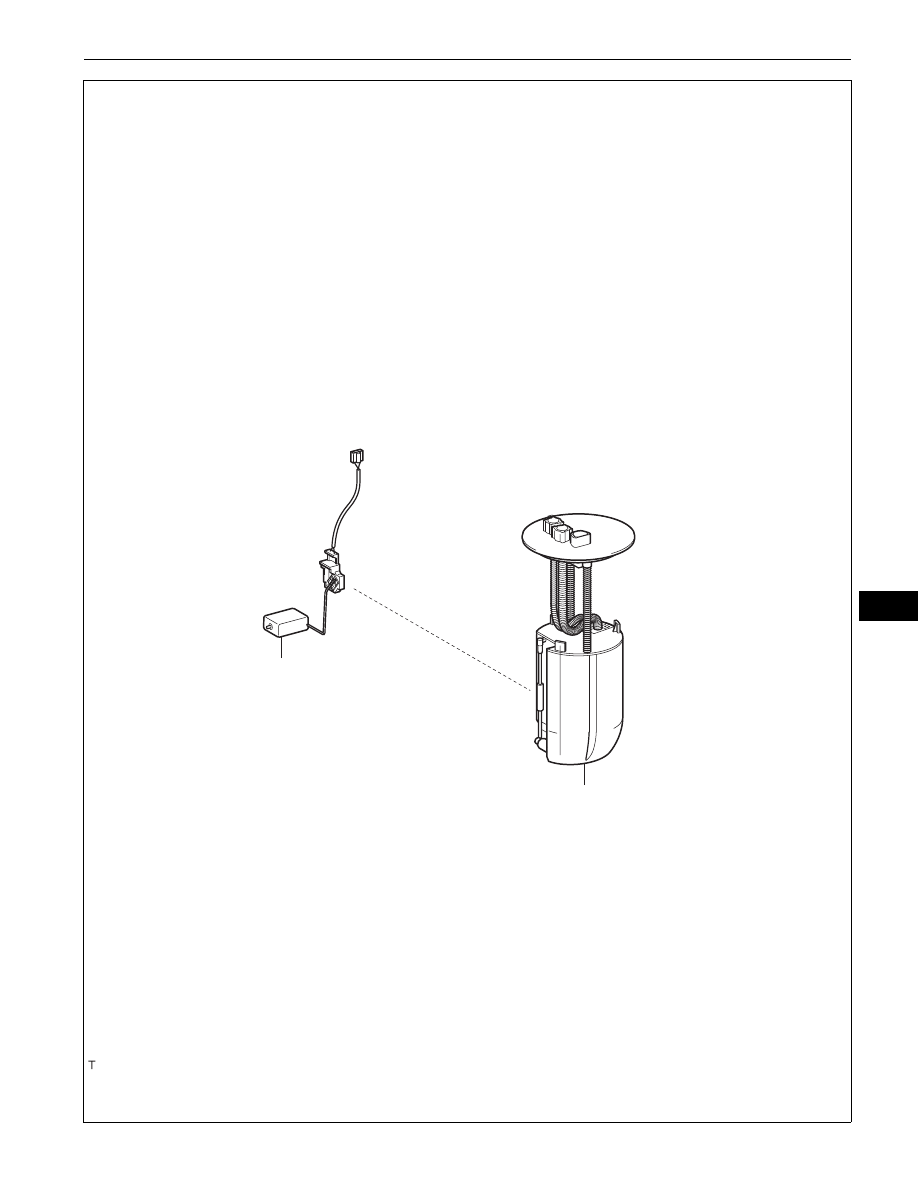

METER  –  FUEL SENDER GAUGE ASSEMBLY

ME–67

ME

FUEL SENDER
GAUGE ASSEMBLY

FUEL SUCTION WITH PUMP
AND GAUGE TUBE ASSEMBLY

E127930E01
