Toyota Tundra (2015 year). Manual - part 852





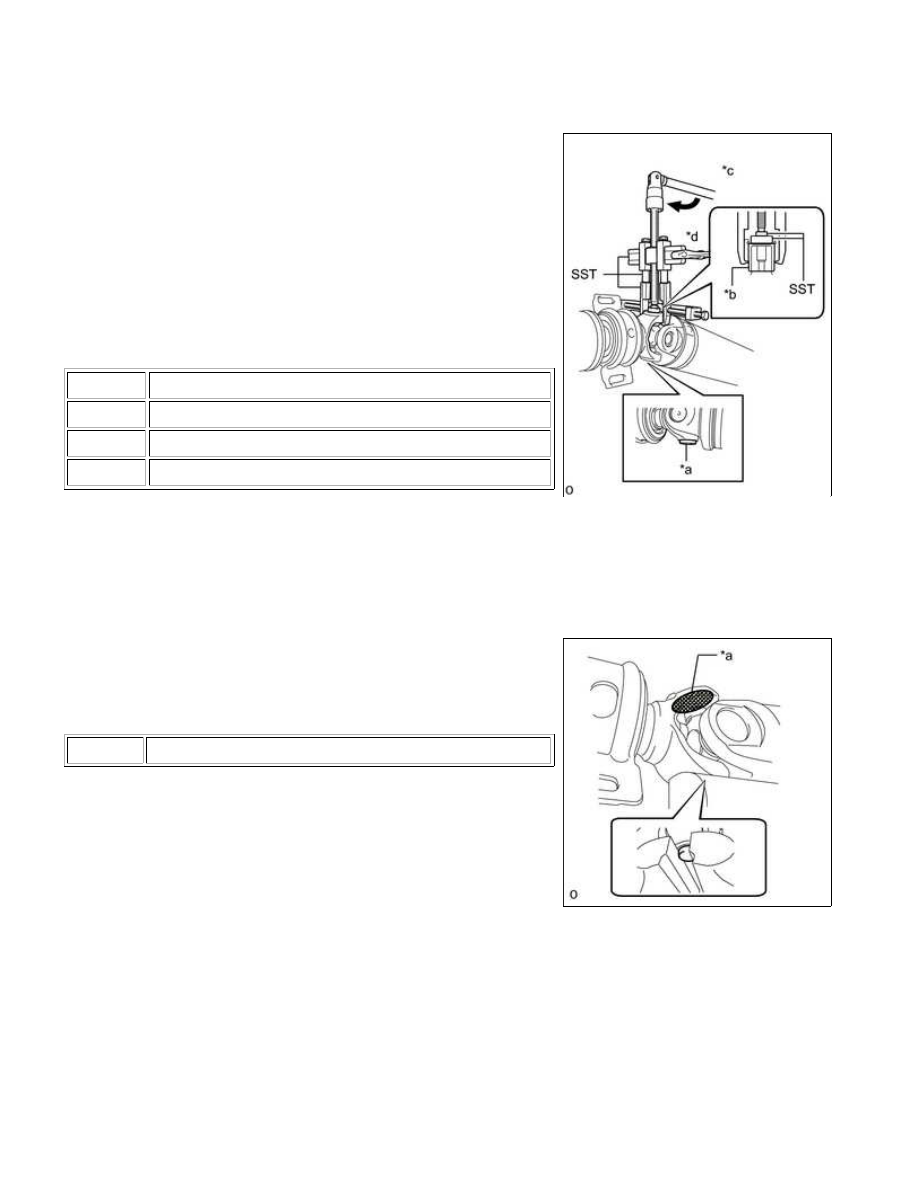

(f) Using SST, press in spider bearing B until spider bearing A can

be clamped in a vise.

SST: 09950-40011

09951-04010

09952-04010

09953-04030

09954-04010

09957-04010

09958-04011

SST: 09950-60010

09951-00290

SST: 09955-04100

Text in Illustration

*a

Spider Bearing A

*b

Spider Bearing B

*c

Turn

*d

Hold

HINT:

(g) Clamp the protruding universal joint spider bearing in a vise.

(h) Using a brass bar and hammer, tap the universal joint yoke to

remove the universal joint spider bearing.

Text in Illustration

*a

Hammering Point

NOTICE:

Do not tap the intermediate shaft tube.

HINT:

Use the same removal procedure for the universal joint spider

bearing on the opposite side.

(i) Disconnect the intermediate shaft from the propeller shaft.

PROPELLER SHAFT: PROPELLER SHAFT ASSEMBLY (for 2WD):...

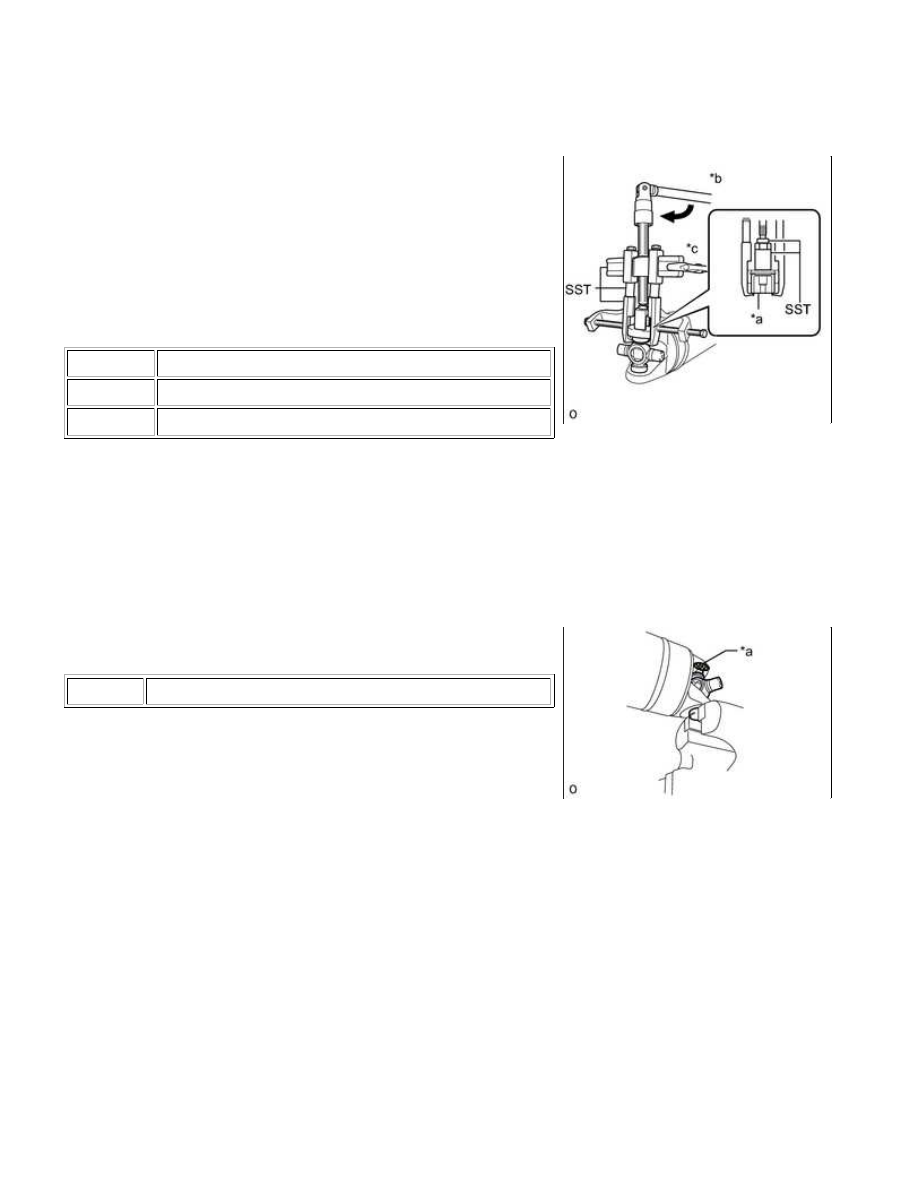

(j) Using SST, pull out the universal joint spider bearing from the

propeller shaft yoke.

SST: 09331-60010

SST: 09950-40011

09951-04010

09952-04010

09953-04020

09954-04010

09957-04010

09958-04011

SST: 09955-04100

Text in Illustration

*a

Spider Bearing

*b

Turn

*c

Hold

NOTICE:

Pull out the spider bearing until the SST claws contact the

propeller shaft yoke.

(k) Clamp the protruding universal joint spider bearing in a vise.

(l) Using a brass bar and hammer, tap the propeller shaft yoke to

remove the universal joint spider bearing.

Text in Illustration

*a

Hammering Point

NOTICE:

Do not tap the propeller shaft tube.

HINT:

Use the same removal procedure for the universal joint spider

bearing on the opposite side.

(m) Remove the spider from the propeller shaft.

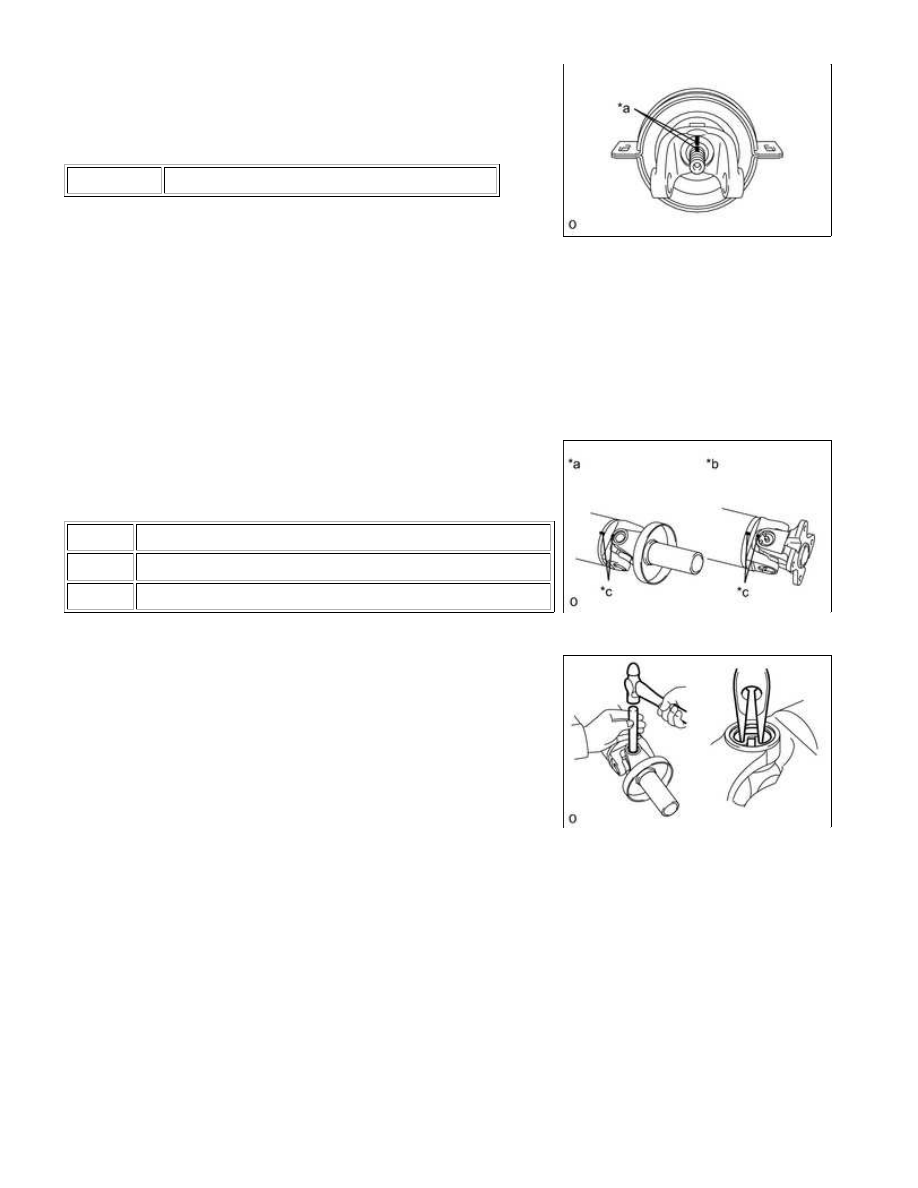

2. REMOVE NO. 1 CENTER SUPPORT BEARING ASSEMBLY

(a) Fix the center support bearing in a vise.

(c) Place matchmarks on the joint yoke and shaft.

Text in Illustration

*a

Matchmark

3. REMOVE PROPELLER SHAFT UNIVERSAL JOINT SPIDER BEARING

HINT:

Use the same removal procedure for both the sleeve yoke side and flange yoke side universal joint spider

bearings.

(a) Place matchmarks on the flange yoke and shaft, and the sleeve

yoke and shaft.

Text in Illustration

*a

for Sleeve Yoke Side

*b

for Flange Yoke Side

*c

Matchmark

(b) Using a brass bar and hammer, slightly tap in the spider

bearing.

(c) Using needle-nose pliers, remove the snap ring from the grooves.

HINT:

Remove the snap ring on the opposite side using the same procedure.

PROPELLER SHAFT: PROPELLER SHAFT ASSEMBLY (for 2WD):...

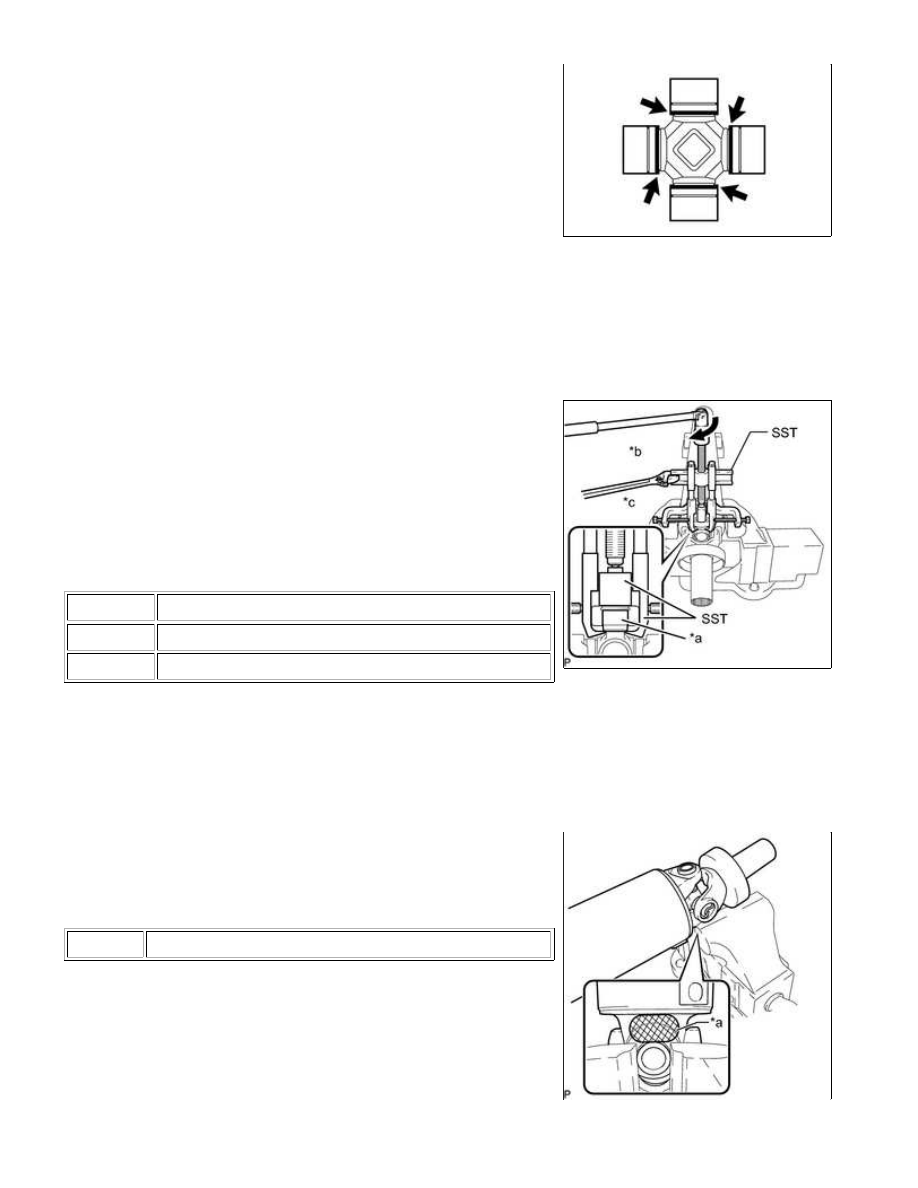

(e) Clamp the shaft in a vise between aluminum plates.

(f) Using SST, pull out the universal joint spider bearing from the

shaft.

SST: 09331-60010

SST: 09950-40011

09951-04010

09952-04010

09953-04020

09954-04010

09957-04010

09958-04011

SST: 09955-04100

Text in Illustration

*a

Spider Bearing

*b

Turn

*c

Hold

NOTICE:

Pull out the spider bearing until the SST claws contact the shaft's

universal joint yoke.

(g) Clamp the protruding universal joint spider bearing in a vise.

(h) Using a brass bar and hammer, tap the shaft yoke to remove

the universal joint spider bearing.

Text in Illustration

*a

Hammering Point

NOTICE:

Do not tap the shaft tube.

HINT:

Use the same removal procedure for the universal joint spider

bearing on the opposite side.

PROPELLER SHAFT: PROPELLER SHAFT ASSEMBLY (for 2WD):...
