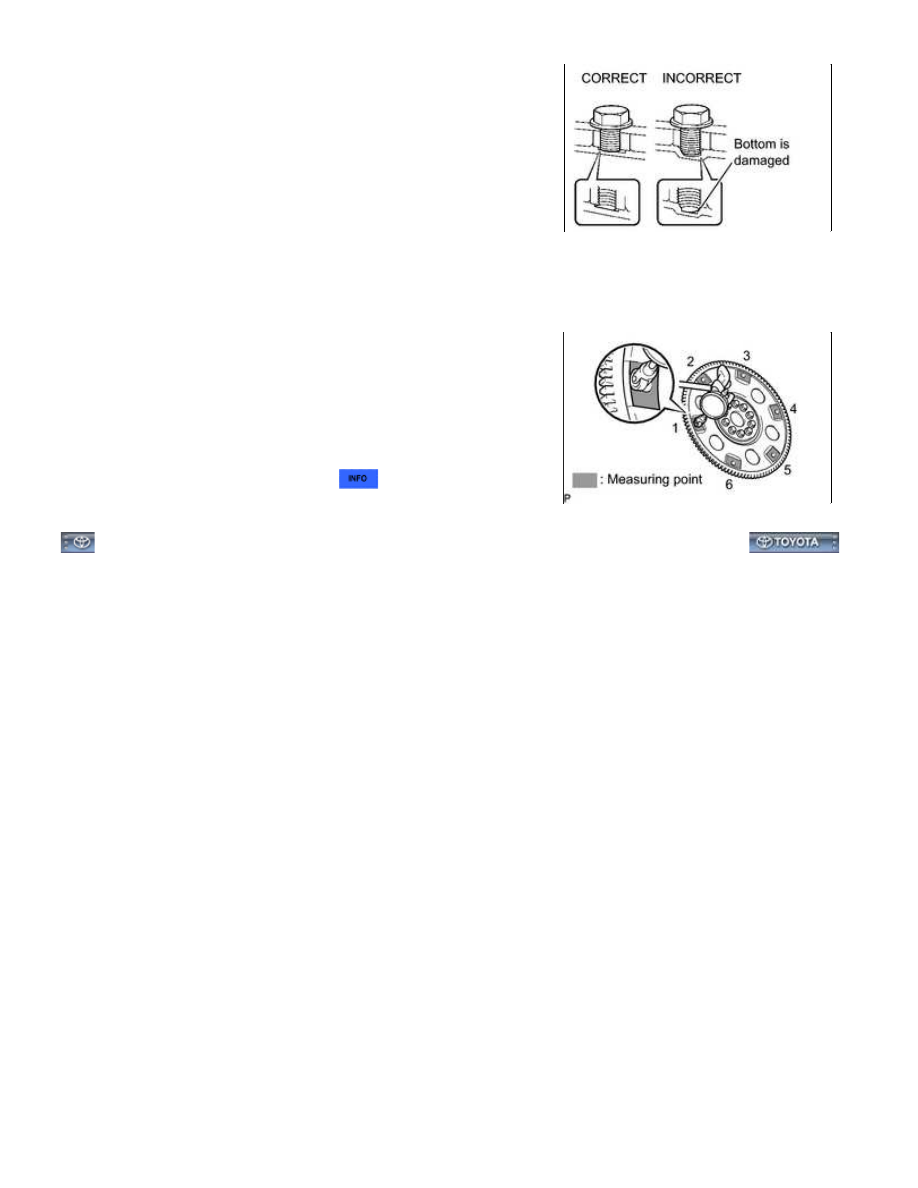

(1) When any marks due to interference are found on the end of

the bolt for the torque converter clutch and on the bottom of

the bolt hole, replace the bolt and torque converter clutch.

2. INSPECT DRIVE PLATE

(a) Check the drive plate for damage.

Maximum runout:

0.20 mm (0.00787 in.)

If the runout is more than the maximum, or the drive plate is

damaged, replace the drive plate

AB60F AUTOMATIC TRANSMISSION: TORQUE CONVERTER C...

Last Modified: 9-16-2014

6.6 K

Doc ID: RM000002Y0B01GX

Model Year: 2015

Model: Tundra

Prod Date Range: [08/2014 - ]

Title: AB60F AUTOMATIC TRANSMISSION: TRANSMISSION CONTROL CABLE (for Column Shift Type):

COMPONENTS; 2015 MY Tundra [08/2014 - ]

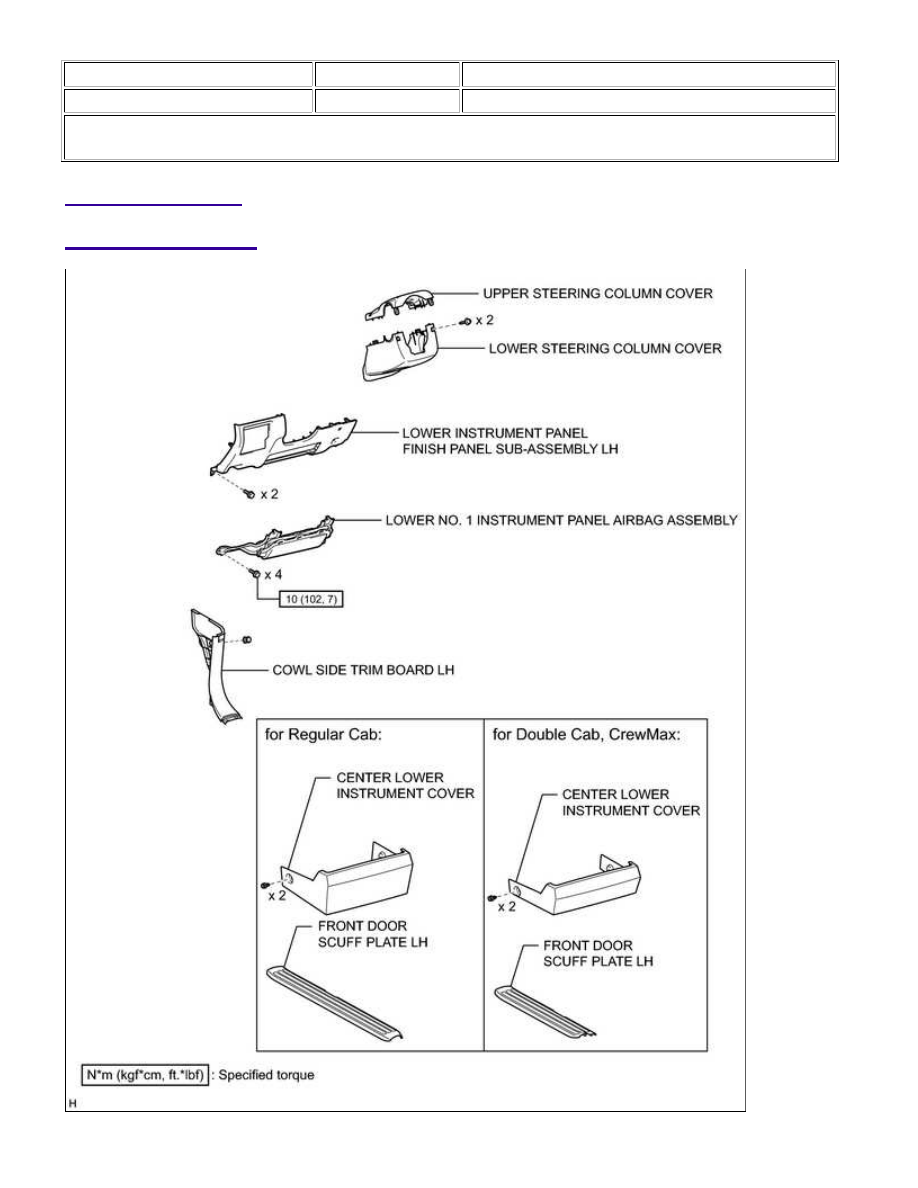

COMPONENTS

ILLUSTRATION

AB60F AUTOMATIC TRANSMISSION: TRANSMISSION CONTRO...

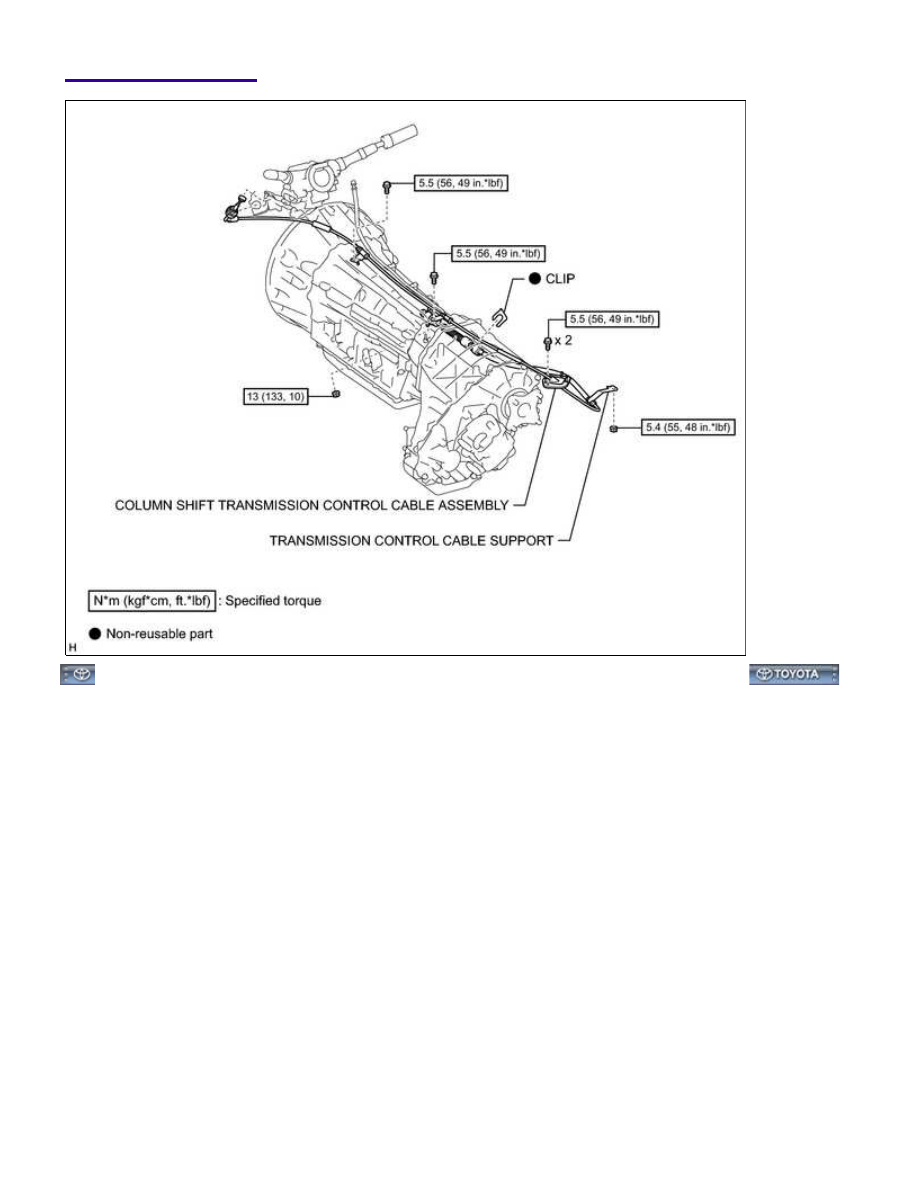

ILLUSTRATION

AB60F AUTOMATIC TRANSMISSION: TRANSMISSION CONTRO...

Last Modified: 9-16-2014

6.6 A

Doc ID: RM000002Y0C01GX

Model Year: 2015

Model: Tundra

Prod Date Range: [08/2014 - ]

Title: AB60F AUTOMATIC TRANSMISSION: TRANSMISSION CONTROL CABLE (for Column Shift Type):

REMOVAL; 2015 MY Tundra [08/2014 - ]

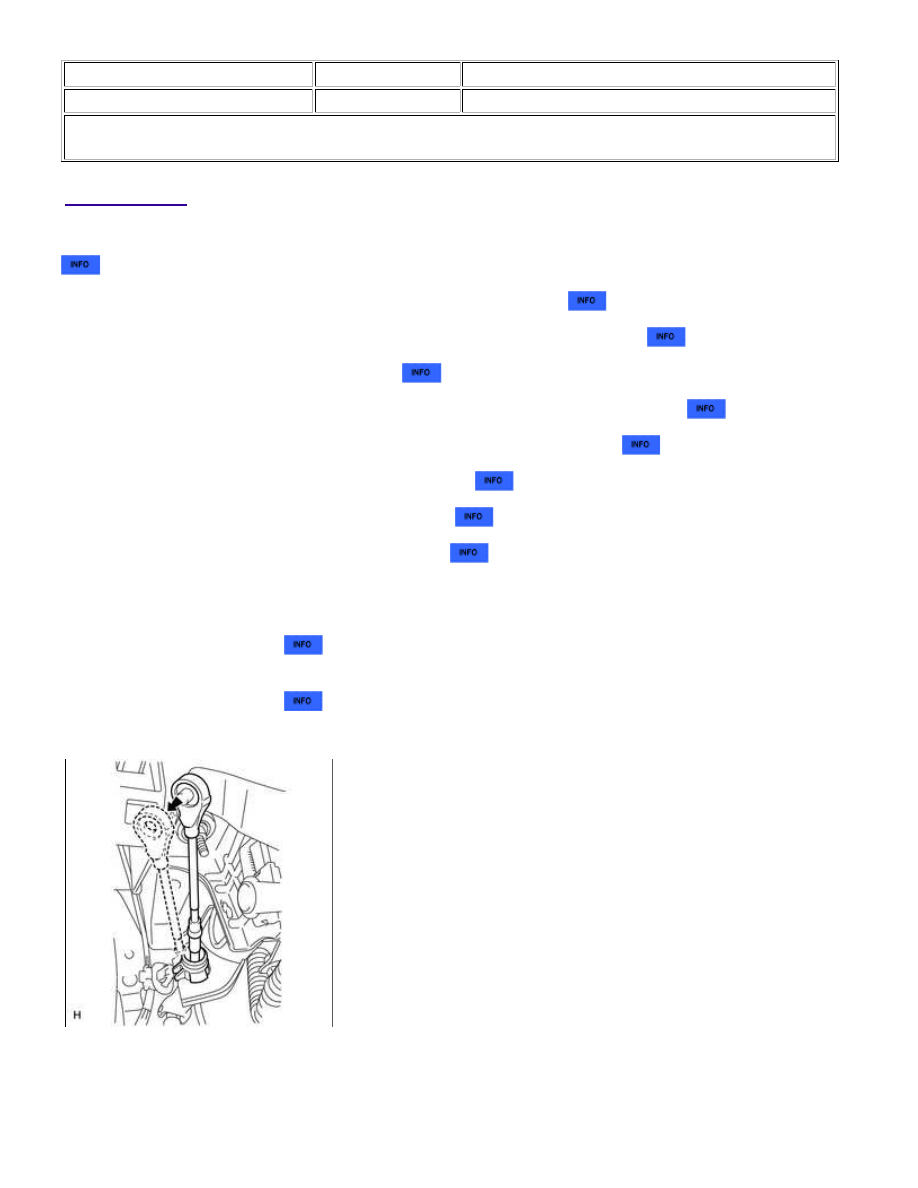

REMOVAL

1. REMOVE STEERING WHEEL ASSEMBLY

2. REMOVE FRONT DOOR SCUFF PLATE LH (for Regular Cab)

3. REMOVE FRONT DOOR SCUFF PLATE LH (for Double Cab, CrewMax)

4. REMOVE COWL SIDE TRIM BOARD LH

5. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LH

6. REMOVE LOWER NO. 1 INSTRUMENT PANEL AIR BAG ASSEMBLY

7. REMOVE CENTER LOWER INSTRUMENT COVER

8. REMOVE LOWER STEERING COLUMN COVER

9. REMOVE UPPER STEERING COLUMN COVER

10. REMOVE FRONT SEAT ASSEMBLY LH

(a) for Manual Seat Type:

Remove the front seat LH

(b) for Power Seat Type:

Remove the front seat LH

11. REMOVE COLUMN SHIFT TRANSMISSION CONTROL CABLE ASSEMBLY

(a) Move the shift lever to the N position.

(b) Fold back the floor carpet front LH side.

AB60F AUTOMATIC TRANSMISSION: TRANSMISSION CONTRO...
