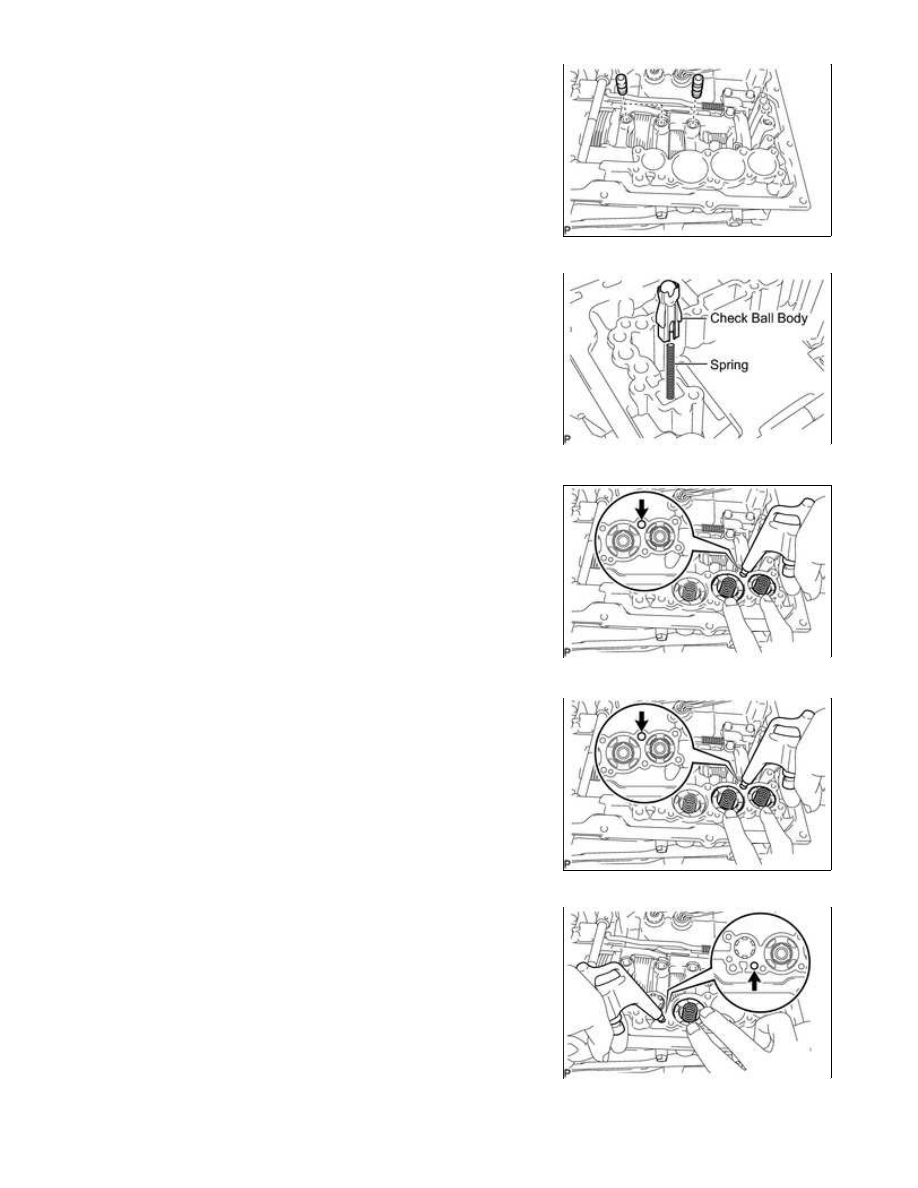

16. REMOVE BRAKE DRUM GASKET (a) Remove the 3 gaskets. 17. REMOVE CHECK BALL BODY (a) Remove the check ball body and spring. 18. REMOVE C-2 ACCUMULATOR PISTON (a) While applying compressed air to the oil hole, remove the C-2 accumulator piston and spring. (b) Remove the 2 O-rings from the piston. NOTICE: Be careful as the C-3 and B-3 accumulator pistons may jump out. 19. REMOVE B-3 ACCUMULATOR PISTON (a) While applying compressed air to the oil hole, remove the B-3 accumulator piston and spring. (b) Remove the 2 O-rings from the piston. NOTICE: Be careful as the C-3 accumulator piston may jump out. 20. REMOVE C-3 ACCUMULATOR PISTON (a) While applying compressed air to the oil hole, remove the C-3 accumulator piston and spring. (b) Remove the 2 O-rings from the piston. AB60E AUTOMATIC TRANSMISSION: AUTOMATIC TRANSMIS... |
