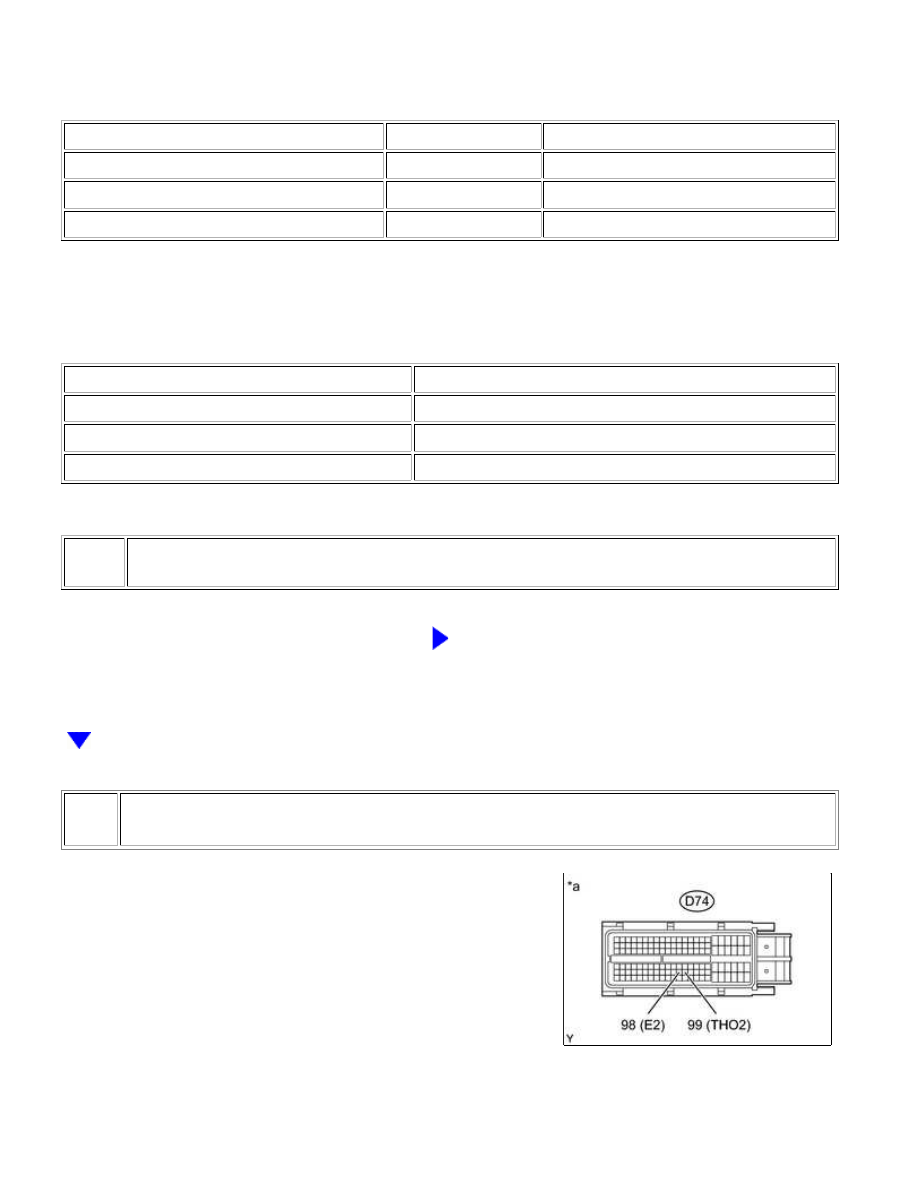

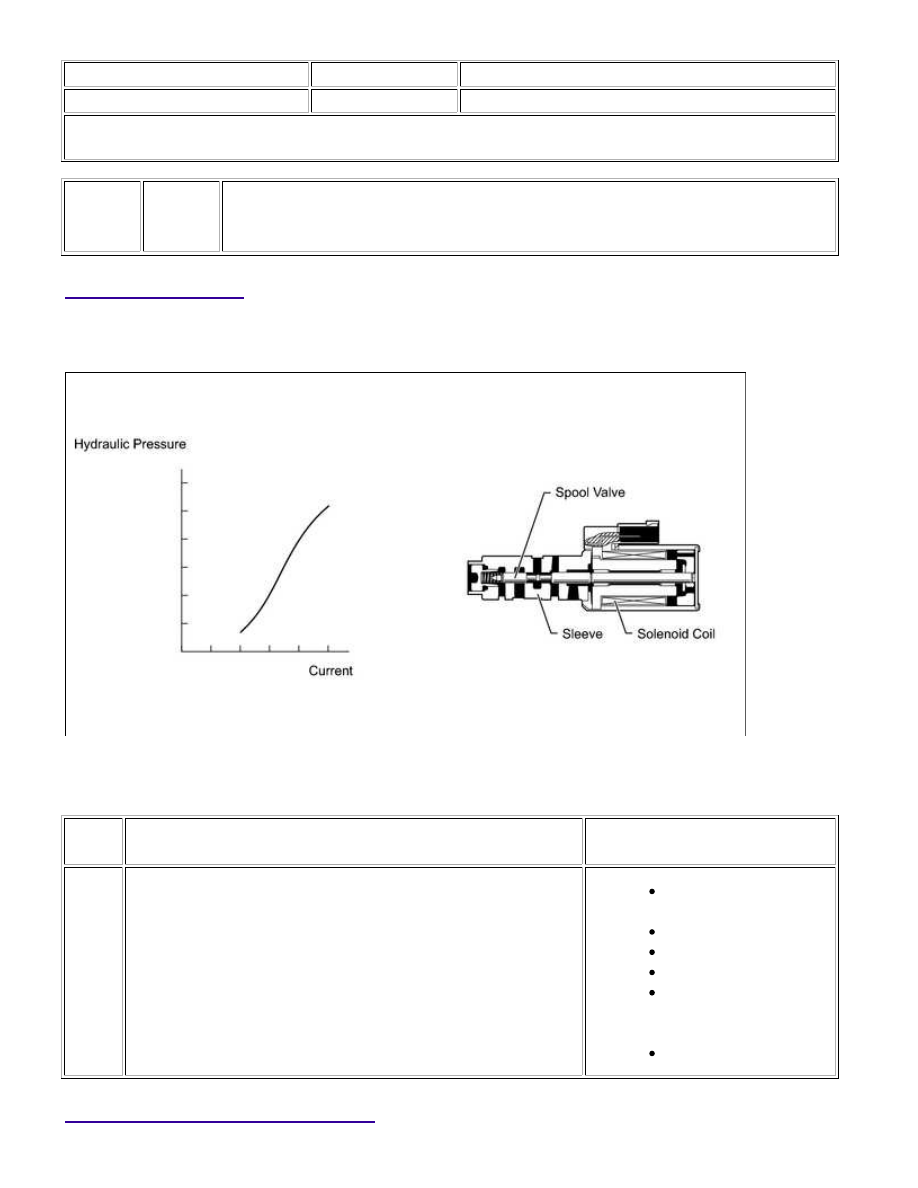

OK (b) Measure the resistance according to the value(s) in the table below. Standard Resistance: TESTER CONNECTION CONDITION SPECIFIED CONDITION 3 (OT2-) - 14 (OT2+) Always 25 Ω to 156 kΩ 3 (OT2-) - Body ground Always 10 kΩ or higher 14 (OT2+) - Body ground Always 10 kΩ or higher HINT: Standard Resistance: ATF TEMPERATURE SPECIFIED CONDITION 10°C (50°F) 5 to 8 kΩ 25°C (77°F) 2.5 to 4.5 kΩ 110°C (230°F) 0.22 to 0.28 kΩ Text in Illustration *a Component without harness connected (Transmission Wire) NG REPAIR OR REPLACE TRANSMISSION WIRE (NO. 2 ATF TEMPERATURE SENSOR) 2. CHECK HARNESS AND CONNECTOR (TRANSMISSION WIRE - ECM) (a) Disconnect the D74 ECM connector. (b) Measure the resistance according to the value(s) in the table below. Standard Resistance: A760F AUTOMATIC TRANSMISSION: AUTOMATIC TRANSMISS... |
