Toyota Tundra (2015 year). Manual - part 403

Last Modified: 9-16-2014

6.6 A

Doc ID: RM000002YBB01BX

Model Year: 2015

Model: Tundra

Prod Date Range: [08/2014 - ]

Title: A760E AUTOMATIC TRANSMISSION: SHIFT LEVER ASSEMBLY (for Column Shift Type): REASSEMBLY;

2015 MY Tundra [08/2014 - ]

REASSEMBLY

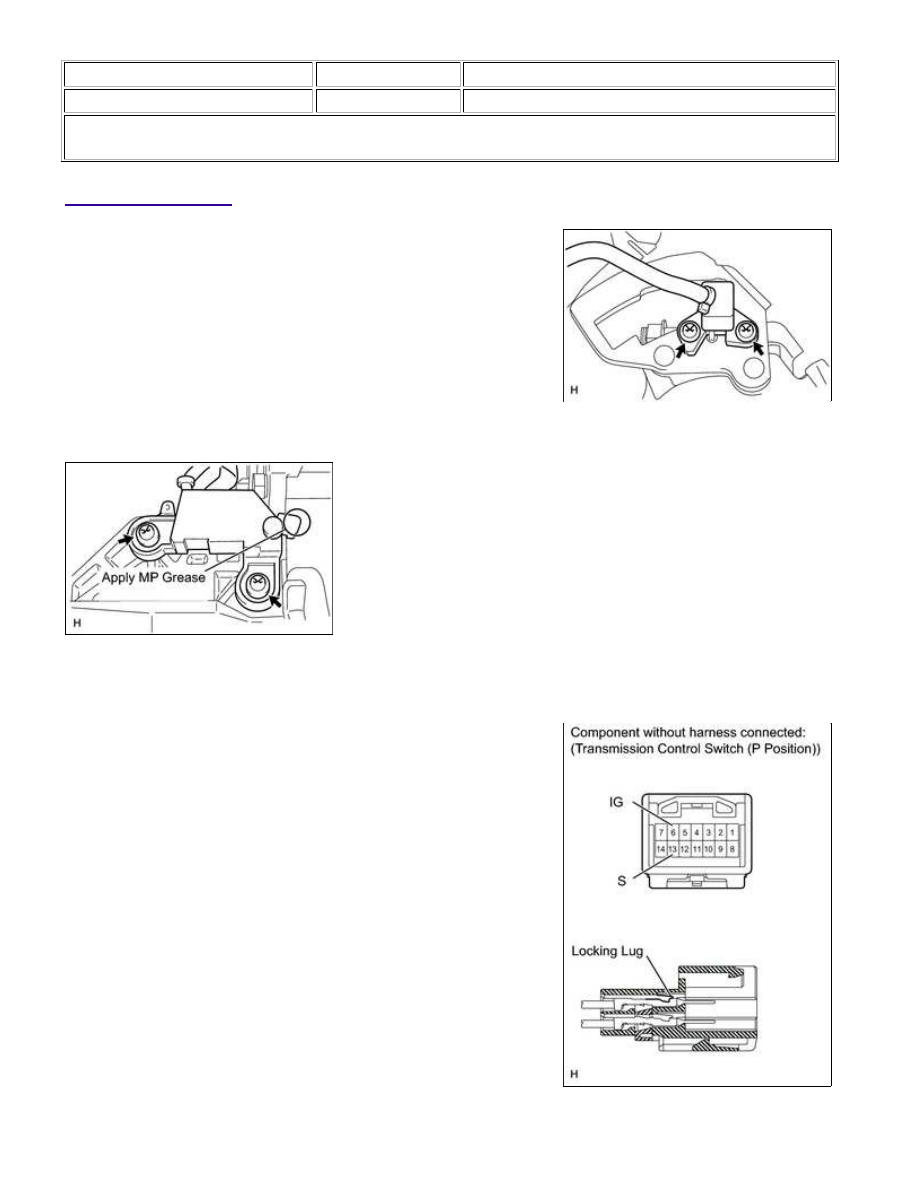

1. INSTALL TRANSMISSION CONTROL SWITCH (P

POSITION)

(a) Install the switch to the column shift control shift lever retainer

with the 2 screws.

2. INSTALL TRANSMISSION CONTROL SWITCH (S POSITION)

(a) Apply MP grease to the switch as shown in the illustration.

(b) Install the switch to the column shift control shift lever retainer with the 2 screws.

the transmission control switch connector.

A760E AUTOMATIC TRANSMISSION: SHIFT LEVER ASSEMBLY ...

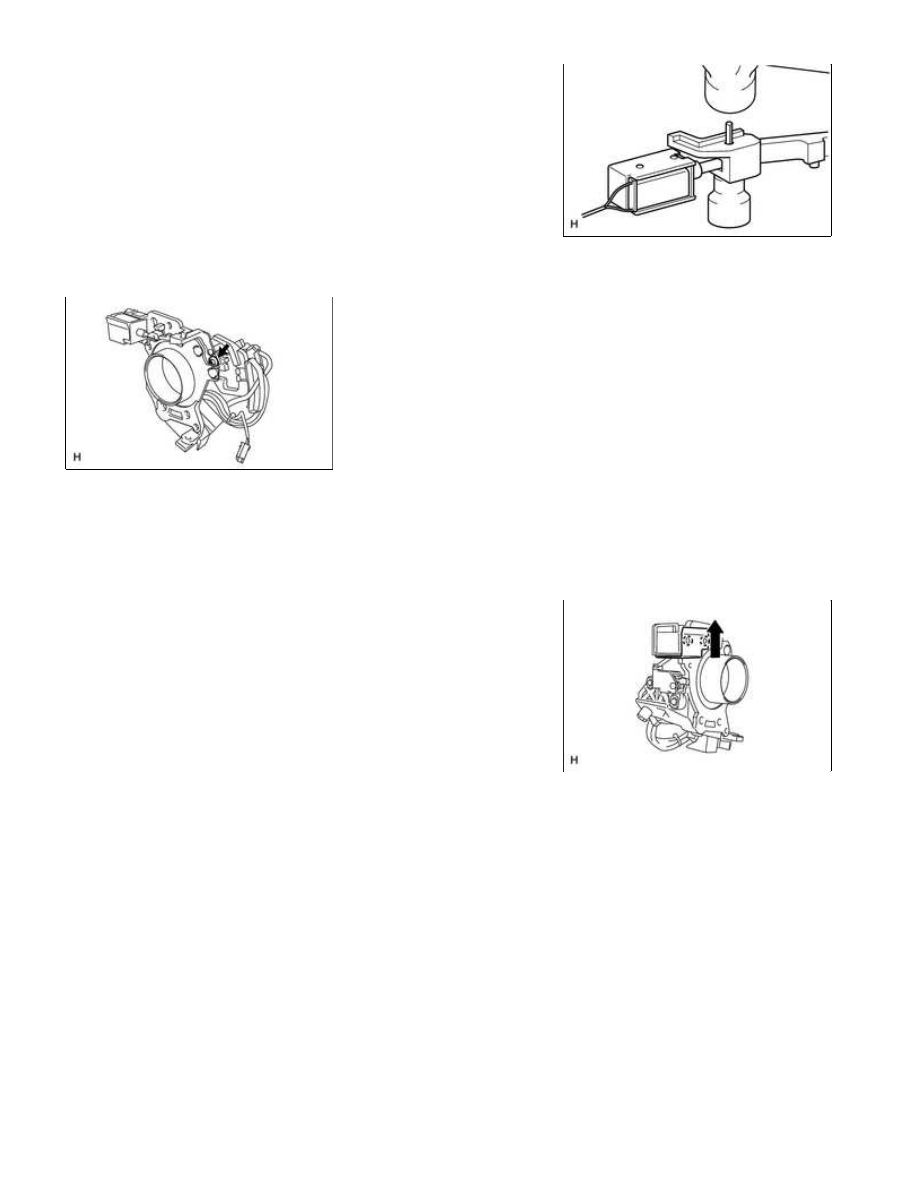

3. CONNECT NO. 1 SHIFT LOCK PLATE SUB-ASSEMBLY

(a) Using a hammer, tap in the spring pin to connect the shift lock

plate and shift lock solenoid.

4. INSTALL SHIFT LOCK SOLENOID

(a) Install the shift lock solenoid with No. 1 shift lock plate sub-assembly, 2 bushes and collar to the column

shift control shift lever retainer with the screw.

Torque:

1.2 N·m {12 kgf·cm, 11in·lbf}

(b) Attach the 2 claws to install the shift lock solenoid bracket.

A760E AUTOMATIC TRANSMISSION: SHIFT LEVER ASSEMBLY ...

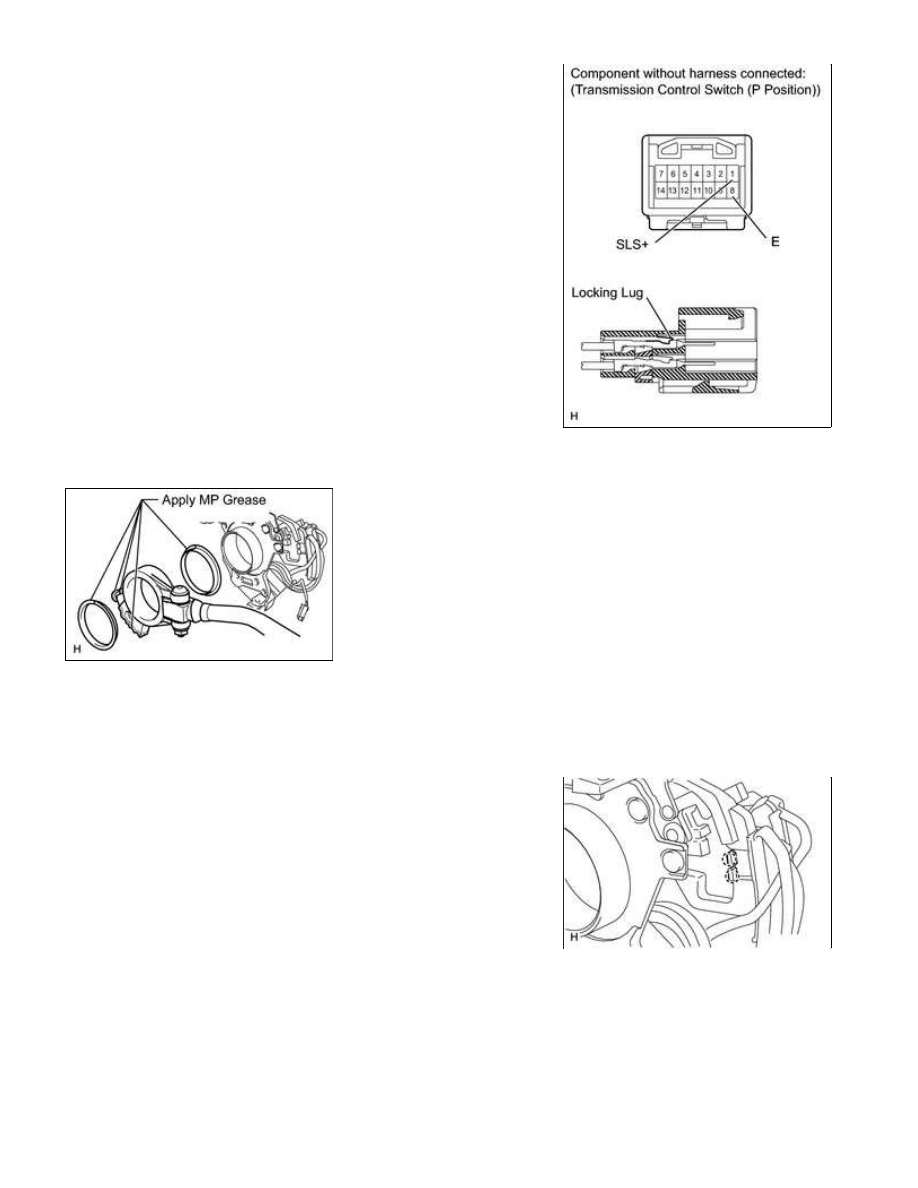

5. INSTALL COLUMN SHIFT SHIFT LEVER SUB-ASSEMBLY

(a) Apply MP grease to the 2 lever selecting bushes as shown in the illustration.

(b) Install the 2 lever selecting bushes and shift lever to the column shift control shift lever retainer.

shift lever retainer.

A760E AUTOMATIC TRANSMISSION: SHIFT LEVER ASSEMBLY ...

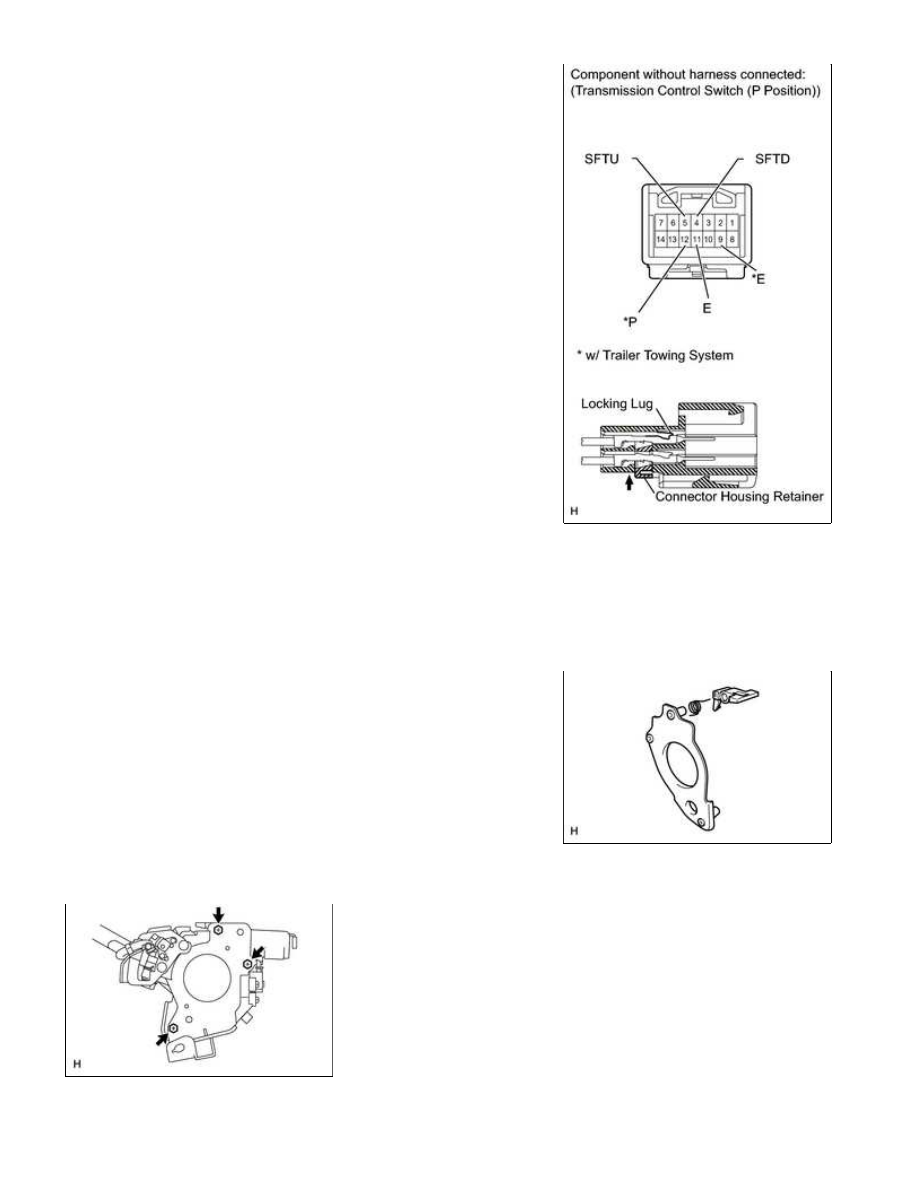

(e) w/o Trailer Towing System:

Securely connect the 3 wire terminals to terminal 4 (SFTD), 5

(f) w/ Trailer Towing System:

(a) Install the spring and shift lock release link to the shift lever

plate.

7. INSTALL SHIFT LEVER PLATE SUB-ASSEMBLY

(a) Install the shift lever plate to the column shift control shift lever retainer with the 3 bolts.

A760E AUTOMATIC TRANSMISSION: SHIFT LEVER ASSEMBLY ...
