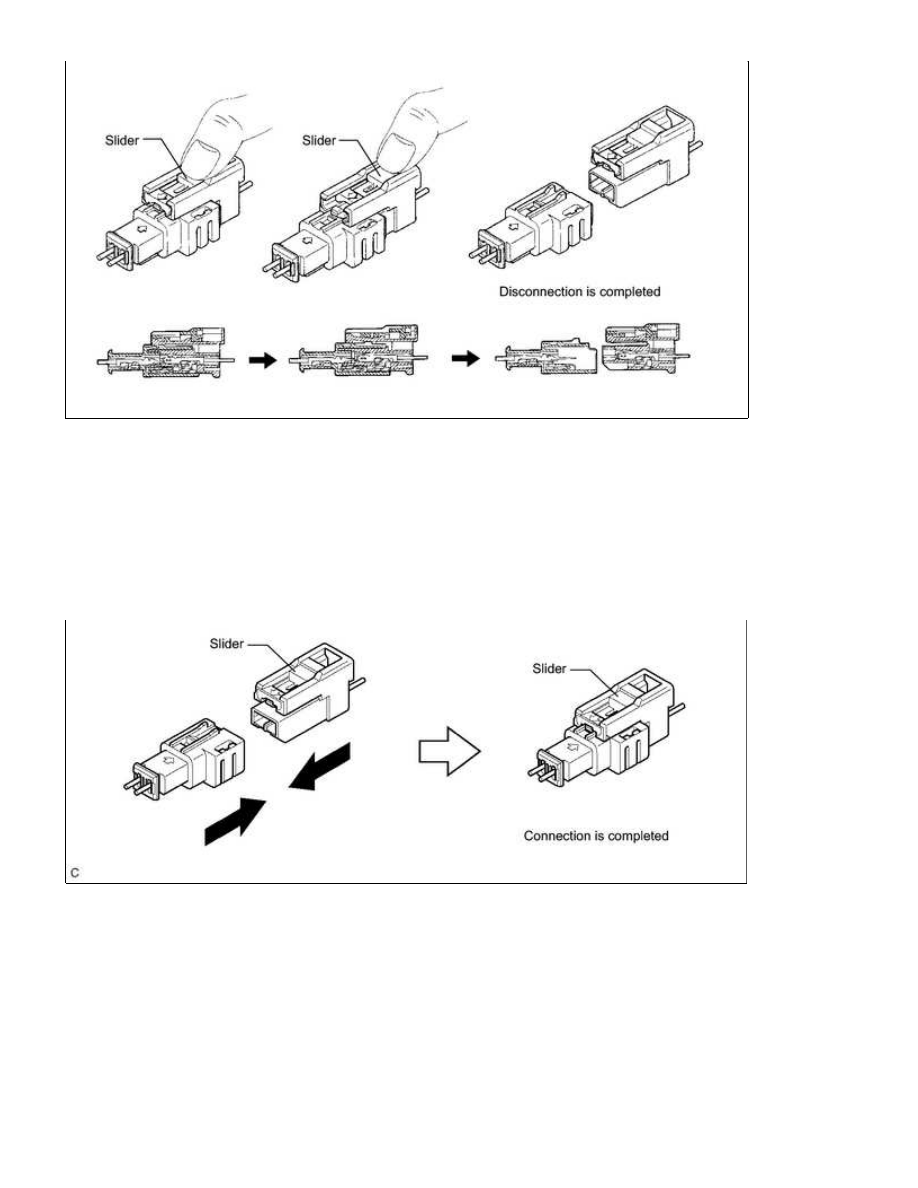

7. CONNECTION OF CONNECTOR FOR SPIRAL CABLE (INSTRUMENT PANEL WIRE SIDE)

AND FRONT PASSENGER AIRBAG (INSTRUMENT PANEL WIRE SIDE)

(a) Connect the connector as shown in the illustration. (When locking, make sure that the slider returns to its

original position and a click sound can be heard.)

HINT:

When connecting, the slider will slide. Be sure not to touch the slider while connecting, as it may result in an

insecure fit.

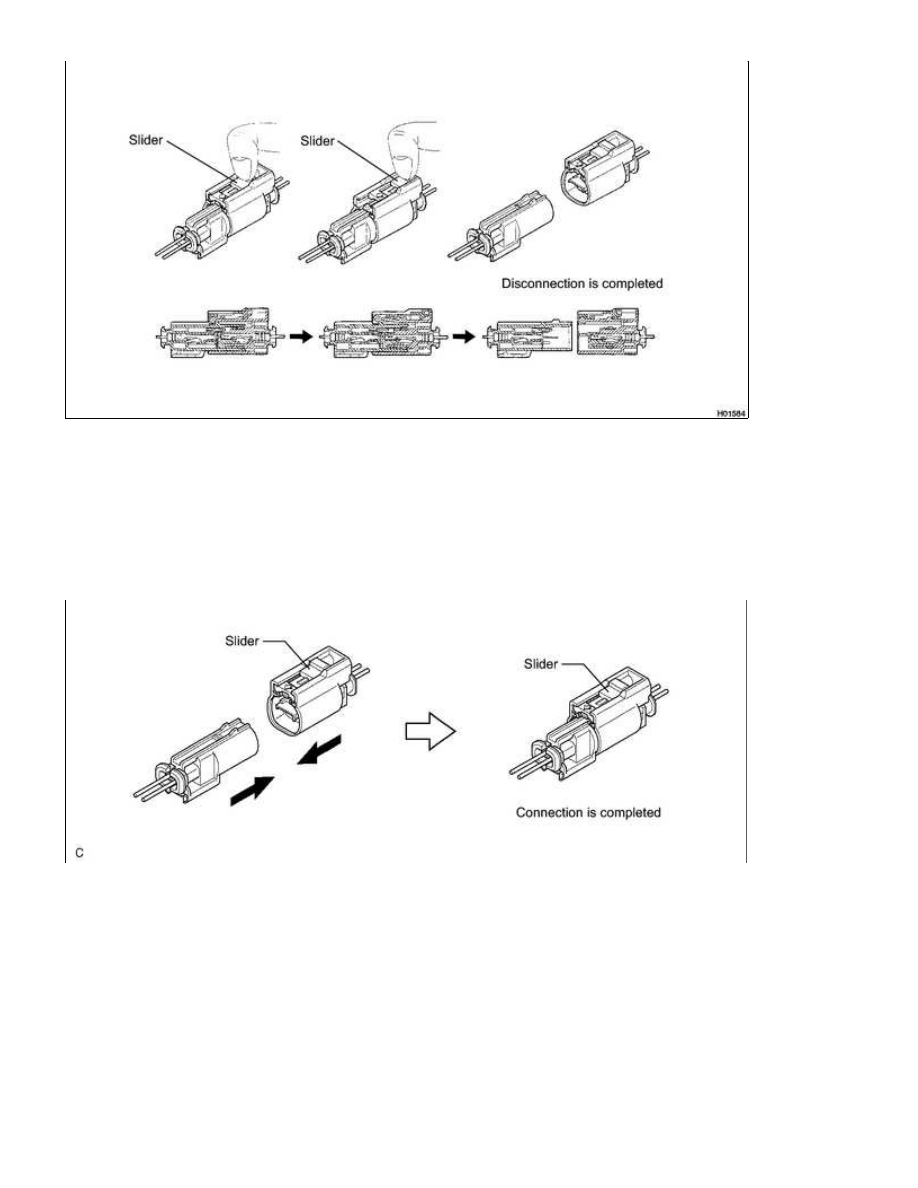

8. DISCONNECTION OF CONNECTORS FOR FRONT SEAT SIDE AIRBAG

(a) Place a finger on the slider, slide the slider to release the lock, and then disconnect the connector.

SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: PREC...

9. CONNECTION OF CONNECTORS FOR FRONT SEAT SIDE AIRBAG

(a) Connect the connector as shown in the illustration. (When locking, make sure that the slider returns to its

original position and a click sound can be heard.)

HINT:

When connecting, the slider will slide. Be sure not to touch the slider while connecting, as it may result in an

insecure fit.

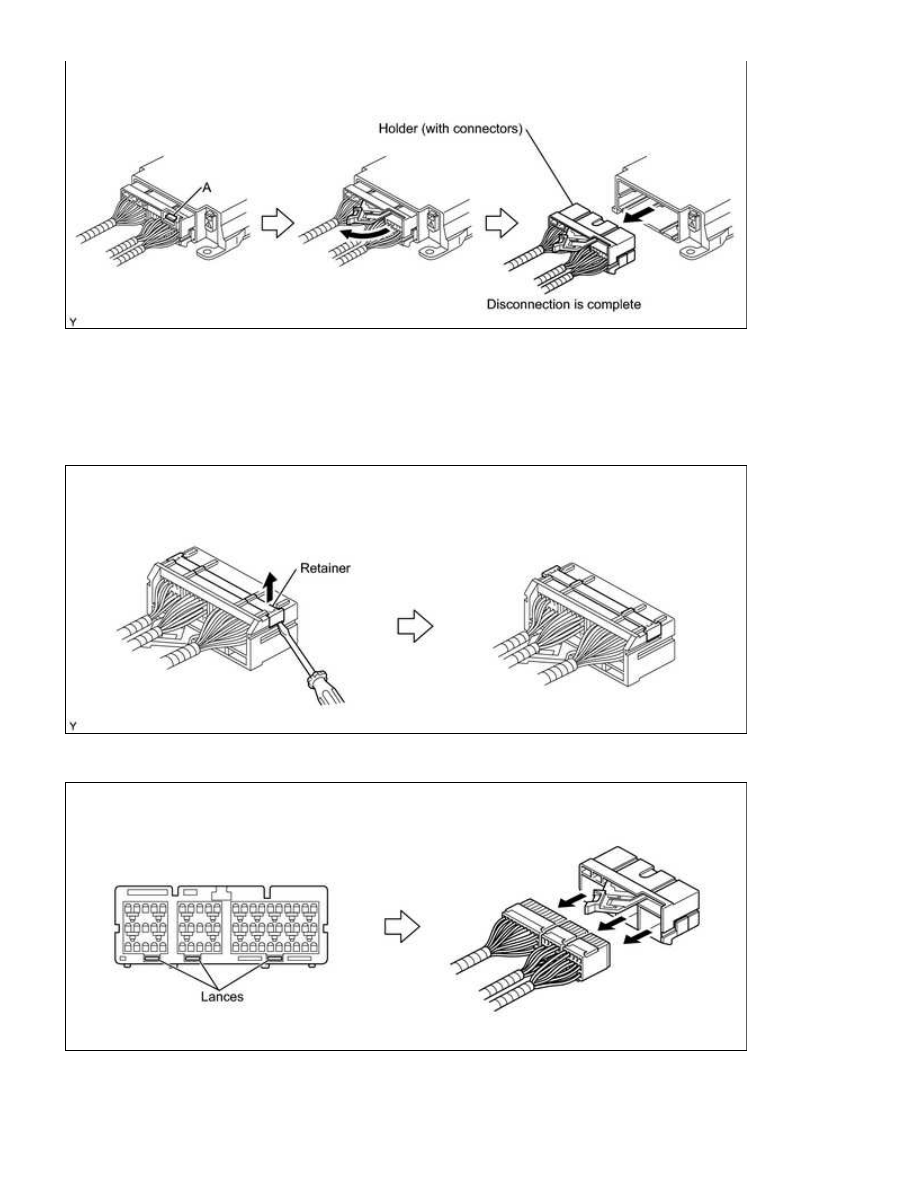

10. DISCONNECTION OF CONNECTOR FOR CENTER AIRBAG SENSOR

(a) Pull the lever by pushing part A as shown in the illustration and disconnect the holder (with connectors).

SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: PREC...

HINT:

Perform the following procedures when replacing the holder.

(b) Remove the holder.

(1) Using a screwdriver, unlock the retainer.

(2) Release the fitting lance and remove the holder.

SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: PREC...

(1) Install the connectors to the holder. (When locked, a click

sound can be heard.)

HINT:

The retainer is locked when the holder is connected.

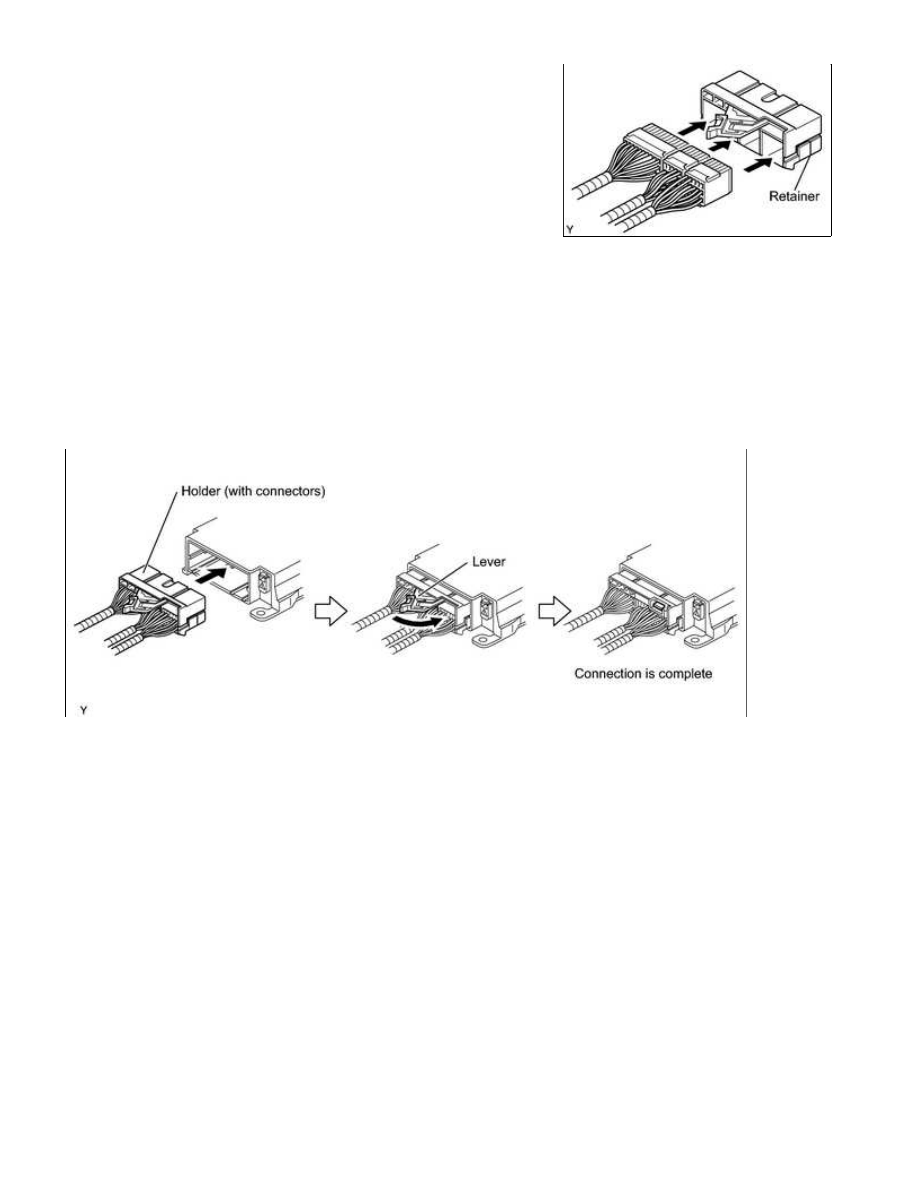

11. CONNECTION OF CONNECTOR FOR CENTER AIRBAG SENSOR

(a) Firmly insert the holder (with connectors) into the center airbag sensor until it cannot be pushed any

further.

(b) Push the lever to connect the holder (with connectors). (When locked, a click sound can be heard.)

HINT:

The holder slides into the center airbag sensor when it is being connected. Be sure not to hold the holder

while connecting, as it may result in an insecure fit.

12. DISCONNECTION OF CONNECTOR FOR FRONT AIRBAG SENSOR AND DOOR SIDE

AIRBAG SENSOR

(a) Push down the housing lock (white part) and slide the CPA (yellow part). (At this time, the connector cannot

be disconnected yet.)

(b) Push down the housing lock (white part) again and disconnect the connector.

HINT:

Do not push down the A part shown in the illustration when disconnecting.

SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: PREC...
