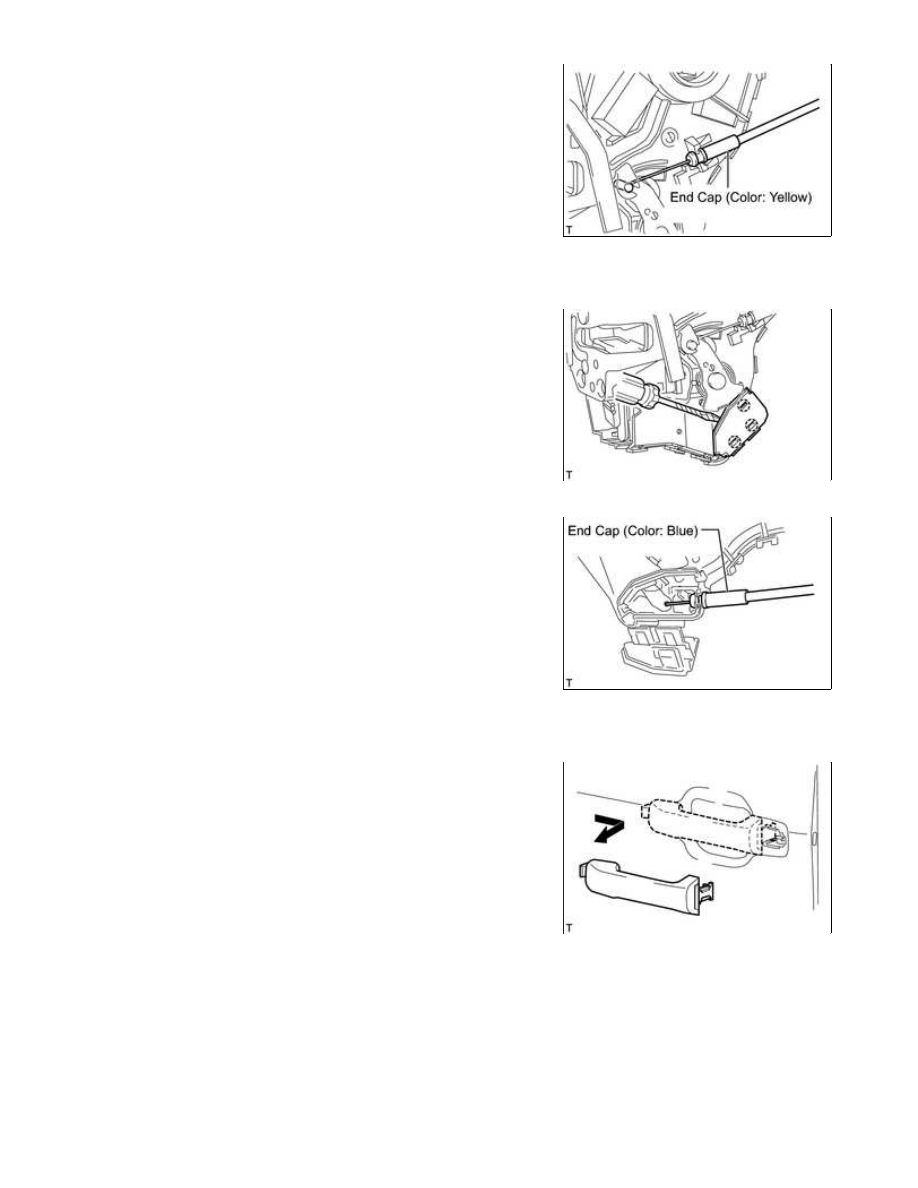

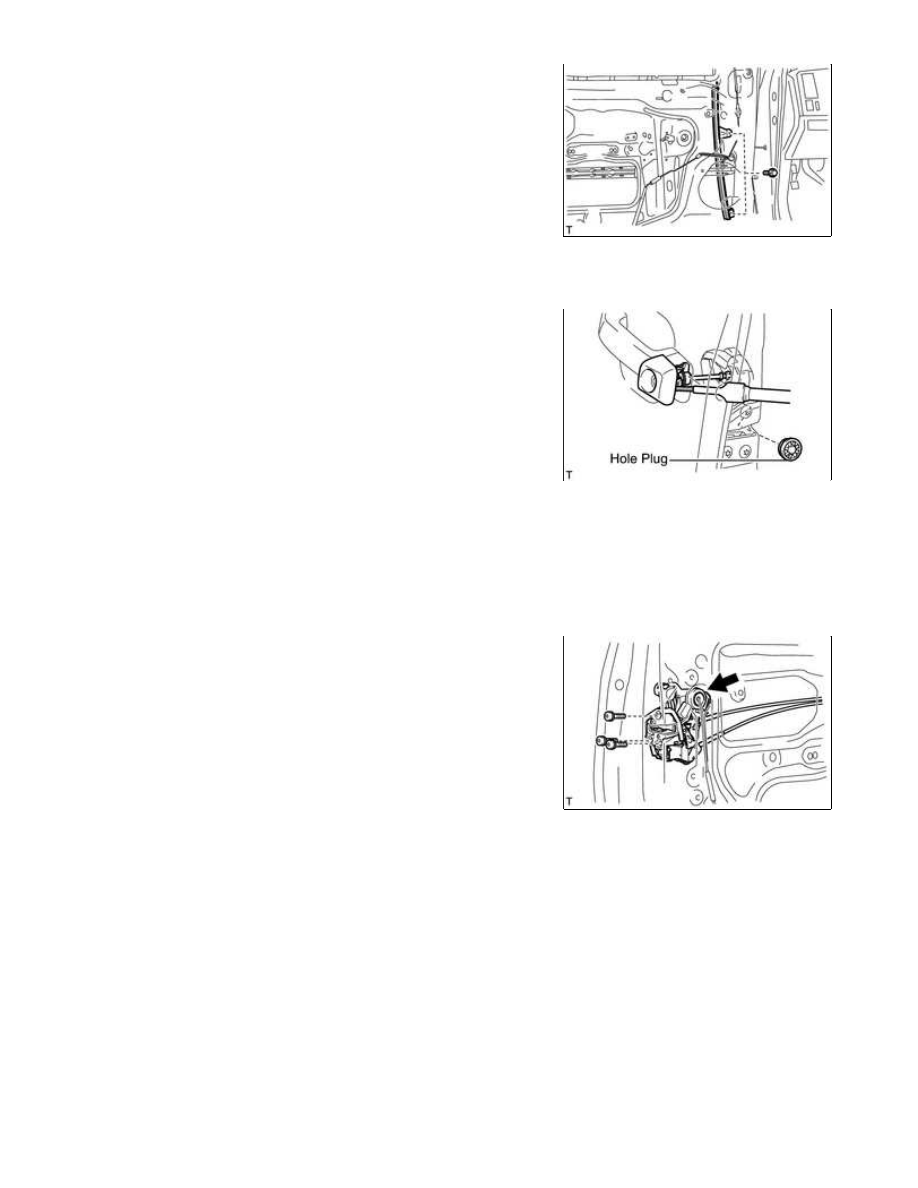

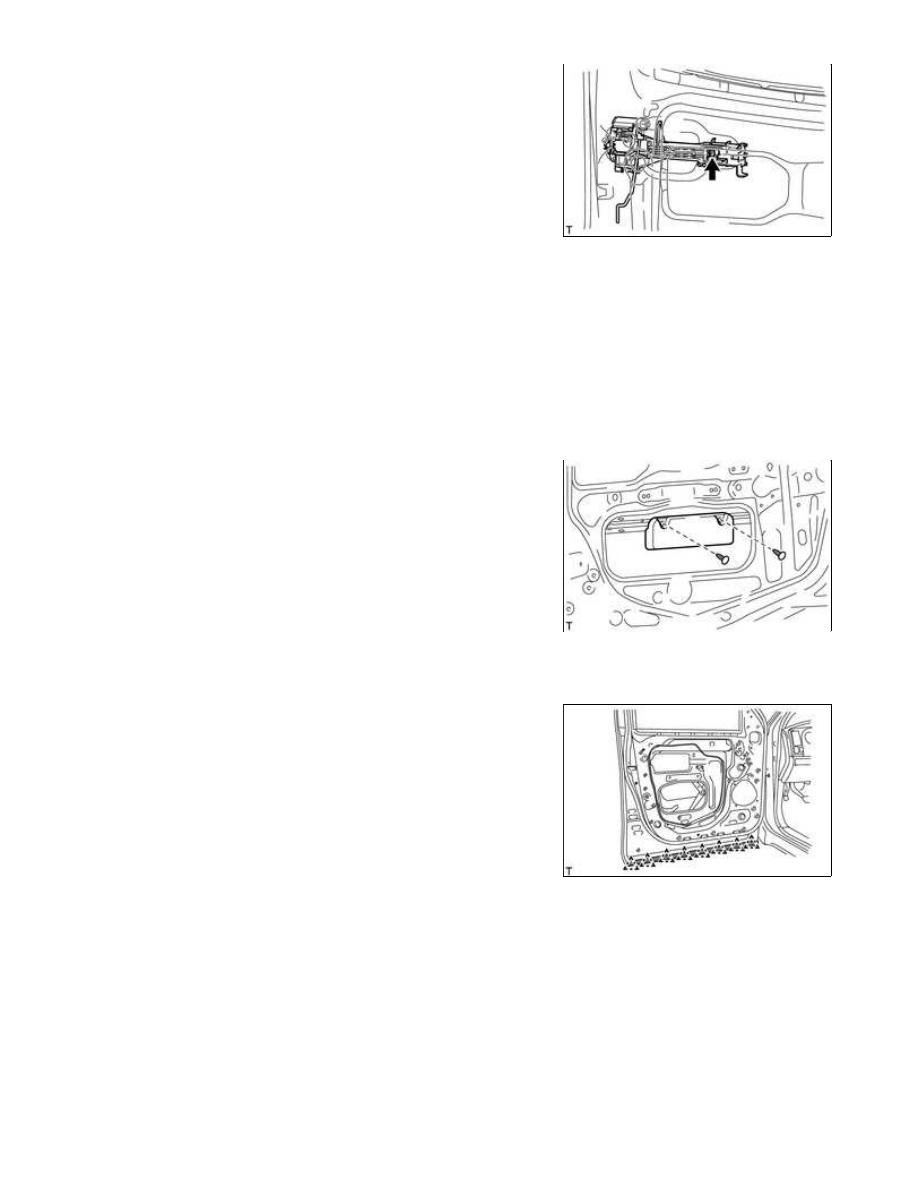

(a) Remove the 2 bolts and front door front lower frame. HINT: Remove the frame through the service hole. NOTICE: Be careful when removing the bolts as the frame may fall and become damaged. 24. REMOVE FRONT DOOR OUTSIDE HANDLE COVER LH (a) Remove the hole plug. (b) Using a T30 "TORX" wrench, loosen the screw and remove the front door outside handle cover and the door lock key cylinder as a unit. (c) Remove the cylinder from the cover. 25. REMOVE FRONT DOOR LOCK ASSEMBLY LH (a) Disconnect the connector. (b) Using a T30 "TORX" wrench, remove the 3 screws and door lock. HINT: Remove the door lock through the service hole. NOTICE: Be careful when removing the bolts as the door lock may fall and become damaged. 26. REMOVE FRONT DOOR LOCK REMOTE CONTROL CABLE ASSEMBLY LH ENGINE HOOD / DOOR: FRONT DOOR (for Double Cab): DISAS... |
