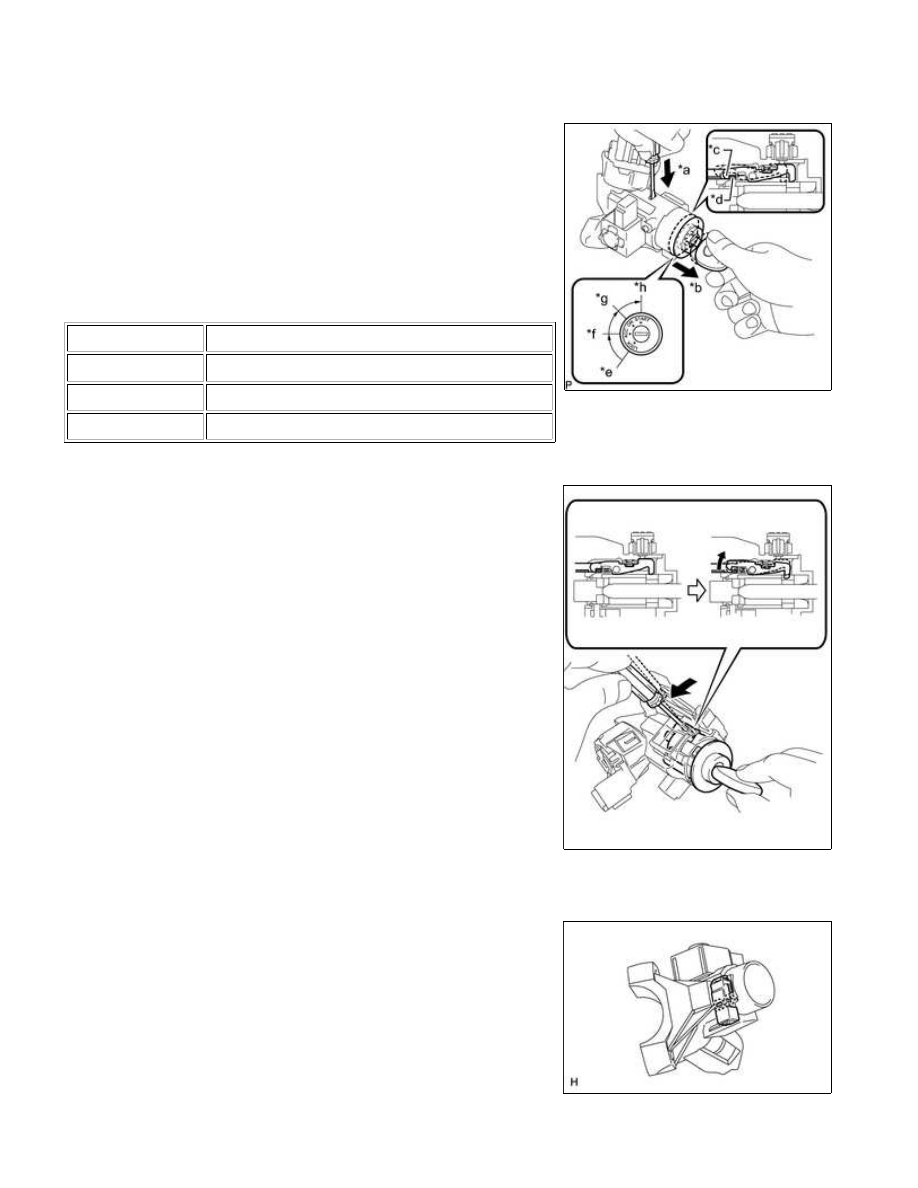

the ignition switch lock cylinder assembly until its claw contacts

HINT:

Make sure to pull the ignition switch lock cylinder assembly until

*a

Push

*b

Pull

*c

Claw

*c

Stopper

cylinder assembly.

HINT:

When the ignition lock cylinder assembly disengages, a click

sound is heard.

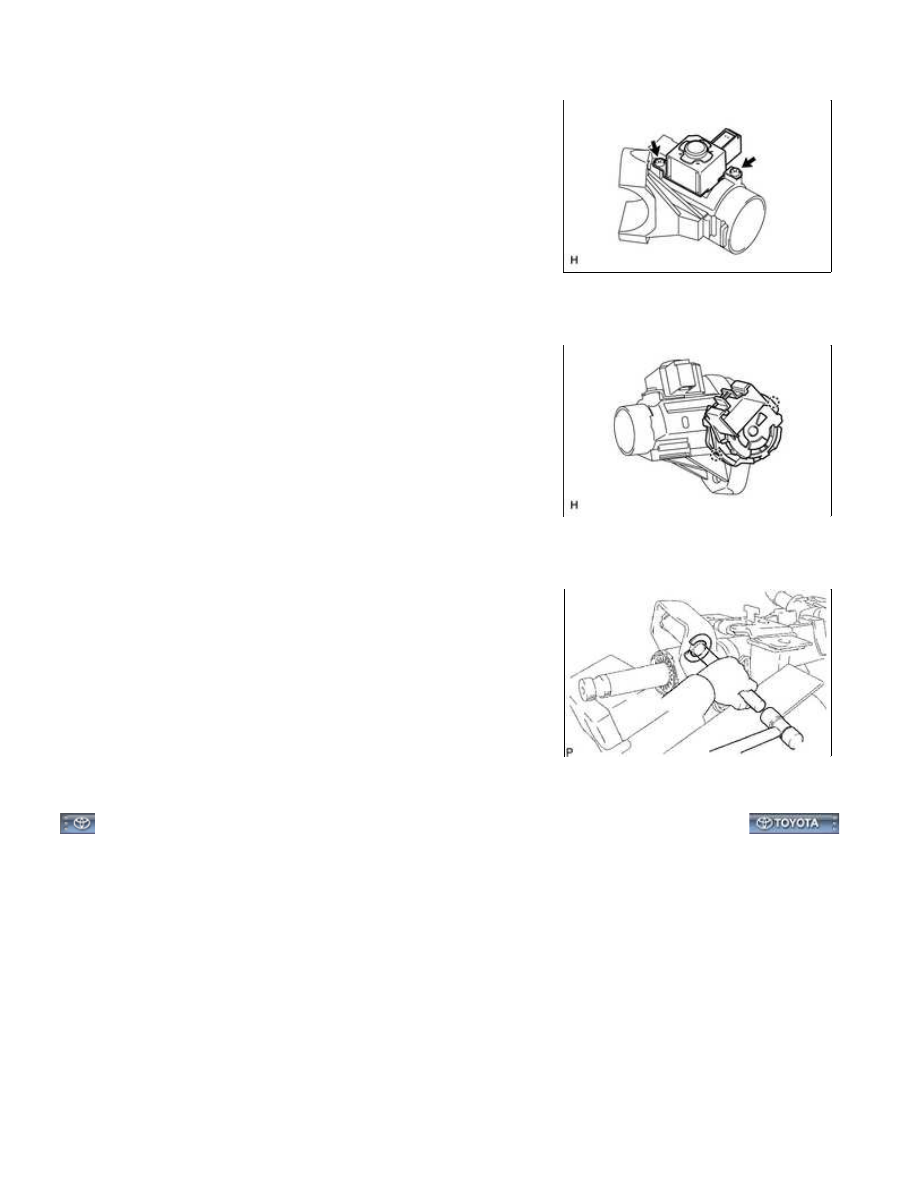

5. REMOVE UNLOCK WARNING SWITCH ASSEMBLY

(a) Detach the 2 claws and remove the switch.

STEERING COLUMN: STEERING COLUMN ASSEMBLY (for Manu...

6. REMOVE KEY INTERLOCK SOLENOID

(a) Remove the 2 screws and key interlock solenoid from the switch

bracket.

7. REMOVE IGNITION SWITCH ASSEMBLY

(a) Detach the 2 claws and remove the ignition switch from the

switch bracket.

8. REMOVE STEERING COLUMN BRACKET SPACER

(a) Using a brass bar, hammer and vise, gently strike the central

STEERING COLUMN: STEERING COLUMN ASSEMBLY (for Manu...

Last Modified: 9-16-2014

6.6 G

Doc ID: RM000002ZQM01AX

Model Year: 2015

Model: Tundra

Prod Date Range: [08/2014 -           ]

Title: STEERING COLUMN: STEERING COLUMN ASSEMBLY (for Manual Tilt and Manual Telescopic Steering

Column): INSPECTION; 2015 MY Tundra [08/2014 -        ]

INSPECTION

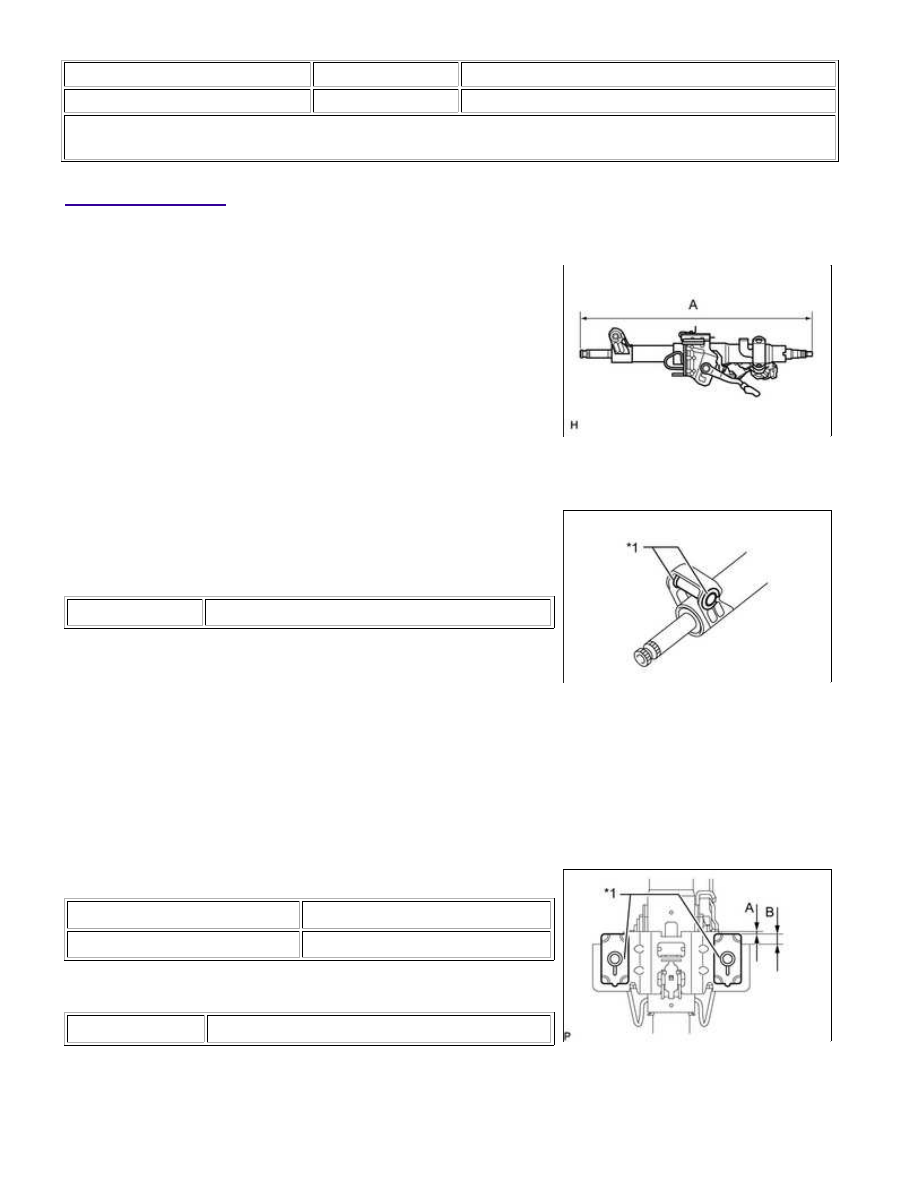

1. INSPECT STEERING COLUMN ASSEMBLY

529.5 mm (1.74 ft.)

(b) Inspect the bushings.

(1) Check that the 2 bushings are securely installed to the

steering column assembly.

Text in Illustration

*1

Bushing

If the bushings are missing or damaged, replace the steering

column assembly with a new one.

(2) Check the 2 bushings for deformation and damage.

If the bushings are deformed or damaged, replace the steering column assembly with a new one.

(c) Inspect the capsules.

(1) Check that the 2 capsules are securely installed to the

steering column assembly as shown in the illustration.

Standard Dimension:

A

B

3 mm (0.118 in.)

10 mm (0.394 in.)

Text in Illustration

*1

Capsule

If the capsules are not positioned as specified, replace the

steering column assembly with a new one.

STEERING COLUMN: STEERING COLUMN ASSEMBLY (for Manu...

(2) Check the 2 capsules for deformation and damage.

STEERING COLUMN: STEERING COLUMN ASSEMBLY (for Manu...
