Toyota Tundra (2015 year). Manual - part 2737





Last Modified: 9-16-2014

6.6 T

Doc ID: RM000001RSR02WX

Model Year: 2015

Model: Tundra

Prod Date Range: [08/2014 -           ]

Title: MULTIPLEX COMMUNICATION: LIN COMMUNICATION SYSTEM: PROBLEM SYMPTOMS TABLE; 2015 MY

Tundra [08/2014 -        ]

PROBLEM SYMPTOMS TABLE

HINT:

SYMPTOM

SUSPECTED AREA

SEE PAGE

Air Conditioning Control Assembly Communication Error

LIN communication line

Air conditioning amplifier assembly

Air conditioning control assembly

Harness or connector

MULTIPLEX COMMUNICATION: LIN COMMUNICATION SYSTEM:...

Last Modified: 9-16-2014

6.6 U

Doc ID: RM000002S8903SX

Model Year: 2015

Model: Tundra

Prod Date Range: [08/2014 -           ]

Title: MULTIPLEX COMMUNICATION: LIN COMMUNICATION SYSTEM: TERMINALS OF ECU; 2015 MY Tundra

[08/2014 -        ]

TERMINALS OF ECU

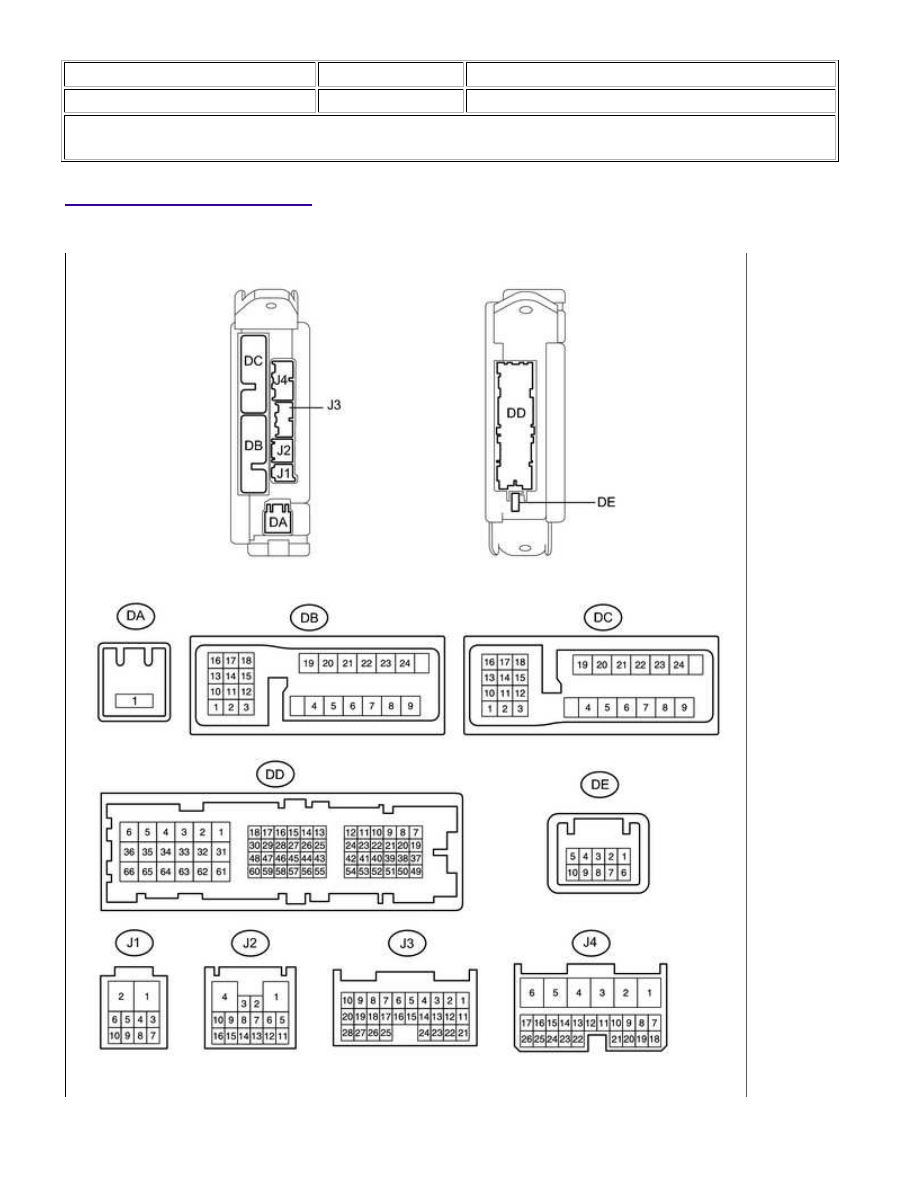

1. CHECK MAIN BODY ECU (DRIVER SIDE JUNCTION BLOCK)

MULTIPLEX COMMUNICATION: LIN COMMUNICATION SYSTEM:...

(a) Disconnect the DA and DB main body ECU (driver side junction block) connectors.

(b) Measure the voltage and resistance according to the value(s) in the table below.

TERMINAL NO. (SYMBOLS)

WIRING COLOR TERMINAL DESCRIPTION CONDITION SPECIFIED CONDITION

DA-1 (ACC) - Body ground

B - Body ground

ACC power supply

Always

11 to 14 V

DA-1 (IG) - Body ground

B - Body ground

IG power supply

Always

11 to 14 V

DB-21 (GND1) - Body ground B - Body ground

Body ground

Always

Below 1 Ω

DB-21 (GND2) - Body ground B - Body ground

Body ground

Always

Below 1 Ω

If the result is not as specified, there may be a malfunction on the wire harness side.

2. CHECK POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY (for Power Window

Control System [w/ Jam Protection Function])

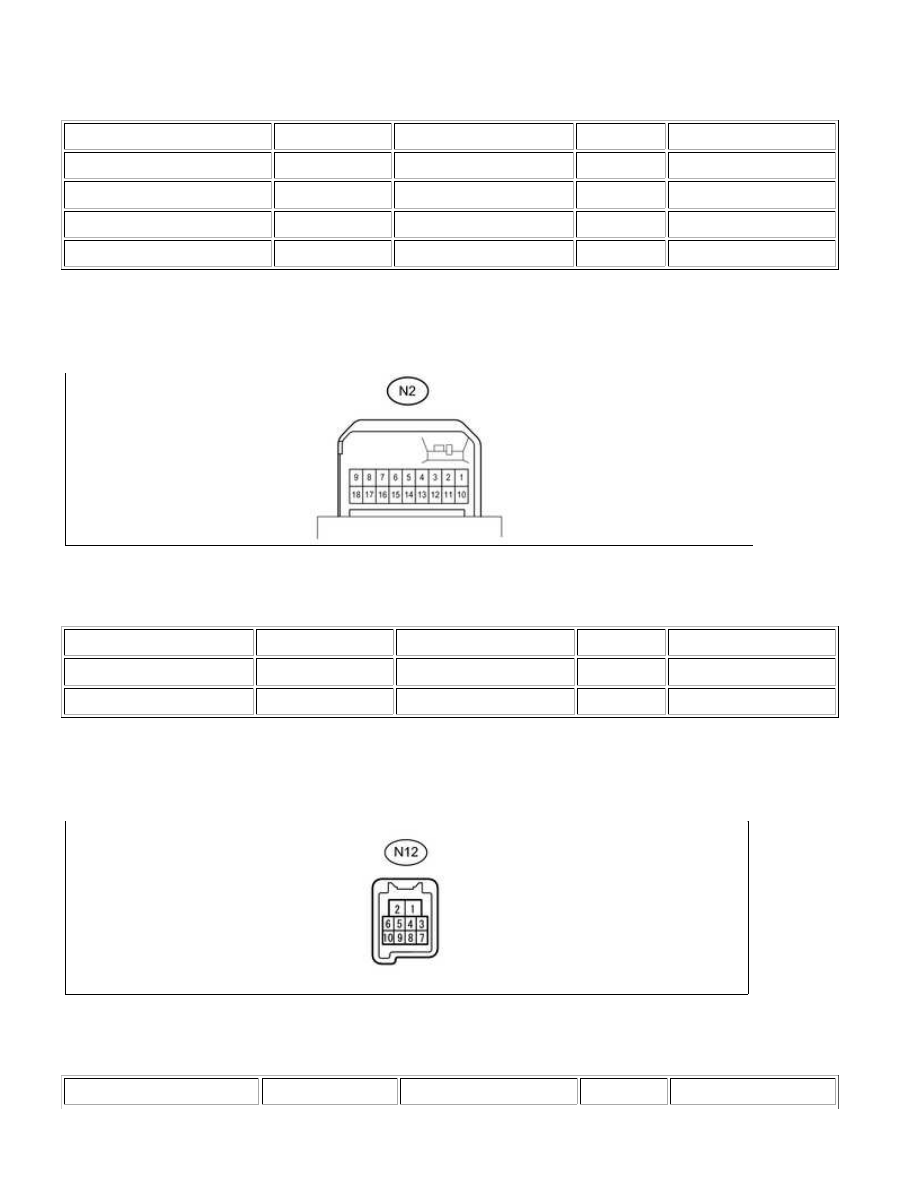

(a) Disconnect the N2 power window regulator master switch assembly connector.

(b) Measure the voltage and resistance according to the value(s) in the table below.

TERMINAL NO. (SYMBOLS)

WIRING COLOR

TERMINAL DESCRIPTION CONDITION SPECIFIED CONDITION

N2-3 (B) - N2-1 (E)

L - W-B

Battery power supply

Always

11 to 14 V

N2-1 (E) - Body ground

W-B - Body ground Ground

Always

Below 1 Ω

If the result is not as specified, there may be a malfunction on the wire harness side.

3. CHECK FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY LH (for Power Window

Control System [w/ Jam Protection Function])

(a) Disconnect the N12 front power window regulator motor assembly LH connector.

(b) Measure the voltage and resistance according to the value(s) in the table below.

TERMINAL NO. (SYMBOLS)

WIRING COLOR

TERMINAL DESCRIPTION CONDITION SPECIFIED CONDITION

MULTIPLEX COMMUNICATION: LIN COMMUNICATION SYSTEM:...

TERMINAL NO. (SYMBOLS)

WIRING COLOR

TERMINAL DESCRIPTION CONDITION SPECIFIED CONDITION

N12-2 (B) - N12-1 (GND)

G - W-B

Battery power supply

Always

11 to 14 V

N12-1 (GND) - Body ground W-B - Body ground Ground

Always

Below 1 Ω

If the result is not as specified, there may be a malfunction on the wire harness side.

4. CHECK FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY RH (for Power Window

Control System [w/ Jam Protection Function])

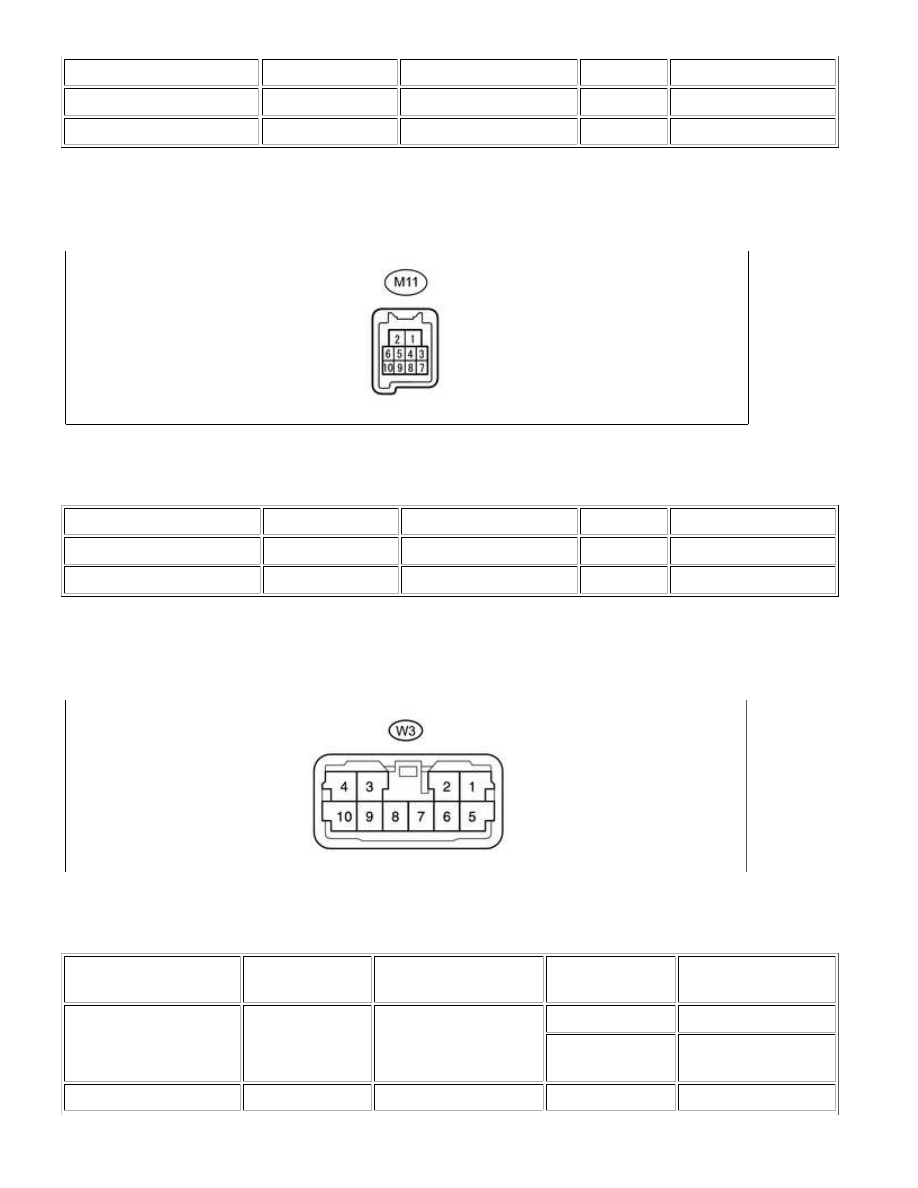

(a) Disconnect the M11 front power window regulator motor assembly RH connector.

(b) Measure the voltage and resistance according to the value(s) in the table below.

TERMINAL NO. (SYMBOLS)

WIRING COLOR

TERMINAL DESCRIPTION CONDITION SPECIFIED CONDITION

M11-2 (B) - M11-1 (GND)

V - W-B

Battery power supply

Always

11 to 14 V

M11-1 (GND) - Body ground W-B - Body ground Ground

Always

Below 1 Ω

If the result is not as specified, there may be a malfunction on the wire harness side.

5. CHECK SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY (SLIDING ROOF ECU) (w/ Sliding

(b) Measure the voltage and resistance according to the value(s) in the table below.

TERMINAL NO.

(SYMBOLS)

WIRING COLOR

TERMINAL

DESCRIPTION

CONDITION

SPECIFIED

CONDITION

W3-9 (IG) - Body ground SB - Body ground IG power supply

Ignition switch ON 11 to 14 V

Ignition switch

OFF

Below 1 V

W3-10 (B) - Body ground L - Body ground

+B power supply

Always

11 to 14 V

MULTIPLEX COMMUNICATION: LIN COMMUNICATION SYSTEM:...
