6.6 J

Doc ID: RM000000XG702IX

Model Year: 2015

Model: Tundra

Prod Date Range: [08/2014 -           ]

Title: BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM: TS and CG Terminal Circuit; 2015 MY Tundra

[08/2014 -        ]

TS and CG Terminal Circuit

DESCRIPTION

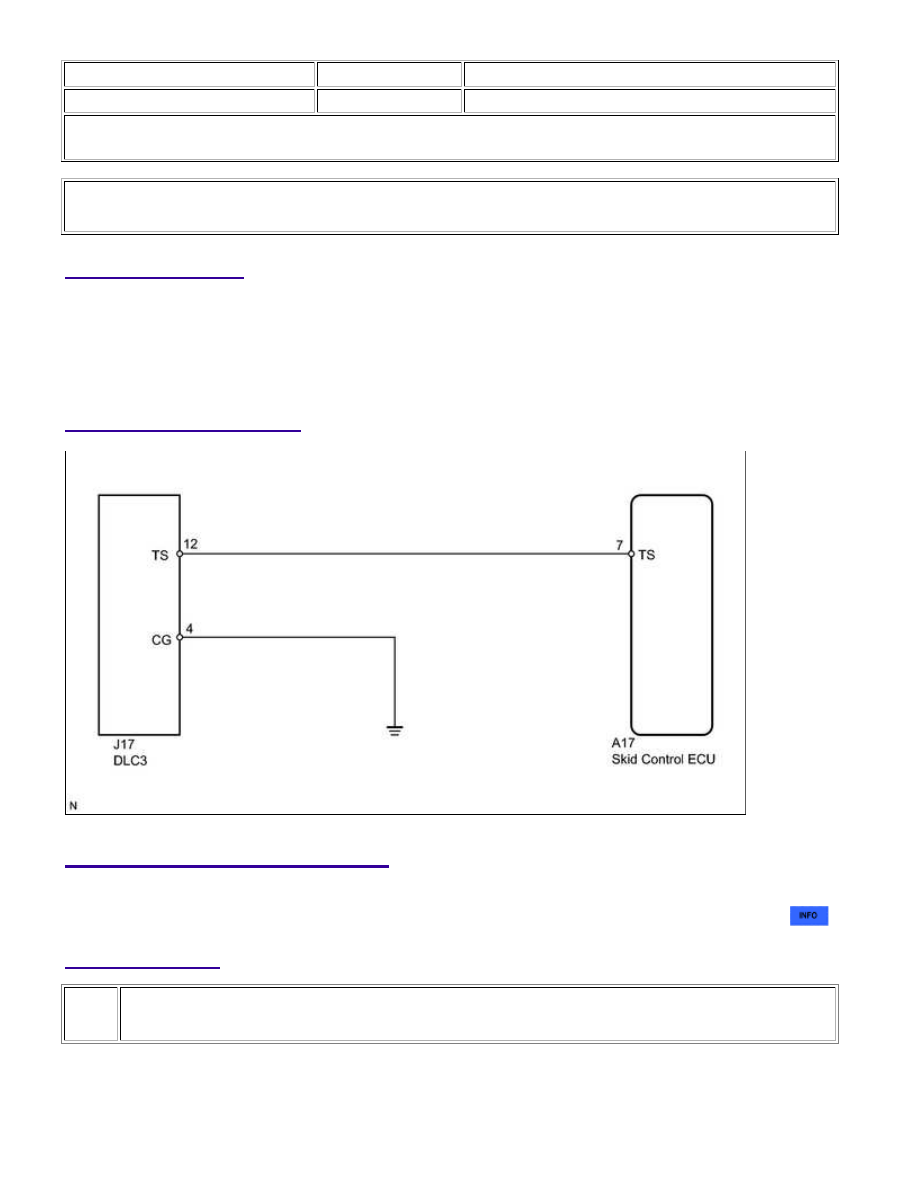

WIRING DIAGRAM

INSPECTION PROCEDURE

NOTICE:

.

PROCEDURE

1.

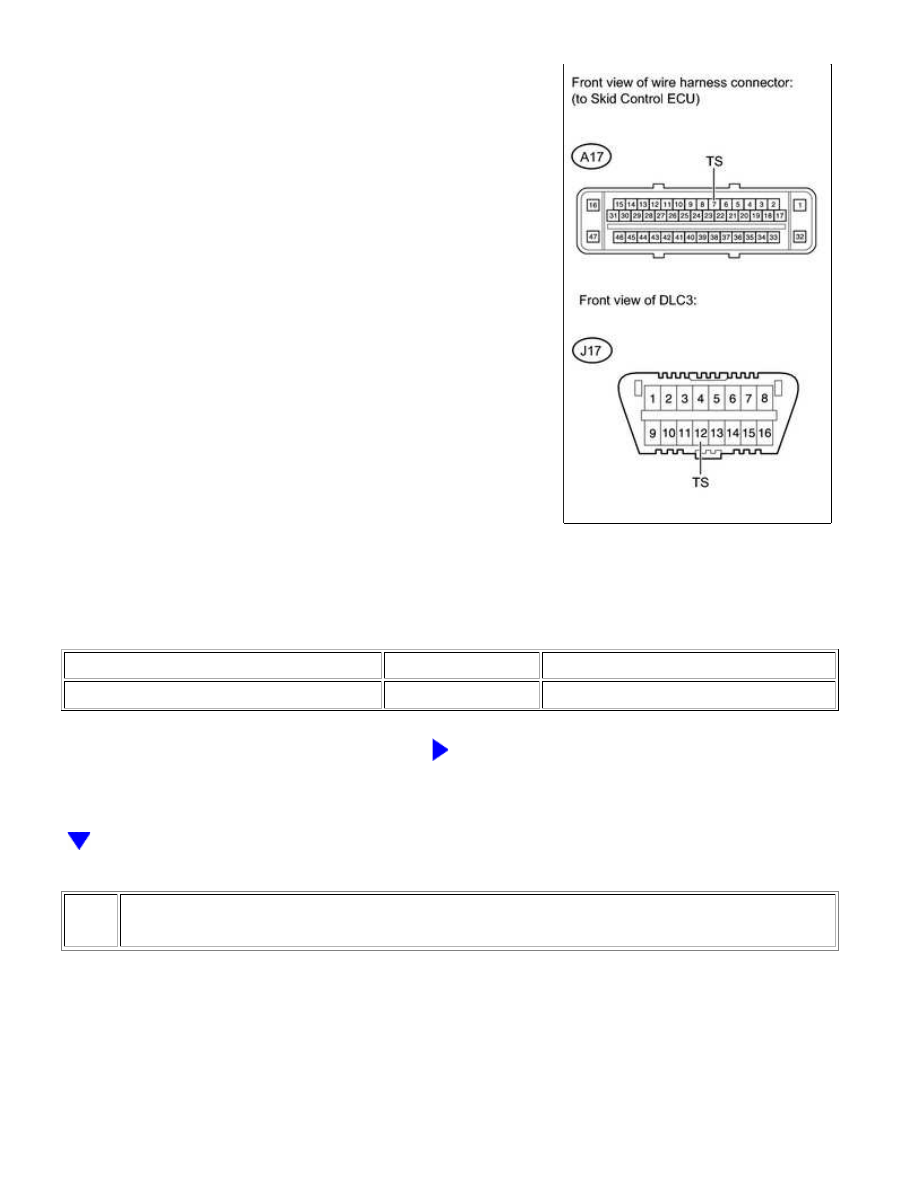

CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU - DLC3)

BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM: TS...

OK

(a) Turn the ignition switch off.

(b) Disconnect the A17 ECU connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

TESTER CONNECTION

CONDITION

SPECIFIED CONDITION

A17-7 (TS) - J17-12 (TS)

Always

Below 1 Ω

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

2.

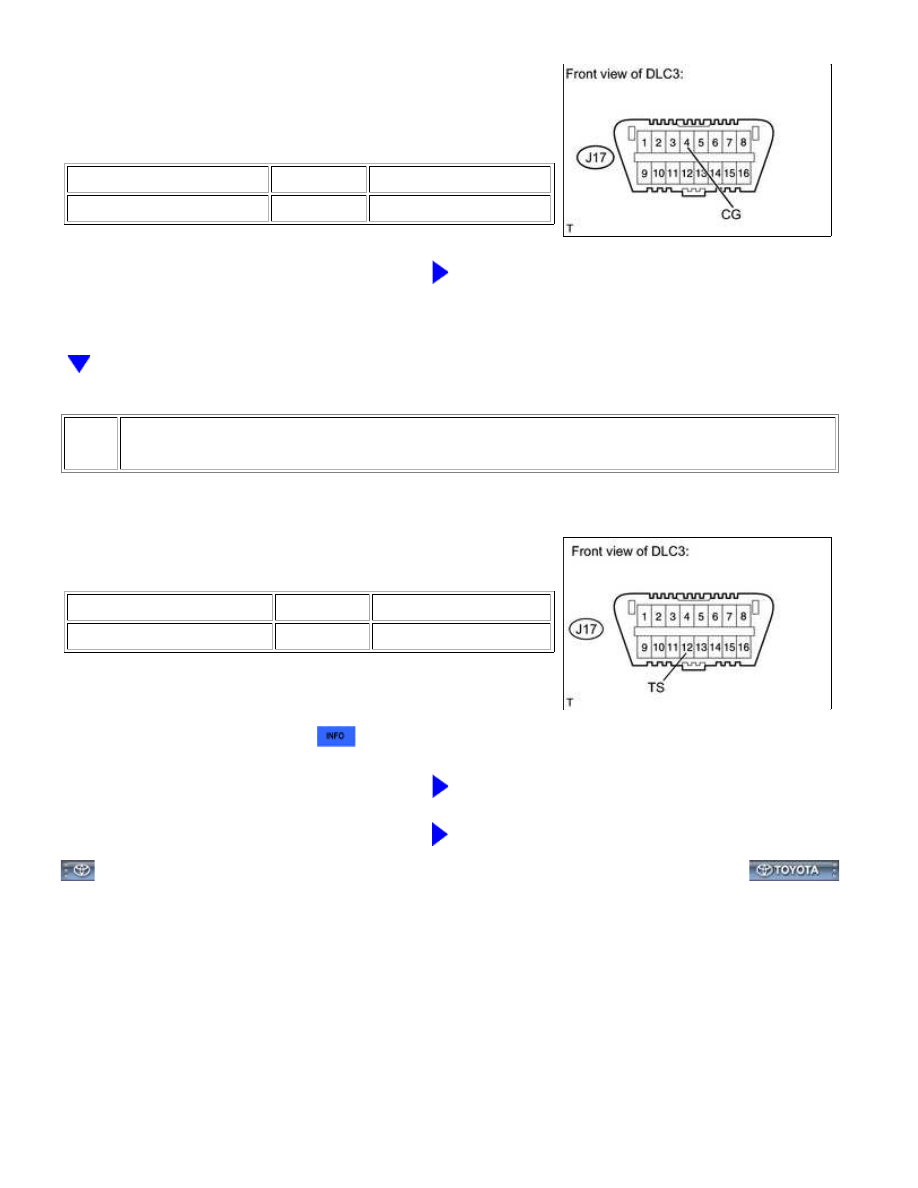

CHECK HARNESS AND CONNECTOR (DLC3 - BODY GROUND)

BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM: TS...

OK

(a) Measure the resistance according to the value(s) in the table

below.

Standard Resistance:

TESTER CONNECTION

CONDITION

SPECIFIED CONDITION

J17-4 (CG) - Body ground

Always

Below 1 Ω

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

3.

CHECK HARNESS AND CONNECTOR (DLC3 - BODY GROUND)

(a) Measure the resistance according to the value(s) in the table

below.

Standard Resistance:

TESTER CONNECTION

CONDITION

SPECIFIED CONDITION

J17-12 (TS) - Body ground

Always

10 kΩ or higher

HINT:

If troubleshooting has been carried out according to the Problem

Symptoms Table, refer back to the table and proceed to the next
step before replacing the part



.

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

OK

REPLACE VSC ACTUATOR ASSEMBLY

BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM: TS...

Last Modified: 9-16-2014

6.6 K

Doc ID: RM000001WZ1042X

Model Year: 2015

Model: Tundra

Prod Date Range: [08/2014 -           ]

Title: BRAKE CONTROL: VSC OFF SWITCH: COMPONENTS; 2015 MY Tundra [08/2014 -        ]

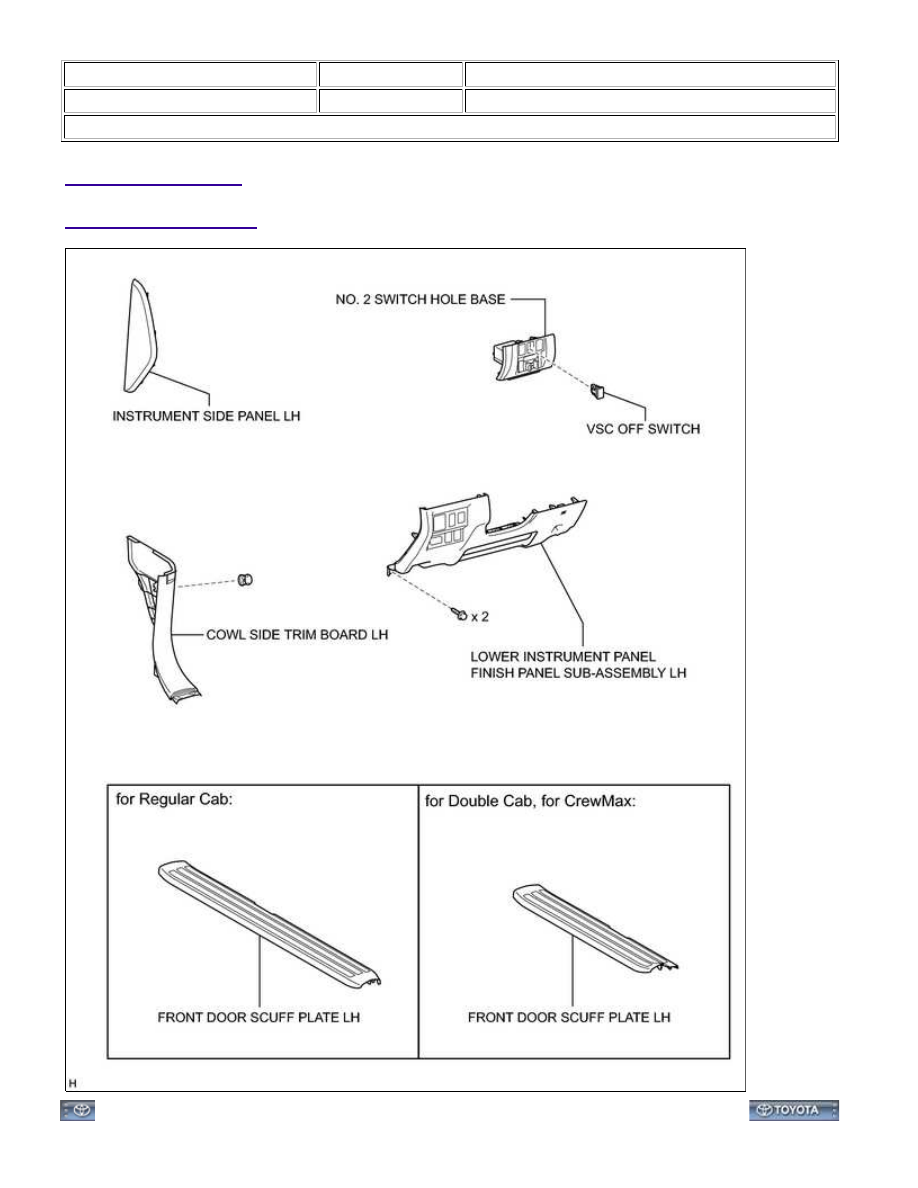

COMPONENTS

ILLUSTRATION

BRAKE CONTROL: VSC OFF SWITCH: COMPONENTS; 2015 MY ...
