Toyota Tundra (2015 year). Manual

Last Modified: 9-16-2014

6.6 A

Doc ID: RM000002MDN040X

Model Year: 2015

Model: Tundra

Prod Date Range: [08/2014 - ]

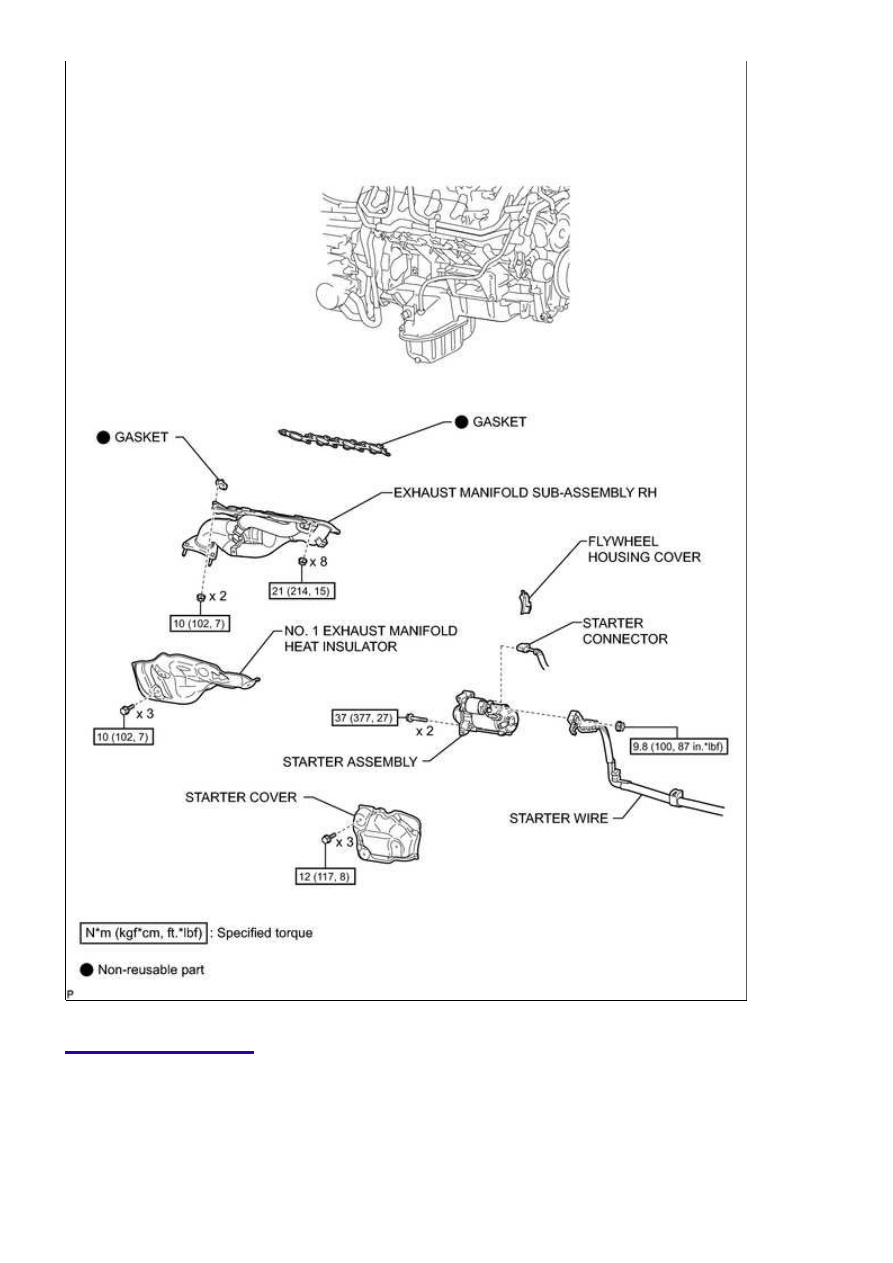

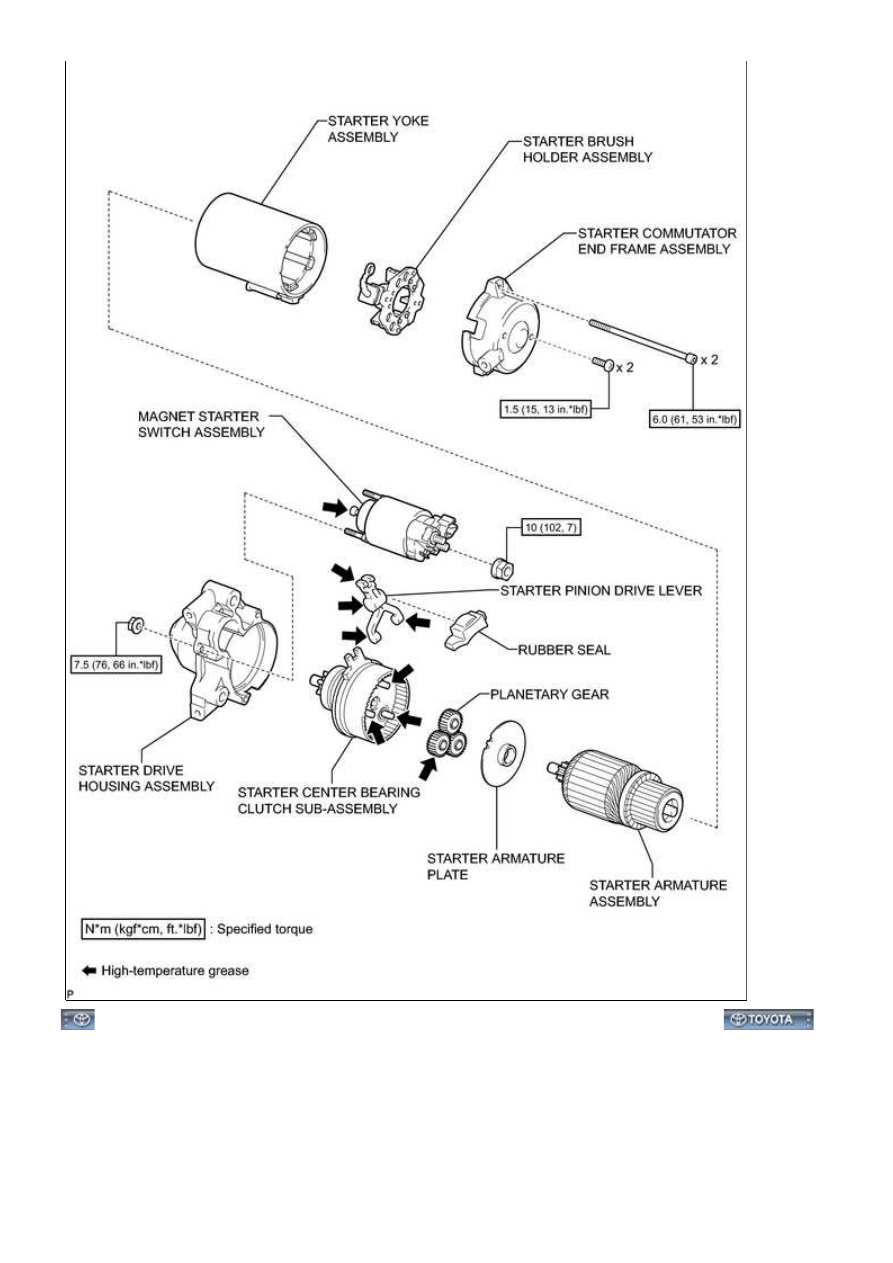

Title: 3UR-FE STARTING: STARTER: REMOVAL; 2015 MY Tundra [08/2014 - ]

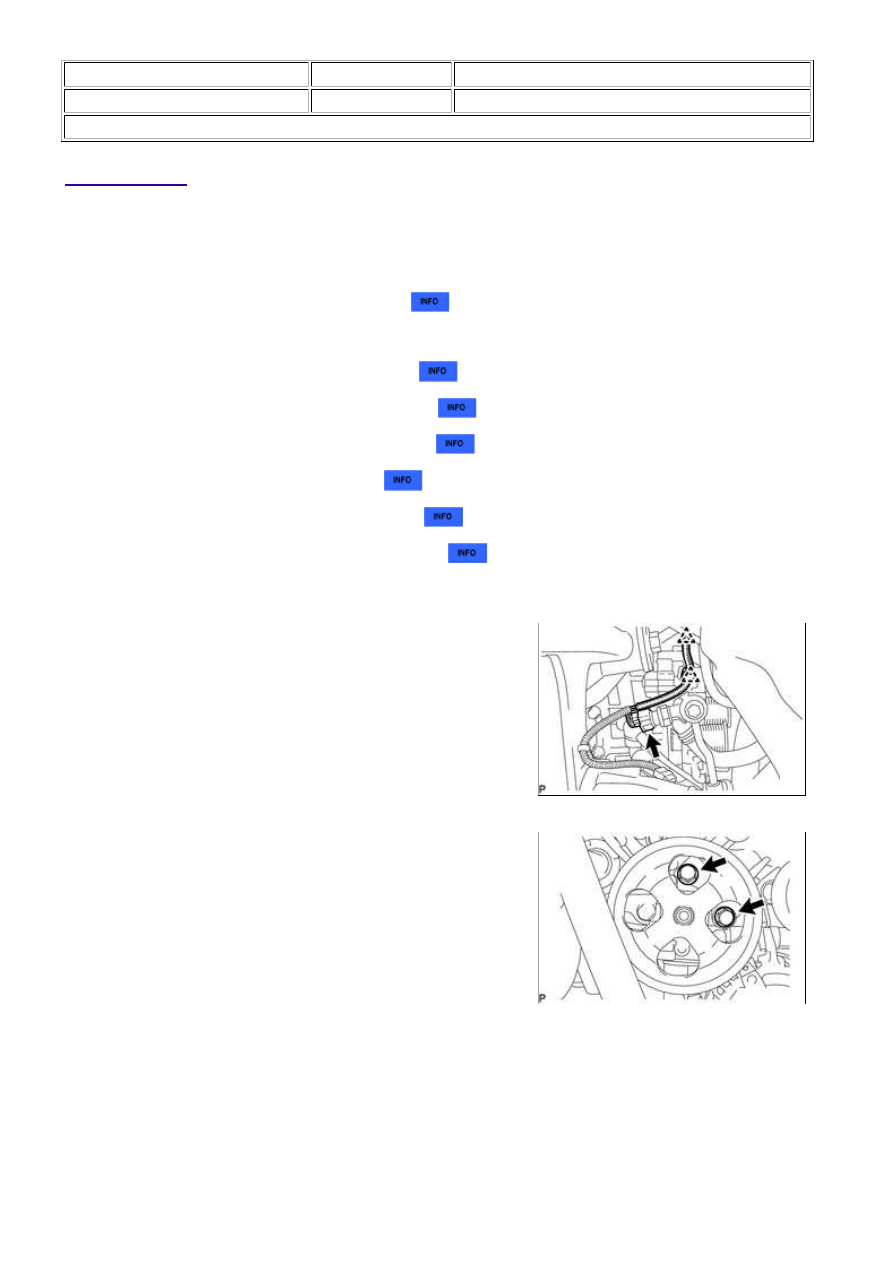

REMOVAL

1. PRECAUTION

NOTICE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from

the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery

terminal notice before proceeding with work

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

3. REMOVE NO. 1 ENGINE UNDER COVER

4. REMOVE V-BANK COVER SUB-ASSEMBLY

5. REMOVE AIR CLEANER HOSE ASSEMBLY

6. REMOVE AIR CLEANER ASSEMBLY

7. REMOVE FAN AND GENERATOR V BELT

8. REMOVE FRONT FENDER APRON SEAL RH

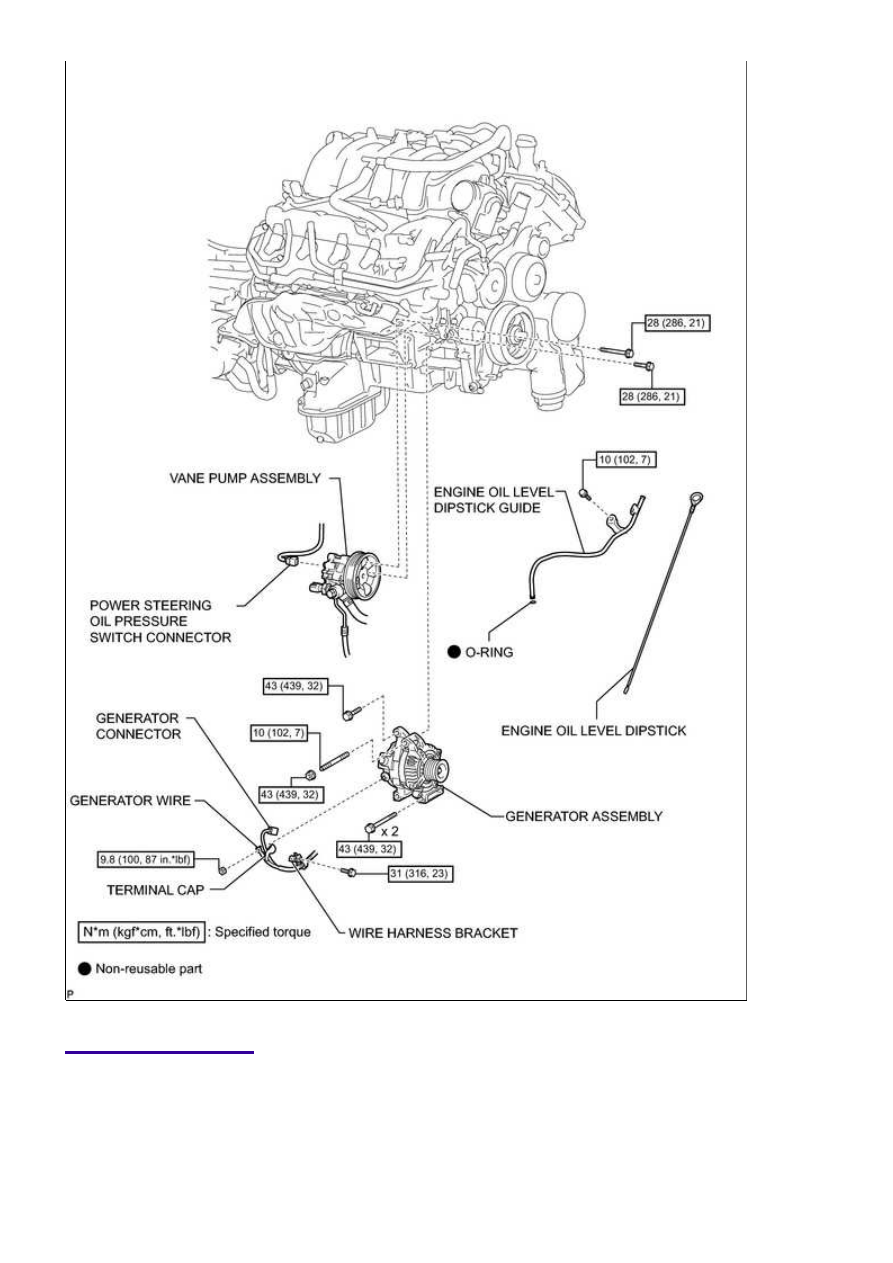

9. DISCONNECT VANE PUMP ASSEMBLY

(a) Detach the 2 clamps and disconnect the power steering oil

pressure switch connector.

(b) Remove the 2 bolts and disconnect the vane pump.

10. REMOVE GENERATOR ASSEMBLY

3UR-FE STARTING: STARTER: REMOVAL; 2015 MY Tundra [08/20...
