Toyota Tundra (2015 year). Manual - part 2614
Last Modified: 9-16-2014
6.6 G
Doc ID: RM0000031GR023X
Model Year: 2015
Model: Tundra
Prod Date Range: [08/2014 - ]
Title: 3UR-FE INTAKE: VACUUM SWITCHING VALVE (for ACIS): ON-VEHICLE INSPECTION; 2015 MY Tundra
[08/2014 - ]
ON-VEHICLE INSPECTION
1. REMOVE V-BANK COVER SUB-ASSEMBLY

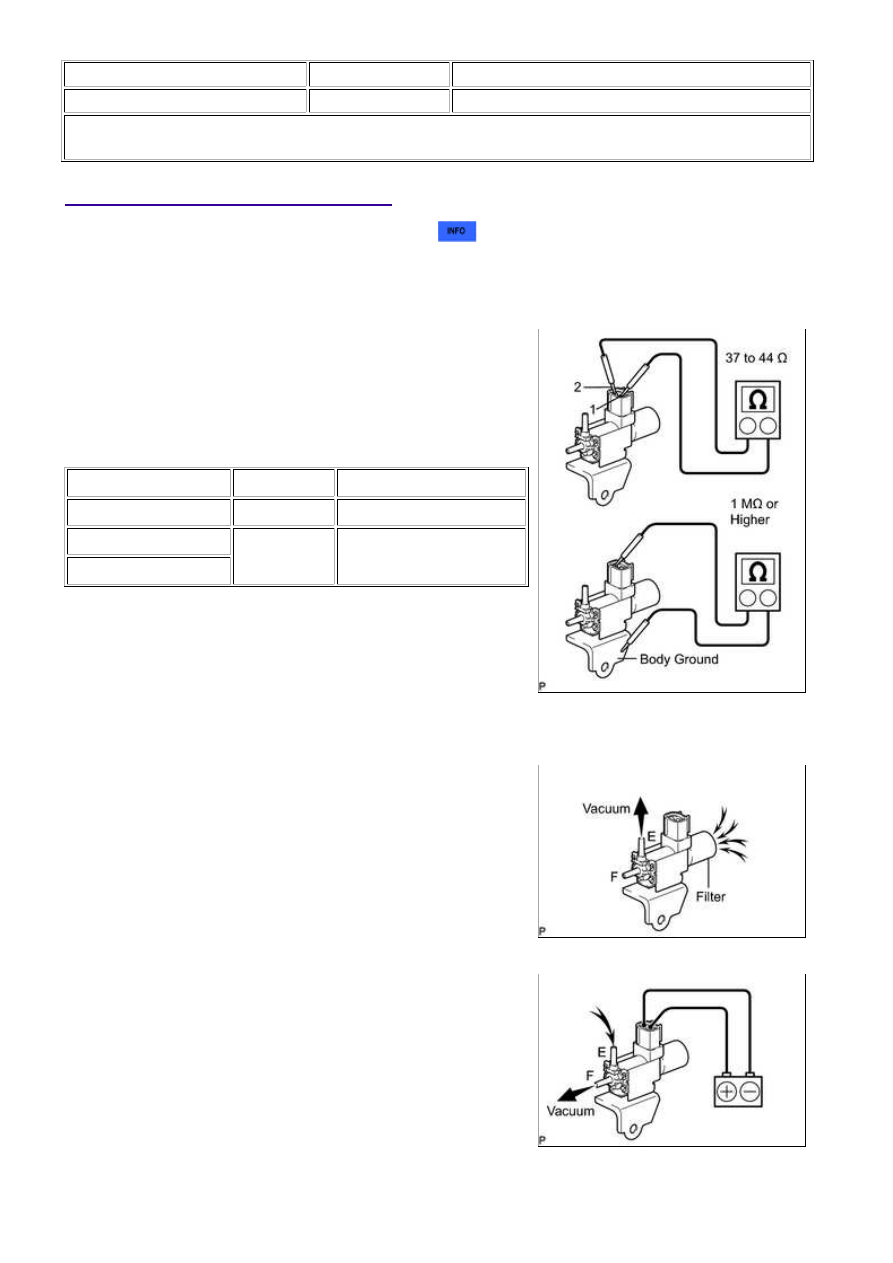

2. INSPECT VACUUM SWITCHING VALVE ASSEMBLY (for ACIS)
(a) Disconnect the vacuum switching valve connector.
(b) Measure the resistance according to the value(s) in the table
below.
Standard resistance:
TESTER CONDITION
CONDITION
SPECIFIED CONDITION
1 - 2
20°C (68°F)
37 to 44 Ω
1 - Body ground
Always
1 MΩ or higher
2 - Body ground
If the result is not as specified, replace the vacuum switching
valve assembly.
(c) Check the vacuum switching valve operation.
(1) When applying a vacuum to port E, check that air is
sucked into the filter.
If the result is not as specified, replace the vacuum
switching valve assembly.
(2) Apply voltage across the terminals.
(3) When applying a vacuum to port F, check that air is sucked into port E.
