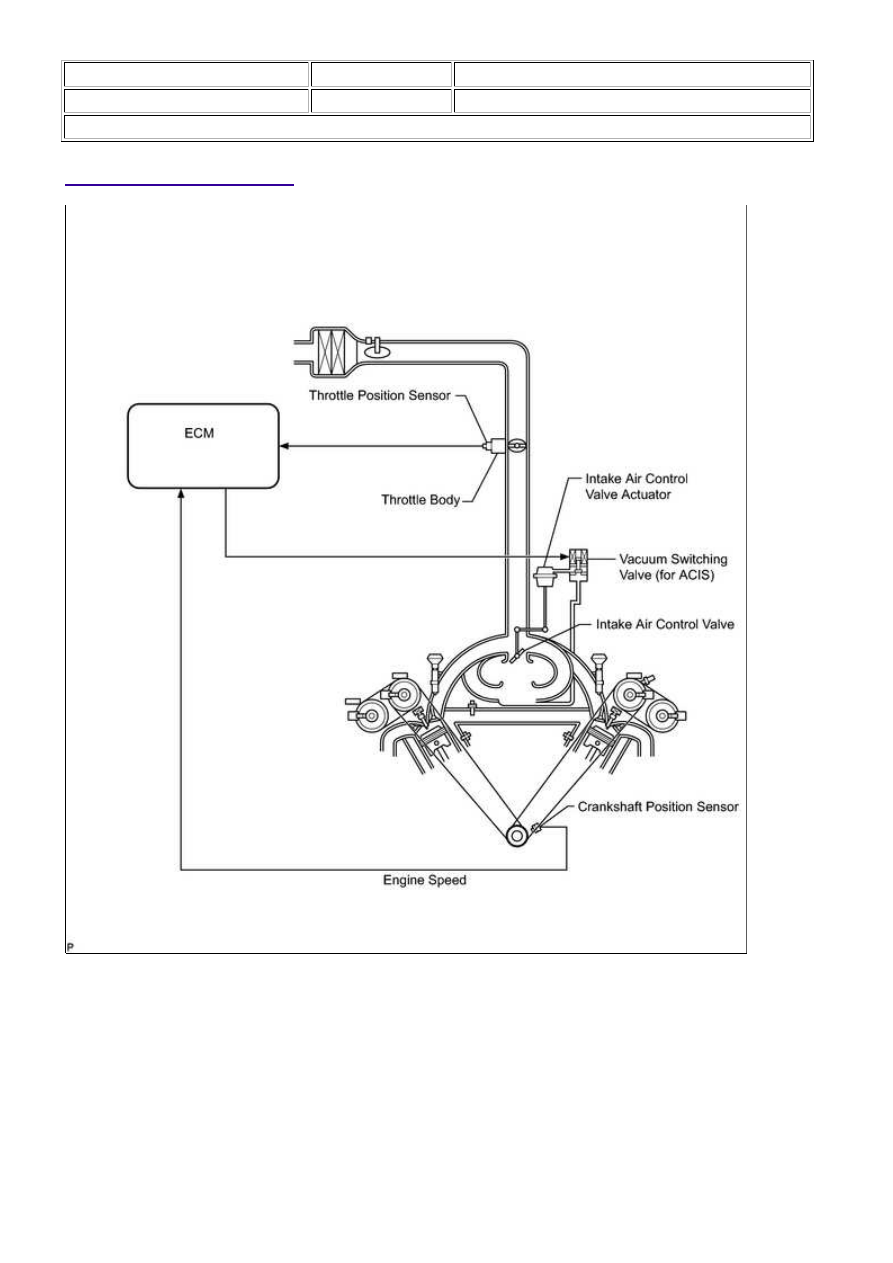

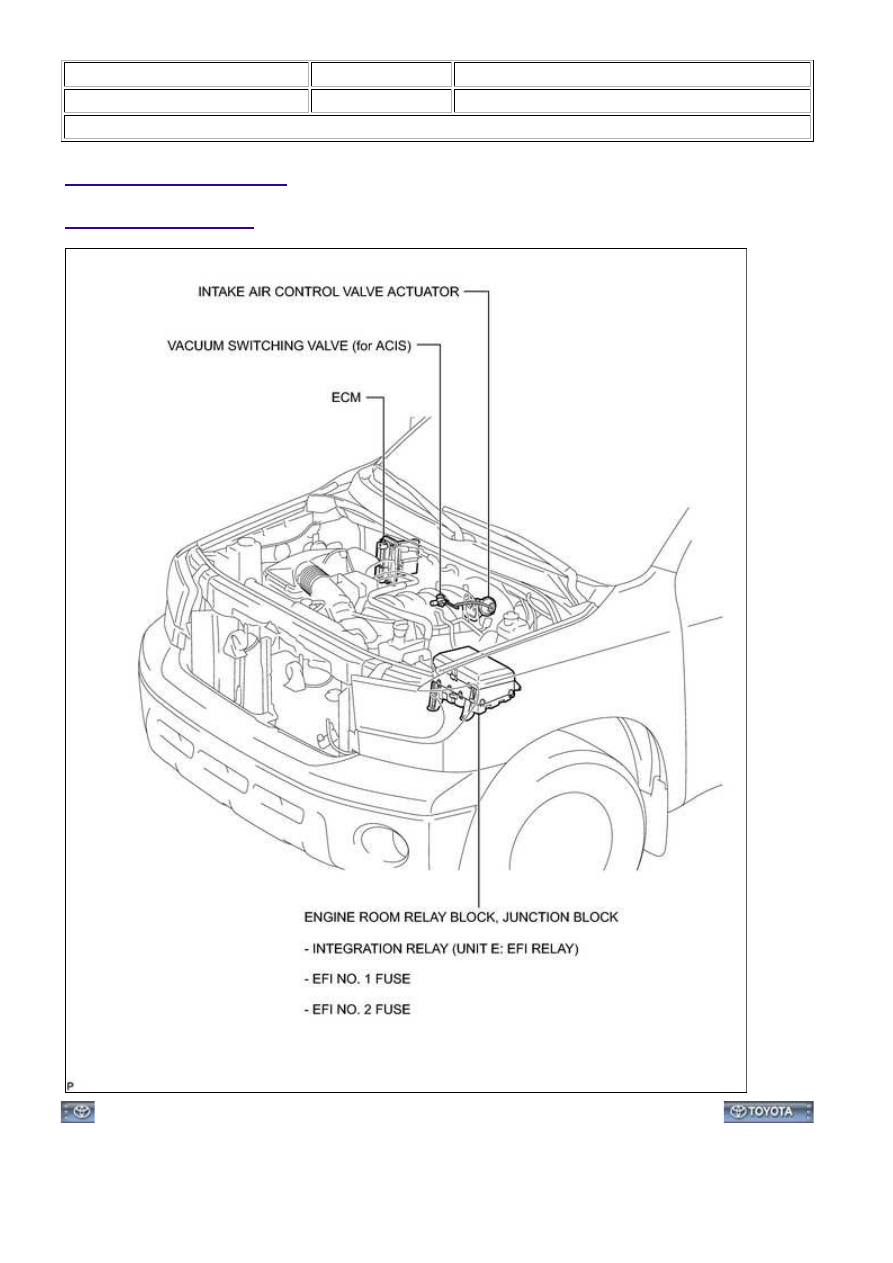

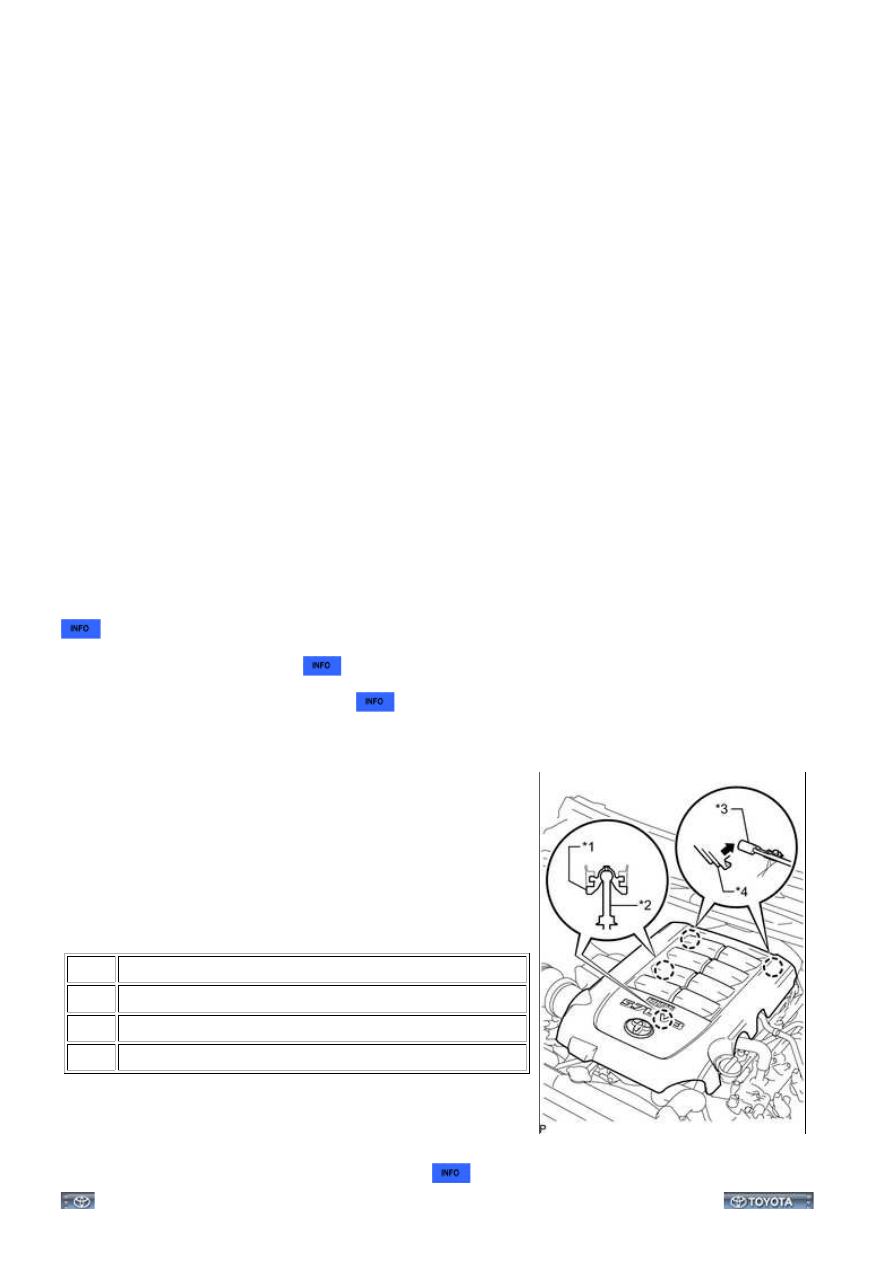

(k) Connect the 2 water by-pass hoses to the inlet water housing and front water by-pass joint, and slide the 2 clamps to secure the hose. (l) Connect the throttle body connector to the throttle body assembly. (m) Install the No. 3 engine cover. (n) Install the No. 1 engine cover sub-assembly. 9. CONNECT VENTILATION HOSE ASSEMBLY 10. INSTALL AIR CLEANER HOSE ASSEMBLY (a) Install the air cleaner hose assembly with the 2 hose clamps. Torque: 4.0 N·m {41 kgf·cm, 35in·lbf} (b) Connect the vacuum hose to the air cleaner hose assembly. (c) Connect the ventilation hose to the air cleaner hose assembly, and slide the clamp to secure the hose. 11. INSTALL COWL TOP OUTER PANEL SUB-ASSEMBLY (a) Install the cowl top outer panel sub-assembly with the 7 bolts. Torque: 7.5 N·m {76 kgf·cm, 66in·lbf} (b) Connect the washer hose and attach the 2 wire harness clamps. 12. INSTALL FRONT WIPER MOTOR AND LINK ASSEMBLY 13. ADD ENGINE COOLANT 14. INSPECT FOR COOLANT LEAK 15. INSTALL V-BANK COVER SUB-ASSEMBLY (a) Attach the 2 V-bank cover hooks to the No. 1 V-bank cover bracket. Then align the 2 V-bank cover grommets with the 2 pins, and press down on the V-bank cover sub-assembly to attach the pins. Text in Illustration *1 V-bank Cover Grommet *2 Pin *3 No. 1 V-bank Cover Bracket *4 V-bank Cover Hook 16. INSTALL NO. 1 ENGINE UNDER COVER 3UR-FE INTAKE: INTAKE MANIFOLD: INSTALLATION; 2015 MY... |
